4" Passive Wall Speaker - 16 Ω - Black

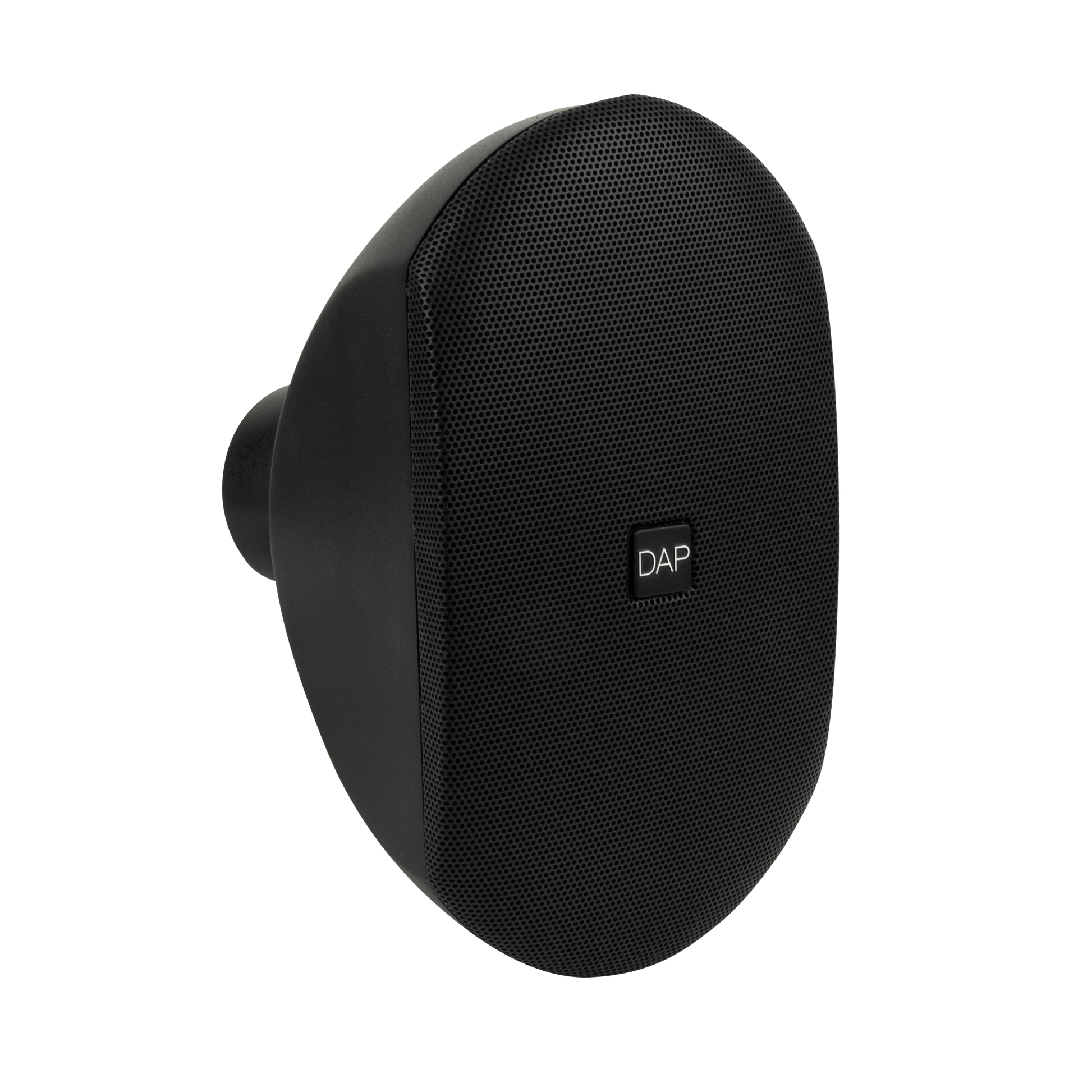

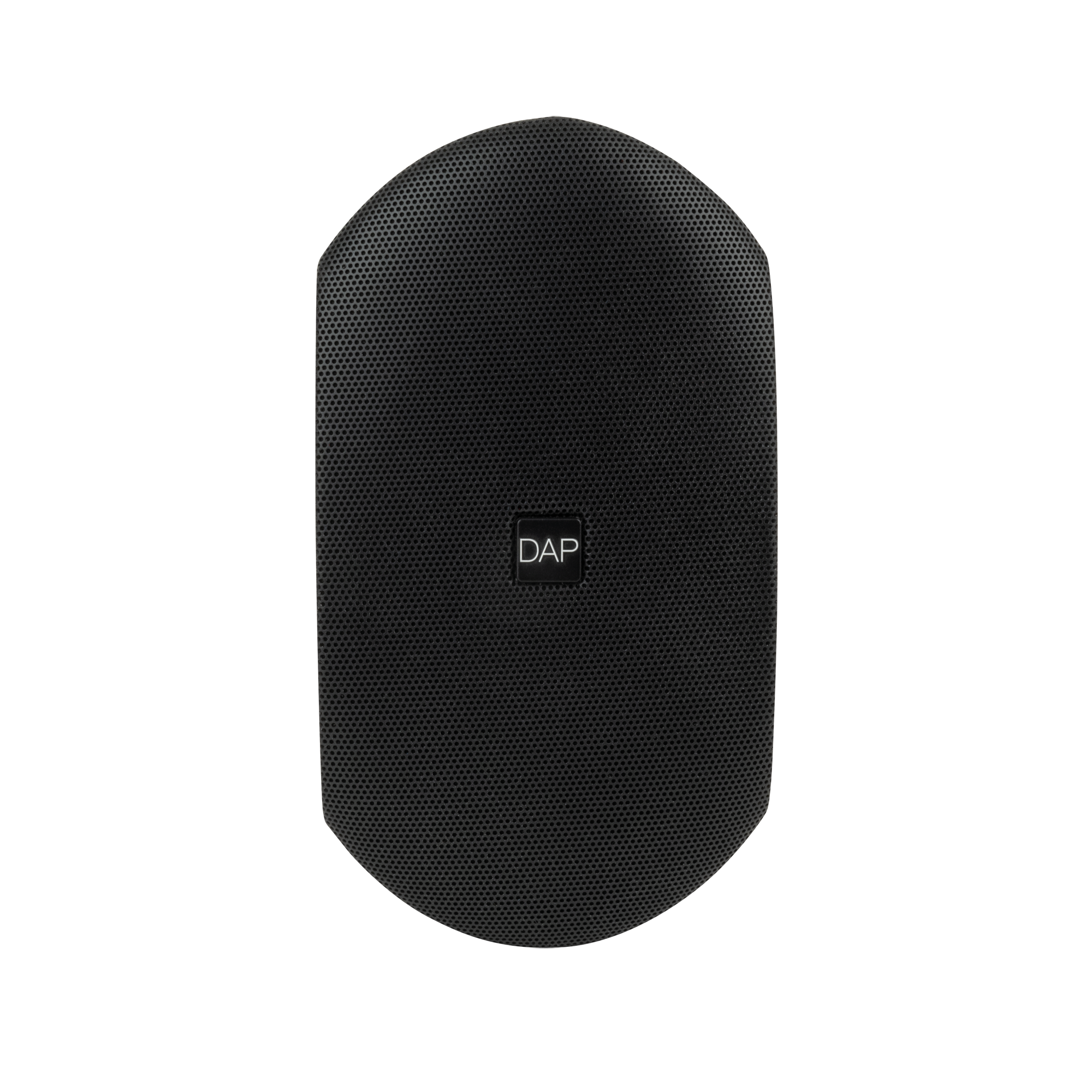

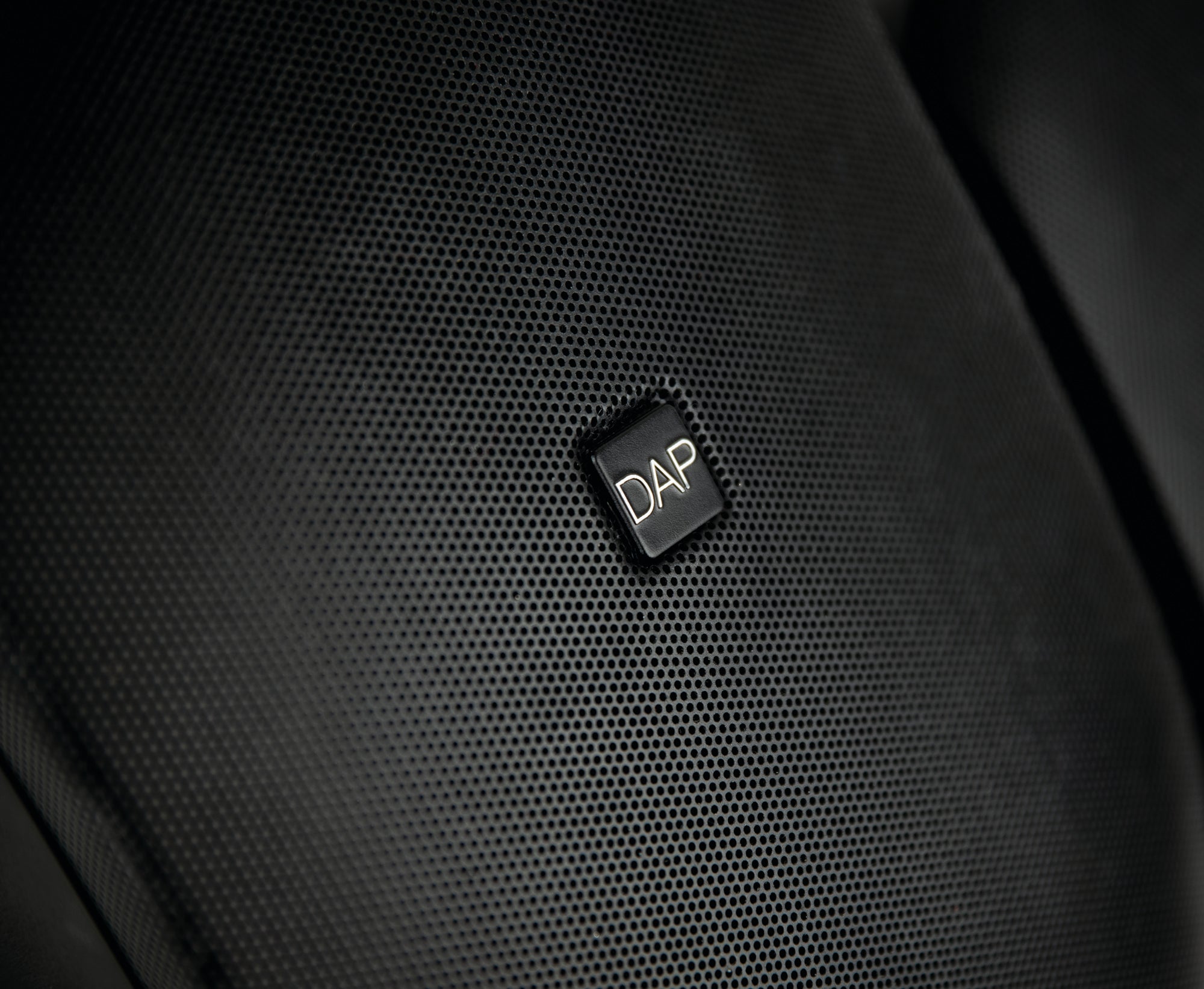

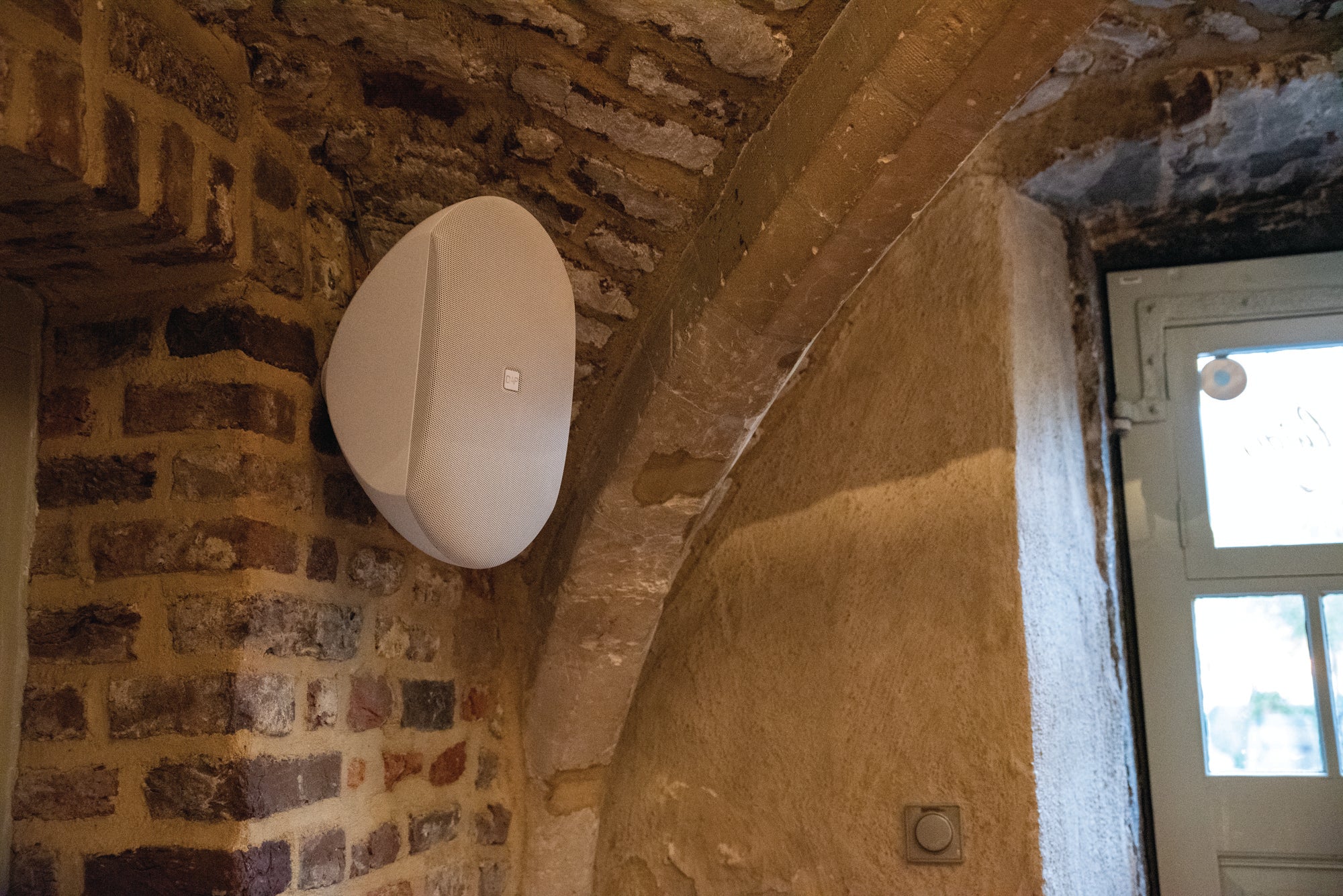

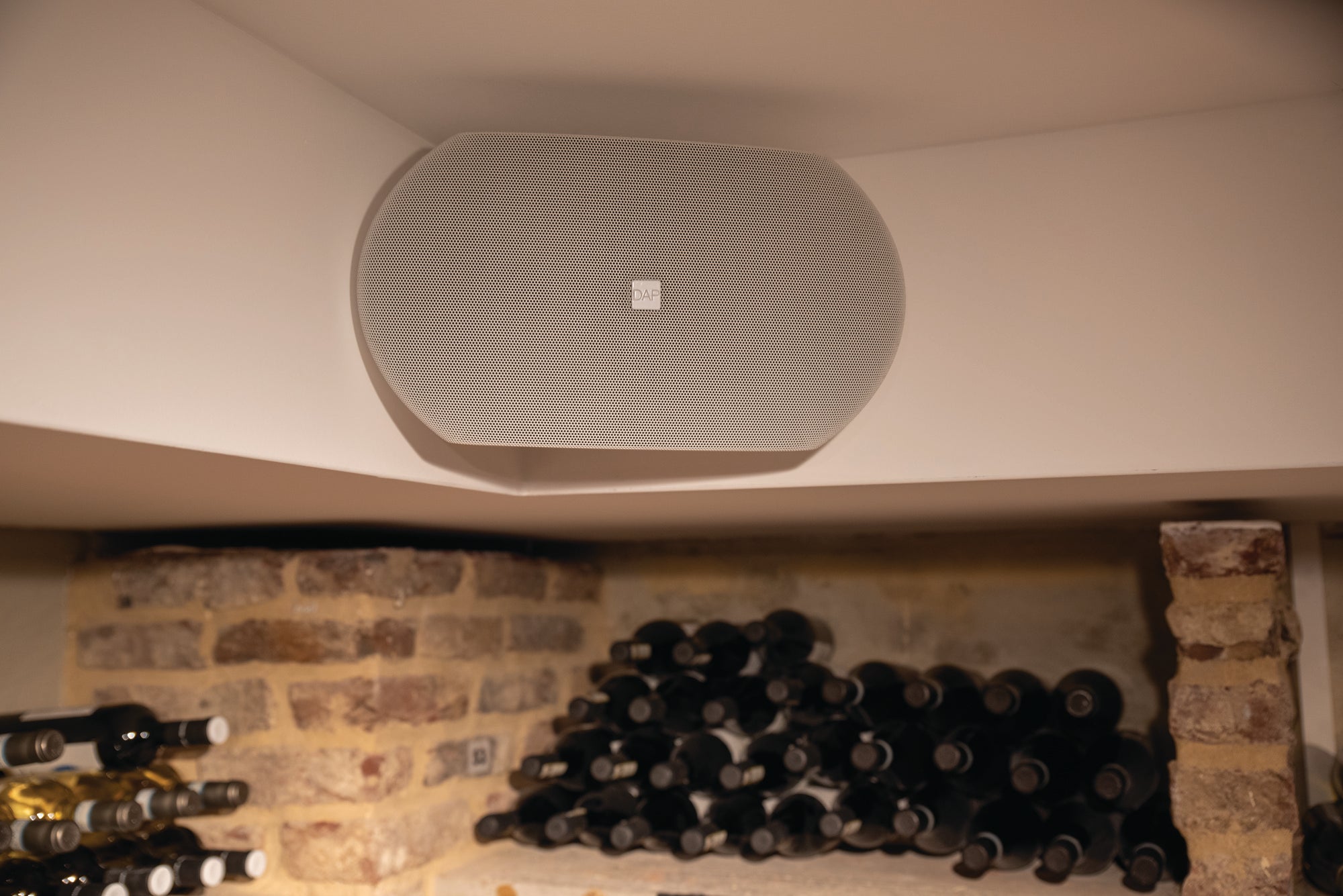

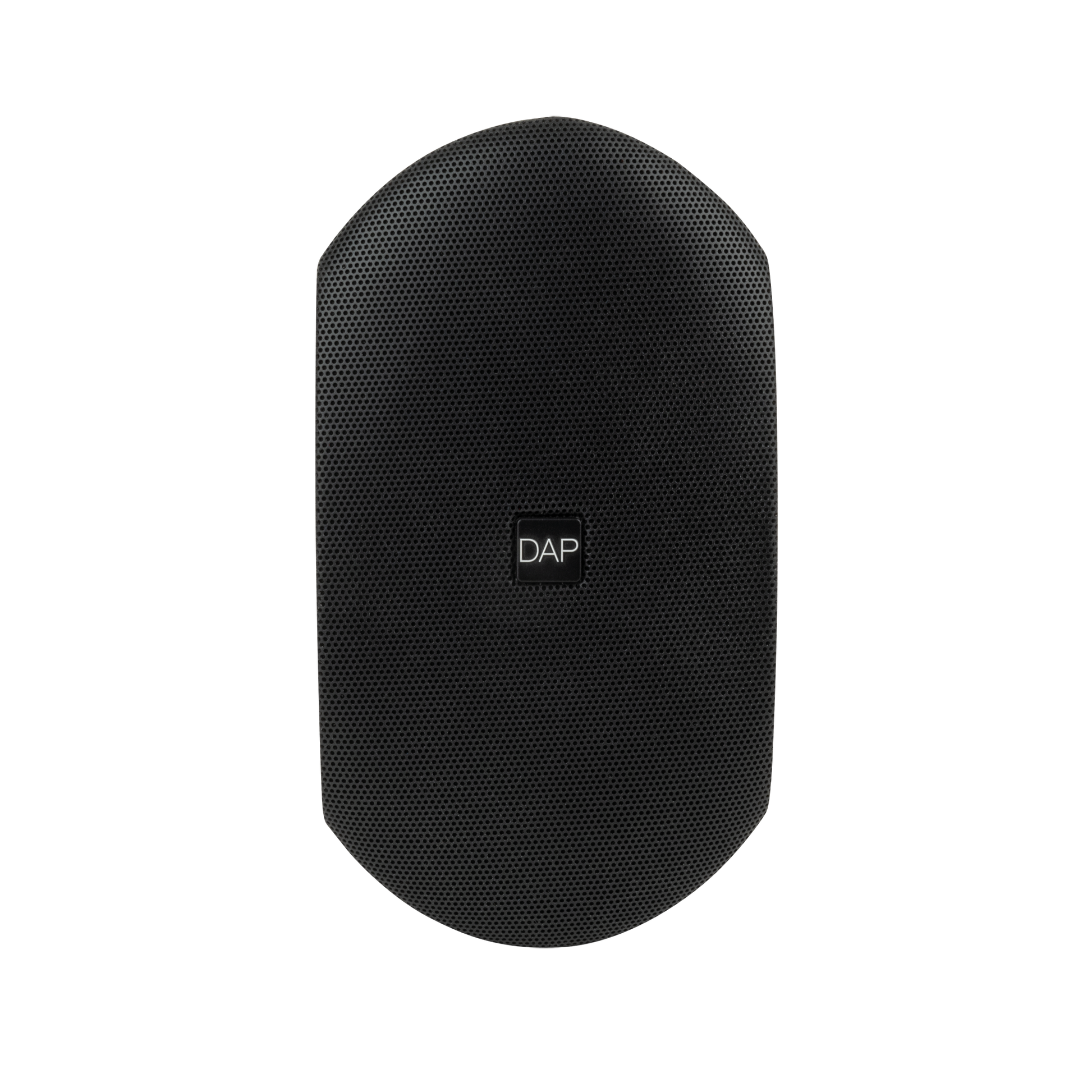

The DAP WMS speaker series was designed with versatility in mind. With 4 and 6-inch models, they are suitable for use in various environments, including shops, bars, restaurants, and even clubs.Thanks to the included wall mounting plate, DAP WMS speakers are incredibly easy to install and can be mounted horizontally or vertically. Thanks to the ball joint, they can be easily rotated and adjusted in angle. The DAP logo on the front of the speaker is also rotatable, so it will always be the right way up.
Each model is available in 16-ohm and 100V versions. The 100V versions feature a multiple power tap on the back, allowing the volume to be easily adjusted to match other components in the system. Thanks to the 2-way system of the speakers, all models provide clear, full-range sound.
DAP WMS speakers feature a robust ABS housing with an IP54 rating, protecting them from dust and water splashes. This means they can also be used in humid environments and sheltered outdoor locations.

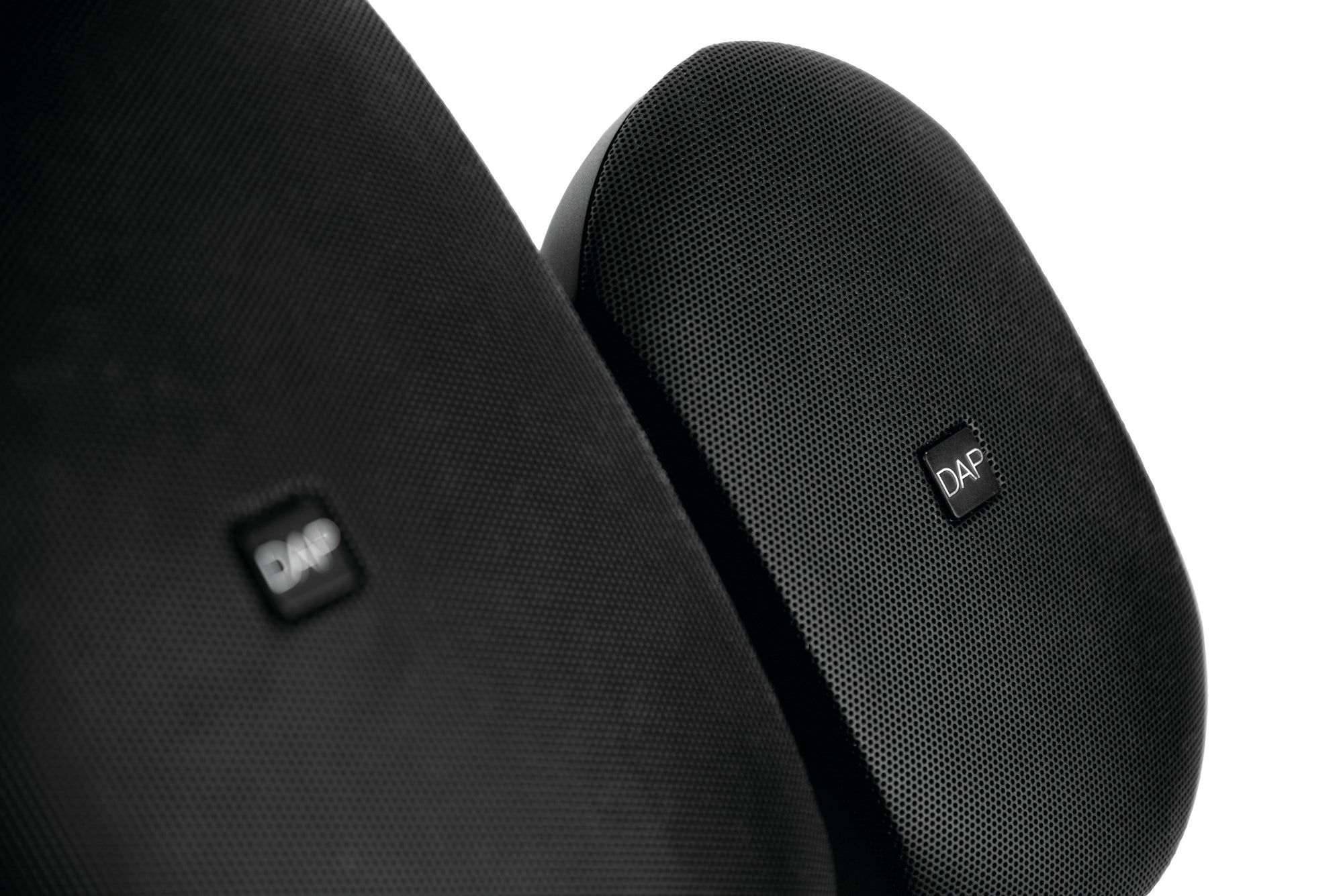

Available in black and white, the stylish DAP WMS speakers blend seamlessly into any environment.

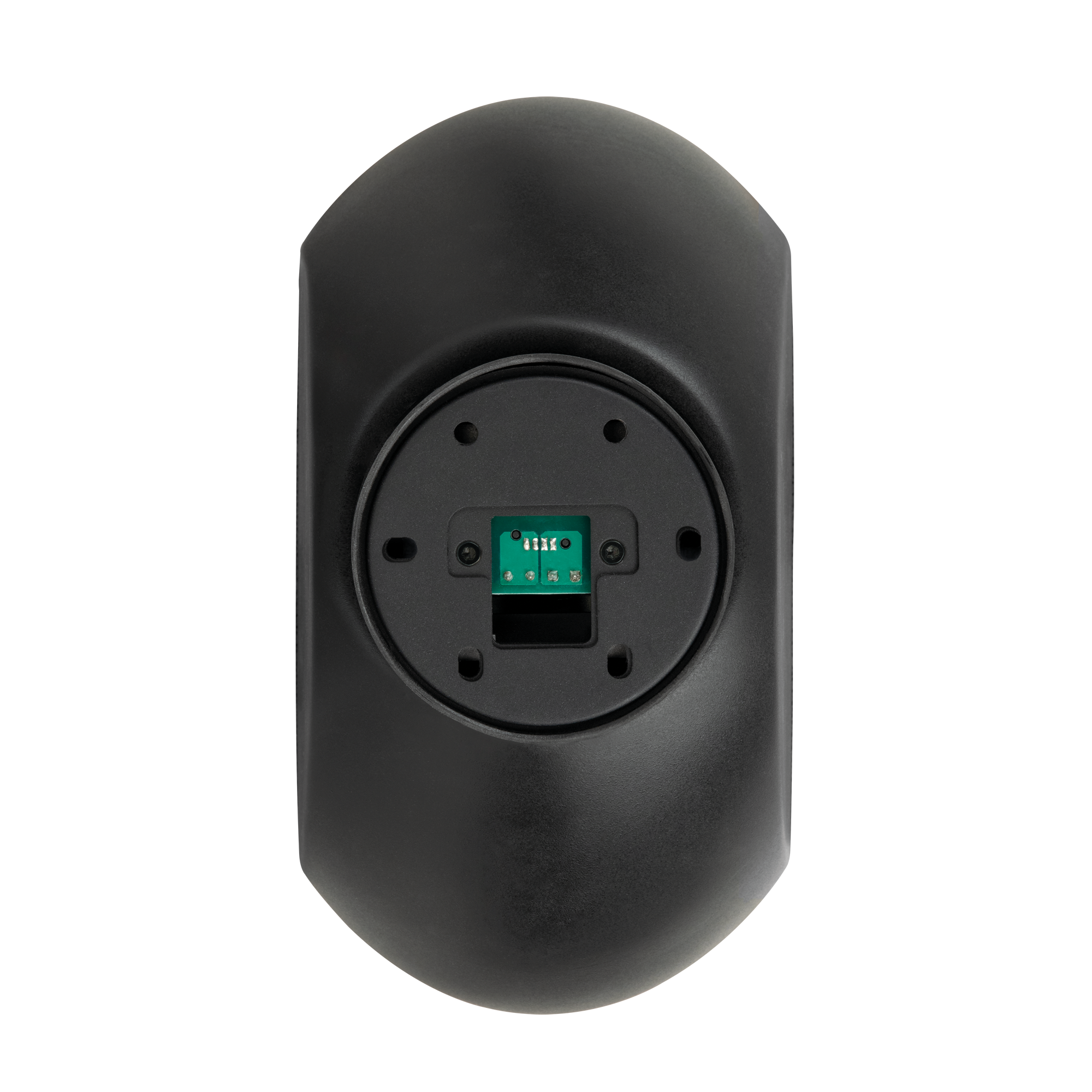

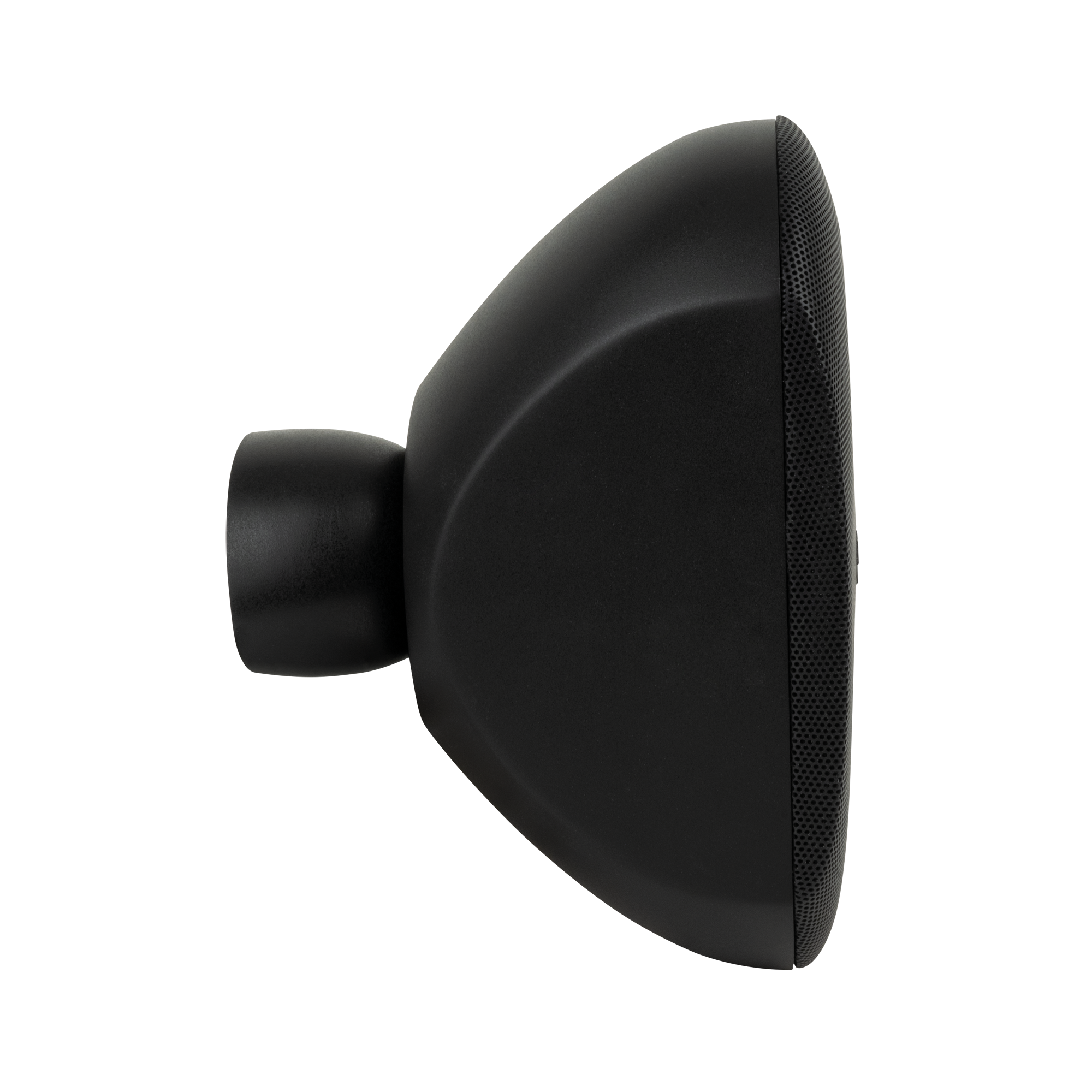

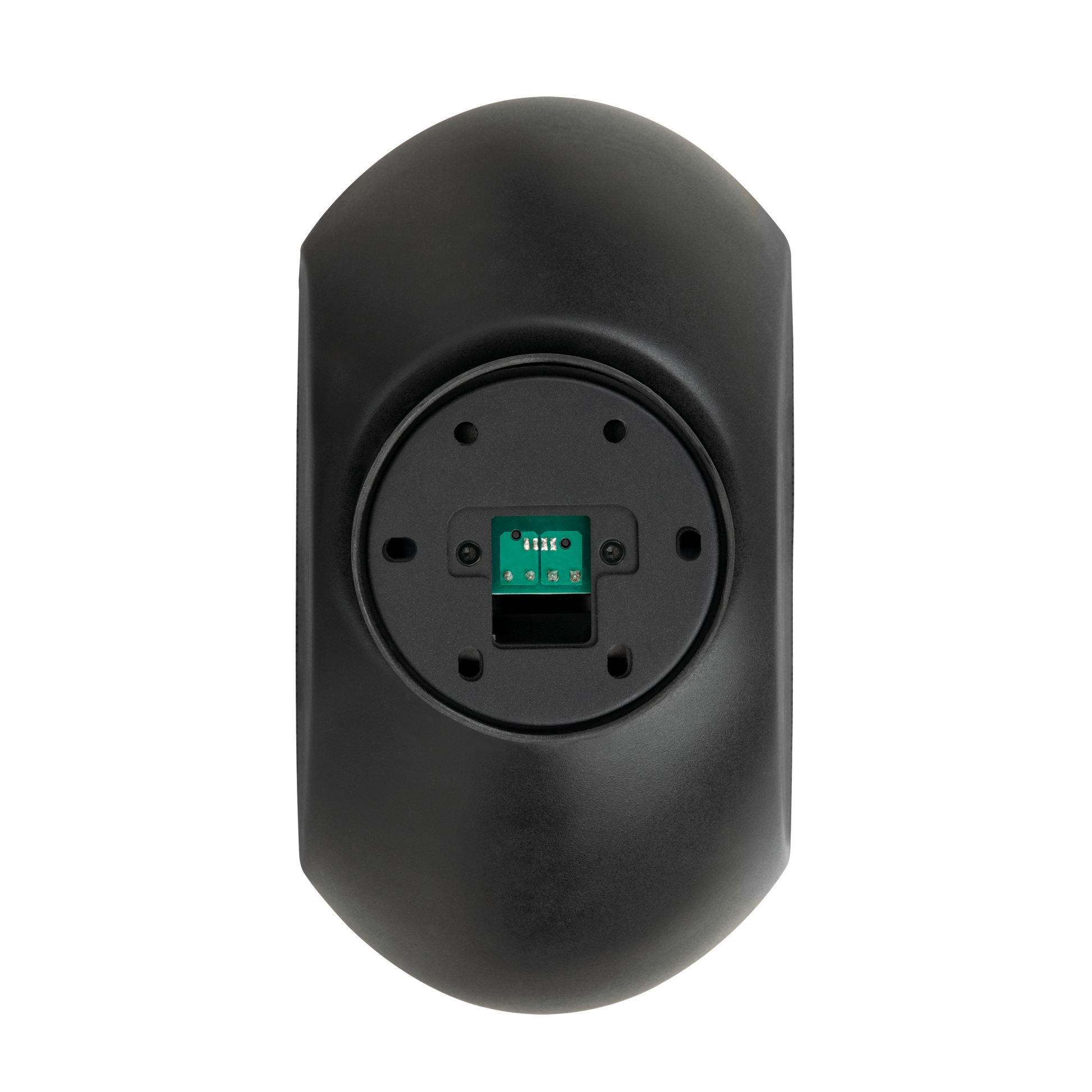

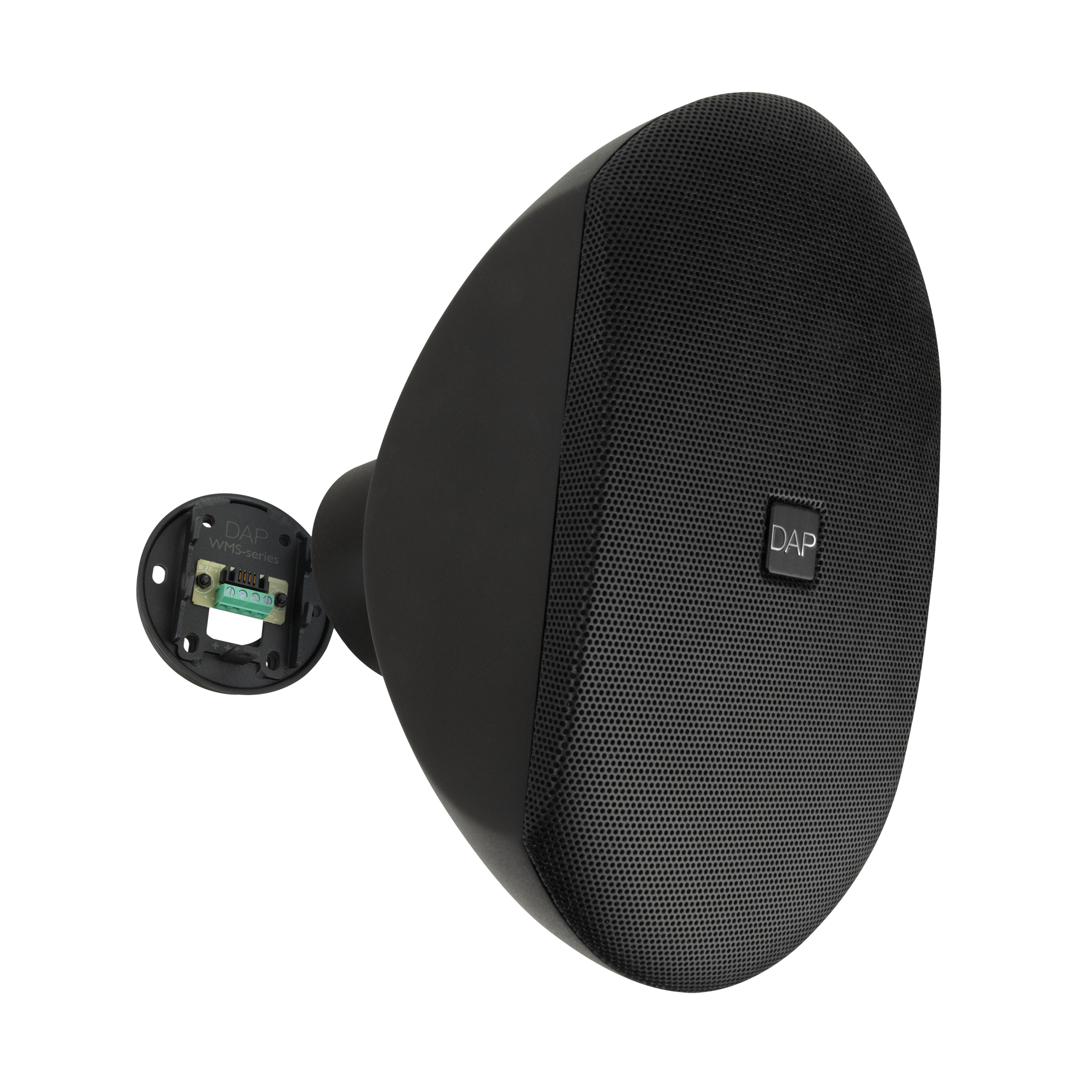

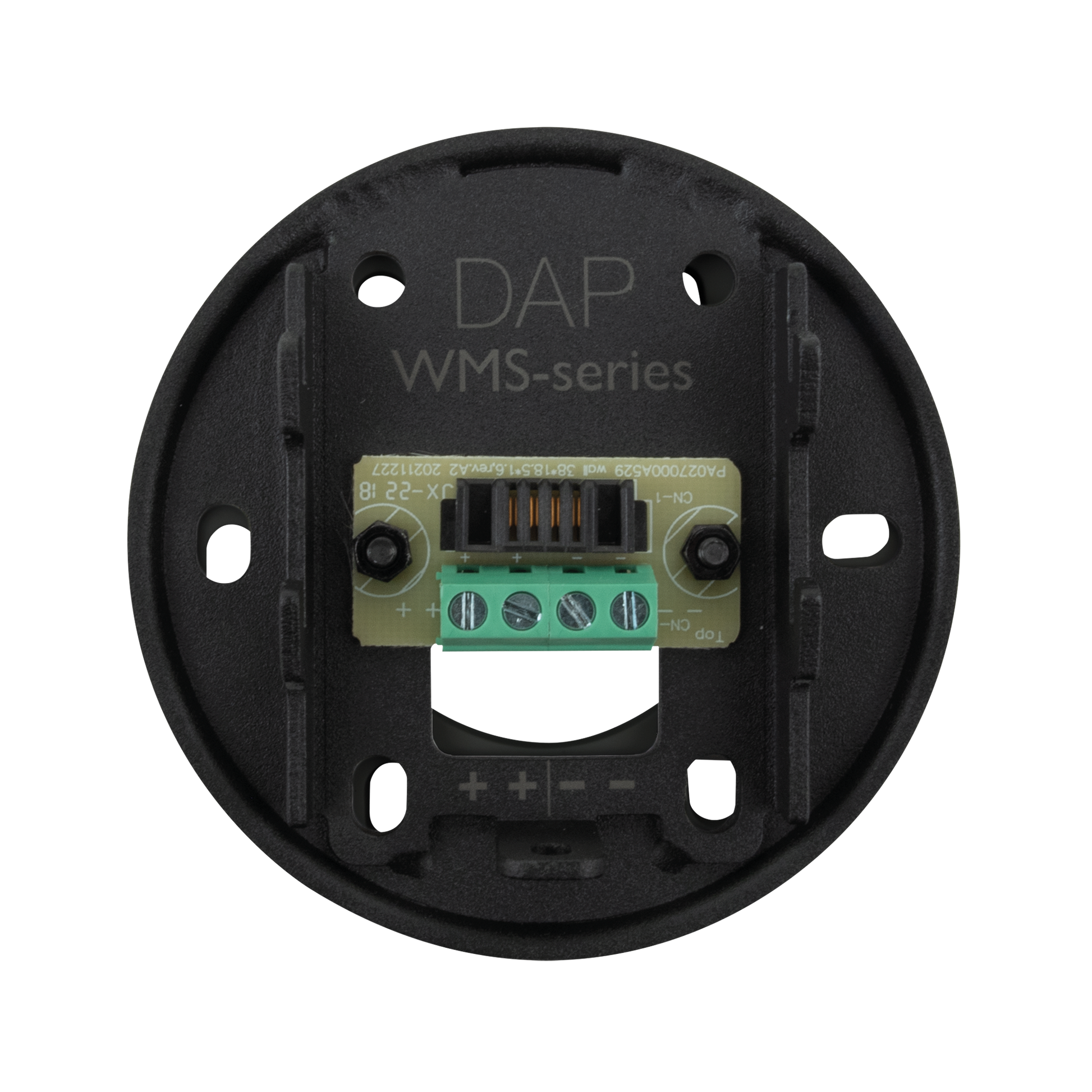

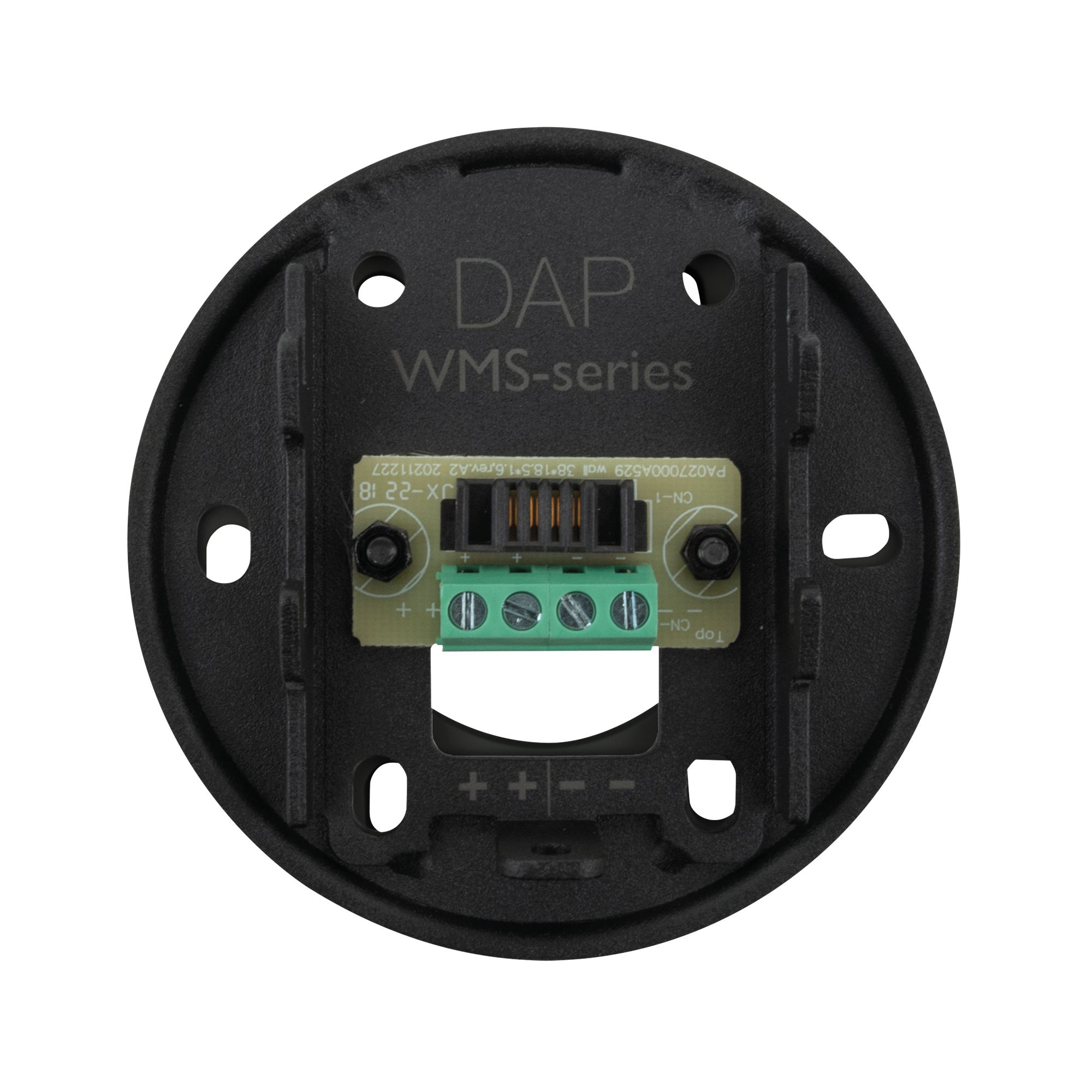

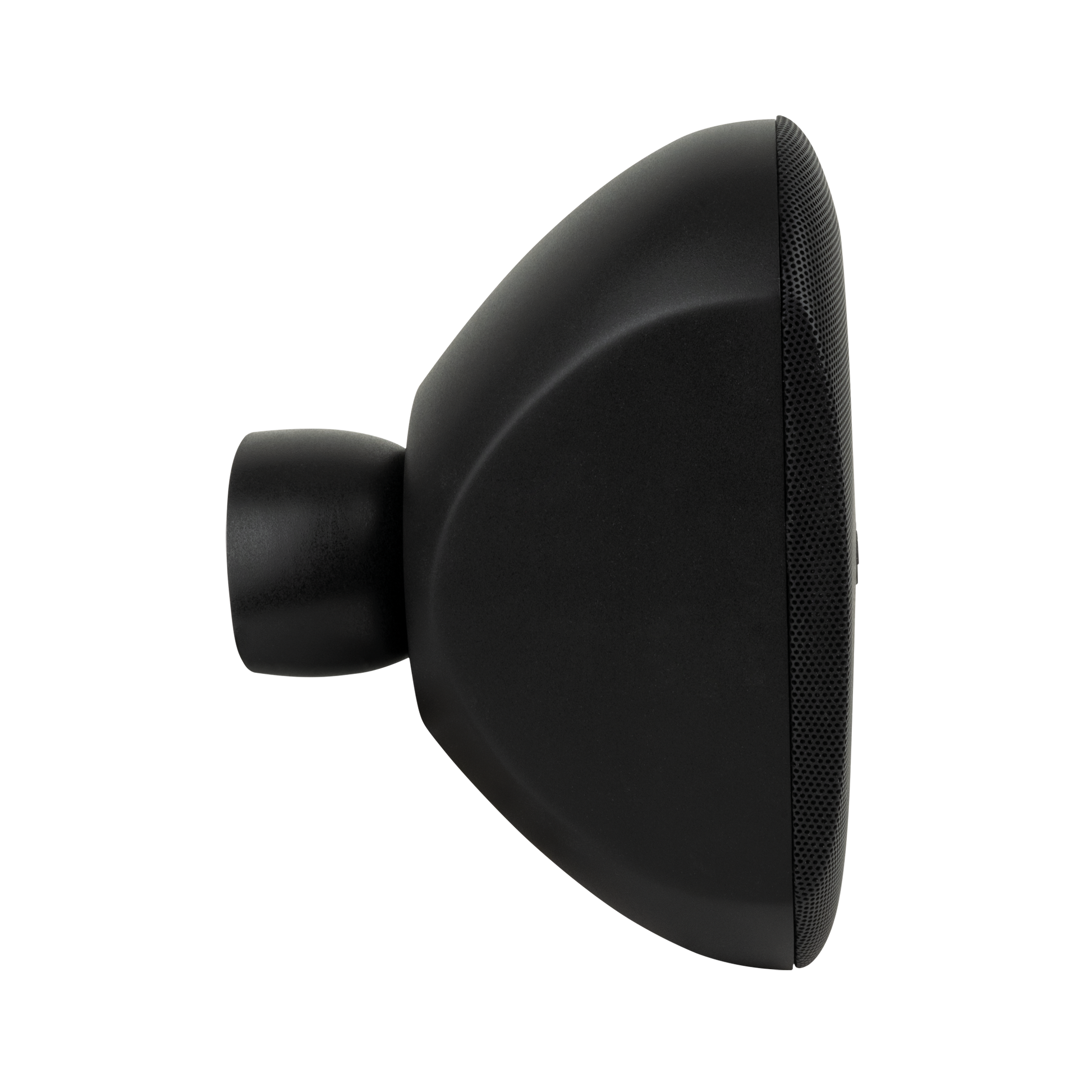

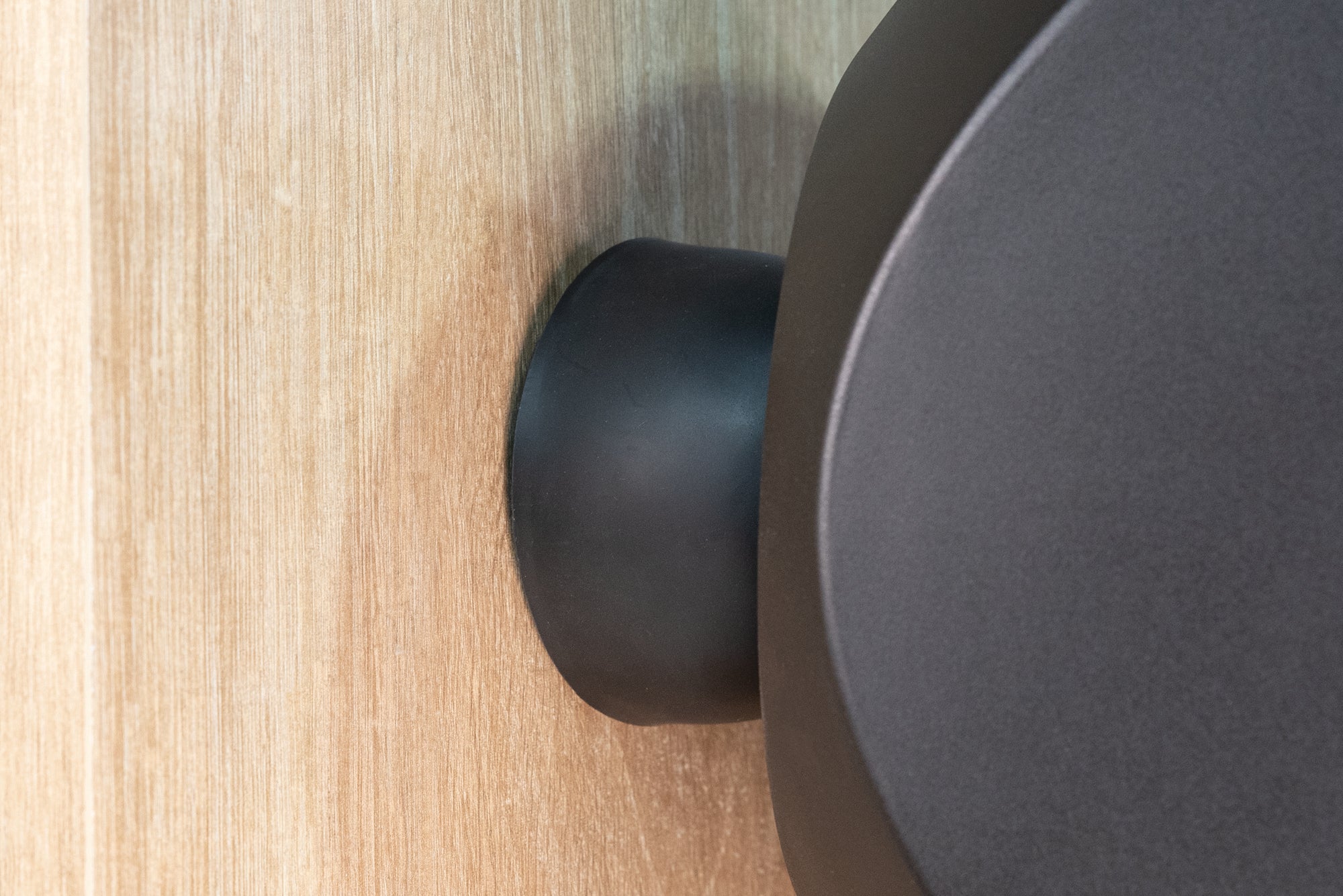

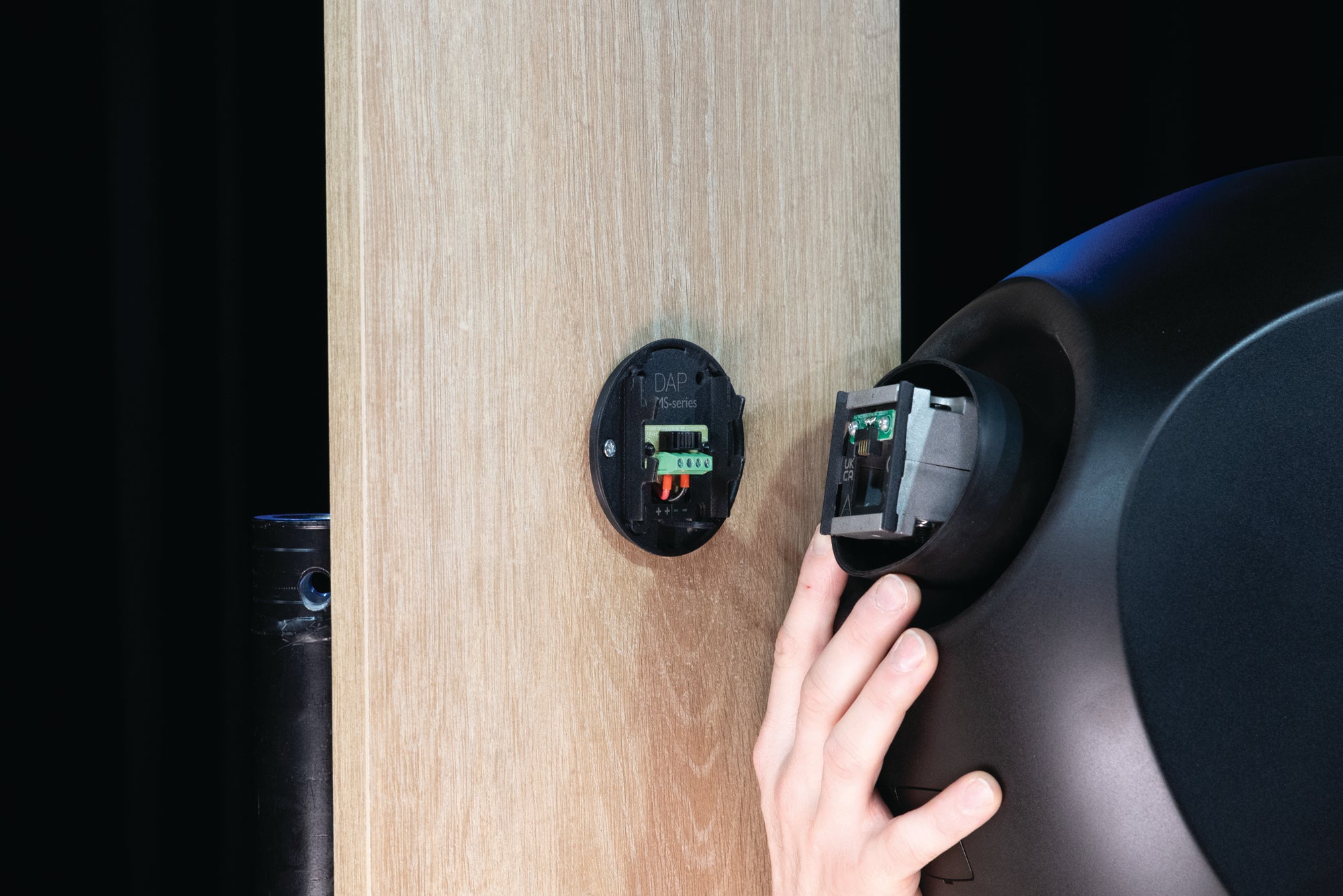

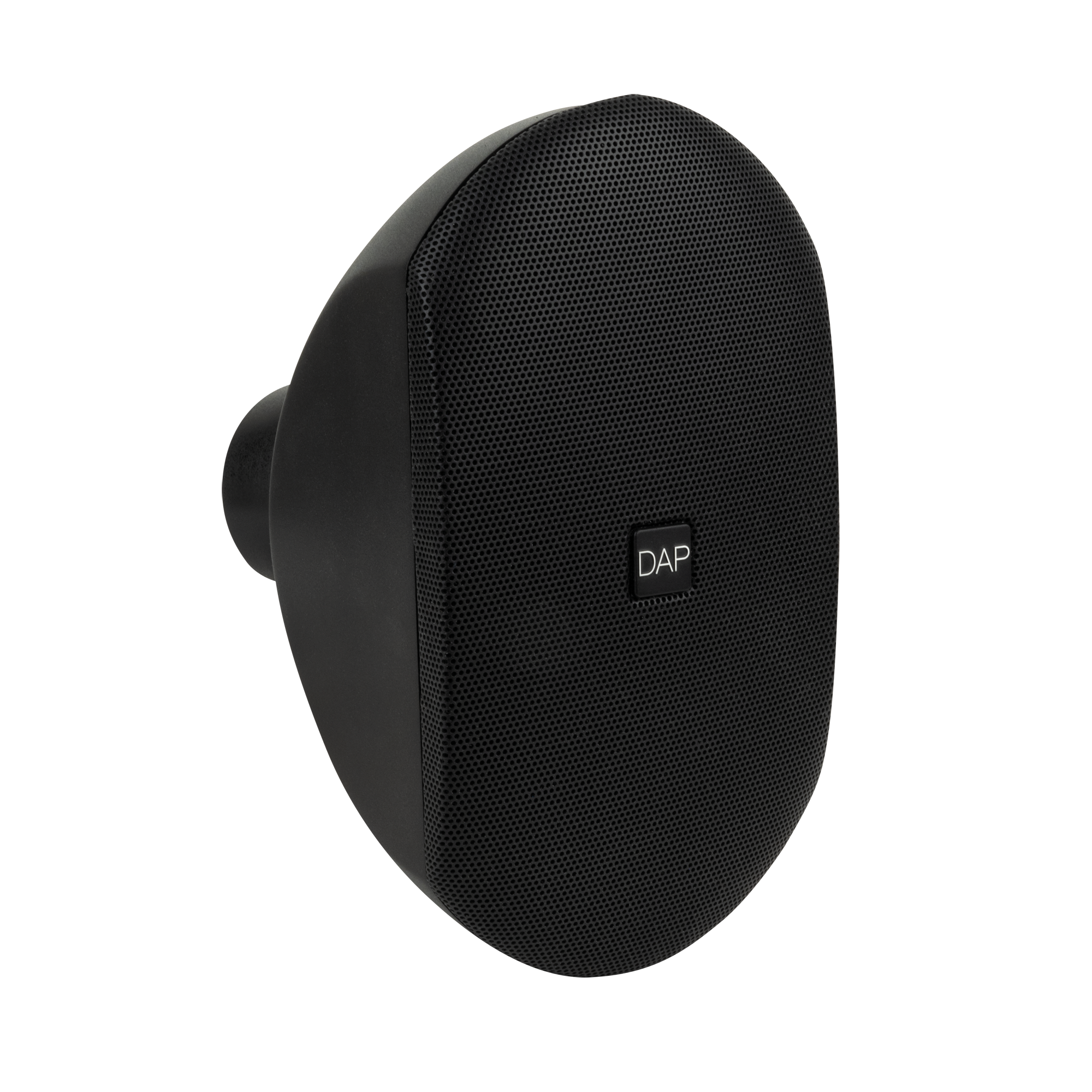

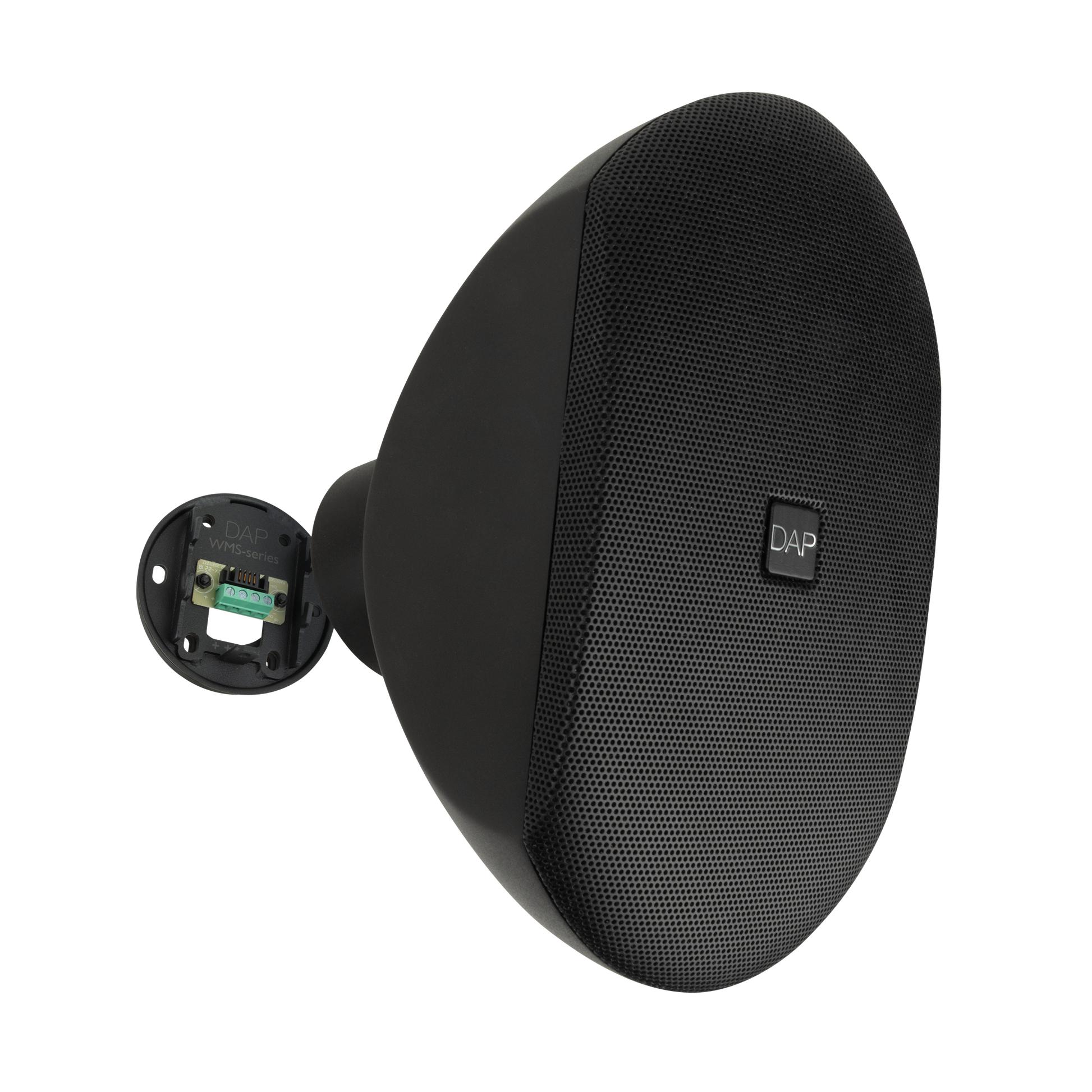

The DAP WMS4-B is a 4-inch passive wall speaker suitable for low-impedance audio installations. The clever design of this speaker allows for installation simply by using the included wall mount plate. This feature is very useful for installers, allowing them to finish the job quickly. Furthermore, it is a versatile speaker design that uses a ball joint for tilting up to 30° vertically and horizontally and for rotation up to 90°. Therefore, the DAP logo on the front is rotatable. Thanks to the quick and easy installation and versatile applicability, this type of speaker is very popular in public spaces such as shops, restaurants, and even clubs.
The WMS4-B features a 2-way system that gives it clear, full-range sound. With a maximum RMS power of 20 watts (80W peak), it can produce an SPL of up to 98.5 dB at 1 meter.
A robust ABS housing protects against dust and water splashes. This means that the speakers can also be used in humid and sheltered outdoor locations, for example, on a porch.
SPECIFICATIONS
- RMS Input Power: 20 W
- Peak Input Power: 80 W

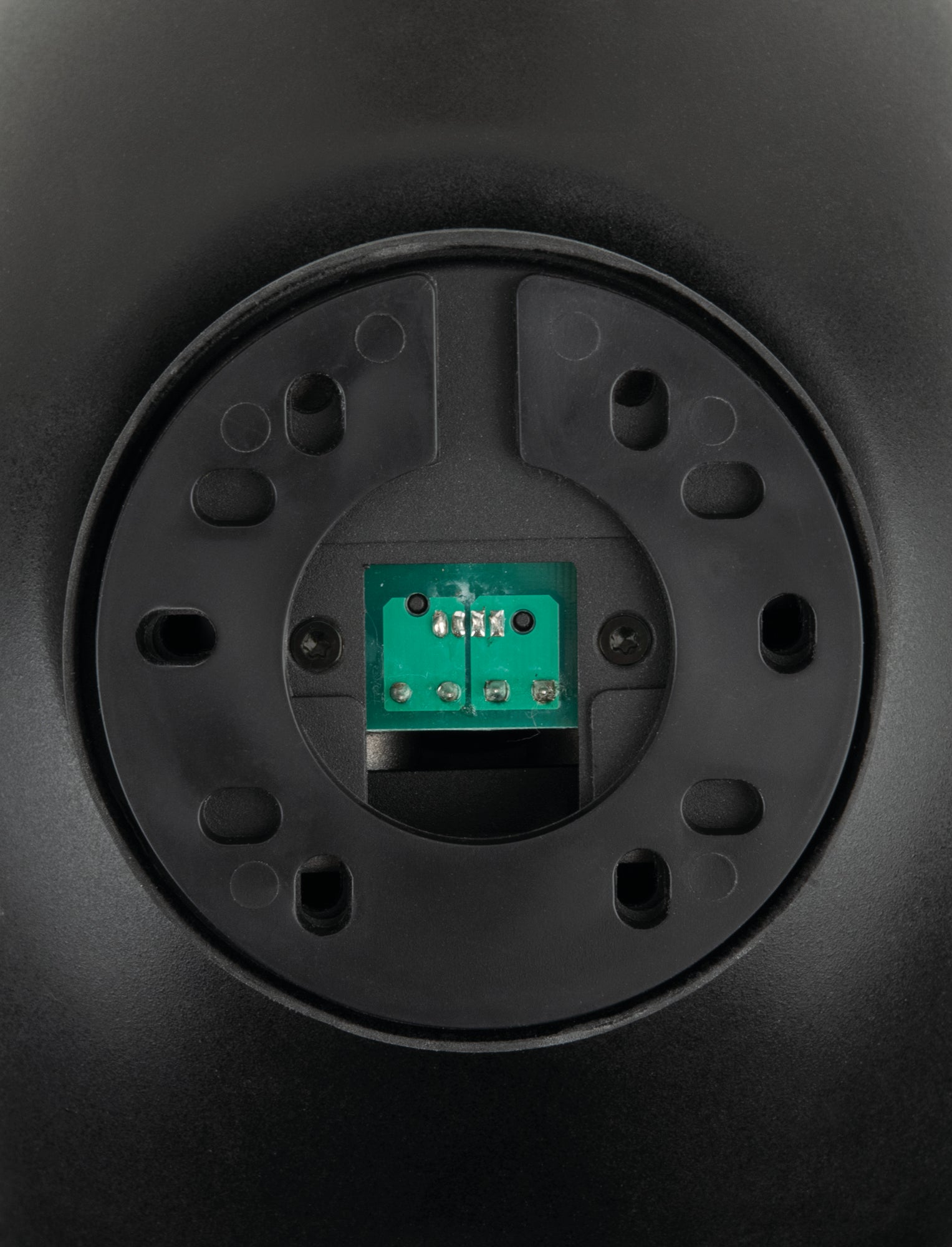

- Passive Input Connection: Terminal
- Passive Output Connection: Terminal
- Speaker System: 2-way
- Speaker Sensitivity (1W/1m): 86.5 dB
- Speaker Impedance: 16 Ω
- Max SPL at 1m: 98.5 dB
- Minimum Frequency Response: 90 Hz
- Maximum Frequency Response: 20000 Hz
- Woofer Diameter: 4"
- Woofer Voice Coil: 1"
- Woofer Magnet Type: Ferrite
- Driver Voice Coil: 0.7"
- Driver Magnet Type: Ferrite
- Horizontal Dispersion Angle: 60°
- Vertical Dispersion Angle: 30°
- Height (mm): 260 mm
- Width (mm): 144 mm
- Length (mm): 180 mm
- Depth (mm): 180 mm
- Installation Depth (excluding connector): 180 mm
- Material: ABS
- Colour: Black
- Finish: Painted
- Weight: 1.7 kg
- IP Rating: IP54
- Speaker Grille: Aluminium
- Maximum Ambient Temperature: 45 °C
- Minimum Ambient Temperature: -10 °C
