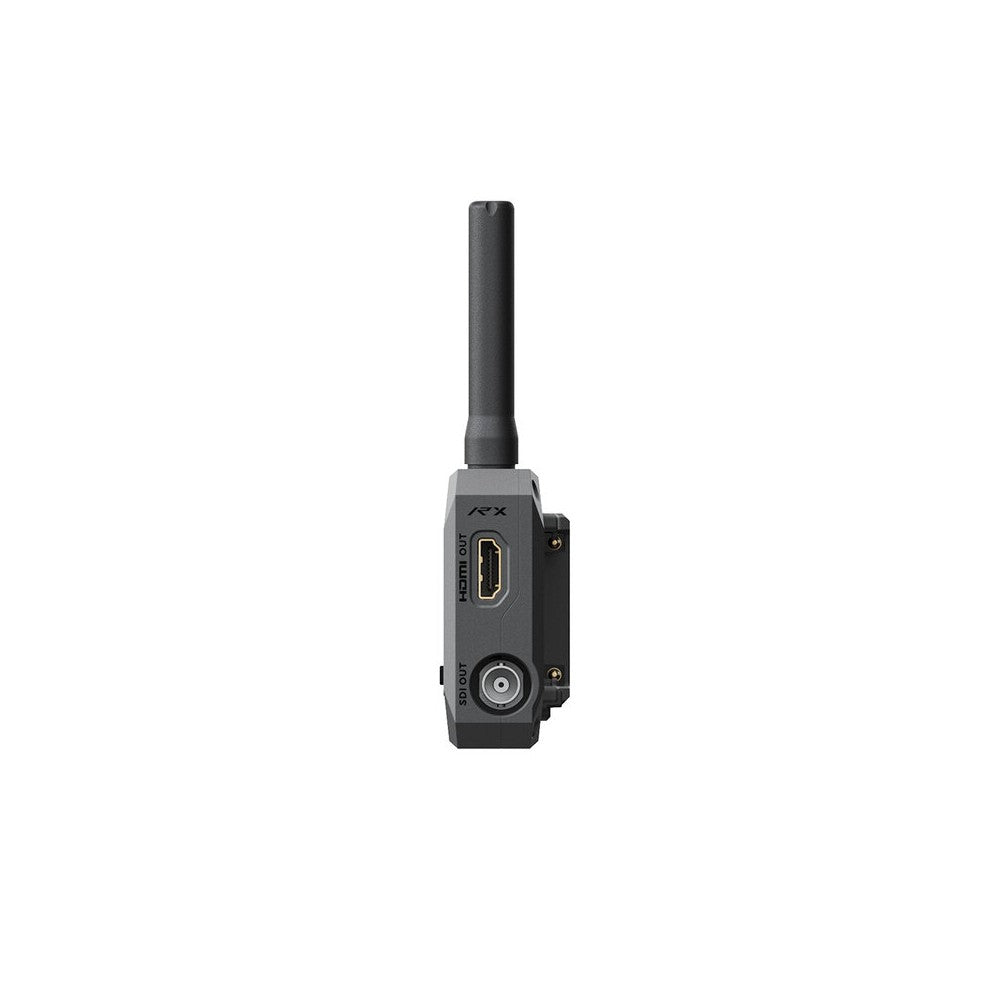

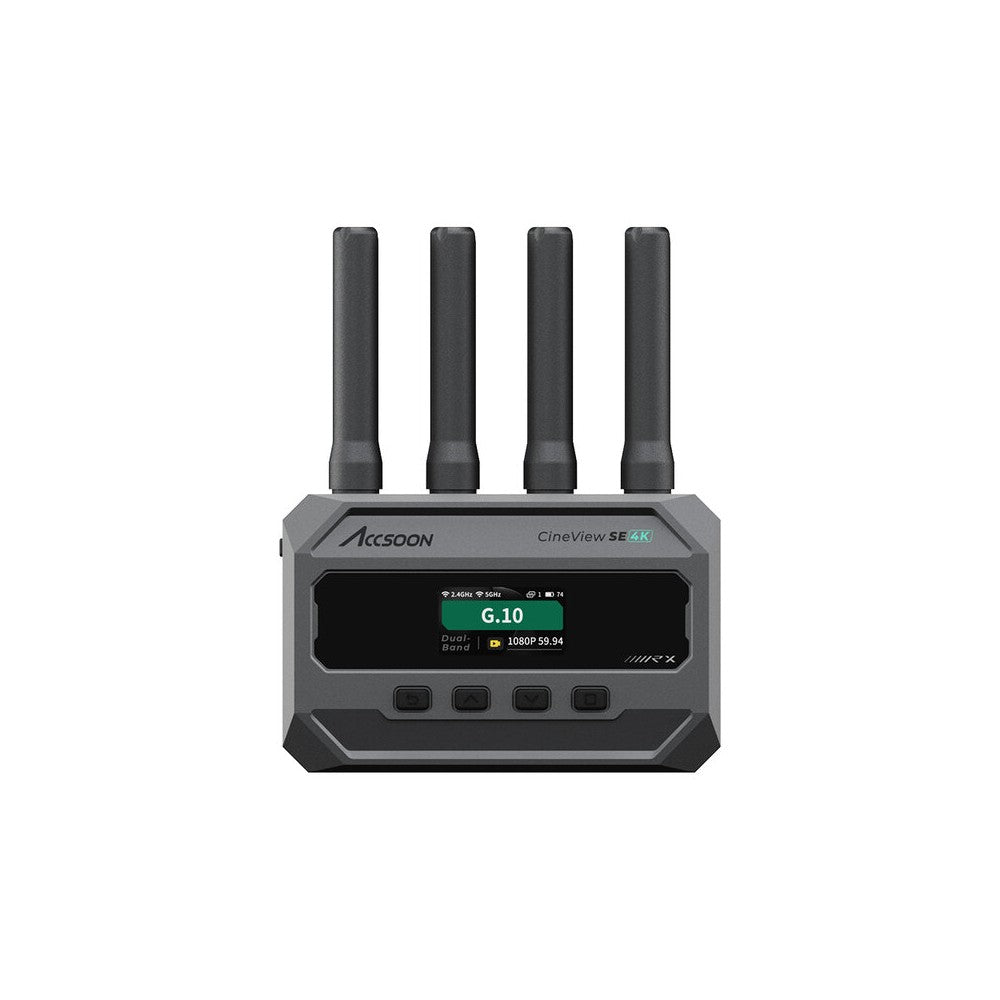

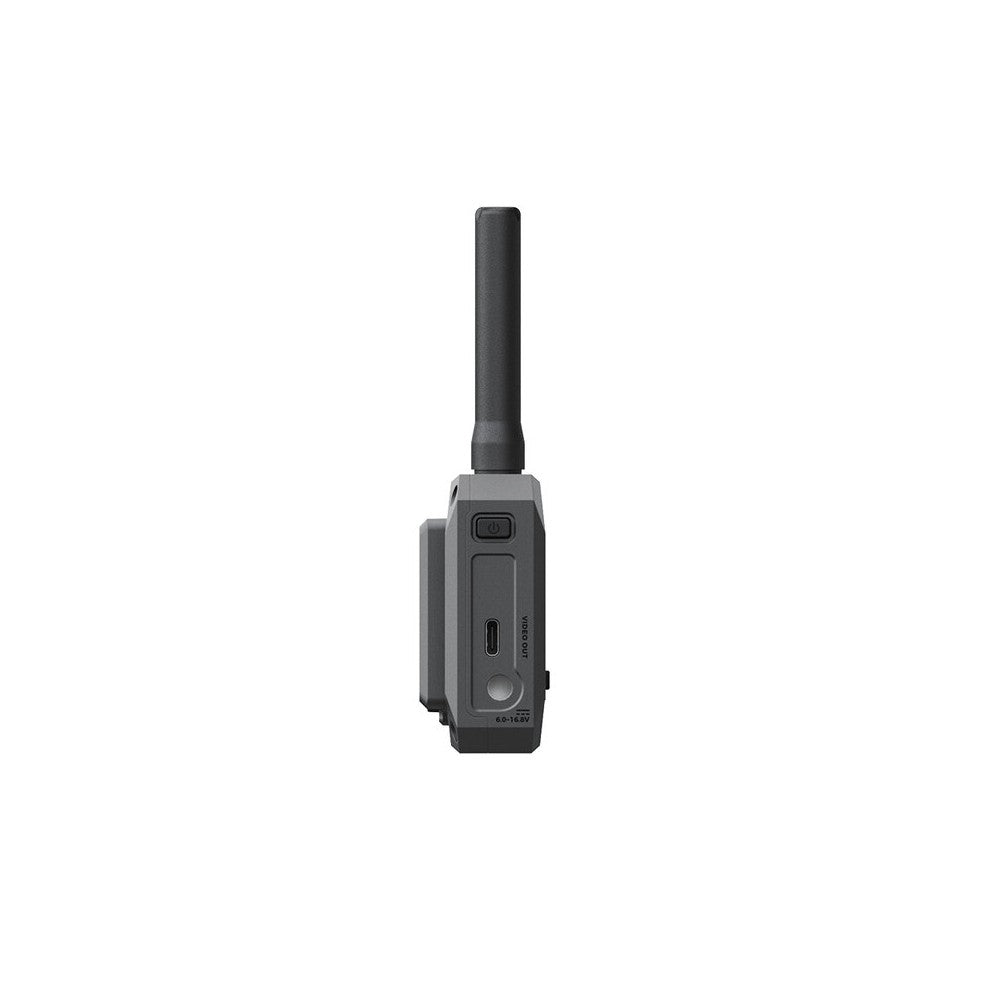

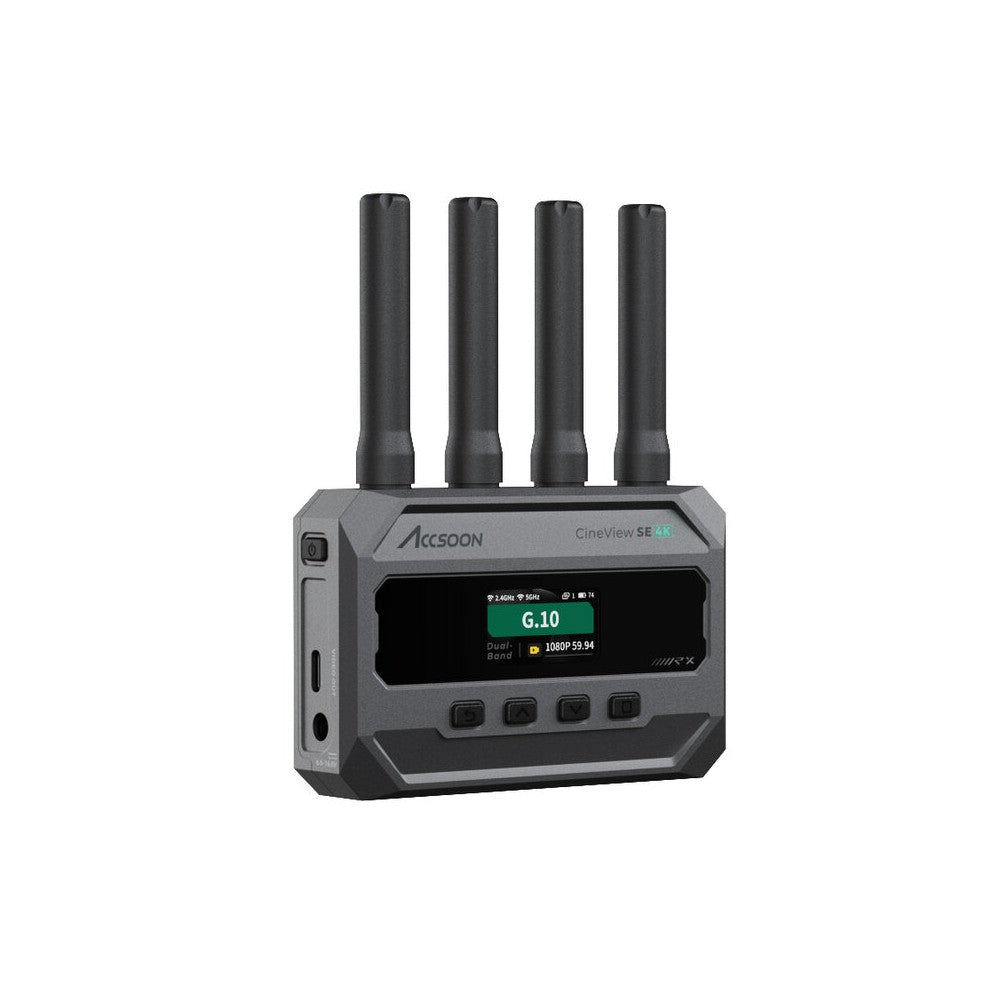

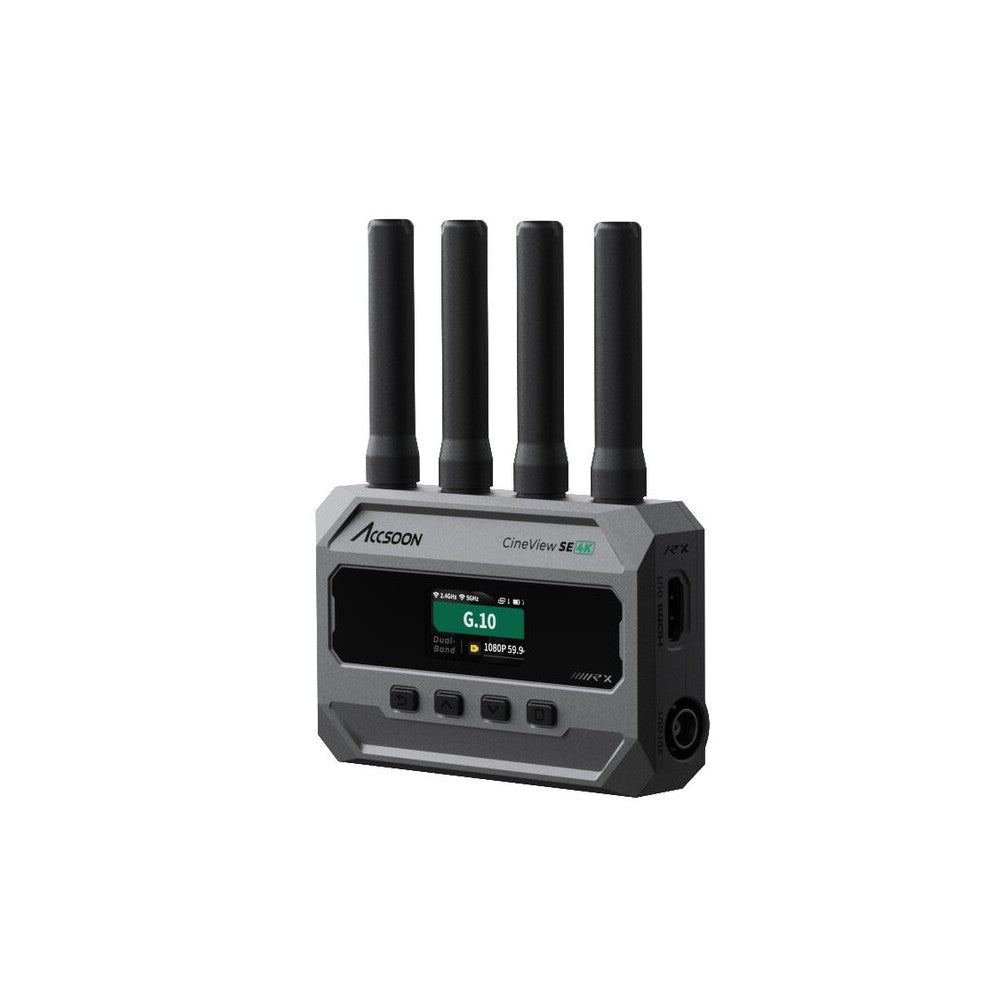

ACCSOON 4K dual-band wireless AV receiver for reliable on-set signal reception, 50ms latency, 400m range, SDI/HDMI/USB-C
Paga in 3 rate da €93,00 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES
The CineView SE 4K receiver is a cutting-edge device designed to provide high-quality 4K 30 fps wireless video and audio reception for crisp, smooth images. It utilizes patented Dual Band technology that combines 2.4 and 5 GHz frequency bands, ensuring a stable and reliable connection even in complex environments, thanks in part to its 4 antennas.
Outputs include both HDMI (in 4K 30) and SDI (1080p 60).
The CineView SE 4K receiver wirelessly receives video and audio signals from supported transmitters and transmits them via HDMI, SDI, or USB to monitors and mobile devices. Compatible transmitters include: CineView SE 4K, CineView Master 4K, CineView Master 4K Lite Receiver, CineView M7 Pro (TX mode), and CineView M7H Pro (TX mode).
CineView SE 4K is compact and lightweight, weighing only 245g without antennas thanks to a robust aerospace-grade aluminum structure. It is designed for fanless operation for maximum quietness, ideal for noise-sensitive recording environments. A practical 1.05" color LCD screen facilitates device monitoring and configuration.
The addition of wired USB transmission, on both the transmitter and receiver, allows for connecting a mobile device to be used as a professional monitor, significantly increasing on-site monitoring flexibility.
Regarding power, it supports various options, including NP-F batteries and DC power, offering great flexibility for field use. Technical specifications include support for various video formats for both SDI and HDMI outputs, and a typical power consumption of 4.4 W, making it energy efficient.
Its compact dimensions, ability to operate across a wide temperature range (-10 to 40 °C), and the availability of a professional monitoring app for iOS and Android (updatable) that supports direct live streaming (RTMP), complete the picture of a high-performance and versatile device, ideal for professional video productions requiring reliability and quality.
User Benefits
- End-to-end 4K 30 fps reception
- 50 ms latency (measured at 1080p 60 fps)
- 400 m range
- USB video output
- Conversion of SDI input signal on the transmitter to HDMI output signal on the receiver
- Conversion of HDMI input signal on the transmitter to SDI output signal on the receiver
- Simultaneous SDI and HDMI outputs
- High-performance AV processor
- Power via NP-F batteries or DC input
Areas of Use
- Professional monitoring stations (director, DOP, focus puller) via SDI / HDMI monitors
- Video assist for production and clients
- Integration into broadcast control rooms, OB vans, and TV studios
- Signal distribution to multiple stations via multiple receivers
- Remote stations on complex sets (factories, extended locations, multi-camera)
- Silent setups thanks to the fanless unit
SPECIFICATIONS
- Protocol: proprietary RTMS4.0 protocol developed by Accsoon
- Video output: HDMI, 3G-SDI, USB video out
- SDI output formats: 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps Level A/B
- HDMI output formats:
- UHD 4K @ 23.98 / 24 / 25 / 29.97 / 30p
- 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
- Audio: 44.1 kHz / 48 kHz 16 / 24 bit
- Latency:
- < 50 ms (1080p)
- < 100 ms (4K) (camera latency not included)
- DC port: 5.5 x 2.1 mm, center positive
- DC voltage: 7.4 - 16.8 V (power supply not included)
- Battery: compatible with NP-F550, NP-F750, NP-F970 battery (not included)
- Transmission range: 400 m (no obstacles, no interference)
- Power consumption: 4.4 W average (without powering other devices)
- Operating environment temperature: -10 to 40 ℃
- Dimensions: 110 x 74 x 32 mm (without antennas)
- Weight: 245 g (without antennas)
