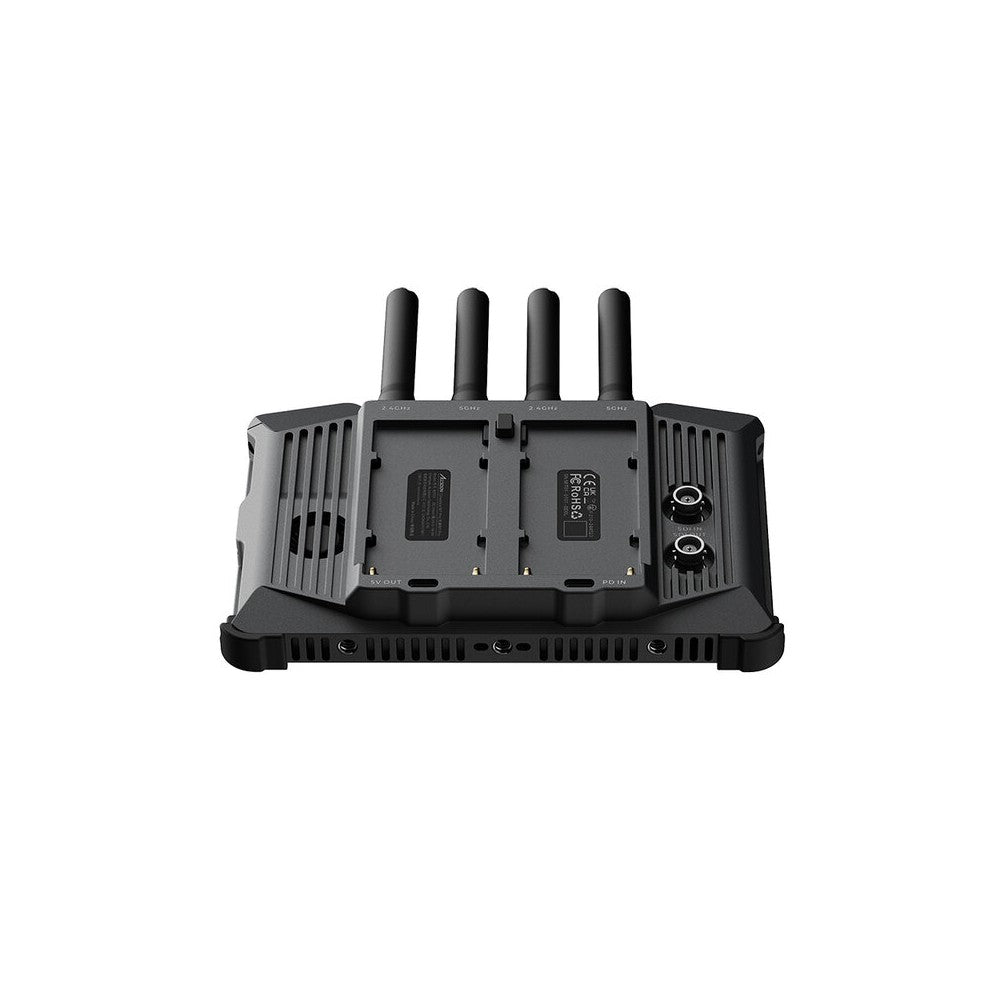

ACCSOON 7" smart monitor with LCD touchscreen, wireless video transmission and reception, internal video recording, HDMI and S
Estimated delivery in Italy between 18 and 22 June
Paga in 3 rate da €350,33 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES

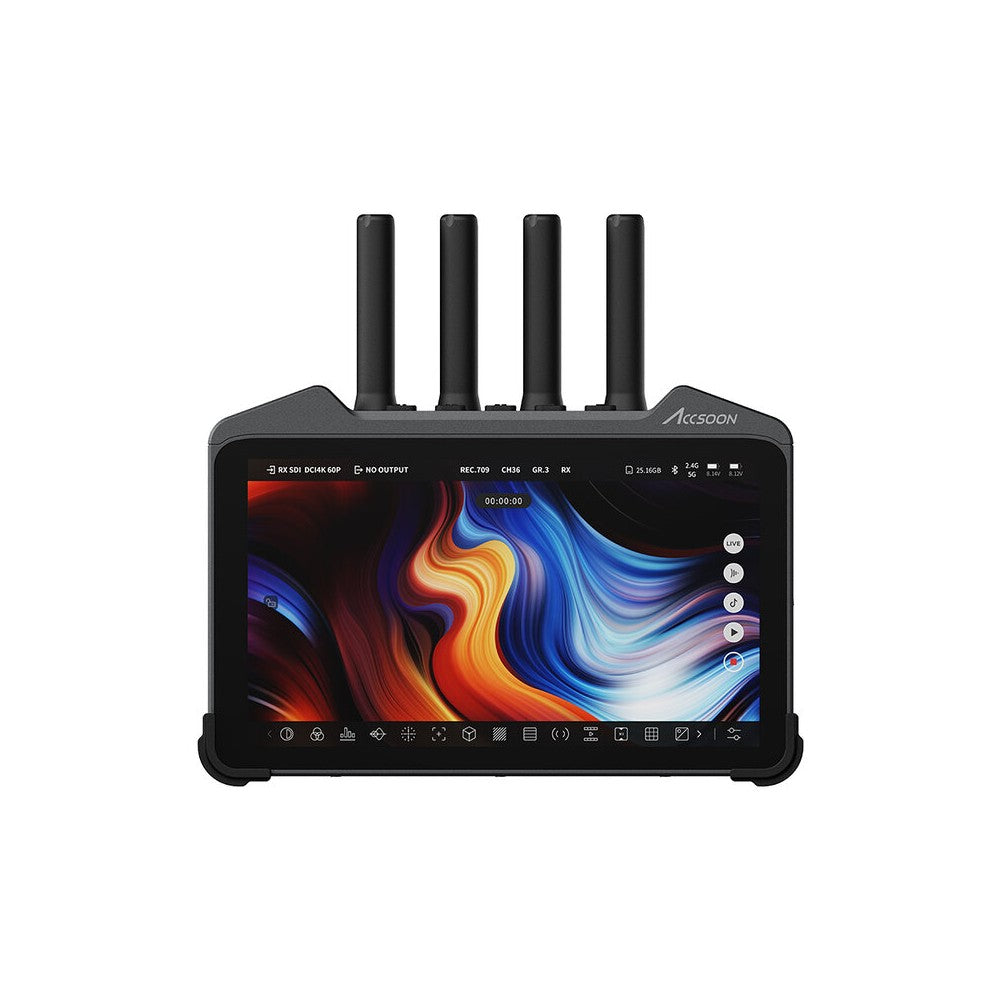

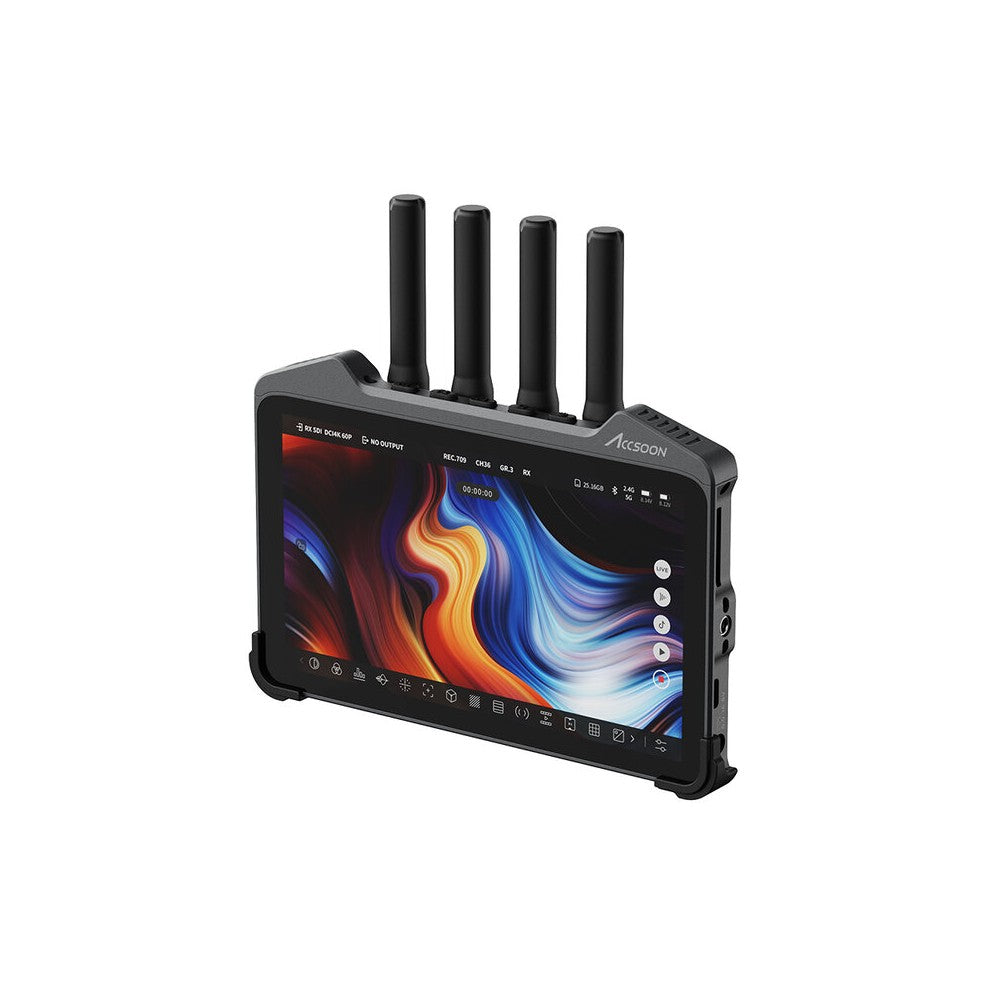

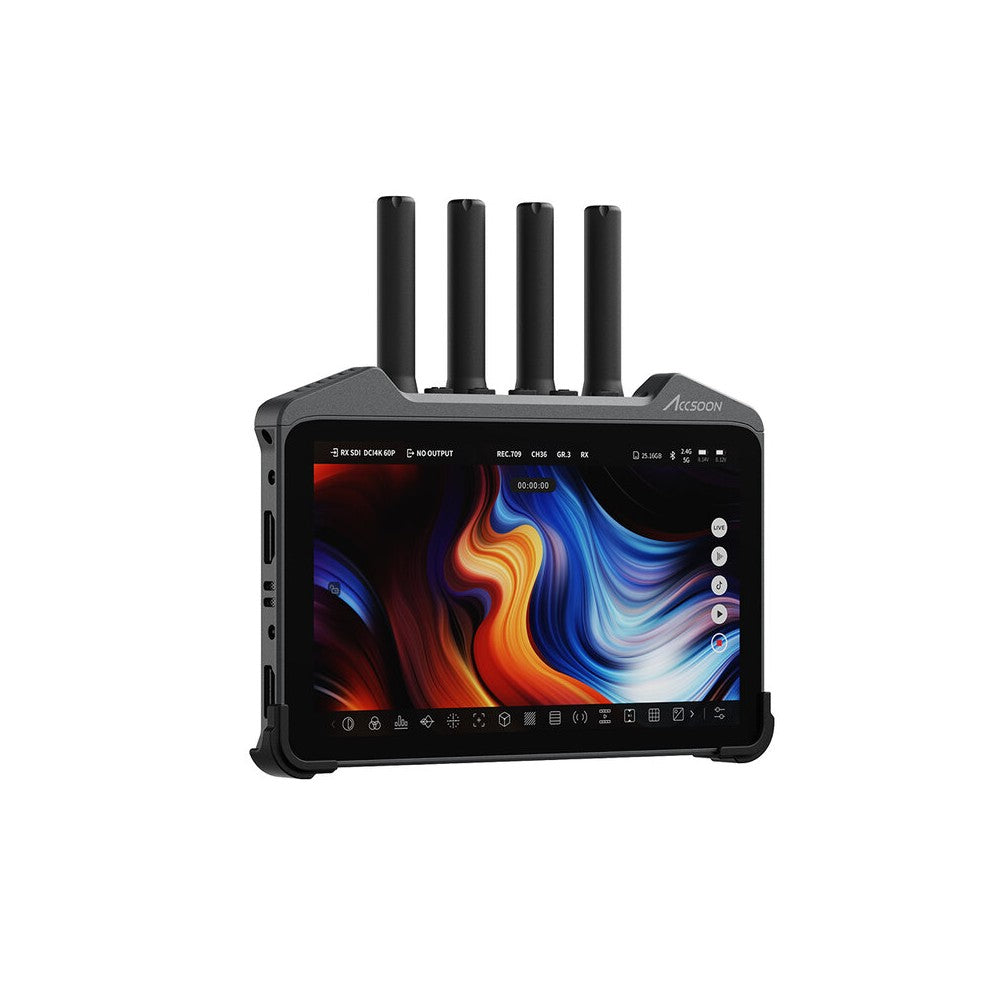

The Accsoon CineView M7 Pro is a 7" smart touch LCD monitor, designed to offer advanced professional monitoring tools and wireless video transmission. With a resolution of 1920 x 1200 pixels, it integrates Wi-Fi 6 to stream live directly from the camera via RTMP and SRT protocols, making it ideal for platforms like YouTube and Facebook. Unlike the basic model, the M7 Pro features an integrated video transmission module, allowing it to receive and transmit video signals up to 4K60 with a latency of approximately 60 ms and a range of 350 m line-of-sight.
Thanks to its high-performance chipset, the CineView M7 Pro combines cinematic monitoring tools with advanced transmission functionalities, enhancing the workflow on set. The Android-based interface provides quick access to visual assistance tools, all activatable via the touchscreen. The monitor supports internal recording of video signals in H.264 and H.265 formats, with a maximum bitrate of 50 Mbps, and allows saving files to internal memory, an SD card, or an external SSD via USB Type-C 3.0. It is possible to choose the destination for recording files, which can be HD or 4K, offering maximum flexibility in professional productions.
It can be used as both a director's monitor and a camera monitor, ensuring cinematic color accuracy. Each unit undergoes precision calibration to guarantee accurate control over every frame, meeting various shooting needs.
Benefits for users

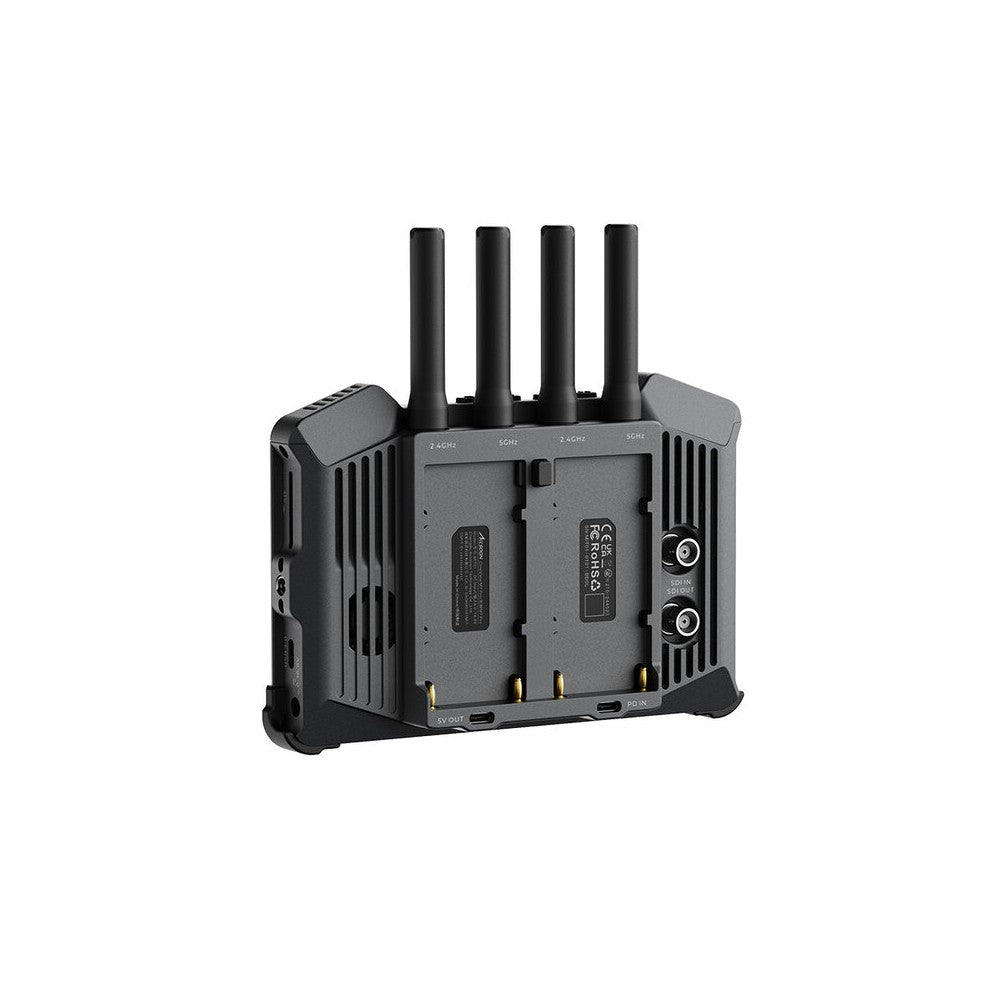

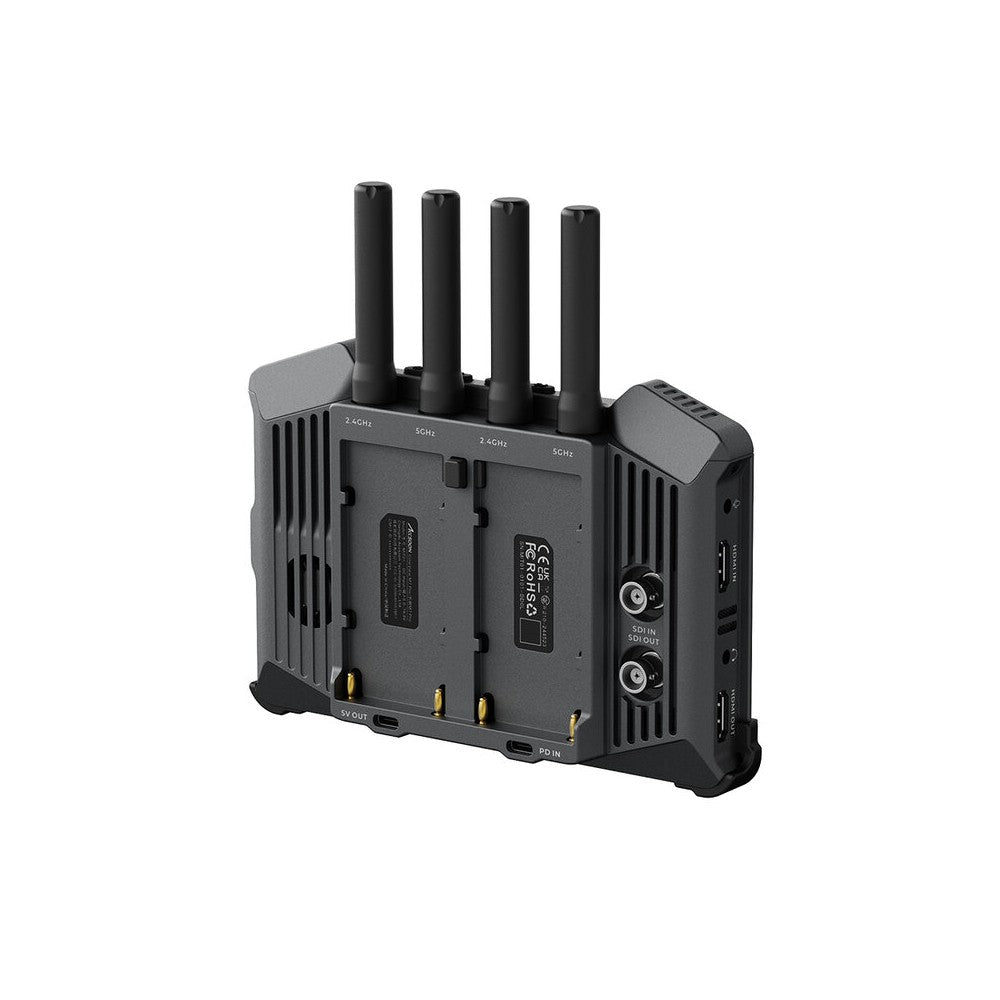

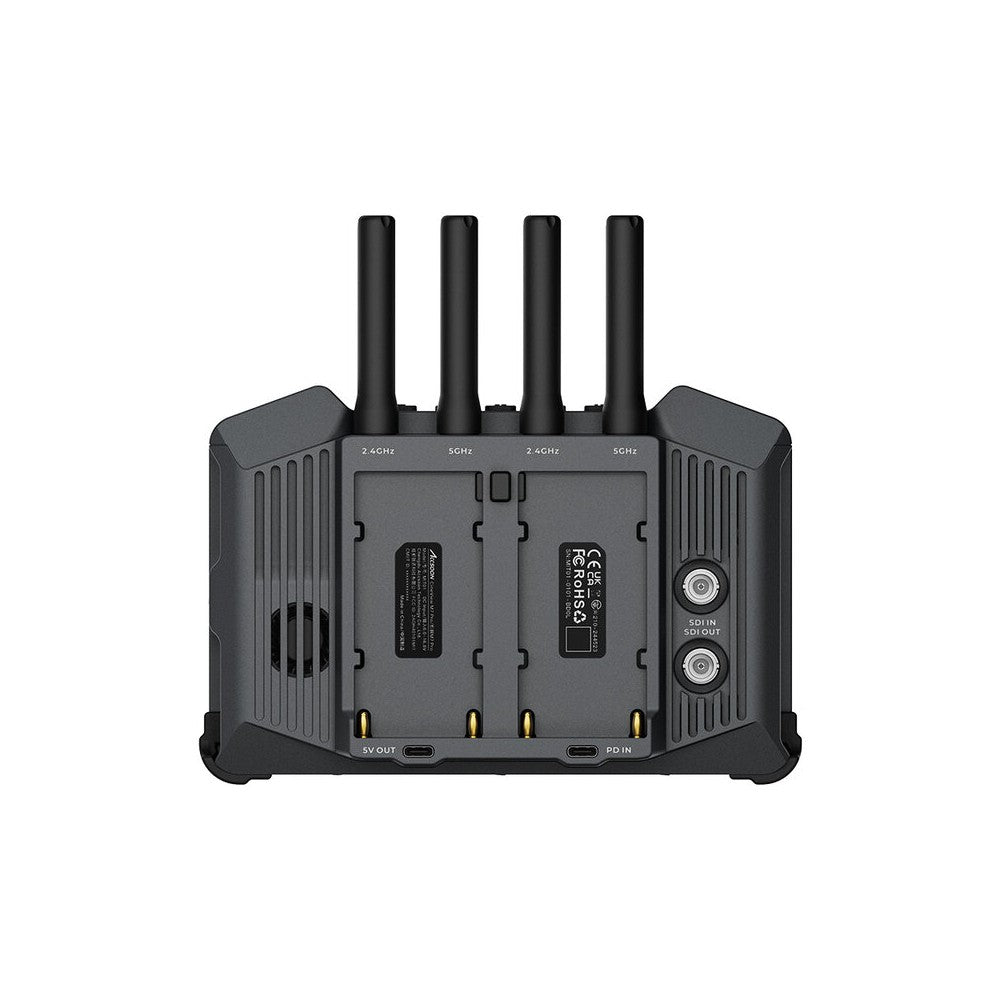

- Integrated video transmission module with four antennas for wireless reception and transmission
- Compatibility with the CineView system, allowing signal reception from Accsoon transmitters
- Precise color fidelity for professional monitoring
- 4K 60 video inputs and outputs
- SDI and HDMI cross-conversion
- Simultaneous SDI and HDMI outputs
- HD / 4K video up / down conversion
- SD card support
- LUT Box | real-time display application
- Microphone and headphone jacks
- USB 3.0 for external storage
- Supports PD, DC, and NP-F power
- Streaming, cloud upload, sharing via integrated Wi-Fi
Areas of use
- On-set monitoring, ideal for real-time shot checking
- Professional multi-camera setups
- Mobile productions
- Immediate review of footage
SPECIFICATIONS
- Display screen: 7” LCD
- Touchscreen: ultra high resolution capacitive touchscreen
- Resolution: 1920 × 1080 pixels
- Aspect ratio: 16:9
- PPI: 323
- Brightness: 1000 nits
- Contrast ratio: 1000:1
- Viewing angle: 176° / 176°
- Backlight type: edge-lit ultra-transparent LED backlight
- Screen color calibration: supported
- LUT: 1D and 3D Cube LUTs supported (1D: up to 4096 points, 3D: up to 127 points)

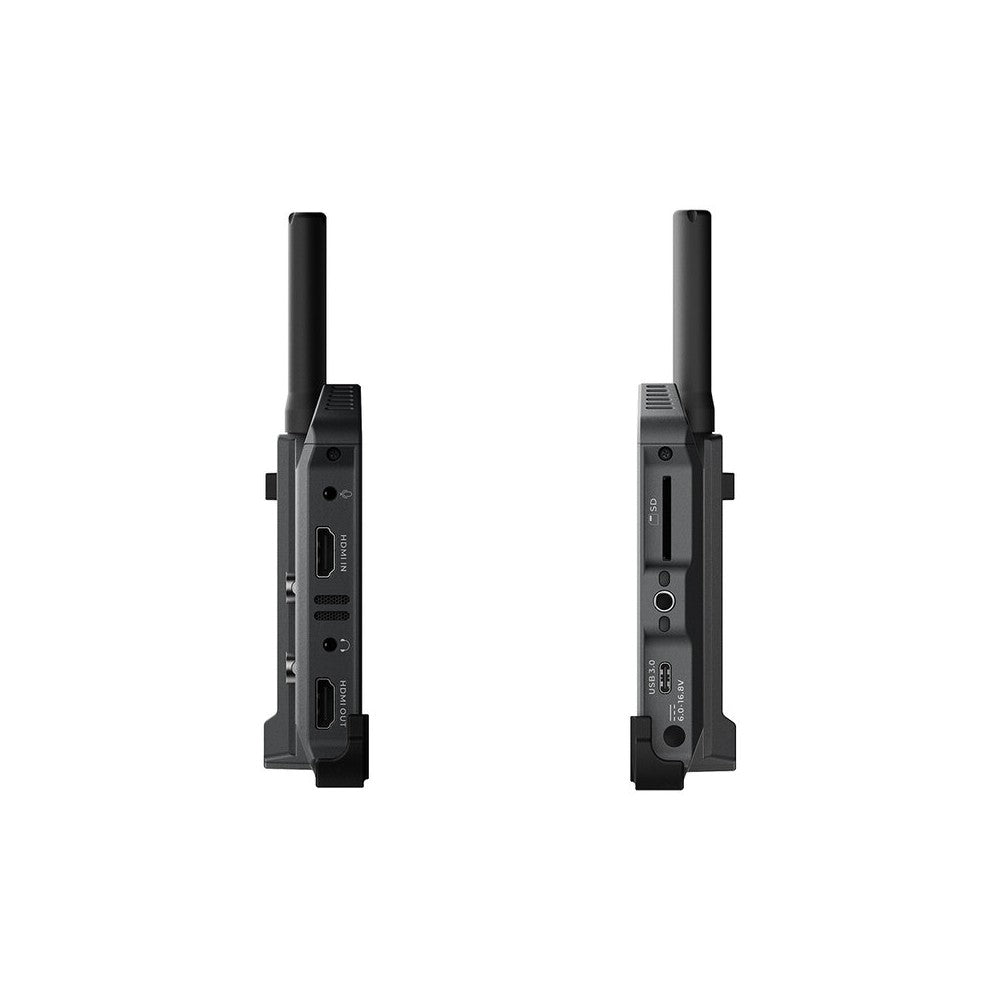

- Video input port: HDMI 2.0 / 3G-SDI
- Video output port: HDMI 2.0 / 3G-SDI
- HDMI video input format:
- 4K DCI (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 4K UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 1080i: 50 / 59.94 / 60
- 720p: 50 / 59.94 / 60
- SDI video input format:
- 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A/B)
- 1080i: 50 / 59.94 / 60
- HDMI video output format:
- 4K DCI (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 4K UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 1080i: 50 / 59.94 / 60
- 720p: 50 / 59.94 / 60
- SDI video output format:
- 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A)
- 1080i: 50 / 59.94 / 60
- DC port: 6.0 - 16.8 V, 5.5 x 2.1 mm, center positive
- Compatible battery: NP-F550, NP-F750, NP-F970
- USB-C power input port: PD 3.0 (9 V 3 A, 12 V 3 A, 15 V 3 A)
- USB-C power output port: max. 5 V / 2 A
- Headphone mini-jack: 3.5 mm CTIA
- Microphone mini-jack: 3.5 mm TRS
- Microphone input audio sampling: 16 bit, 48 kHz
- Power consumption: 12 - 28 W (varies according to actual usage)
- Housing: aircraft-grade aluminium alloy
- Heat dissipation: active + passive cooling
- Wireless transmission latency: 60 ms
- Wireless transmission distance: dual-band connection 350 m
- Work environment temperature: -10 to 40 ℃
- Dimensions: 18.22 × 12.07 × 3.15 cm
- Weight: 494.3 g
Technical characteristics
