ACCSOON 7" smart monitor with an LCD touchscreen, wireless video transmission and reception, internal video recording, HDMI conne
Estimated delivery in Italy between 18 and 22 June
Paga in 3 rate da €286,33 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES

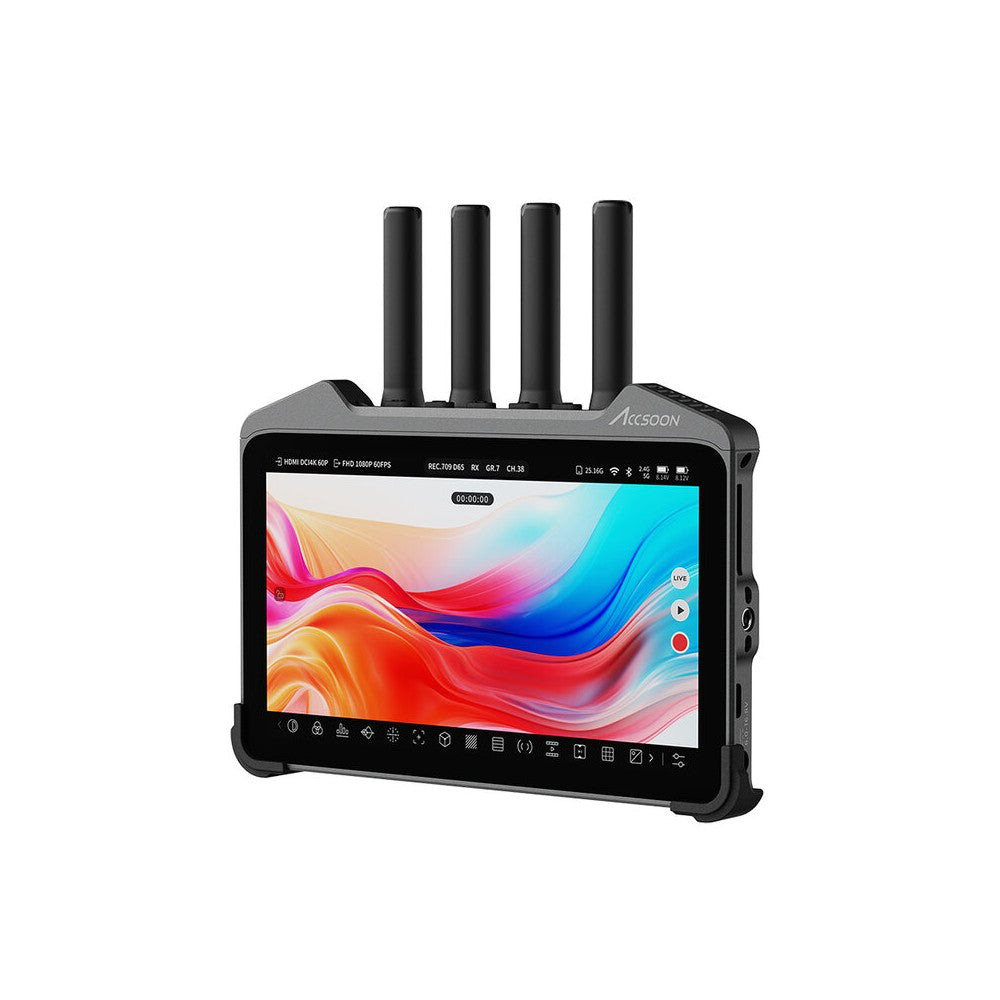

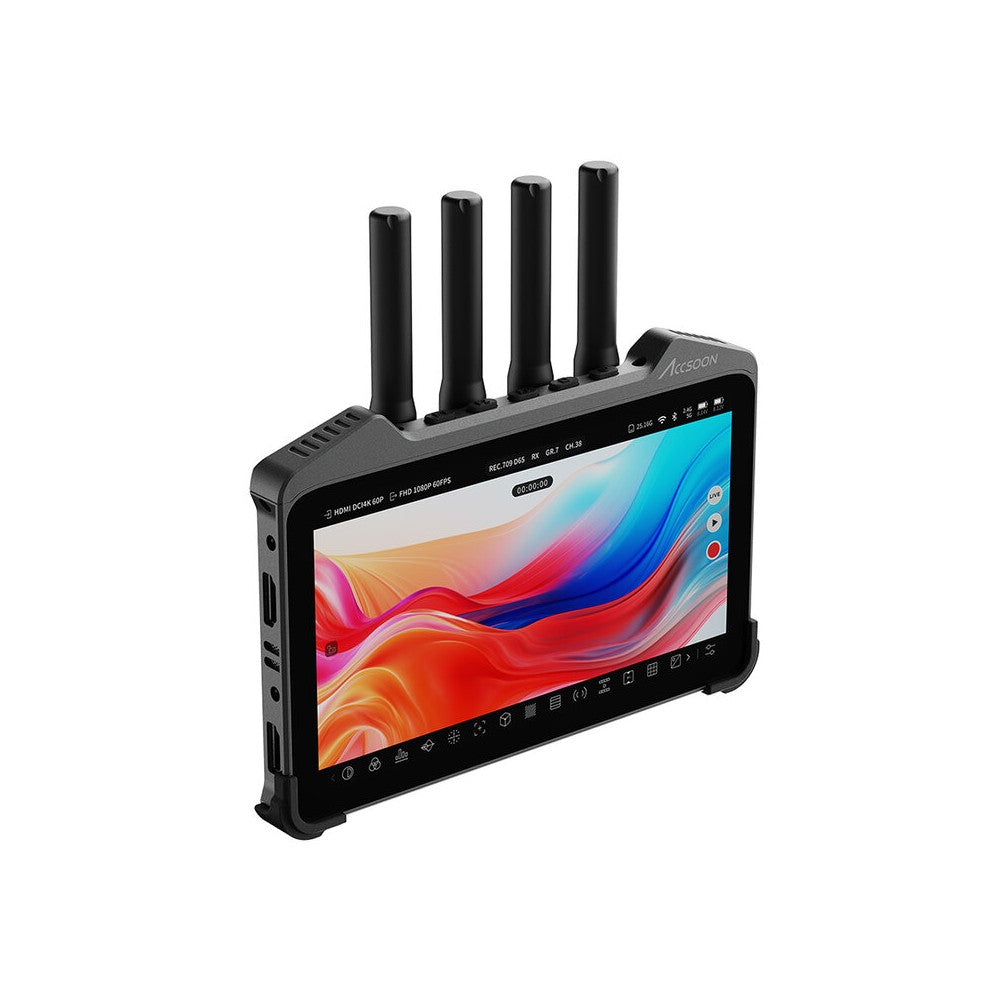

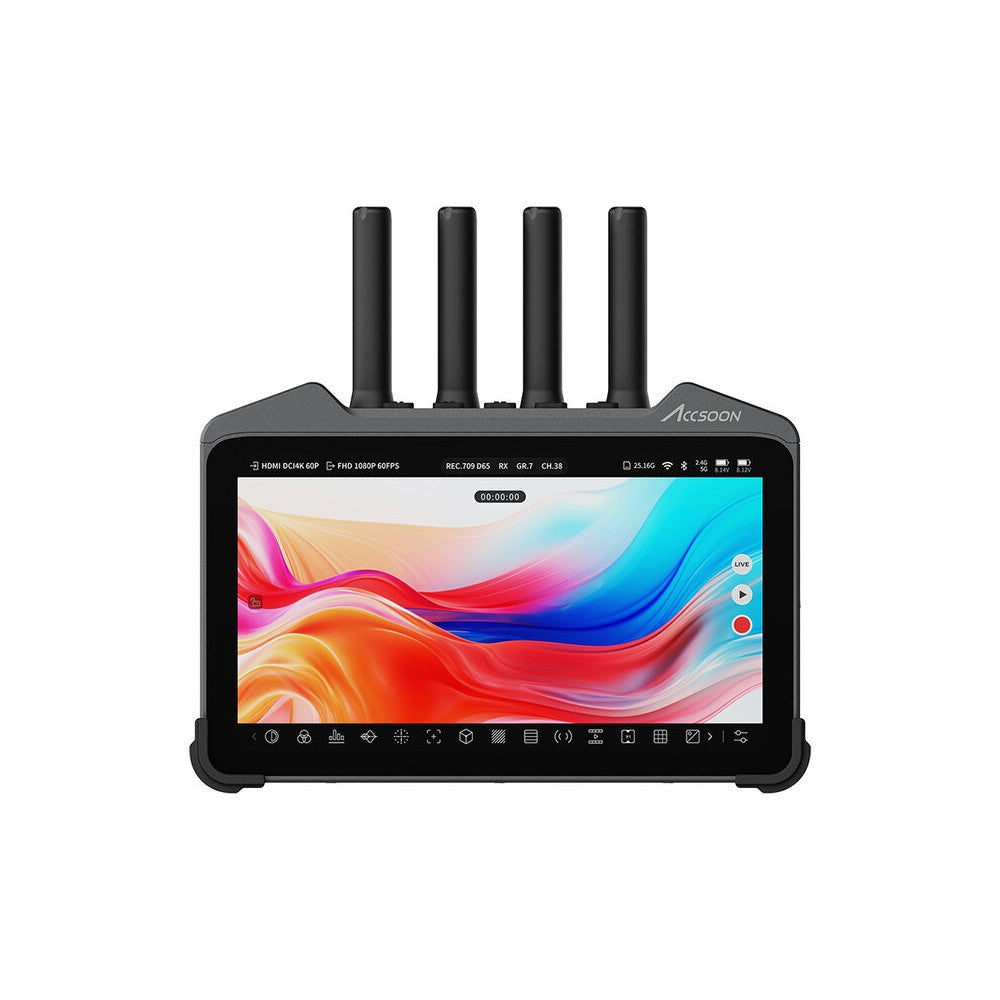

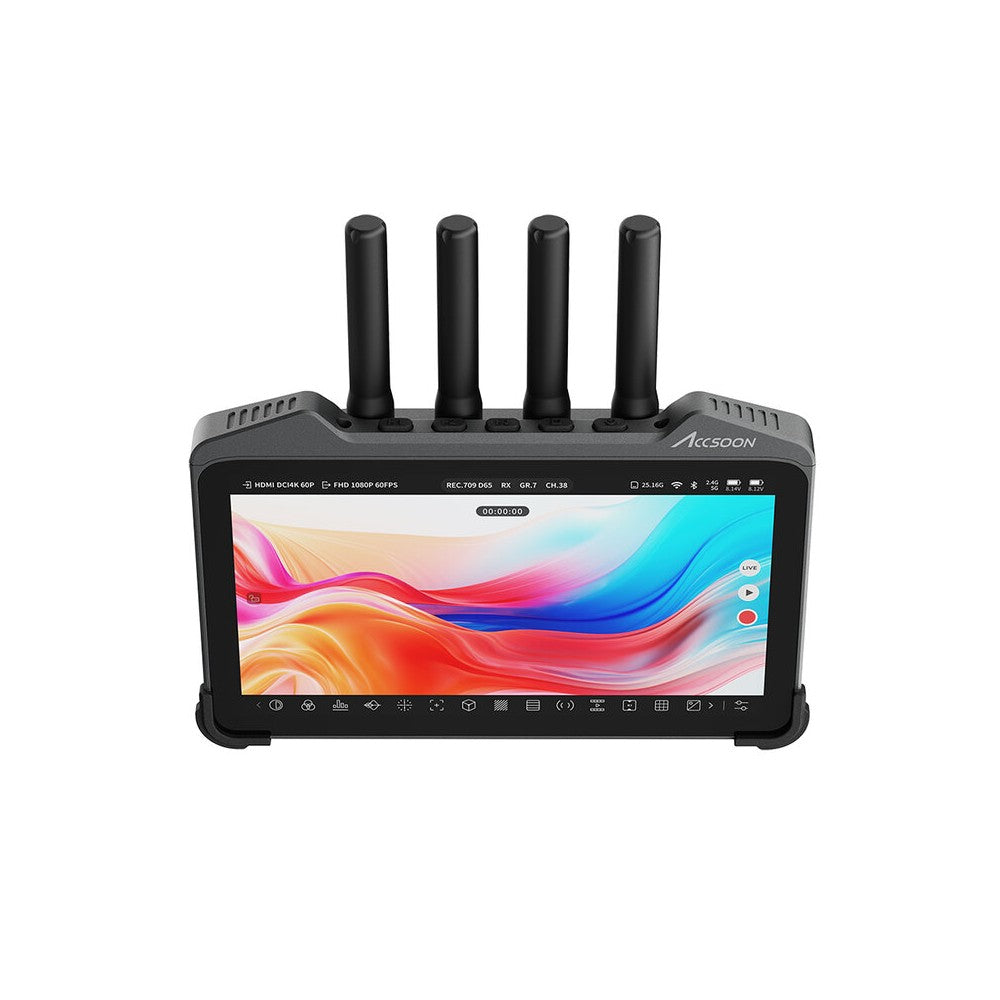

Accsoon CineView M7H Pro is a 7" touch LCD monitor with 1920 x 1080 pixel resolution, 1000 nits brightness, and an integrated wireless system, designed for professional on-set monitoring. It can be configured as a video transmitter or receiver, integrating with other Accsoon devices to create flexible and reliable wireless workflows.
Unlike the basic model, the M7H Pro features an integrated video transmission module, allowing it to receive and transmit video signals up to 4K to four simultaneous receivers, including other M7 Pro, M7H Pro, CineView Master 4K, or mobile devices with the Accsoon SEE App, with a latency of approximately 60 ms and a line-of-sight range of 350 m. It supports live streaming to YouTube, Facebook, or RTMP/SRT servers, and allows internal recording in H.264 or H.265 up to 50 Mbps, saving to internal memory, SD card, or external SSD via USB‑C 3.0. Recorded files can be played back directly on the monitor or sent to an external display via HDMI.
Automatic file transfer to networked computers via Wi‑Fi is also possible, enabling a true camera‑to‑cloud function. With the latest firmware update, remote control of compatible cameras (Canon and Sony) has been introduced, with the ability to adjust ISO, aperture, focus, and start recording directly from the monitor's touchscreen, even via IP or USB connection.
The monitor offers professional visual assistance features, including waveform, false color, peaking, and real-time 3D LUTs, complemented by monitoring functionalities such as zoom‑in without clipping, vertical de‑squeeze for anamorphic, safezone to prevent UI overlaps, updated aspect ratio presets, and background customization in the SEE App. It is ideal as a director's monitor or a camera viewfinder, thanks to factory color calibration and visibility even outdoors.

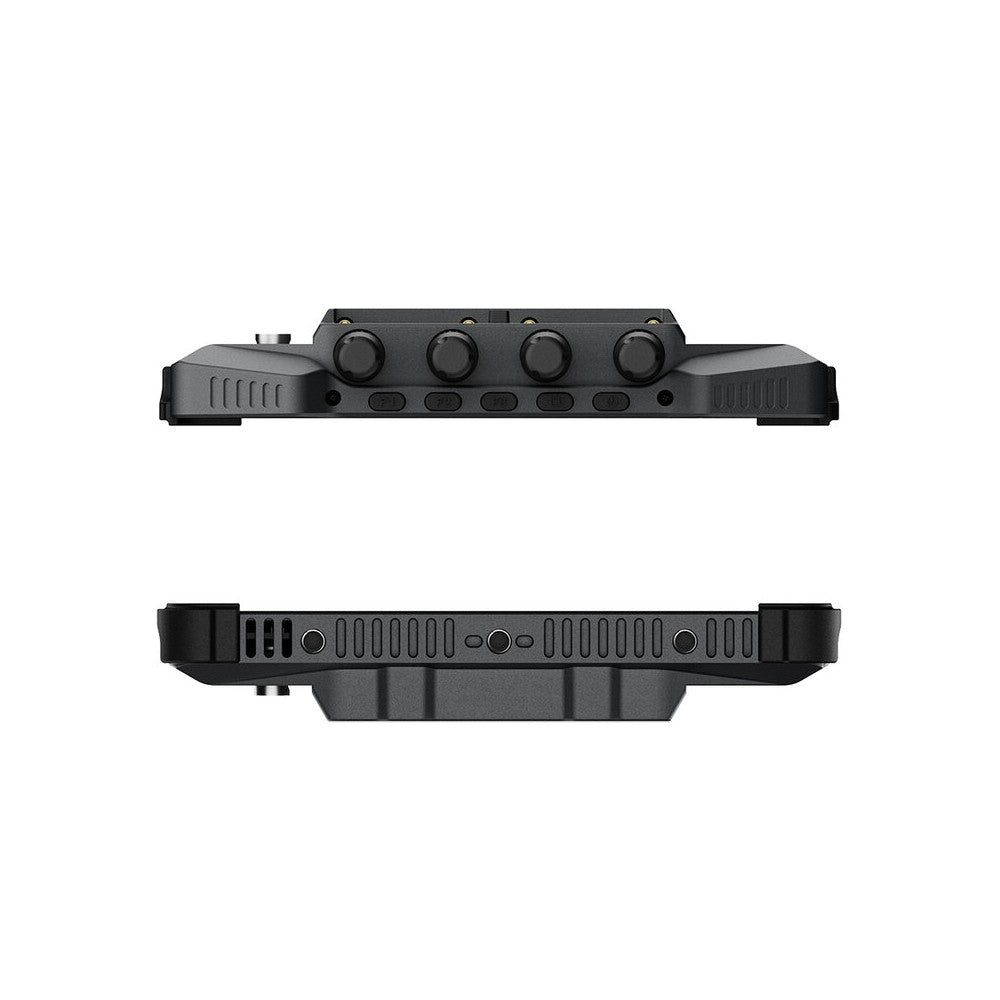

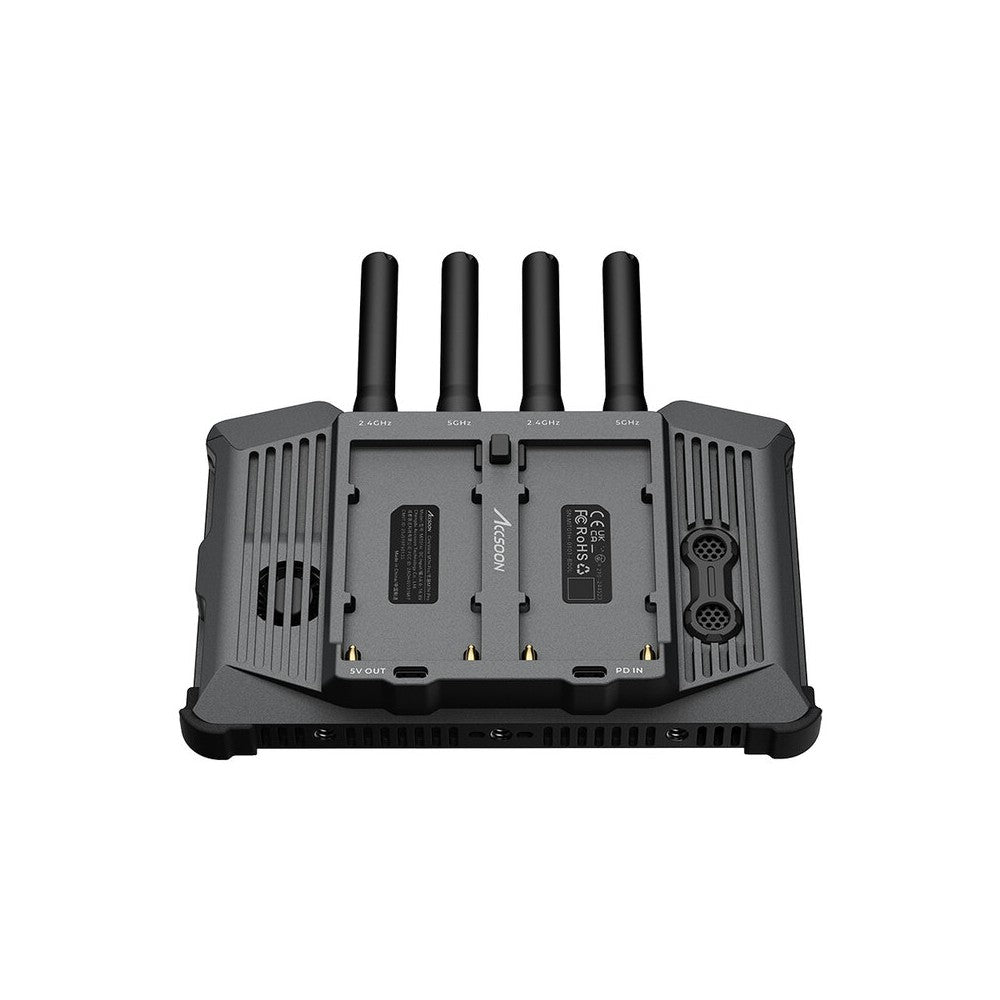

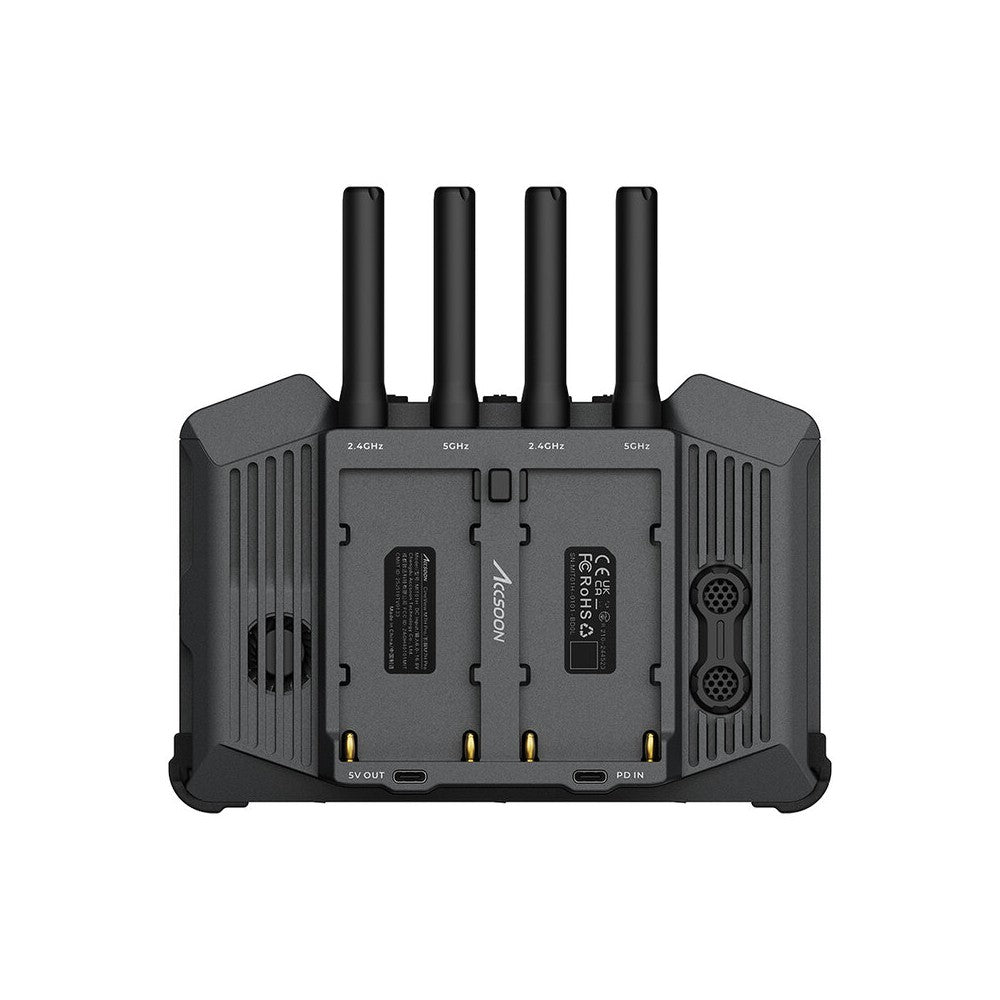

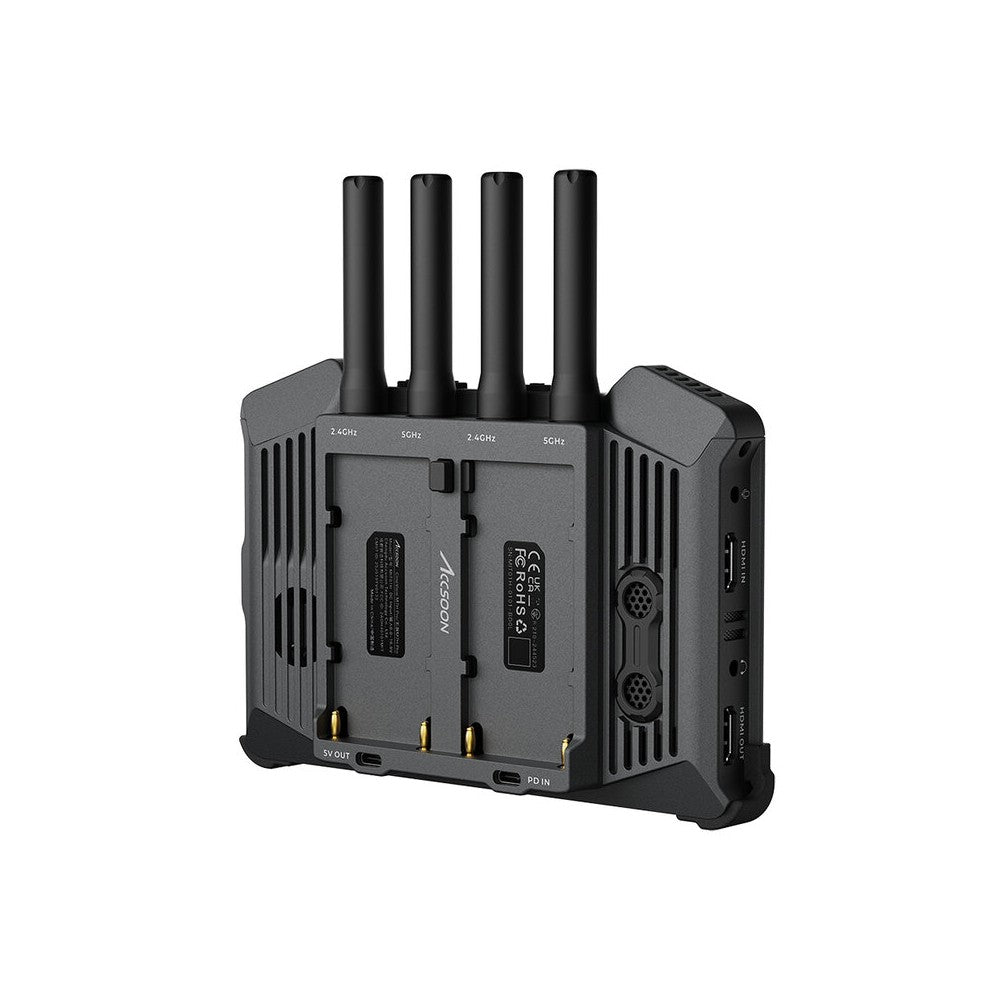

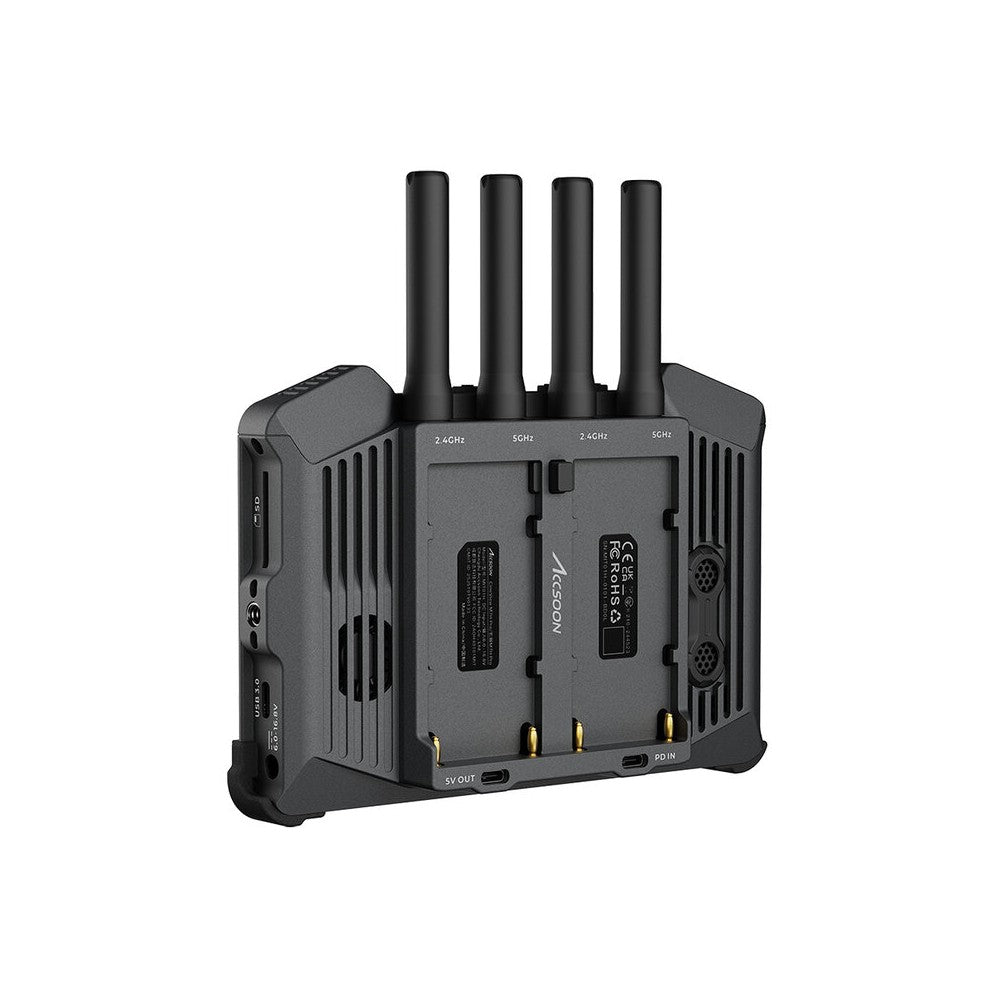

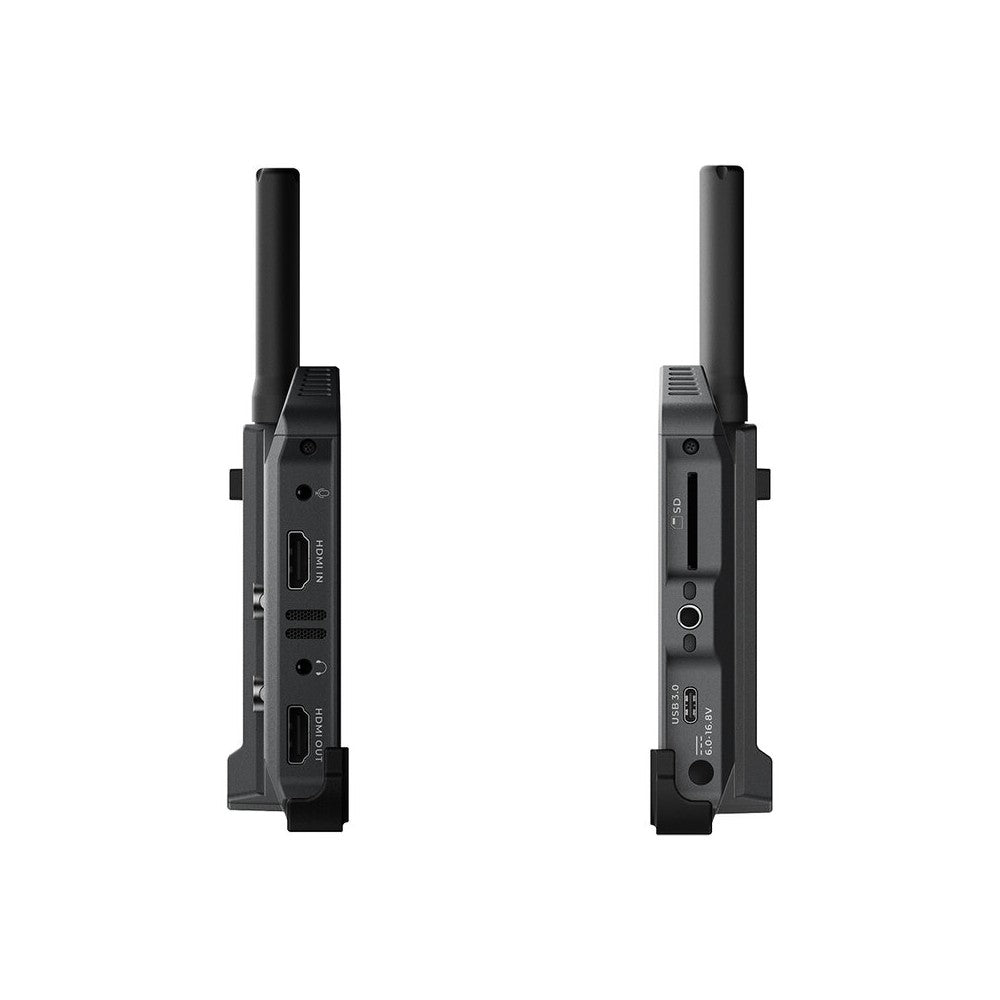

It features HDMI-only inputs and outputs, supporting signals up to 4K 60. It also includes a 3.5 mm headphone mini‑jack, microphone input, dual NP‑F battery slot (hot swap), DC power, and USB‑C PD. The CineView M7H Pro is designed to stay on during streaming, with hot battery swapping capability. The body is thin, robust, and equipped with multiple mounting threads, for versatile installation on camera, rig, or stand.
User Benefits
- Integrated video transmission module with four antennas for wireless reception and transmission
- Compatibility with the CineView system, allowing signal reception from Accsoon transmitters
- Remote control of Canon and Sony cameras via touchscreen
- Precise color fidelity for professional monitoring
- 4K 60 video inputs and outputs via HDMI
- SD card support
- LUT Box | real-time viewing application
- Zoom-in without clipping and vertical de-squeeze
- Safezone for camera interfaces and updated aspect ratio presets
- Microphone and headphone jacks
- USB 3.0 for external storage
- Supports PD, DC, and NP-F power
- Streaming, cloud upload, sharing via integrated Wi-Fi
Use Cases
- On-set monitoring, ideal for real-time footage review
- Professional multi-camera setups
- Mobile productions
- Immediate footage review
- Remote and synchronized camera control
- Advanced wireless video transmission
SPECIFICHE
- Display screen: 7” LCD
- Touchscreen: ultra high resolution capacitive touchscreen
- Resolution: 1920 × 1080 pixels
- Aspect ratio: 16:9
- PPI: 323
- Brightness: 1000 nits
- Contrast ratio: 1000:1
- Viewing angle: 176° / 176°
- Backlight type: edge-lit ultra-transparent LED backlight
- Screen color calibration: supported
- LUT: 1D and 3D Cube LUTs supported (1D: up to 4096 points, 3D: up to 127 points)
- Video input port: HDMI 2.0
- Video output port: HDMI 2.0
- HDMI video input format:
- 4K DCI (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 4K UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 1080i: 50 / 59.94 / 60
- 720p: 50 / 59.94 / 60
- HDMI video output format:
- 4K DCI (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 4K UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 1080i: 50 / 59.94 / 60
- 720p: 50 / 59.94 / 60
- SDI video output format:
- 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A)
- 1080i: 50 / 59.94 / 60
- DC port: 6.0 - 16.8 V, 5.5 x 2.1 mm, center positive
- Compatible battery: NP-F550, NP-F750, NP-F970
- USB-C power input port: PD 3.0 (9 V 3 A, 12 V 3 A, 15 V 3 A)
- USB-C power output port: max. 5 V / 2 A
- Headphone mini-jack: 3.5 mm CTIA
- Microphone mini-jack: 3.5 mm TRS
- Microphone input audio sampling: 16 bit, 48 kHz
- Power consumption: 12 - 28 W (varies according to actual usage)
- Housing: aircraft-grade aluminium alloy
- Heat dissipation: active + passive cooling
- Wireless transmission latency: 60 ms
- Wireless transmission distance: dual-band connection 350 m
- Work environment temperature: -10 to 40 ℃
- Dimensions: 18.22 × 12.07 × 3.15 cm
- Weight: 494.3 g
Technical characteristics
