ACCSOON Wireless AV transmission system, 1080p 60 fps, 150 m range, less than 60 ms latency, Dual Band patented technology
Paga in 3 rate da €156,00 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES

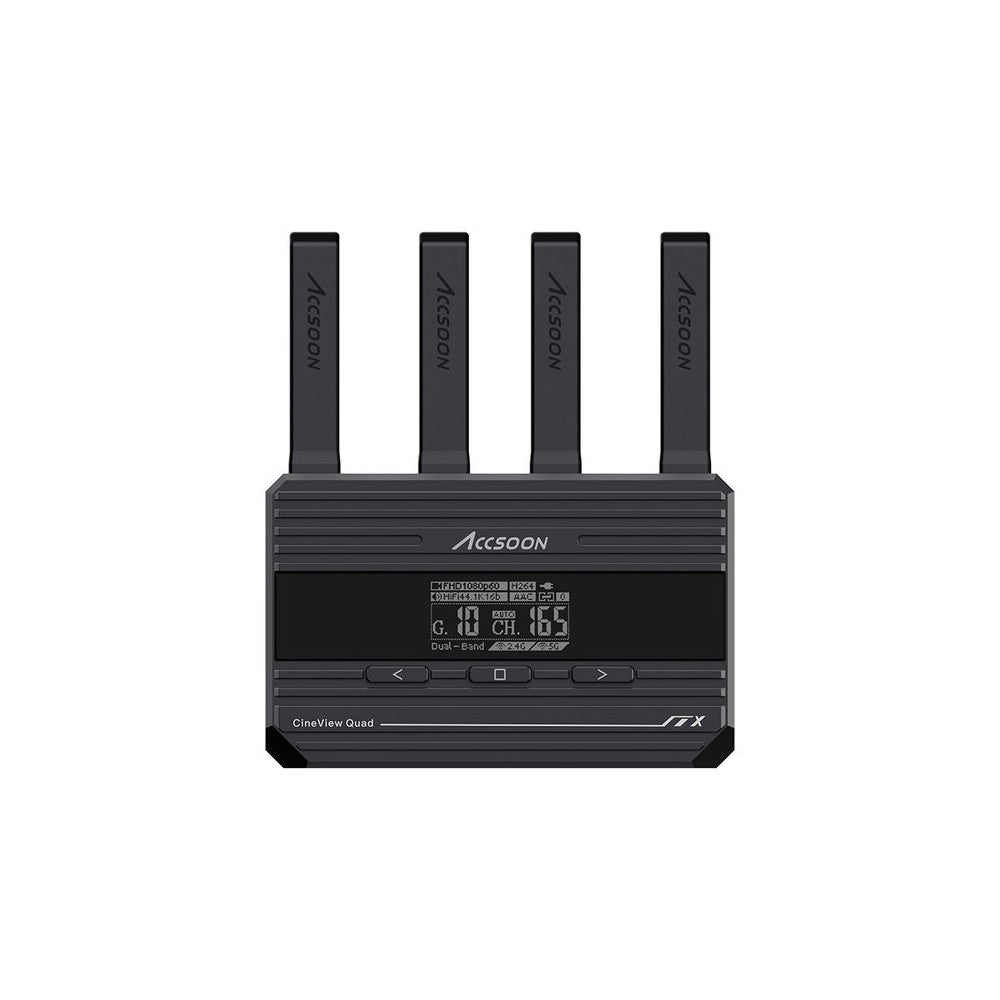

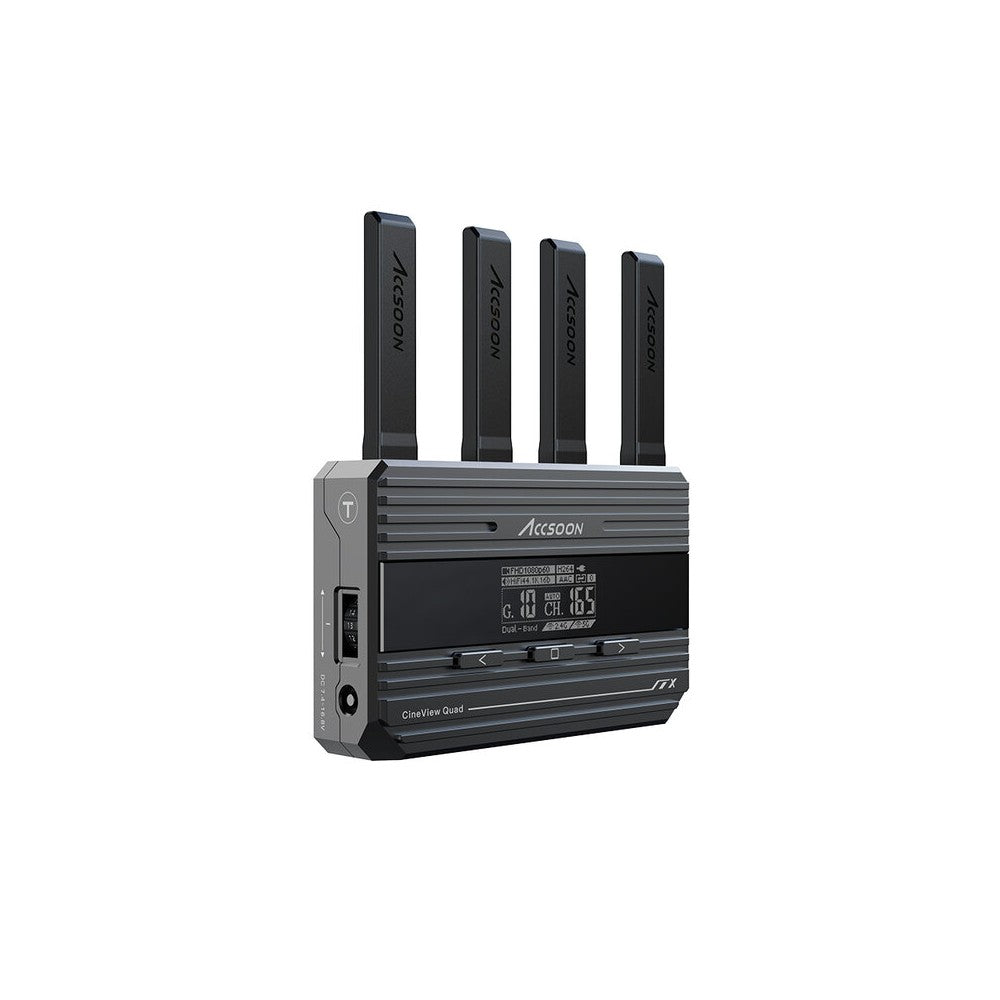

CineView Quad is a wireless AV transmission and reception system that uses Dual-Band technology (2.4 GHz and 5 GHz) to ensure stable and interference-free transmission. It can transmit signals up to a distance of 150 m with a latency of less than 60 ms, making it ideal for real-time shooting.

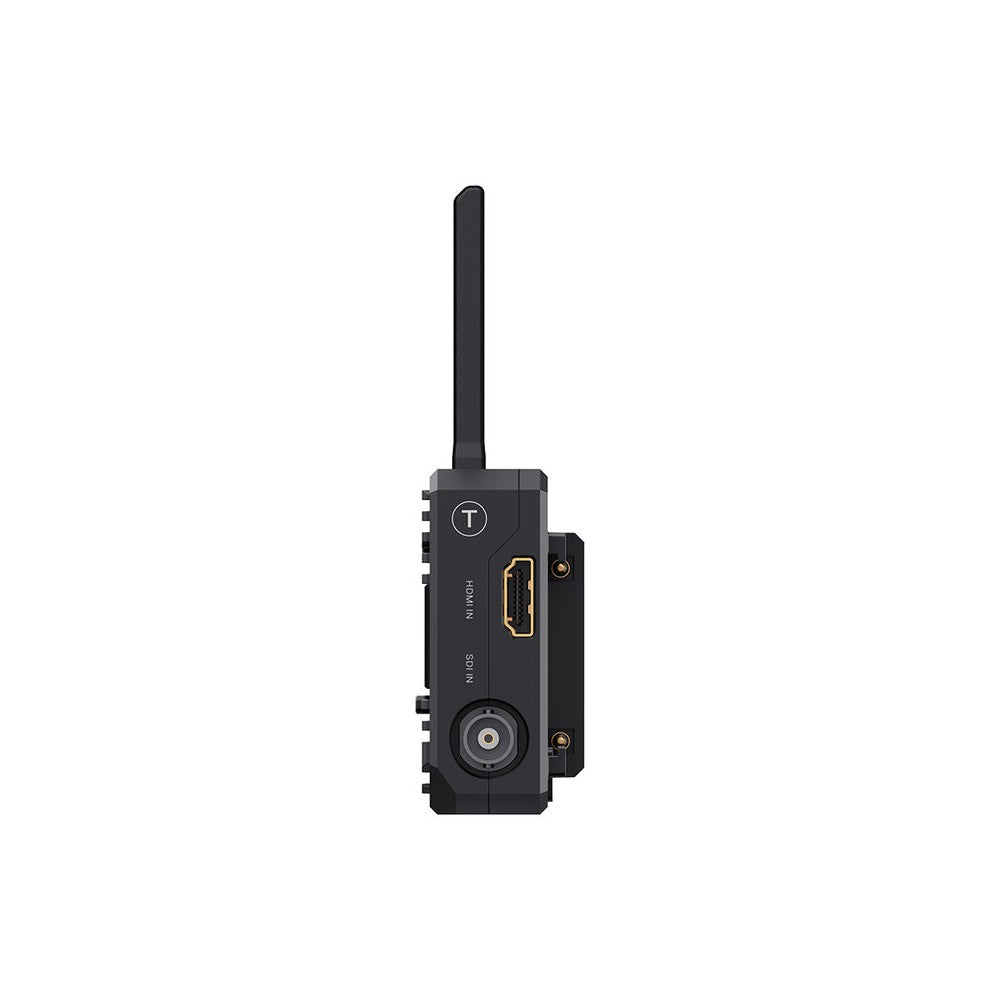

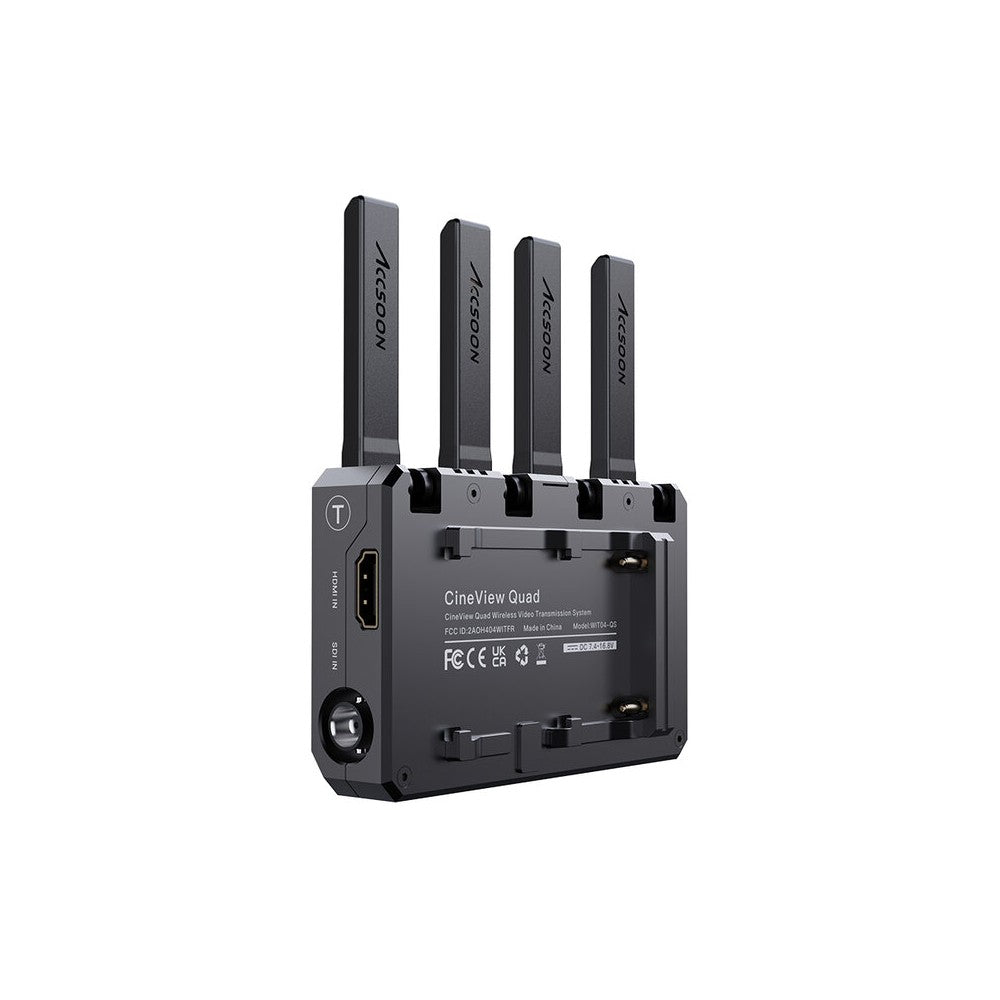

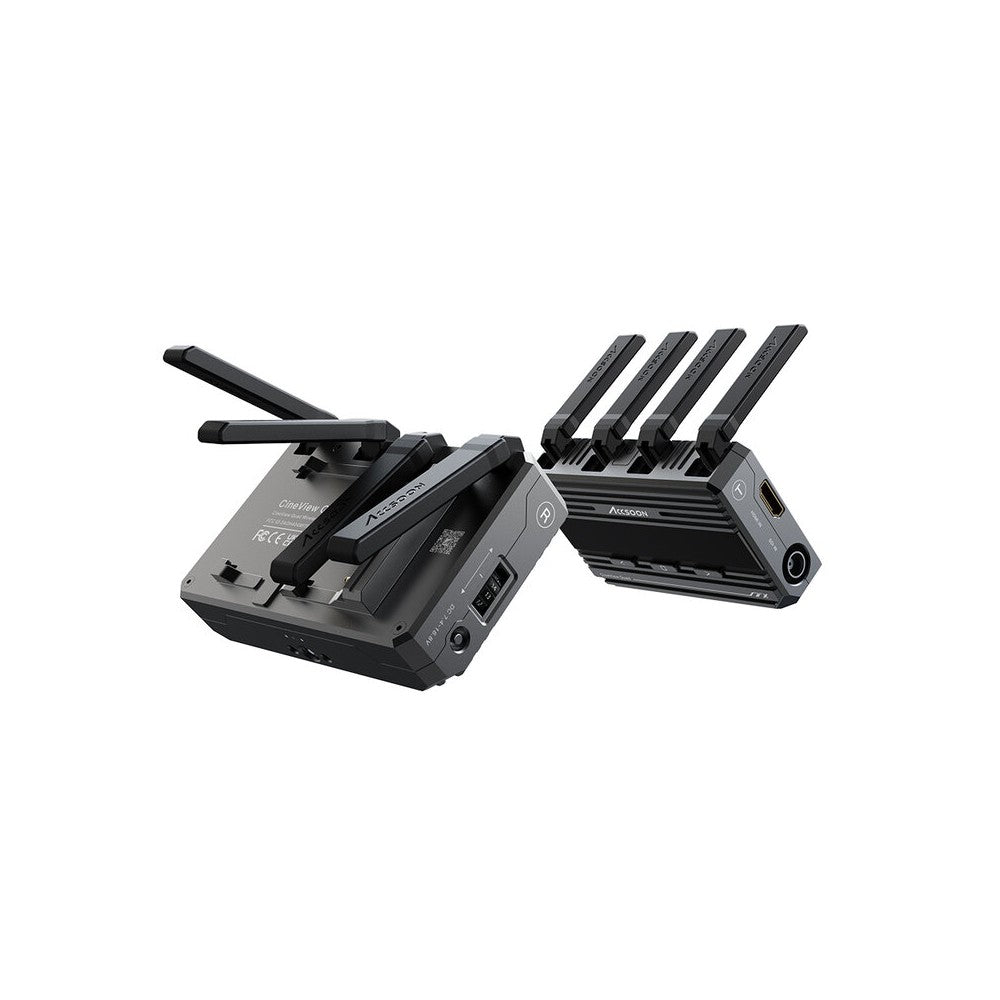

The transmitter has HDMI and SDI inputs, and the receiver has HDMI and SDI outputs, offering the flexibility to connect various devices such as professional monitors, HD TVs, and video projectors. It can transmit video signals to up to 4 devices simultaneously, including iOS and Android devices, allowing for versatile monitoring.

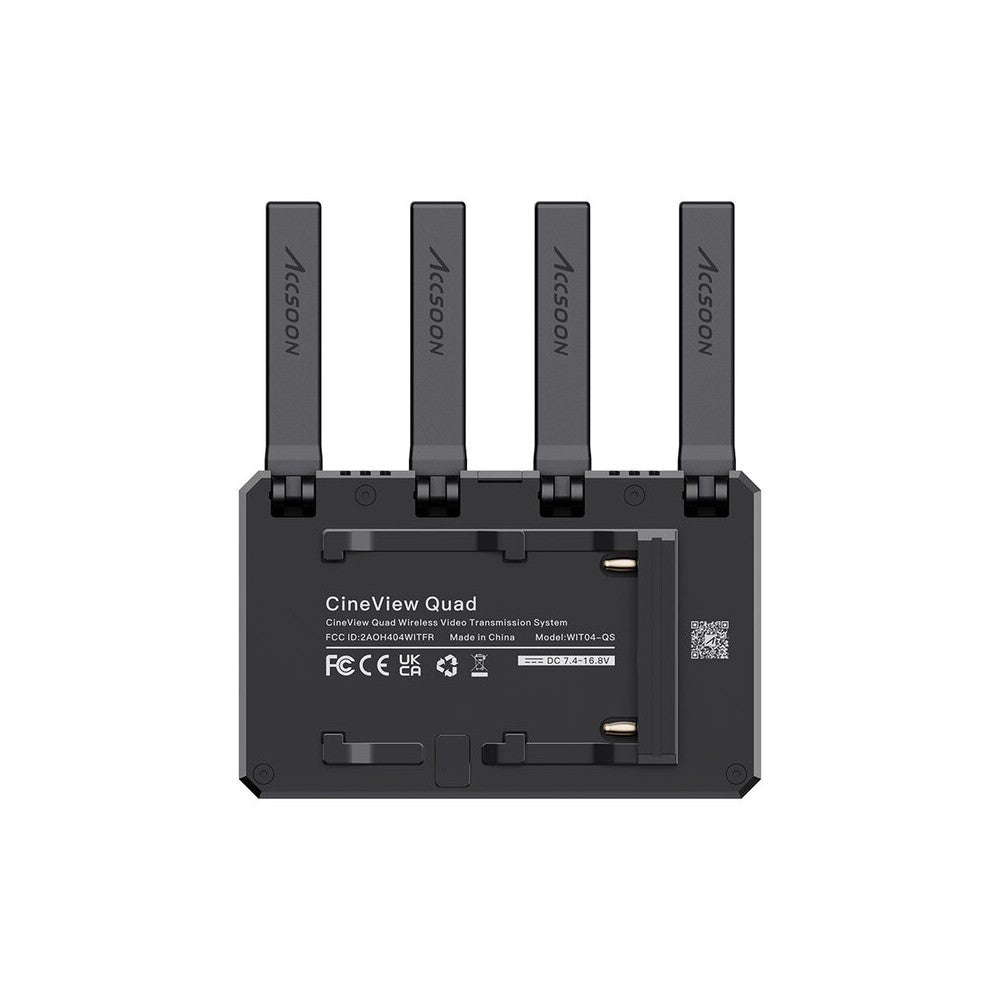

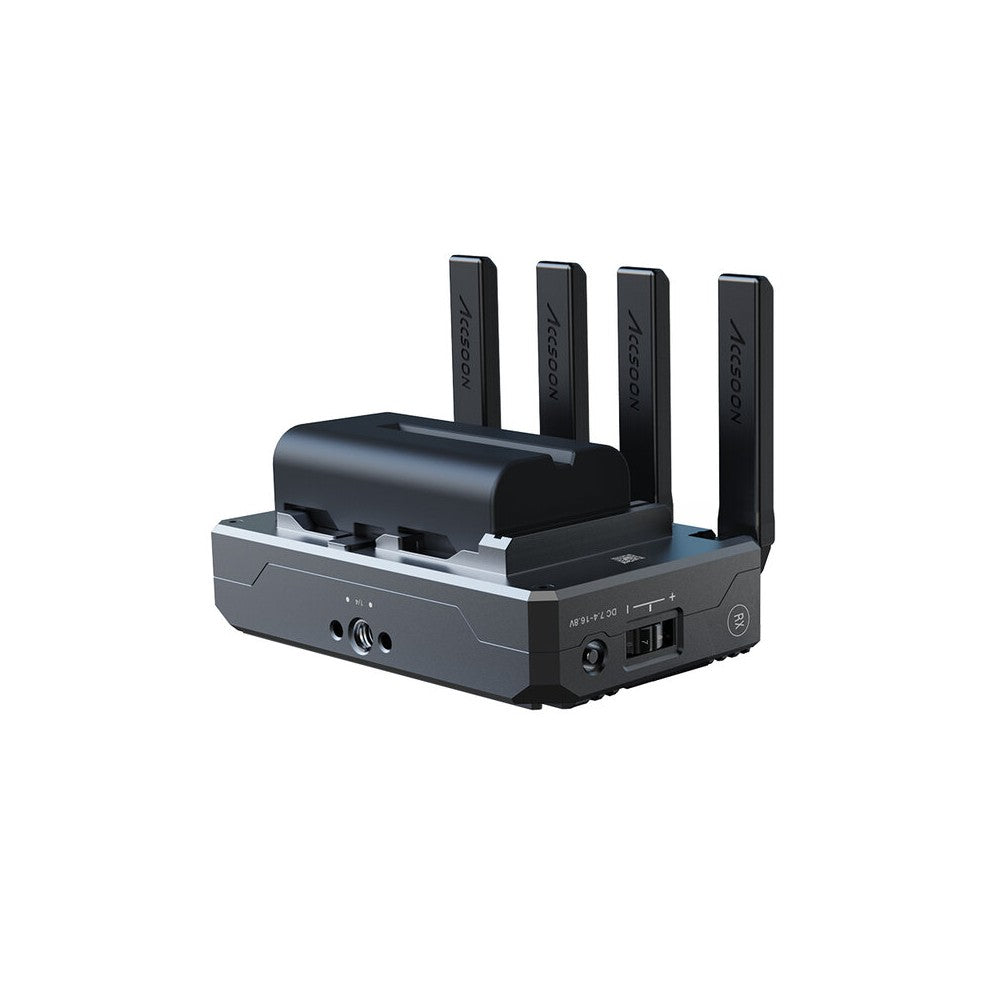

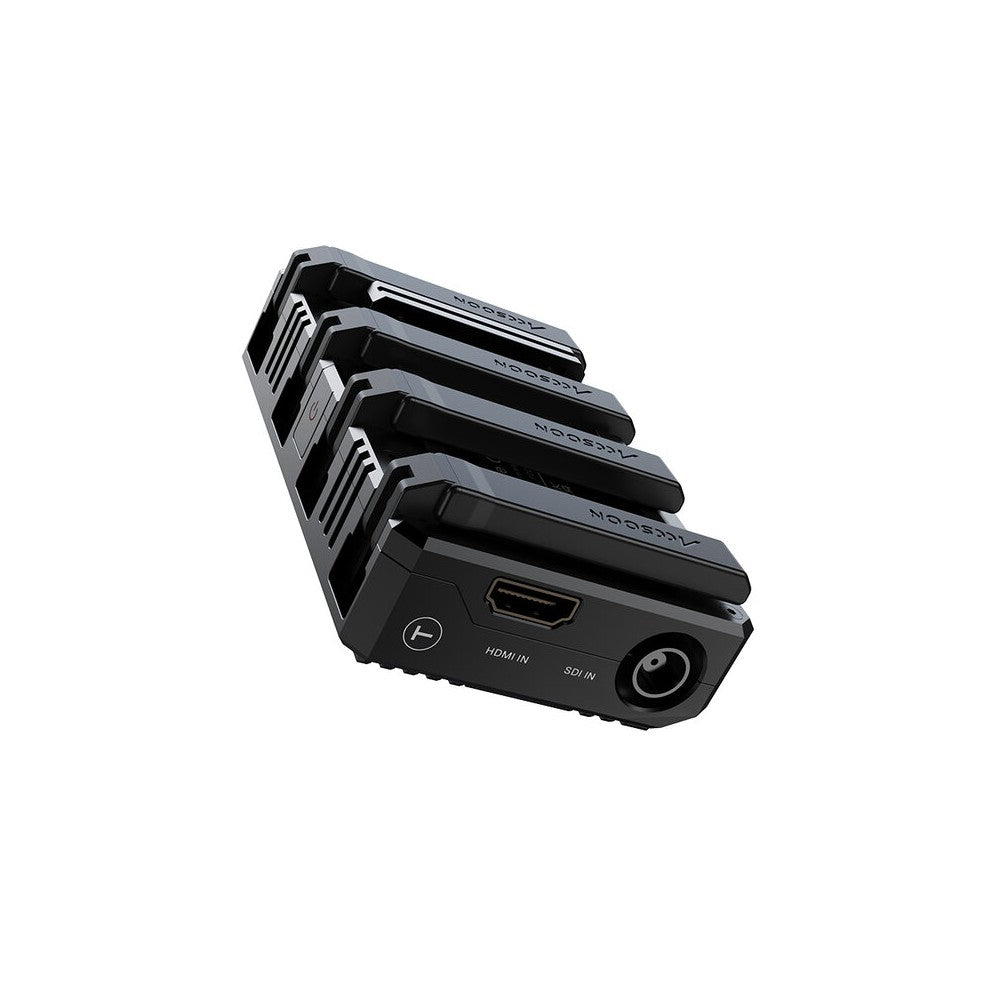

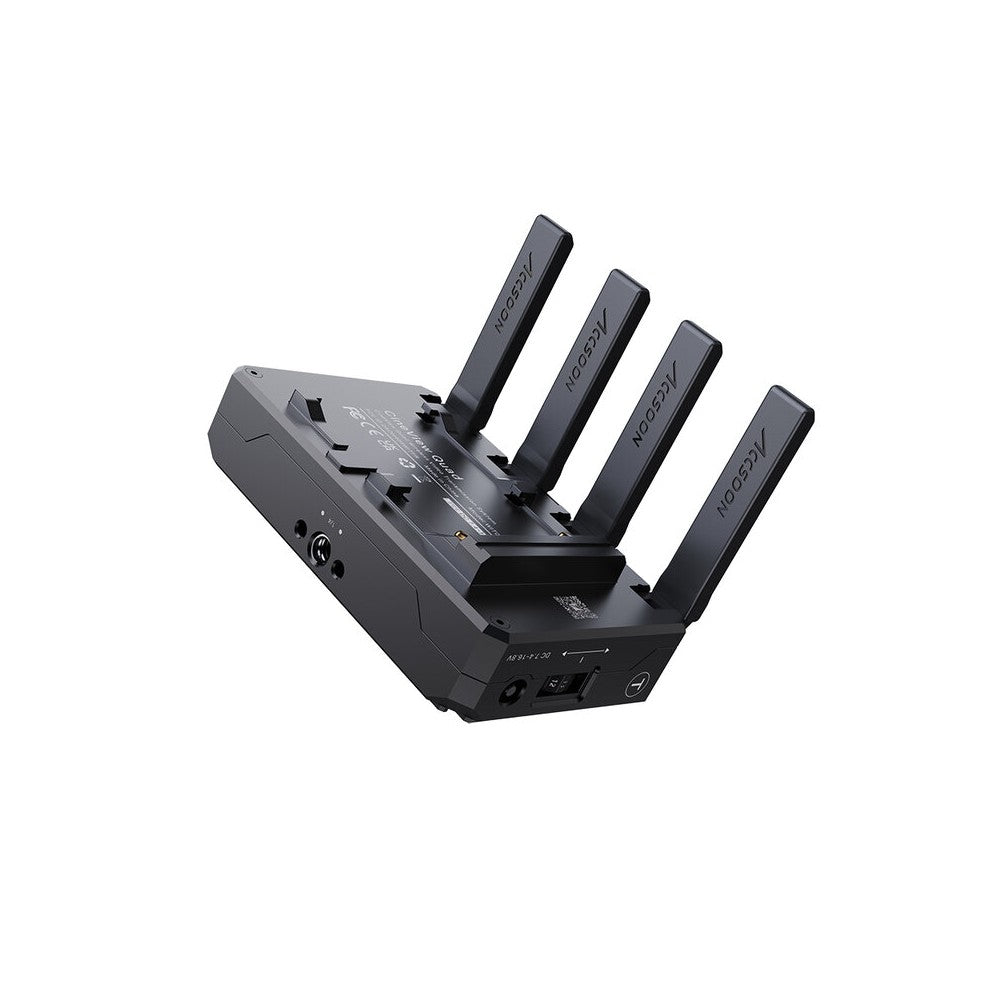

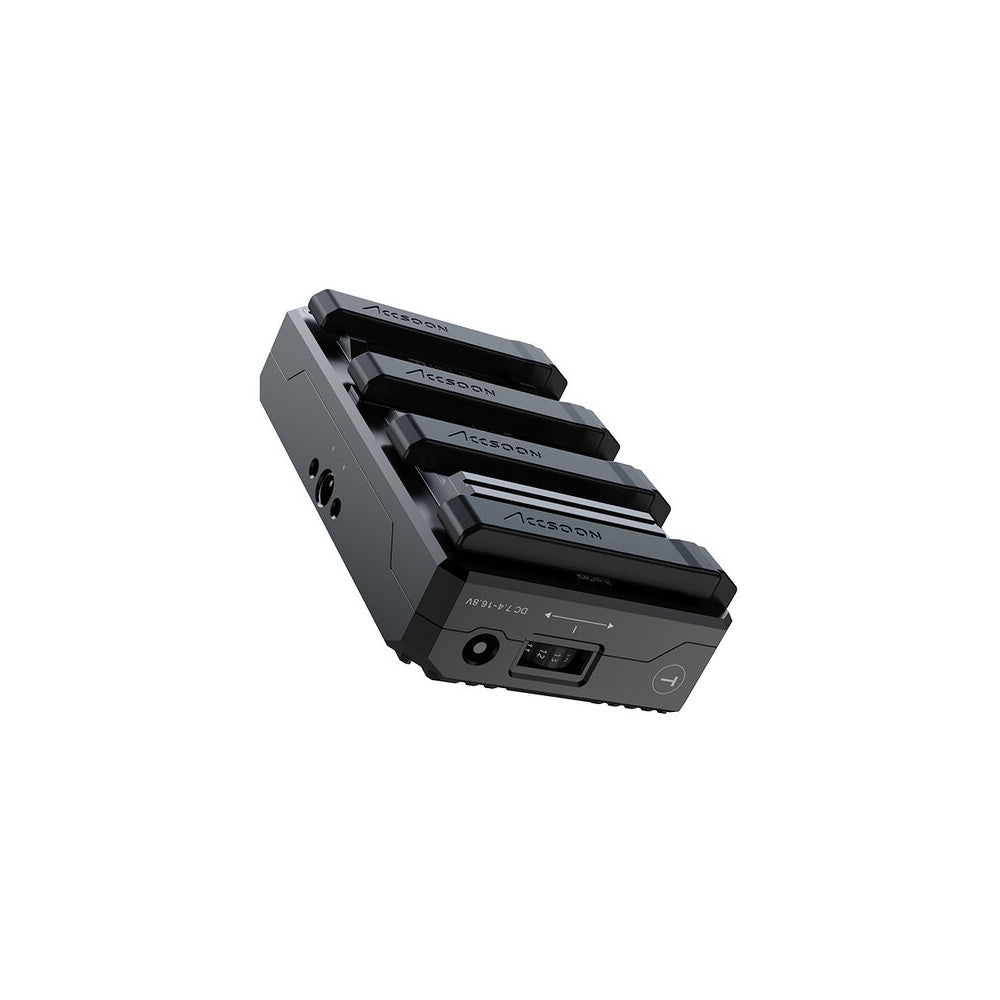

The system supports video up to 1080p at 60 fps and high-quality digital audio with sampling rates of 44.1 and 48 kHz and 16/24-bit resolution. It can be powered by NP-F series batteries or via a DC input, but not by USB. The unique design of the foldable (non-removable) antennas facilitates transport and installation.

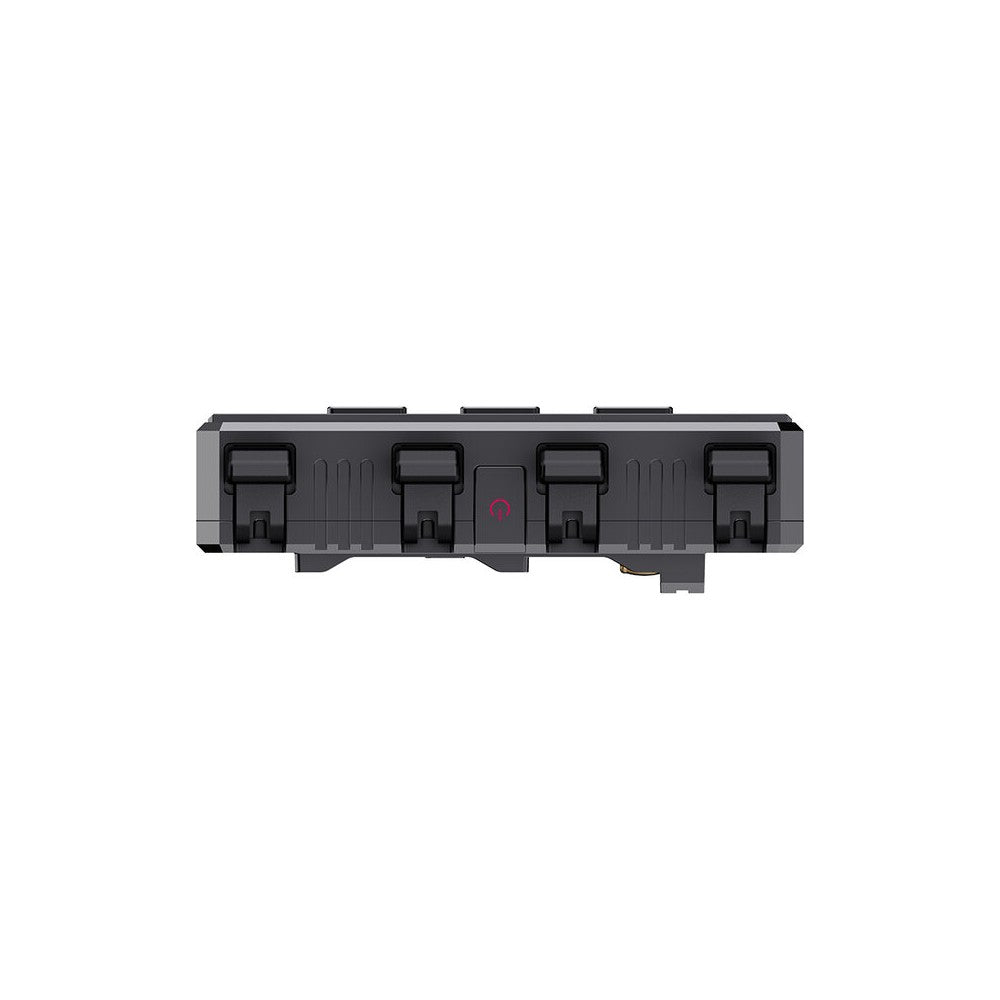

Both the transmitter and receiver are fanless, and the body, made of aerospace-grade aluminum alloy, which is solid and corrosion-resistant, is only 31 mm thick and weighs 225 g.
The Accsoon SEE App allows you to share previews, upload LUTs, record, and use onion skin overlays, etc.
SPECIFICATIONS
- Video input: HDMI, SDI
- SDI input formats: 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps Level A/B
- HDMI input formats: 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
- Audio: 44.1 kHz / 48 kHz 16 / 24 bit PCM
- Latency: < 60 ms (camera latency not included)
- DC port: 5.5 x 2.1 mm, center positive
- DC voltage: 7.4 - 16.8 V
- Display: 1.3" OLED
- Transmission power: 17 - 20 dBm
- Transmission range: 150 m (no obstacles, no interference)
- Power consumption: 4.5 W (typical)
- Operating environment temperature: -10 to 40 ℃
- Dimensions: 105 x 66 x 31 mm (antennas not included)
- Weight: 225 g
- Video ouput: HDMI, SDI
- SDI output formats: 1080p @ 24 / 25 / 30 / 50 / 60 fps Level A/B
- HDMI ouput formats: 1080p @ 24 / 25 / 30 / 50 / 60 fps
- Audio: 44.1 kHz / 48 kHz 16 / 24 bit PCM
- Latency: < 60 ms (camera latency not included)
- DC port: 5.5 x 2.1 mm, center positive
- DC voltage: 7.4 - 16.8 V
- Display: 1.3" OLED
- Transmission range: 150 m (no obstacles, no interference)
- Power consumption: 5 W (typical)
- Operating environment temperature: -10 to 40 ℃
- Dimensions: 105 x 66 x 31 mm (antennas not included)
- Weight: 225 g
Technical characteristics
Transmitter
Receiver
