ACCSOON Wireless AV transmitter, 4K 60 fps, 2.5 km range, less than 25 ms latency, Tri-Band + DFS technology
Paga in 3 rate da €153,00 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES
AV transmitter belonging to the new CineView Master 4K wireless transmission system, Accsoon's top-of-the-line product, capable of offering 4K video quality at 60 fps and thus ideal for monitoring, recording, live streaming, and any other video production.
It uses Tri-Band 2.4, 5 and 6 GHz transmission technology to ensure a stable and robust connection with a latency of only 25 ms from input to output. Based on Accsoon's proprietary RTMS 4.0 protocol, this technology allows for intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency, and the ability to easily handle multiple connections. Accsoon developed the proprietary RTMS 4.0 protocol to work with the new high-performance 8K A/V processor. In combination, the protocol and processor represent a significant 400% increase in processing capabilities.
The CineView Master 4K TX, thanks not only to the revolutionary Tri-band transmission technology but also to its innovative hardware design, is capable of transmitting video up to a distance of 2.5 km, making it suitable for professional cinematic productions. Not only does it work over long distances, but it does so with incredible stability!
In addition, it supports multiple streaming connections, allowing up to four wireless devices and one wired device to be connected simultaneously.
The design of the CineView Master 4K features clean lines, a modern aesthetic, and is built to withstand intensive production use. It is also optimized for heat dissipation with the ability to reduce fan speed or even turn it off for critical audio scenarios. Finally, it can be powered via NP-F batteries or a 12 VDC connector.

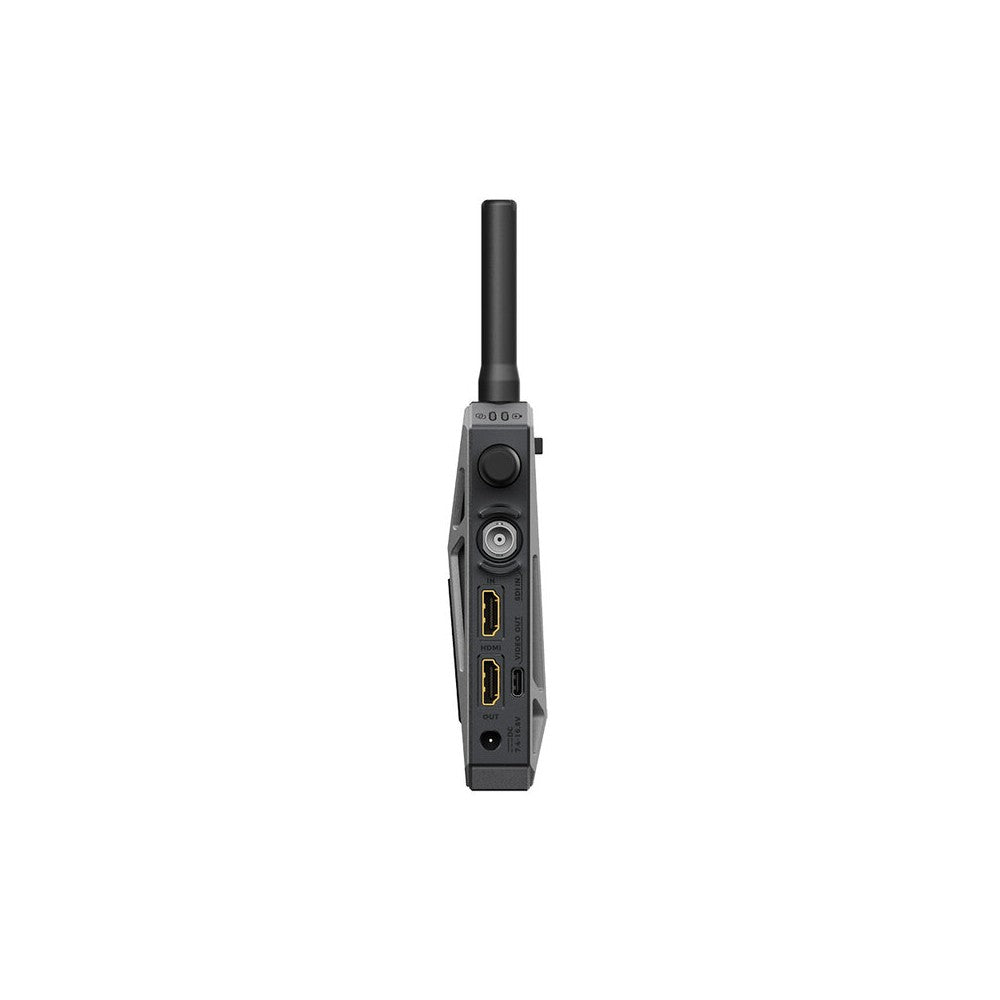

In terms of connections, it offers a 3G SDI input, HDMI 2.0 up to 4k 60 fps, an HDMI 2.0 pass-through output, and video output to iPhone / iPad via wired USB (MFi certified).
SPECIFICATIONS
- 8K high performance A/V processor
- Protocol: proprietary RTMS 4.0 protocol developed by Accsoon
- Video input: HDMI, 3G SDI
- Video output: HDMI loop-out, USB video out (to iOS)
- SDI input formats: 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps Level A/B, 1080i @ 50 / 59.94 / 60i
- HDMI input formats: 4K (3840 x 2160) @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps, 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps, 1080i @ 50 / 59.94 / 60i
- HDMI loop-out format: identical to the HDMI/SDI video input
- Audio: HDMI embedded, SDI embedded
- Latency: 1080p 60 fps＜ 25 ms, 4K 60 fps＜35 ms (camera latency not included)
- Battery: NP-F550, NP-F750, NP-F970
- DC port: 5.5 x 2.1 mm, center positive
- DC voltage: 7.4 - 16.8 V
- Transmission range: ≥ 2.5 km (no obstacles, no interference)
- Power consumption: 6.5 W average (without powering other devices)
- Operating environment temperature: -10 to 40 ℃
- Dimensions: 130 x 95 x 32 mm (without antennas)
- Weight: 322 g (without antennas)
