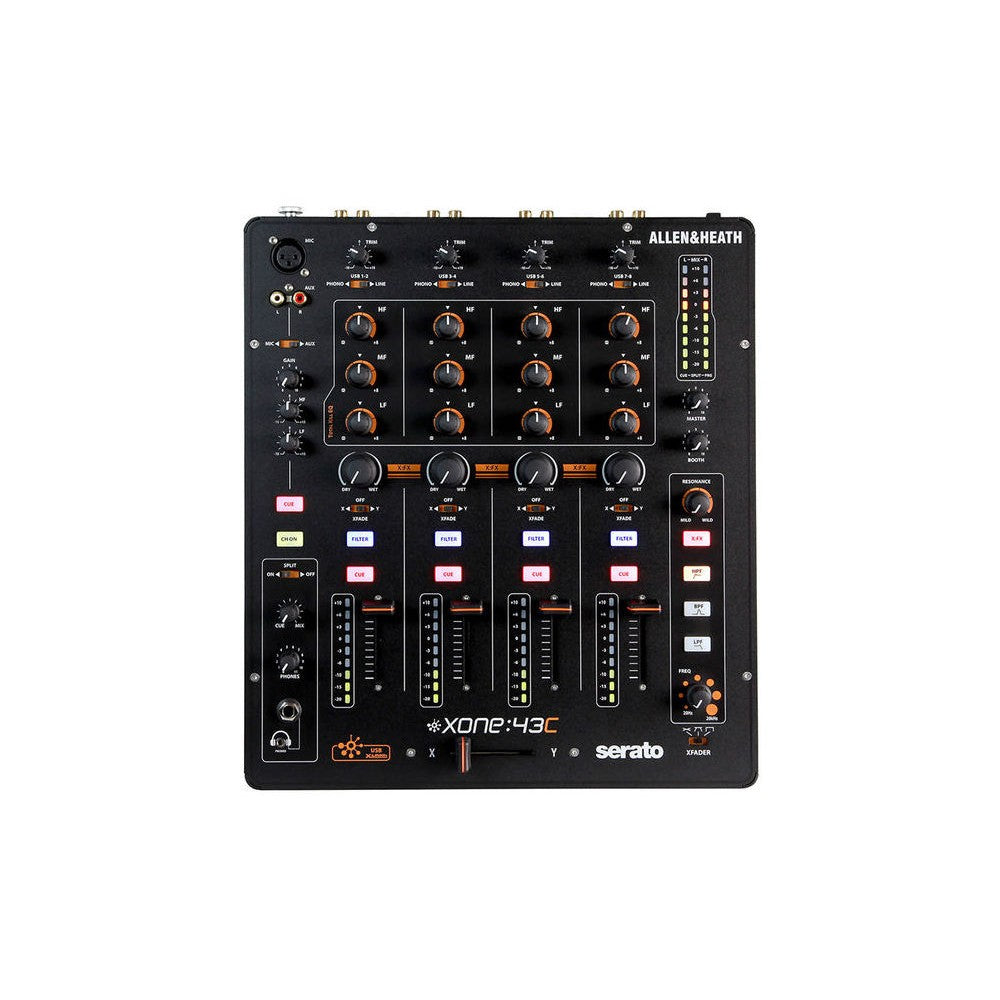

ALLEN & HEATH XONE:43C DJ Mixer with Audio Interface

Dj Mixer with audio interface

ALLEN & HEATH XONE:43C is a 4 + 1 channel Dj mixer equipped with a 96kHz/24bit USB audio interface and natively supported by Serato DJ and Traktor Scratch software.
ALLEN & HEATH XONE:43C combines the best of Allen & Heath's analog and digital technology, including the X:Link protocol for direct (plug-n-play) connection of K by XONE series MIDI controllers. The mixer's 4 switchable phono/line/USB channels offer a complete channel strip with a 5cm fader for volume control, accompanied by a 9-segment LED meter, cue (pre-listen) and filter buttons (for using the integrated filter), wet/dry control for applying an external signal processor connected to the X:FX send and return connections, 3-band EQ with kill function, and rotary gain (trim) control. In addition to the 4 phono/line/USB channels, ALLEN & HEATH XONE:43C has a switchable Mic/Line channel with XLR (mono) and RCA (stereo) inputs located directly on the deck, 2-band EQ, and volume control.
ALLEN & HEATH XONE:43C features the renowned XONE Voltage Control Filter (VCF), a multi-mode analog filter that can be set at the user's discretion as high-pass (HPF), band-pass (BPF), or low-pass (LPF) with independent Cut-Off and resonance controls. The filter is assignable to one of the 4 channels via dedicated switches. The X:FX routing allows for immediate connection of external multi-effects that can be used on each of the mixer's 4 channels by sending the signal via the Dry/Wet potentiometer. The X:FX signal can also be routed to the filter input, to create particular processing chains. The crossfader has 3 user-settable fade curves that adapt to various needs. Furthermore, those looking for maximum perfection in turntablism performances can install the optional Innofader crossfader for state-of-the-art performance. Replacing or upgrading the crossfader is extremely simple and can be done directly by the user. The balanced XLR outputs on the Main output ensure professional connectivity essential for clubs and other installations, while the presence of independent Booth (with dedicated volume control) and Record outputs makes the ALLEN & HEATH XONE:43C a perfect ally in any mixing situation: from bedrooms to radio stations, from mobile DJs to large stages.
ALLEN & HEATH XONE:43C features a pre-listen section equipped with two headphone connections: one 1/8” mini-jack and one 1/4” standard jack. Here you will also find the volume control, the control for mixing between pre-listen and mix (cue/mix potentiometer), and a split option.

Specifications

• Analog DJ mixer with USB audio interface
• 8 In/8 Out USB 2.0 audio interface at 96kHz/24bit
• Compatible with Serato DJ and DVS Expansion
• Can be used as an External Mixer with any software
• X:LINK connection for K-series controller connection
• 4 channels with phono/line/USB inputs
• Gain, 3-band EQ, X:FX dry/wet on each channel
• Assignable resonant multi-mode XONE filter
• 1 Mic/Aux channel (XLR/RCA stereo)
• 2-band EQ and volume control on Mic/aux

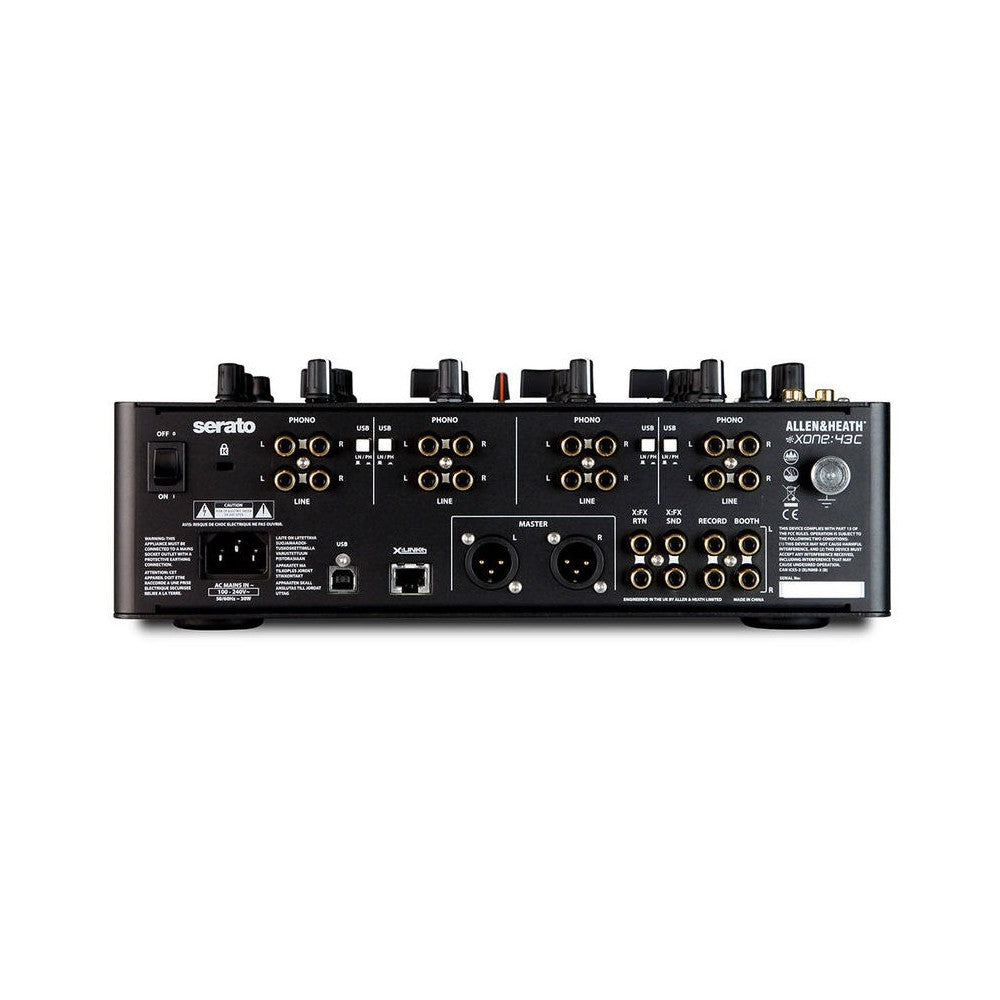

• Main (XLR), Booth and Record (RCA) outputs
• Booth output with dedicated volume control
• X:FX: Out Send and In Return stereo RCA
