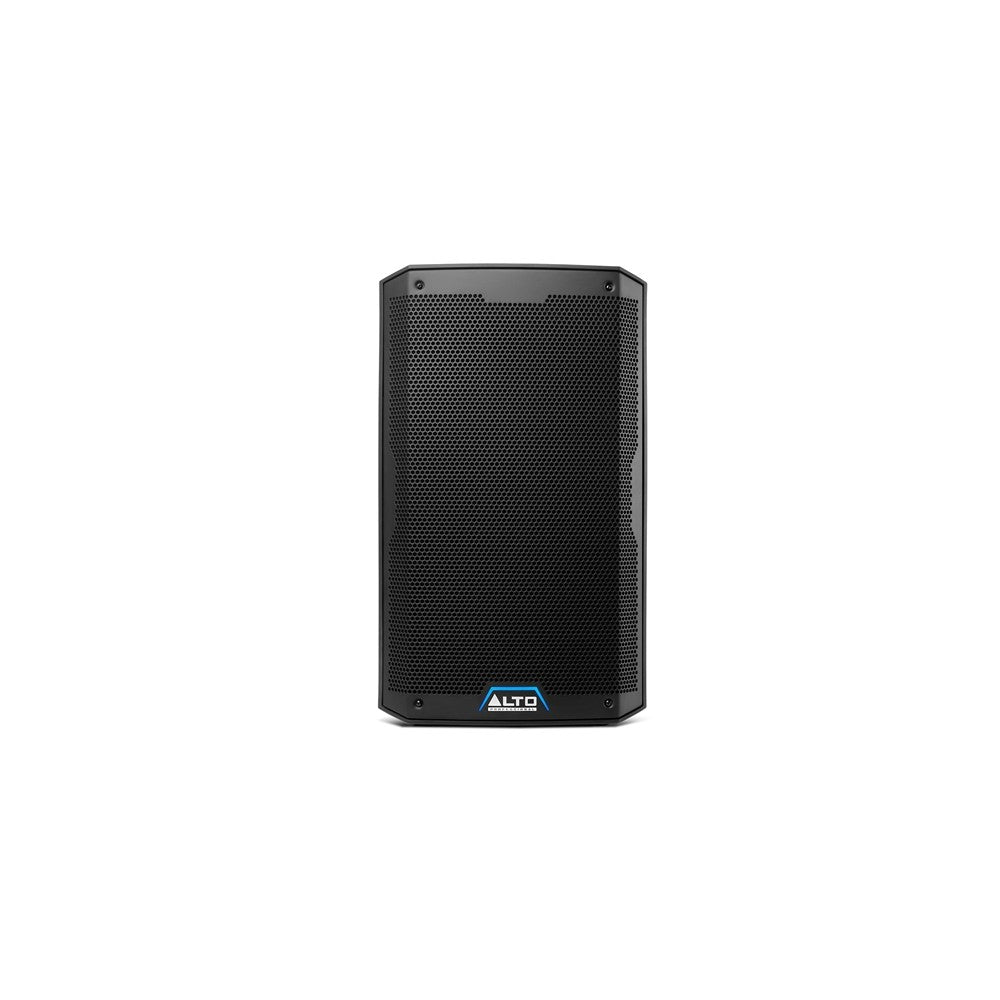

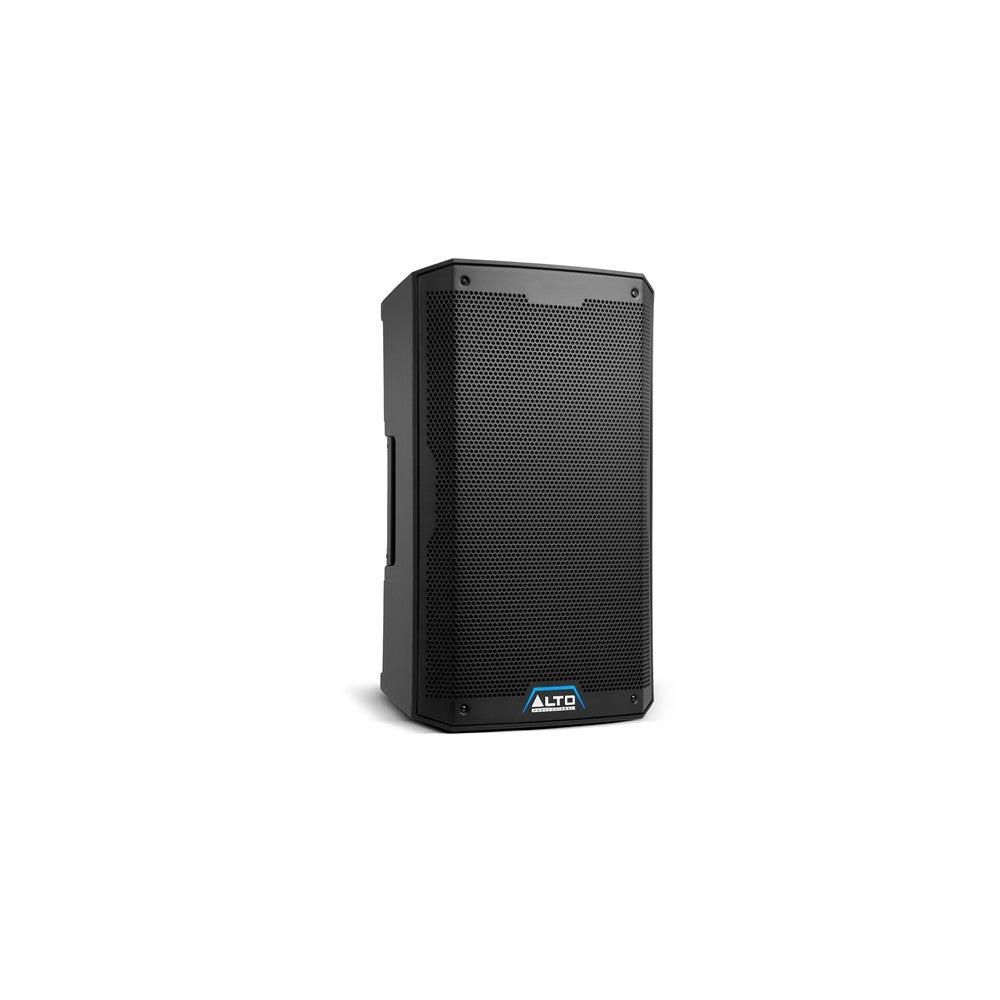

Alto Professional TS410 is a powered speaker with 2000W peak power (RMS: 650W low, 350W high), covering a frequency range from 48Hz to 20kHz and featuring three audio inputs with separate volume controls: two mic/line on Combo connectors and one wireless Bluetooth 5 with pairing buttons and stereo link function. Max SPL: 130dB (peak), 127dB (continuous). DSP functions controllable via iOS and Android app.

Alto TS410: True Sonic Power

Whatever your amplification needs, the Alto Professional TS410 speaker provides an elegant and high-quality product, with a 2000W peak power, a 10” woofer and a 1” compression tweeter, respectively equipped with 2” (50mm) and 1.4” (35mm) voice coils, and Class D amplification with 650W and 350W RMS. The frequency response ranges from 57Hz to 20kHz with a tolerance margin of +/-3 dB, extending to as low as 48Hz in the bass frequencies with a -10 dB tolerance.

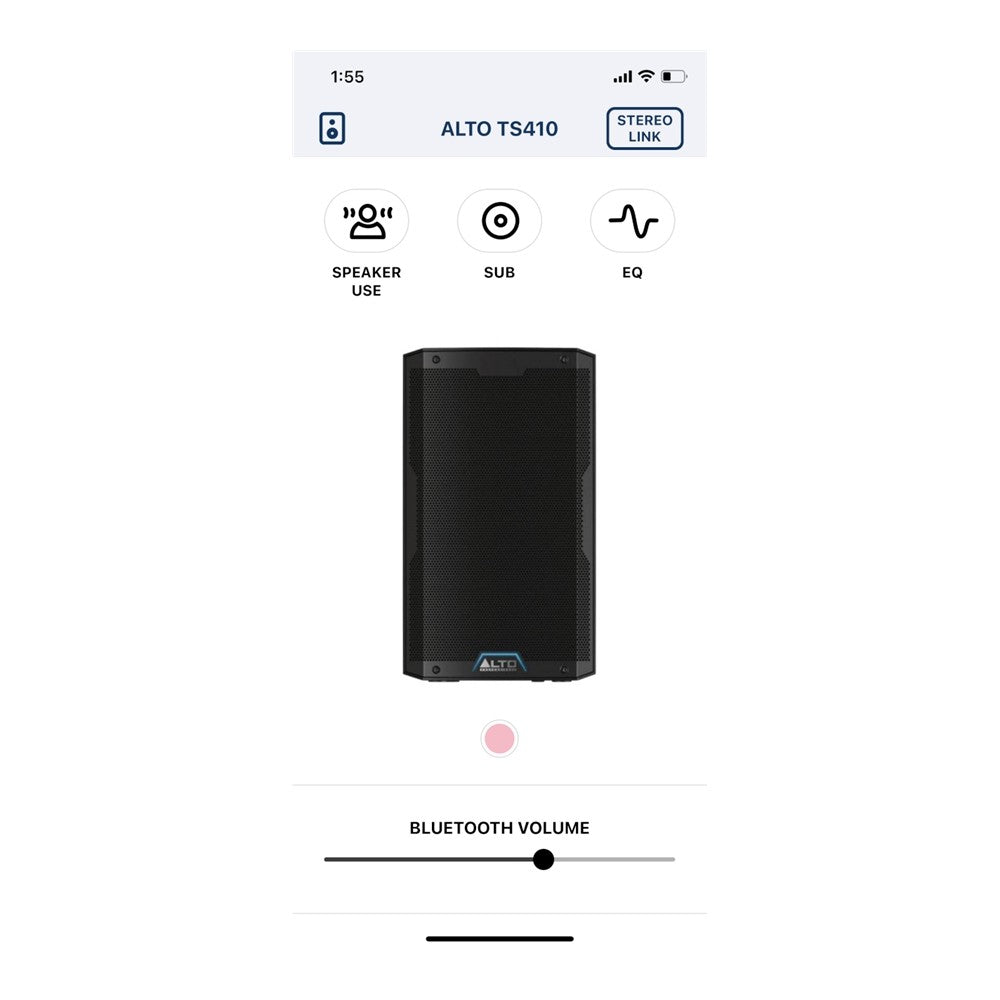

Free Alto iOS and Android App

Configure and control your Alto Professional TS410 powered speaker from your smartphone and tablet using the dedicated free App available for iOS and Android devices. In the application, you can configure the Bluetooth audio level, the speaker's usage mode, set your personalized equalization (with a 6-band parametric EQ), and the high-pass filter that best suits the size of your potential subwoofer. Additionally, you can configure the True Wireless Stereo Link directly in the app, thus minimizing setup time. A Type A USB port on the rear panel of the TS410 allows for charging/powering smartphones and tablets.

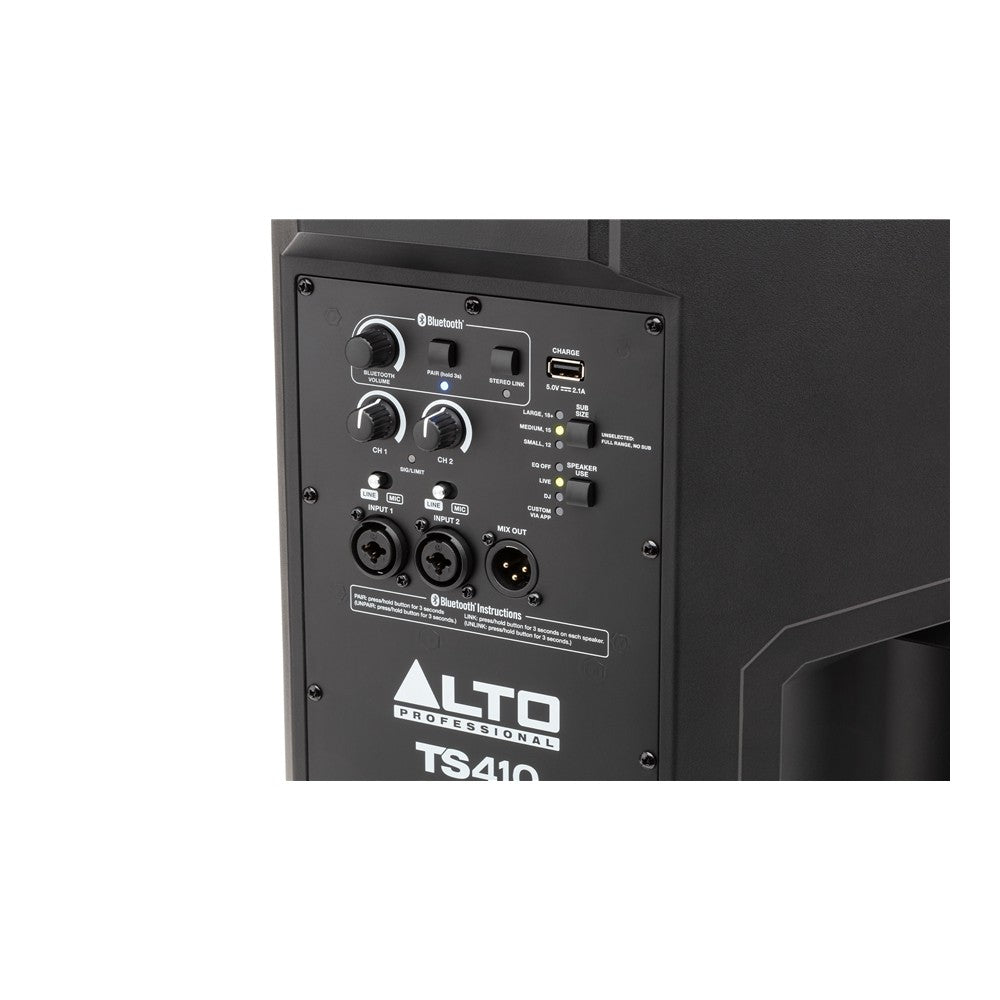

Integrated 3-channel mixer in the TS410

As in all models of the TS4 by Alto Professional series, the TS410 features an integrated 3-channel mixer: 2 mic/line on Combo connectors (accepts XLR or 1/4” TRS Jack) and one wireless Bluetooth 5 with buttons for Pairing and Stereo Link function. The Mic/Line selector on the combo inputs allows for setting the appropriate preamplification depending on the connected source. With the XLR “Mix Out” output, wired daisy-chain connections can be made. You can therefore connect directly to your speaker and control the volume of the 3 connected sources separately: from dynamic microphones to keyboards, from musical instruments (including guitar and bass with active pickups) to guitar pedalboards, from mixers to audio interfaces, including various devices (computers, smartphones, or tablets) equipped with Bluetooth output.

Bluetooth Audio Connectivity & Speaker Linking

Today, it is essential to meet the needs of the audience and the client, minimizing the setup time of the audio system and the clutter of cables. The Alto TS410, thanks to its Bluetooth 5 audio connectivity, receives the signal played from laptops, mobile phones, and tablets. With the True Wireless Stereo function, you can configure the playback of your set of Alto Professional TS410 speakers to reproduce the stereo image of the original source. All without cables!

The integrated DSP in the Alto Pro TS410

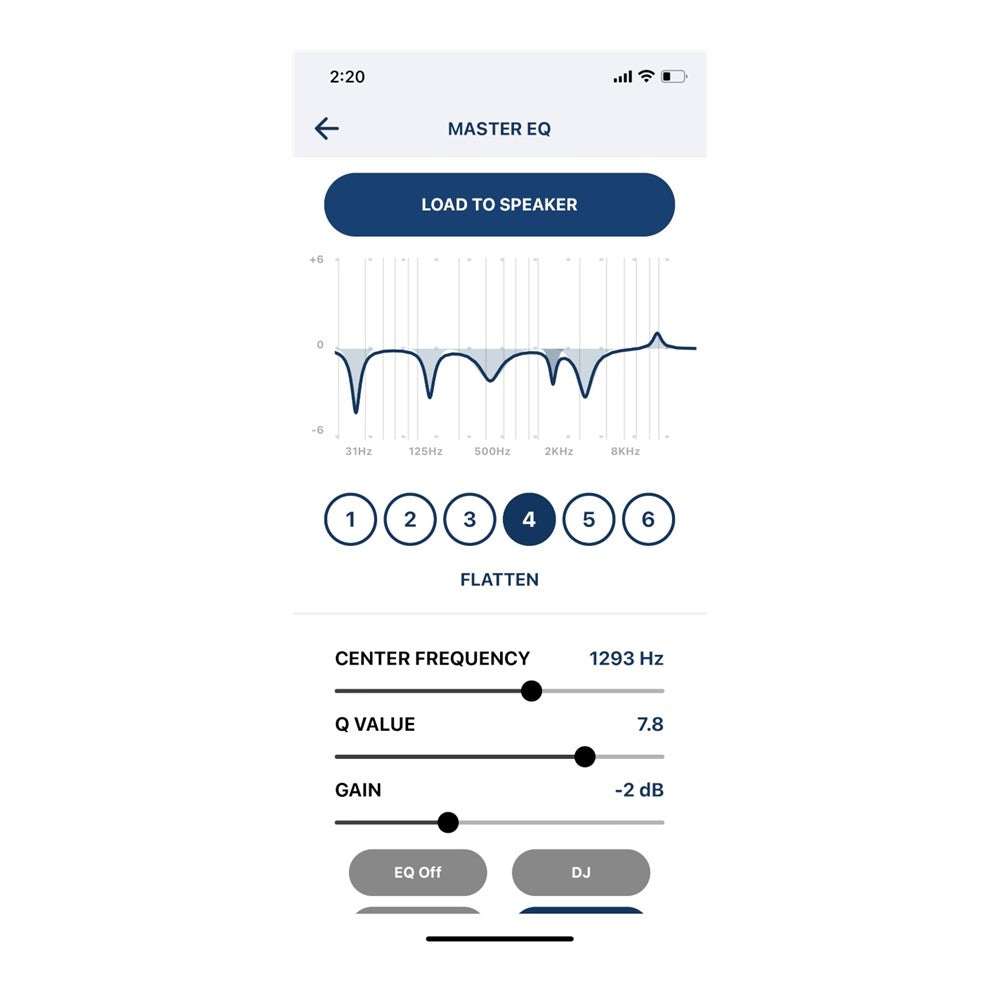

There are three "Speaker Use" presets that you can select with the dedicated button on the rear panel: Live, DJ, and "Custom via App." The latter can be configured remotely using a 6-band parametric EQ in the iOS/Android app. You can save your personalized equalization directly on the speaker for quick recall when needed. With the "Sub Size" button, you can choose the most appropriate high-pass filter for use with small, medium, or large subwoofers.

Alto TS410 adapts to your needs

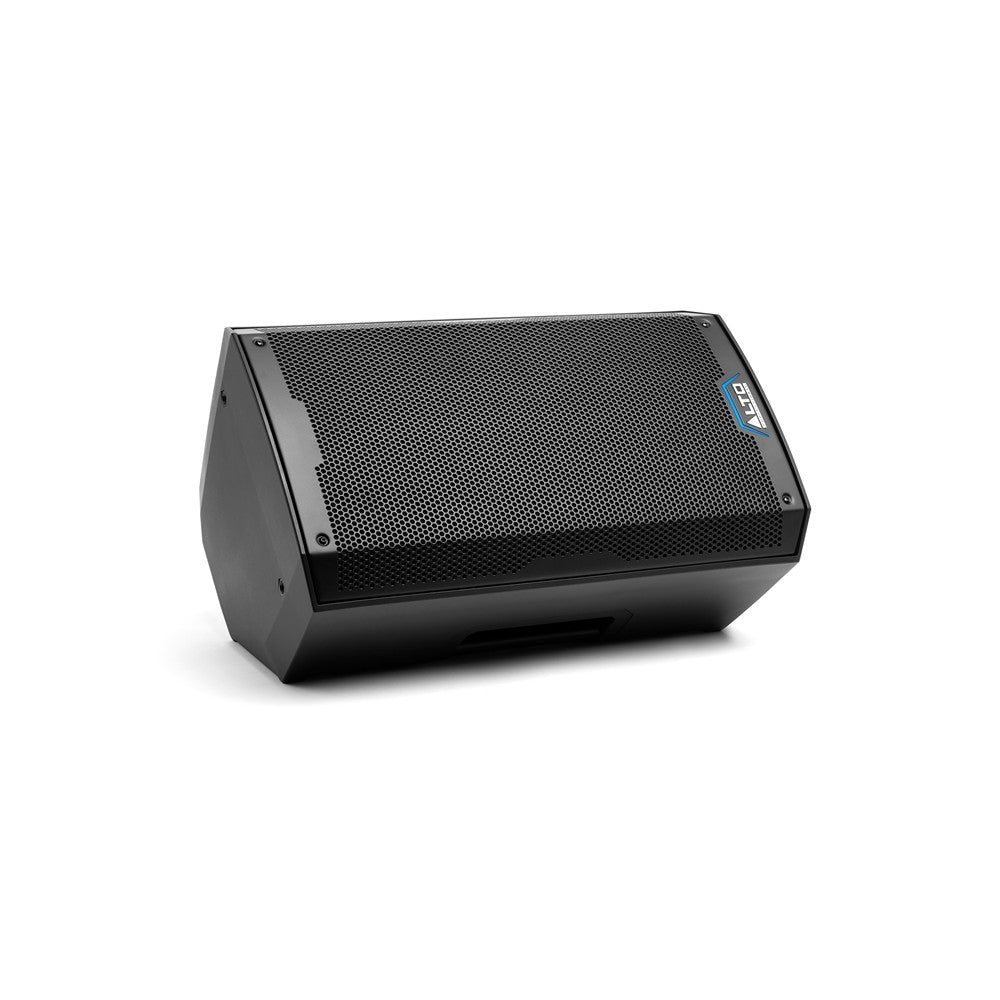

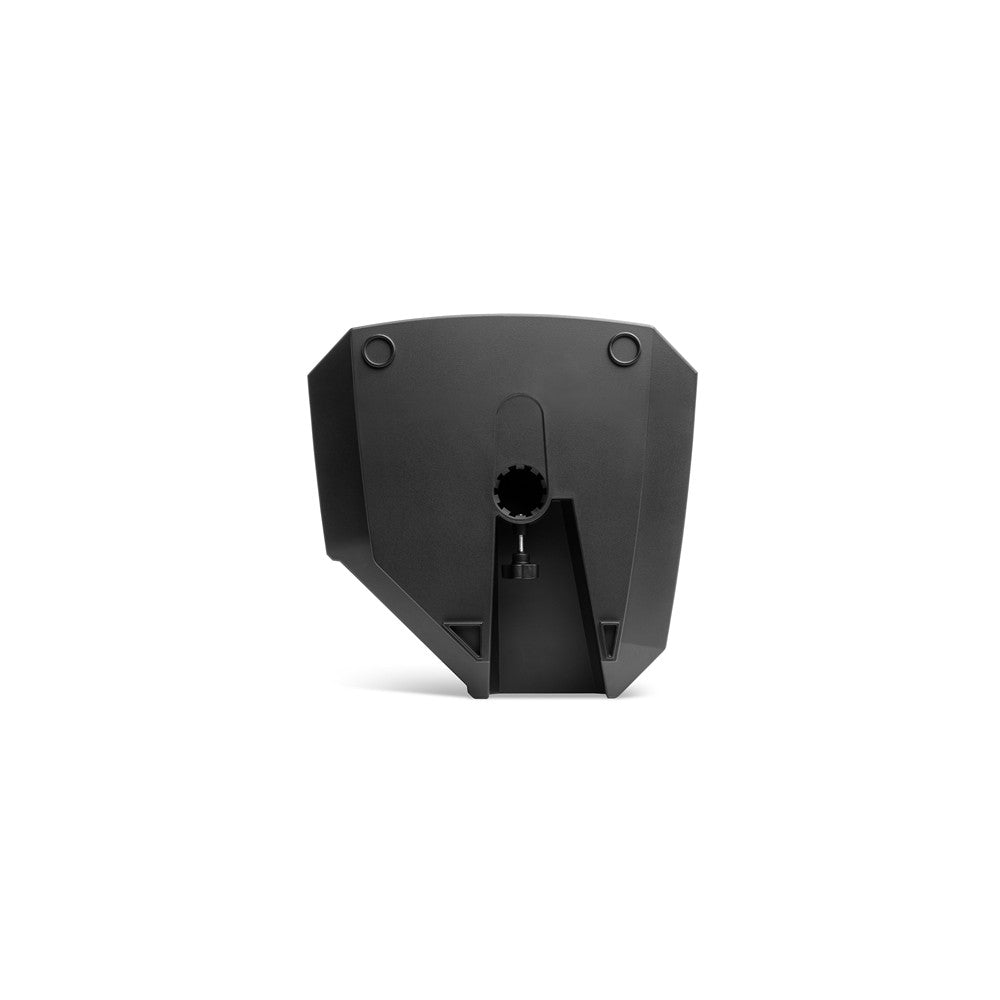

Lightweight (11.8KG) and compact (536x320x317mm) considering its power, this amplified speaker can be positioned in any way: on a stand thanks to the standard 36mm pole mount on the base, on the floor or as a stage monitor thanks to the particular shape of the cabinet, or suspended thanks to the integrated M10 threaded rigging points. The passive cooling, i.e., the absence of a fan, allows the TS410 to be used in environments that require particularly quiet equipment: from theatrical performances to places of worship.

Applications of Alto Professional TS410 speakers:

•

• Live Performers (singers and karaoke)

• Musicians and bands (live, rehearsal room)

• DJ

• Bars, restaurants and dance clubs

• Stage monitor

• Gyms and dance classes

• Places of worship

• Theatres

• Presentations, rallies, events and weddings


Alto Professional TS410 Technical Specifications:

•

• Two-way amplified speaker

• 3 inputs with volume controls

• 2 Mic/Line, 1 Bluetooth 5

• Integrated DSP controllable via app

• 2000W peak power

• Class D amplification

• Passive cooling (fanless)

• RMS: 650W low, 350W high

• MAX SPL (@1m): 130dB (peak), 127dB (continuous)

• Frequency response (+/-3 dB): 57Hz to 20kHz

• Covered range (-10 dB): 48Hz to 20kHz

• 10” woofer, 2” (50mm) voice coil

• 1” tweeter, 1.4” (35mm) voice coil

• Coverage angle (nominal): 90° H x 60° V

• Crossover frequency: 2kHz

• 2 combo audio inputs: XLR or 1/4” (6.35 mm) TRS Jack

• Input impedance: 10 KΩ (bal.), 20 KΩ (unbal.), Mic: 1.2K

• Line Gain: -∞ to 0 dB, +4 dBu, +10 dBu for max out

• Mic/Inst Gain: -∞ to +50 dB

• XLR Output (Link)

• Bluetooth Pairing and Stereo Link buttons

• 3-preset EQ button: Live, DJ, and “Custom via App”

• App for iOS and Android smartphone and tablet control

• 6-band parametric EQ in the app

• “Sub Size” button for high-pass selection

• USB A port for device charging (5V, 2.1A)

• Protection circuits: overheating, clip and transducer saturation

• Trapezoidal polypropylene cabinet

• Lightweight, optimized for different installations and transport

• Perforated metal front grille

• Installation: 36mm hole for stand, M10 holes, floor

• Power connector: IEC

• Fuse 220-240V: T5AL AC250V

• Power consumption 900W

• Dimensions and weight: 536x320x317mm; 11.8KG


LED Indicators:

•

• 1 for Signal/Limit/Clip:


(Green = Ch1/2 signal present)

(Yellow = Ch1/2 Limiter)

(Red = Ch1/2 Output Clipped)

- 1 Bluetooth (Blue)

- 1 Link LED (Orange)

- 4 DSP Presets (Green)

- 3 HPF (Green)
