ARP ODYSSEY FSQ REV2 Duophonic Synthesizer with step sequencer module

Duophonic Synthesizer with Step Sequencer Module

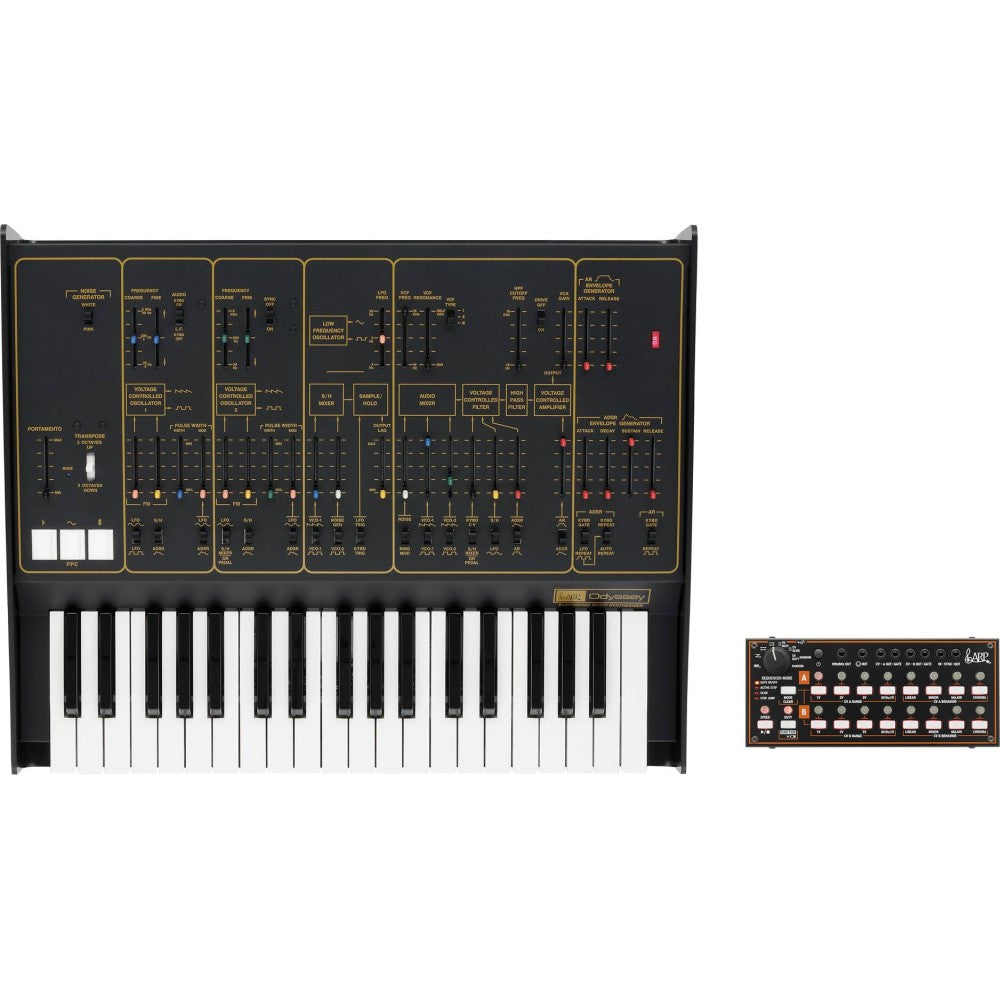

The ARP ODYSSEY FSQ REV2 is a limited edition duophonic synthesizer with a 37 full-size key keyboard sold in a bundle with the KORG SQ-1.

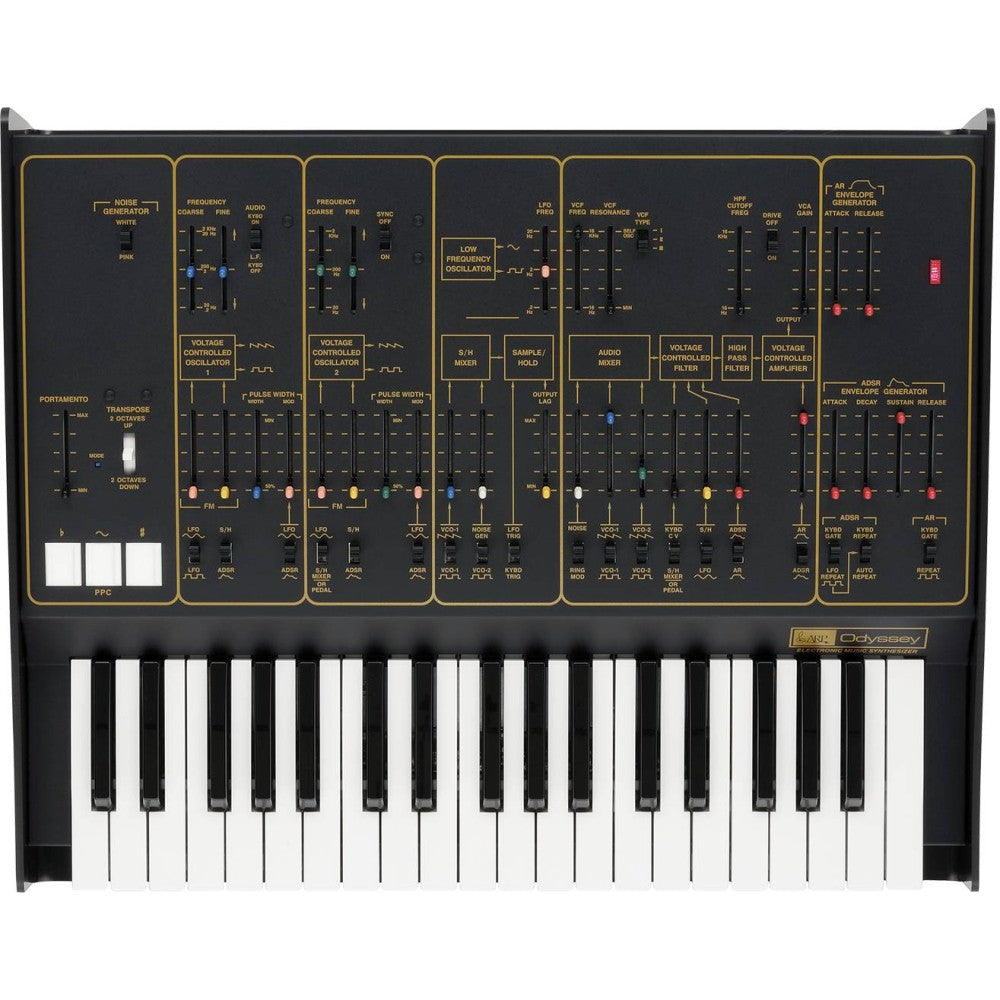

The ARP ODYSSEY FSQ REV2 was introduced in 2017 as a faithful reissue of the original ARP ODYSSEY, with perfectly replicated analog sound and circuitry, a full-size chassis, and keyboard. It was assembled in Japan and available in small quantities as a limited edition, made using components that are now scarce.

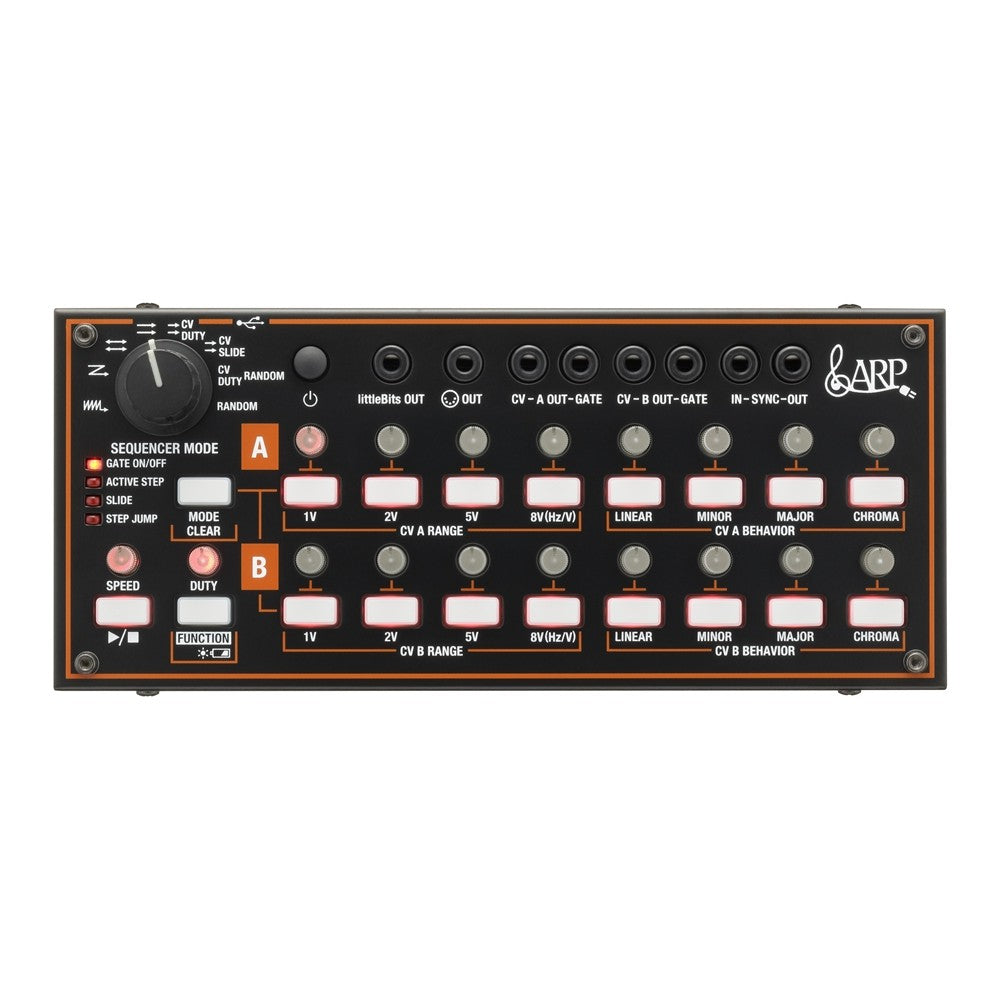

For this occasion only, it comes with the KORG SQ-1 Step Sequencer, also a limited edition with characteristic ARP colors: orange silk-screened on a black panel.
Two mini-patch cables are also included so you can start using the Sequencer and synthesizer immediately, connecting them via CV/GATE and instantly exploiting the endless synthesis possibilities of the ODYSSEY.
The technical specifications of the ARP ODYSSEY FSQ REV2 are identical to those of the ARP ODYSSEY FS with the sole exception of the assembly location (ARP ODYSSEY FS assembled in New York, ARP ODYSSEY FSQ in Japan).
With the sole exception of the color finishes and the two included patch cables, the specifications of the KORG SQ-1 ARP are identical to those of the standard SQ-1.

Specifications

• Keyboard: 37 full-size keys (No velocity sensitivity, No aftertouch)
• Maximum Polyphony: 2-voice duophonic; normally monophonic

Controls

• Transpose Positions: 2 octaves down, normal, 2 octaves up
• Pitch Control - Proportional Pitch Control: b (Pitch down) Pad: approx. -2/3 octave; - (Modulation) Pad; # (Pitch-up) Pad: approx. +2/3 octave
• Noise Generator: Noise Spectrum Types (White and Pink) – noise types: white and pink
• Portamento: Max speed: approx. 0.01 msec./oct; Min speed: approx. 1.5 sec./oct

VCO (Voltage Controlled Oscillator)

• Waveforms: Sawtooth, Square, Pulse (Dynamic Pulse)
• Frequency Range: VCO-1 in low freq. mode, 0.2 Hz – 20 Hz; VCO-1 and VCO-2 (audio range) approx. 20 Hz – 20 kHz
• Warm Up Drift: 1/30 of a semitone from power-on to max.
• Pulse Width: 50% – 5%
• Pulse Width Modulation:
• ADSR, +45%
• LFO, +15%
• Voltage Controlled Response: 1 V/oct
• Maximum Frequency Shifts:
• LFO sine wave, +1/2 oct.
• LFO square wave, +1.5 oct.
• ADSR, +9 oct.
• S/H, +2 oct.

VCF (Voltage Controlled Filter)

• Types: Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
• Frequency Range: 16 Hz - 16 kHz
• Maximum Usable Q: 30
• Resonance: 1/2 - self oscillate
• Voltage Controlled Response: C3 key (left end): 0 V C6 key (right end) 3 V

• VCA (Voltage Controlled Amplifier): Dynamic Range 80 dB
• Ring Modulator: Digital type; Input signal, VCO-1, VCO-2 (square wave)
• Sample & Hold: Source: Keyboard or LFO trigger; Sampled signals: VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise

ADSR Envelope Generator

• Attack Time: 5 msec. - 5 sec.
• Decay Time: 10 msec. - 8 sec.
• Sustain Level: 0 - 100% or Peak
• Release Time: 15 msec. - 10 sec.

• AR Envelope Generator: Attack Time: 5 msec. - 5 sec.; Release Time: 10 msec. - 8 sec.
• Control Inputs: Pedal 6.3 mm mono phone jack; Portamento Foot Switch 6.3 mm mono phone jack
• Audio Output Jacks LOW: 6.3 mm mono phone jack connector; Maximum output level -20 dBu@ 10 kΩ ohm load; Output impedance 10 kΩ
• Audio Output Jacks HIGH: XLR connector; Maximum output level +4 dBu@ 1 kΩ load; Output impedance 330 Ω
• Headphone Connection: 6.3 mm stereo phone jack connector; Maximum output level 50 mW + 50 mW@ 33 Ω load*; Output impedance 10 Ω
• External Audio Input: 6.3 mm mono phone jack connector; Maximum output level -10 dBu; Input impedance 22 kΩ
• MIDI Connection: MIDI IN
• USB Connection: Type B
• CV IN/OUT: Keyboard CV (IN/OUT) 1 V/oct.; 3.5 mm mono phone jack connector
• CV IN/OUT: GATE IN +3 V (minimum); GATE OUT +10 V, key pressed 0 V all keys released; Connector: 3.5 mm mono phone jack
• TRIG IN/OUT: TRIG IN +3 V pulse min., 10 μsec. Minimum duration; TRIG OUT +10 V impulse on key press, Duration 10 μsec.; 3.5 mm mono phone jack connector
• Power Supply: AC adapter (DC 12 V) + power cable
• Power Consumption: 7.1 W
• Finishes: White
• Included Accessories: AC adapter (DC 12 V), power cable, mini phono cable
