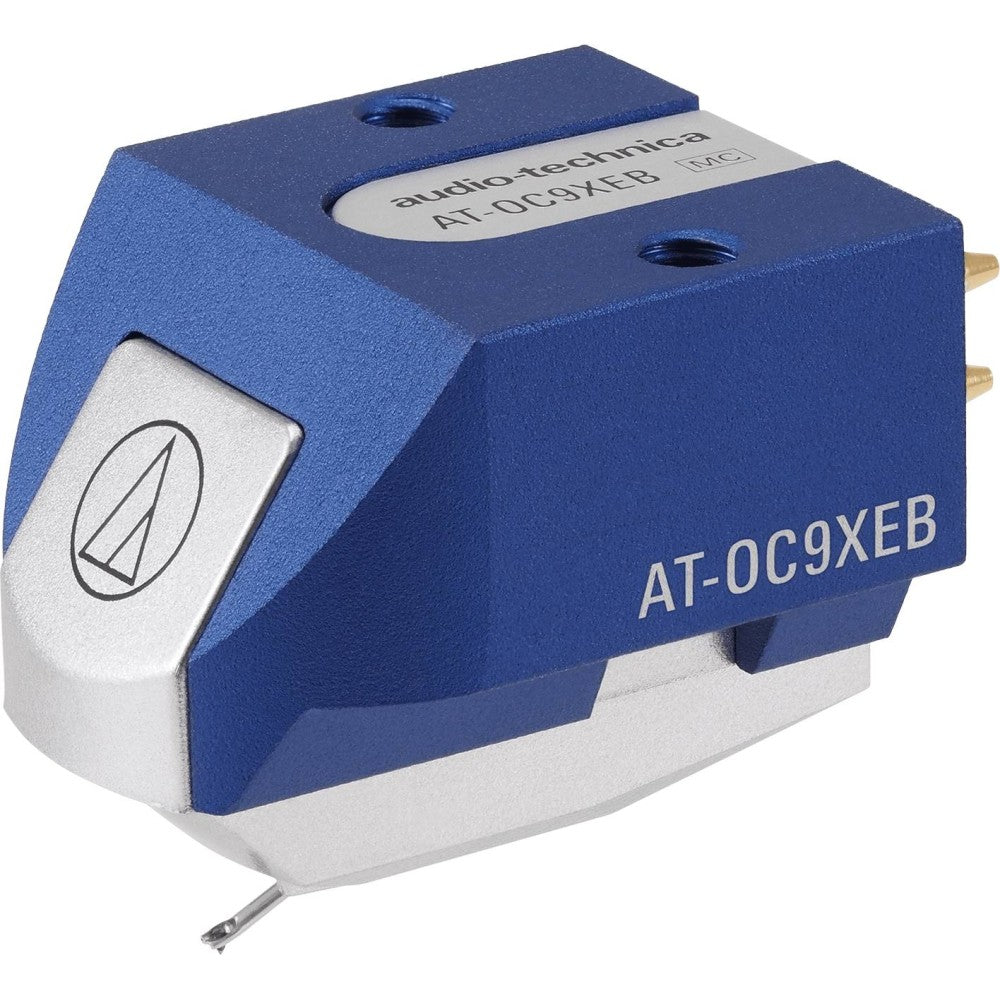

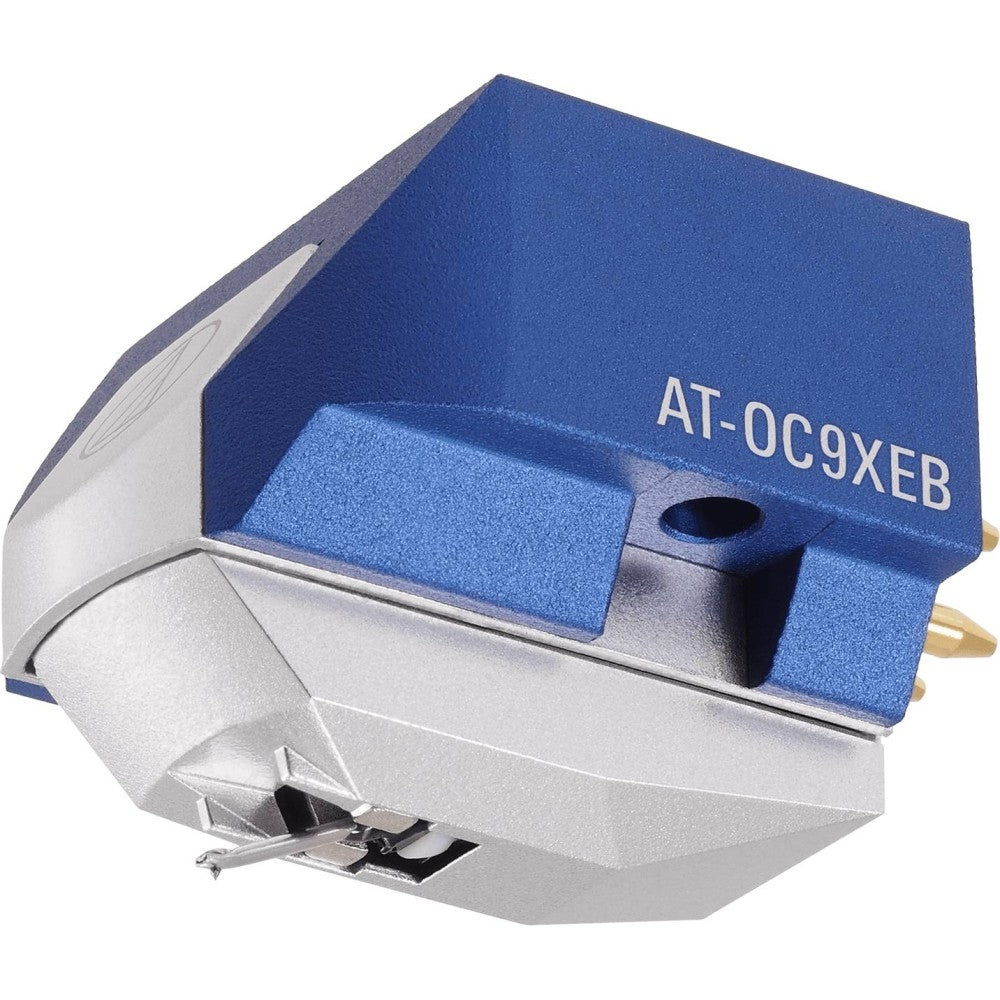

AUDIO TECHNICA AT-OC9XEB Dual Moving Coil Cartridge
Estimated delivery in Italy between 18 and 22 June
Paga in 3 rate da €195,33 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
Dual Moving Coil Cartridge
The AUDIO TECHNICA AT-OC9XEB dual moving coil cartridge with bonded elliptical stylus is designed to provide exceptional channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in an inverted V-shaped formation to put less pressure on the stylus, thus minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and a pure iron yoke that increase magnetic energy, and the bonded elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, allowing it to be mounted on a headshell or integrated tonearm with just two screws, without the need for nuts.
Specifications
- Type: Dual Moving Coil
- Frequency Response: 20-30,000 Hz
- Channel Separation: 25 dB (1 kHz)
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus: Bonded round shank
- Recommended Load Impedance: min. 100 ohms (when connected to main amplifier)
- Coil Impedance: 12 ohms (1 kHz)
- DC Resistance: 12 ohms
- Coil Inductance: 25 mH (1 kHz)
- Output Voltage: 0.32 mV (at 1 kHz, 5 cm/sec)
- Output Channel Balance: 1.5 dB (1 kHz)
- Stylus Shape: Elliptical bonded
- Cantilever: Aluminum tube
- Static Compliance: 20 x 10-6 cm/dyne
- Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)
- Mounting: Half-inch

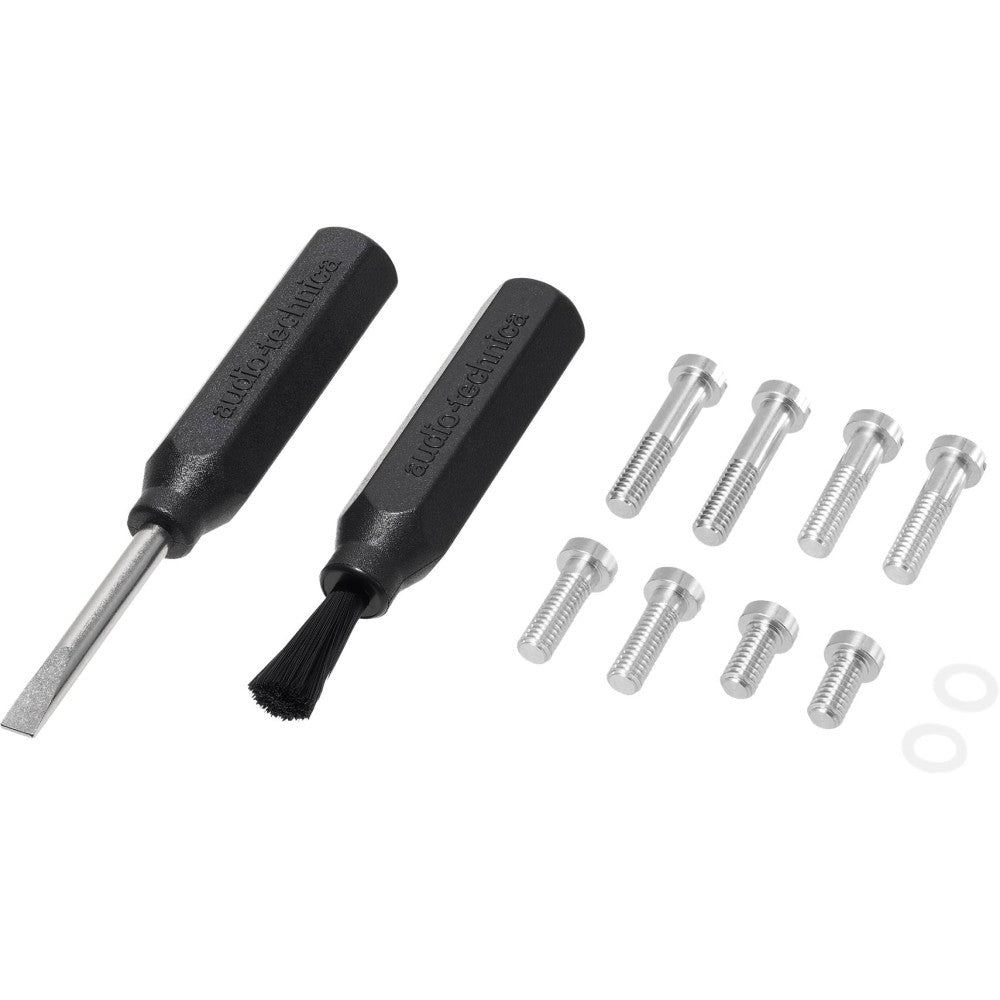

- Included Accessories: Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush
- Stylus Curvature Radius: 0.3 x 0.7 mil
- Stylus Dimensions: Bonded round shank
- Brass terminal pins
- Wire used for coil: PCOCC
- Note: Moving coil cartridges require receivers or preamplifiers with compatible inputs.
