AUDIX DANTE KIT M3GDK GREY
Estimated delivery in Italy between 18 and 22 June
Paga in 3 rate da €423,00 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke

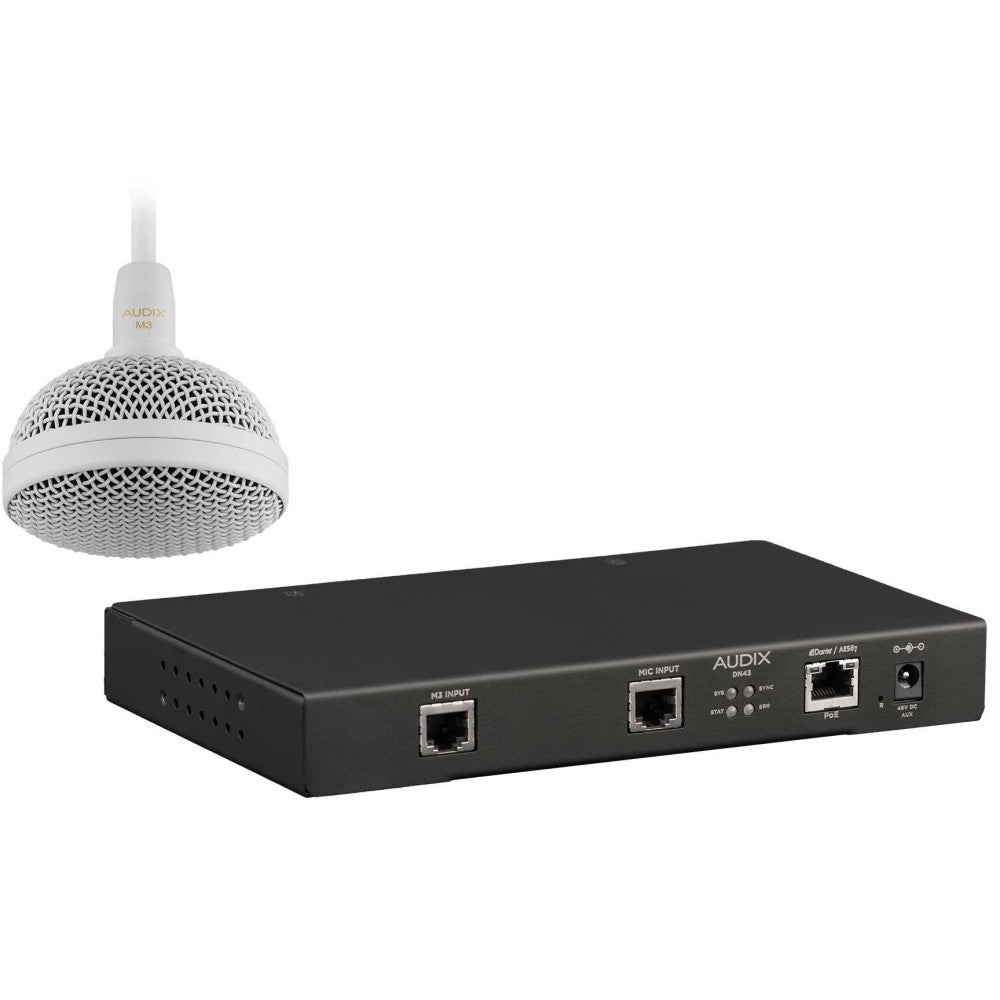

M3WDK - MICROPHONE AND INTERFACE KIT FOR DANTE | AES67 INTEGRATED MICROPHONE SYSTEM

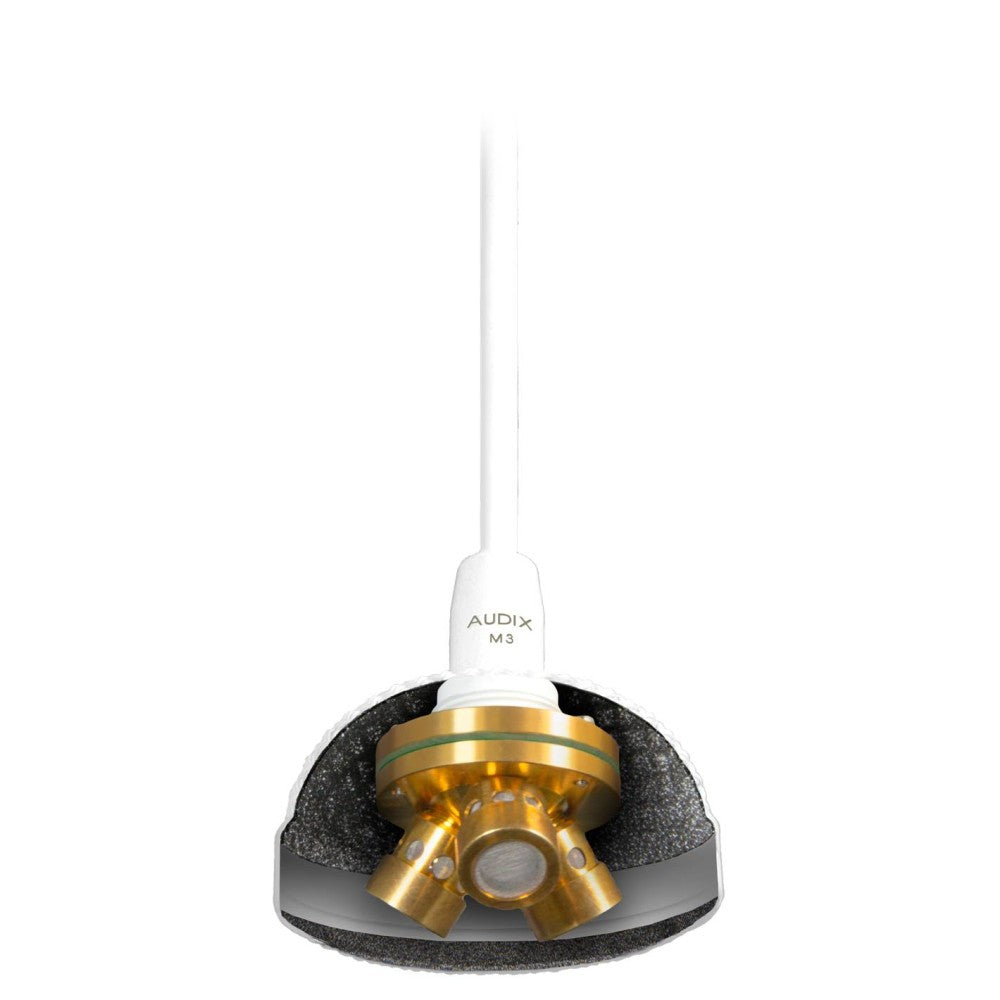

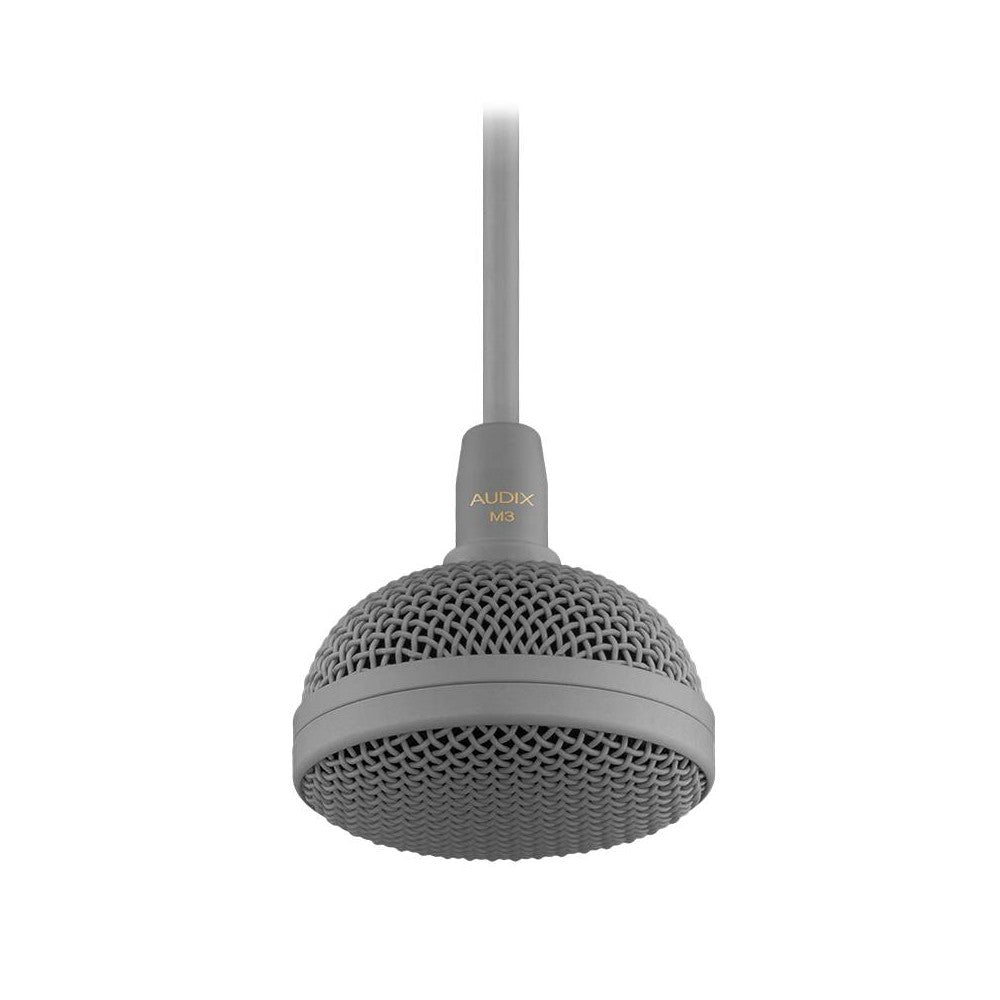

The M3DK is a convenient kit that pairs the Audix M3 hanging ceiling microphone with the Audix DN43 Dante | AES67 microphone interface, providing an easy-to-install, network-ready way to stream Audix audio performance across Ethernet networks. The M3 is an innovative three-element hanging microphone designed for applications where aesthetics, sound quality, and ease of installation are paramount. The frequency response and polar pattern of its three coherent phase-aligned hypercardioid capsules are tailored for vocal clarity and rejection of extraneous noise. The Audix DN43 interface features one microphone port exclusively designed for the Audix M3 three-element microphone and one port for single-element microphones equipped with Audix RJ45. Each channel has independently controlled selectable preamp gain, as well as low-pass and high-pass filters. It features balanced audio inputs with RFI filtering and delivers 24-bit, 48 kHz high-fidelity audio.
M3 FEATURES
- 100% RF shielding and immunity
- Studio-quality gold diaphragm condenser capsules
- Low impedance design allows for extremely long cable runs (if needed) without crosstalk or interference
- Frequency and pattern tailored for vocal clarity and rejection of extraneous noise
- Evenly dispersed sound with unnoticeable phase
- High-quality silicone-jacketed microphone cable with adjustable length and position
- Plenum-rated junction box with RJ45 connector
- All visible microphone and cable components are the same color: charcoal or white
- TAA compliant
- Very high output, low noise
- Easy to install
- Transducer type Pre-polarized condenser
- Frequency response 30 Hz – 19 kHz
- Optimized response 70 Hz – 9 kHz
- Polar pattern Hypercardioid
- Output impedance 150 Ohms balanced
- Sensitivity 34 mV/Pa @ 1k
- Equivalent noise level 22 dB (A-weighted)
- Off-axis rejection 1 capsule >23 dB at 180º vs 0º 2 capsules >18 dB at 120º 3 capsules >9 dB at 60º
- Signal-to-noise ratio 72dB
- Maximum SPL ≥128dB
- Dynamic range 106dB
- Power requirements 18 – 52 Volt phantom
- Connector Terminal block or XLR
- Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

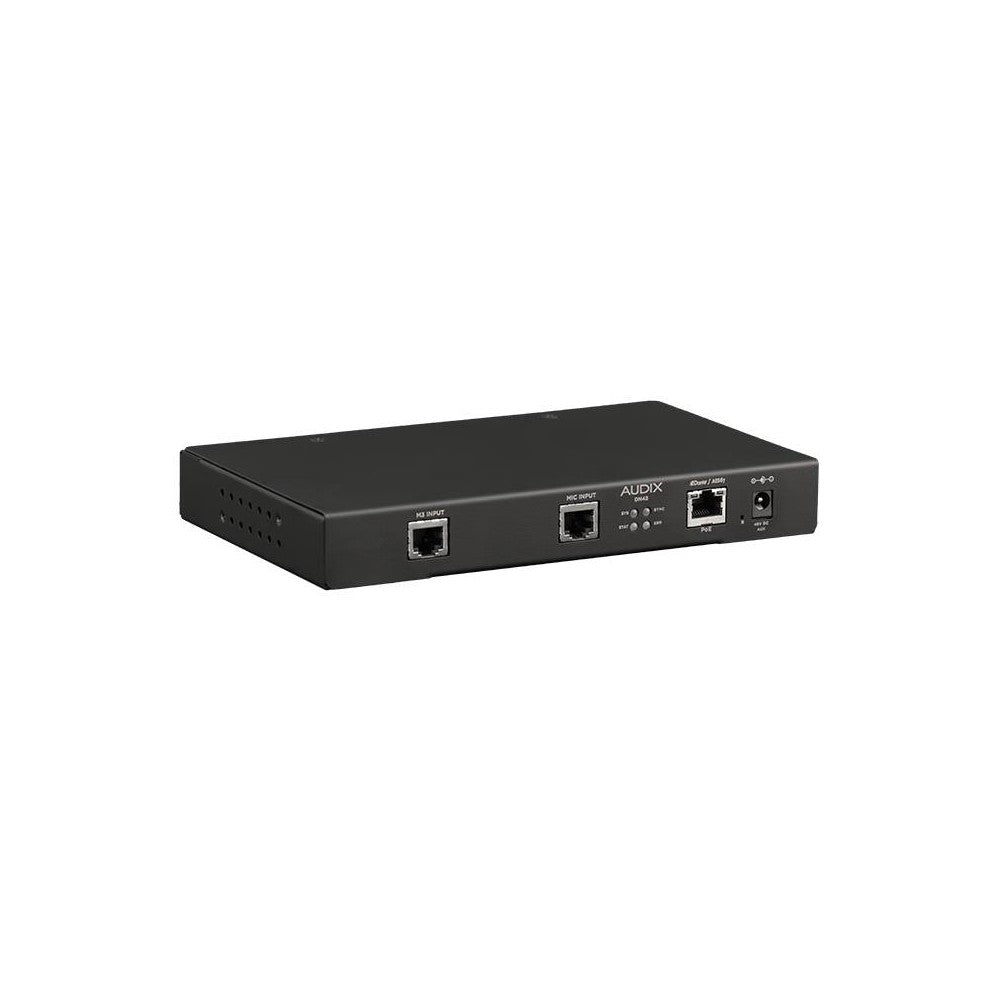

DN43 FEATURES
- 24-bit, 48 kHz high-fidelity audio
- Balanced audio inputs with RFI filtering
- 48V phantom power output
- Each channel has selectable preamp gain, as well as low-pass and high-pass filters
- All channels are independently controlled
- Flash memory prevents loss of settings in case of power failure
- Compatible with the M3 three-element microphone (DN43 only), the
- M70WD aimable flush-mount ceiling microphone, and the M55WD ceiling microphone
- Supports AES67 audio streams
- Dante Domain Manager (DDM) ready
- Dynamic or static IP address
- Rated to UL2043 requirement and is suitable for use in plenum applications
SPECIFICATIONS
- Transducer Type (M3) Condenser
- Frequency Response (M3) 30 Hz – 19 kHz (tailored)
- Polar Pattern (M3) Hypercardioid
- Output Impedance (M3) 150 ohms
- Sensitivity (M3) 34 mV/Pascal @ 1k
- Maximum Input (0 dB) (DN43) -14 dBu, 155 mV
- Input Impedance (Balanced) (DN43) 1.15 kΩ
- Frequency Response (DN43) 15Hz – 22kHz, +0, -3dB
- Channel Crosstalk (1 kHz) < -80dB
- Dante™/AES67 Channels 4
- Low Pass Options (DN43) Off, 5 kHz, 7 kHz, 10 kHz
- High Pass Options (DN43) 15 Hz, 238 Hz
- Gain Options (DN43) 0dB, +8dB, +12dB, +15dB, +18dB, +24dB, 30dB, +36dB
- Power External DC Jack PoE (IEEE 802.3af) +48 V DC, 125 mA CLASS 2 (3.84 – 6.49 W)
