FEATURES
The D3 Core is a 1U rack processor designed to deliver the power of the Titan system by functioning as a stand-alone controller. Conceived for fixed installations, embedded applications, remote configurations, or environments where space is limited, this device allows for reliable and professional management of lighting control without the need for a connected physical surface.
This processor natively supports up to 16 DMX universes, equivalent to 8192 channels, and can manage an unlimited number of fixtures. It is compatible with advanced protocols such as Streaming ACN, Art-Net, Art-RDM, CITP, and SMPTE LTC, ensuring optimal integration with lighting and media control systems. Furthermore, thanks to TitanNet, it is possible to create multi-console sessions for shared and scalable management.

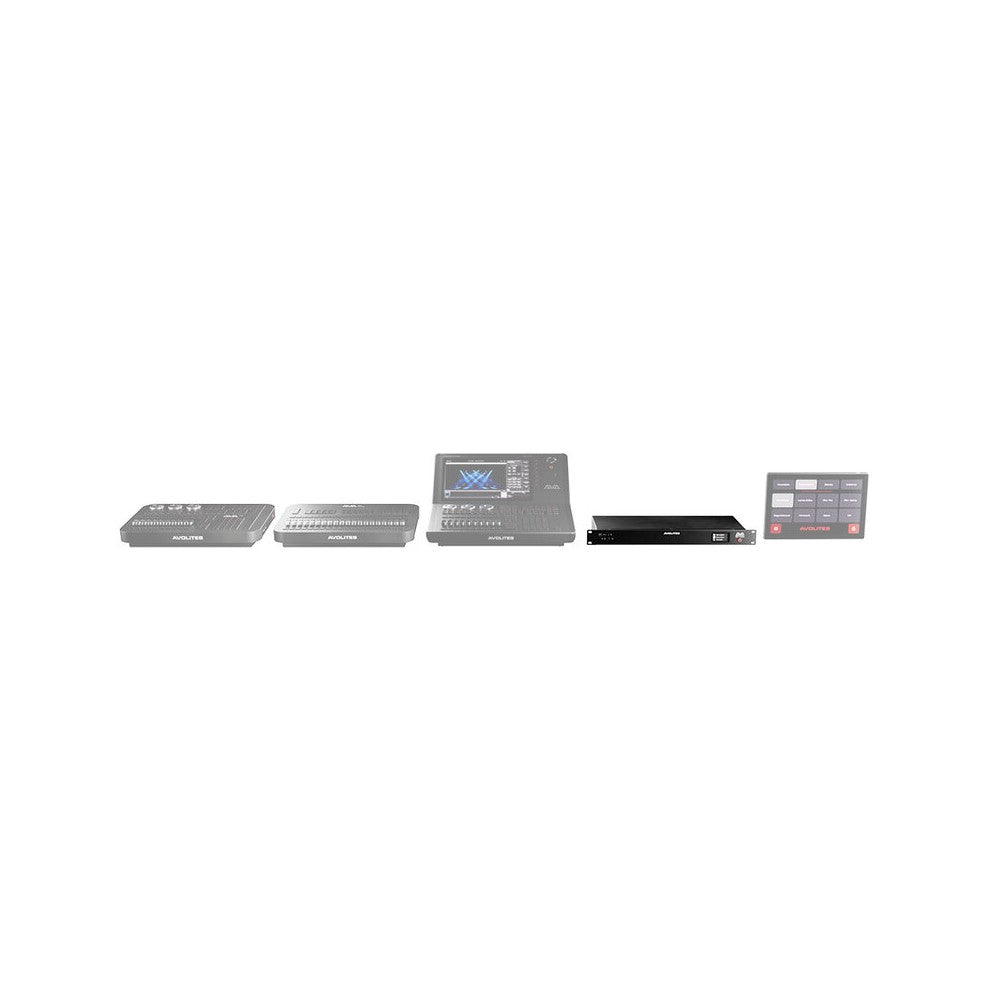

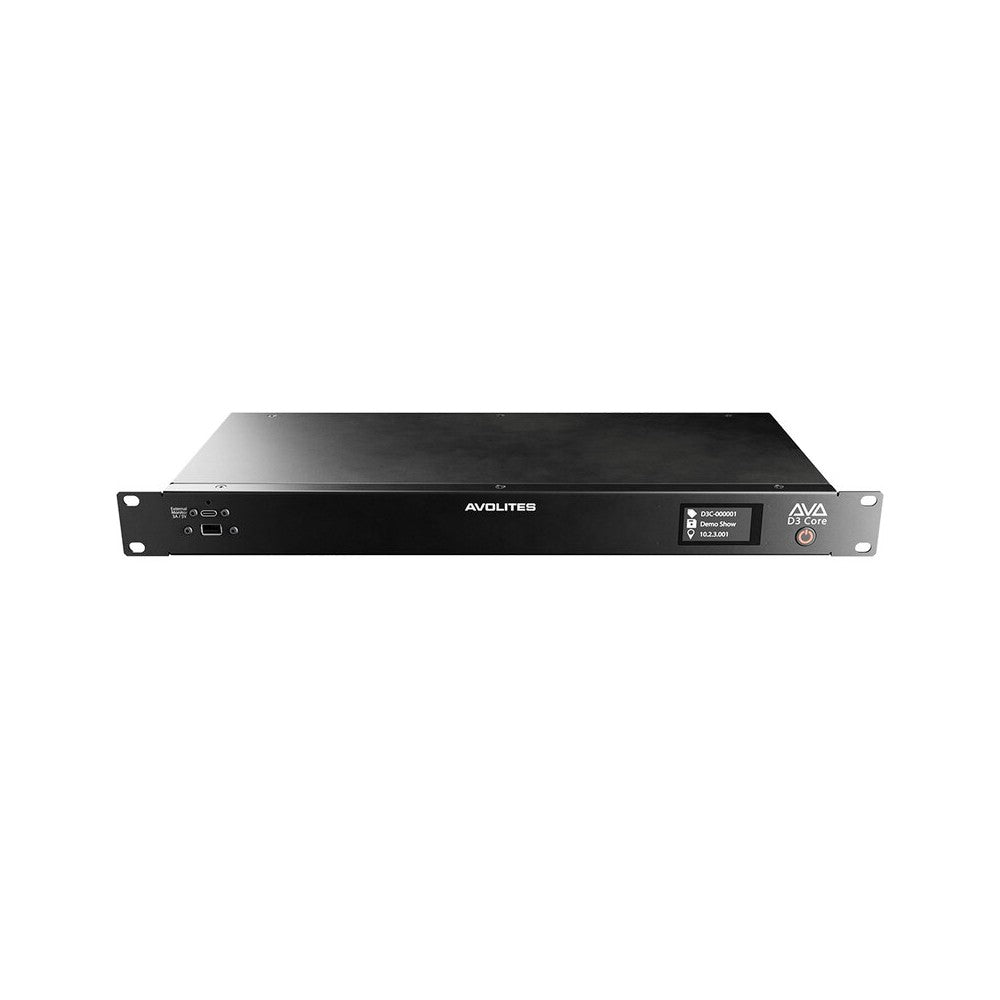

As mentioned, this processor can function as a stand-alone controller, running the entire Titan operating system, but it can also be integrated with an external control surface, such as the T3. The front panel features a 1.9" display to show essential information such as console ID, showfile, and IP address, along with the ability to connect an external monitor up to 4K resolution via USB-C or DisplayPort.

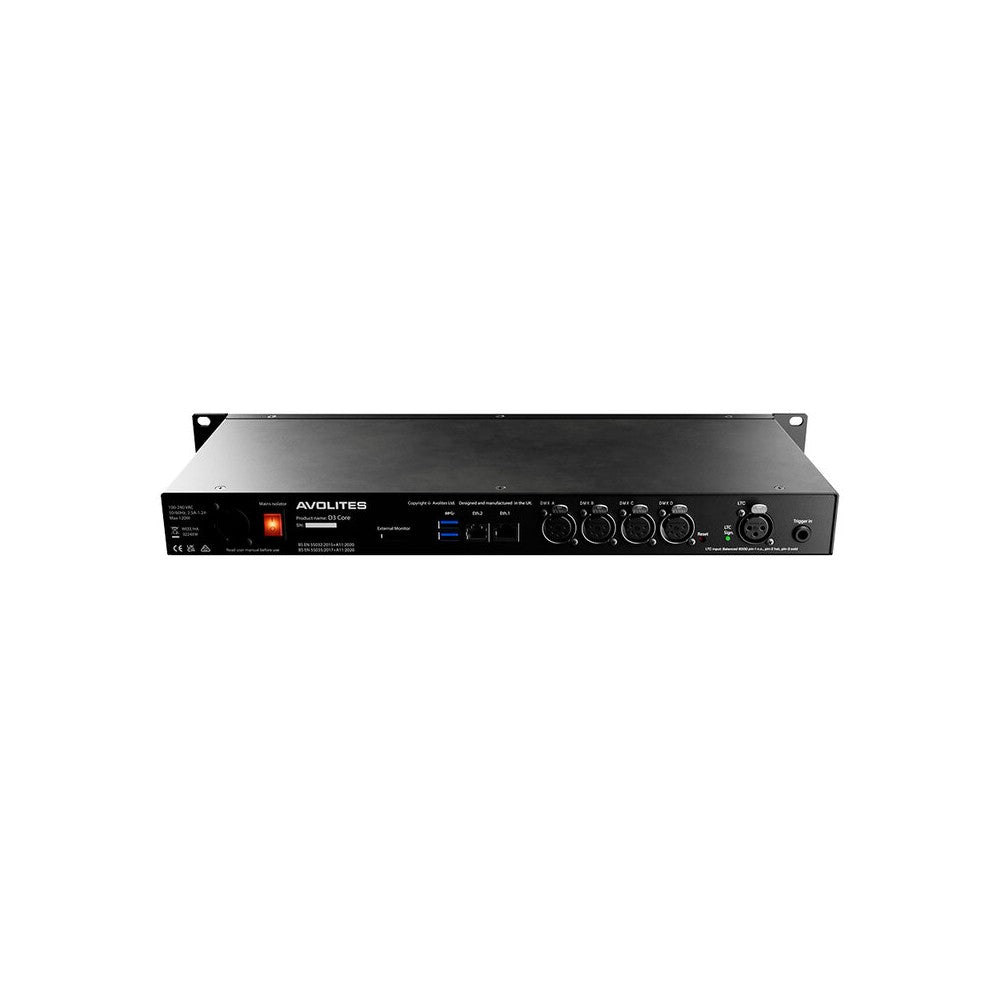

In addition to the 4 DMX ports (IN/OUT), there are 2 RJ45 connectors and 2 USB-A ports (a third is on the front) on the rear.
Benefits for users
- 1U rack format ideal for small spaces or fixed installations
- Broad protocol compatibility
- 16 DMX universes and an unlimited number of fixtures
- Scalability
- Great connection flexibility thanks to numerous ports
Areas of use
- Theatres and performance halls
- Television studios
- Permanent installations in convention centers and exhibition spaces
- Centralized or distributed lighting control rooms (remote control)
- Embedded applications, integrated into customized systems or OEM solutions
SPECIFICATIONS
- Internal screen: 1.9" (displays Console ID, showfile name, IP address)
- External screen: 1 x up to 4K (UHD)
- USB console support: 1 x T3 console
- USB wing support: 1 x D3 Wing, T3 Wing, or Titan Mobile Wing
- D3 touch support: yes (unlimited)
- Mobile App: yes – iOS & Android ("Titan Remote")
- Platform: Avolites Titan
- Built-in 3D visualisation: capture engine
- DMX universes per device: 16 universes (8192 channels)
- DMX universes per system: 16 universes (8192 channels)
- Max fixtures: unlimited
- Supported protocols: DMX512 (E1.11), Streaming ACN (E1.31), Art-Net & Art-RDM, CITP, GDTF (via Capture), SMPTE LTC, MIDI over USB (MIDI notes & MTC), Web API
- Expand processing: no
- Offload processing: yes
- Multi-console session: yes
- External monitor: 1 x USB-C or DisplayPort
- Gigabit Ethernet: 2 x RJ45
- DMX IN/OUT: 4 x Neutrik 5-pin XLR
- Trigger input: 1 x 1/4" jack (isolated)
- USB 3.2 Gen1 (DP Alt Mode): 1 x USB-C (front)
- USB 3.2 Gen1: 3 x USB-A (1 x front, 2 x rear)
- SMPTE LTC input (balanced): 1 x Neutrik 3-pin XLR (with signal indicator)
- Operating voltage: 100 – 240 VAC 50/60 Hz
- Power consumption: 80 W max.
- Current: 1 - 2 A
- Power connector: Neutrik powerCON TRUE1
- IP rating: IP20 (indoor use only)
- Power switch: yes
- Operating temperature: 0 – 40 °C
- Soft power button: yes
- Humidity: 95% non-condensing
- Conformity: CE, WEEE, RoHS
- Dimensions (W x D x H): 48.3 × 4.4 × 19.4 cm
- Packaging: cardboard
Technical characteristics
Control surface
Software
TitanNet
Connectivity
Hardware
Certification and safety
Physical
