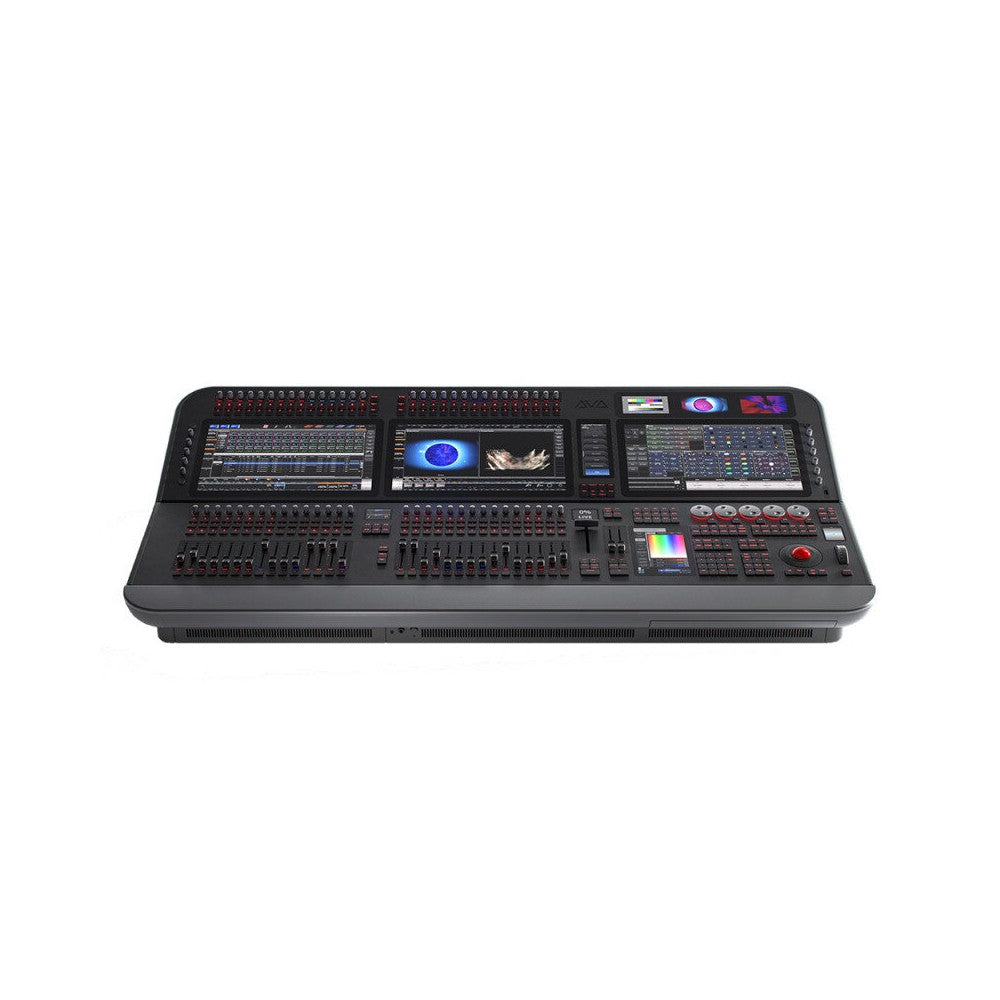

Avolites Diamond 9 330

FEATURES

The Diamond D9-330 is the flagship lighting console in the Avolites range. Drawing on four decades of experience in the most demanding shows, the Avolites Diamond 9-330 represents an impressive evolution in production control.
Created in collaboration with leading lighting and industrial designers, the D9-330 is ready for the next generation of shows, and beyond. With vast screen space, all-new controls, and unique multimedia integration, it intuitively combines control of all visual aspects of the show. Handcrafted in London, it builds on Avolites' heritage of quality and reliability.

This console uses touch-sensitive Penny & Giles motorized faders, high-resolution optical rotary faders, and short-travel flash buttons with positive tactile control for perfect timing. The colors of the Fader and Encoder level indicators can be defined to make grouping even easier and quickly recognize controls when it matters. Each fader incorporates an 11-segment RGB level indicator that follows the halo color of the playback: particularly useful on rotary faders when swapping pages. And more… additional macro buttons with a dedicated screen, right in the playback section, flashing buttons below the faders, perfectly aligned labeling, and page banks for each section.

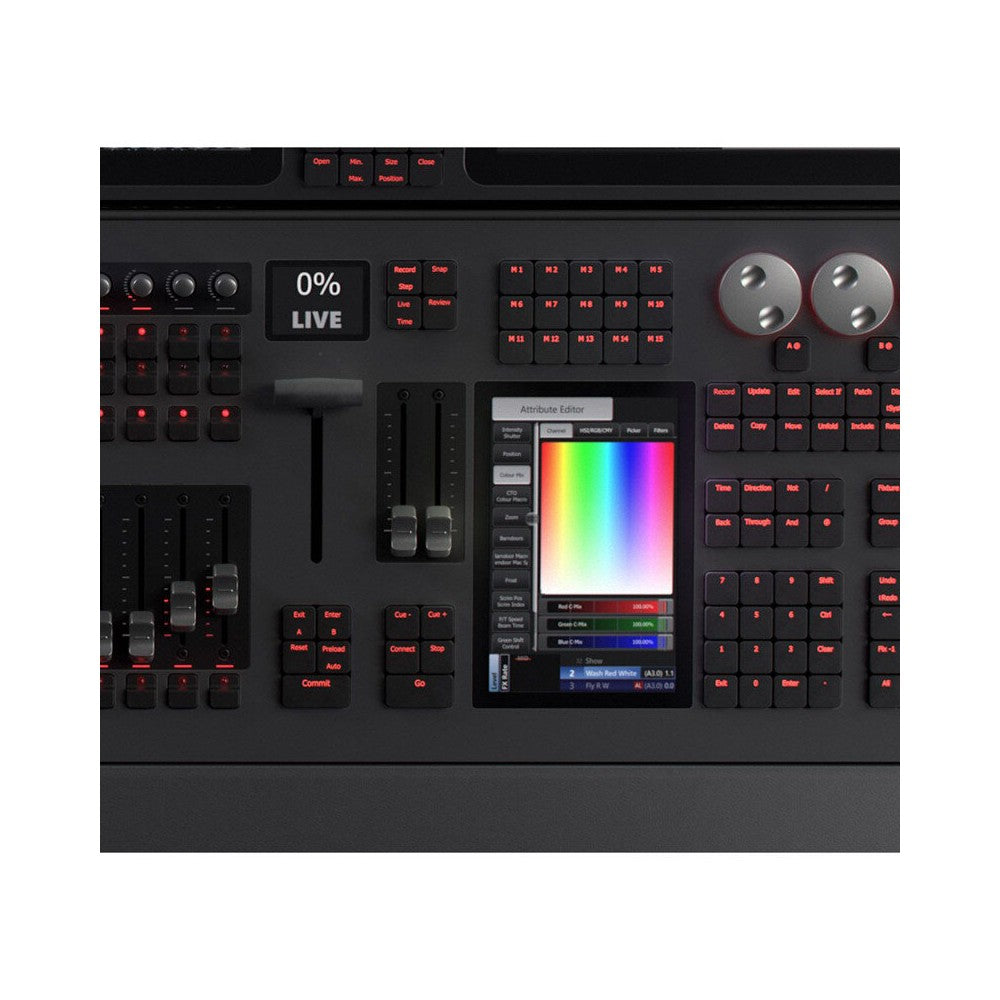

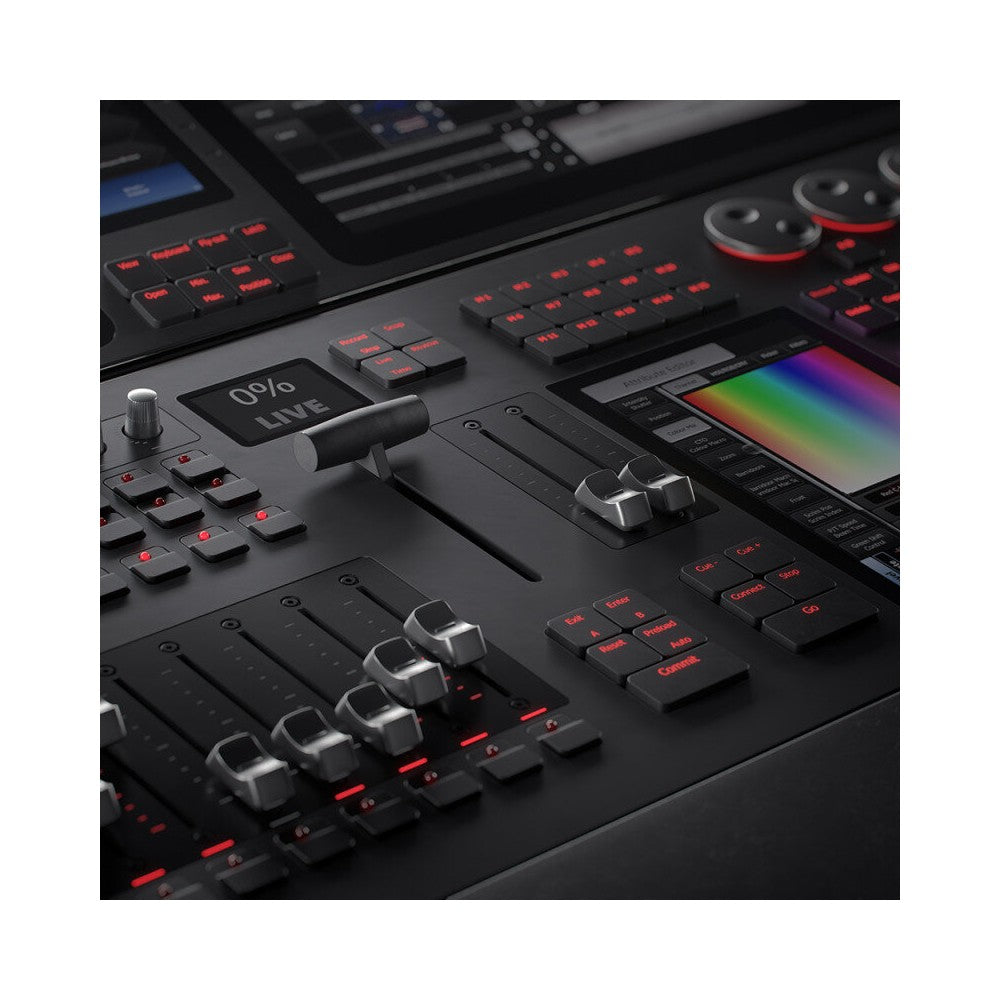

For super smooth transitions, a T-bar is used, which offers more refined control with even smoother manual fades. Combined with the unique Scene Master functionality, it offers maximum creativity. With its contactless design, the fader remains as precise as ever, even after years of use. The Scene Master function is complemented by a double-width Commit button and four additional control buttons, plus a dedicated LCD screen for continuous status data. With 2 motorized faders, 8 control buttons, and a Go button, theatrical cue list performance is at your fingertips.

Ultimate Programming Surface

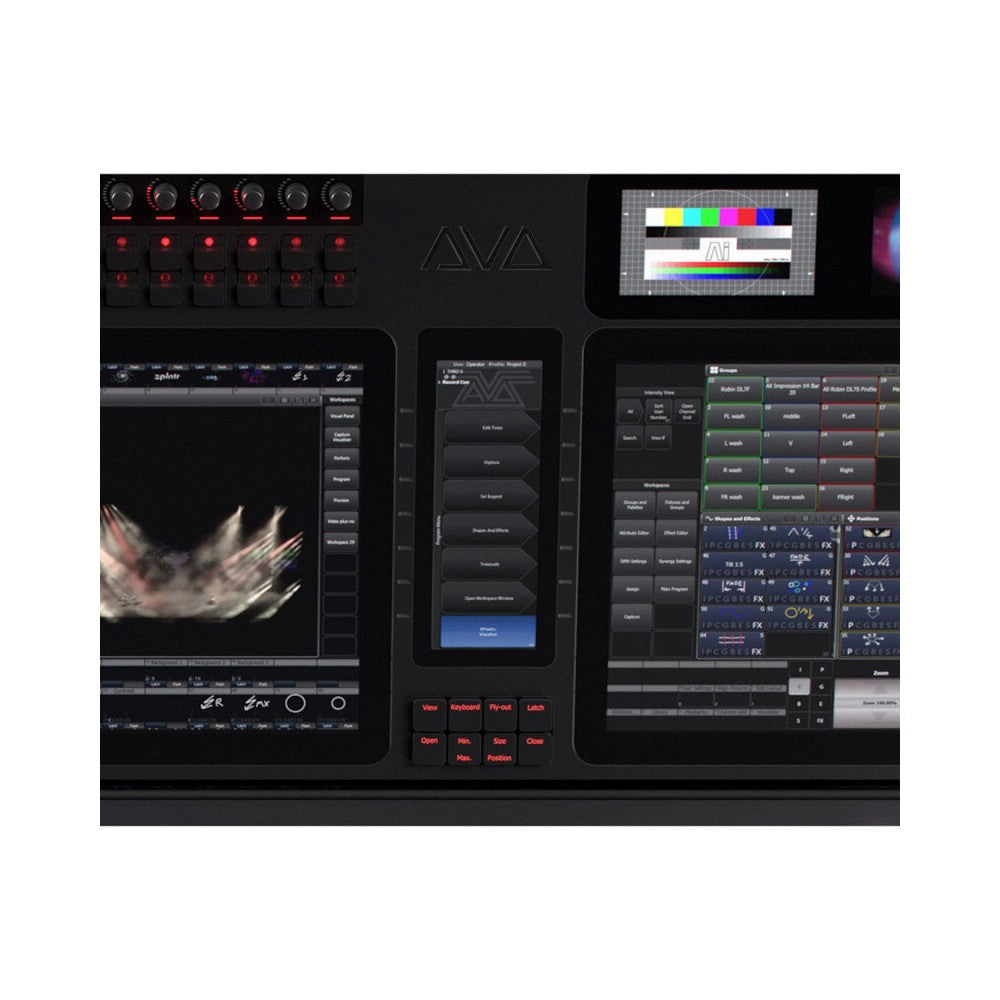

Born from 40 years of experience in lighting control, designed with an eye on the future, the D9's programming surface features: 3 x 4.3" preview touchscreens, ideal for media, ensuring that the main screens remain clear for maximum information density, 5 attribute wheels with optical encoders and RGB LED indicators, plus a vertical level wheel, put more parameters than ever at your fingertips, ergonomically designed controls, a T-bar, and 72 illuminated programming keys. The carefully selected Cherry MX Low Profile keys, with RGB backlighting, offer optimal tactile feedback with low fatigue for programming sessions. All are integrated with Avolite's proprietary Titan software.

Key features

• 30 + 2 touch-sensitive Penny & Giles faders
• 70 assignable optical rotary encoders with push function
• 3 x 15.6" capacitive touchscreens, 1,000 nit brightness each with FHD resolution and adjustable brightness
• 3 x 4.3" preview touchscreens, 1000 nit brightness, 800 x 480 pixel resolution for media content or workspaces
• 11-segment RGB LED level indicator next to each encoder
• RGB halo indicator for each encoder
• Fully customized backlit QWERTY keyboard in the tray, keys identical to the program panel
• Optical X, Y, Z trackball
• 21 backlit Macro/Executor keys, all screen-labeled
• Supports 2 additional 1920 x 1080 HDMI touchscreens

SPECIFICATIONS

Technical characteristics

Construction

• Panels machined from single pieces of solid aluminium
• Comfortable armrest
• Exclusively manufactured button caps, fader caps, encoder knobs, encoder wheels and level wheel
• All screens flush-mounted
• Infinitely adjustable hydraulic screen panel articulation - 18 to 68° from horizontal

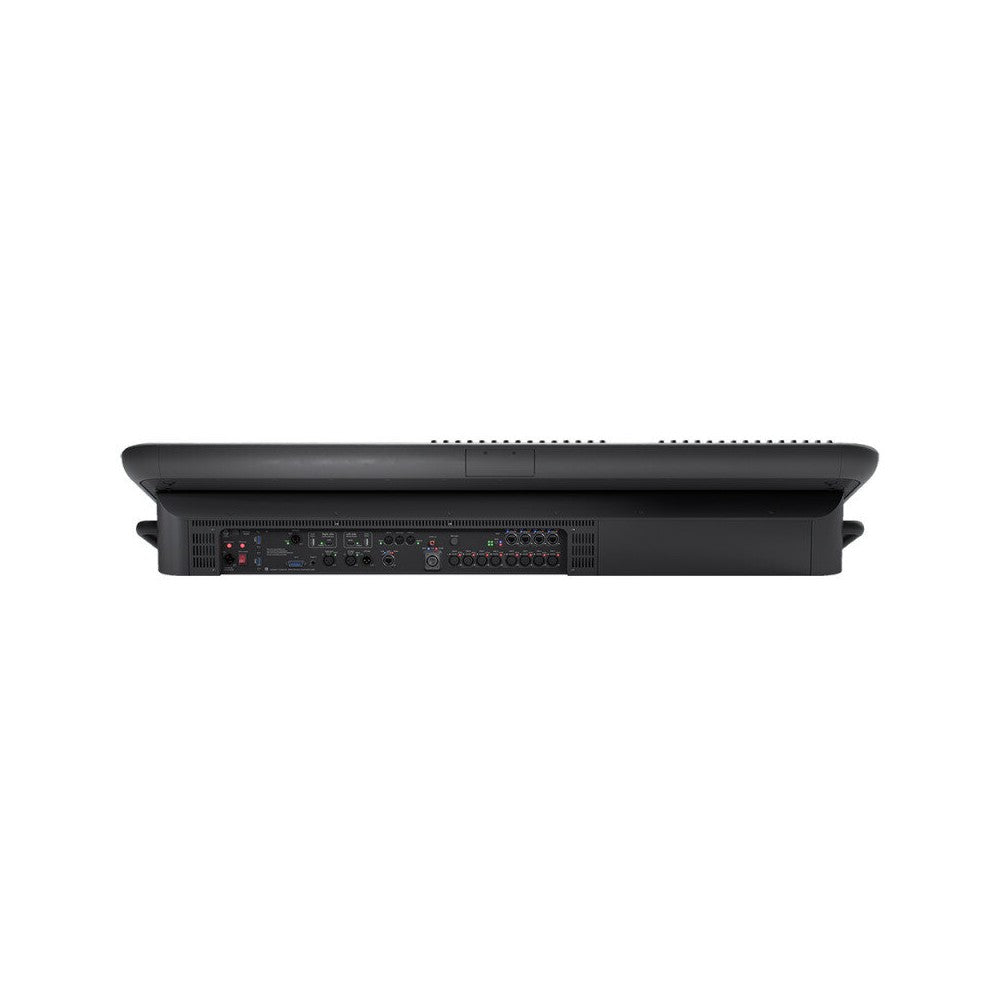

DMX-512

• 8 x Neutrik 5-pin XLR, optically and galvanically isolated with halo assignment indicators

Network

• 4 x 1 GBE Neutrik etherCON, internally switched & managed
• 1 x quad opticalCON 1 GBE lc connection
• 1 x 1 GB etherCON, network 2

Data / peripherals

• 1 x USB 3.1 under armrest
• 1 x USB 3.1 on front panel
• 2 x USB 3.1 back panel
• 2 x USB 2.0 assigned for external touchscreens

External display

• 2 x HDMI up to 1920 x 1080

SMPTE

• 1 x 3-pin Neutrik XLR transformer isolated input with signal indicator plus 3-pin XLR loop out

Trigger inputs

• GPIO 4 IN / 4 OUT, isolated, and dry contacts
• 1/4" jack for foot switch
• DMX-512 dedicated input with indicator
• Audio input 3-pin XLR with indicator

MIDI

• IN, THRU, OUT on 5-pin DIN with signal and enabled indicators, USB MIDI supported

Audio out

• Digital S/PDIF RCA

Mains power

• Neutrik TRUE1

Power

• Work light switch controlling connector panel illumination
• Neon indicator for mains supply and PSU energized
• Internal UPS for console and internal data switch
• 110 - 240 V_AC mains supply max. draw of 650 W

Computer

• Intel i7-9700 K processors
• 16 GB RAM
• AMD WX5100 GPU
