Blackmagic Design 40x40 12G-SDI multi format SD, HD and Ultra HD SDI router with built-in video monitoring
Estimated delivery in Italy between 18 and 22 June
Paga in 3 rate da €1.551,00 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES

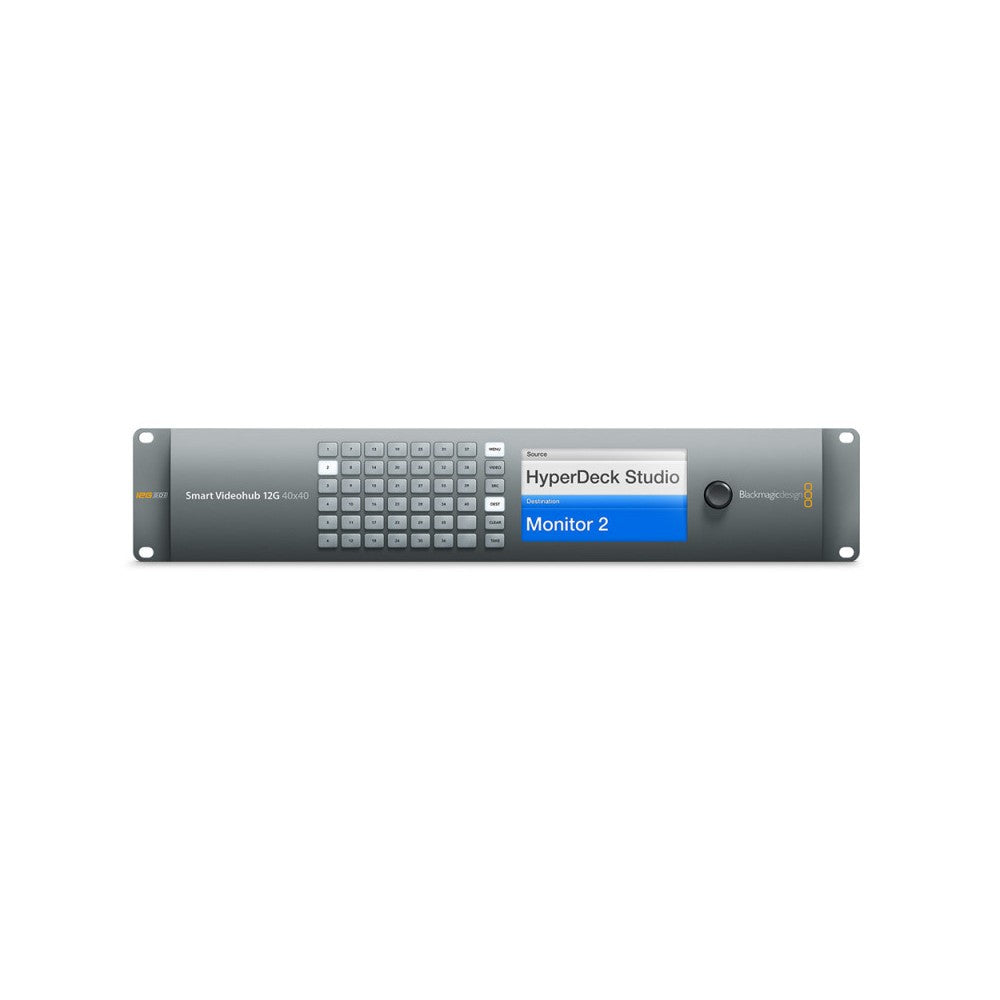

Smart Videohub 12G 40x40 is an advanced 12G-SDI video router that supports any SD, HD or Ultra HD SDI format on the same router at the same time. 12G-SDI technology supports all SDI video standards up to 210p60. It features 40 inputs and 40 outputs and includes video reference, redundant power connections, and an elegant machined metal front panel with a large full HD LCD for monitoring and displaying routing labels. Routing can be performed via direct button selection and via the rotary encoder.
- Multi-format 12G-SDI router.
- 40 inputs and 40 outputs in a 2 RU design.
- Ideal for routing any signal within a facility.
- Front display to monitor video sources before routing.
- Combines SD, HD and UltraHD up to 2160p60; front display and knob.
SPECIFICATIONS
SDI Video Inputs 40 x 10-bit SD-SDI, HD-SDI and 12G?SDI.
SDI Video Outputs 40 x 10-bit SD-SDI, HD-SDI and 12G?SDI.
SDI Rates 270Mb, 1.5G, 3G, 6G, 12G.
Video Input Re-Sync None.
SDI Reclocking On all SDI outputs.
Reference Inputs Tri-Sync or Black Burst.
Reference Outputs Reference terminating loop output.
Control Panel Connection Ethernet.
Serial Control Connection DB-9 RS-422.
Multi Rate Support Auto detection of SD, HD or 12G-SDI. Simultaneous routing of 4K, HD and SD video.
Updates USB
Front Panel Router Control 40 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. RS-422.
Router Configuration Via front panel LCD or RJ45 Ethernet.
RS-422 Router Control 1 x input for controlling router crosspoint switching.
Couldn't load pickup availability
About Blackmagic Design
Blackmagic Design is a leading Australian company globally renowned for manufacturing video production, post-production, and broadcasting technologies. Their catalog includes video switchers, signal converters, capture cards, cinema cameras, and the acclaimed DaVinci Resolve editing and color grading software. Blackmagic Design products are utilized by video professionals, broadcasters, production studios, and content creators for their professional quality and excellent value for money. The company has revolutionized the industry by making broadcast and cinematic-grade tools accessible. On musicdelivery.net, you'll find a selection of Blackmagic Design products ideal for video productions, live streaming, events, and professional audiovisual installations.
