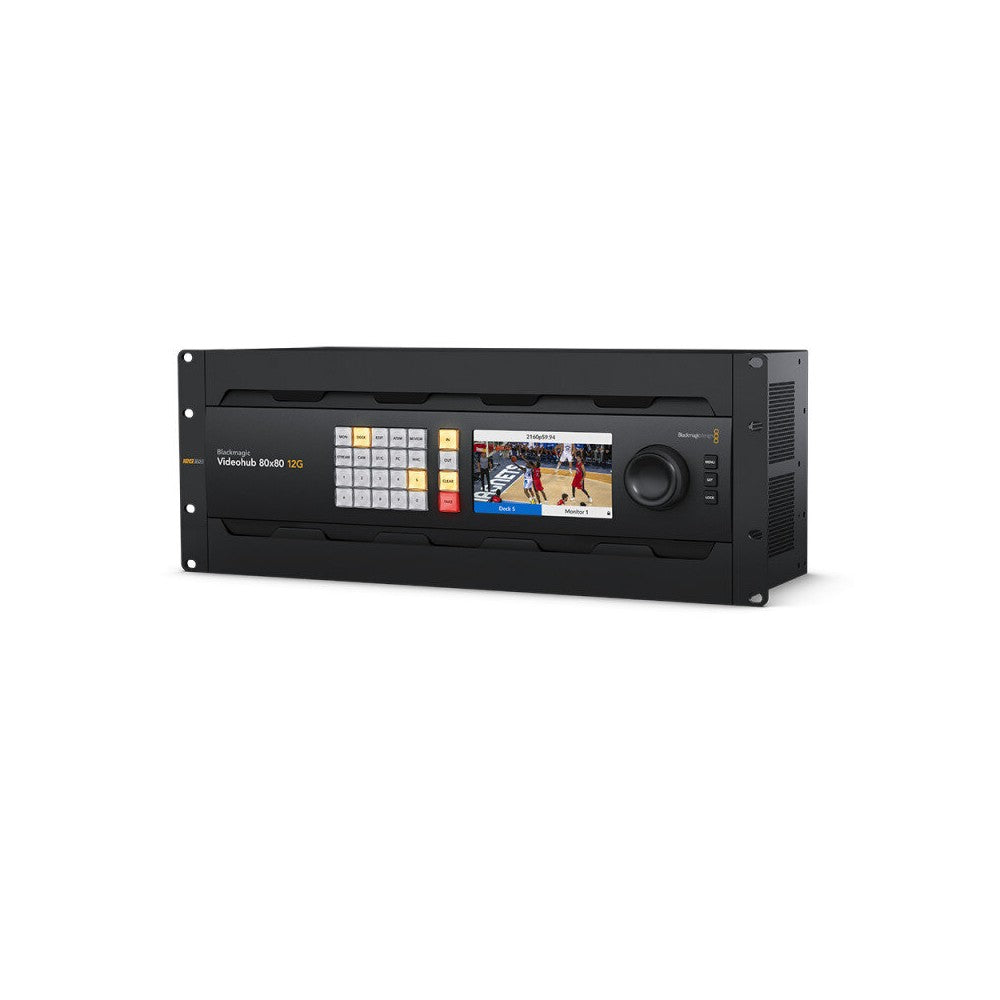

Blackmagic Design 80 x 80 Zero Latency 12G-SDI Video Matrix / Router
Paga in 3 rate da €3.887,00 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES
Videohub 80x80 12G is the largest model in the family of 12G-SDI video matrices produced by Blackmagic Design. This zero-latency matrix simplifies the connection of all broadcast studio equipment without complicated cabling, as it allows you to connect and distribute any combination of SD, HD, and Ultra HD signals up to 2160 @ 60 simultaneously. This means monitors can see any source in the studio, making it ideal for broadcasts and live productions where racks have no space for additional hardware panels.

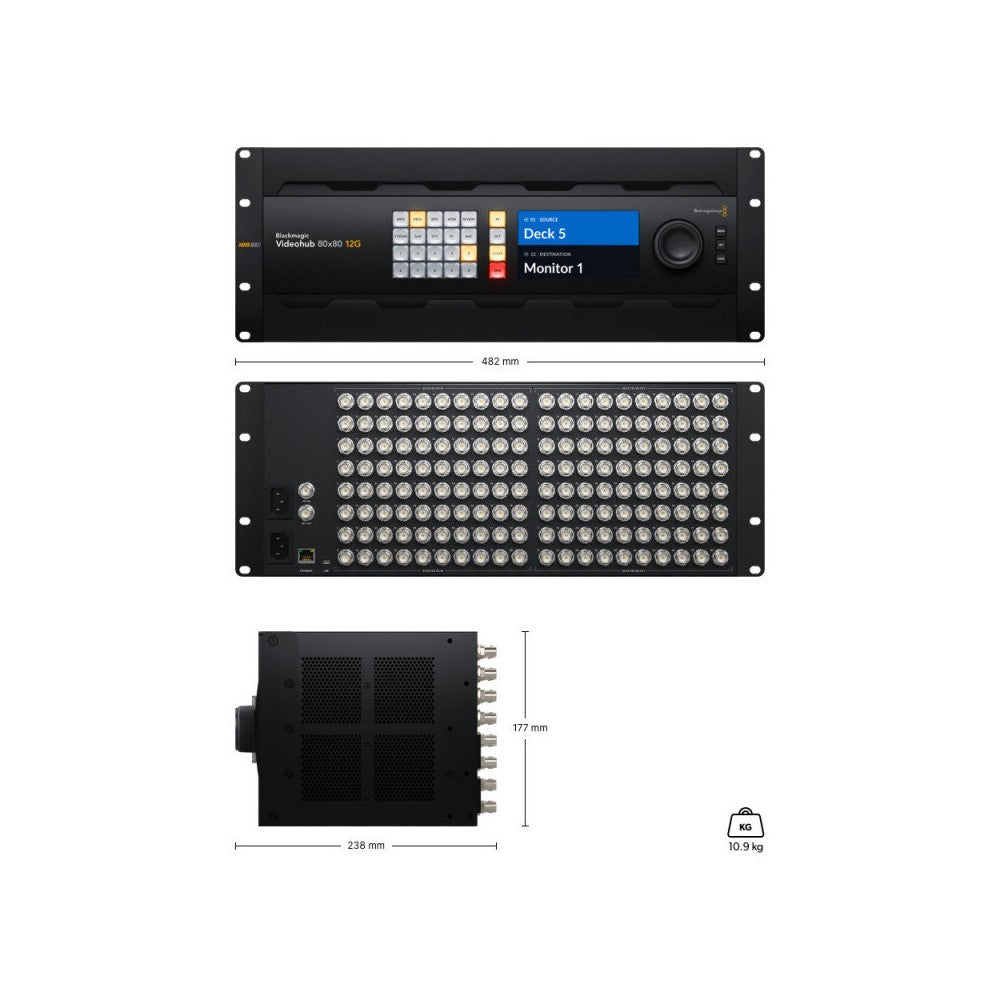

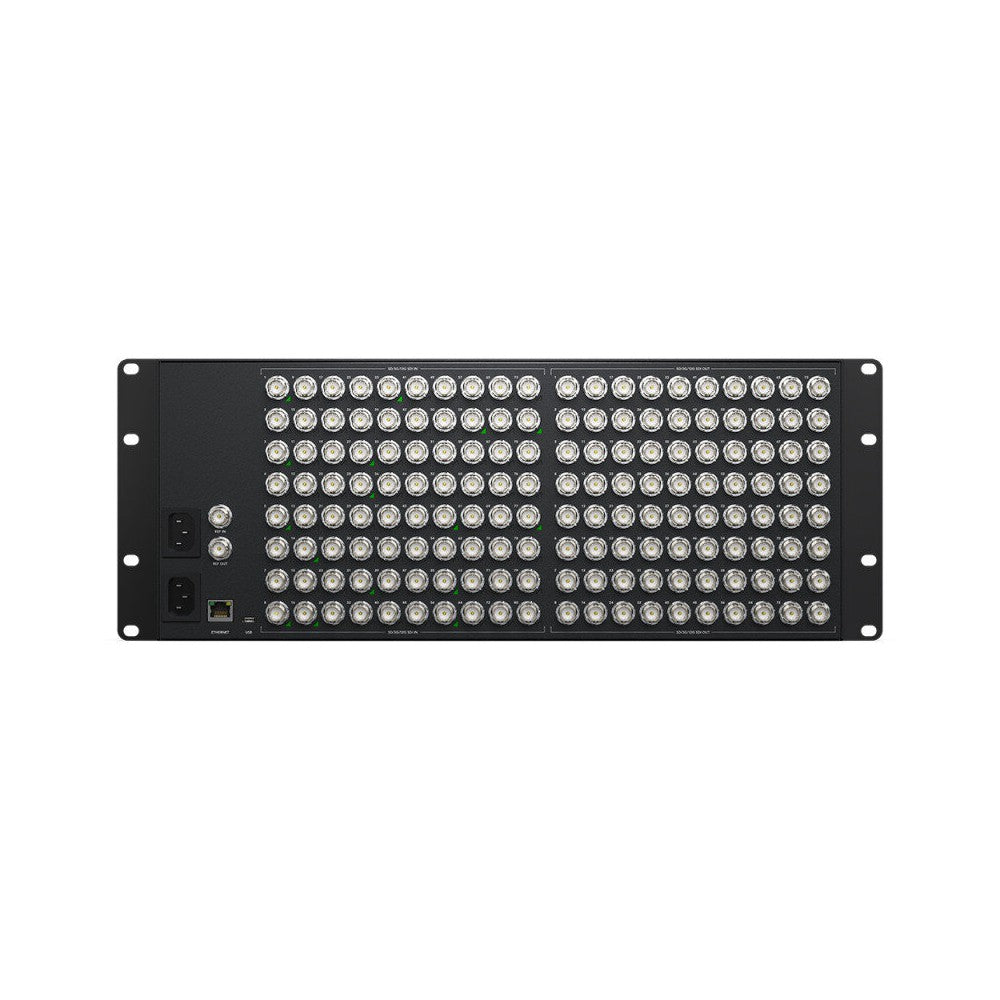

The 19" 2U standard rack format front panel is housed in a frame that brings the total height to 4U rack, necessary to accommodate all the numerous BNC connectors the matrix is equipped with on the back, i.e., 80 inputs and 80 12G-SDI multi-rate outputs. Videohub includes reclocking on each input to regenerate the video signal to ensure maximum quality and optimized jitter for working with longer cables without fear of signal interruptions. Furthermore, the SDI standard integrates up to 32 audio channels into the SDI video signal.

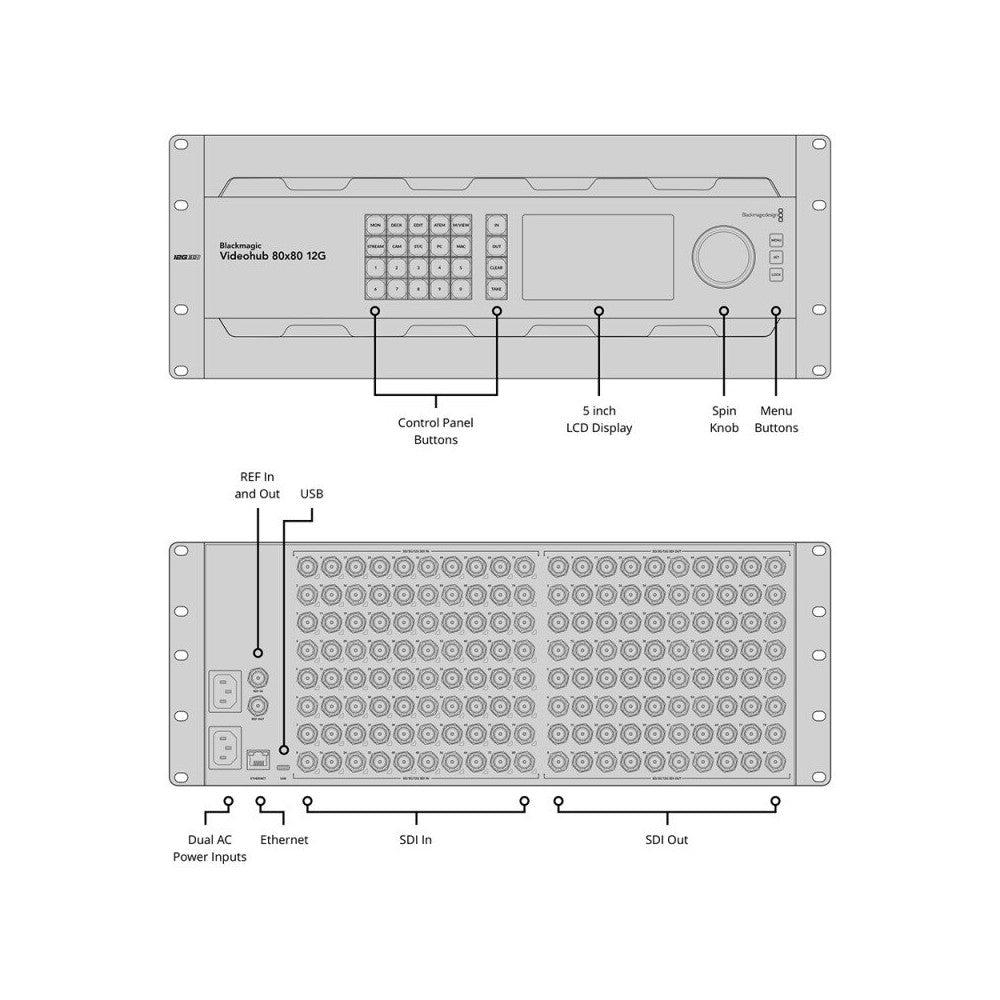

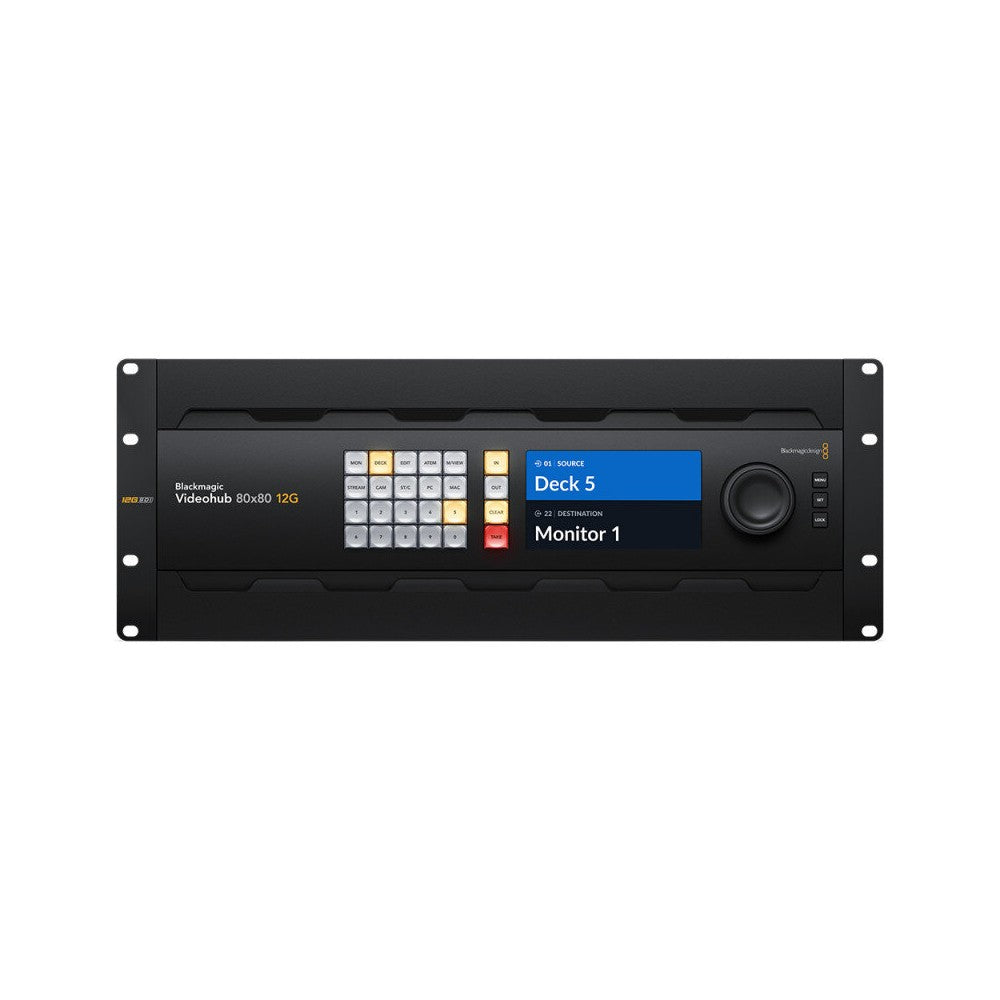

On the front, there is a full HD LCD display to show labels and live video before routing it, with the label below the video itself easily identifying the corresponding input, allowing you to scroll through the list of sources back and forth in alphabetical order and view their video even with different standards. The display also has menus (in 13 languages) so that customers can change the router settings. Next to it, there are quick selection buttons and a large knob with electronic clutch to navigate through video sources. Thanks to the ethernet port, the matrix can also be controlled remotely via Videohub Software Control with a variety of hardware devices (Mac, Windows, and iPad) or via software control panels.
This 10-bit color depth video matrix is also equipped with many other additional functions to improve workflow and update your studio.
SPECIFICATIONS
- SDI video inputs: 80
- SDI video outputs: 80
- Video input re-sync: none
- SDI reclocking: on all SDI outputs
- SDI rates: DVB-ASI, 270 Mb, 1.5 G, 3 G, 6 G, 12 G
- Reference inputs: Tri-Sync or Black Burst
- Ethernet: supports 10/100/1000 BASE T
- Reference outputs: reference terminating loop output
- Computer interface: USB-C
- SD video standards: 525i59.94 NTSC, 625i50 PAL
- HD video standards: 720p50, 720p59.94, 720p60 | 1080i50, 1080i59.94, 1080i60 | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 | 1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 2K video standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI | 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
- Ultra HD video standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
- 4K video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B | SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU R BT.656 and ITU R BT.601
- SDI color precision: 10, 12 bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
- SDI audio sampling: television standard sample rate of 48 kHz and 24 bit.
- SDI video sampling: YUV 4:2:2 and RGB 4:4:4
- SDI color space: REC 601, REC 709, REC 2020
- SDI metadata support: video payload identification ancillary data as per SMPTE 352M
- SDI auto switching: automatically selects between 270Mb SD SDI, 1.5G HD SDI, 3G level A and level B HD SDI, 6G HD SDI, 12G SDI and DVB ASI on each input so that each input can be running a different television standard
- External control panel: includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol
- Built in control panel: 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5” color display
- Control panel connection: Ethernet
- Software control: router control included free for Windows and Mac
- Internal software upgrade: via included updater application
- Windows 10, 64-bit. Windows 11
- Mac 12.0 Monterey, Mac 13.0 Ventura or later
- Display: built in 5” LCD for video and menu settings
- Power supply: 2 x internal 100 – 240 VAC 50/60 Hz. IEC power cables required
- Power fail protection: crosspoint connections preserved and restored instantly at power on
- Power usage: 92 W max.
- 4 rack units height
- Operating temperature: 0 ° to 40 °C (32 ° to 104 °F)
- Storage temperature: -20 ° to 60 °C (-4 ° to 140 °F)
- Relative humidity: 0% to 90% non-condensing
Technical characteristics
Connections
Standards
Control
Software
Operating systems
Display
Power requirements
Physical installation
Environmental specifications
