Blackmagic Design ATEM 2 M/E Constellation HD
Estimated delivery in Italy between 12 and 14 October
Pay in 3 installments of €642,33 interest-free
Pay in 3 installments of €642,33 interest-free with PayPal
Split into 3 installments of €642,33 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
CARATTERISTICHE

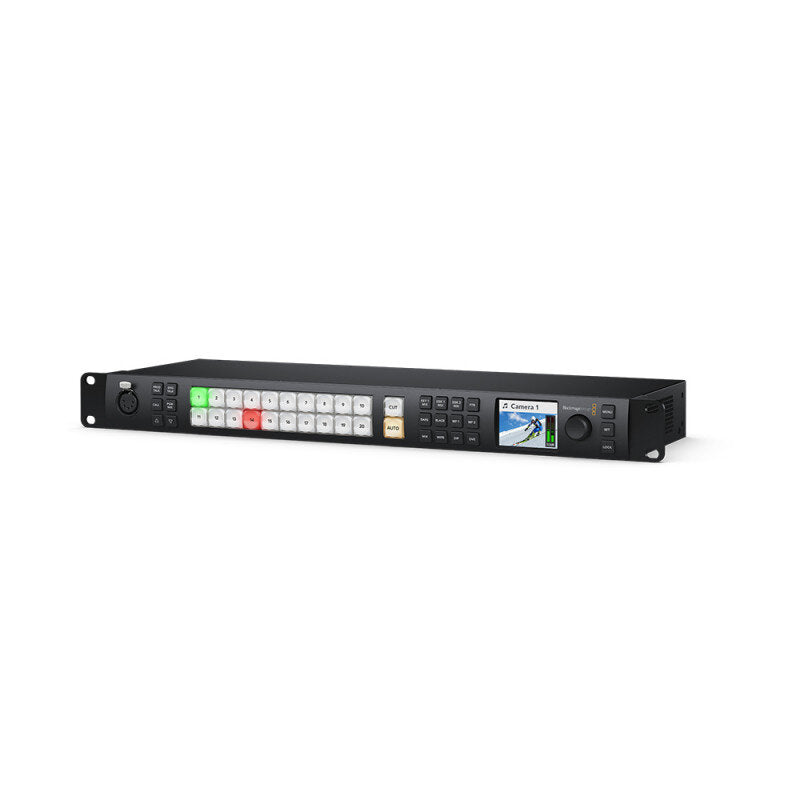

ATEM 2 M/E Constellation HD è uno switcher di produzione live ad alta definizione ricco di funzioni avanzate.
Il design con due banchi effetti M/E include 20 ingressi 3G-SDI con conversione di standard e 12 uscite aux 3G-SDI indipendenti. Inoltre, offre un’uscita webcam USB, processore per SuperSource, DVE, chiavi cromatiche, media player, multiview e molto altro. Include anche la funzione Talkback e un mixer audio Fairlight professionale con EQ e dinamiche.
SPECIFICHE

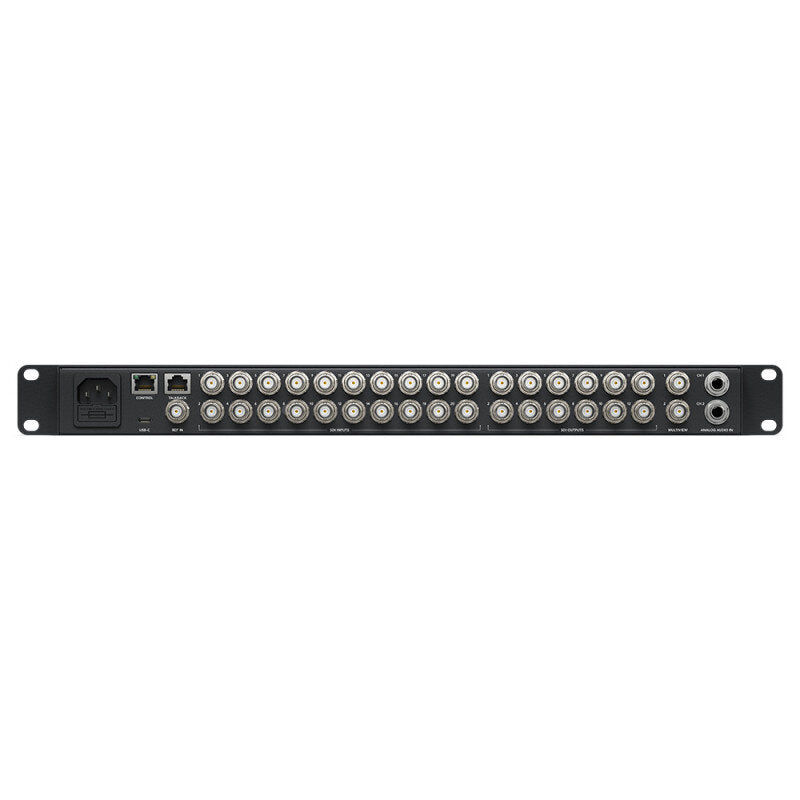

- Total video inputs: 20
- Total video outputs: 12
- SDI rates: 1.5G, 3G
- Total audio inputs: 2 x balanced 1/4" jack, 1 x 5-pin XLR Talkback
- Total audio outputs: 1 x 5-pin XLR Talkback
- Time Code connections: none
- Reference input: Tri-Sync or Black Burst
- Video input Re-Sync: on all 20 inputs
- Frame rate and format converters: on all 20 inputs
- SDI audio inputs: 8 CH embedded audio on all SDI inputs
- SDI audio outputs: 16 CH embedded audio on all SDI outputs
- SDI aux outputs: any of the 12 SDI outputs
- SDI preview outputs: any of the 12 SDI outputs
- SDI program outputs: any of the 12 SDI outputs
- Webcam output: 1 x USB-C supporting 720p or 1080p at PGM frame rate
- Total multi views: 2 x 3G-SDI
- Control panel connection: Ethernet; direct connection between panel and chassis, or via network
- Internal Time Code generator: yes
- Talkback: RJ45 for 3rd party talkback systems
- Tally output: added via Ethernet connection to Blackmagic Design GPI and Tally Interface product (not included)
- Ethernet: supports 10/100/1000 BASE-T
- Computer interface: 1 x USB-C supports USB 2.0
- SD video standards: none
- HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60; 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
- SDI compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B
- Video sampling: 4:2:2
- Color precision: 10 bit
- Color space: REC 709, REC 2020
- SDI auto switching: automatically detects between 1.5G-SDI, level A and level B 3G‑SDI
- Upstream keyers: 8
- Downstream keyers: 2
- Advanced chroma keyers: 8
- SuperSource: 1
- Talkback support: yes
- Mix-minus support: yes
- Linear / Luma keyers: 11
- Transition keyer (stinger / DVE): 2 stinger, 2 DVE
- Total number of layers: 15
- Pattern generators: 11
- Color generators: 2
- Control panel: front fascia emergency switching, software or optional hardware panel
- Routable windows: 32
- Tally: red for program and green for preview indication
- Windows source labels: yes
- Multi view monitoring: 2 x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, Key Masks, Clean Feed with optional labels and audio meters
- Multi view video standard: HD
- Display min. resolution: 1366 x 768
- Media players: 2
- Channels: fill and key for each media player
- Media Pool still image capacity: 40
- Media Pool clip capacity: 2 x up to 2160p 60
- Media player clip length in 720 HD: 800 frames
- Media player clip length in 1080 HD: 400 frames
- Media Pool still image format: PNG, TGA, BMP, GIF, JPEG and TIFF
- Media Pool video file format: TGA sequence
- Media Pool audio file format: WAV, MP3 and AIFF

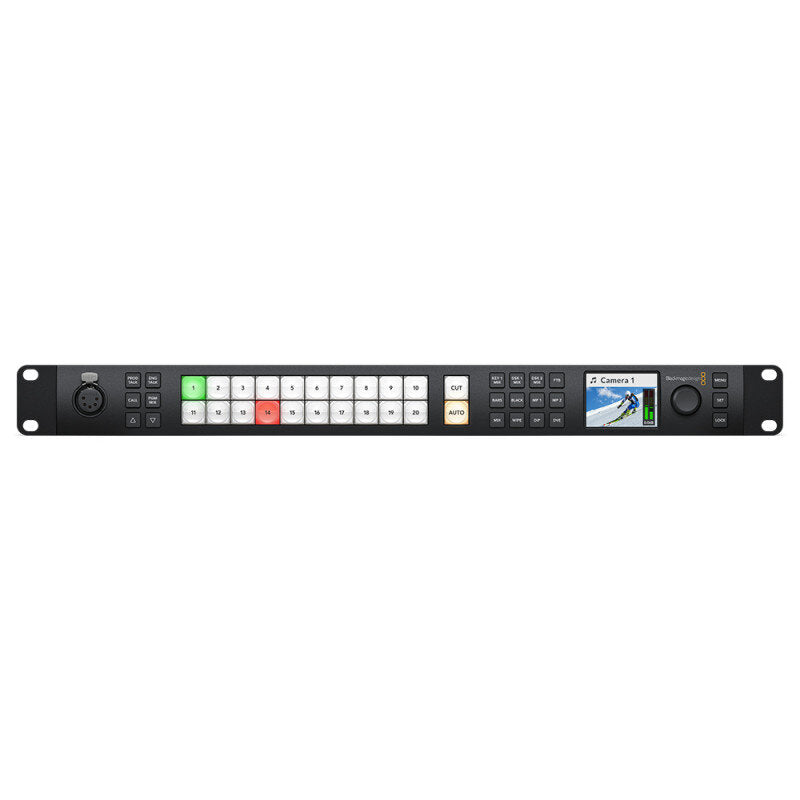

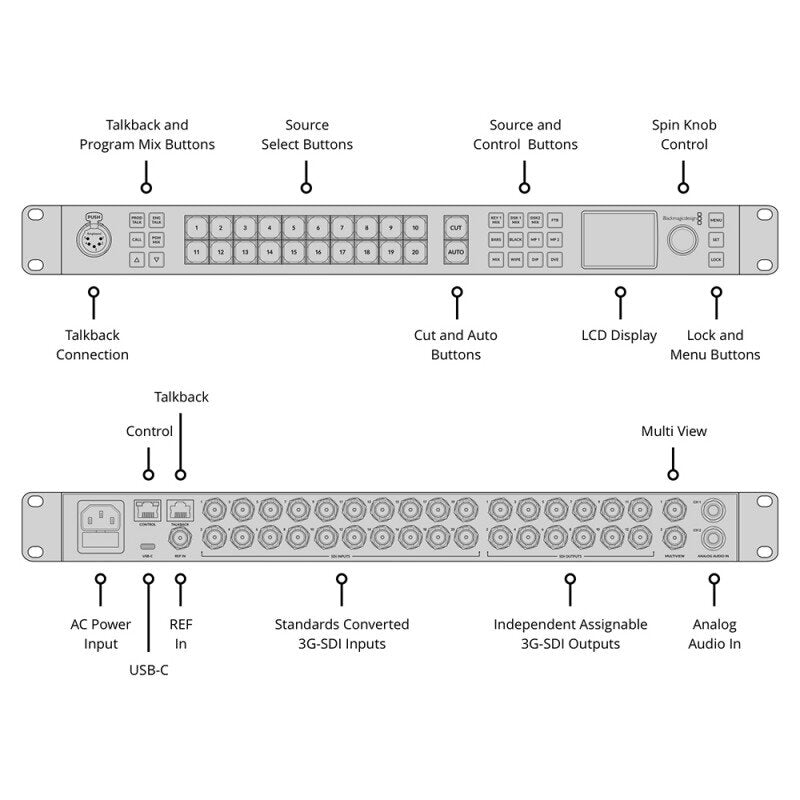

- Front panel: built in 2.2" LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 Talkback selection and mix buttons, menu control knob and set button, front panel lock button
- Processing delay: < 10 lines
- Audio mixer: 48 channel mixer, selectable ON / OFF / Audio-Follow-Video, level and peak metering, master gain control, 6 band parametric EQ, dynamics including expander, gate, compressor and limiter
- Down conversion: none
- Control panel included: ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11
- Software updates: using USB or Ethernet connection directly connected to Mac OS or Windows computers, includes ATEM setup utility
- Configuration: set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis
- Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10 and 11
- Power supply: 1 x internal 100 - 240 VAC 50/60 Hz
- Power usage: 52 W
- Physical installation: 1 RU size
- Operating temperature: 0 to 40° C
- Storage temperature: -20 to 60 °C
- Relative humidity: 0 to 90% non-condensing

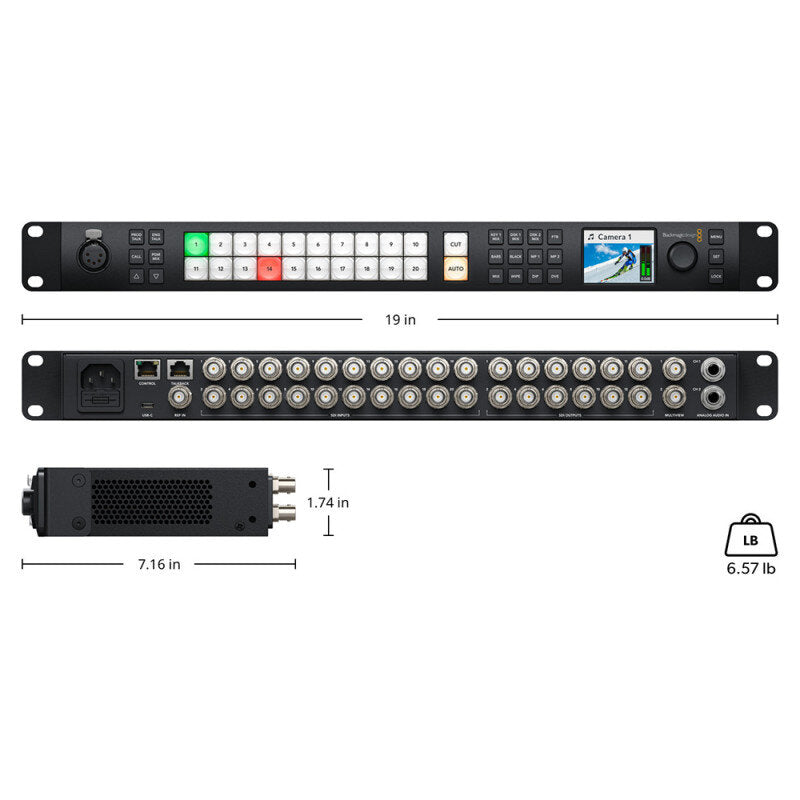

- Dimensions: 48.2 x 4.4 x 18.1 cm
- Weight: 2.9 kg
- ATEM 2 M/E Constellation HD
- Welcome wallet with QR code for software download
Technical characteristics
Connections
Standards
Product specifics
Multi view monitoring
Media player
Display
Processing
Software
Operating systems
Power requirements
Physical installation
Environmental specifications
Physical specifications
What's included
Couldn't load pickup availability
User Manual
Official technical documentation in PDF format.
About Blackmagic Design
Blackmagic Design is a leading Australian company globally renowned for manufacturing video production, post-production, and broadcasting technologies. Their catalog includes video switchers, signal converters, capture cards, cinema cameras, and the acclaimed DaVinci Resolve editing and color grading software. Blackmagic Design products are utilized by video professionals, broadcasters, production studios, and content creators for their professional quality and excellent value for money. The company has revolutionized the industry by making broadcast and cinematic-grade tools accessible. On musicdelivery.net, you'll find a selection of Blackmagic Design products ideal for video productions, live streaming, events, and professional audiovisual installations.
