Blackmagic Design HD video streaming processor supporting H.264 encoding over RTMP and SRT, 12G-SDI input, USB-C webcam output,
Paga in 3 rate da €201,33 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES

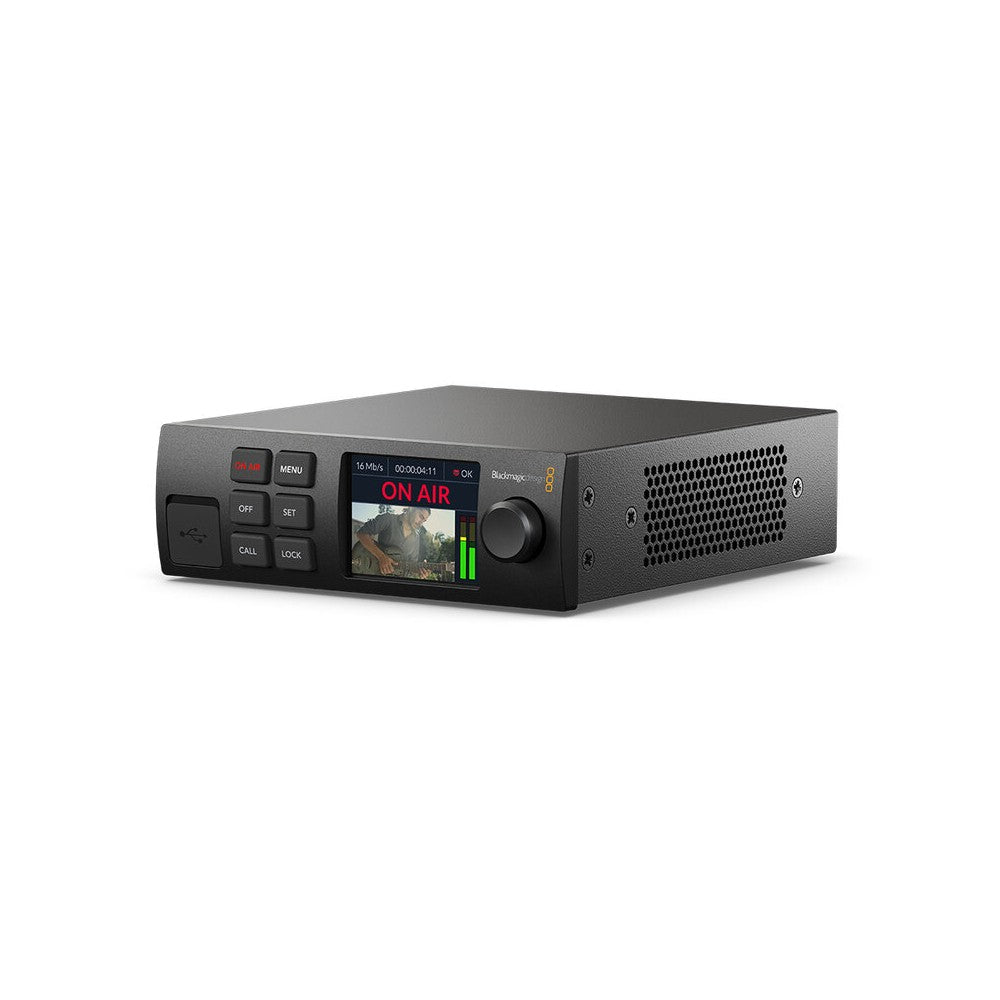

The Blackmagic Design Streaming Encoder (otherwise known as Web Presenter HD) is a streaming processor designed to transmit video in HD using the H.264 compression standard via SRT and RTMP protocols, enabling live streaming on platforms such as YouTube, Facebook, Twitch, and X or to Blackmagic Cloud.
Thanks to its 10/100/1000 Base-T Ethernet connection, it can transmit directly over the internet, while compatibility with 4G or 5G mobile networks allows the use of a smartphone's data connection for streaming if the internet connection is interrupted. You can even choose whether to prioritize the Ethernet connection or the phone's connection.
It includes a 12G-SDI reference input, which supports automatic video standard conversion, and a USB-C webcam port, allowing it to be used with video conferencing and streaming software. It also has an HDMI monitoring output, which allows for real-time video stream viewing and supports 16 channels of embedded audio on SDI and 2 channels on HDMI.

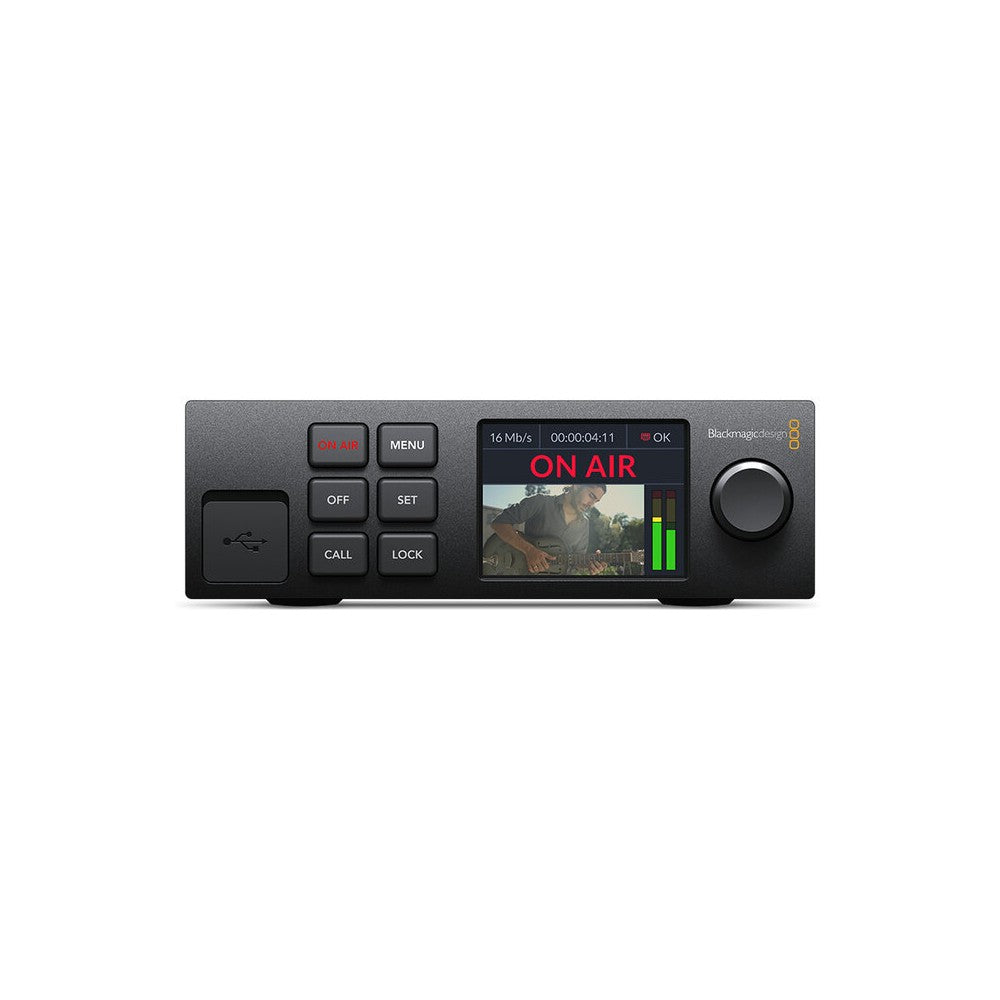

The front control panel includes six buttons, an adjustment knob, and a 2.2" LCD display, which allows you to monitor video, audio, and streaming status.
The device is compatible with Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, and Wowza Streaming Engine.
User advantages
- Direct HD streaming on platforms like YouTube, Facebook, X, and others via SRT and RTMP
- Support for 5G and 4G mobile networks
- 12G-SDI input with automatic video standard conversion and USB-C webcam output for compatibility with streaming software
- HDMI monitoring for real-time video stream viewing
- Support for 16 audio channels on SDI and 2 on HDMI
- Compatibility with various streaming and video conferencing software, including OBS Studio, Zoom, Skype, Microsoft Teams, and VLC
- Redundancy features to ensure uninterrupted transmissions
Areas of use
- Streaming conferences, concerts, and shows, and in all cases where live streaming is needed on platforms like YouTube, Facebook, Twitch, and X
- Remote productions between different locations (together with the decoder)
- Video conferencing using software like Zoom, Skype, Microsoft Teams, and OBS Studio
- Mobile streaming with 5G / 4G mobile networks
SPECIFICATIONS

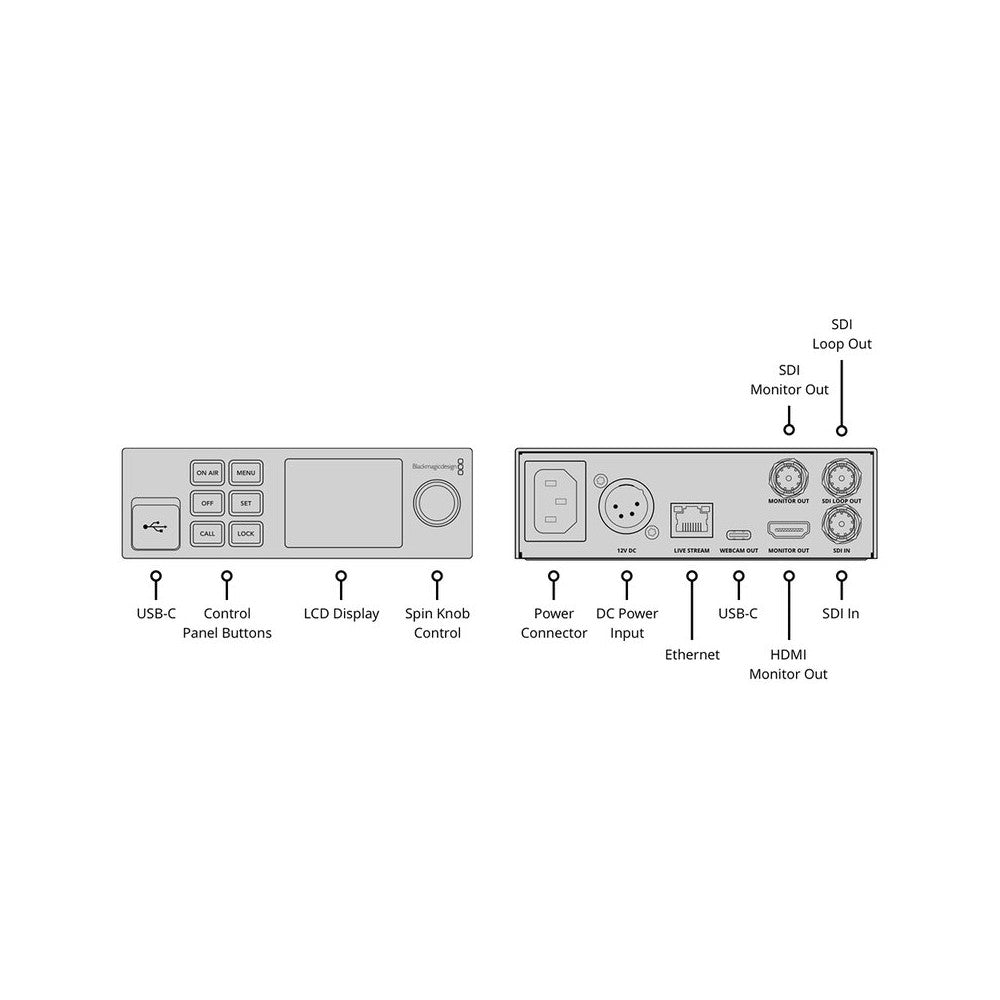

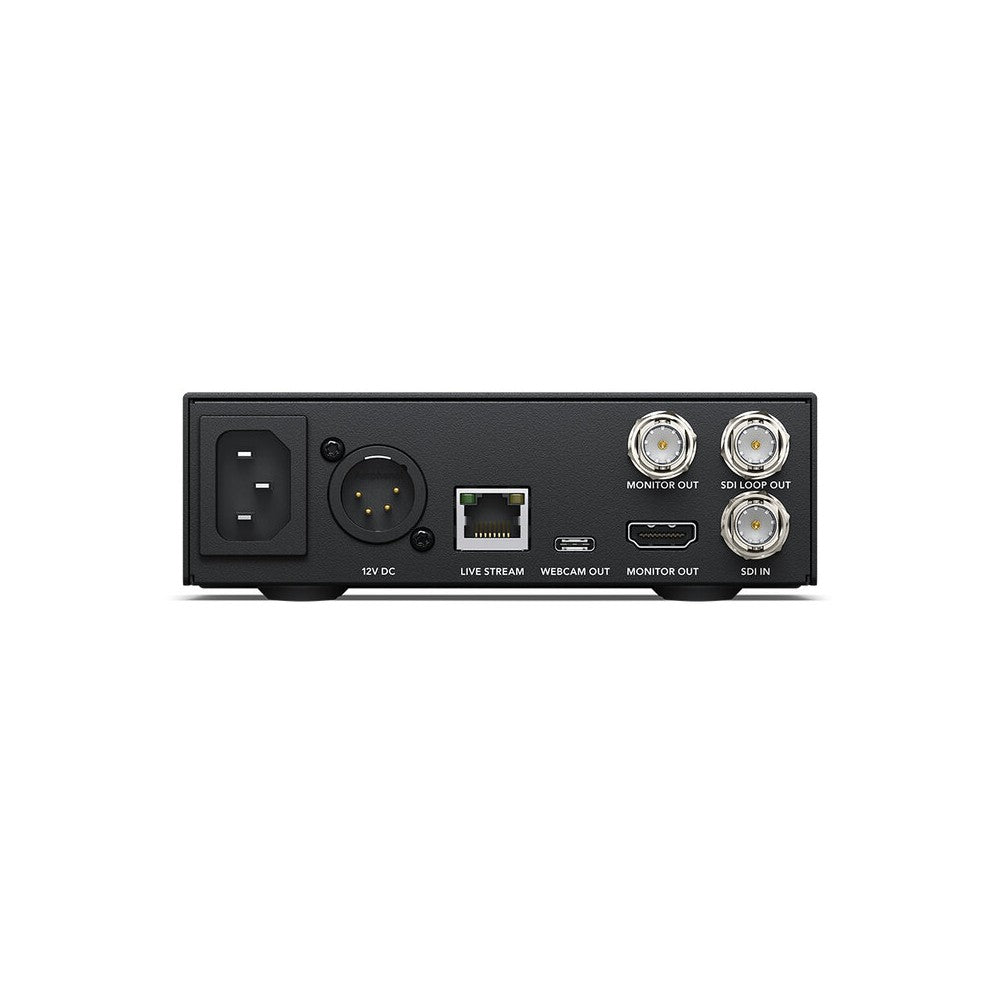

- SDI video inputs: 1
- SDI loop outputs: 1
- SDI monitor outputs: 1
- SDI rates: 1.5G, 3G, 6G, 12G
- HDMI monitor outputs: 1
- SDI audio inputs: 16 channels embedded audio
- SDI audio outputs: 16 channels embedded audio on loop out
- HDMI audio outputs: 2 channels embedded audio on monitor out
- Webcam output: 1 x USB-C up to 1080p 60
- Ethernet: supports 10/100/1000 BASE-T for live streaming, configuration, and software updates
- HD video input standards: 720p 50, 720p 59.94, 720p 60, 1080i50, 1080i59.94, 1080i60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30, 1080i 50, 1080i 59.94, 1080i 60
- Ultra HD video input standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60 (Web Presenter HD converts any input signal to 1080p)
- 3G SDI: auto detects SMPTE level A or B on SDI input
- SDI and HDMI monitor out video standards: 1080p 50, 1080p 59.94, 1080p 60
- Video input color space: Rec.601, Rec. 709, Rec. 2020
- Video streaming standards: 720p 25, 720p 30, 720p 50, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
- Direct streaming: Blackmagic Web Presenter HD supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) in H.264
- Closed captions: supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream
- Control panel: built in control panel with 2.2" color display for video preview, audio meters and status
- Device control: front panel, USB-C or Ethernet
- Works with Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine
- macOS 13.0 Ventura, macOS 14.0 Sonoma or later
- Windows 10 (64-bit), Windows 11
- Linux: supported
- Chrome OS: supported
- Power supply: 1 x internal 100 - 240 VAC
- 12 VDC input: 1 x 4-pin XLR for +12 VDC input (external power supply or battery use)
- Power usage: 21 W
- Rack size: one-third rack unit width, 1 RU height
- Operating temperature: 0 to 40 °C
- Storage temperature: -20 to 45 °C
- Relative humidity: 0 to 90% non-condensing

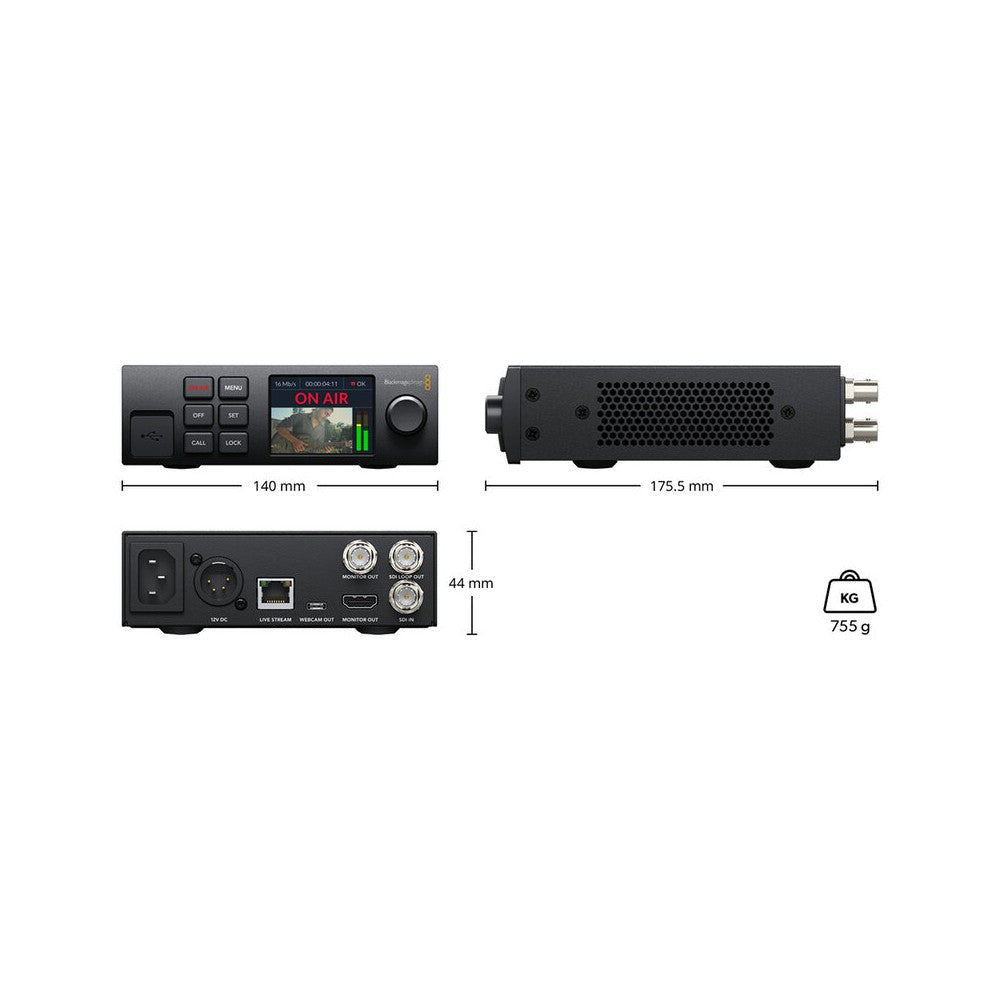

- Dimensions: 14 x 4.4 x 17.55 cm
- Weight: 755 g
