Blackmagic Design HyperDeck Studio HD Mini
Estimated delivery in Italy between 12 and 14 October
Pay in 3 installments of €206,33 interest-free
Pay in 3 installments of €206,33 interest-free with PayPal
Split into 3 installments of €206,33 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
CARATTERISTICHE

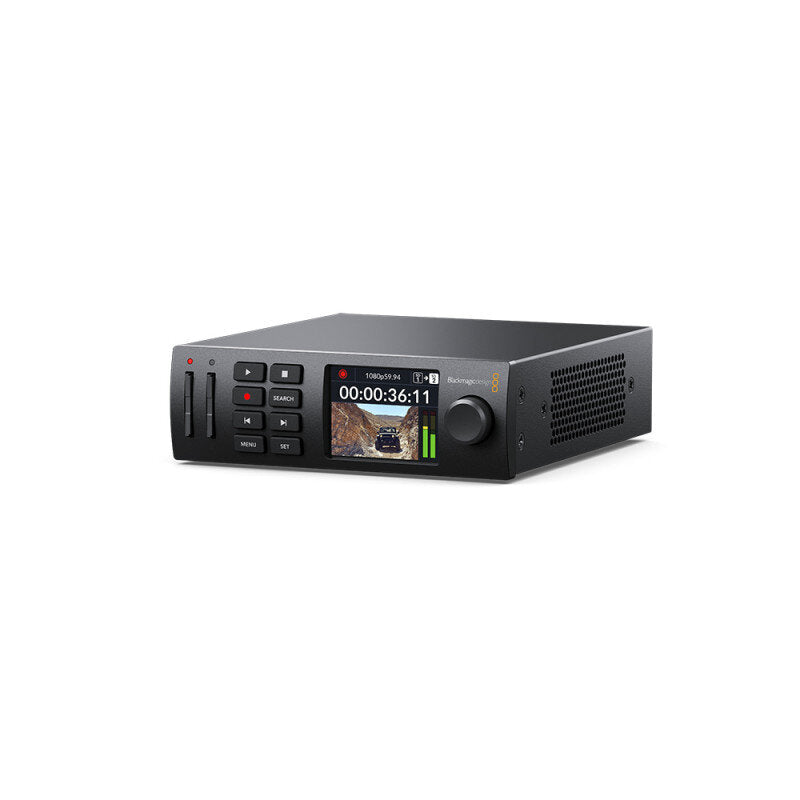

Il Blackmagic Design HyperDeck Studio HD Mini è un deck broadcast professionale miniaturizzato progettato per registrare e riprodurre file video di alta qualità.
Il più compatto degli HyperDeck Studio ricalca le dimensioni dei convertitori Teranex Mini. Il design modulare permette di affiancare 3 HyperDeck Studio HD Mini, o una combinazione di deck e switcher, convertitori o processori di streaming, in una singola unità rack sulla mensola Teranex Mini Rack Shelf.
Anche se piccolo, offre funzioni avanzate come ingresso e uscita 3G-SDI, uscita HDMI, due slot per schede SD, generatori di sync e Time Code integrati, pannello di controllo frontale e alimentazione AC e DC.
È anche possibile collegare HyperDeck Studio HD Mini al computer tramite USB, che lo rileva come una webcam, e usare qualsiasi software video.
SPECIFICHE

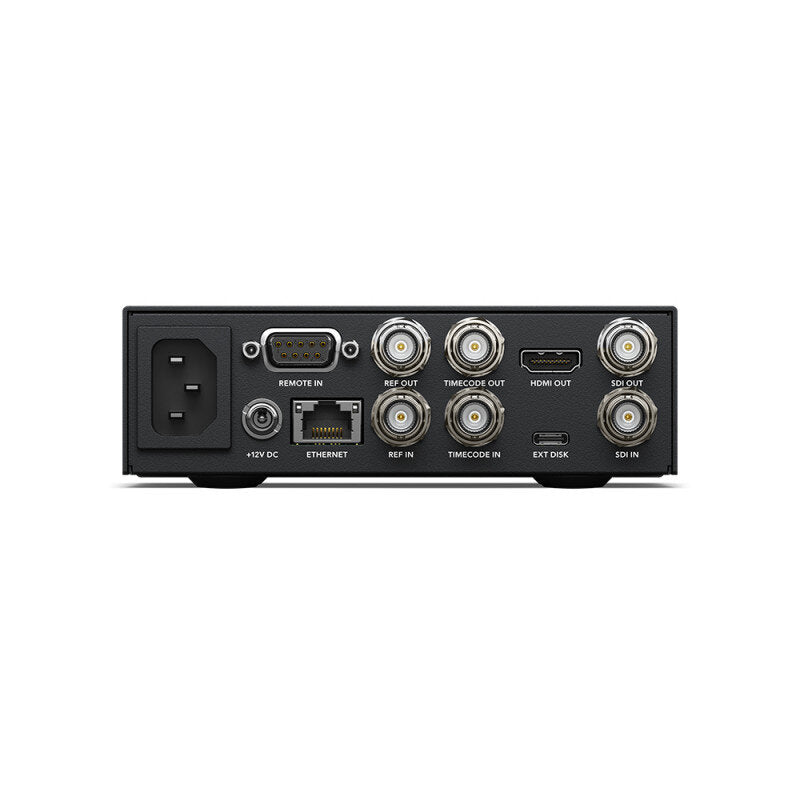

- SDI video inputs: 1
- SDI video outputs: 1
- SDI rates: 270 Mb, 1.5G, 3G
- HDMI video outputs: 1
- Screen: 2.2" LCD
- Time Code connections: 1 x BNC IN, 1 x BNC OUT
- Reference connections: 1 x BNC IN, 1 x BNC OUT. Tri-Sync or Black Burst
- SDI audio inputs: 16 channels embedded audio
- SDI audio outputs: 16 channels embedded audio
- HDMI audio outputs: 8 channels embedded audio
- Remote control: 1 x RS-422 IN
- Recorder configuration: via user interface or Blackmagic HyperDeck Ethernet protocol
- Ethernet: 1Gb/s
- Computer interface: 1 x USB Type-C 3.0 (up to 5 Gb/s) for external drive recording, webcam out, software configuration and updates
- SD video standards: 525i 59.94 NTSC, 625i 50 PAL
- HD video standards:
- 720p 50, 720p 59.94, 720p 60
- 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
- 2K DCI video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI
- SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2084 and SMPTE 2108‑1
- SDI metadata support: HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI
- Supported HDMI Formats: 525i 59.94 NTSC, 625i 50 PAL, 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI
- Audio sampling: television standard 24‑bit, 48 kHz sample rate
- Video sampling: 4:2:2 YUV
- Color precision: 10‑bit
- Color space: REC 601, REC 709, REC 2020
- HDR support: Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
- Multi rate support: auto detection of SD and HD
- Copy protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
- Media: 2 x SD card slots, 1 x USB-C 3.0 expansion port for externalrecording of SD, HD and 2K DCI
- Media Type: UHS-I and UHS-II SD cards
- Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems
- ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p60. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60

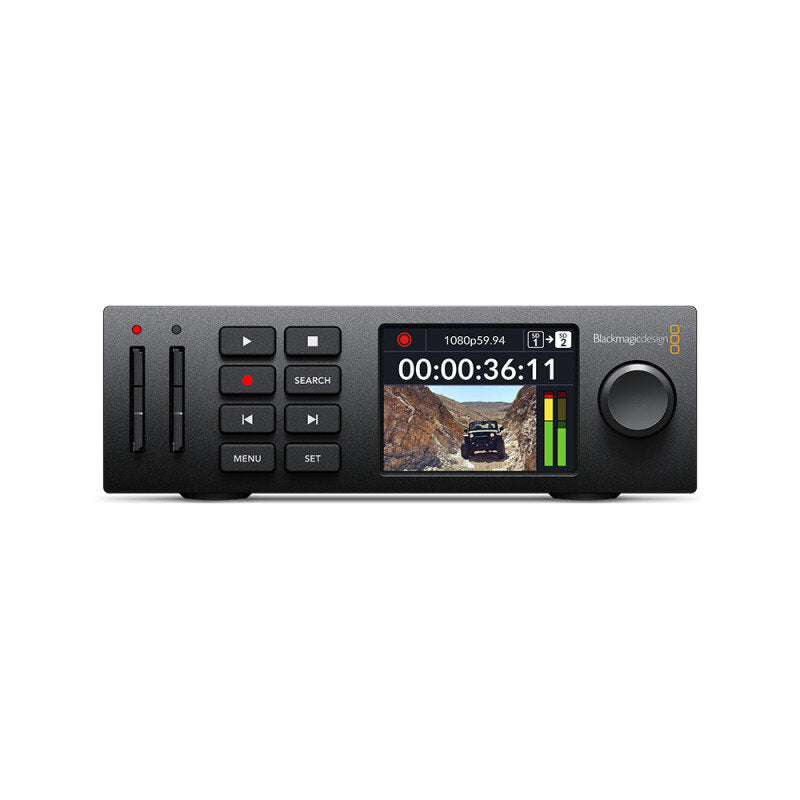

- Built in control panel: 8 buttons for transport and device control with search dial and 2" color display
- External control: RS-422 deck control, SDI start / stop, Time Code run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload
- Software included: Blackmagic OS, Blackmagic HyperDeck setup internal software, upgrade loaded at system start, or via Blackmagic HyperDeck Setup using USB port
- Mac 10.15 Catalina, Mac 11.1 Big Sur or later
- Windows 10, 64-bit
- Built in 2.2" LCD for video, audio and Time Code monitoring and menu settings
- LED indicator lights above the SD media slots
- Power supply: 1 x internal 100 - 240 VAC 50/60 Hz, 1 x locking 5.5 mm barrel 12 VDC IN for external power supply or battery use
- Power usage: 50 W max.
- HyperDeck Extreme Control
- Teranex Mini Rack Shelf
- Operating temperature: 0° to 40 °C
- Storage temperature: -20° to 60 °C
- Relative humidity: 0 to 90% non‑condensing
- One third rack unit width, 1 RU height
- Dimensions: 15.8 x 14 x 4.5 cm
- Weight: 0.55 kg
Technical characteristics
Connections
Standards
Media
Supported codecs
Control
Software
Operating systems
Displays
Power requirements
Accessories (optional)
Environmental specifications
Dimensions and weight
