Blackmagic Design's largest 40x40 zero latency 12G-SDI video router
Paga in 3 rate da €1.556,33 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES

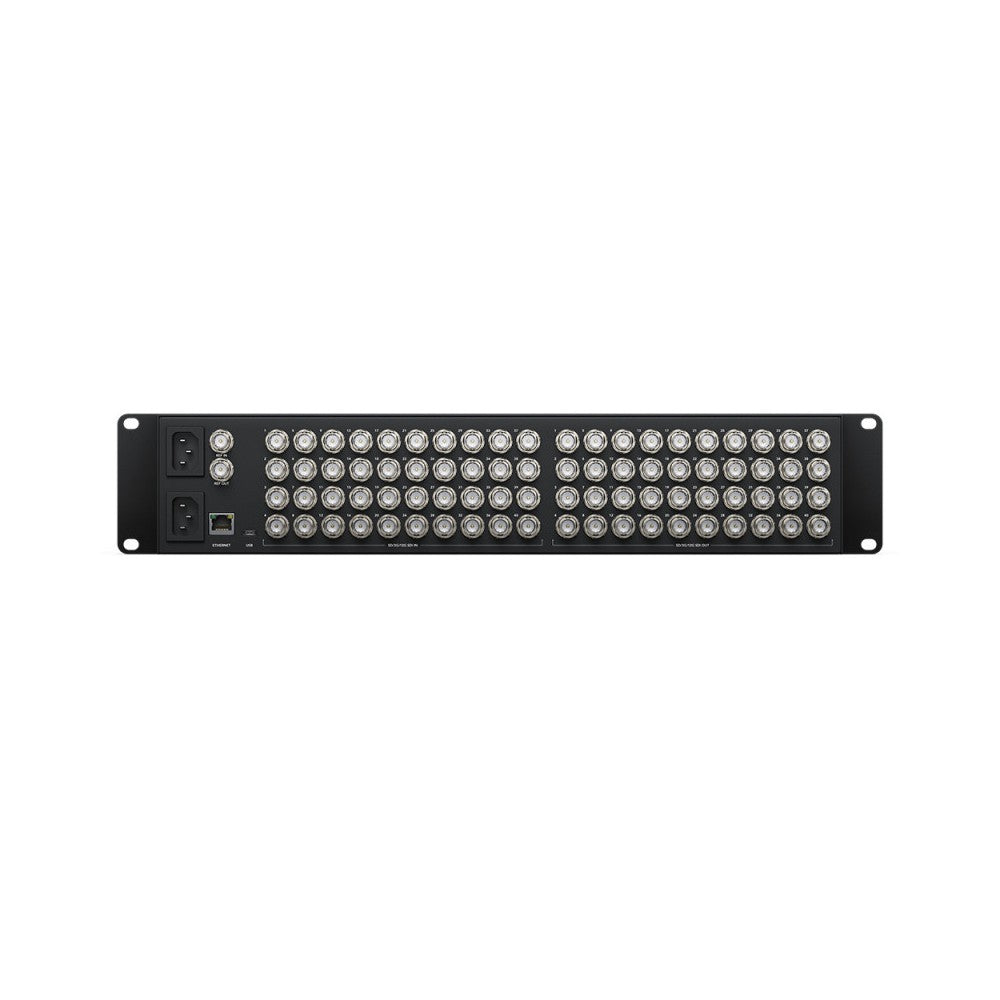

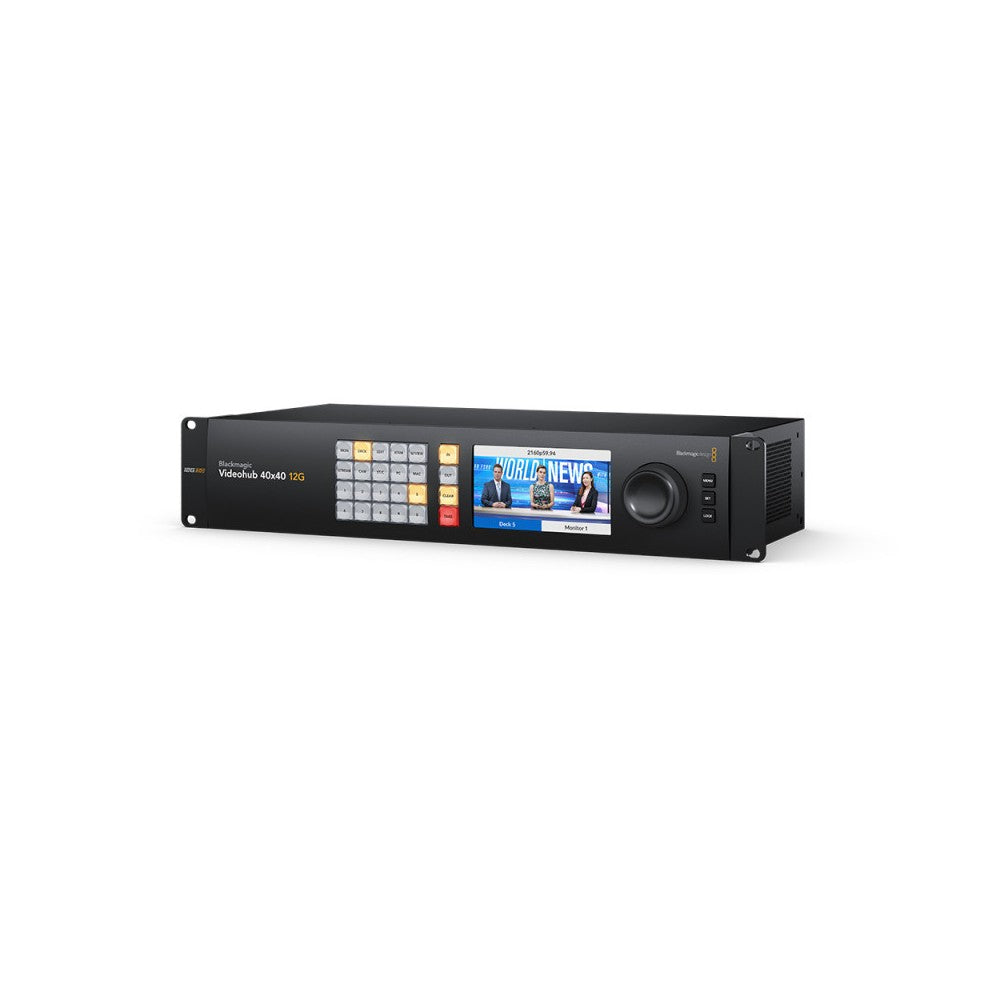

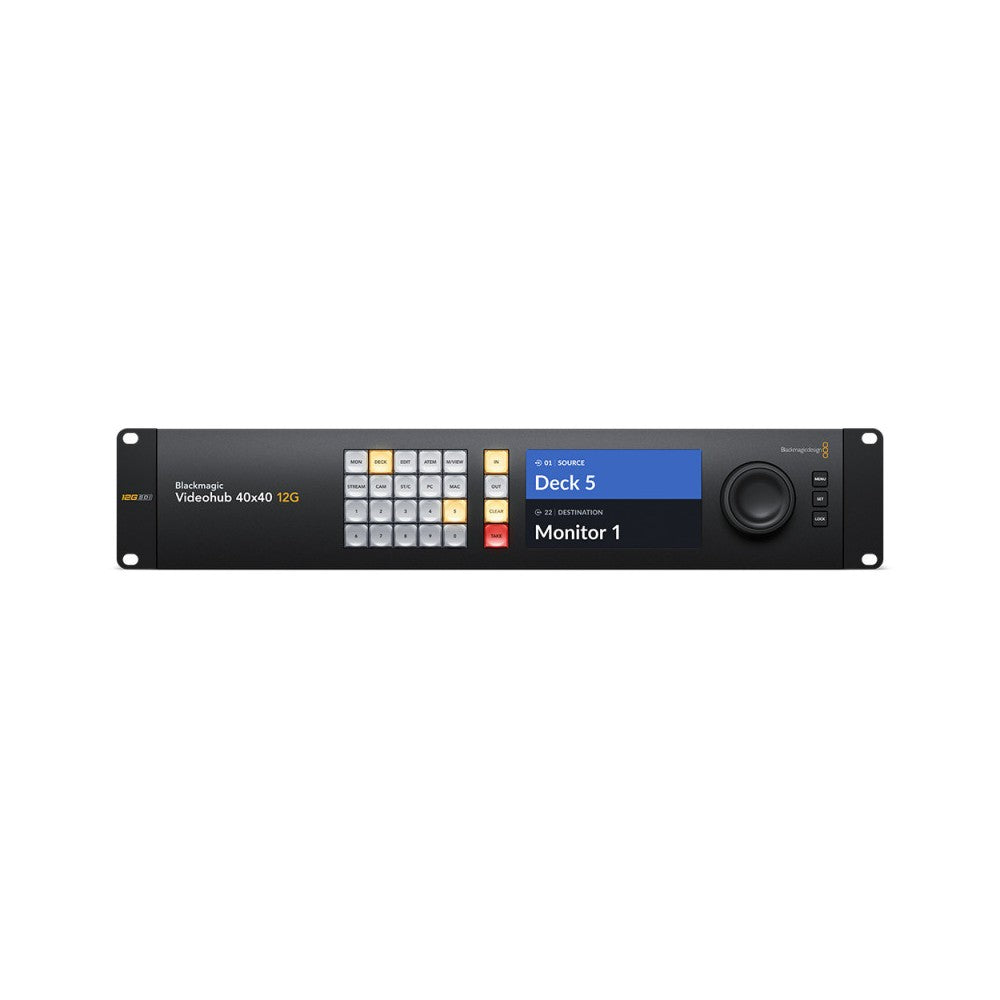

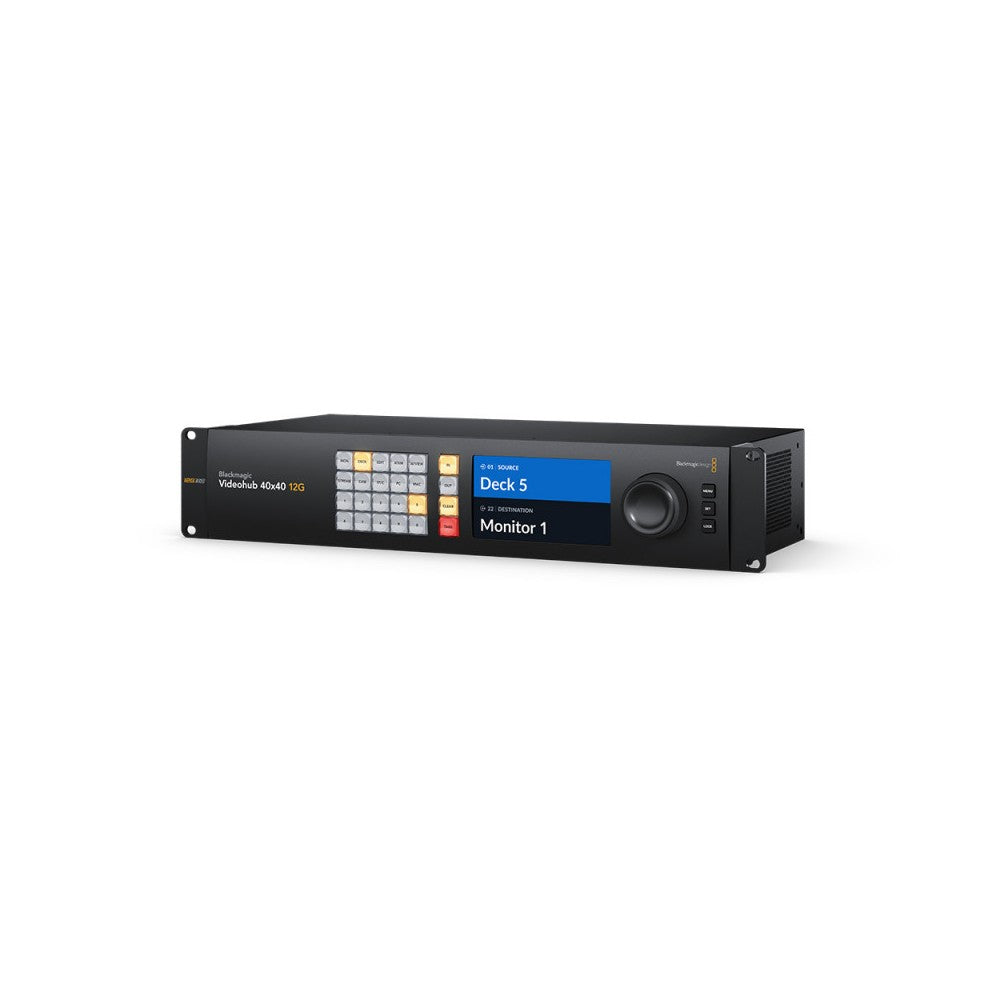

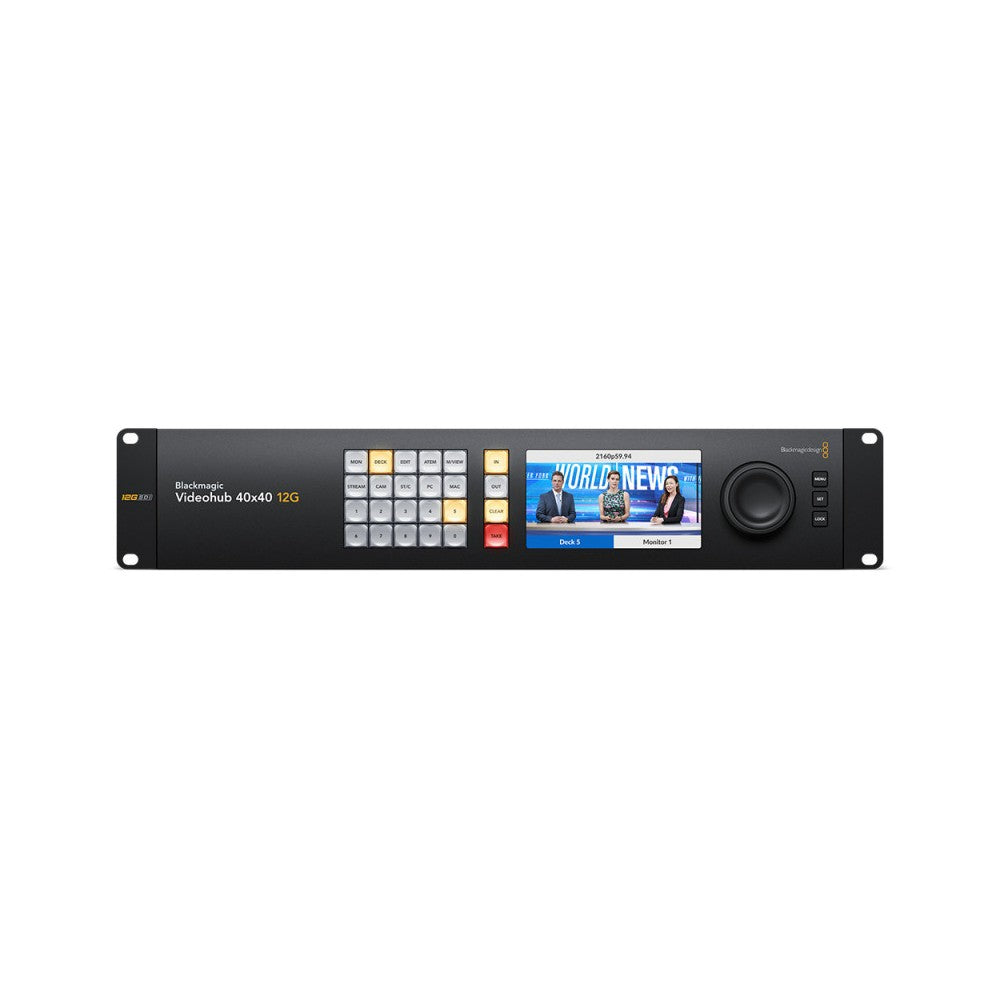

Powerful 40x40 12G-SDI zero-latency video matrix, compatible with any combination of SD, HD, and Ultra HD simultaneously. It features 40 12G-SDI inputs and 40 outputs, redundant power supply, and reference connections housed in a two-rack unit. The large front Full HD LCD allows you to view video before routing and clearly displays labels and video standards. Routing operations are managed directly from the selection buttons and via the large control knob with electronic clutch. It offers SDI reclocking and external control via Ethernet and supports all SDI video standards up to 2160p60.
SPECIFICATIONS
- SDI Video Inputs: 40
- SDI Video Outputs: 40
- SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
- Video Input Re-Sync: None
- SDI Reclocking: On all SDI outputs.
- Reference Inputs: Tri-Sync or Black Burst.
- Reference Outputs: Reference terminating loop output.
- Ethernet: Supports 10/100/1000 BASE‑T.
- Computer Interface: USB‑C
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 - 1080i50, 1080i59.94, 1080i60 - 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 - 1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
- 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B - SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
- SDI Video Sampling: YUV 4:2:2 and RGB 4:4:4
- SDI Color Precision: 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
- SDI Color Space: REC 601, REC 709, REC 2020
- SDI Auto Switching: Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard.
- SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
- Built in Control Panel: 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display.
- External Control Panel: Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
- Control Panel Connection: Ethernet
- Software Control: Router control included free for Windows™ and Mac™.
- Internal Software Upgrade: Via included updater application.
- Power supply: 2 x Internal 100 - 240VAC 50/60 Hz. IEC power cables required.
- Power Fail Protection: Crosspoint connections preserved and restored instantly at power on.
- Power Usage: 46.5 W max.
- Physical Installation: 2 rack units height.
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
- Blackmagic Videohub 40x40 12G
- Welcome wallet with QR code for software download
- 3 Year Limited Manufacturer's Warranty, and 12 Month Warranty on the front panel.
Connections
Standards
Control
Software
Display
Displays: Built in 5 inch LCD for video and menu settings.
Power Requirements
Environmental Specifications
What's Included
Warranty
