Blackmagic Design Live production switcher, 10 standards converted 12G-SDI inputs, 6 12G-SDI aux outputs, DVE, 4 ATEM advanced keyers
Estimated delivery in Italy between 17 and 19 August
Pay in 3 installments of €683,66 interest-free
Pay in 3 installments of €683,66 interest-free with PayPal
Split into 3 installments of €683,66 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
FEATURES

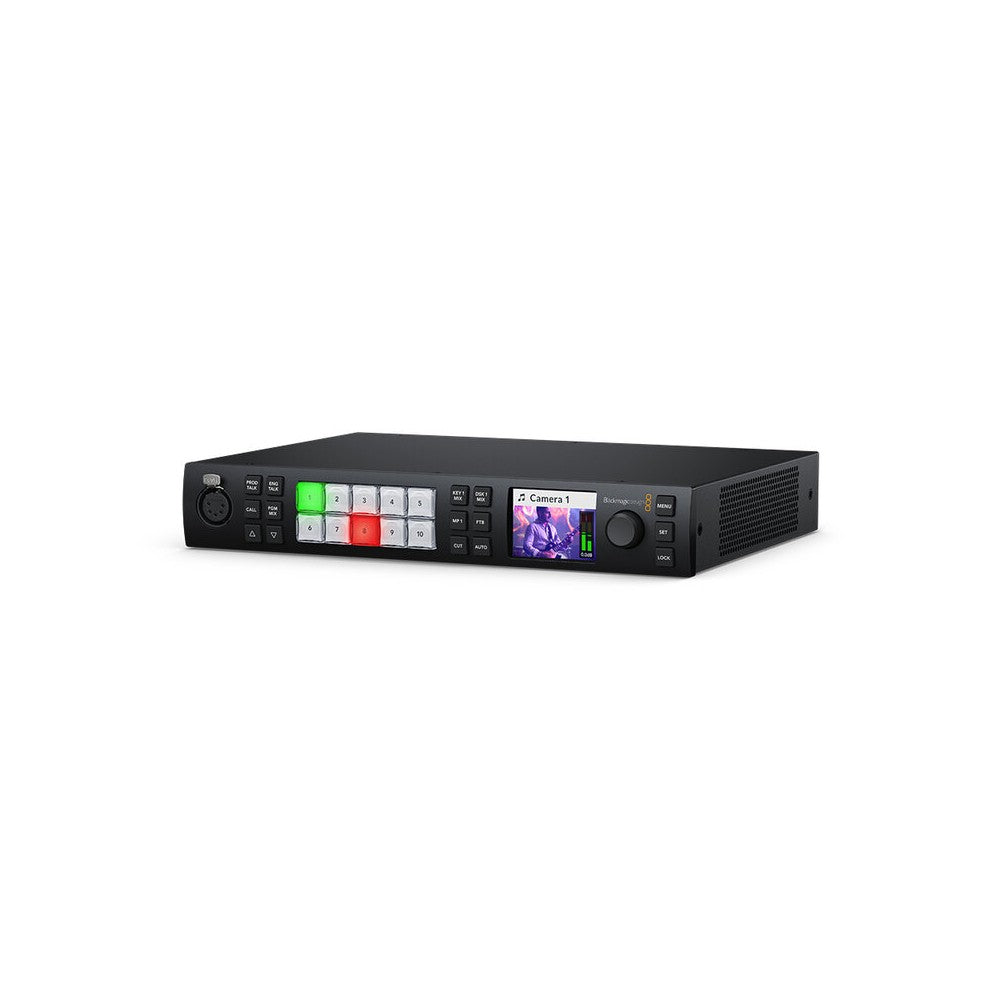

The ATEM 1 M/E Constellation 4K is a powerful 1 M/E Ultra HD live production switcher featuring 10 12G-SDI inputs with standard conversion, 6 independent 12G-SDI outputs to which any SDI input and internal source can be routed, DVE, 4 advanced ATEM chroma keyers, multiview with up to 16 windows, media players, and Talkback. The 12G-SDI outputs also work with ISO recorders, so that each receives a resynchronized input from the switcher with its corresponding Time Code.
For live streaming, the switcher's USB-C connection operates as a webcam source. In fact, the software sees the device as a webcam with a resolution of 720 or 1080p.

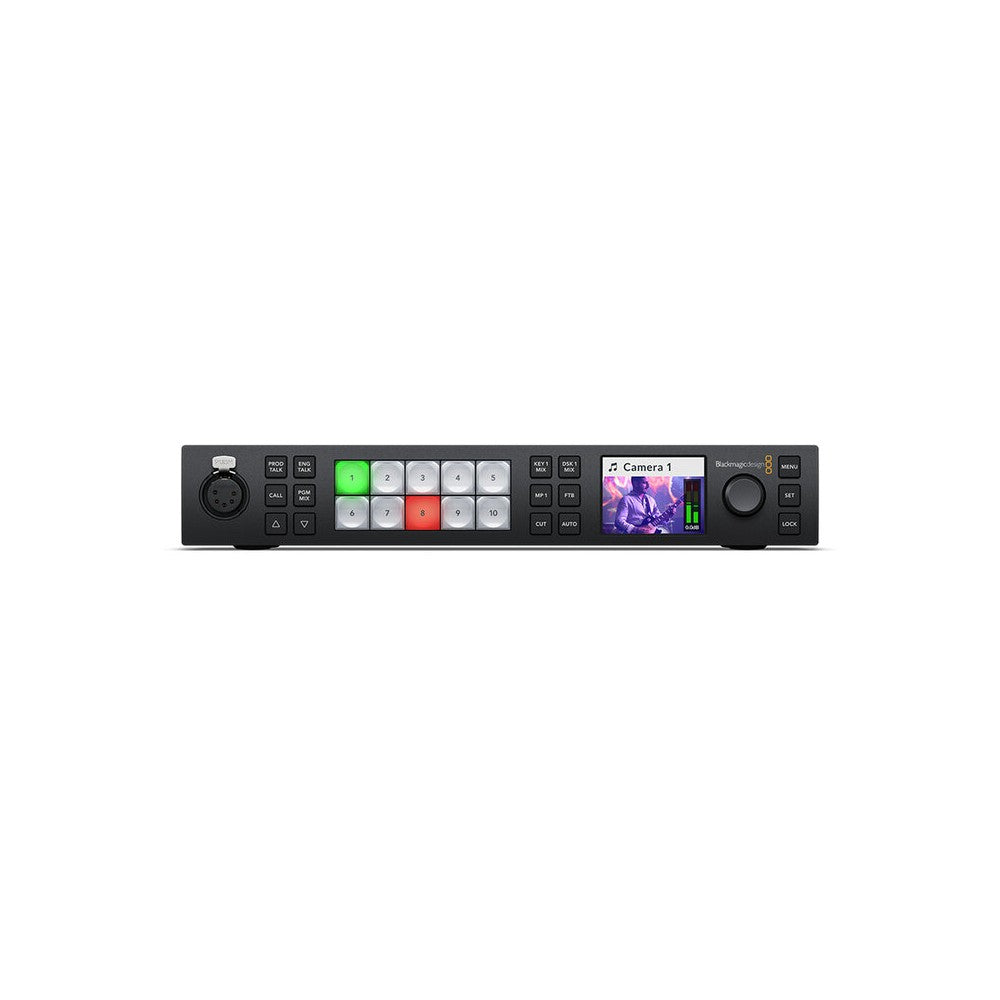

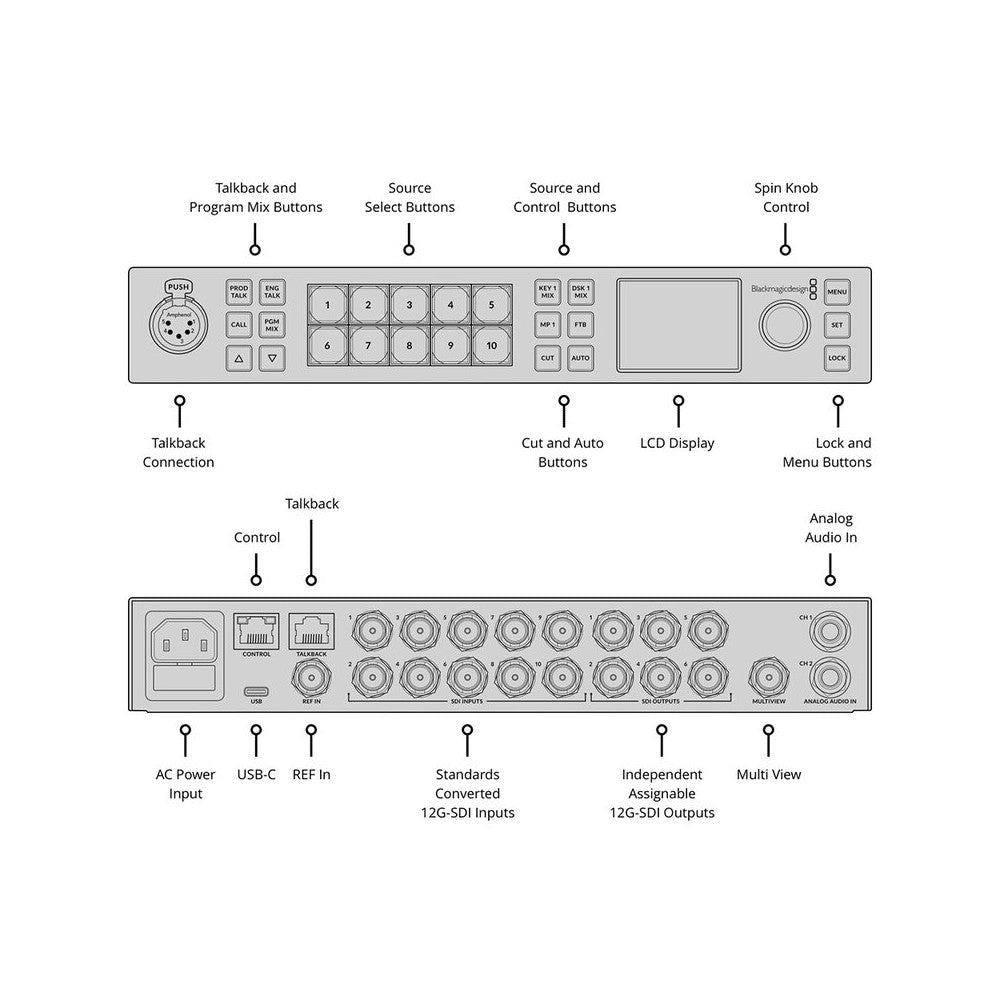

The front panel buttons are of the same quality as those on higher-end models and are extremely reliable. These buttons can be used to control keys, files, and fade to black directly from the front panel, and a professional 5-pin connector for Talkback and its controls can also be accessed from here.
The 2.2" LCD display on the front panel provides menus to access any switcher function. The screen is customizable and can be configured with 4, 7, 10, 13, or 16 selectable windows, each with its own Tally outline, source label, and superimposed VU meter. The device also boasts 1 DVE that allows graphics to be positioned and compositions to be created with PiP, professional effects, 2D borders, customizable shadows and lights, etc.
The switcher's internal media storage contains broadcast-quality RGBA graphics and animations for use with the two media players, which play them instantly. This switcher is also ideal for news broadcasts and virtual sets, offering 4 different advanced ATEM keyers for high-quality chroma and luma keying. Thanks to these chroma keys and powerful internal graphics, it represents a complete solution for even complex productions. External image processors can be used, or virtual sets can be set up with fixed cameras, loading backgrounds with pre-rendered images from media players and the Media Pool, with support for TGA Sequence video format and WAV, MP3, and AIFF audio formats.
By connecting any SDI output of the switcher to the camera, you gain access to program return, camera control, and Talkback. Audio is separated from all SDI video inputs and routed to the mixer. In this regard, this switcher integrates a Fairlight mixer capable of managing up to 28 channels! Each input channel includes a 6-band parametric EQ, compressor, limiter, expander, noise gate, and of course, pan-pot.
The ATEM 1 M/E Constellation 4K is ideal for managing multi-camera coverage at music festivals and medium-sized concerts, as well as in places of worship, because it produces professional results and at the same time is simple to configure and easy to manage even by a team of volunteers. Its compact design makes it perfectly portable and therefore ideal for live productions in general.
SPECIFICATIONS

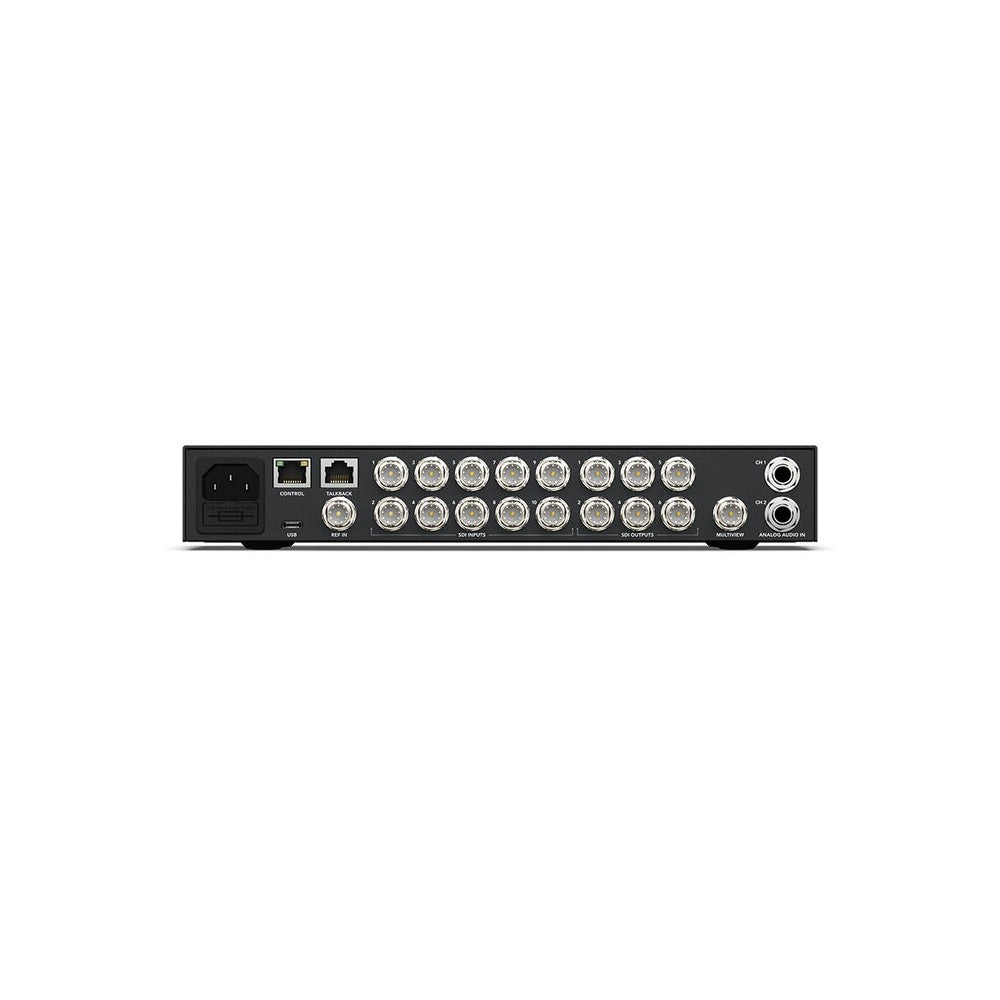

- Total video inputs: 10
- Total video outputs: 6
- SDI rates: 1.5G, 3G, 6G, 12G
- Total audio inputs: 2 x balanced 1/4" jack, 1 x 5-pin XLR Talkback
- Total audio outputs: 1 x 5-pin XLR Talkback
- Time Code connections: none
- Reference input: Tri-Sync or Black Burst
- Video input Re-Sync: on all 10 inputs
- Frame rate and format converters: on all 10 inputs
- SDI audio inputs: 16 CH embedded audio on all SDI inputs
- SDI audio outputs: 16 CH embedded audio on all SDI outputs
- SDI aux outputs: any of the 6 SDI outputs
- SDI preview outputs: any of the 6 SDI outputs
- SDI program outputs: any of the 6 SDI outputs
- Down converted SDI program output: 1
- Webcam output: 1 x USB-C supporting 720p or 1080p at PGM frame rate
- Total multi views: 1 x 12G-SDI
- Control panel connection: Ethernet; direct connection between panel and chassis, or via network
- Internal Time Code generator: yes
- Talkback: RJ45 for 3rd party talkback systems
- Tally output: added via ethernet connection to Blackmagic Design GPI and Tally Interface product (not included)
- Ethernet: supports 10/100/1000 BASE-T
- Computer interface: 1 x USB-C supports USB 2.0
- SD video standards: none
- HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60; 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
- Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
- SDI compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
- Video sampling: 4:2:2
- Color precision: 10 bit
- Color space: REC 709, REC 2020
- SDI auto switching: automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI
- Upstream keyers: 4
- Downstream keyers: 1
- Advanced chroma keyers: 4
- Talkback support: yes
- Mix-minus support: yes
- Linear / Luma keyers: 5
- Transition keyer (stinger / DVE): 4 stinger, 1 DVE
- Total number of layers: 7
- Pattern generators: 5
- Color generators: 2
- DVE: 1
- Control panel: front fascia emergency switching, software or optional hardware panel
- Routable windows: 16
- Tally: red for program and green for preview indication
- Windows source labels: yes
- Multi view monitoring: 1 x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, Key Masks, Clean Feed with optional labels and audio meters
- Multi view video standard: HD or Ultra HD
- Media players: 2
- Channels: fill and key for each media player
- Media Pool still image capacity: 20
- Media Pool clip capacity: 2 x up to 2160p 60
- Media player clip length in 720 HD: 1600 frames
- Media player clip length in 1080 HD: 800 frames
- Media player clip length in 2160 UHD: 200 frames
- Media Pool still image format: PNG, TGA, BMP, GIF, JPEG and TIFF
- Media Pool video file format: TGA Sequence
- Media Pool audio file format: WAV, MP3 and AIFF
- Front panel: built in 2.2" LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 Talkback selection and mix buttons, menu control knob and set button, front panel lock button
- Processing delay: < 10 lines
- Audio mixer: 28 channel mixer, selectable ON / OFF / Audio-Follow-Video, level and peak metering, master gain control, 6 band parametric EQ, dynamics including expander, gate, compressor and limiter
- Down conversion: 1 x selectable HD down converted output
- Control panel included: ATEM Software Control included free for Mac 13.0 Ventura, Mac 14.0 Sonoma or later and Windows 10 or 11
- Software updates: using USB or Ethernet connection directly connected to Mac OS or Windows computers, includes ATEM setup utility
- Configuration: set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
- Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 and 11
- Power supply: 1 x internal 100 - 240 VAC 50/60 Hz
- Power usage: 90 W
- Physical installation: 2/3 RU width, 1 RU heigh
- Operating temperature: 0 to 40° C
- Storage temperature: -20 to 60 °C
- Relative humidity: 0 to 90% non-condensing

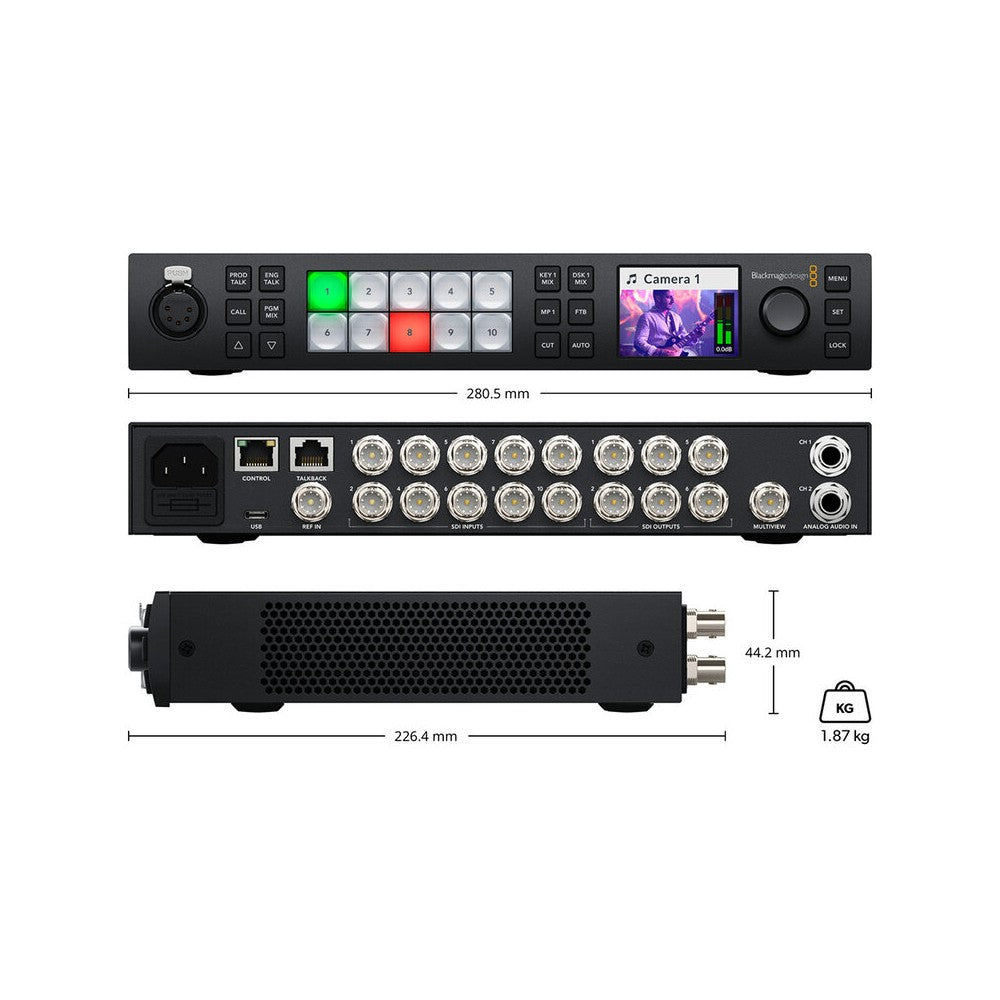

- Dimensions: 28 x 4.4 x 22.6 cm
- Weight: 1.8 kg
- ATEM 1 M/E Constellation 4K
- Welcome wallet with QR code for software download
Technical characteristics
Connections
Standards
Product specifics
Multi view monitoring
Media player
Display
Processing
Software
Operating systems
Power requirements
Physical installation
Environmental specifications
Physical specifications
What's included
