Blackmagic Design Professional hardware controller that manages up to eight Ultimatte 12 units via Ethernet, 10.1" touchscreen,
Estimated delivery in Italy between 18 and 22 June
Paga in 3 rate da €795,66 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES

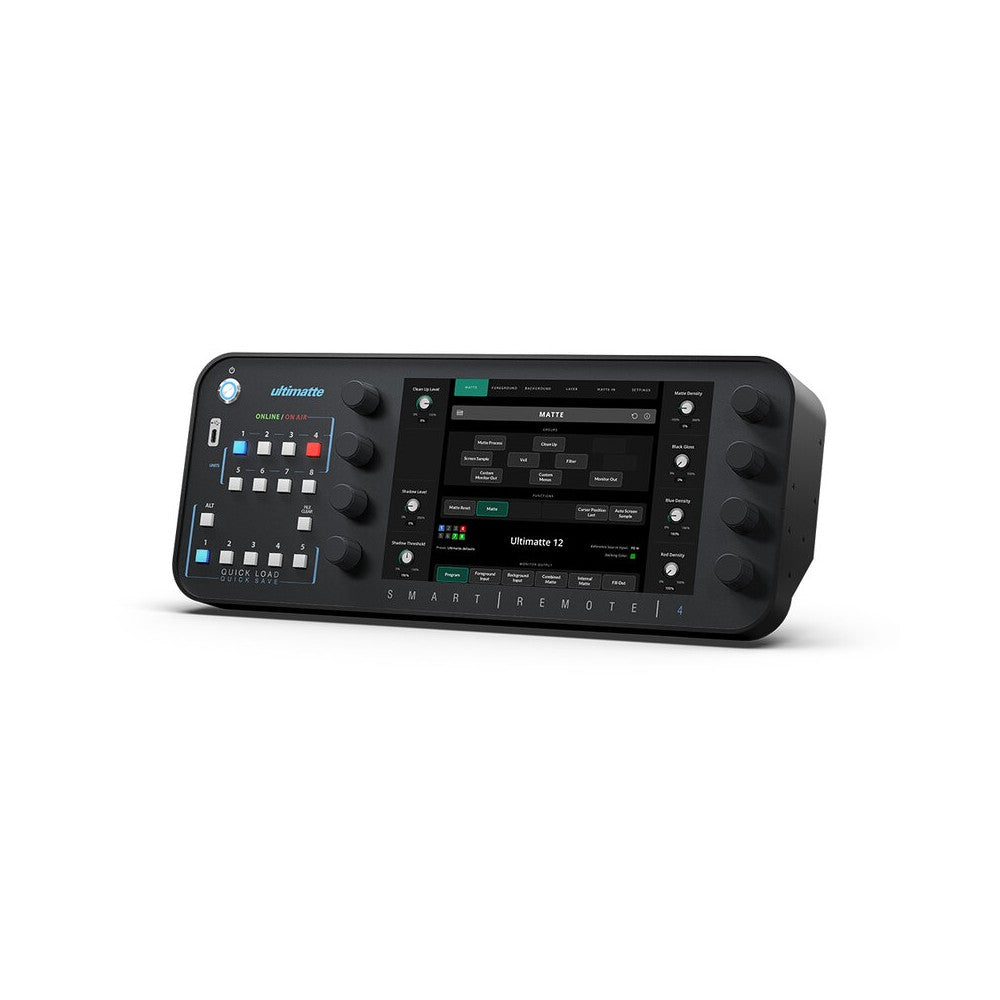

The Ultimatte Smart Remote 4 G2 is a controller designed to manage up to eight Ultimatte 12 units in parallel via Ethernet connection, offering a fast, clear, and immediate working interface.

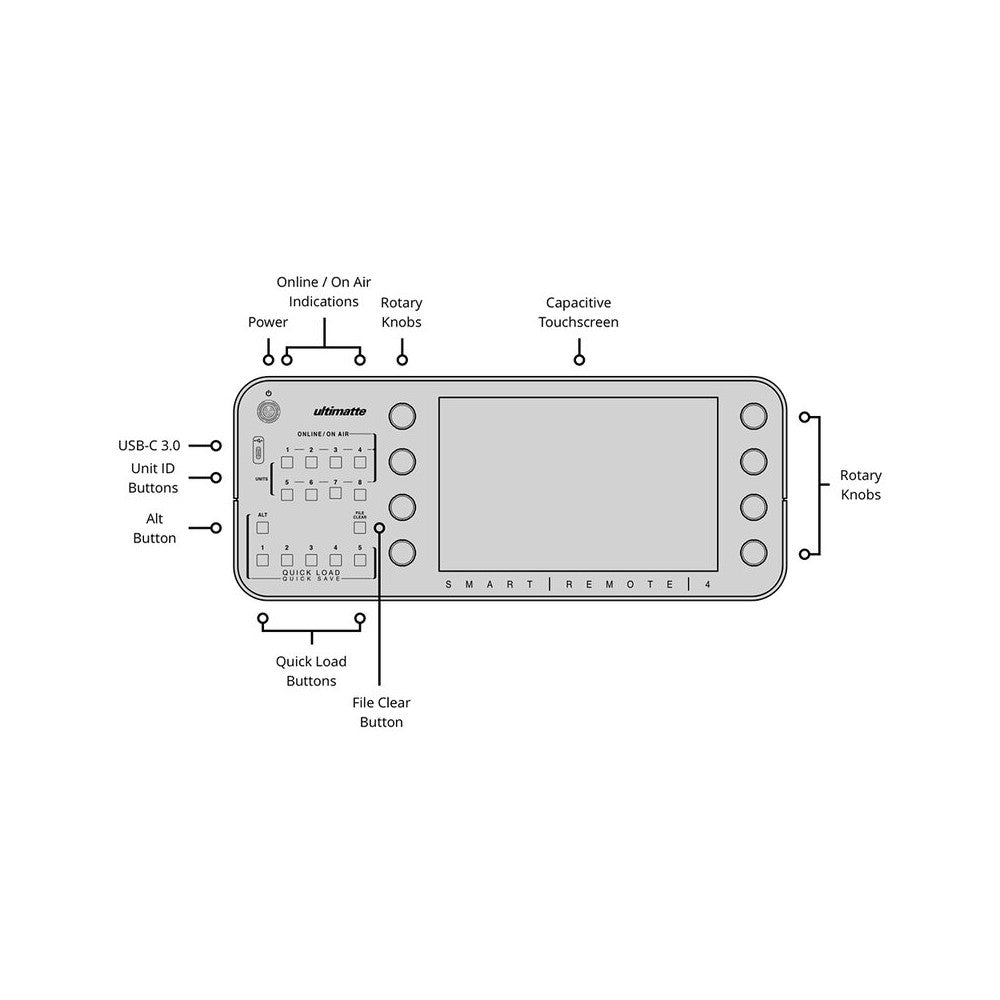

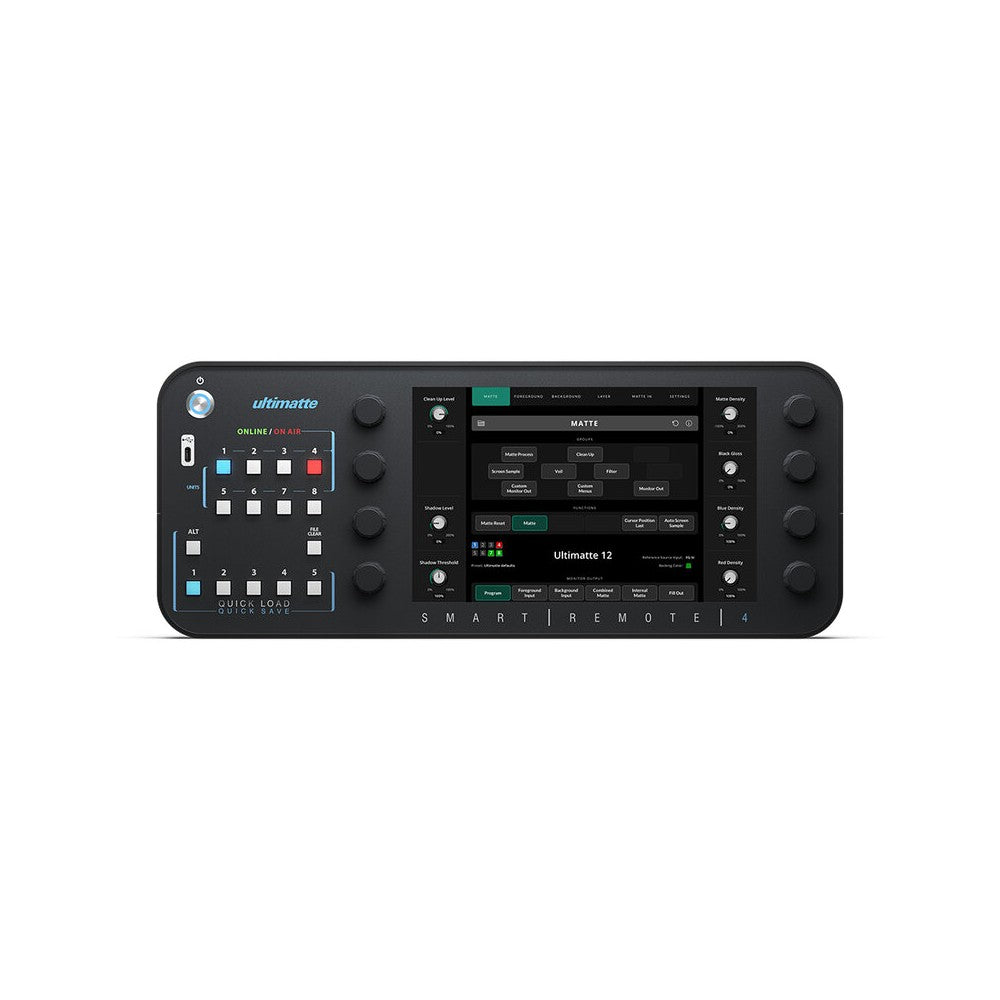

The heart of the device is a large 10.1" touchscreen display with 1280 x 800 resolution, allowing users to navigate menus and modify settings with the same fluidity as a software panel, but with the reliability of dedicated hardware. Alongside the screen, the control surface integrates physical buttons and eight knobs that allow precise adjustment of the most important parameters, while LED indicators intuitively show the status of connected units, clearly distinguishing between Online and On Air modes.

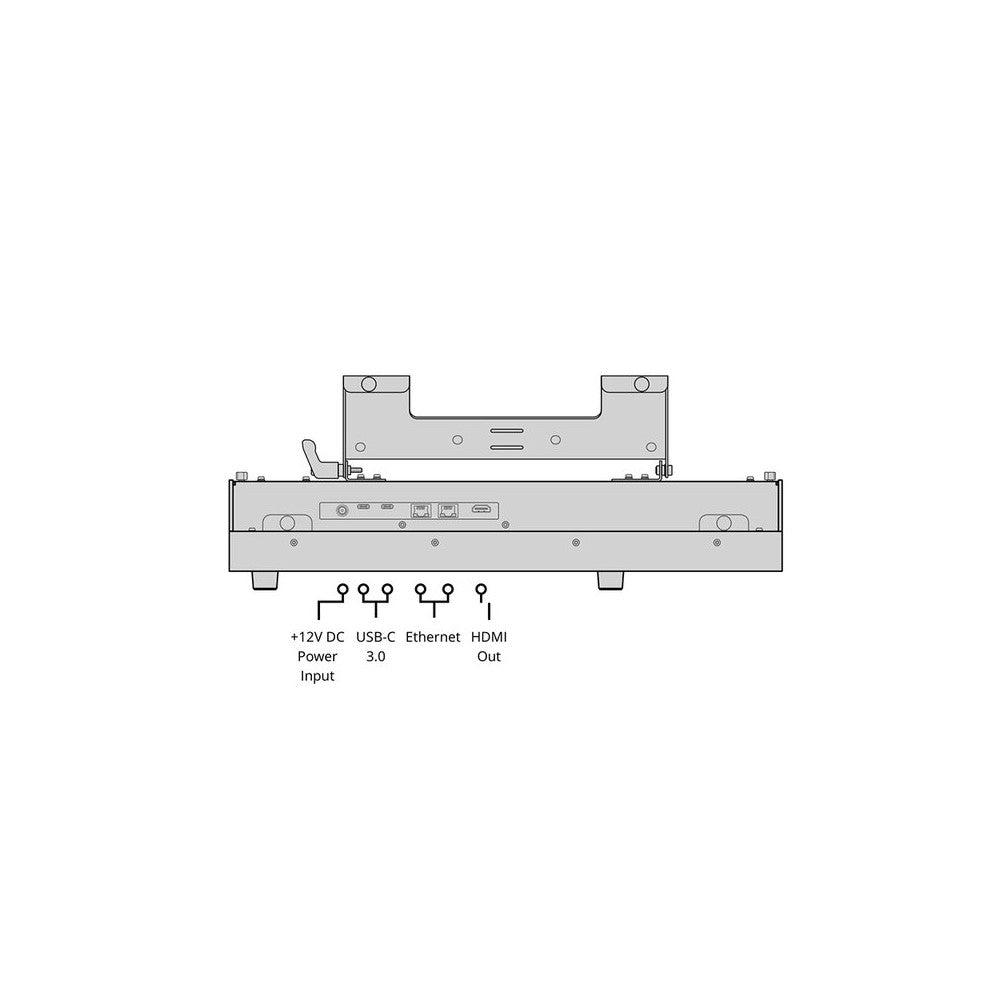

The remote offers a complete set of connections, including an HDMI 1080p 60 output, three USB-C 3.0 ports for connecting a mouse, keyboard, storage devices, or a computer for updates and configuration, and two Gigabit Ethernet ports for unit control and Ultimatte Setup software management. The File Clear button enables quick creation of high-quality automatic composites, while the Quick Load and Quick Save buttons allow immediate recall or saving of presets, even in combination with the Alt key.

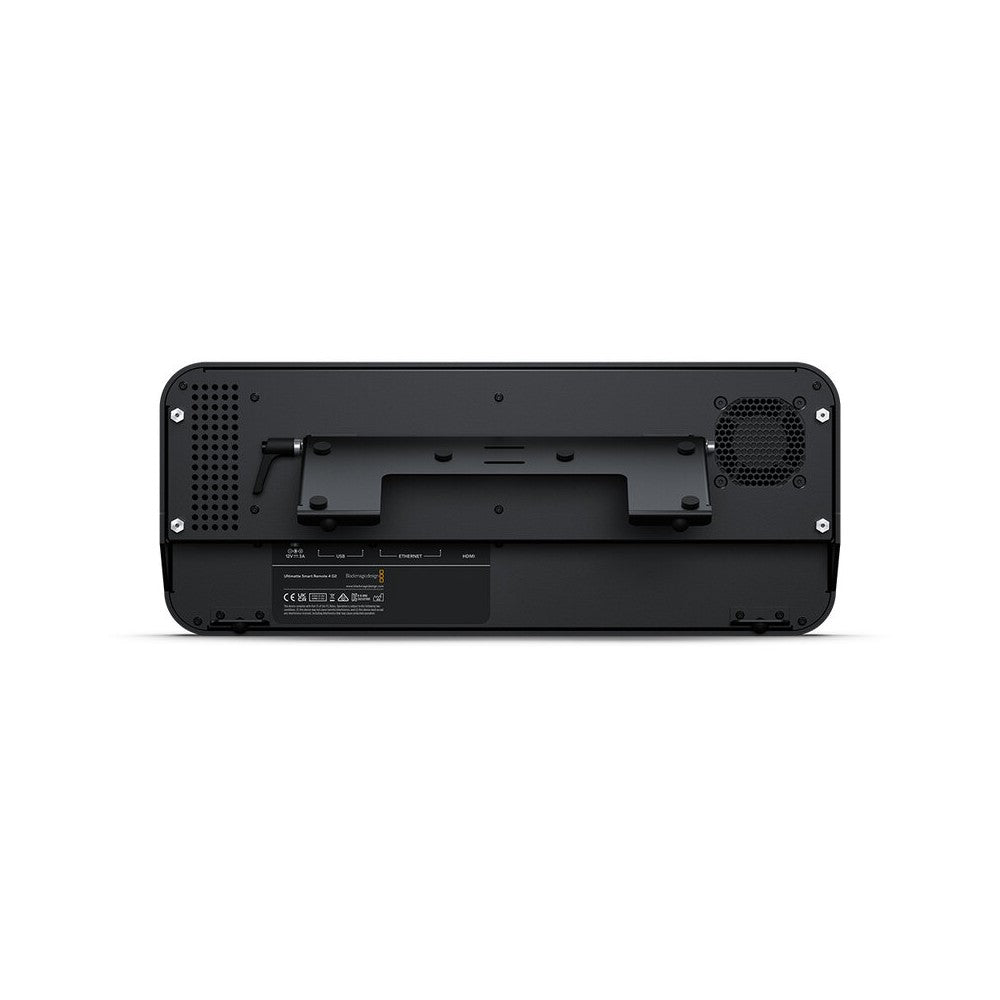

The device is designed for easy integration into any production environment: it can be placed on an adjustable stand or rack-mounted using the included ears. Power is supplied via a 12 VDC connector with a safety lock, and the maximum power consumption is 24 W. It is compatible with macOS Sequoia or later and Windows 11, ensuring updates and management via the Ultimatte Setup utility.
The construction is robust and suitable for professional use.
User advantages
- Immediate and centralized control of up to 8 Ultimatte 12s via Ethernet
- 10.1" touchscreen for fast navigation
- File Clear for high-quality automatic composites
- Quick recall and saving of presets via Quick Load / Quick Save
- Flexible installation: desktop stand or rack mounting
Areas of use
- TV control rooms and broadcast studios managing multiple keyers in parallel
- Virtual studios and XR sets
- Multi-camera live productions
- Mobile control rooms and OB vans
- Corporate, educational, and streaming events with virtual sets or live graphics
SPECIFICATIONS
- HDMI video outputs: 1 HDMI output 1080p 60
- Computer interface: 2 rear USB-C 3.0 ports for external mouse and keyboard and for USB-C storage devices to load still images, save or load presets and save or load archives
- Front computer interface: 1 front USB-C 3.0 port with same functions as rear USB-C ports plus MAC or PC connection for software updates and configuration using the Ultimatte Setup utility
- USB-C power delivery: all USB-C ports support power delivery to connected devices
- Ethernet: 2 10/100/1000 MBPS ETHERNET ports for LAN connection to control the Ultimatte 12 and perform software updates using the Ultimatte Setup utility
- Rotary knobs: 8 rotary knobs for adjusting parameters
- Unit ID buttons: 8 buttons illuminated blue for active
- Unit ID LED indicators: indicators illuminated green for online and red for on air status
- ALT plus quick load or save buttons: ALT button plus 5 buttons for saving presets
- Quick load or save buttons: 5 buttons for loading presets
- File clear button: 1 button for auto key
- ALT plus file clear: ALT button plus file clear button for auto key using user defined presets
- Customizable menus: 4 menus for building custom menus with most used controls
- LED control: user adjustable brightness control for LEDS
- Software updates: software updates via USB or Ethernet connection using Ultimatte Setup utility
- Touchscreen: 10.1" 1280 x 800 colour display panel with integrated capacitive touchscreen and onscreen controls
- Mac: MAC 15.0 Sequoia, MAC 26.0 Tahoe or later
- Windows: Windows 11
- Power supply: 1 locking 5.5 mm barrel 12 VDC power input for external power supply or battery use
- Power usage: 24 W max
- Operating temperature: 0 to 40 °C
- Storage temperature: -20 to 60 °C
- Relative humidity: 0 to 90% non-condensing

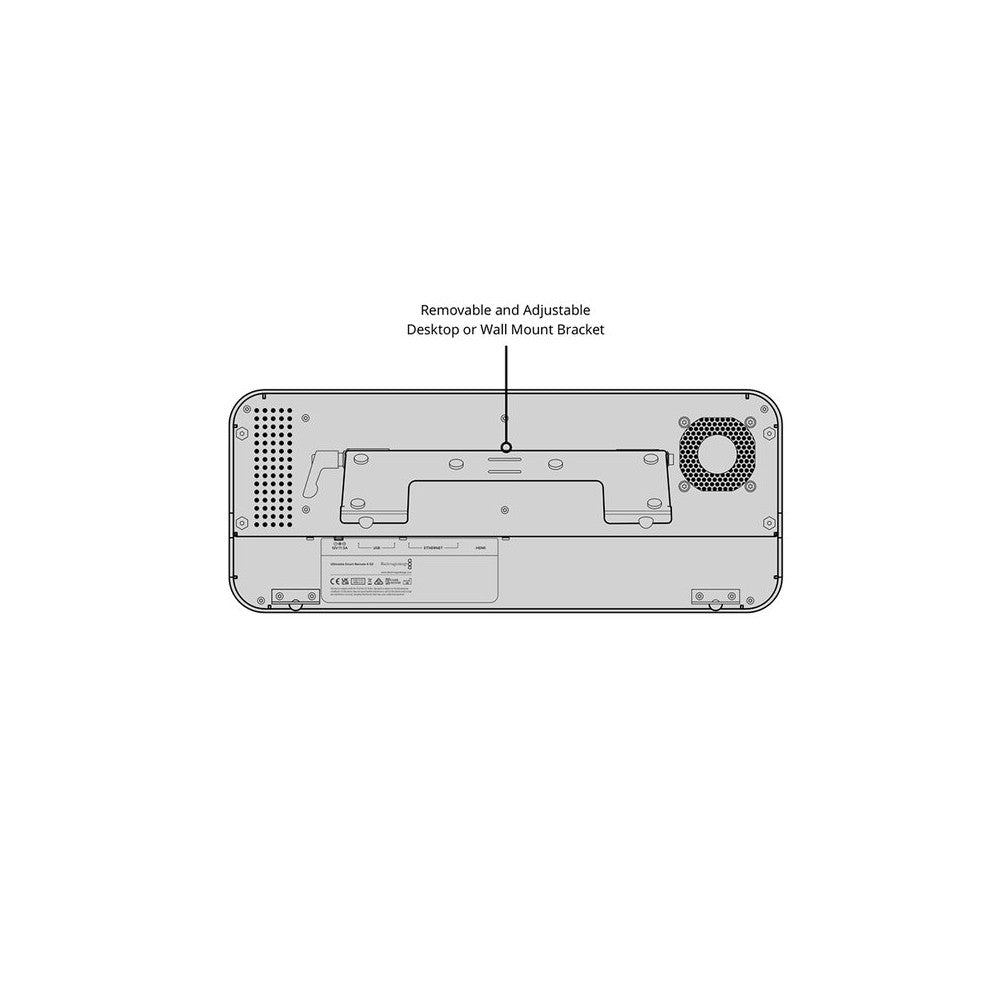

- Installation: adjustable desk mounting option and rack mount ears included for 19 inch rack installation
- Dimensions: 43.1 x 10.5 x 17.5 mm
- Weight: 4.2 kg
- Ultimatte Smart Remote 4 G2
- Welcome wallet with QR code for software download
Technical characteristics
Connections
Product specifics
Software
Control
Operating systems
Power requirements
Environmental specifications
Physical installation
Physical specifications
What’s in the box
