Braingasm Ocula (Matched Pair / Trio)

DIFFUSE FIELD RECORDING SYSTEM

OVERVIEW

Capture the true essence of sound with OCULA, a unique omnidirectional microphone specifically designed for diffuse field recordings.

From classical music ensembles and orchestral performances to ambient soundscapes, OCULA delivers unparalleled precision and transparency in even the most complex acoustic environments.

Thanks to its true pressure transducer and integrated 40mm A.P.E. acoustic equalizer, OCULA offers a rich, accurate, and immersive listening experience, enhancing recordings with increased presence, proximity, and on-axis clarity in reverberant environments.

Whether recording the nuanced dynamics of a symphony orchestra or the subtle reverberations of a concert hall, OCULA’s specially calibrated frequency response ensures a faithful reproduction of every detail of the performance.

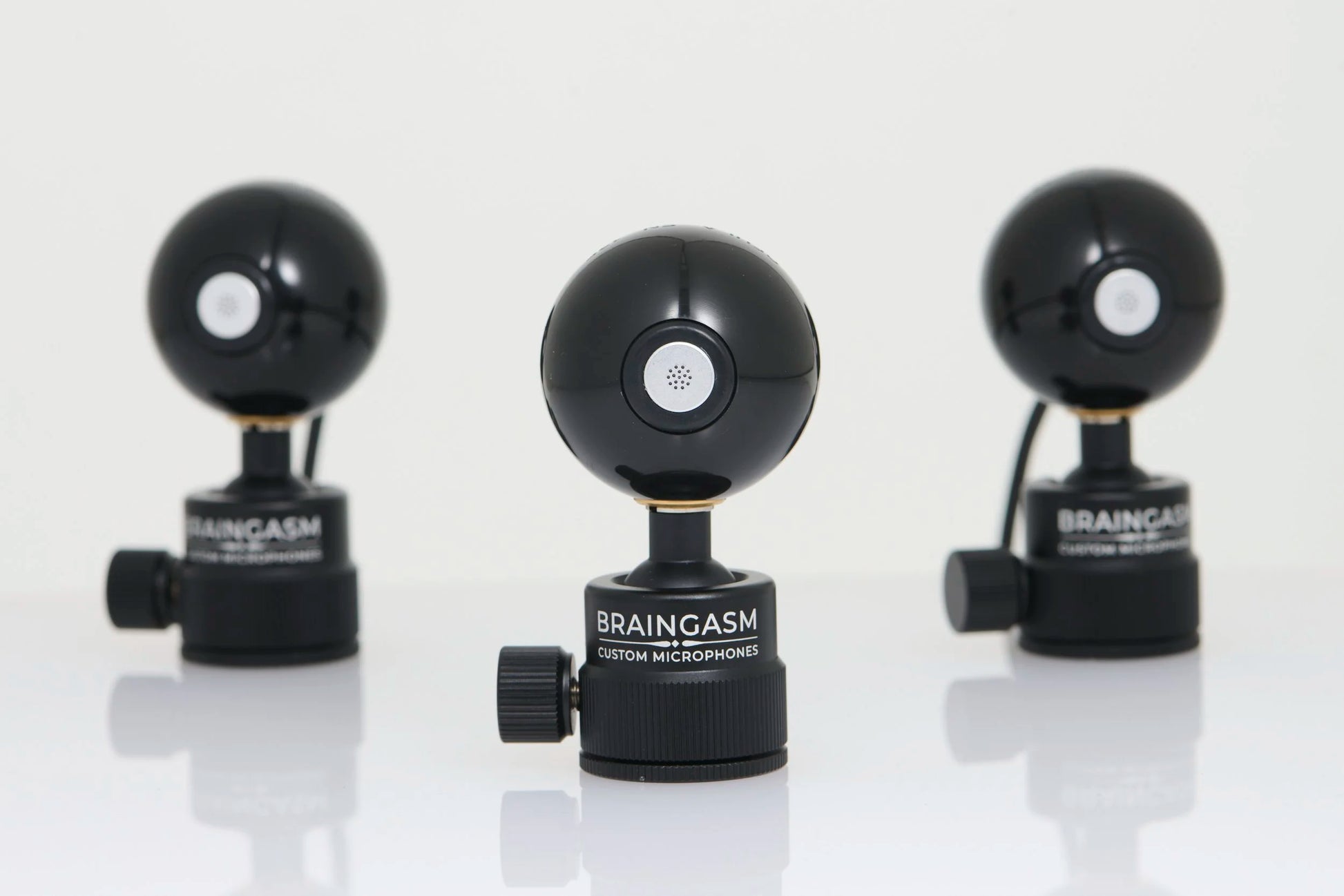

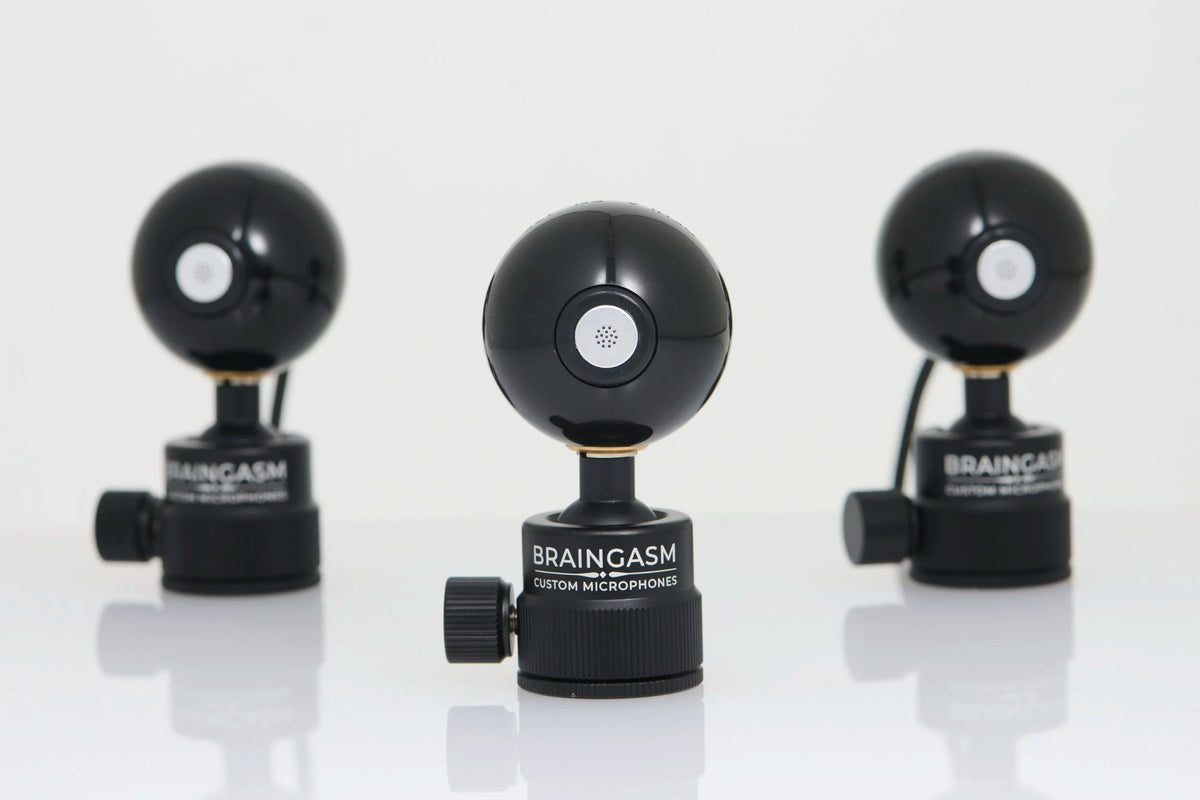

The OCULA system is available in selected and matched pairs and triples. Frequency response matching is guaranteed within ±0.5 dB across the entire audio spectrum.

SOURCE: DPA Microphones – Acoustic Modification of a 40mm A.P.E. Sphere Applied to an Omnidirectional Capsule

A.P.E. EQUALIZER

The 40mm pressure equalizer sphere is a passive acoustic processor that acts as both a spatial and spectral modifier. It uses diffraction phenomena on the sphere's surface to modify the sound field near the microphone diaphragm.

The effect is an increase in mid-high and high frequencies, without altering the low range, due to pressure buildup at certain frequencies, accompanied by increased directivity at higher frequencies, resulting in greater directional focus.

EASE OF USE

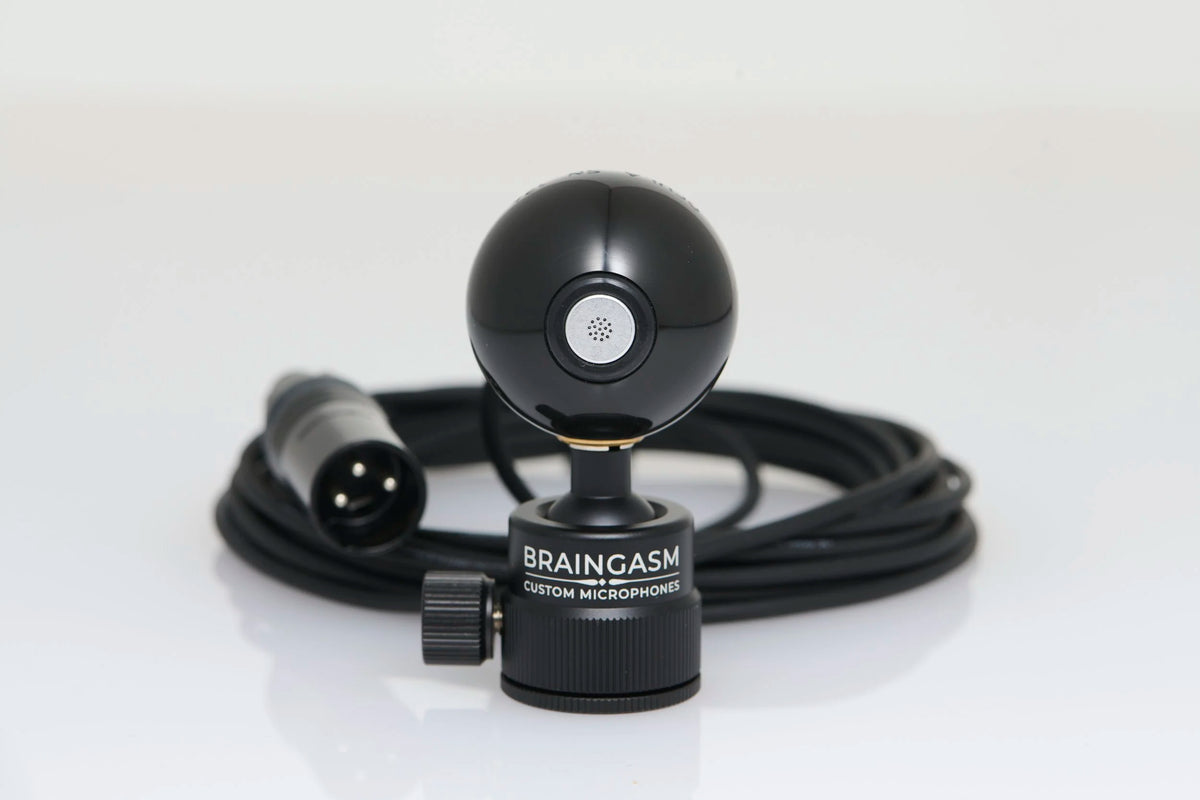

The compact, high-quality orbital mount allows the sound engineer to achieve any microphone positioning with extreme precision, while ensuring a solid structure and simple, rapid movements.

Once secured to the mount, each Ocula microphone can be oriented with extreme precision in the desired direction quickly and easily, and then securely locked into position.

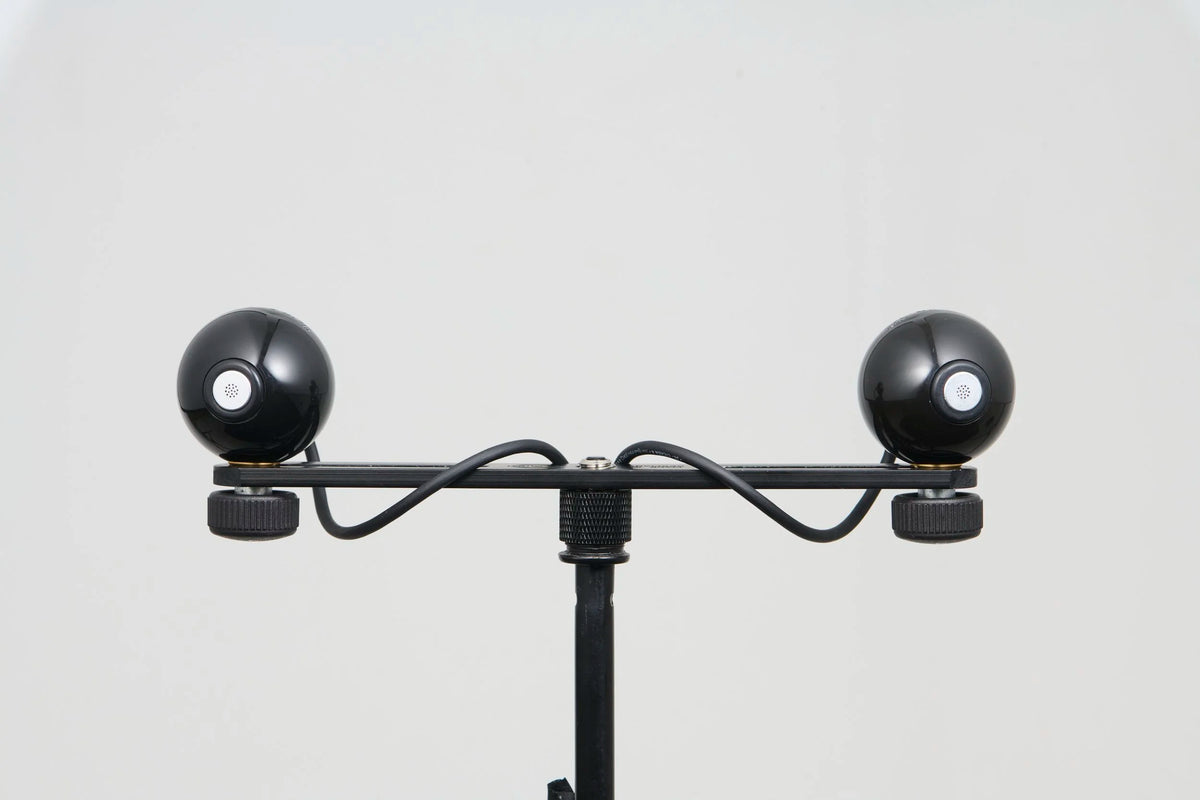

Each Ocula microphone weighs approximately 56 g and features an integrated 3/8" threaded insert at the bottom, allowing it to be attached to a microphone stand. Each mount weighs only 52 g. The total weight of an Ocula stereo configuration is thus just approximately 215 g, while a Decca Tree configuration is approximately 325 g.

Compared to most microphone solutions for Decca Trees, this is an extremely lightweight system, which therefore allows for a much thinner and, consequently, less visible support structure compared to traditional solutions.

OCULA can also be used without the orbital mount, utilizing the integrated 3/8" brass threaded insert, for traditional direct mounting on microphone stands or stereo bars.

TECHNICAL SPECIFICATIONS

Acoustic principle: pressure transducer

Active electronics: Class A Push-Pull BJT output stage

Polar pattern: omnidirectional

Frequency response: 20 Hz – 20,000 Hz

Sensitivity at 1 kHz: -28 dBV/Pa (39.8 mV)

Self-noise: 14 dB (A-weighted)

Signal-to-noise ratio: 80 dBA (A-weighted)

Dynamic range: 112 dB

Maximum SPL: 126 dB (for 0.5% THD)

Maximum output level: 1.5 V

Output impedance: 40 Ω

Sommer Star-Quad cable

Original Neutrik XLR connector

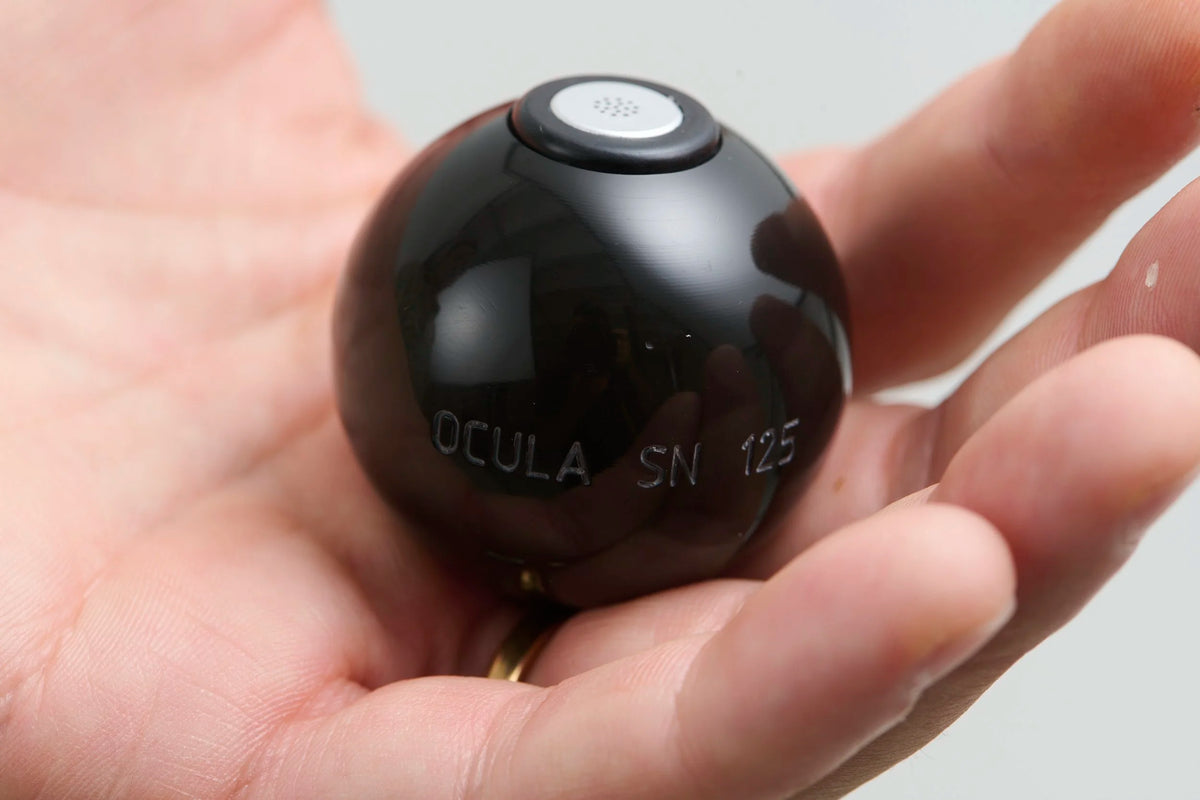

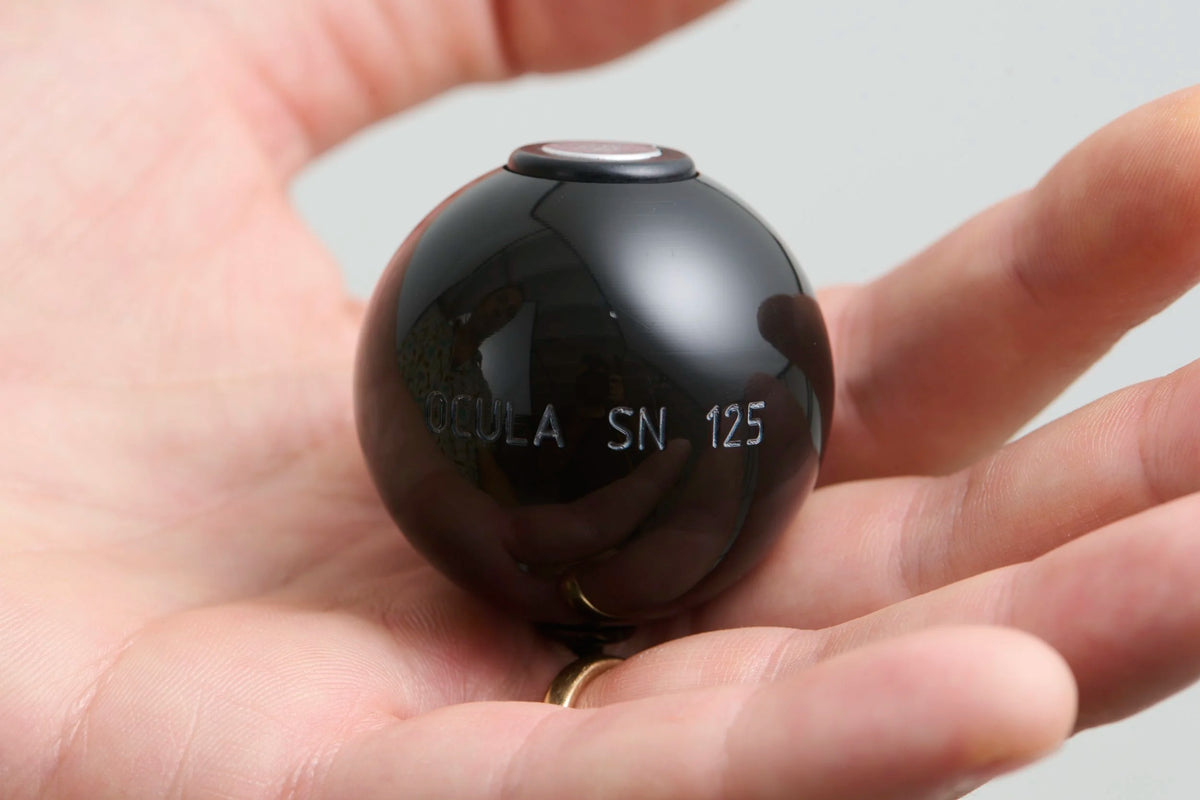

Dimensions: 40 mm diameter

Country of manufacture: Made in Italy

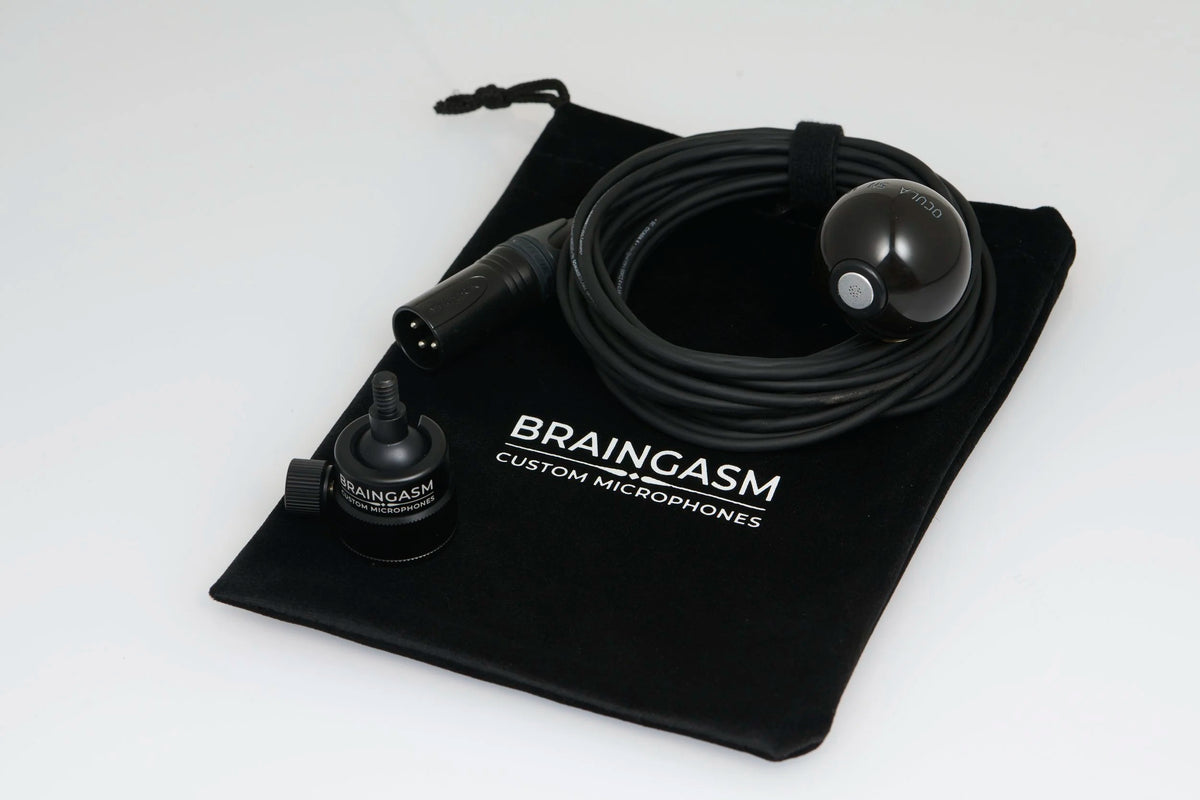

ACCESSORIES

Velvet case

Orbital mount

Threaded adapters
