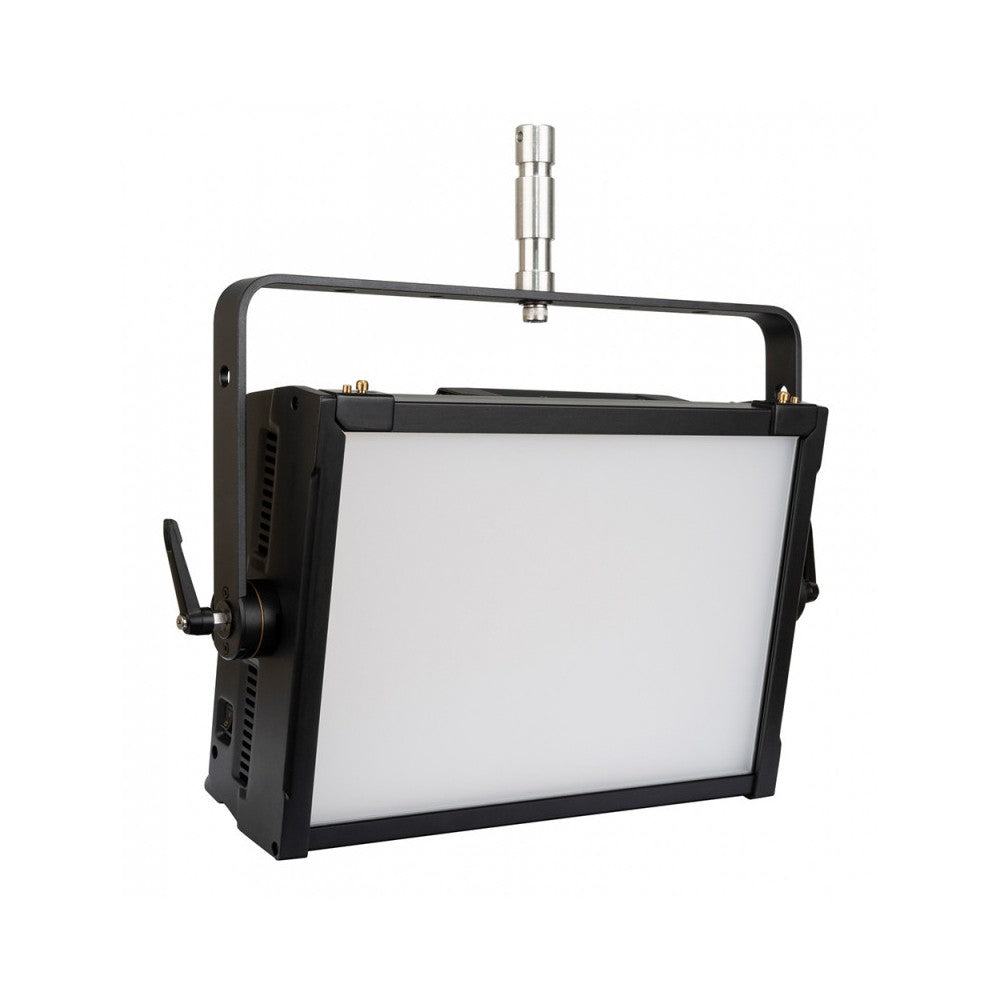

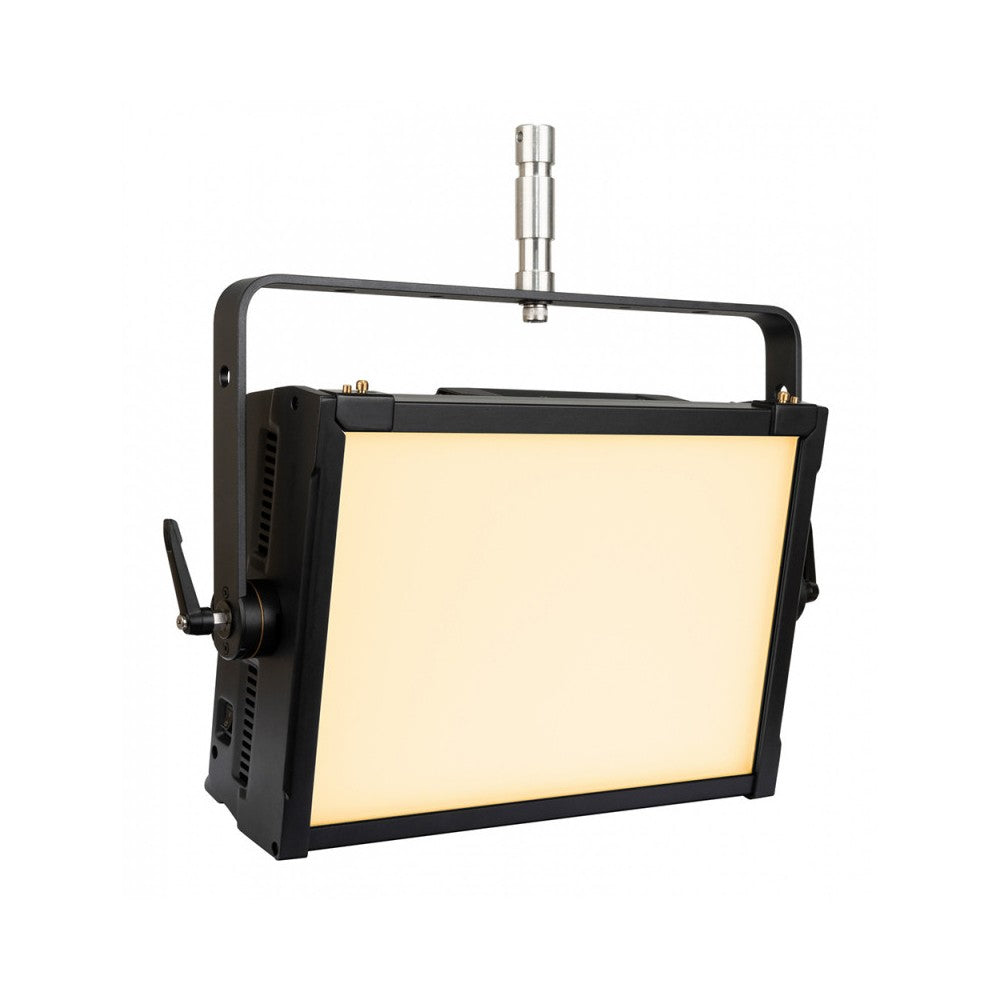

BT-TVPANEL T W Diffused Light Panel 290W
Estimated delivery in Italy between 18 and 22 June
Paga in 3 rate da €433,00 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES
Compact professional high-output soft-light panel (640 CW / WW LEDs with 260W total power) delivering 19,000 lumens with variable white temperature adjustment and optional battery power. For TV studios and outdoor applications (in dry environments).Main features:
- Variable white temperature adjustment 3000 - 5600 K with precise CCT presets

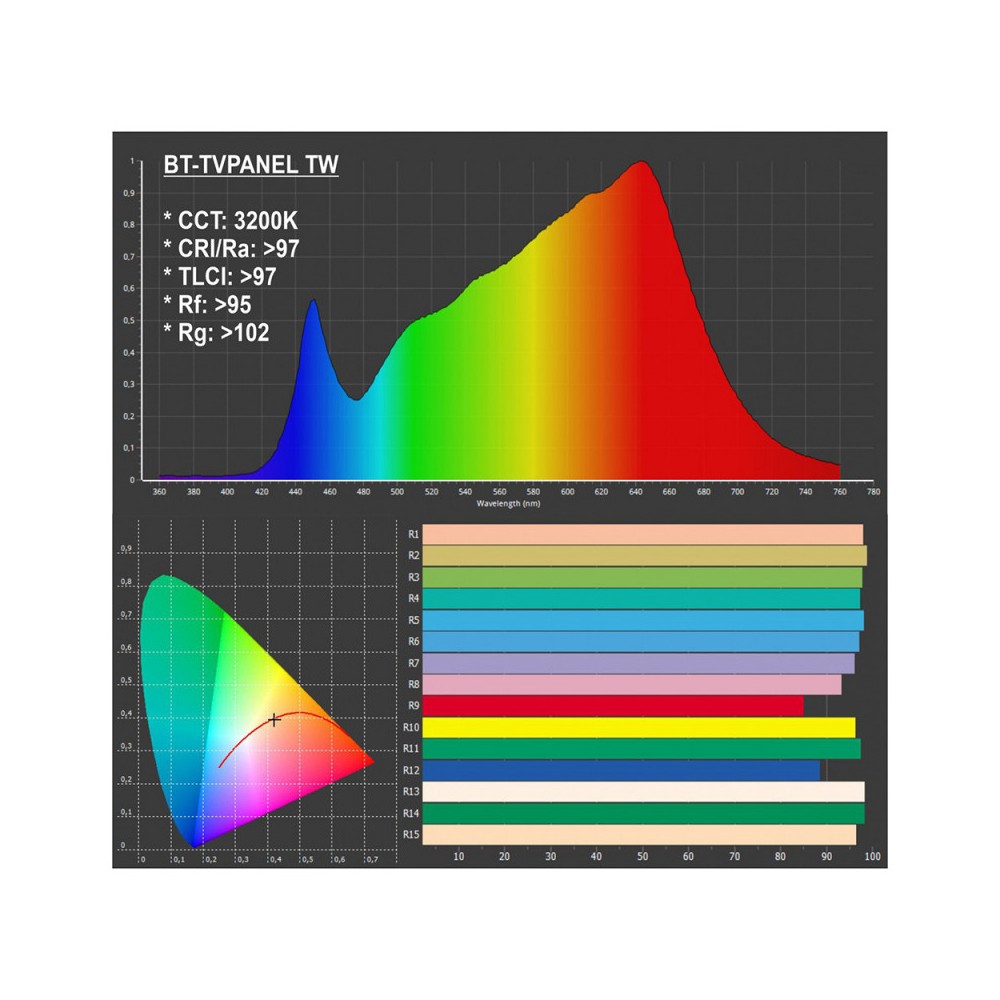

- Excellent photometric specifications: Ra> 98, TLCI > 99, …
- Smart design for multifunctional use:

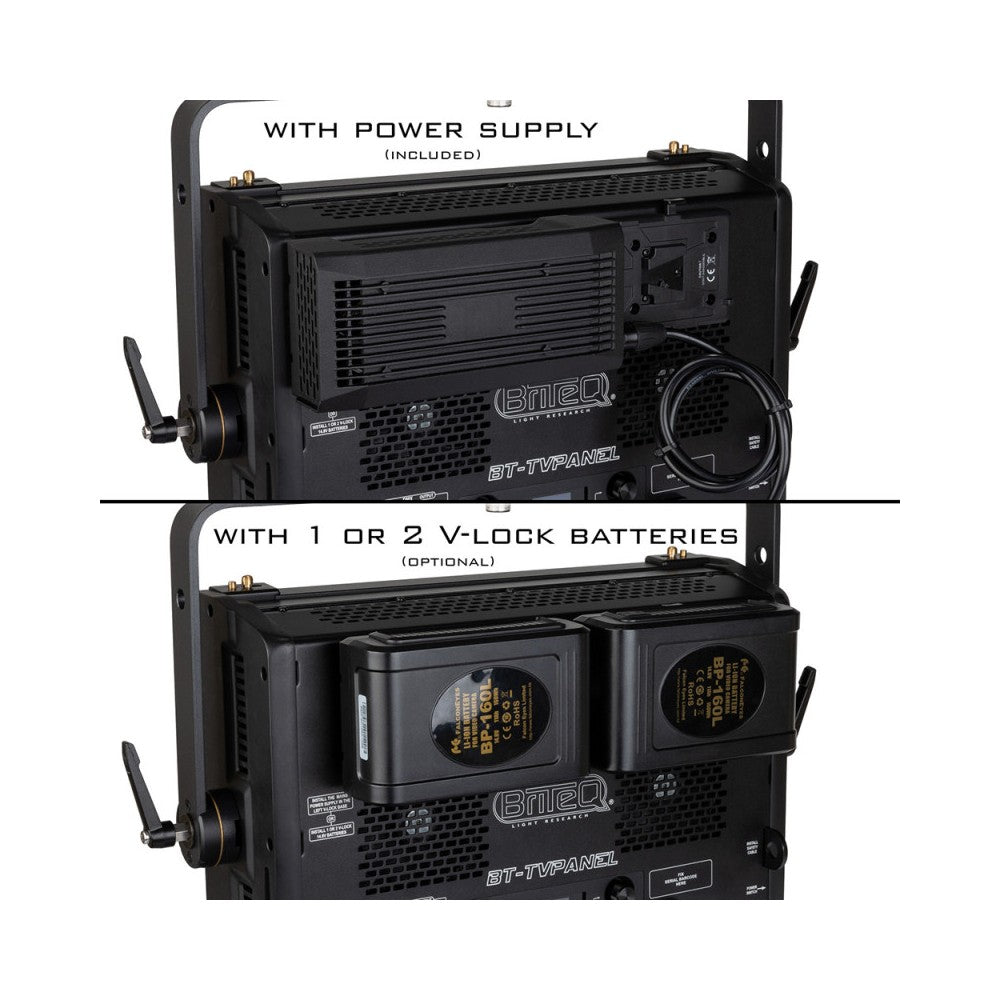

- Photo & TV Studio: "click-on" external power supply 110 – 240 V with V-LOCK
- TV, film, reporter, … : using 1 or 2 optional standard V-LOCK batteries (compatible with 14.8 V and 26 V voltage)
- Easily replaceable Frost filters and possibility to add additional (colored) filters
- Various optional accessories: 8-leaf barn door, manual yoke, intensifier, softbox, , …
- Beam angle 115°
- Dimmer electronics with 4 dimmer curves, dimmer speed control
- Flicker-free dimmer down to 0% with refresh rates between 900 Hz and 25 kHz
- Four dimmer curves: linear, square, inverse square, S-curve
- Easy standalone operation: 3 rotary knobs for dimming, CCT presets and perfect CCT adjustment
- Full DMX control with different modes and control channel

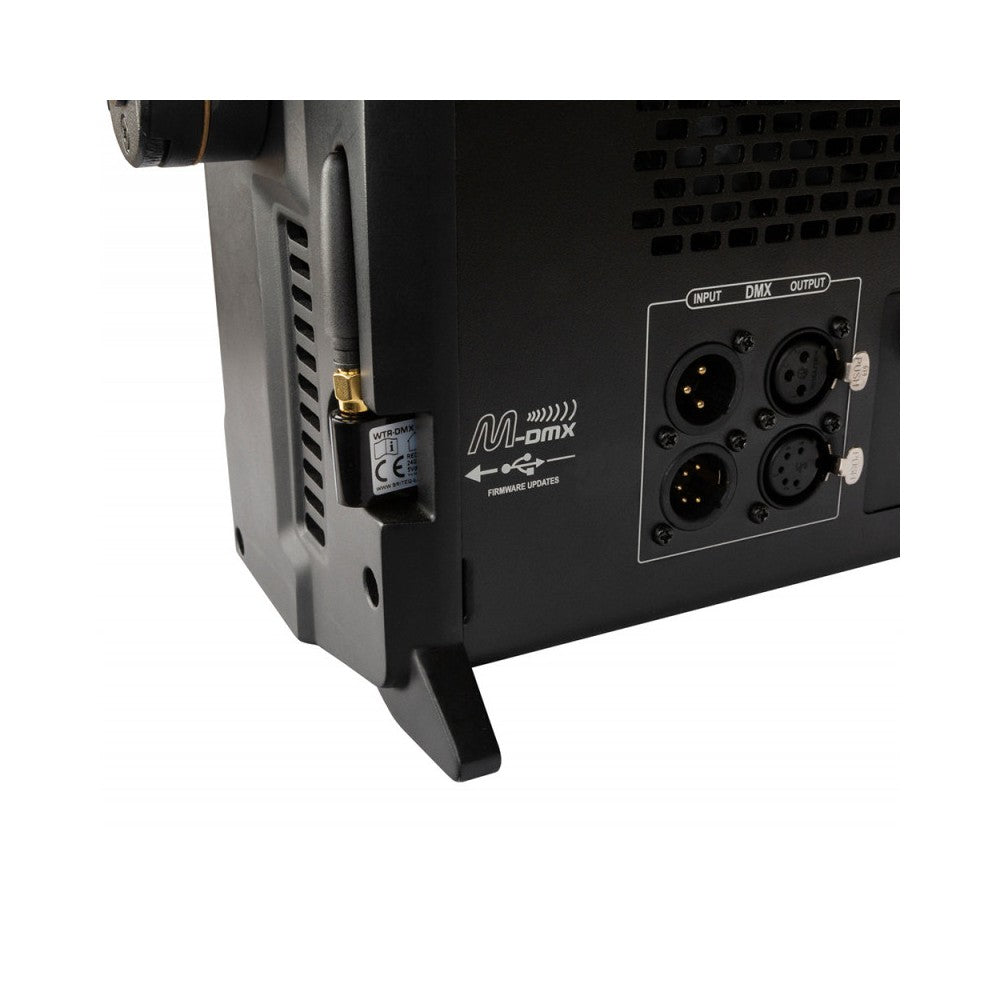

- Wireless DMX (optional WTR dongle) or XLR 3/5 pin IN/OUT cable
- RDM functionality for remote setup and monitoring
- Temperature-controlled fan cooling with ultra-low noise
- Lock function to prevent unwanted setting changes
- Default factory settings + user settings can be saved/loaded
- 2 x 16 character OLED display with touch buttons for easy setup
- Optional manual studio yoke is available
- powerCON TRUE1 compatible IN/OUT for easy daisy chain connection
- The included 28 mm TV spigot is used for easy projector hanging (possibly in combination with the optional "TV-SPIGOT RECEIVER").
SPECIFICATIONS

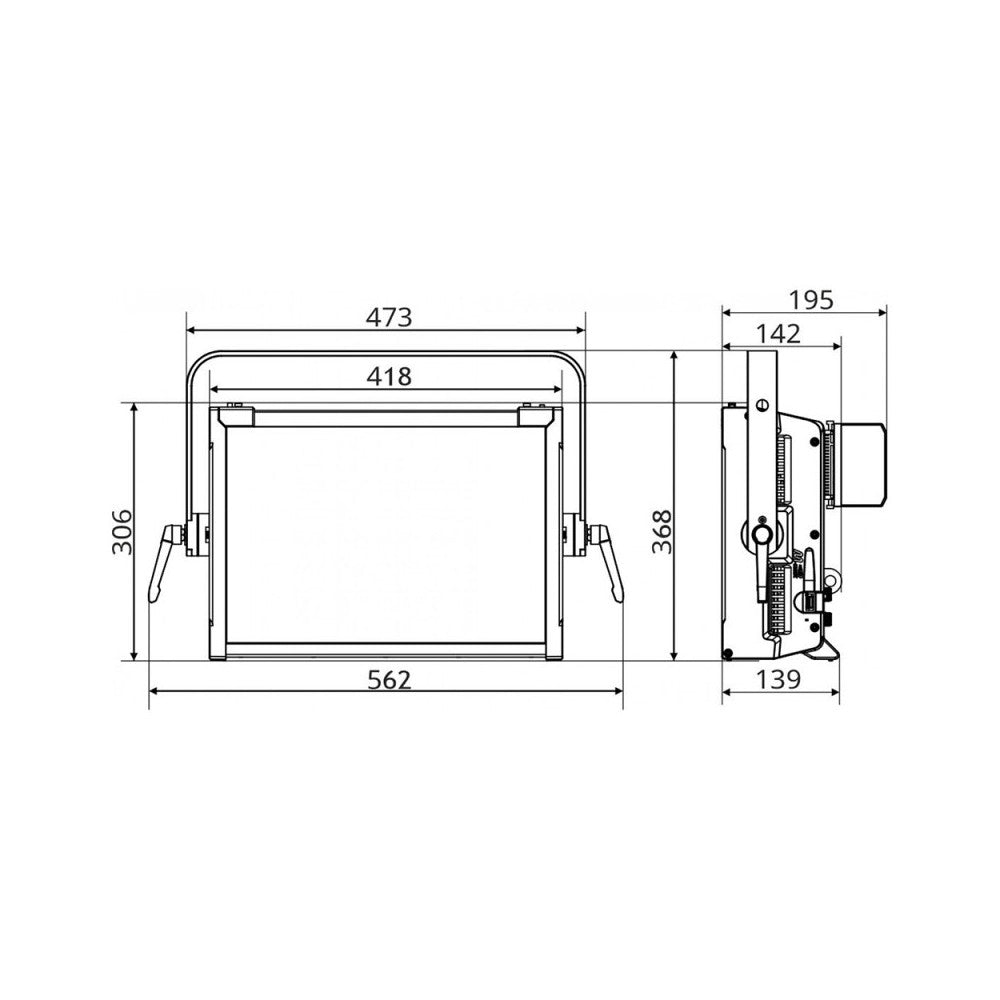

| General : Dimensions (cm) | 56.2 x 36.8 x 19.5 |
|---|---|
| General : Weight (kg) | 9.7 |
| General : Powerinput | AC 100 - 240V, 50/60Hz, Battery |
| General : Works on battery | yes |
| General : Energy Label | No |
| General : Power consumption W | 290 |
| General : Color | black |
| General : Display | OLED |
| General : Fixation | optional omega bracket |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, manual, DMX |
| Control : Protocol | DMX, Wireless DMX, RDM |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 7 |
| Light : lamp socket | none |

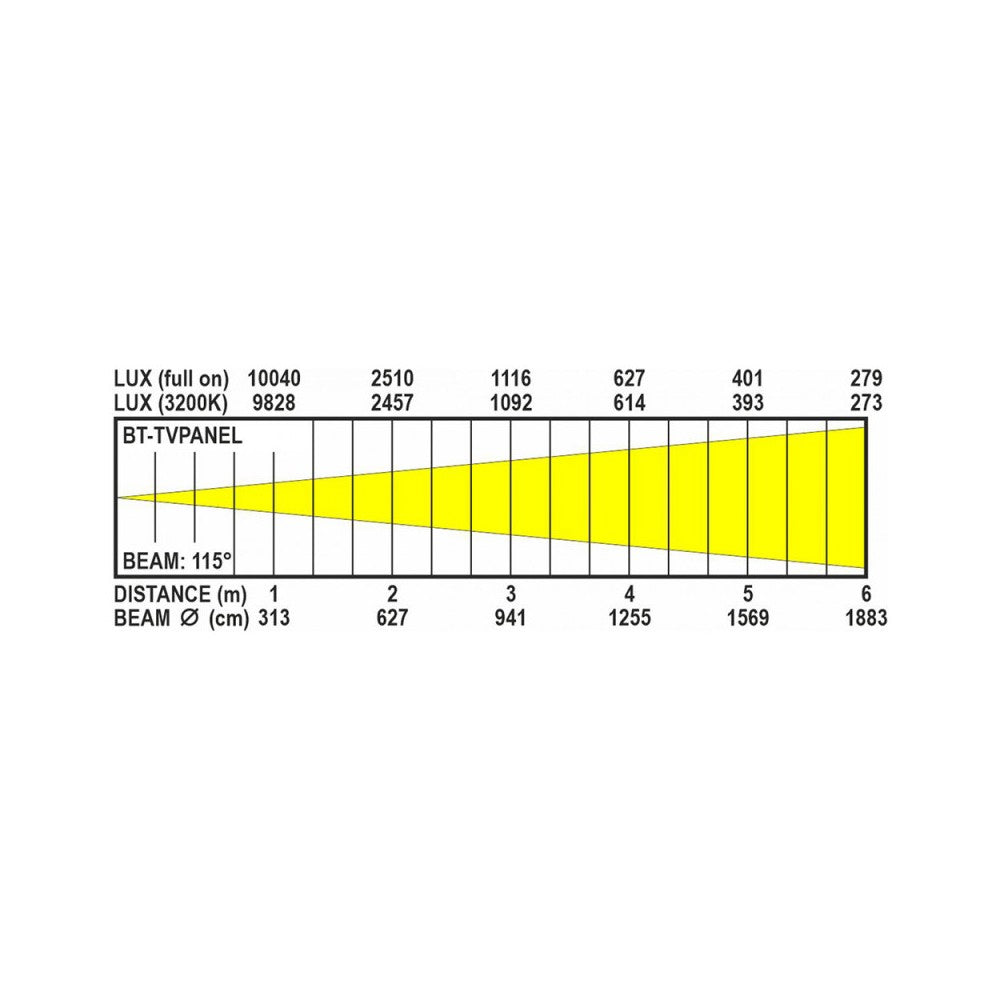

| Light : Lux | 401 @5m (beam 115°) |
| Light : lamp | LED |
| Light : min. color temperature (K) | 3000 |
| Light : max. color temperature (K) | 5600 |
| Light : CRI | 98 |
| Light : colors | White, Cold white, Warm white |
| Light : mix colors | Yes |
| Light : functions | manual frost |
| Light : min. beam angle (°) | 115 |
| Light : max. beam angle (°) | 115 |
| Light : max. refresh rate (kHz) | 25 |
| Connections : input | 3 pin XLR, 5 pin XLR, wireless DMX optional, usb, rdm, PowerCon® TRUE1 or compatible |
| Connections : output | 3 pin XLR, 5 pin XLR, rdm, PowerCon® TRUE1 or compatible |
