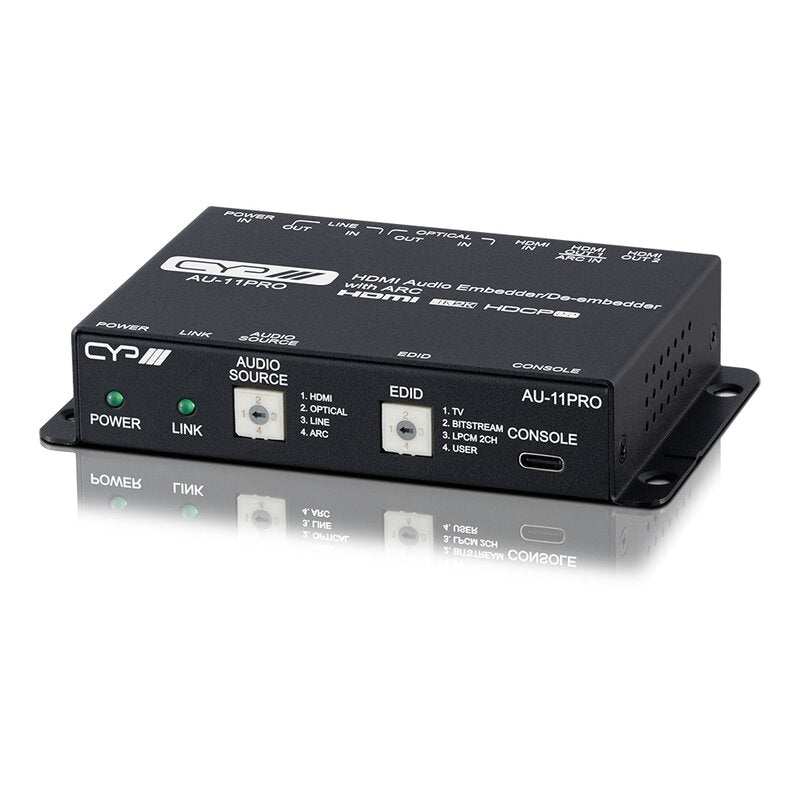

CYP AU-11PRO Full 4K HDMI embedder and de-embedder with ARC
Estimated delivery in Italy between 8 and 12 October
Pay in 3 installments of €83,33 interest-free
Pay in 3 installments of €83,33 interest-free with PayPal
Split into 3 installments of €83,33 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
CARATTERISTICHE
Audio embedder / de‑embedder HDMI 4K con supporto ARC, progettato per estrarre o inserire audio da / verso segnali HDMI, ottici o analogici. Il dispositivo può prelevare l’audio da HDMI, ARC (dall'uscita HDMI 1), ottico S/PDIF o ingresso stereo analogico, e inviarlo simultaneamente alle uscite HDMI, ottica e analogica, grazie a un’elaborazione ADC / DAC di alta qualità.
Supporta video fino a 4K @ 60 Hz 4:4:4 (18 Gbps), HDR 10/12 bit e formati audio avanzati come LPCM fino a 8 canali, Bitstream e HD Bitstream. Integra inoltre una gestione EDID avanzata con preset e possibilità di caricare un EDID personalizzato.
Caratteristiche principali
- Compatibile con HDMI 2.0 e DVI 1.0
- Compatibile con HDCP 1.x e 2.2
- Un ingresso HDMI e due uscite HDMI duplicate
- Supporto video fino a 4K UHD+ (18 Gbps, 4K @ 50/60 Hz 4:4:4, 8‑bit) in ingresso e in uscita
- Supporto pass‑through per sorgenti HDR a 10 e 12 bit
- Supporto pass‑through audio HDMI per LPCM fino a 8 canali, Bitstream e HD Bitstream
- Sorgente audio di estrazione selezionabile liberamente
- Uscita ottica limitata a LPCM 2.0 e Bitstream standard
- Uscita analogica limitata a LPCM 2.0

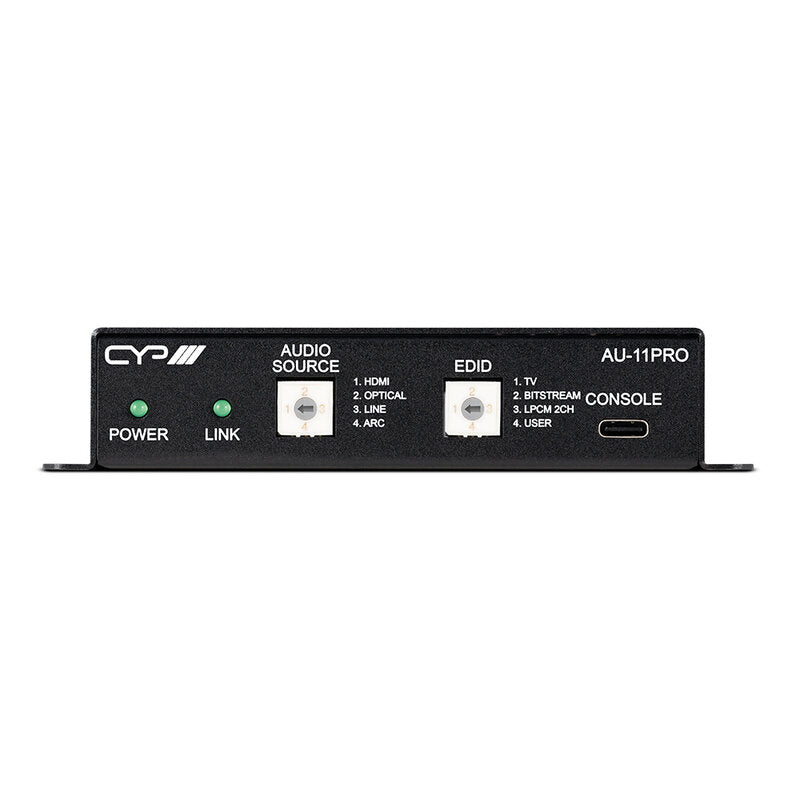

- Controllabile tramite selettori frontali e tramite porta Virtual COM via USB‑C
- Gestione EDID con modalità bypass, due EDID preconfigurati e un EDID personalizzabile dall’utente
Vantaggi per gli utenti
- Piena compatibilità con segnali video 4K 60 4:4:4 e contenuti HDR
- Consente l’utilizzo di soundbar, amplificatori o diffusori attivi anche con formati audio non supportati dal display

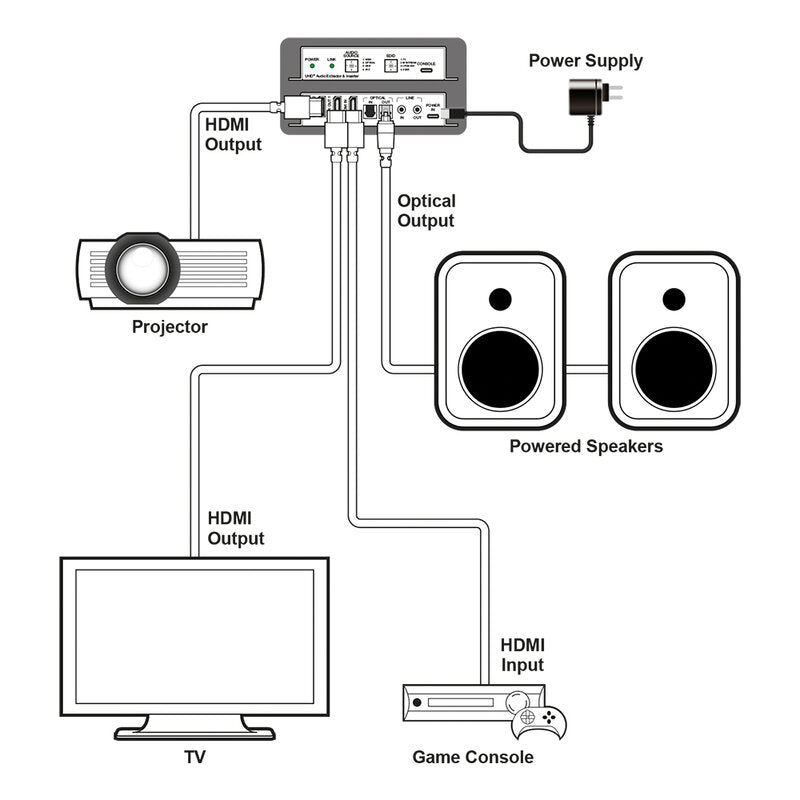

- Due uscite HDMI in mirroring per collegare contemporaneamente due display o un display e un videoproiettore
- Massima compatibilità con matrici e switch grazie alla gestione EDID avanzata
- Conversione audio di alta qualità tramite ADC / DAC integrati
Ambiti di utilizzo
- Sale conferenze e meeting room con routing audio / video complesso
- Installazioni AV professionali che richiedono gestione avanzata dei segnali HDMI
- Sistemi Home Theater
- Integrazione di soundbar e sistemi audio esterni con sorgenti 4K
- Applicazioni di Digital Signage con distribuzione separata di audio e video
- Setup che richiedono la duplicazione del segnale HDMI su due display
SPECIFICHE

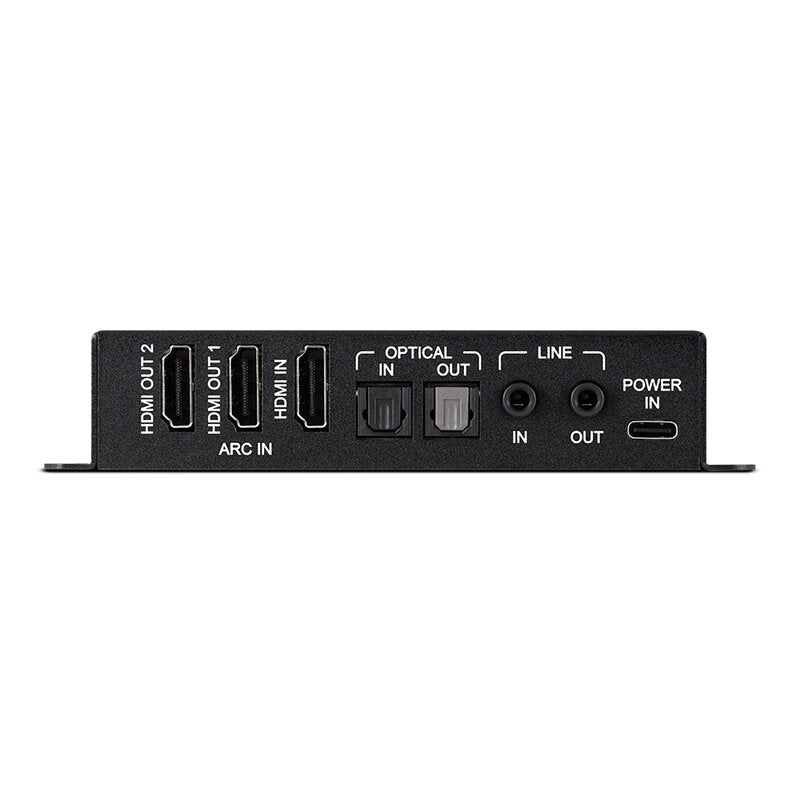

- Input ports: 1 x HDMI (Type‑A), 1 x optical (S/PDIF), 1 x analogue stereo (3.5 mm)
- Output ports: 2 x HDMI (Type‑A), 1 x optical (S/PDIF), 1 x analogue stereo (3.5 mm)
- Control I/O: 1 x USB Type‑C
- HDMI compliance: HDMI 2.0
- Input signal type: 4K @ 60 YUV 4:4:4
- Output signal type: 4K @ 60 YUV 4:4:4
- Max. input resolution: 3840 x 2160p @ 60 YUV 4:4:4
- Max. output resolution: 3840 x 2160p @ 60 YUV 4:4:4
- HDMI audio: LPCM (2 channels)
- Line IN: 2 VRMS, S/N > 80 dB (1 kHz, 0 dBFS)
- Line OUT: 2 VRMS, S/N > 80 dB (1 kHz, 0 dBFS)
- Power supply: 5 VDC / 3 A
- Power consumption: 3.5 W
- PC
- Chassis material: metal (steel)
- Chassis color: black
- Dimensions (case only): 12.8 x 7.5 x 2.5 cm
- Dimensions (all inclusive): 12.8 x 7.9 x 2.5 cm
- Weight: 300 g
Technical characteristics
Interfaces
Video
Audio
Power
Field Firmware Update
Enclosure
