Digital Speaker Manager

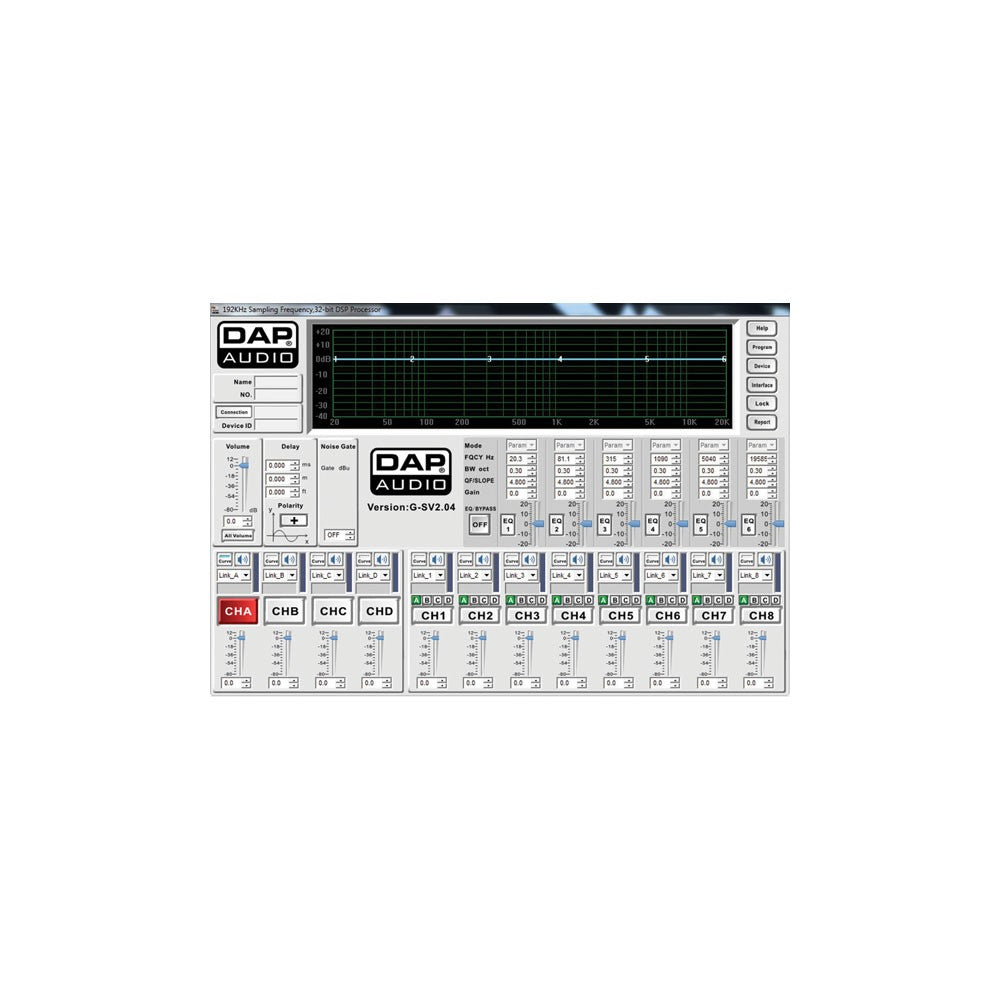

The DSM-26 MKII is a 2-input, 6-output speaker management device that can be used for a wide range of applications. It has all the necessary dynamics to tune various types of speaker configurations. On the front, it has a USB connection port that allows you to program the DSM-26 MKII device with the included software. The RS485 interface offers the possibility to connect and program multiple units simultaneously. It has a powerful chipset that allows all filter slopes up to 48 dB per octave and all equalizer and delay sections to be used without running out of memory or calculations. The DSM-26 MKII is the ideal solution for professional PA systems, line arrays, and audio systems, as well as audio distribution networks. The following points have been improved in the MKII version: - Adjustable noise gate on inputs - Separate function block in the system - Improved graphical user interface and functions - Improved software resolution - Updated, more stable, DSP Check all functions and specifications in the online manual at www.dap-audio.info.SPECIFICATIONS
- DSP: 96 kHz, 32 bits floating point DSP, 192 kHz
- AD/DA Converters: 24 bit Input Gain: -80dB - +12dB, step @ 0.1 dB
- Input Impedance: Balanced 20kΩ
- Output Gain: -80dB - +12dB, step @ 0.1 dB
- Output Impedance: Balanced 100Ω
- CMRR: >70dB@1kHz
- Input Range: ≤ ±25 dBu
- Frequency Response: 20Hz – 20kHz ±0.5dB
- Signal-to-Noise Ratio: >110dB
- THD: <0.01% @output=0dBu/1kHz
- Crosstalk: >80dB@1kHz
- 6-band Input EQ
- Bandwidth: from 0.05 and 3 octaves at 0.05 intervals
- EQ Gain Control: from -20 dB to +20 dB
- EQ Frequencies: from 19.7Hz to 20KHz with 1/24 octave intervals
- Input Delay: Channel independent from 0 to 1000 mS
- Power Delay: Channel independent from 0 to 1000 mS
- 6-band Output EQ
- Type: Low Shelf, High Shelf and Parametric
- Lo/High Shelf Slope: 6 dB/12 dB
- EQ Bandwidth: from 0.05 and 3 octaves at 0.05 intervals.
- EQ Gain Control: from -20 dB to +20 dB on all EQ types.
- EQ Frequencies: from 19.7 Hz to 20KHz with 1/24 octave intervals
- Crossover
- Types: Linkwitz Riley, Bessel and Butterworth
- Slopes: 12, 18, 24, 30, 36, 42, 48 dB/octave
- Frequencies: from 19.7 Hz to 20KHz with 1/24 octave intervals
- Limiter
- Threshold points: from -40 to +20 dBu at 0.5 dB intervals
- Attack times: from 0.3 mS to 200 mS
- Attack time ranges: 0.1 mS intervals from 0.3 to 1 mS, 1 mS intervals from 1 to 100 mS
- Release times: 50 ms – 5000 ms
- Miscellaneous:
- Memory Storage: 30 user presets
- Display: 2x 24 characters dot matrix
- Latency: 2.61 mS
- USB Interface: 1x Front
- RS-485 Interface: 2x Rear
- Power Supply: 110/220 Volts AC, 50/60 Hz
- Power Consumption: 25 Watts
- Fuse: F0.5A/250V
- Dimensions: 482 x 44 x 192 mm (WxHxD)
- Net Weight: 3.4 kg
- Accessories: power supply, USB cable, software
- RS485 interface not included, order code D2071
Couldn't load pickup availability
About DAP-Audio
DAP-Audio is a brand of the Dutch group Highlite International, specializing in the production of professional audio equipment for events, installations, and live shows. The DAP-Audio range includes active and passive loudspeakers, power amplifiers, mixers, microphones, portable PA systems, and audio racks, all designed to offer reliable performance and excellent value for money. DAP-Audio products are chosen by sound engineers, DJs, bands, rental companies, and event organizers who need robust and versatile audio solutions. On musicdelivery.net, you can purchase the complete DAP-Audio line to best equip any event, from small venues to large stages.
