7-channel 2U Installation BT Mixer

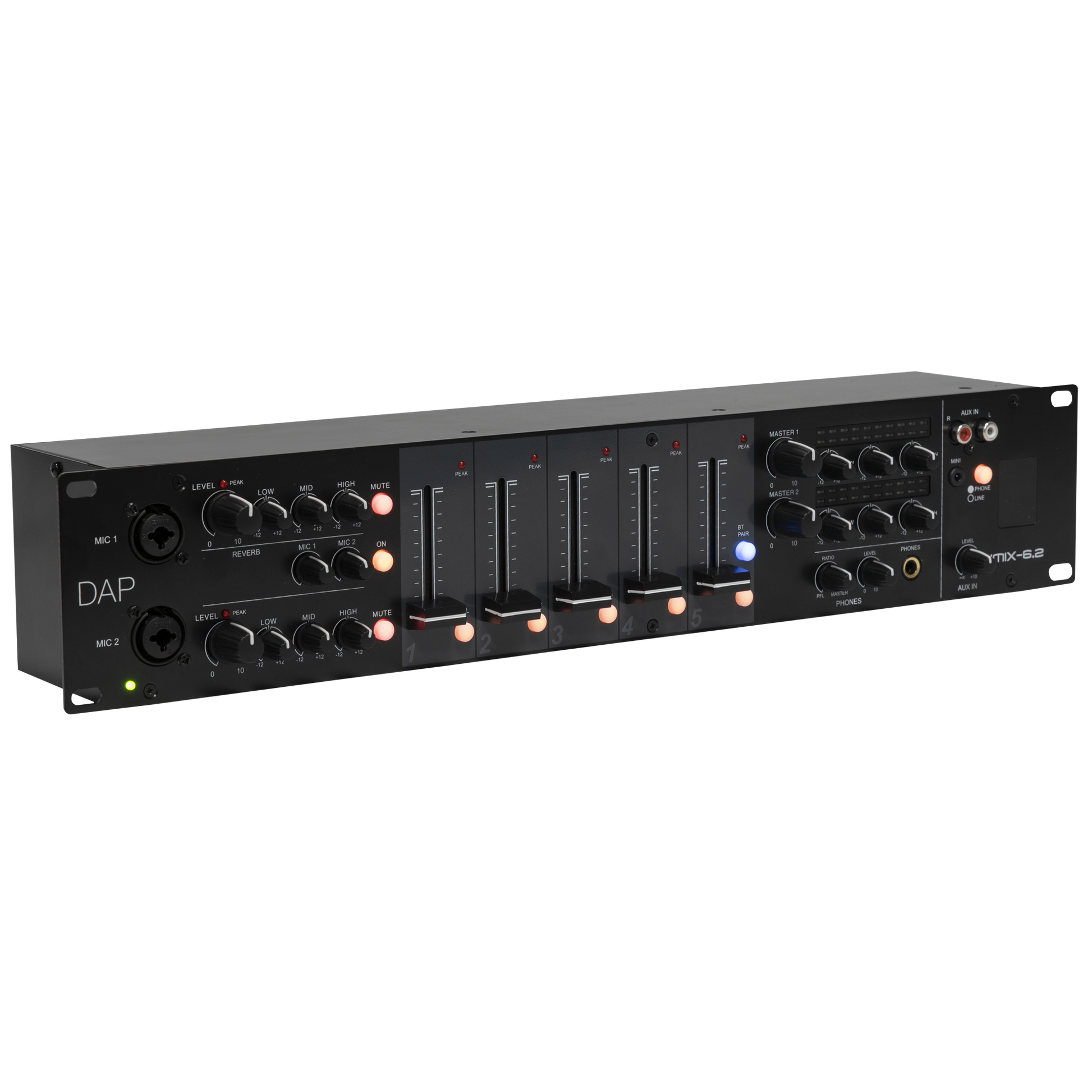

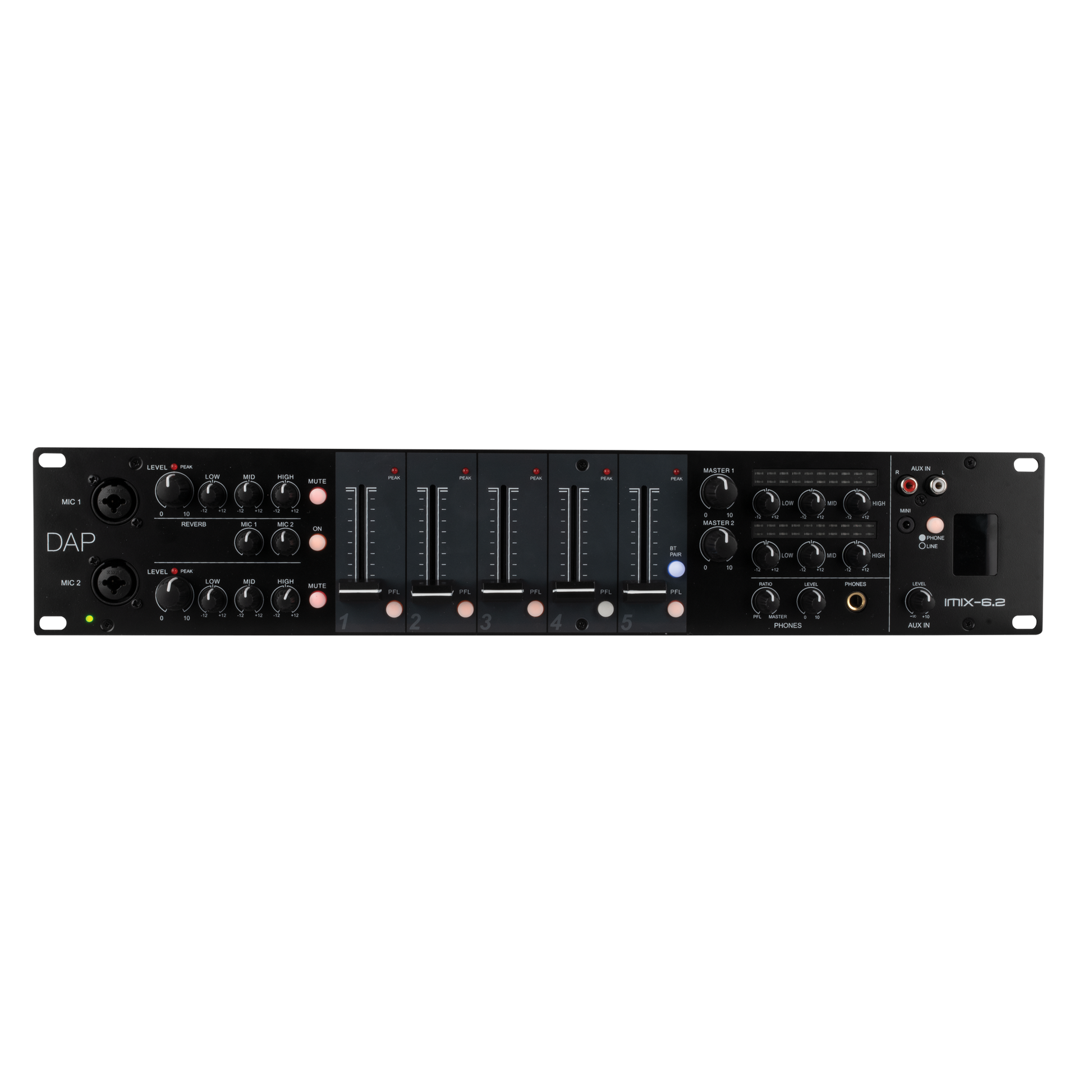

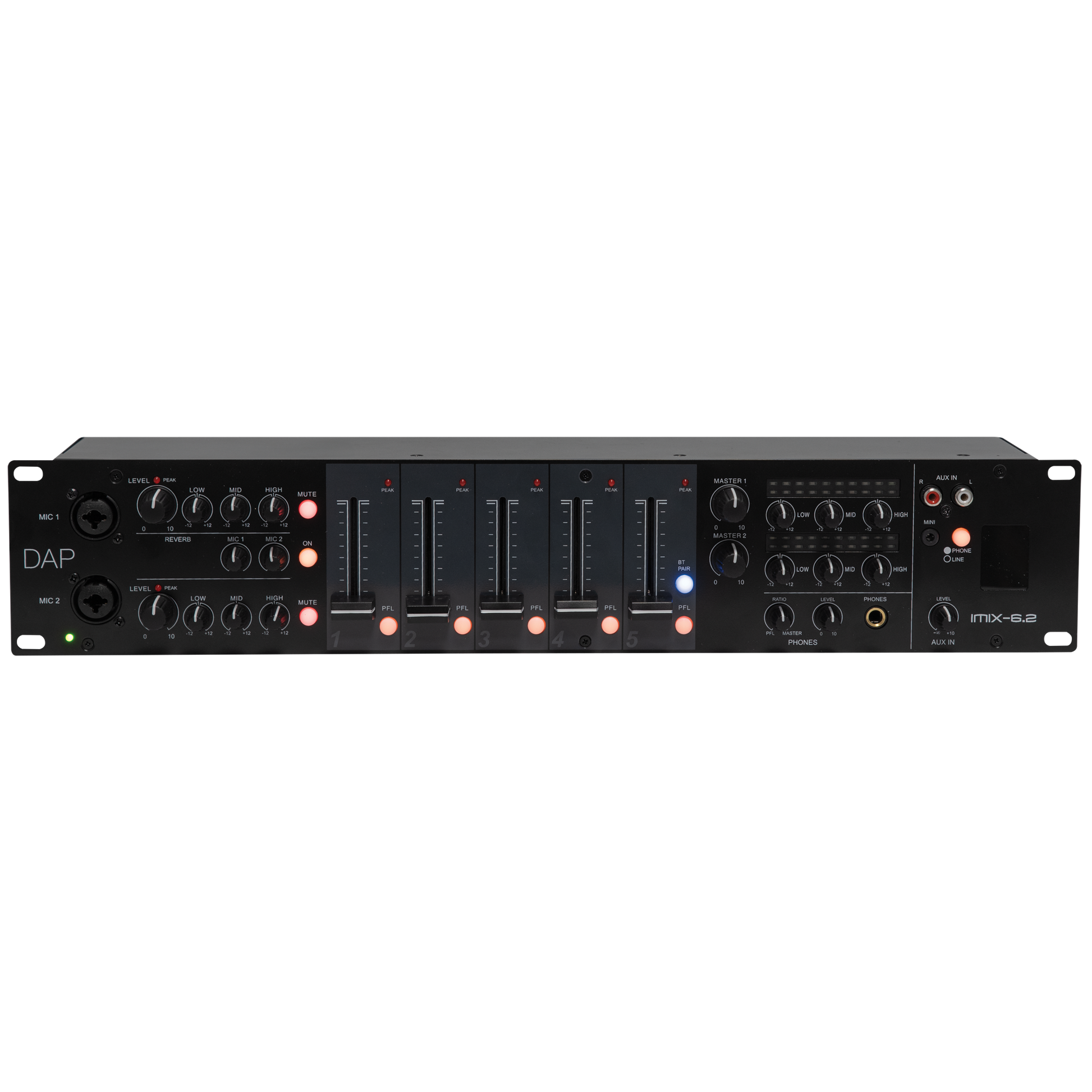

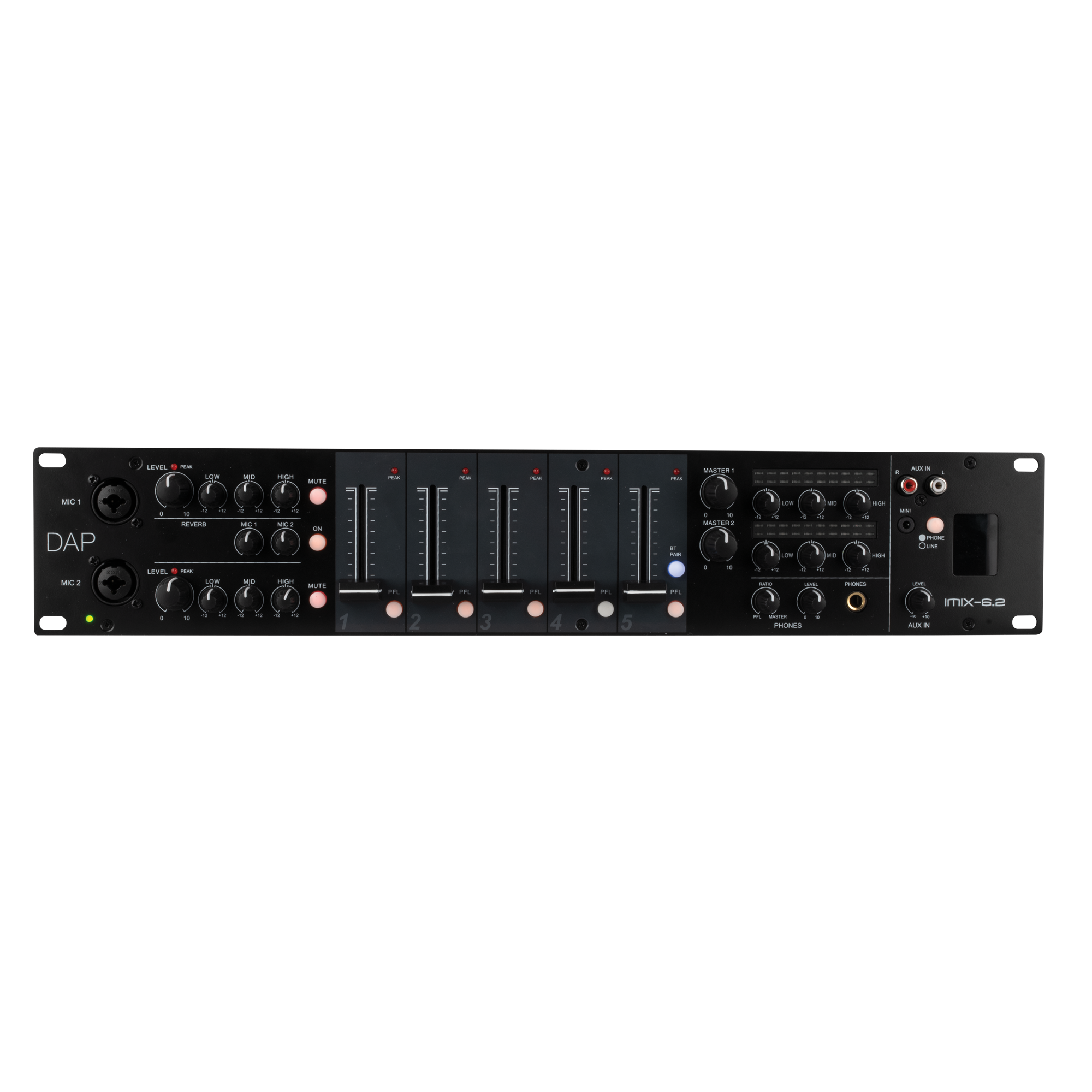

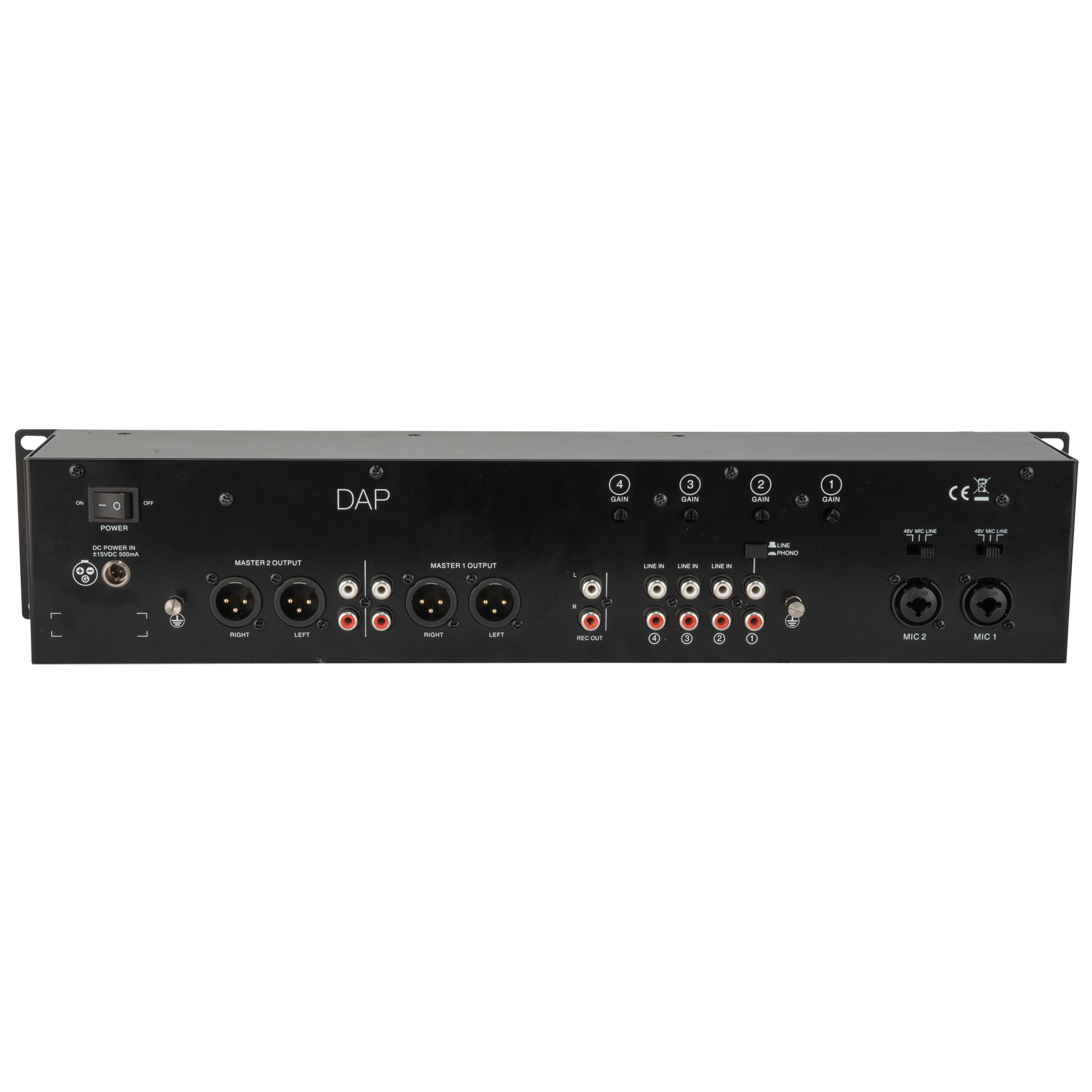

The IMIX 6.2 is a compact yet versatile 7-channel installation mixer with 2 master outputs. It includes 3 RCA line inputs, 1 RCA phono/line input, and 1 RCA/mini jack auxiliary input (suitable for both phone and line levels). Two XLR microphone inputs with shared front and rear connectors allow you to seamlessly adapt to various microphone setups. The integrated BT 5.0 receiver offers convenient wireless connectivity to your audio sources. The headphone output enables PFL (Pre-Fader Listen) monitoring for BT and line channels. The IMIX 6.2 provides XLR and RCA connections for both master outputs. Each output features its own level control and two VU meters, providing a clear visual representation of output levels.

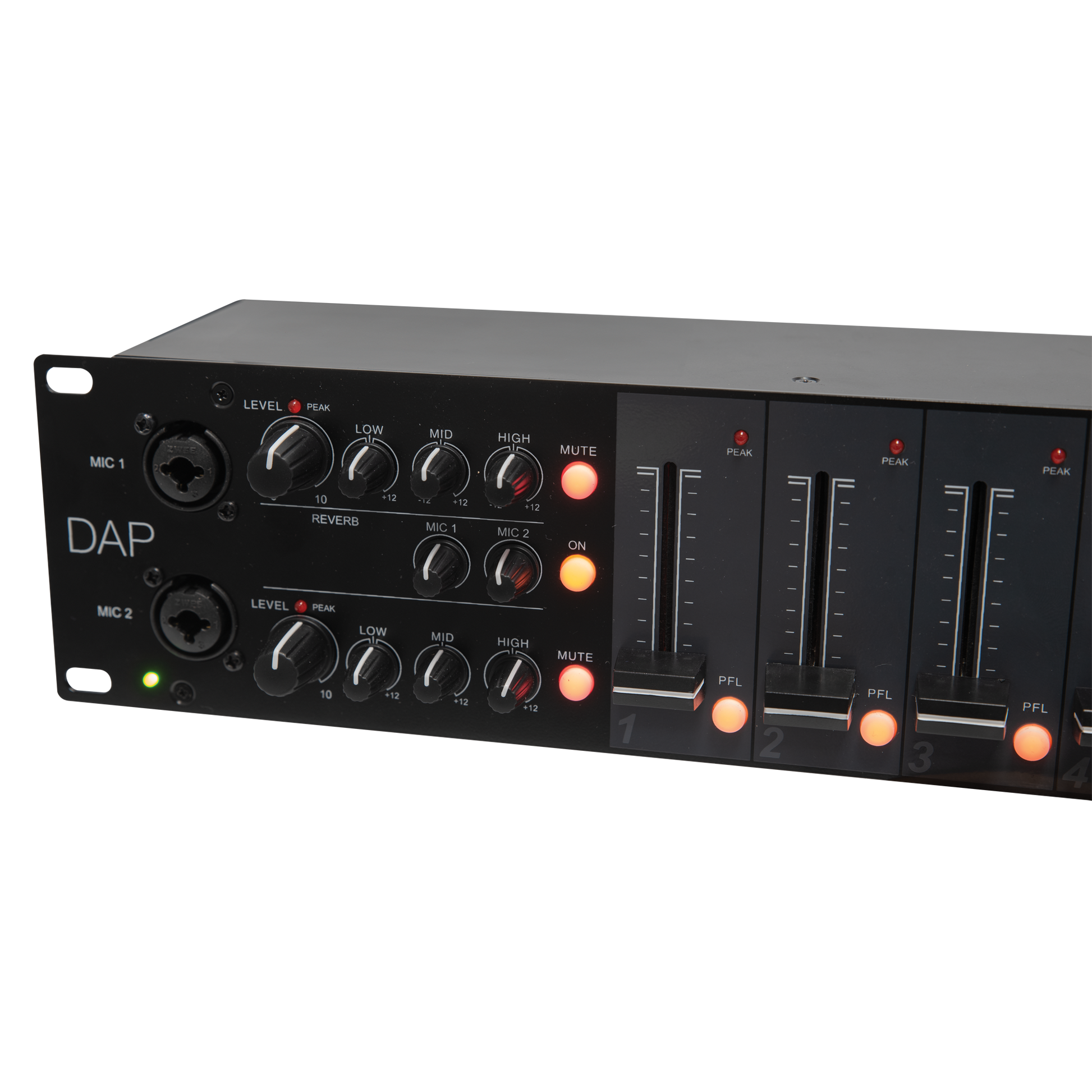

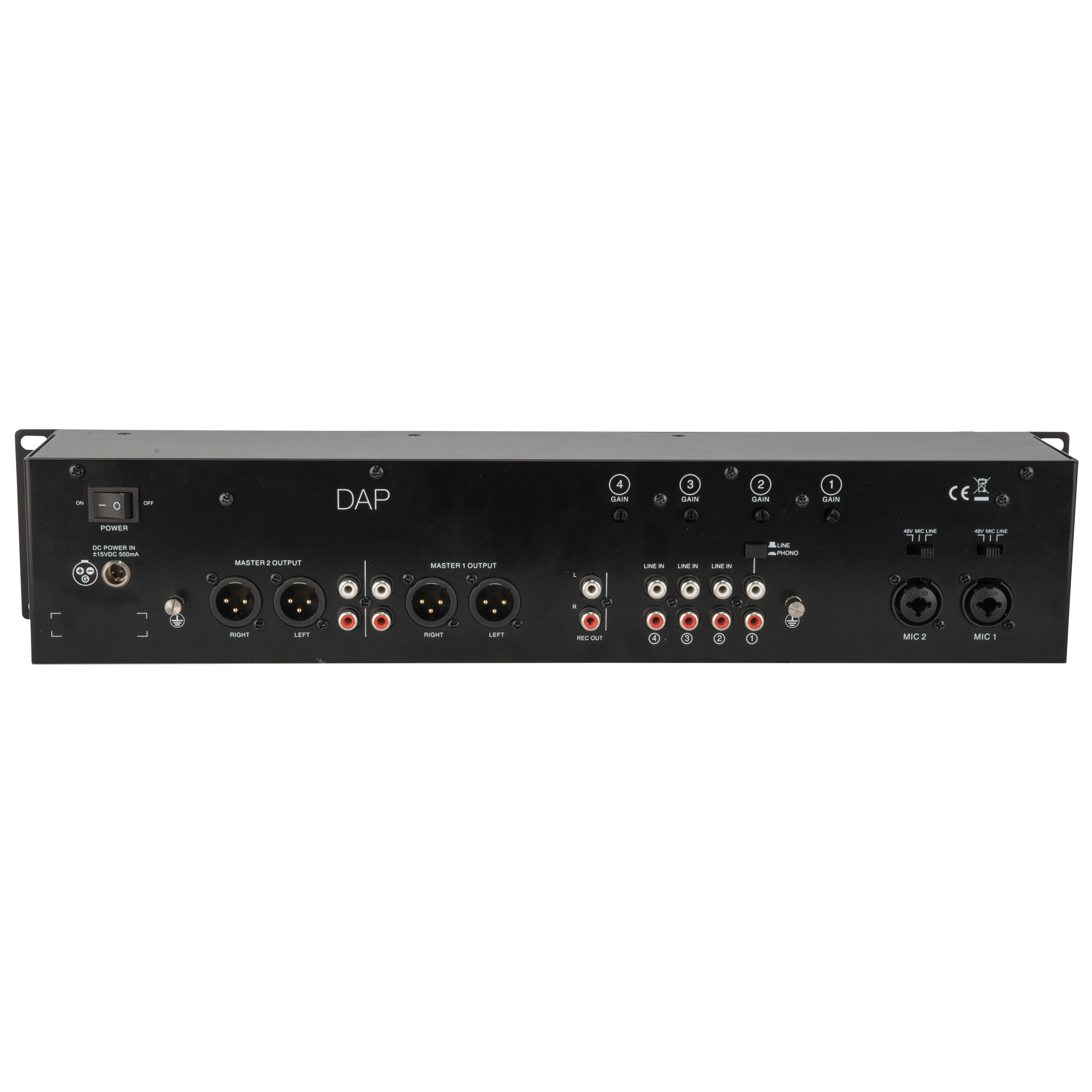

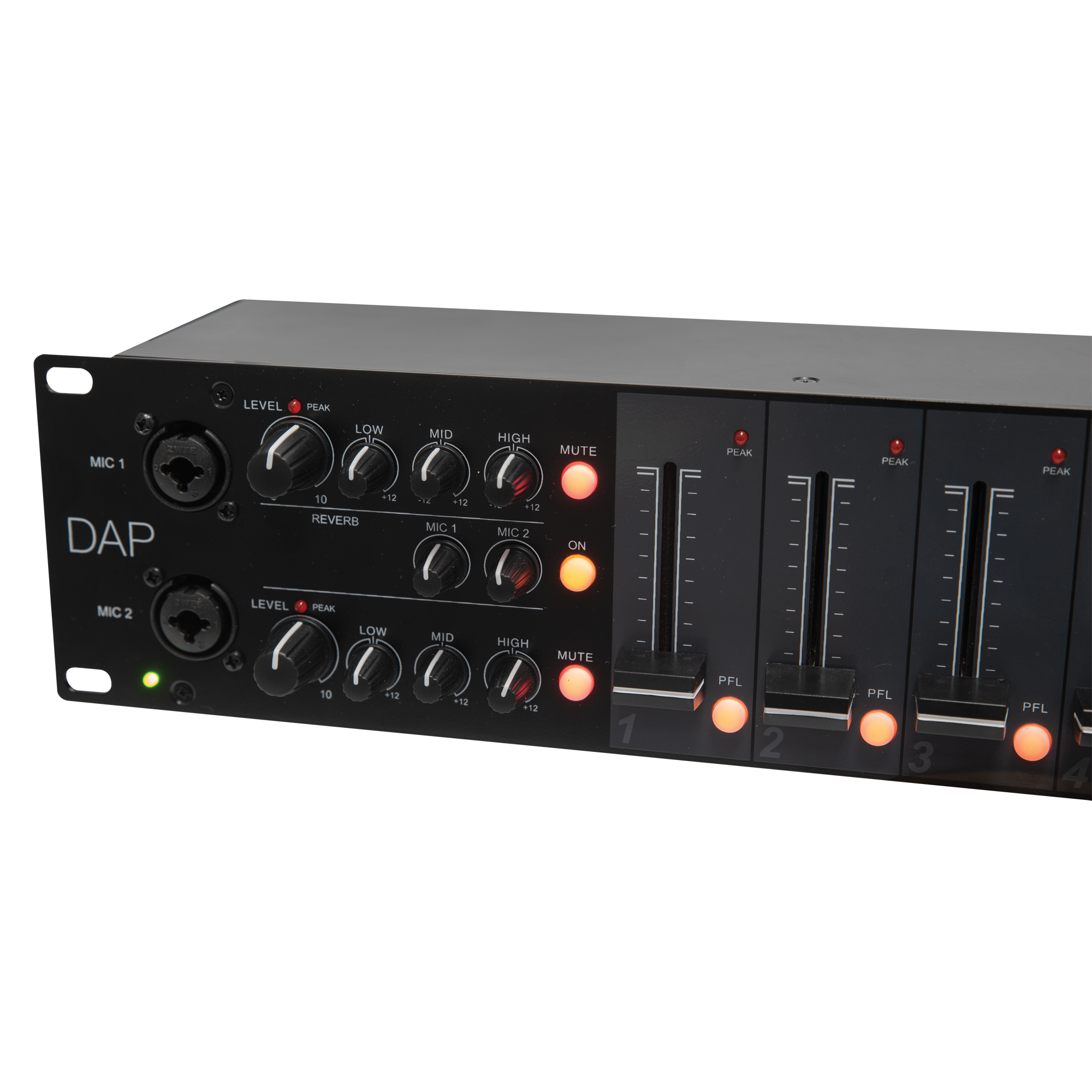

All channels are routed to both outputs. Rear-mounted gain potentiometers allow for tamper-proof gain adjustment prior to installation for each of the three line inputs and the line/phono input. Both microphone inputs feature 3-band equalization and gain, while both master outputs have separate bass/mid/treble equalization. Reverb can be added to each individual microphone channel, making the IMIX-6.2 ideal for pubs and karaoke bars. Phantom power can be activated for each channel on the rear, where the same slider switch also allows the microphone inputs to accept a line-level signal. An RCA record output connector allows you to record the output signal with or without the microphone channels.
SPECIFICATIONS
- Mono inputs: 2
- Mono input connections: 3-pin XLR / TS unbalanced 6.3 mm
- Gain Range mono inputs: 10 dB
- Stereo inputs: 5
- Stereo input connections: RCA
- Main outputs: 2
- Main output connectors: 3-pin XLR
- Zone outputs: 2
- Zone output connections: 3-pin XLR / RCA
- Headphone output: 1
- Headphone output connections: TS 6.3 mm unbalanced
- Record output: 1
- Record output connection: RCA
- Record output impedance: 10 Ω
- Media player: No
- Audio interface: No
- THD Level: < 0.03 %
- Minimum frequency response: 20 Hz
- Maximum frequency response: 30000 Hz
- Channel parametric EQ: 3 Bands
- Channel input EQ range: 12 dB
- Channel input Sweep frequencies: 100, 2,500, 10,000 Hz
- Built-in FX: Yes
- FX type: Reverb
- BT: Yes
- BT version: 5.0
- LED indicators: BT Pairing / Limit / Mute / Output level / PFL

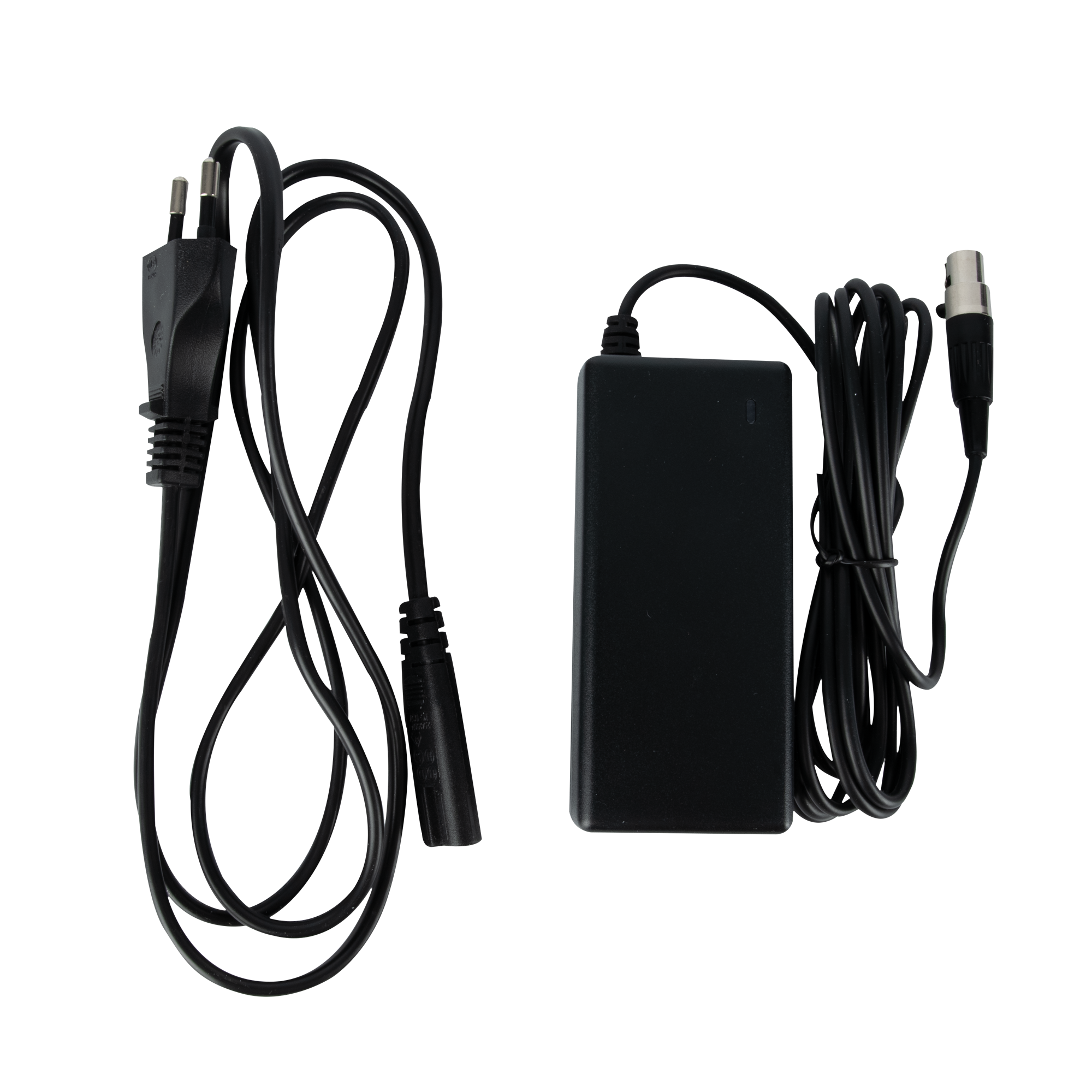

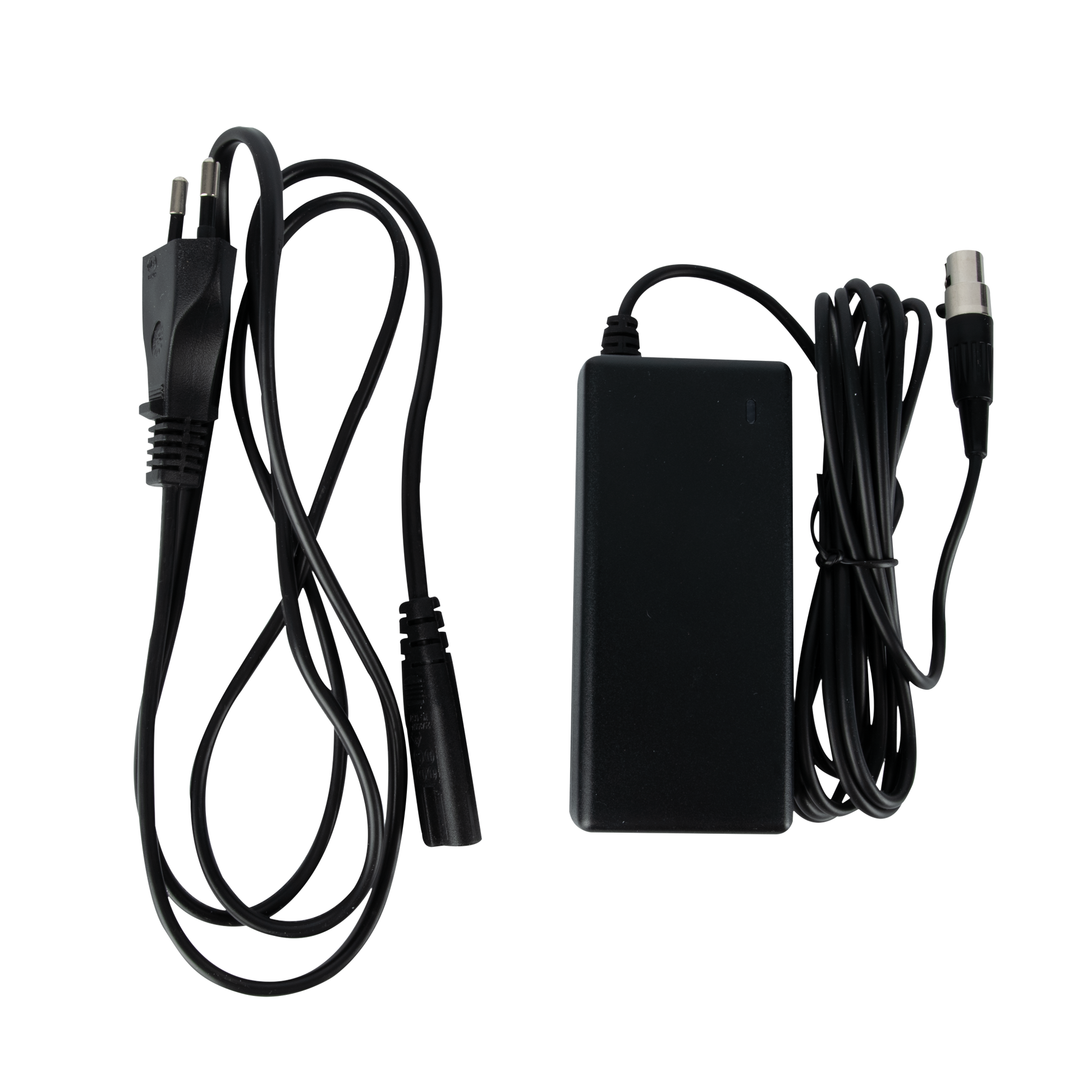

- Power supply: 100-240 V AC 50/60 Hz (Power adapter)
- Output voltage: 15 V DC
- Power consumption: 15 W
- Power input connection: Euro plug
- Input voltage: 100-240 V AC, 50/60 Hz
- Output voltage: 15 V DC
- Height (mm): 88.9 mm
- Width (mm): 482 mm
- Depth (mm): 129 mm
- Flightcase size: 19"
- Rack units: 2 U
- Housing: Metal
- Colour: Black
- Weight: 2.6 kg
- IP rating: IP20 (indoor use only)
- Maximum ambient temperature: 40 °C
- Minimum ambient temperature: -10 °C
