DAP Odin FB-02 Rigging Stack Bar
Estimated delivery in Italy between 25 and 27 August
Pay in 3 installments of €165,00 interest-free
Pay in 3 installments of €165,00 interest-free with PayPal
Split into 3 installments of €165,00 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke

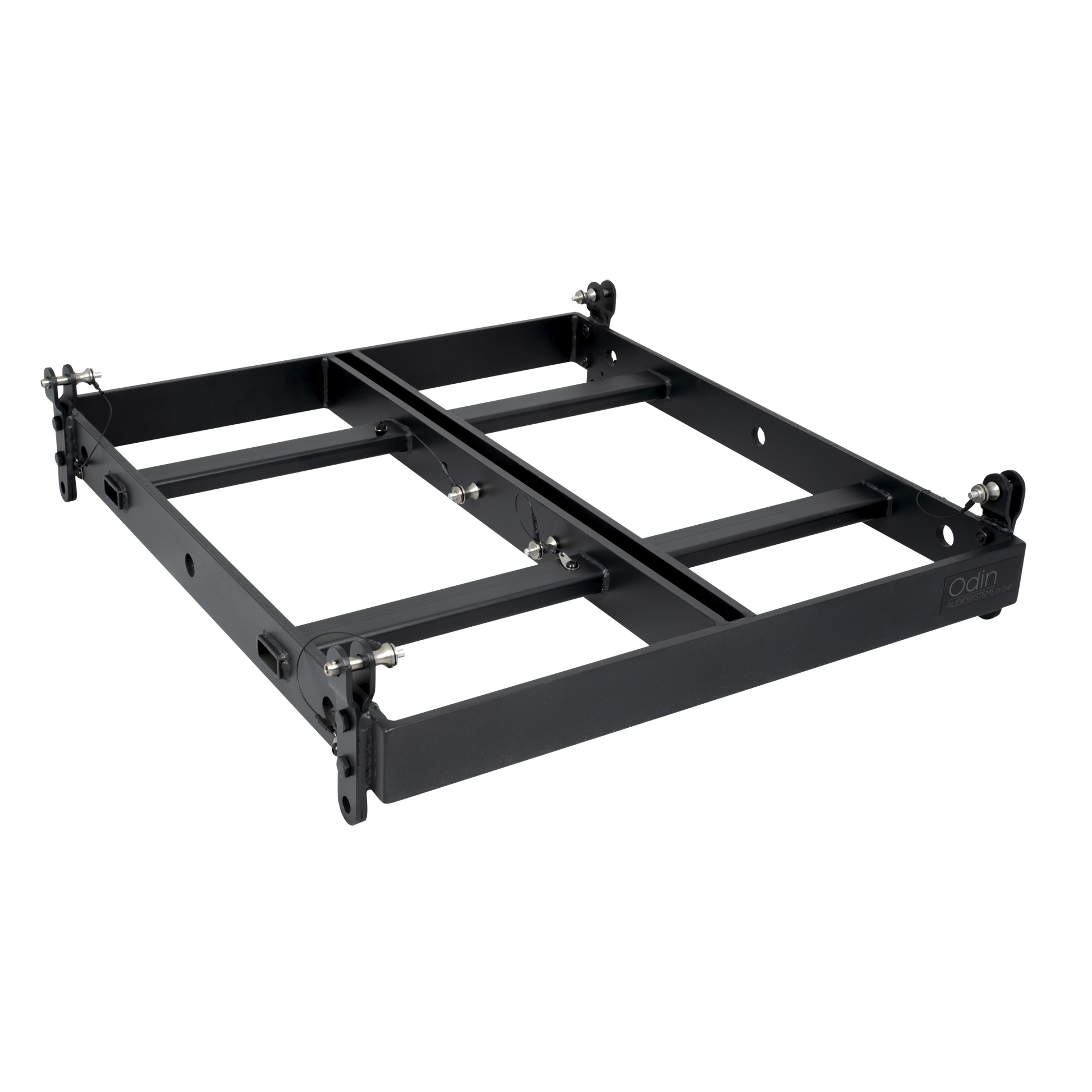

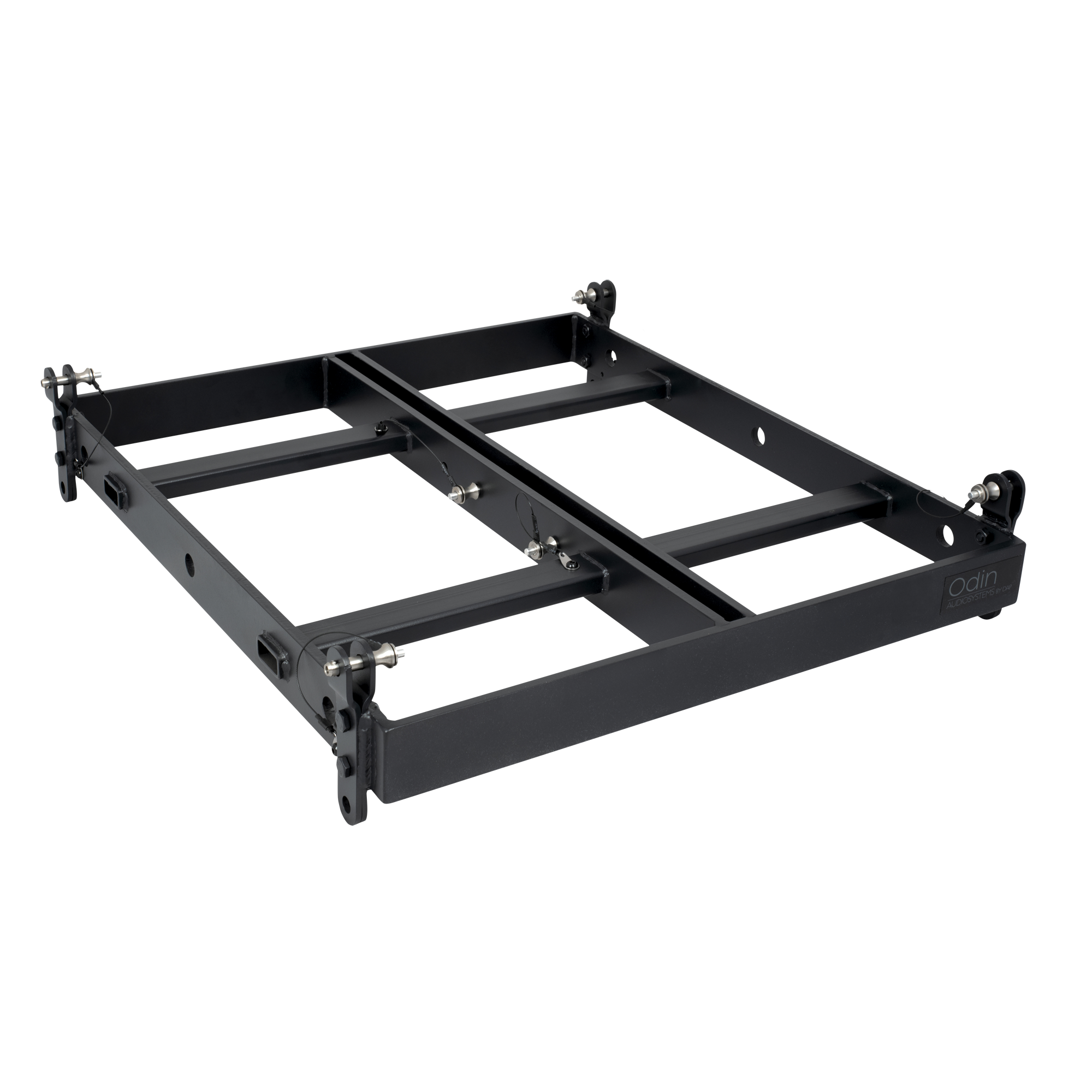

Rigging Stack Bar
The DAP FB-02 is a multifunctional line array stackbar for your DAP Odin system. It enables you to connect a T-8(A) satellite with 3-point suspension to an S-18(A) subwoofer with 4-point suspension. The FB-02 allows you to stack up to four T-8(A) satellites on S-18(A) subwoofers. In combination with the FB-01 fly bar, you can hang up to eight satellite speakers under S-18(A) subwoofers. Using the FB-02 as a flybar is possible for a maximum of four T-8(A) satellites, but with limited suspension and tilt options. Please note that this is only done in exceptional settings.This stacking frame allows you to securely connect Odin speakers and subwoofers. This allows you to hang them one below the other or stack them one above the other, ensuring a safe and robust installation.
SPECIFICATIONS
- Height (mm): 140 mm
- Width (mm): 640 mm
- Length (mm): 690 mm
- Weight: 22 kg
- WLL (kg): 350 kg
- Material: Steel
- Colour: Black
- Finish: Powder Coating
- IP Rating: IP20 (indoor use only)
- Mounting options: 3-point suspension / 4-point suspension
- Mounting options: Suspended
- Included accessories: Tilt adapter
