Datavideo Compact POV camera, 1/2.3” 4K CMOS sensor, NDI connectivity, interchangeable lenses, HDR / WDR, 2D / 3D noise reduction
Paga in 3 rate da €371,33 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES

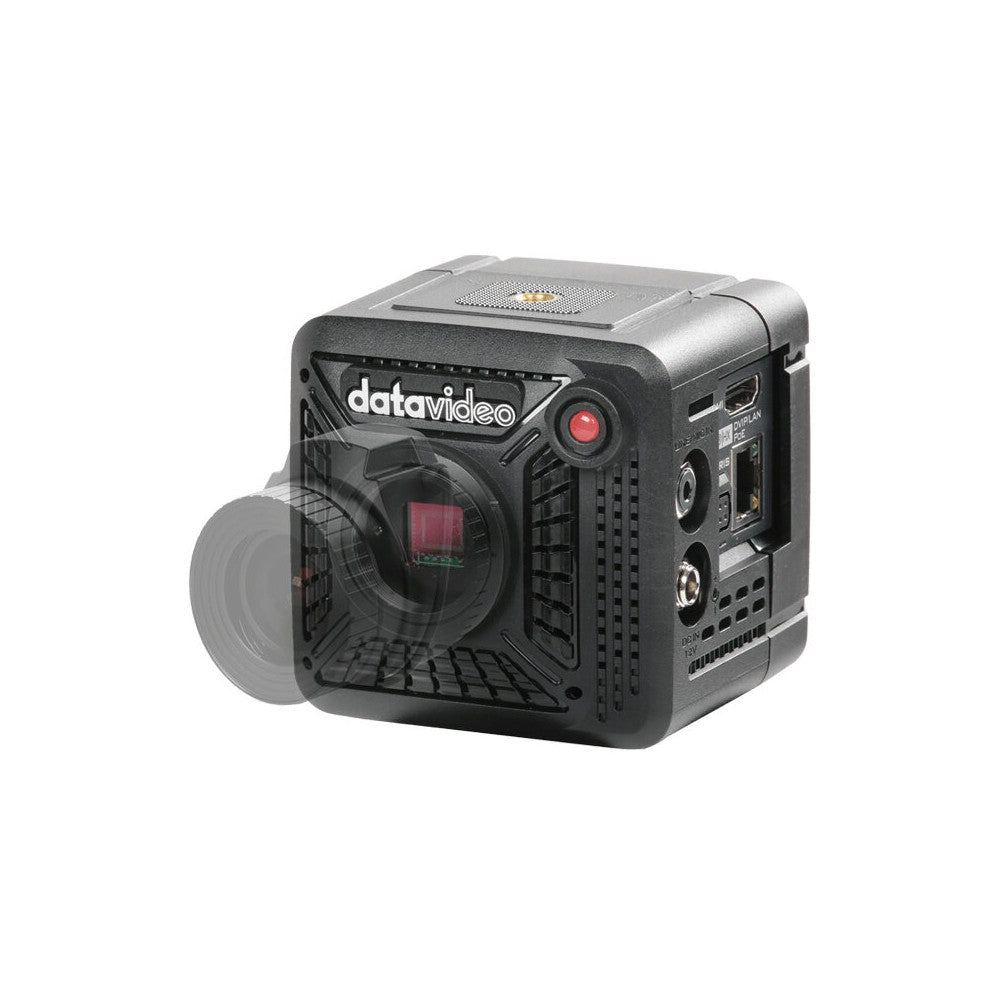

The Datavideo BC-15CN is a POV camera with a 1/2.3” 4K CMOS sensor, designed to provide high-quality images. Thanks to its compact structure, it can be easily installed in any environment. It supports NDI connectivity, making it ideal for video streaming and integration into network-based workflows.

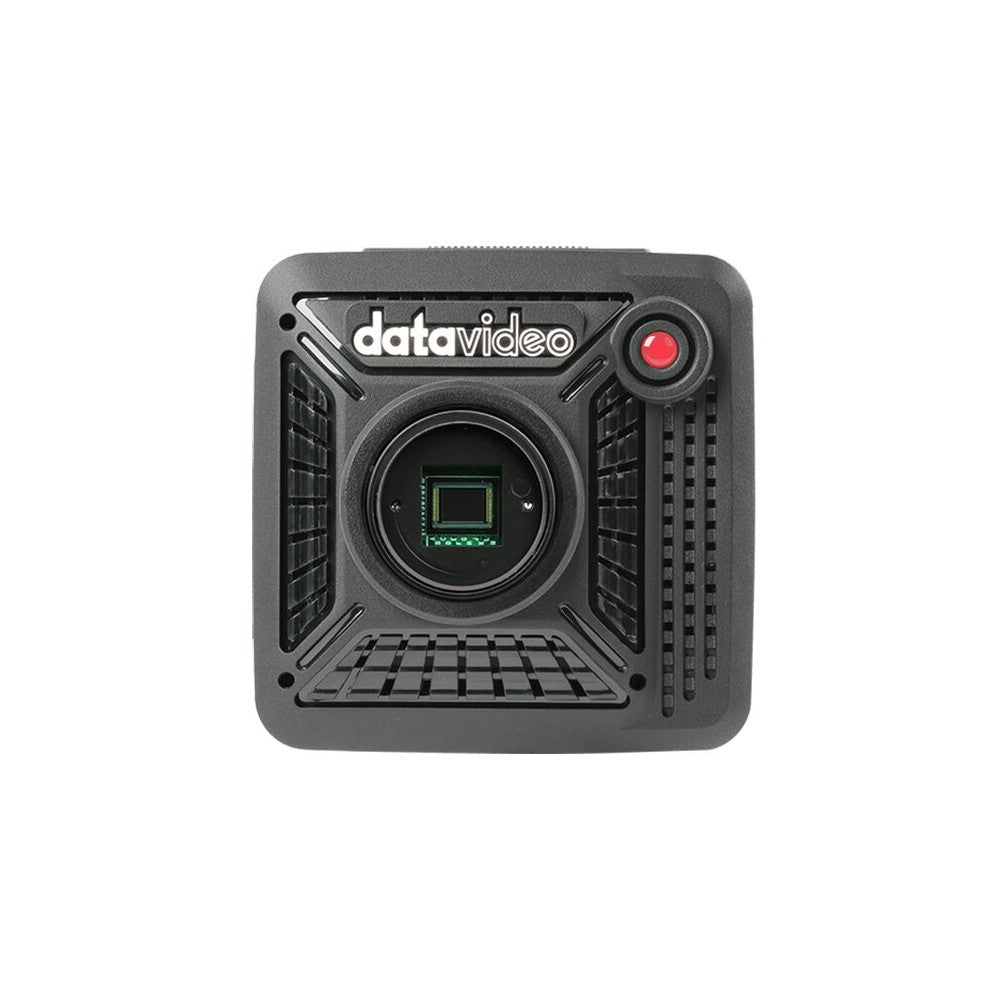

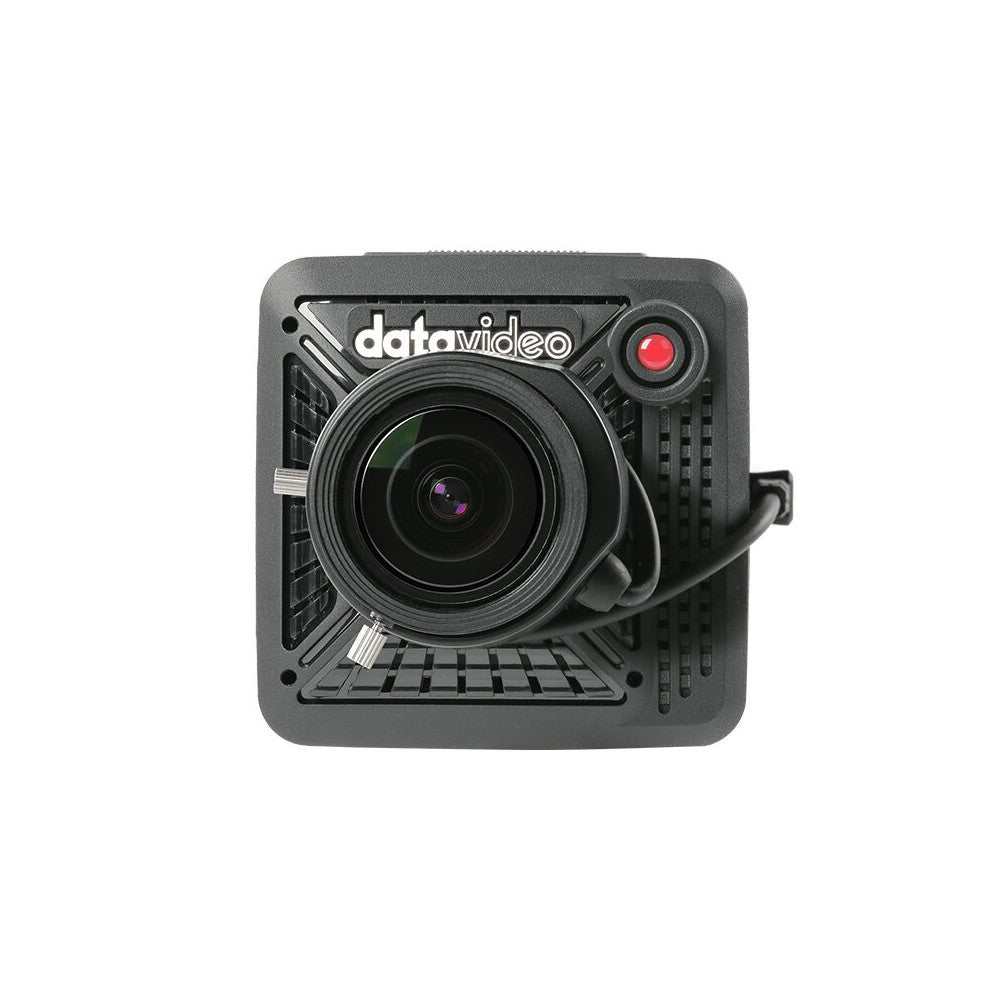

This camera features a CS bayonet mount for interchangeable lenses, CS Mount or a C Mount with the included adapter. The versatility of the mount allows for different fields of view depending on the lens used. The CMOS sensor offers 4K output at 50/60p, perfect for applications such as eSports and professional video productions.

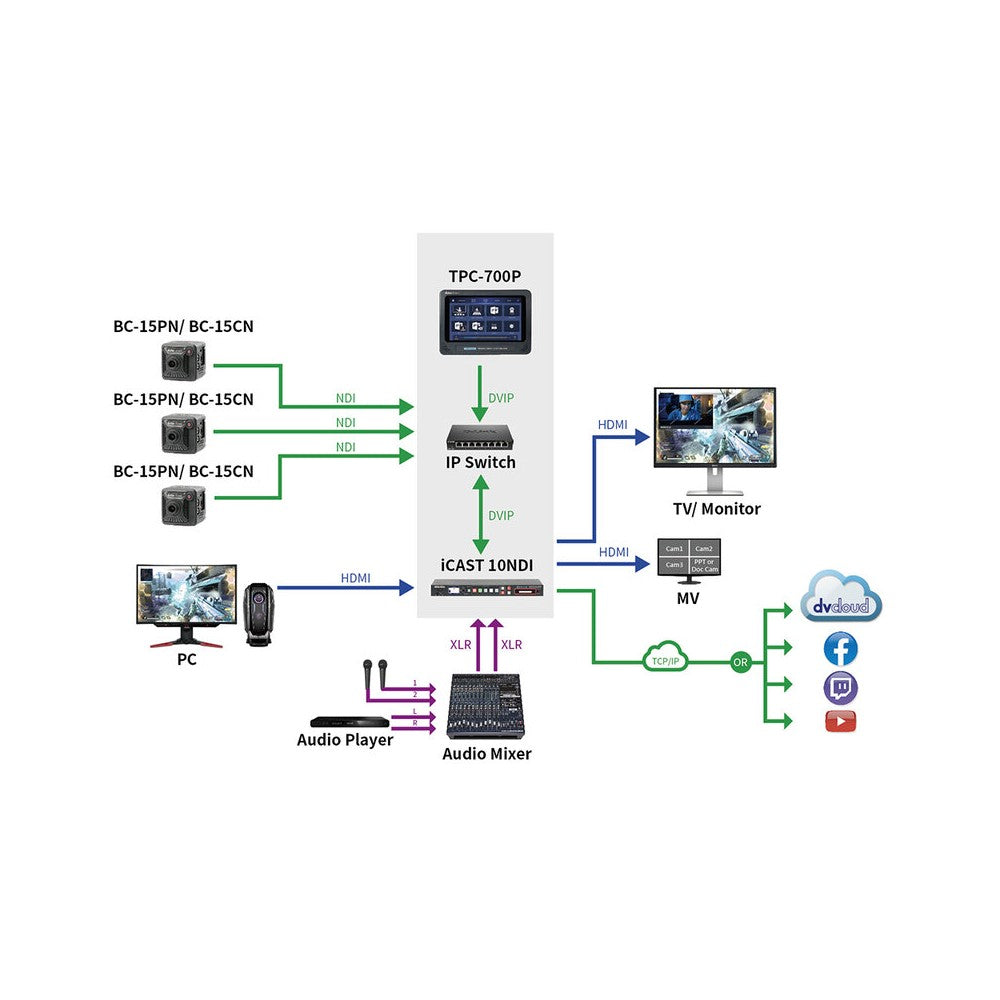

During video production, the BC-15CN can stream content to various platforms, including YouTube and Facebook, and with the use of Datavideo dvCloud, it is possible to stream to up to 25 platforms simultaneously, with automatic backup to cloud servers. The low-latency SRT streaming engine ensures smooth transmission, reducing frame loss even under unstable network conditions.

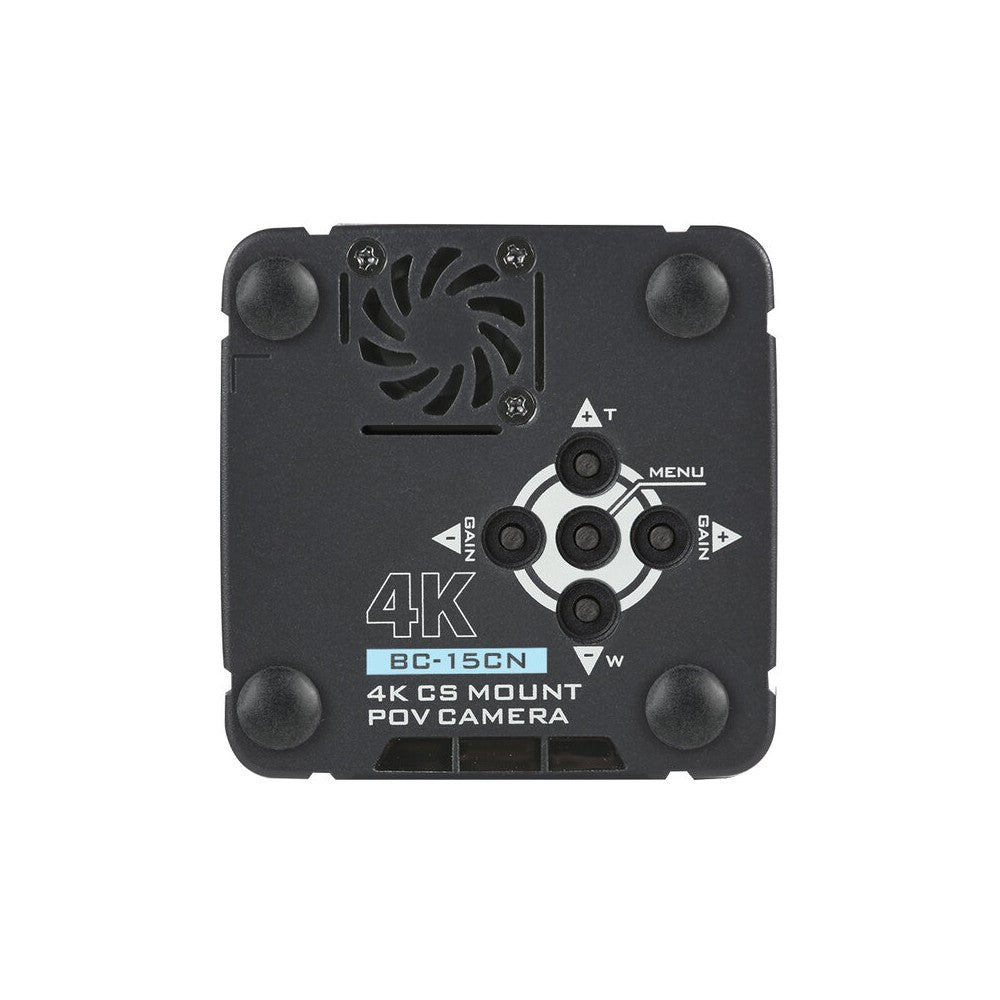

This camera integrates a Tally light, useful for multi-camera productions, and has physical buttons on the rear panel for simple setup without the need for external controllers. PoE support allows power supply via Ethernet cable, eliminating the need for additional power outlets. Additionally, it is compatible with the BC View Assist APP software and RMC-300 series controllers.
The BC-15CN offers a range of advanced functions, including 2x digital zoom, DC iris control, 2D/3D noise reduction, automatic and manual white balance, and HDR/WDR support. The H.265 and H.264 video compression system ensures high quality with an adjustable bitrate between 1 Mbps and 7 Mbps. The camera is powered by 12 VDC 9 W or PoE. Structurally very robust, it weighs 204 g without the lens.
Benefits for users
- Interchangeable lenses
- NDI connection for smooth streaming and easy integration into network-based workflows
- Ability to stream to (up to) 25 platforms simultaneously with Datavideo dvCloud
- SRT streaming engine to reduce frame loss even under unstable network conditions
- Advanced features such as 2x digital zoom, DC-iris, 2D/3D noise reduction, automatic and manual white balance, HDR/WDR support
- Integrated Tally light
Areas of application

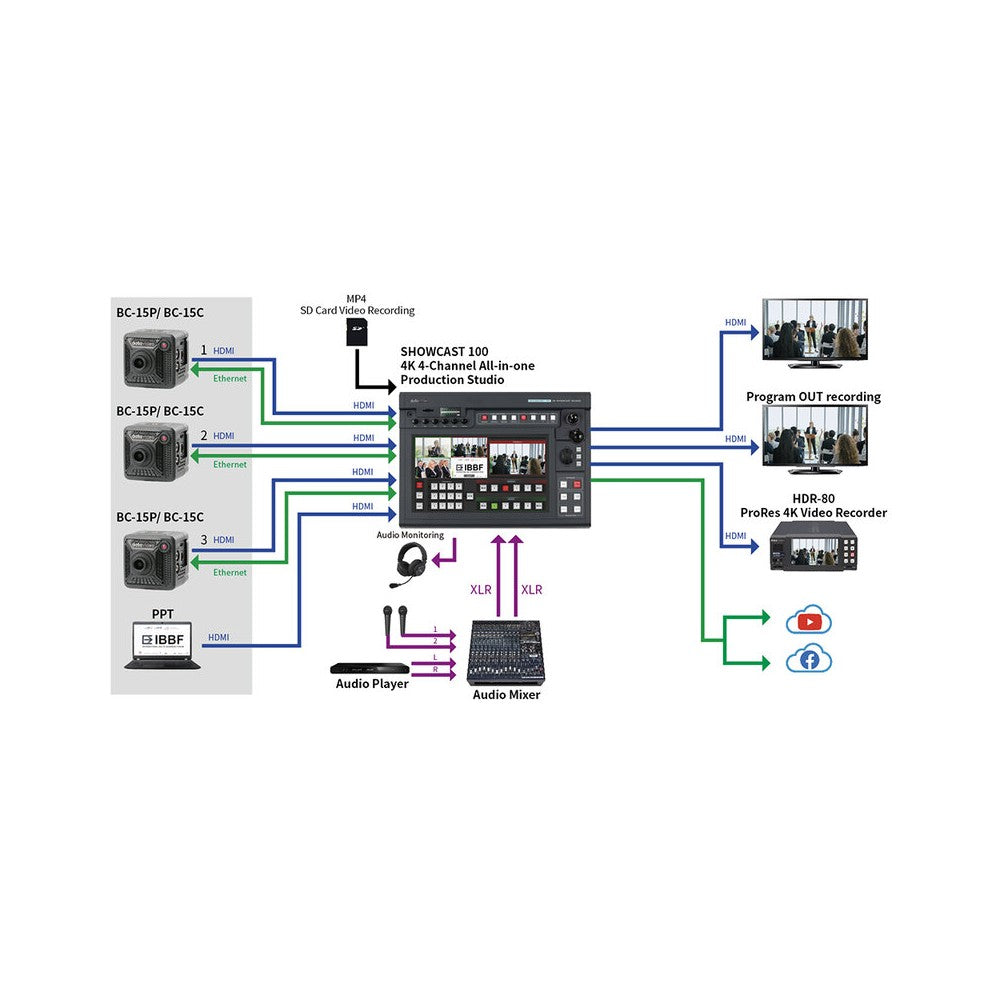

- Multi-camera video productions
- eSports and gaming
- Live streaming
- Permanent installations in studios, conference rooms, and places of worship
- Webinars, presentations, and live broadcasts
SPECIFICATIONS
- Image sensor: 1/2.3" CMOS
- Effective pixels: 12.3 Mpixels
- S/N ratio: 50 dB
- Min. illumination: 0.5 lux (F1.0, AGC ON) *depend on lens
- Video format / resolution: 2160p 60 / 59.94 / 50 / 30 / 29.97 /25, 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25
- Electronic shutter: 1/25 (1/30), 1/50 (1/60), 1/75 (1/90), 1/100 (1/120), 1/125 (1/150), 1/150 (1/180), 1/200 (1/210), 1/500 (1/600), 1/1000 (1/1200), 1/2000 (1/2400), 1/4000 (1/4800), 1/8000 (1/9000) sec
- First stream supported resolution: 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360
- Video bitrate: 1 - 7 Mbps
- Video bitrate mode: VBR, CBR
- Encoding frame rate:
- 50 Hz: 1 - 50 fps
- 60 Hz: 1 - 60 fps
- PoE: IEEE 802.3af
- Zoom ratio: 2x digital zoom
- Gamma control: standard / mode1 / mode2 / mode3
- Iris control: DC IRIS supported *depend on lens
- Digital noise reductions: 2D / 3D
- On-screen display (OSD): English / simplified Chinese / traditional Chinese
- White balance: auto, indoor, outdoor, onepush, color temp., R/B gain, lock
- AGC / gain control: auto(AGC) / manual / lock (follow exposure mode)
- HDR / WDR: WDR
- Mirror / flip image: yes
- Focus mode: full manual
- Focal length: depend on lens
- Field of view (horizontal, wide): depend on lens
- Image compensation: auto

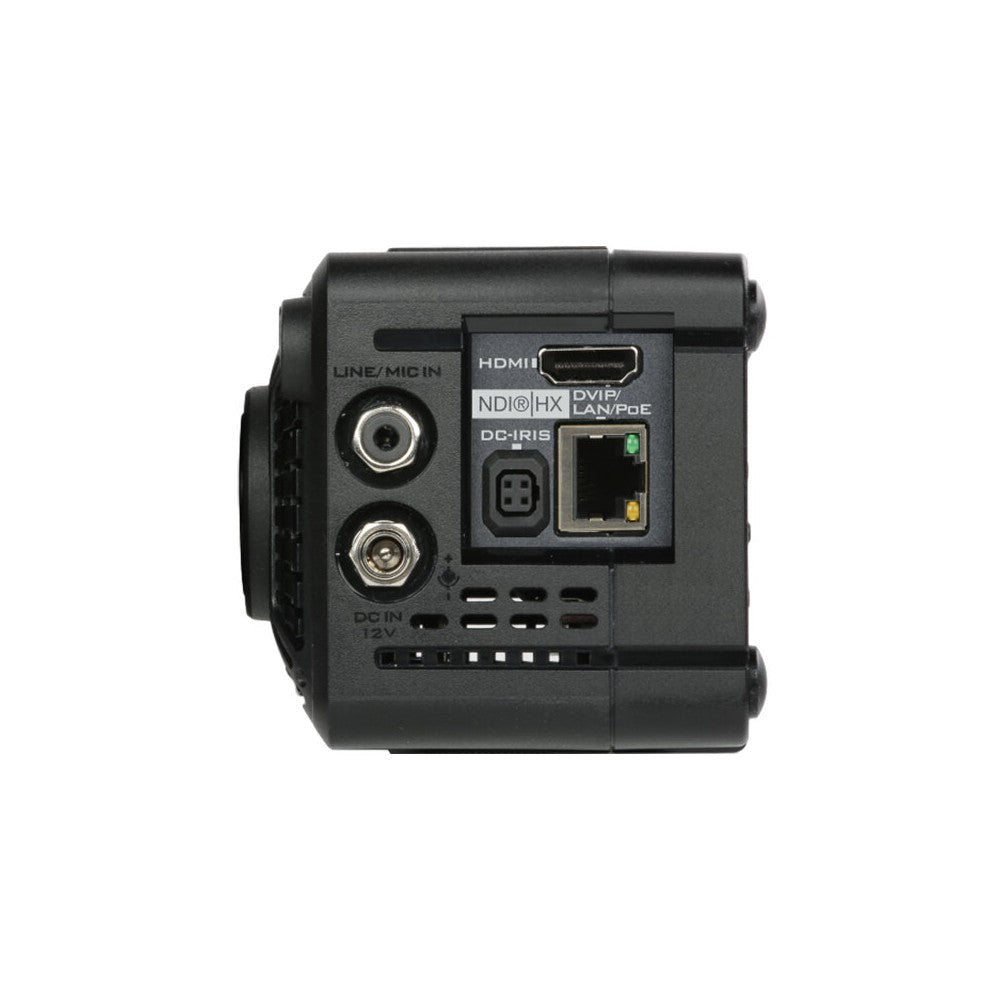

- Video output: HDMI 2.0 x 1
- Audio input: 3.5 mm MIC / line in (stereo)
- Tally LED: dual color (red, green)
- Lens filter: IR cut built-in
- Control protocol: DVIP
- Remote control interface: RJ-45 (IP control via DVIP)
- Video compression format: H.264, H.265
- Audio compression format: AAC
- Audio bitrate: 128 kbps
- HD IP interface: 10/100/1000M
- Streaming protocols: RTMP(S), SRT, NDI
- Firmware update: Ethernet
- Camera control unit: RMC-300 series / BC View Assist APP

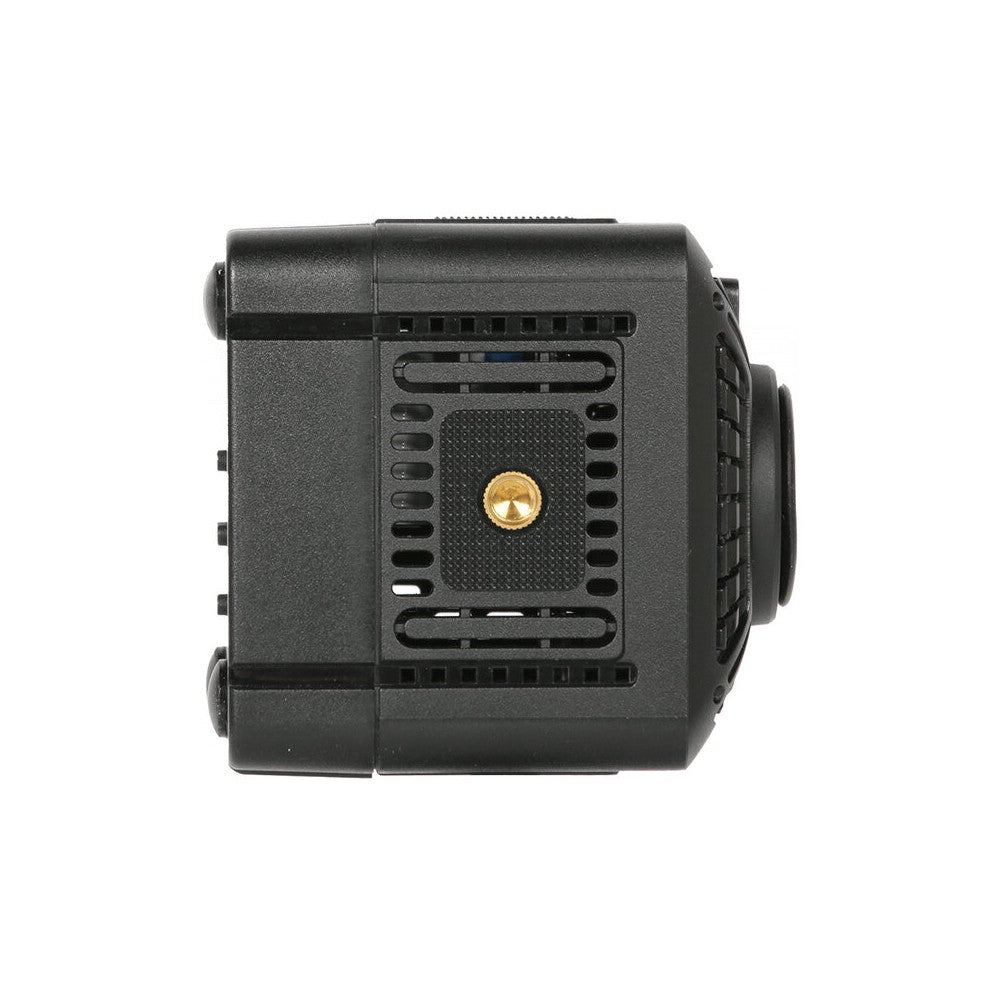

- Tripod mount: 1/4-20 UNC
- Color: black
- Operating temp. range: 0 - 40 °C
- Power: 12 VDC 9 W, PoE
- Dimension (L x W x H): 77 x 82 x 78 mm
- Weight: 204 g (lens not included)
- What's in the box:
- 1 x BC-15CN main unit
- 1 x CS-C lens adaptor ring
- 1 x 12 VDC power adapter
- 1 x carry case
Technical characteristics
Couldn't load pickup availability
User Manual
Official technical documentation in PDF format.
