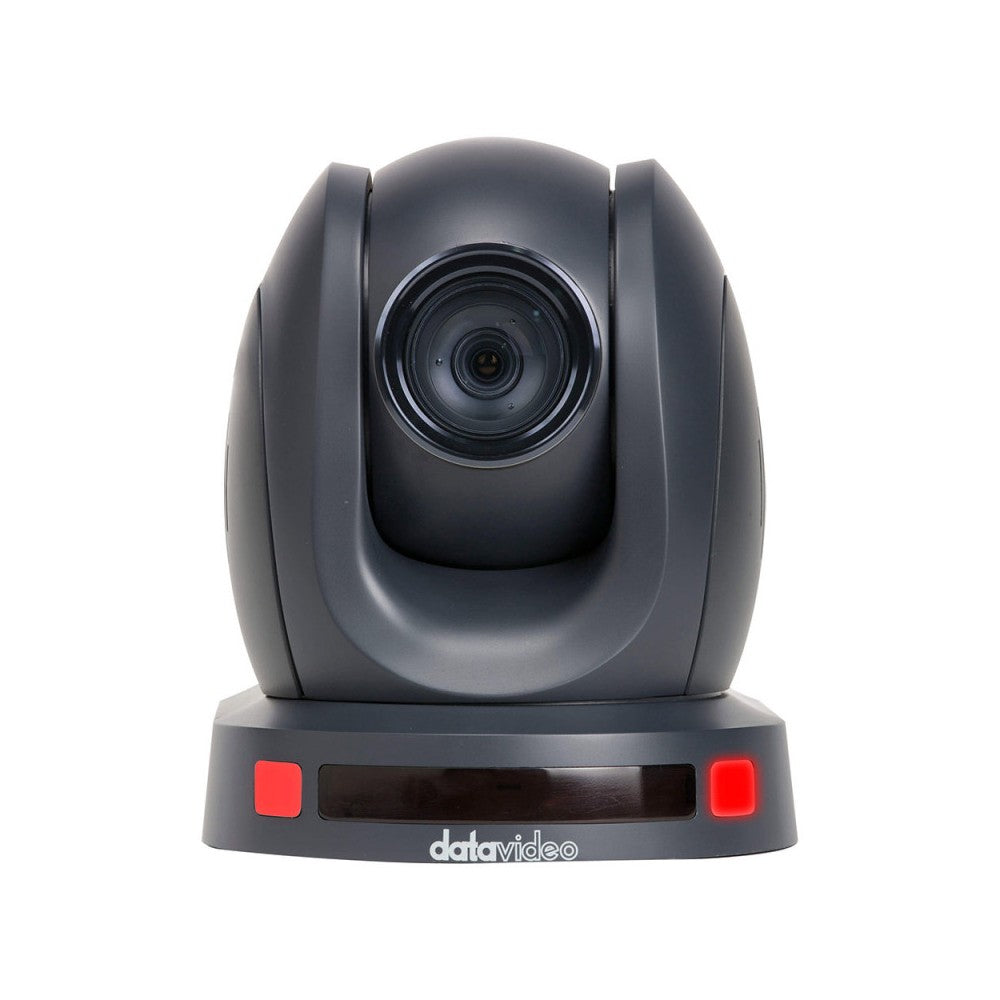

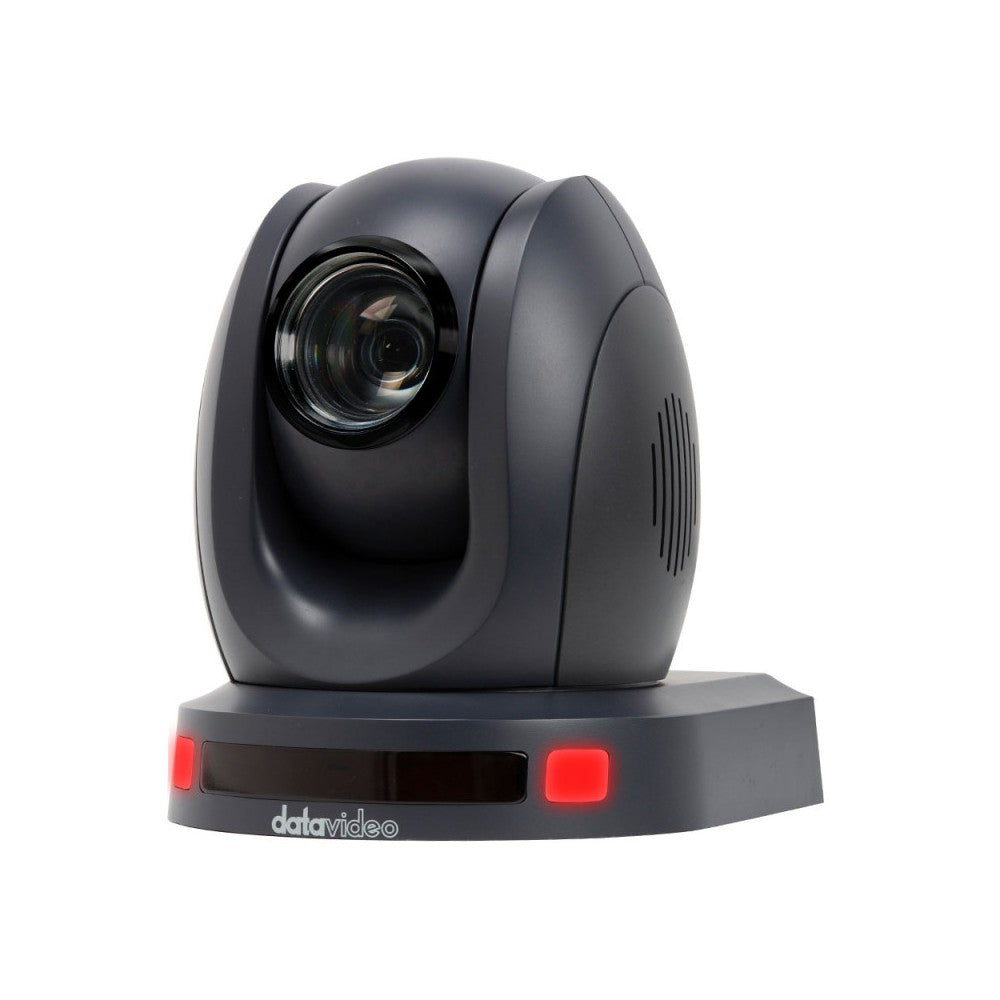

Datavideo HDBaseT PTZ Camera for HS-1600T

FEATURES

Black version. The PTC-140T features a 1/2.8-inch CMOS sensor, 1920x1080px FullHD resolution, and 60 fps. The 20x optical zoom and 10x digital zoom of the PTC-140T allow you to mount it close or far away and still get outstanding, sharp shots. Advanced 2D/3D noise reduction function. It supports advanced digital noise reduction, so even in less-than-perfect lighting conditions, it can capture clear and smooth images. Made with HDBaseT technology. Instead of using one cable for video, a second for power, and a third for camera control, the PTC-140T can do all of this using a single Ethernet cable. This increased flexibility significantly reduces installation time and allows you to mount the camera in difficult locations (such as spots without nearby power outlets). When paired with the Receiver Box, the transmission distance can be up to 100 meters. H.264/H.265 video compression for streaming. With a built-in streaming encoder, it can encode up to two simultaneous streams to any cloud service. The PTC-140T is available in dark grey or white to blend in seamlessly with permanent setups. Get the most out of your streaming hardware using DVCloud. The PTC-140T is perfectly compatible with Datavideo's DVCloud service. This subscription service gives you the ability to send your stream to multiple destinations simultaneously without needing multiple hardware encoders. You can also record your production to the DVCloud platform in H.264 format. After recording, you can directly use this recording to upload it to your favorite content platform.

SPECIFICATIONS

Video format	1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50
Image Sensor	1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.)	2.07 Mega pixels
S/N Ratio	>55dB
Min. Illumination	0.5Lux (F1.8, AGC ON)
Electronic Shutter	Auto / Manual
Zoom Ratio	20x Optical Zoom, 10x Digital Zoom
Gamma Control	Off / Normal
Iris Control	Auto / Manual
Digital Noise Reductions	Yes
On-Screen Display (OSD)	English, Simplified Chinese
White Balance	Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control	Auto / Manual
Mirror / Flip Image	Yes
Focus Mode	Auto / Manual
Panning / Tilting Range	Pan: 340° , Tilt: +90° to -30°
Panning / Tilting Speed	Pan: 0.1~60°/sec Tilt: 0.1~30°/sec
Preset	255 Position
Focal Length	f=5.2 (wide) to 98 (tele) mm  F1.6 to F3.5
Field of View (Horizontal, Wide)	Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation	Backlight Compensation

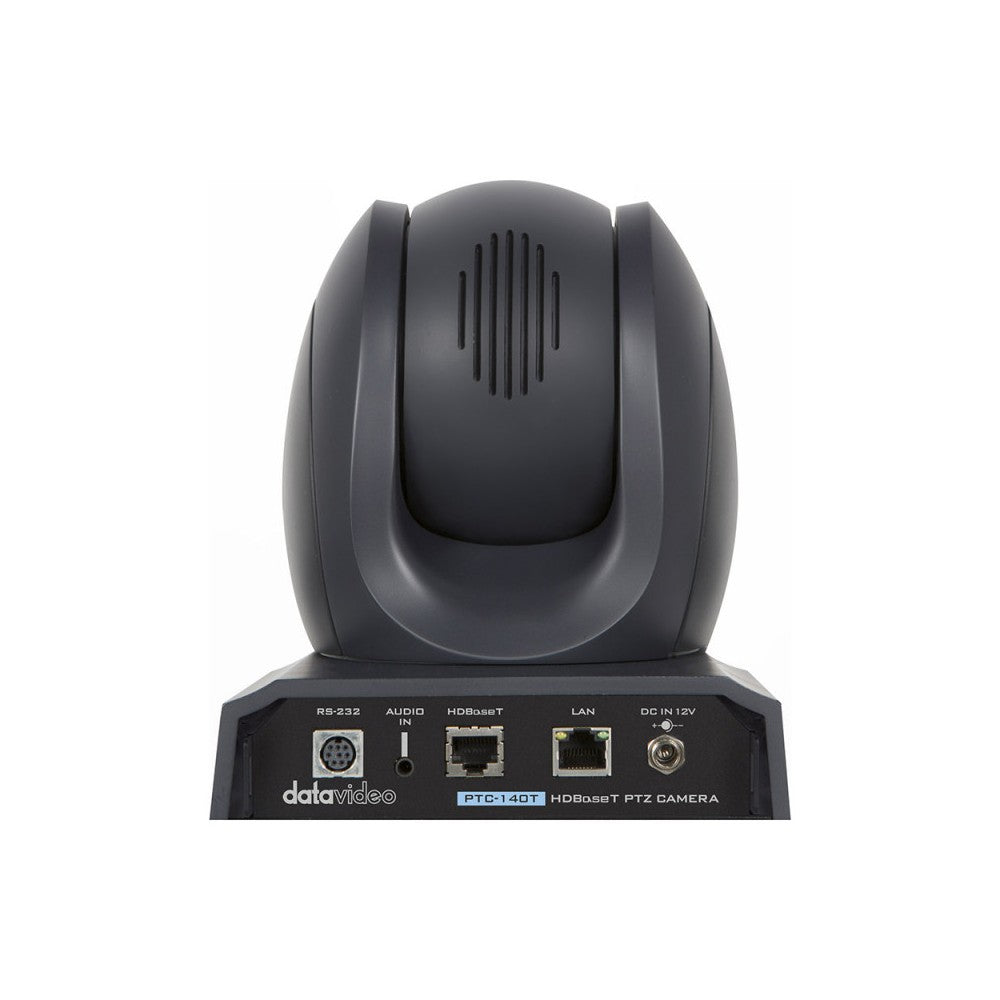

Video Output	HDBaseT (PoE) x1 RJ-45 x1
Audio Input	Line In (IP Stream Output)
tallyLED	Dual color (Red, Green)
Filter	M52.0 x 0.75 Thread with UV Protection
Protocol	VISCA, DVIP
Remote Control Interface and Transmit Distance	RS-232 Lan (RJ-45) HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
Video Compression Format	H.264, H.265, Dual stream output
Audio Compression Format	AAC/MP3/PCM Audio compression
HD IP Interface	100M IP port(100BASE-TX); Support DVIP
Network Protocol	RTSP, RTMP
F/W Update	Ethernet
IR Control	Yes
Camera Control Unit	HS-1500T/HS-1600T/RMC-180/RMC-300C
Tripod Mount	1/4-20 UNC
Options	WM-1
Color	Black
Dimension (LxWxH)	156 x 182 x 186 mm
Weight	1.6 kg
Operating Temp. Range	0~40 °C
Power	DC 12V 12W
What's in the Box	1 x PTC-140T Unit 1 x IR remote controller 1 x PTC-140T Thank You Card 1 x Ceiling mount bracket-A 1 x Ceiling mount bracket-B 6 x Ceiling mount bracket screw M3*4mm 1 x UV Filter 1 x DC 12V Power Adaptor 1 x Power Cord 1 x A tightrope 1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
