Datavideo teleprompter designed for PTZ cameras, tablet holder instead of an integrated LCD screen, tablets up to 15.6", IP sync

FEATURES

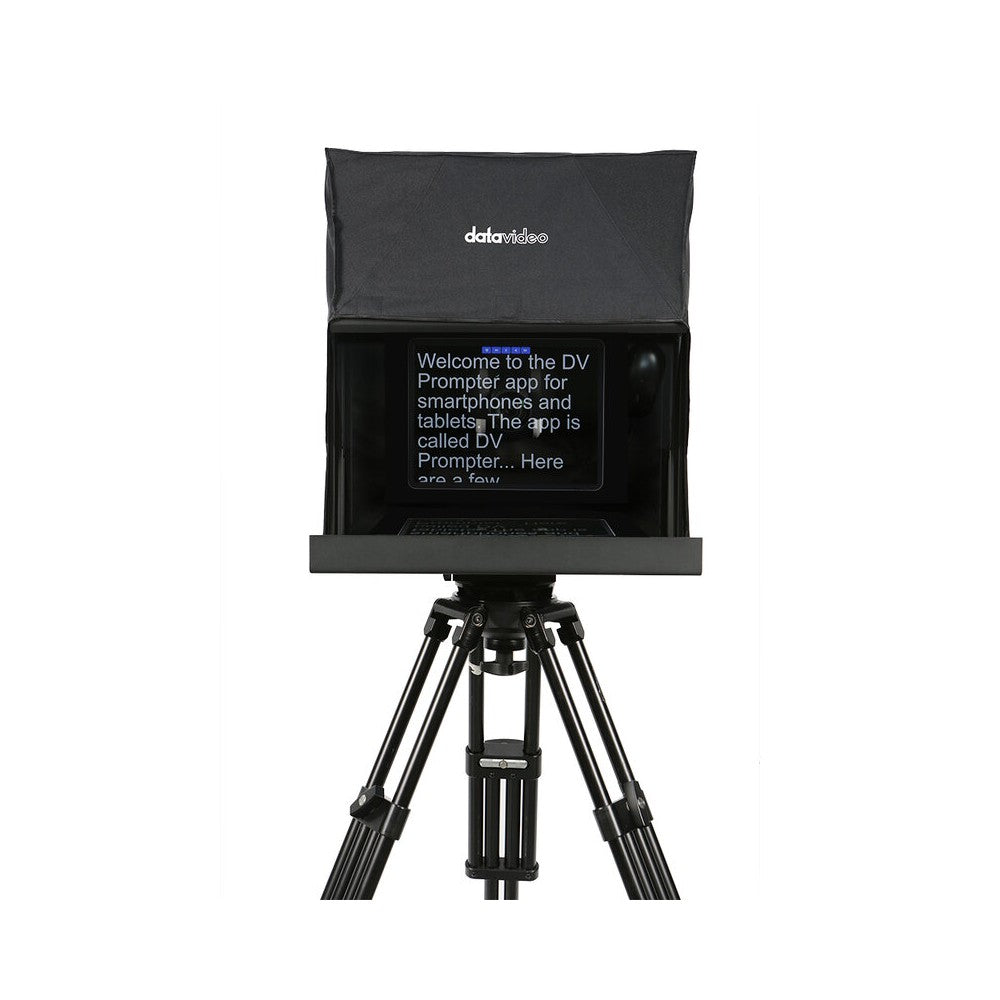

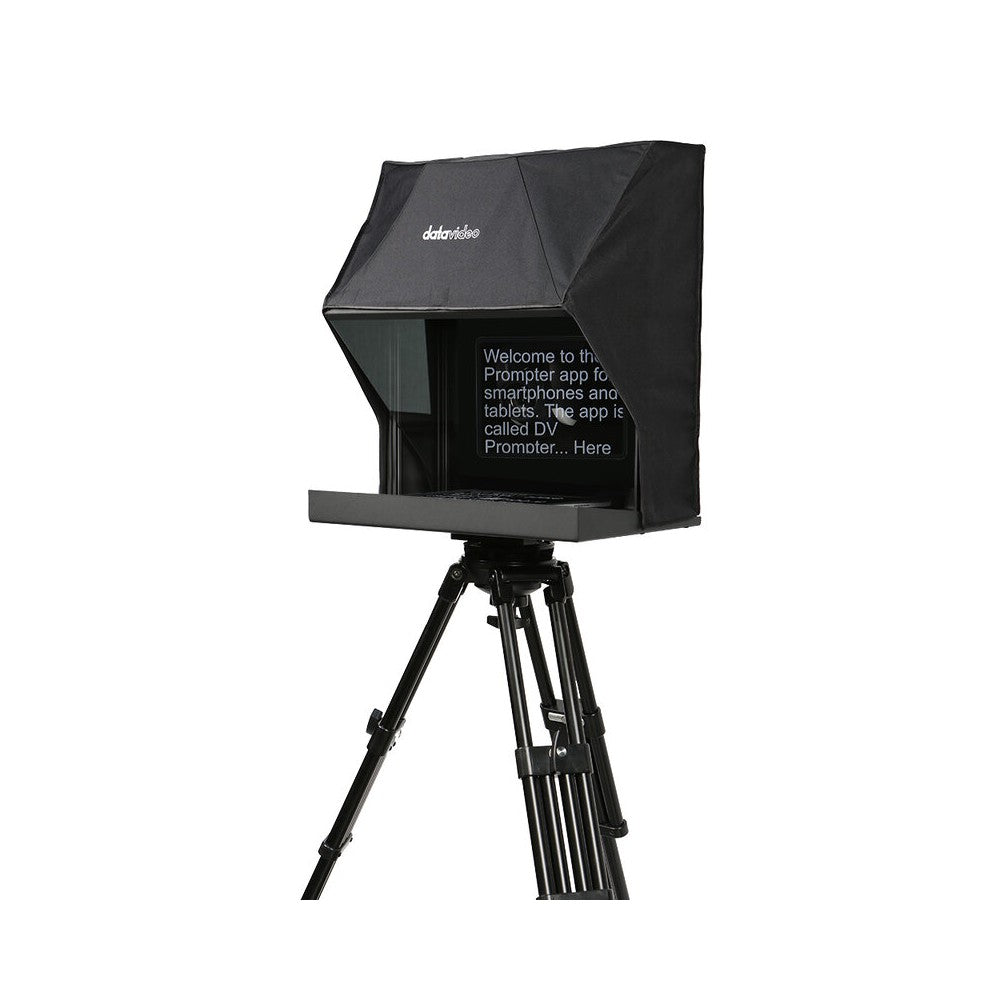

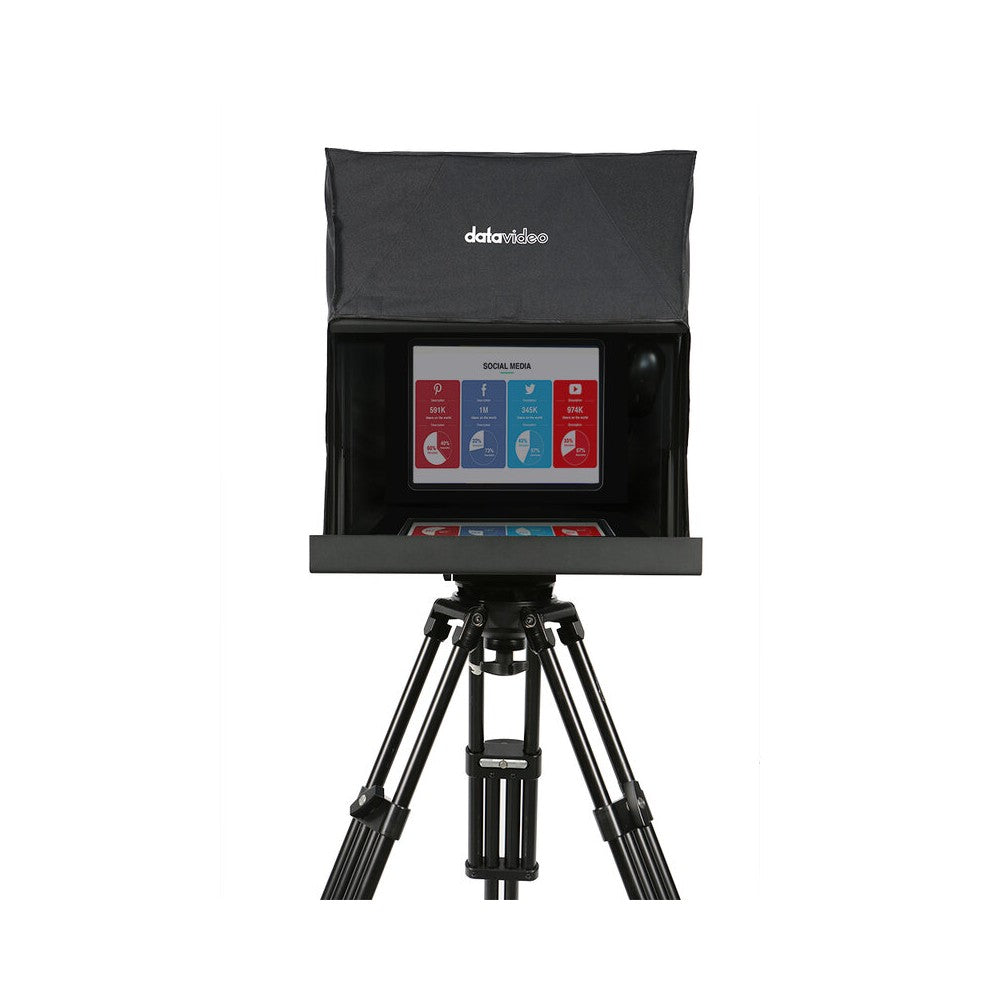

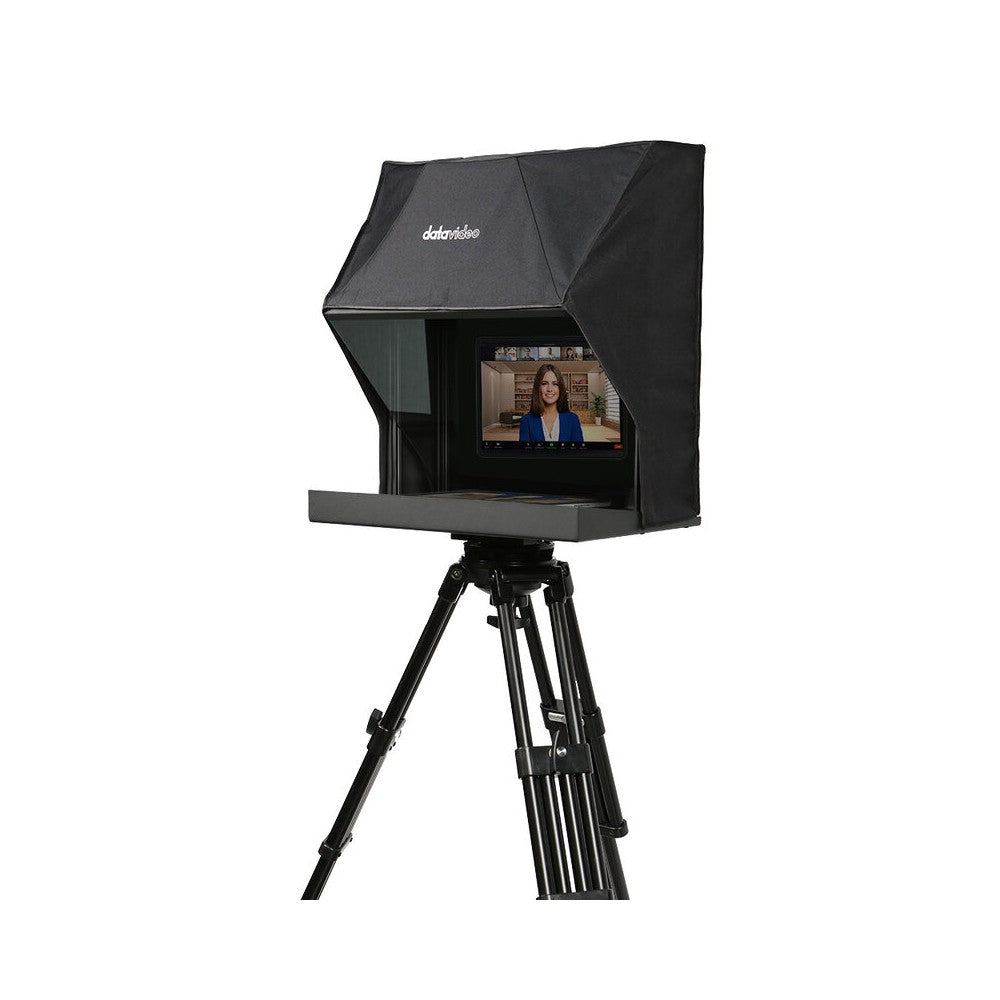

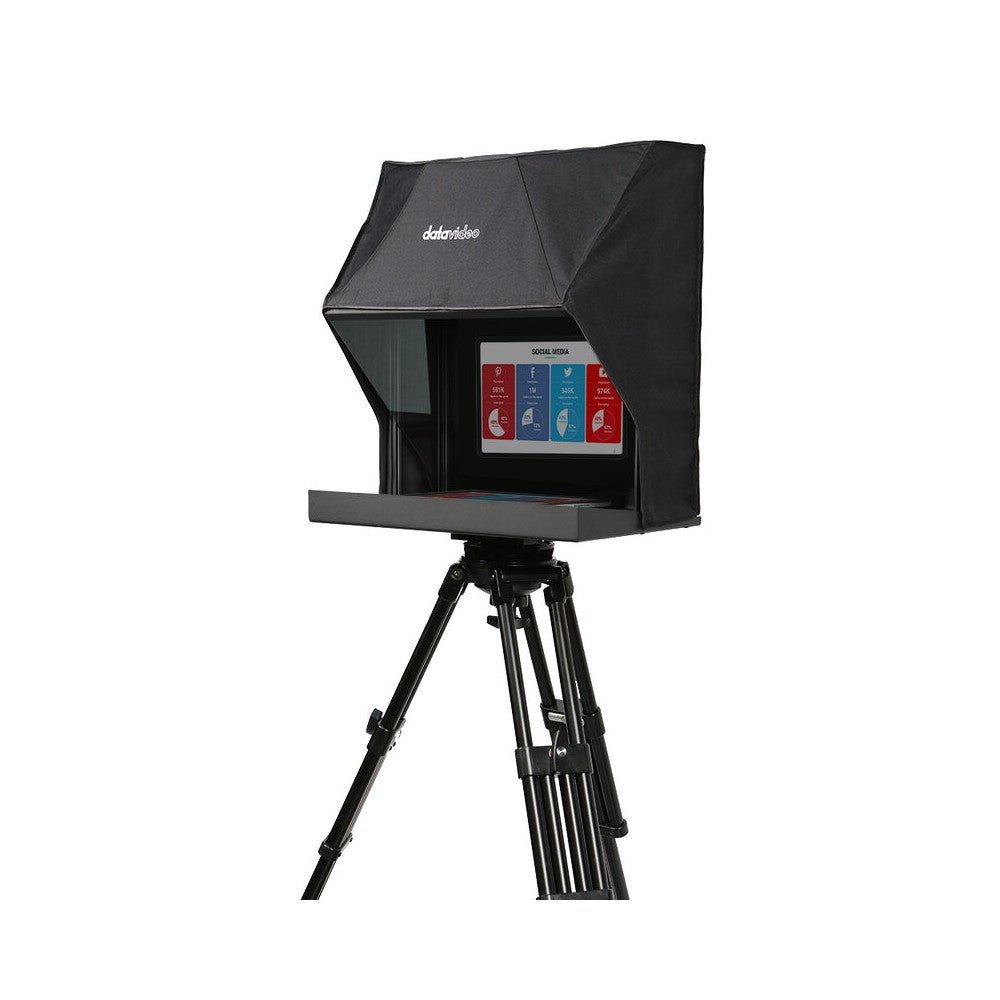

The TP-950 is a teleprompter designed specifically for PTZ cameras, featuring a tablet holder instead of an integrated LCD screen. This choice allows users to utilize tablets up to 15.6", offering greater flexibility compared to the TP-900 model.

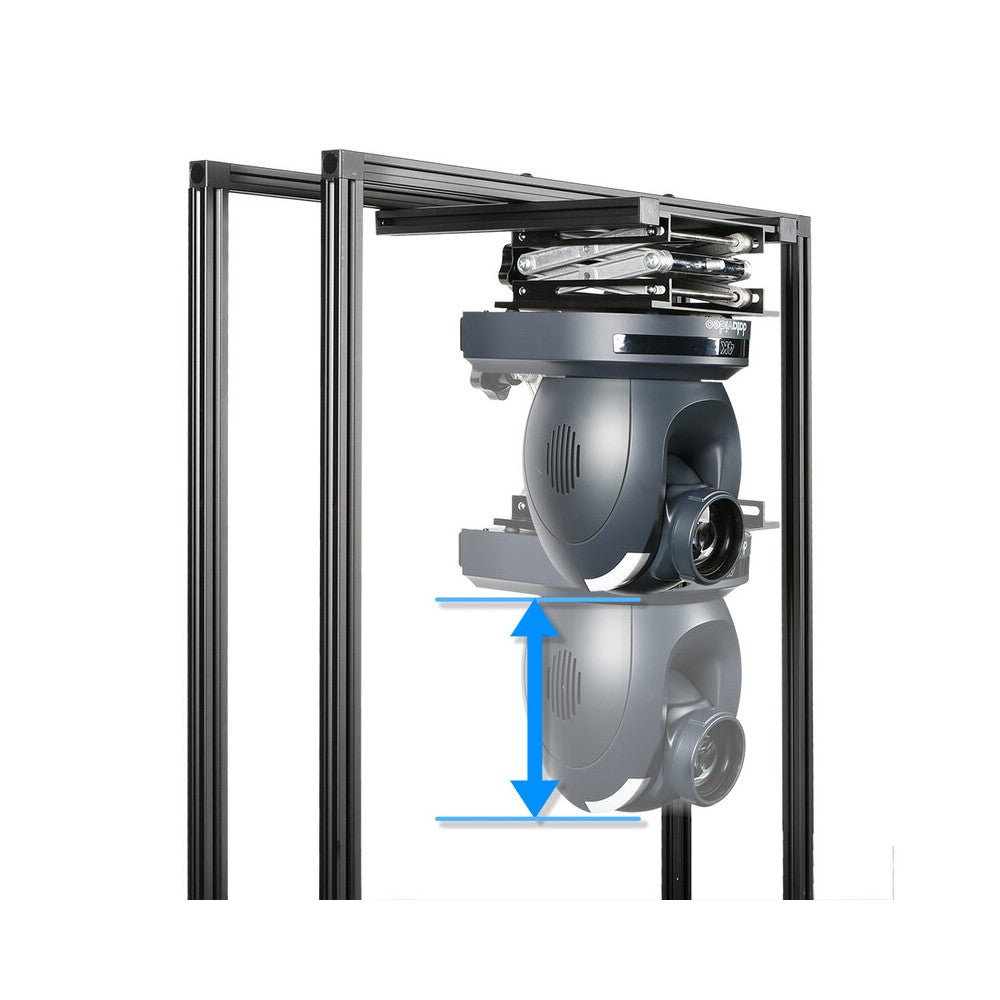

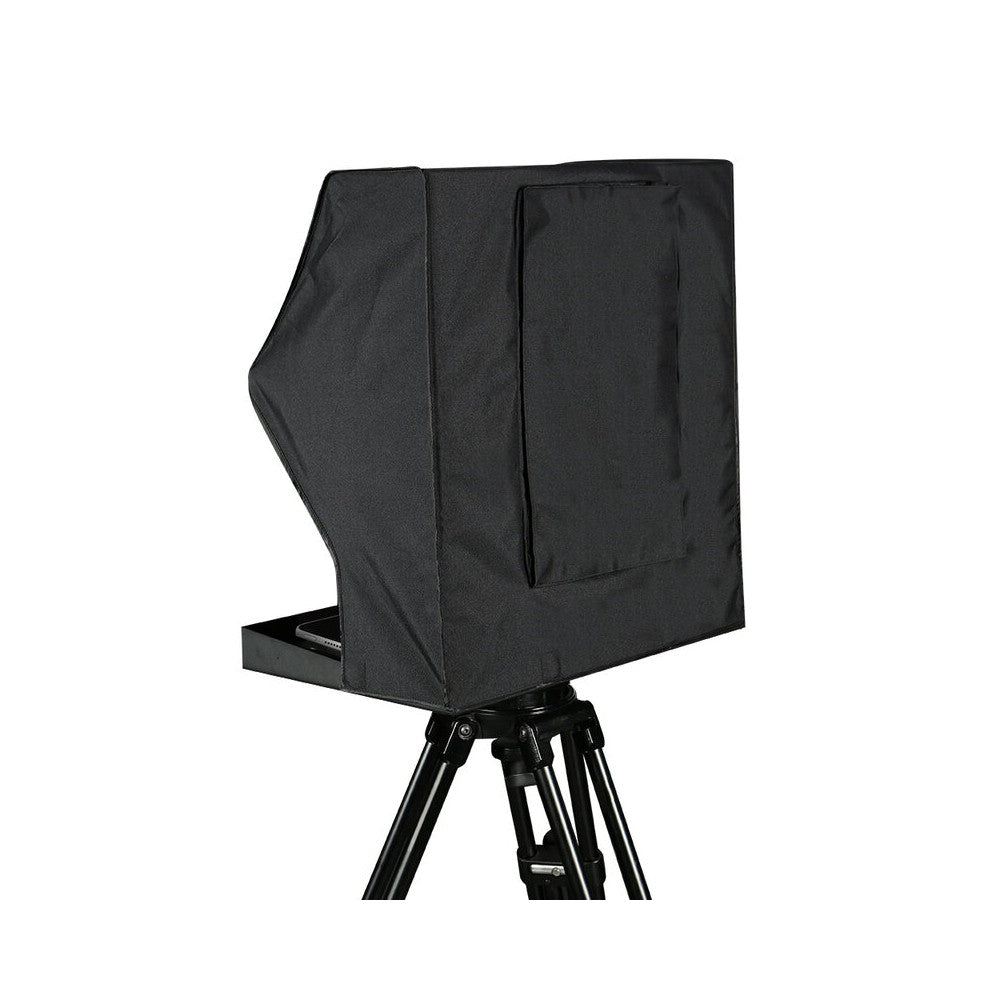

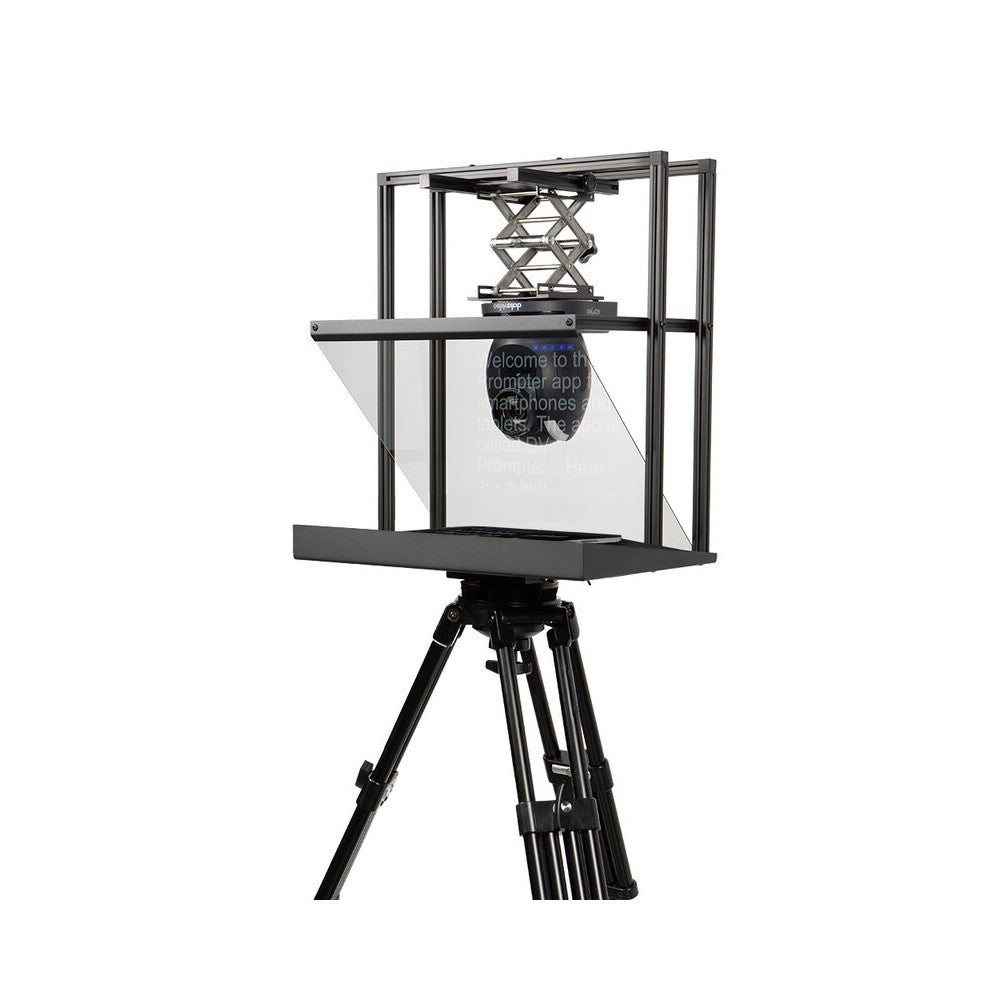

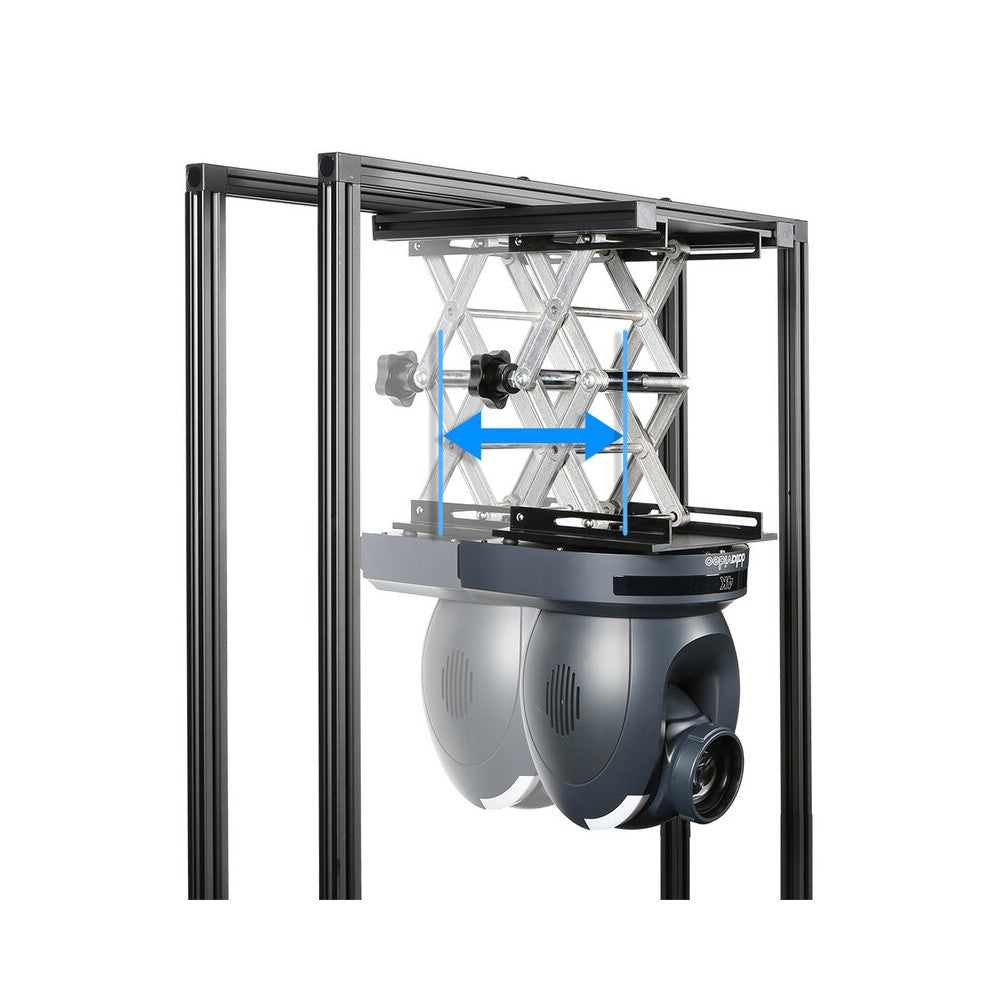

The innovative design allows the PTZ camera to be mounted upside down, eliminating operational limitations and ensuring greater freedom of movement during shooting. The adjustable structure of the TP-950 ensures compatibility with any size PTZ camera, thanks to the ability to adapt the size of the teleprompter hood.

The tablet holder is expandable and allows for the integration of devices of various sizes, making it ideal for iPad Pro and larger Android tablets. The TP-900 also offers the possibility to monitor and control the teleprompter via LAN, with remote control options such as the wired WR-500 or the FS-30 foot pedal. In addition, it supports generic presentation remote controls with USB receivers. The dvPrompter Plus system allows for the synchronization of multiple tablets via IP, using Ethernet or Wi-Fi connections, and offers an advanced text editor for modifying fonts, colors, and text justification.

In conclusion, this teleprompter, powered by a 12 V_DC adapter with the option of using PoE, represents a versatile and professional solution for video production with PTZ cameras, ensuring excellent integration with mobile devices and advanced text management for the teleprompter itself.

User Benefits

• Allows the use of large devices
• Adjustable support for PTZ cameras
• Ability to manage multiple teleprompters simultaneously via Ethernet or Wi-Fi thanks to IP synchronization
• Advanced remote control
• Customizable text editor
• Numerous accessories included for all mounting needs

Areas of Use

• Television studios
• Conferences, seminars, and shows
• Corporate presentations
• Multi-camera productions
• Online streaming
• Interviews, documentaries, etc.

SPECIFICATIONS

Technical characteristics

• Device used: Apple iPads, Android tablets
• Camera-mount interface: adjustable lift
• Smartphone / tablet size: 145 mm (min. tablet width), 265 mm (max. tablet width)
• Multi-language support: English, Dutch, Spanish, Portuguese, Russian, Chinese (traditional), Chinese (simplified)
• Remote control:
  • Monitoring and control via LAN
  • Optional WR-500 wired hardware remote or FS-30 foot pedal
  • Supports generic presentation remote controls with USB receivers
• Operating temp. range: 0 - 40 °C
• Power: 12 V_DC (mains adapter supplied), PoE (optional adapter required)
• Hood dimension / prompter size (W x H x D):  53.5 x 59 x 35 cm
• Weight: net 10.3 kg, gross 13.3 kg

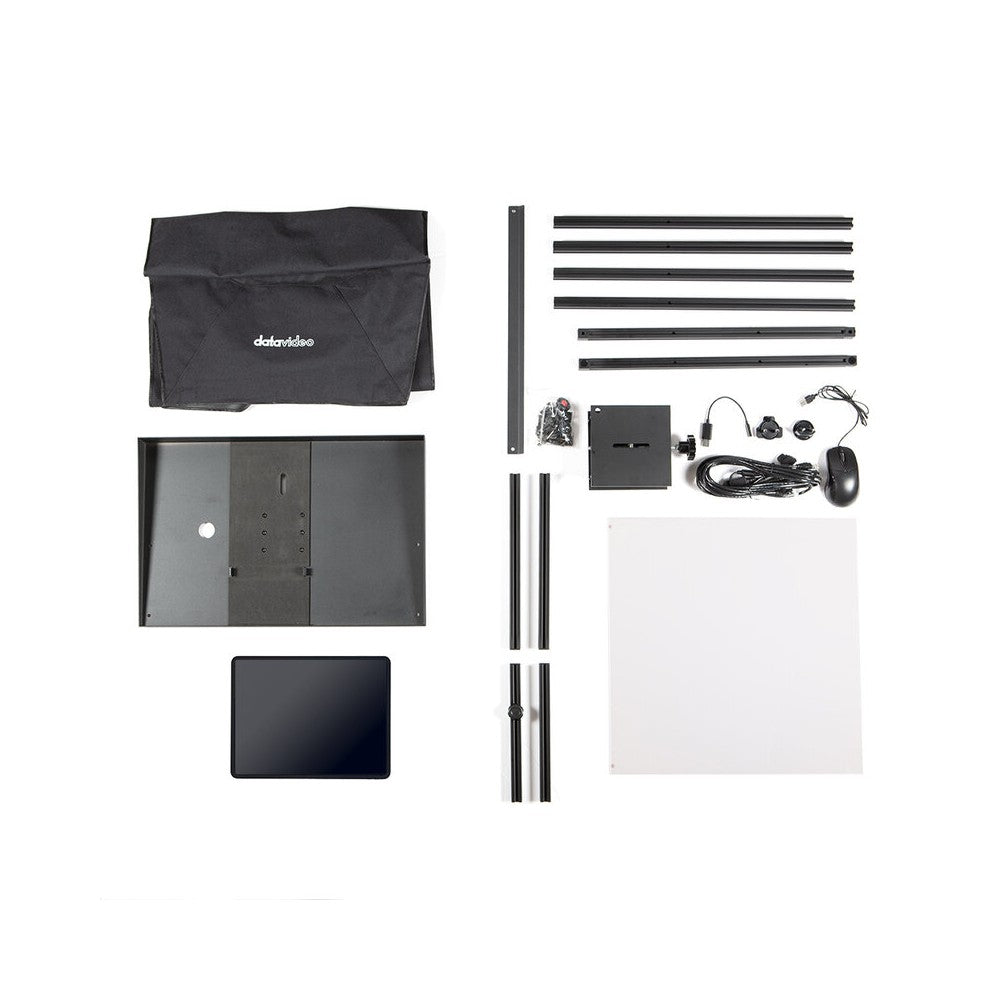

• What's in the box:
  • 1 x adjustable mounting bracket with locking lever
  • 1 x TP-950 metal base tray with tripod plate
  • 1 x 150 x 150 PTZ scissor lift
  • 1 x cloth hood
  • 1 x medium CRV hex tool to remove 90° joining blacks from item Q
  • 1 x 9 mm long ¼ thumb screw with red dot
  • 1 x 9 mm long ¼ thumb screw with washers
  • 12 x 35 mm long thumb screws
  • 6 x 15 mm long thumb screws
  • 1 x 16 mm long thumb screw
  • 1 x 3/8 to ¼ adapter
  • 4 x 565 mm vertical extrusions
  • 2 x 475 mm horizontal extrusions with 90° joining blocks
  • 2 x 325 mm glass support extrusions with single end caps
  • 2 x 250 mm PTZ lift extrusions with both end caps
  • 1 x 70/30 mirror glass
  • 1 x glass support bar
  • 4 x spare black plastic end caps
  • 2 x spare M6 x 14 mm screws
  • 1 x small CRV hex tool to remove the tripod plate from item F
