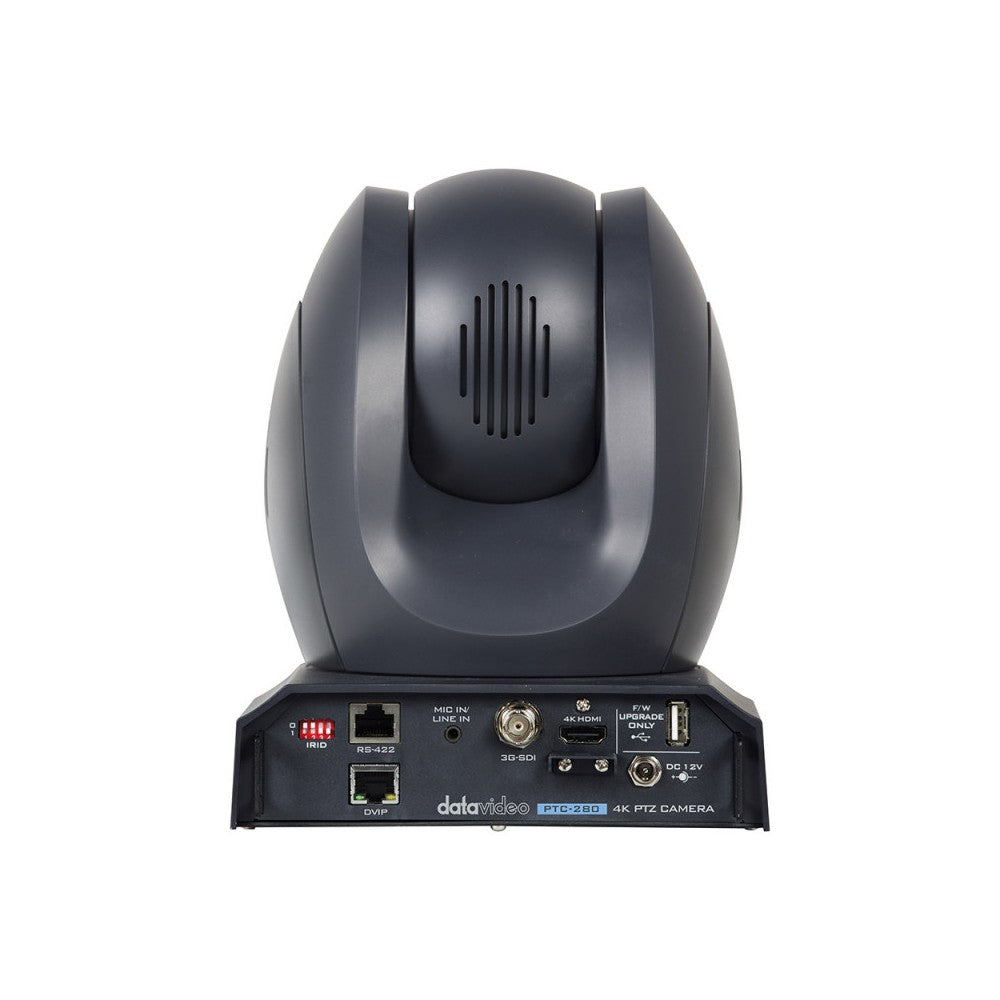

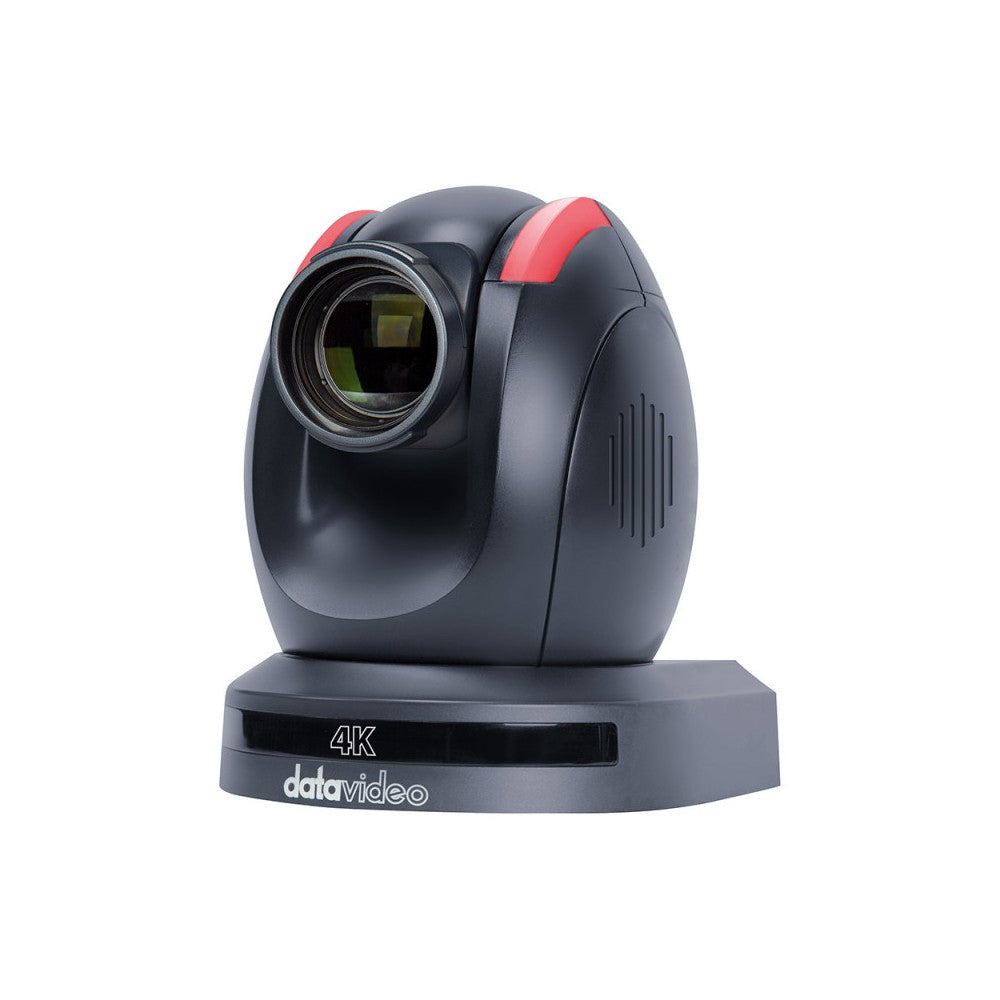

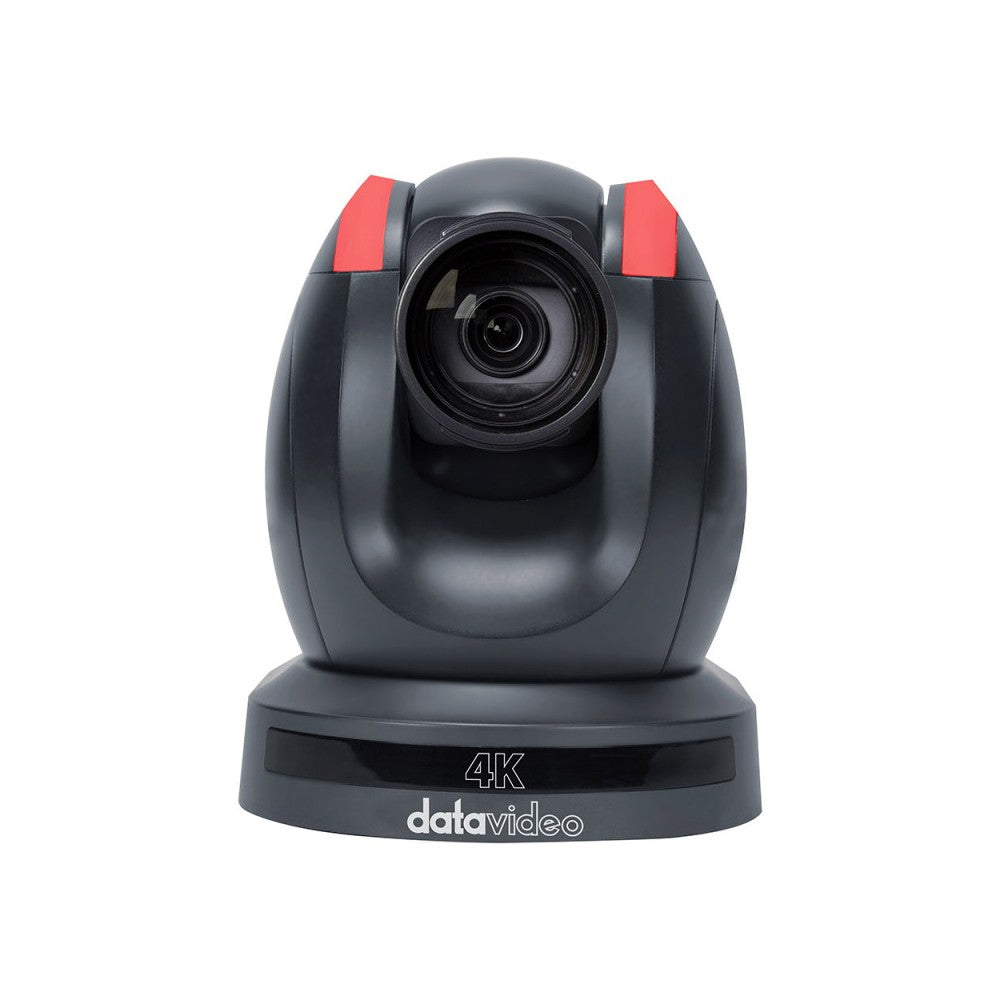

Datavideo UHD PTZ Camera 12xOPT/16xDIG-Zoom
Paga in 3 rate da €656,66 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES
PTC-280 is our first UHD PTZ camera with 50/59.94/60 fps output. It features a 1/2.5" CMOS sensor for AV applications with 12x optical and 16x digital zoom. It has a built-in dual encoder, so in addition to HDMI and 3G-SDI output, streaming at UHDp30 resolution is also possible. An optional NDI-HX module is available.
SPECIFICATIONS
| Video Output Resolution |
HDMI: 3840 x 2160p at 25, 29.97, 30, 50, 59.94, 60 fps SDI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps |
| Image Sensor |
1/2.5" CMOS |
| Effective Pixels (approx.) |
8.51Mega Pixels |
| S/N Ratio |
≥55dB |
| Min. Illumination |
0.5 Lux @ (F1.8, AGC ON) |
| Zoom Ratio |
12x Optical, 16x Digital Zoom |
| Gamma Control |
Off / Normal |
| Iris Control |
Auto / Manual |
| Digital Noise Reductions |
2D/3D Noise Reductions |
| On-Screen Display (OSD) |
English/Simplified Chinese/Traditional Chinese |
| White Balance |
Auto, Indoor, Outdoor, One Push, Manual |
| AGC / Gain Control |
Yes |
| Mirror / Flip Image |
Yes |
| Focus Mode |
Auto/Manual |
| Panning/Tilting Range |
Pan: 300° |
| Panning/Tilting Speed |
Pan: 0.876°/s~43°/s |
| Preset |
255 |
| Focal Length |
12x, f = 6.7mm ~125mm, F1.58 ~ F3.95 |
| Field of View (Horizontal, Wide) |
71° |
| Image Compensation |
Back light compensation |
| Video Output |
HDMI 2.0 x1 ,3G-SDI x1, 10/100/1000M RJ45 x1 |
| Audio Input |
3.5 mm x1 (mic in/line in) |
| Tally LED |
Yes |
| Filter |
N/A |
| Protocol |
Pelco-D, Peldo-P, VISCA, VISCA over IP DHCP, RTSP, RTMP (IP Cam), RTMPS, DVIP |
| Remote Control Interface |
IR , Web UI , RS-422 , DVIP |
| F/W Update |
Via Web UI or USB 2.0 |
| IR Control |
Yes |
| Camera Control Unit |
RMC-180,RMC-300A |
| Video Compression |
H.264/H.265/MJPEG |
| Video Stream |
Dual Stream |
| First Stream Supported Resolution |
3840x2160 , 1920x1080 , 1280x720 , 1024x576 960x540 , 640x480 , 640x360 |
| Second Stream Supported Resolution |
1280x720 , 1024x576 , 720x576 (50Hz) , 720x480 (60Hz) 720x408 , 640x360 , 480x270 , 320x240 |
| Video Bitrate |
32Kbps ~ 50Mbps (Single Stream) |
| Video Bitrate Mode |
VBR, CBR |
| Encoding Framerate |
50Hz: 1-50fps 60Hz: 1-60fps |
| Audio Compression |
AAC |
| Audio Bitrate |
96Kbps, 128Kbps, 256Kbps |
| Supported Protocols |
TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, DHCP, Multicast |
| Power |
DC 12V |
| Power Consumption |
DC 12V |
| Operating Temperature |
0°C ~ 40°C |
| Storage Temperature |
-40°C ~ 60°C |
| Dimension (mm) |
173 (W) x 219 (H) x 189.08 (D) |
