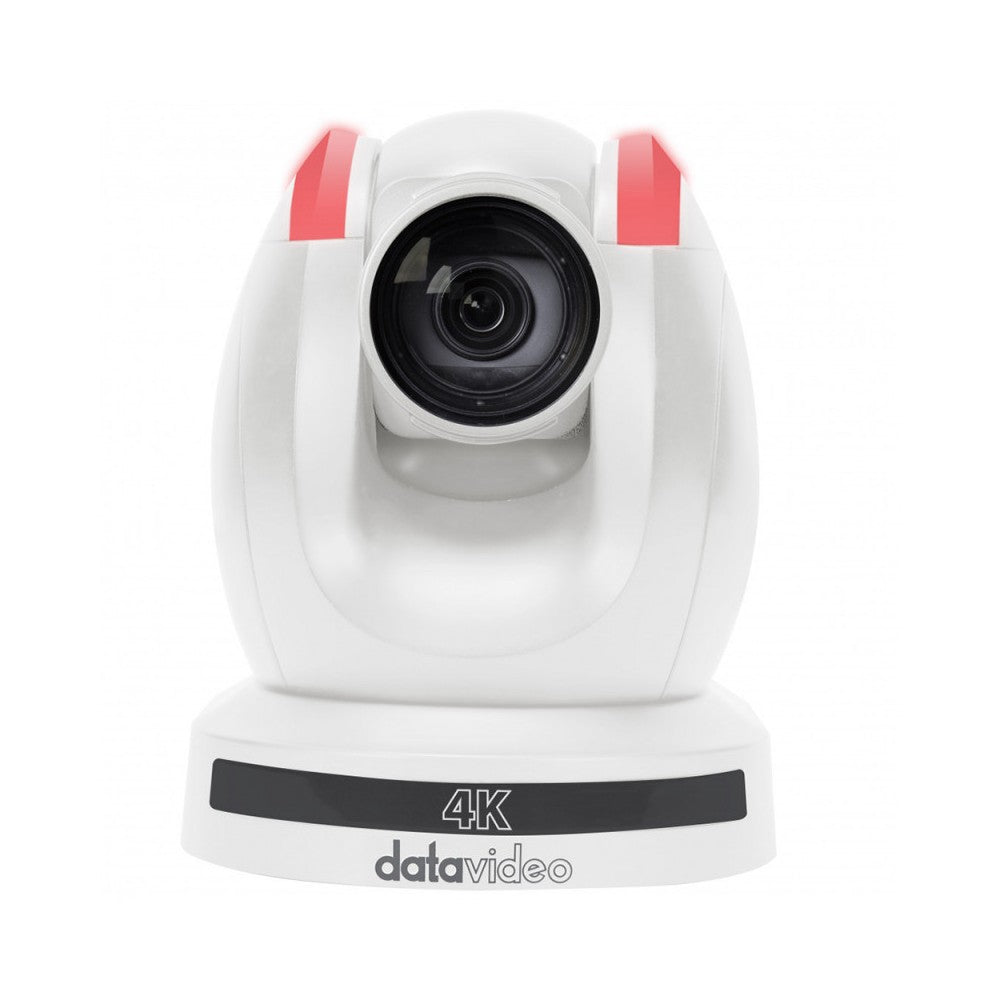

Datavideo UHD PTZ Camera 20xOPT/16xDIG-Zoom, White
Paga in 3 rate da €852,66 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES
4K (UHD) PTZ camera with a 1/1.8" CMOS sensor for broadcast applications with 20x optical and 16x digital zoom. It features a built-in dual encoder, so in addition to HDMI and 3G-SDI output, it can also stream to two different services (4K30p + 720p30, bit-rate: 32Kbps ~ 50Mbps). Serial port and DVIP, audio input, optional NDI-Hx / PoE. This model differs from the PTC-280 due to a better sensor, lenses and optical zoom. (White)
SPECIFICATIONS
- Video format/Resolution HDMI: 2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 SDI: 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 (2160p 60/59.94/50 YUV 4:2:0 only)
- Image Sensor: 1/1.8" CMOS
- Effective Pixels (approx.): 8.42Mega Pixels
- S/N Ratio: ≥55dB
- Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/30s ~ 1/10000s
- Zoom Ratio: 20x Optical, 16x Digital Zoom
- Gamma Control: Off / Normal
- Iris Control: Auto / Manual
- Digital Noise Reductions: 2D/3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
- AGC / Gain Control: Yes
- Mirror / Flip Image: Yes
- Focus Mode: Auto/Manual
- Panning / Tilting Range: Pan: 300° Tilt: +130° to -15°
- Panning / Tilting Speed: Pan: 0.876°/s~43°/s Tilt: 0.693°/s ~21.32°/s
- Preset: 255
- Focal Length: 20x, f = 6.7mm ~125mm, F1.58 ~ F3.95
- Field of View (Horizontal, Wide): 60°
- Image Compensation: Back light compensation

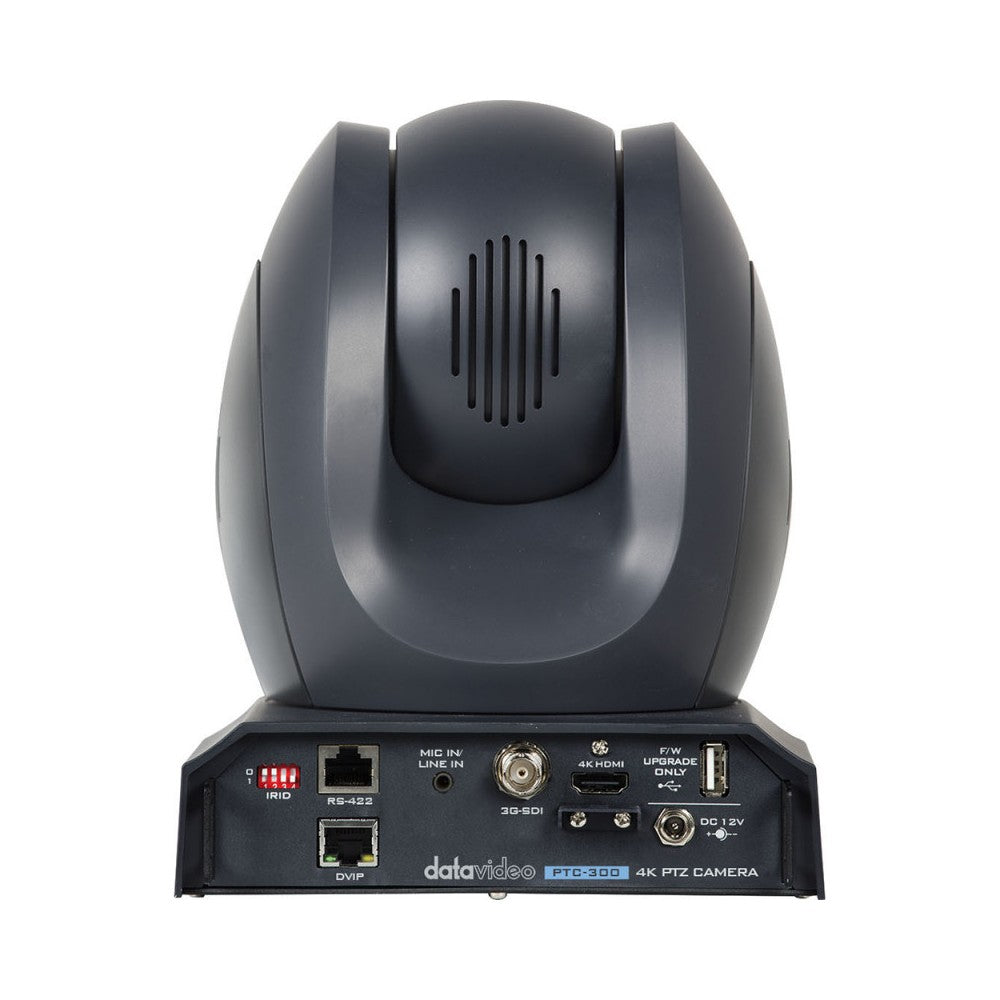

- Video Output: HDMI 2.0 x1, 3G-SDI x1, 10/100/1000M RJ45 x1
- Audio Input: 3.5mm x1
- Tally LED: Yes
- Lens Filter: N/A
- Control Protocol: Pelco-D, Peldo-P, VISCA, VISCA over IP, DHCP, RTSP, RTMP (IP Cam), RTMPS,, DVIP
- Remote Control Interface: IR, Web UI, RS-422, DVIP
- Video Compression Format: H.264/H.265/MJPEG
- Audio Compression Format: AAC
- Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
- HD IP Interface: ----
- Streaming Protocols: TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
- First Stream Supported Resolution: 3840x2160, 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360
- Second Stream Supported Resolution: 1280x720, 1024x576, 720x576 (50Hz), 720x480 (60Hz), 720x408, 640x360, 480x270, 320x240
- Video Bitrate: 32Kbps ~ 50Mbps (Single Stream)
- Video Bitrate Mode: VBR, CBR
- Encoding Frame rate: 50Hz: 1-50fps, 60Hz: 1-60fps
- POE: N/A
- F/W Update: Via Web UI or USB 2.0
- IR Control: Yes
- Camera Control Unit: RMC-180 series/RMC-300 series/PTZ View Assist APP
- Tripod Mount: 1/4-20 UNC
- Optional Accessories: WM-1/ WM-10/ WM-11
- Color: White
- Dimension (LxWxH): 173 (W) x 219 (H) x 189.08 (D)
- Weight: 2.6 kg
- Operating Temp. Range: 0~40 °C
- Power: DC 12V
Couldn't load pickup availability
