ELDOLED DUALdrive AC - 100 W Constant Current - DALI - 2 Drivers, 4 Outputs - DL1060A1
Estimated delivery in Italy between 21 and 25 August
Pay in 3 installments of €73,66 interest-free
Pay in 3 installments of €73,66 interest-free with PayPal
Split into 3 installments of €73,66 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
Constant Current - DALI - 2 Drivers, 4 Outputs - DL1060A1
The DUALdrive AC - 100W is a dimmable LED driver with flicker-free dimming down to 0.1%. It can drive up to 100 watts of power across 4 outputs. It has two control channels and is compatible with the DALI control signal environment (version 1) and LEDcode. Its Hybrid HydraDrive dimming method has been proven to work in TV studios and environments with security cameras. The DUALdrive AC - 100W is protected against short circuits, output overload, reverse polarity, and thermal overload. An external NTC can be connected to monitor LED temperature for thermal protection of the LEDs.SPECIFICATIONS
- Control mode: DALI
- DALI ballast: 2 control channel
- Protocols: DALI 2
- Dimmable: Yes
- Power supply: 100-240 V AC 50/60 Hz
- Minimum output voltage Vf/Vo: 2 V DC
- Maximum output voltage Vf/Vo: 57 V DC
- Power consumption: 100 W
- Minimum output current (mA): 200 mA
- Maximum output current (mA): 1050 mA
- Power input connection: Open end
- Power output connector: Open end
- Data input connection: Open end
- Data output connection: Open end

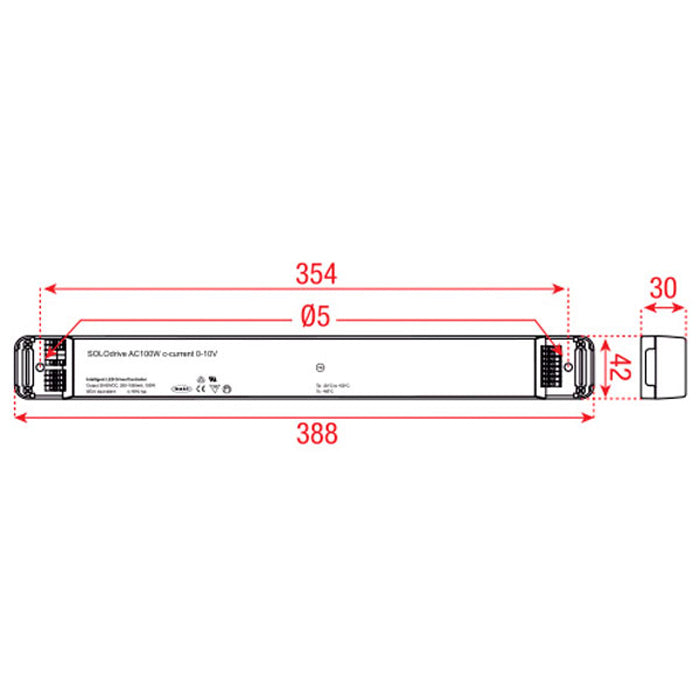

- Length (mm): 388 mm
- Height (mm): 30 mm
- Width (mm): 42 mm
- Weight: 0.666 kg
- IP rating: IP20 (indoor use only)
- Material: Metal
- Housing: Metal / Plastic
- Color: White
- Maximum ambient temperature: 50 °C
- Minimum ambient temperature: -40 °C
- Included accessories: None
