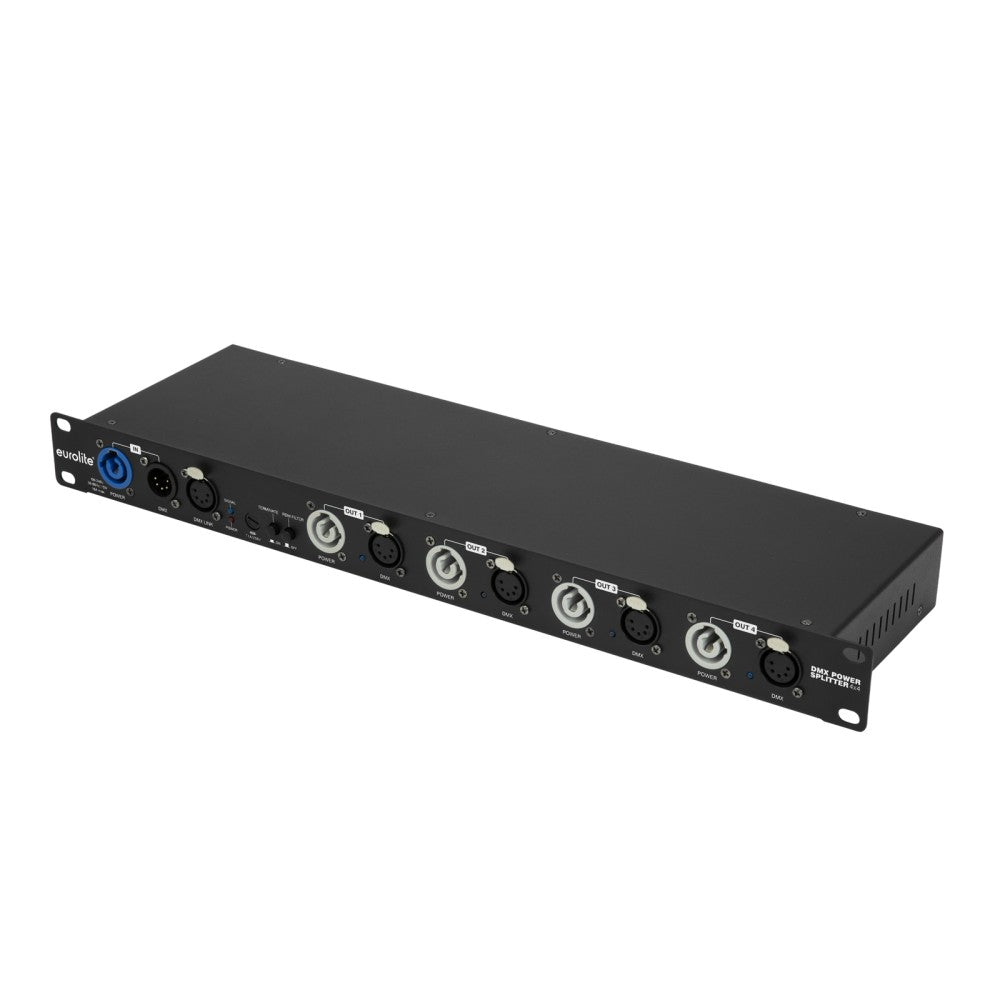

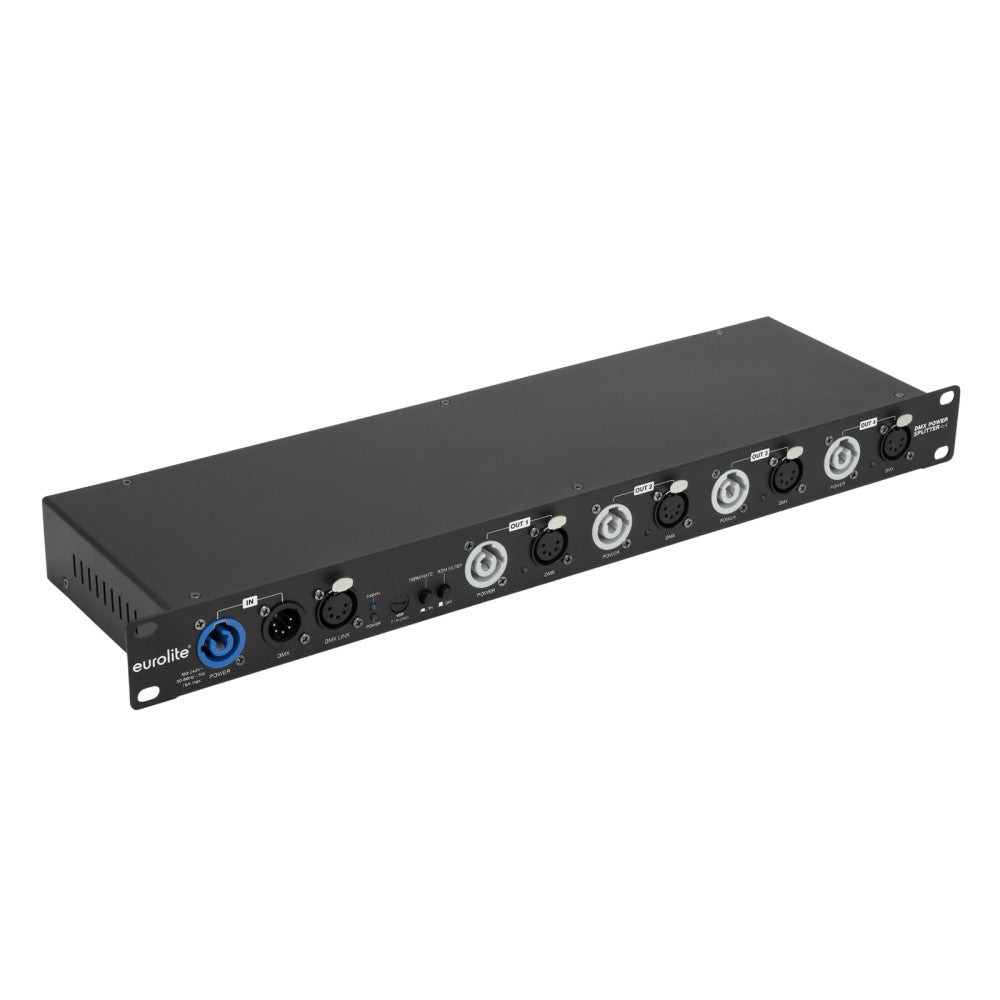

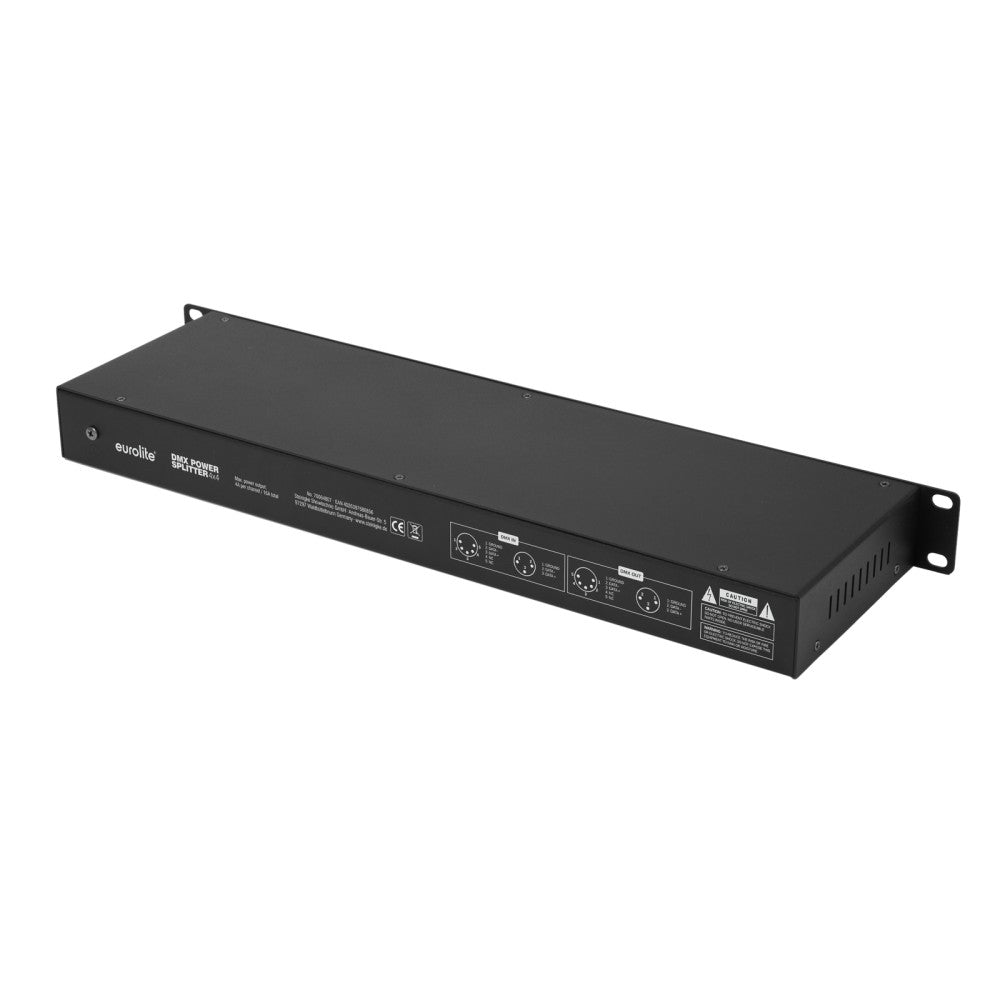

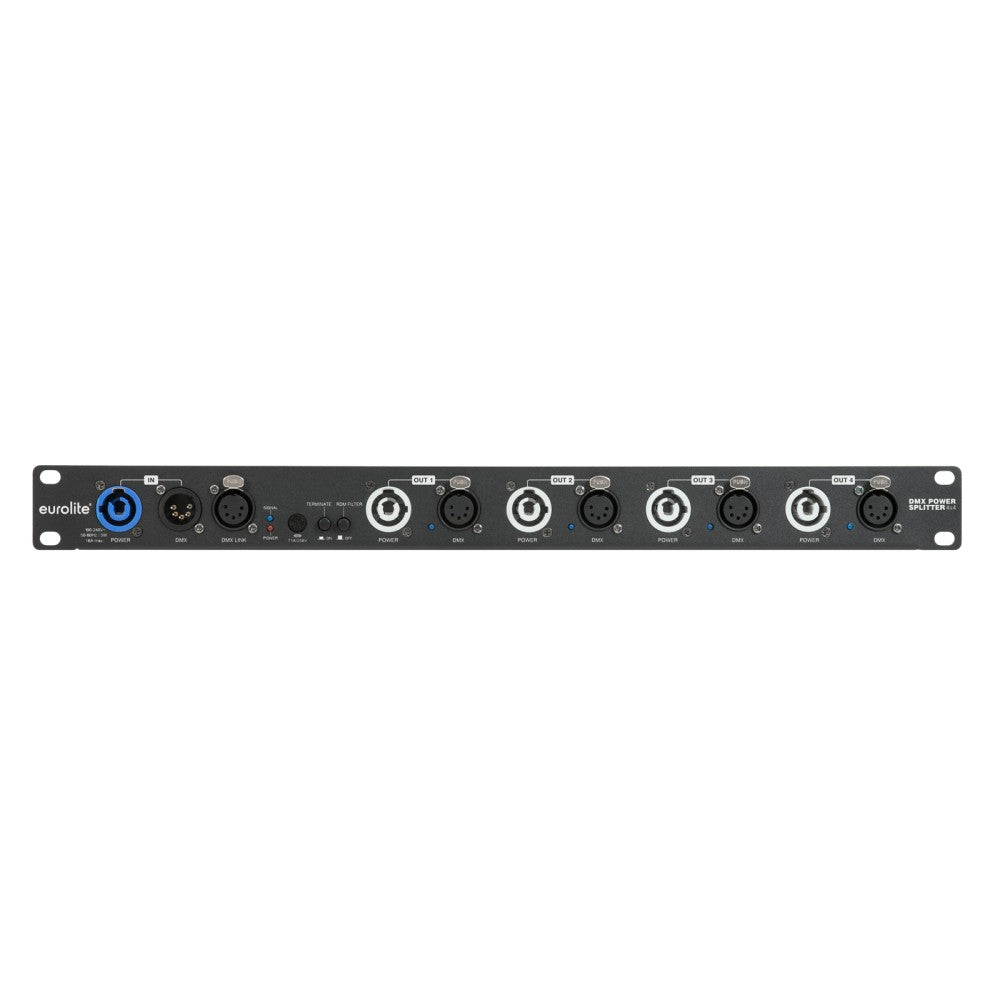

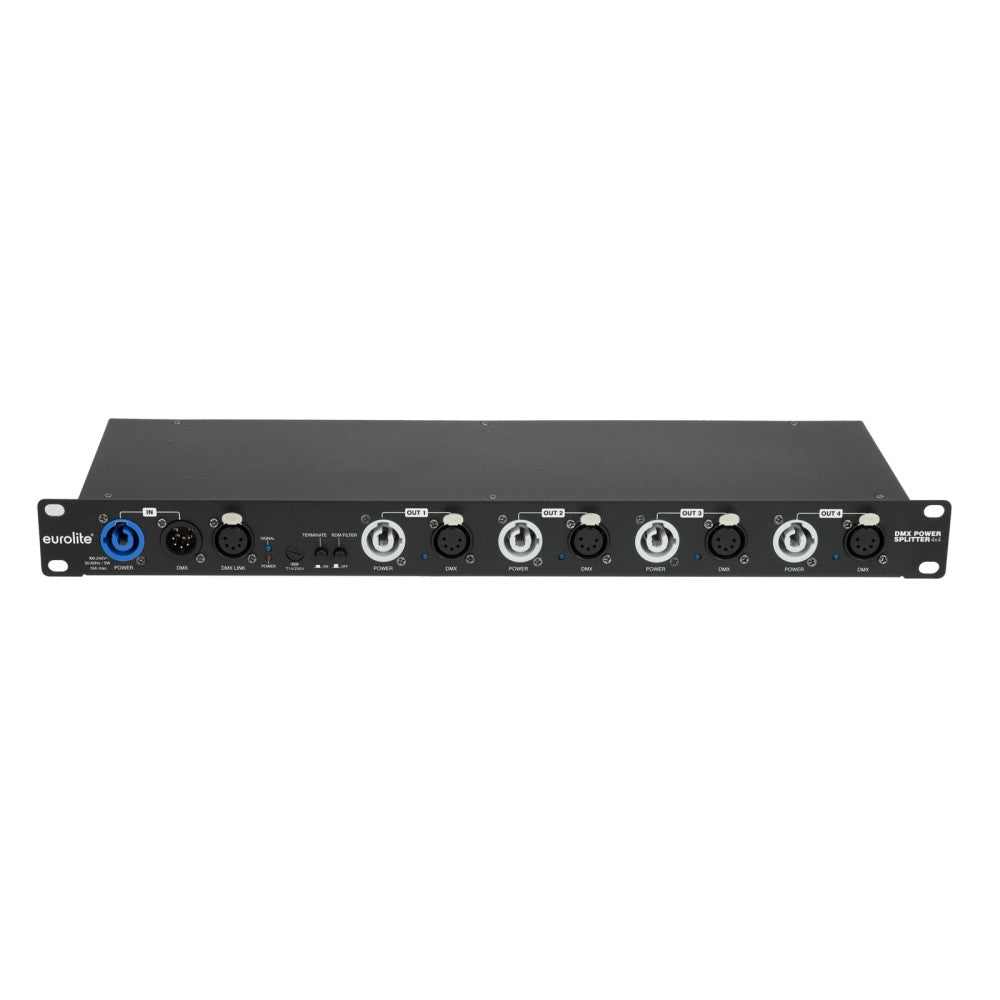

EUROLITE DMX Power Splitter 4x4 5-pin XLR
Estimated delivery in Italy between 16 and 18 June
Paga in 3 rate da €59,60 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
4-way splitter
The Quadruple splitter is designed for reliable distribution of DMX512 signals and operating voltage (max. 16 A). The unit features one DMX input and four DMX outputs with status indicators, as well as a thru terminal for connecting to an additional splitter. The mains connectors are designed as P-Con sockets. The splitter supports RDM for bidirectional communication on the DMX line and is suitable for rack mounting.1 in/4 out power and DMX splitter with RDM support for rack mounting
1 P-Con input to 4 outputs, max. 16 A
1 DMX input to 4 outputs
1 DMX thru output
RDM support
Switchable RDM filter mode
Switchable termination resistor
Galvanically isolated input and outputs
Each DMX output with independent driver and status indicator
Combined power DMX cables available as accessories
Control via RDM
Rack installation (19") 48.3 cm 1 U
Specifications
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 5 W
- Output current: max. 4 x 4 A per channel
- Power connection: P-Con (blue), mounting version
- Power output: 4 x P-Con (gray), mounting version
- DMX input: 1 x 5-pin XLR (F)
- DMX output: 4 x 5-pin XLR (F)
- Control: RDM
- Housing design: Rack installation (19") 48.3 cm 1 U
Dimensions: Width: 48.3 cmDepth: 13.8 cmHeight: 4.3 cm
Weight: 2.50 kg
