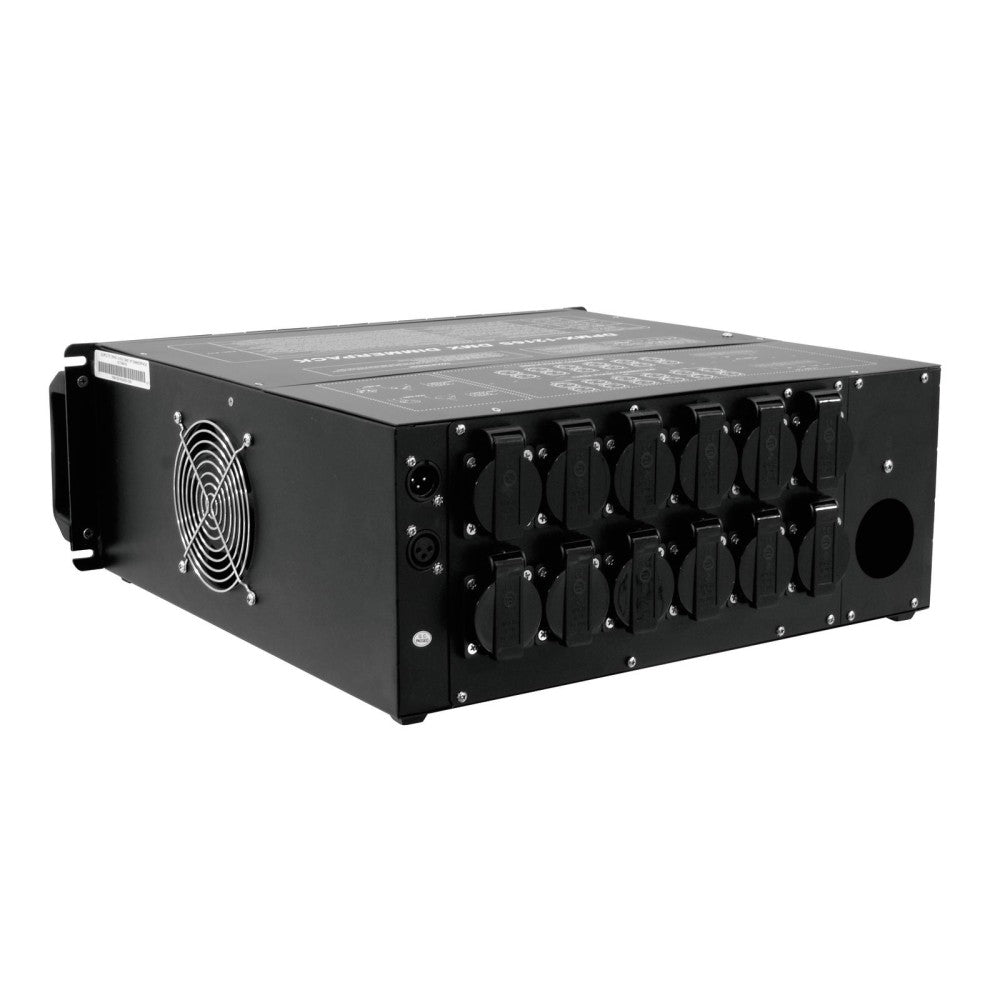

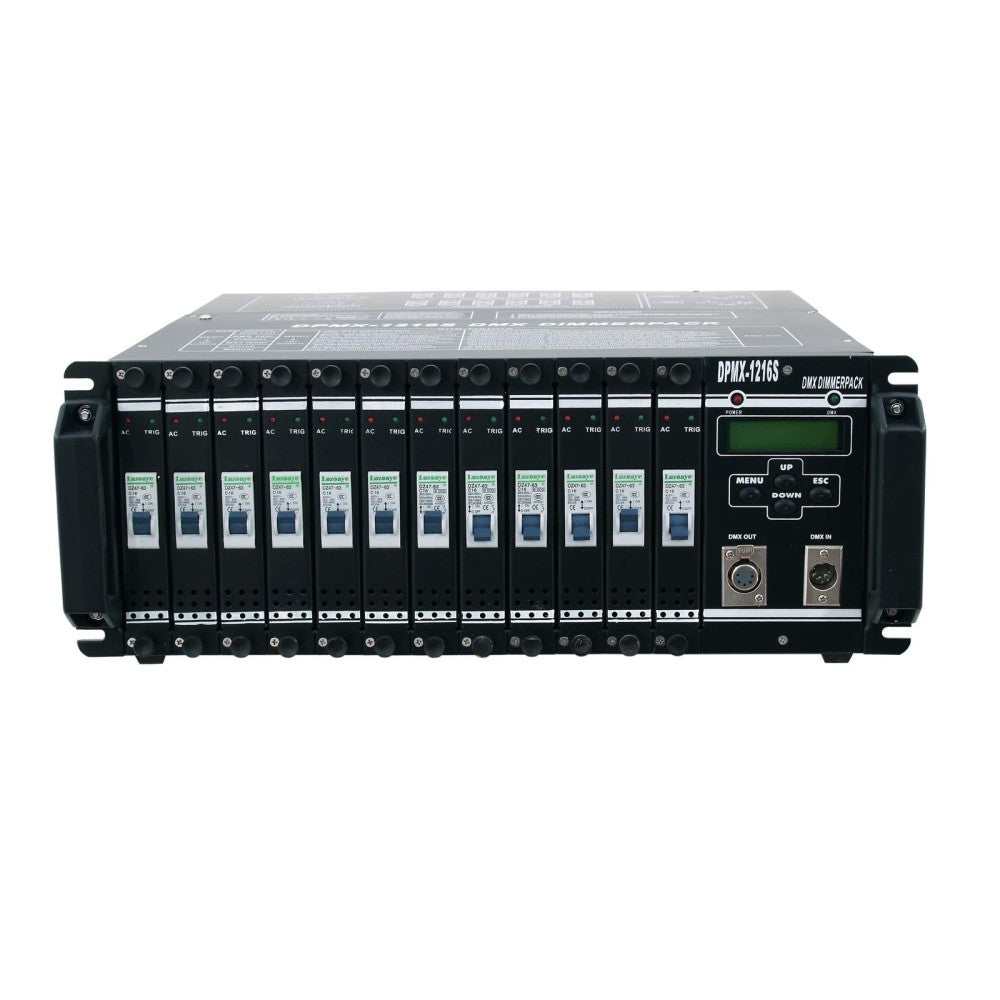

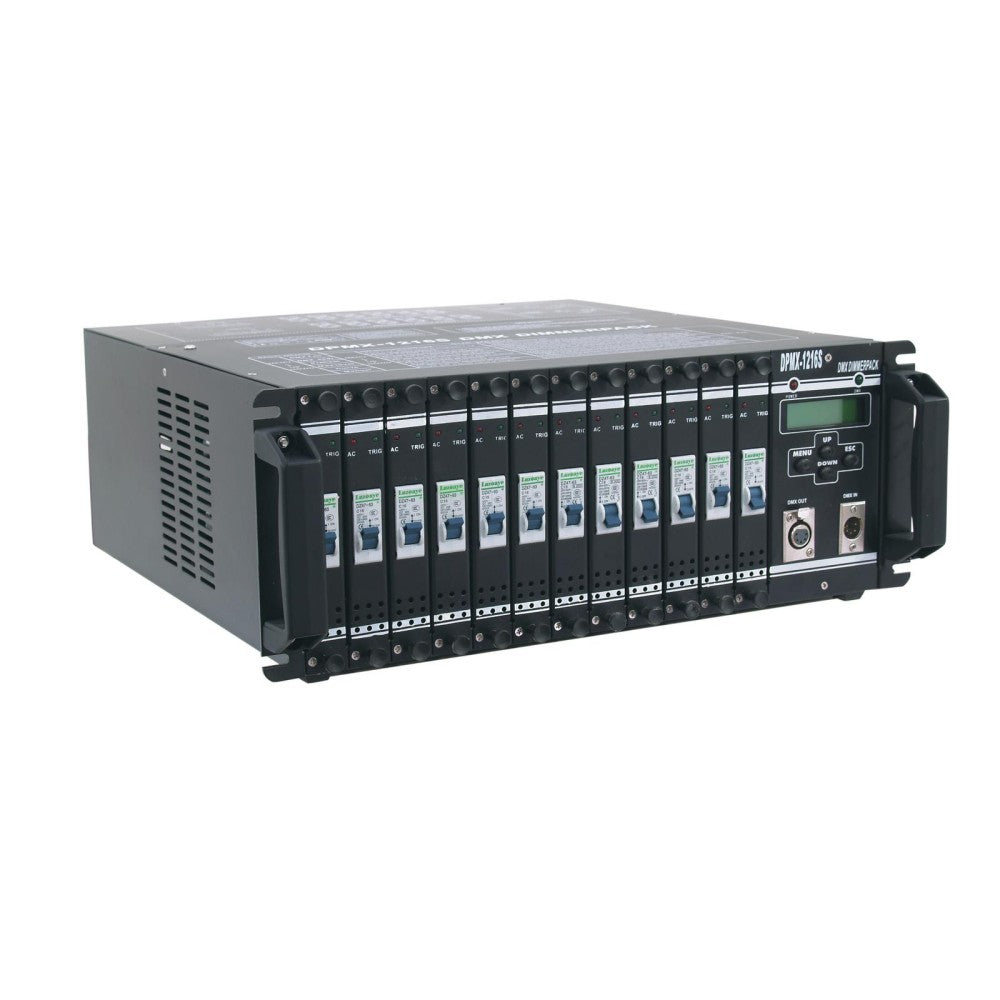

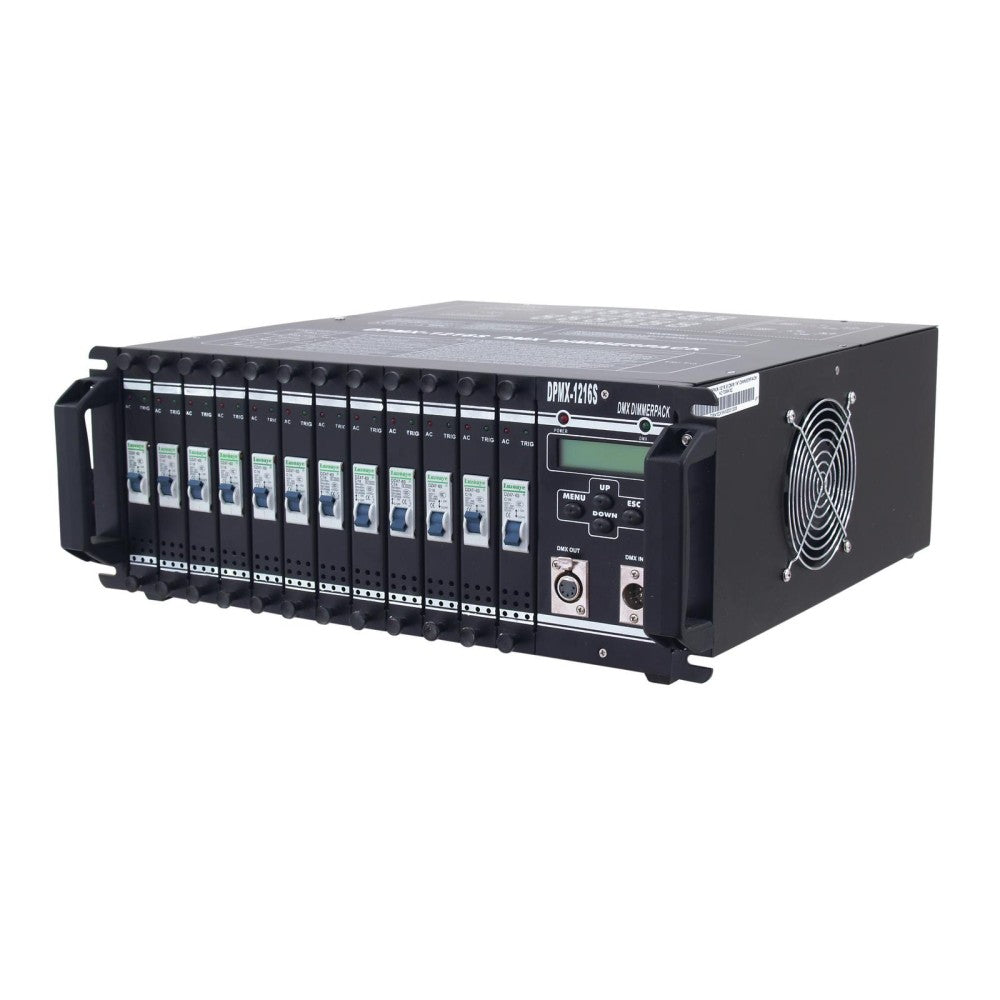

EUROLITE DPMX-1216 S DMX Dimmer Pack
Estimated delivery in Italy between 16 and 18 June
Paga in 3 rate da €340,00 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
12 x 16A Dimmer
The DPMX-1216 dimmer pack series is the right answer here because it plays it safe: this universal output stage has a circuit breaker on each channel, so individual faults can be corrected without causing a complete blackout. Another advantage is the different outputs. Pole connector, safety plug, CEE or multipin: the DPMX-1216 19" really serves any type.
Specifications
- 12-channel dimmer pack with up to 16 A output per channel
- Modular design of individual dimmer modules for quick and easy replacement
- Three-phase or single-phase power supply
- DMX512 control or analog control
- Adjustable lamp pre-heat (0-50%) and limiter function to extend bulb life
- Curve function for selecting different fade modes
- Dimmer or switch option assignable to each channel
- DMX Fail function: automatic digital input check for DMX signal errors
- 12 built-in programs with adjustable speed
- Manual mode for dimming function without an external lighting controller
- All modes are displayed via LCD
- Synchronization of several devices possible via DMX
- Circuit breaker per channel (C type)
- Channel outputs on the rear panel via safety sockets
- Rack installation with 4 U
- For professional use only
- 12 preprogrammed chases
- Can be operated in 12 CH mode
- Control by analog 0-10 V; Stand-alone; DMX
- 48.3 cm (19") rack installation 4 U
- Power supply: 230/380 V AC, 50 Hz
- Output power: max. 43470 W
- Max. 3680 W per channel
- Output current: max. 189 A
- Power connection: Mains input screw terminal
- Output power: 12 x Safety contact (F), cover mounting version hinged
- Fuse: Power output per channel C Fuse 16 A resettable
- Programs: 12 preprogrammed chases
- DMX channels: 12
- DMX input: 1 x 3-pin XLR (M) mounting version
- DMX output: 1 x 3-pin XLR (F) mounting version
- Control: analog 0-10 V; Stand-alone; DMX
- Control channels: 12
- Color: Black
- Housing design: 48.3 cm (19") rack installation 4 U
- Dimensions: Width: 48.3 cm
- Depth: 52.0 cm
- Height: 17.8 cm
- Weight: 18.70 kg
