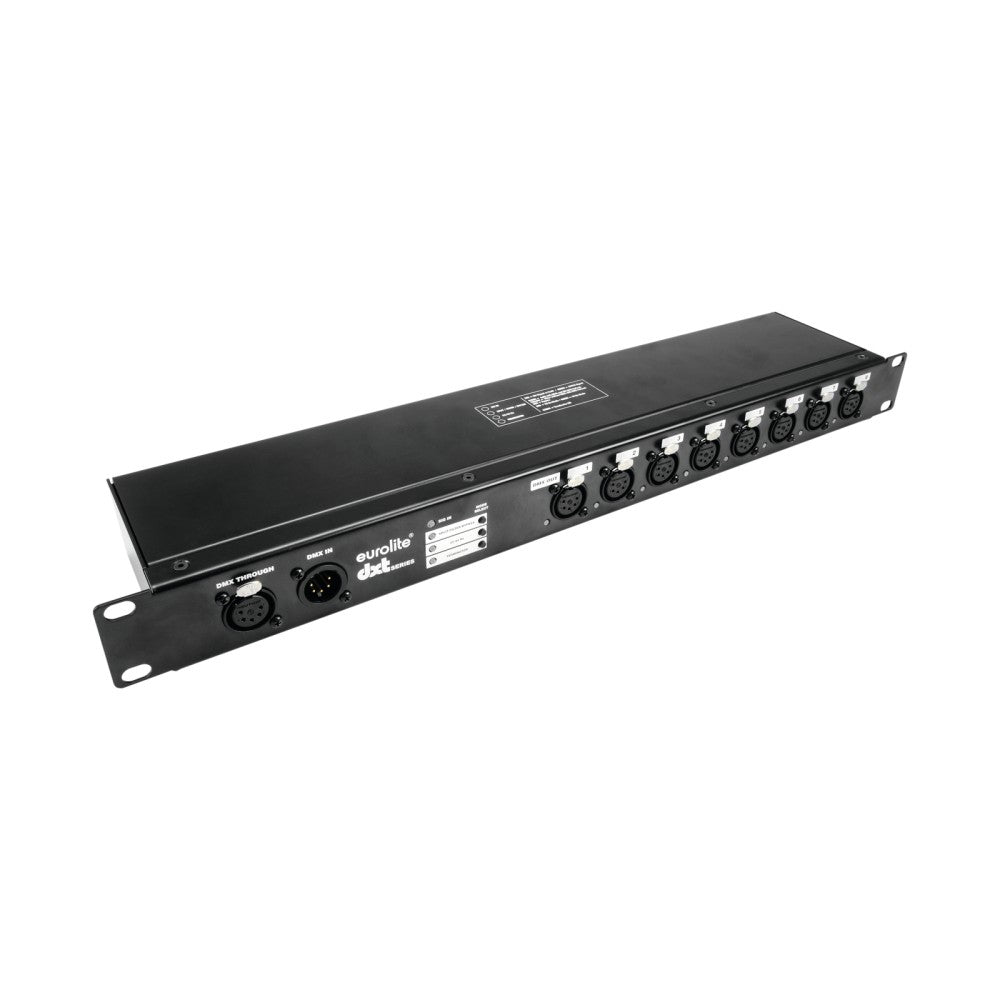

EUROLITE DXT-SP 1in/8out PRO DMX RDM Splitter 5-pin XLR
Estimated delivery in Italy between 16 and 18 June
Paga in 3 rate da €138,33 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
5-Pin DMX Splitter RDM compatible, 1in/8out with signal boost
SPECIFICATIONS
- DMX splitter for splitting one DMX input signal into 8 DMX outputs
- Connections: 2 x DMX inputs (parallel), 2 x DMX feed-through outputs (parallel), 8 x DMX outputs
- Input and feed-through output are duplicated on the front and rear panel and wired in parallel
- Supports RDM for bi-directional communication on the DMX line
- Switchable filter mode allows filtering out all RDM data to avoid problems when using RDM-intolerant devices
- Bypass function to process signals from older devices similar to DMX signals
- Adjustable output refresh rate: 22/44 Hz
- Selectable DMX fail mode: hold, blackout, null
- Switchable termination resistor
- 5-pin XLR input and outputs (Neutrik)
- Galvanically isolated outputs
- Each DMX output with independent driver and status indicator
- Each DMX output can be connected to 32 DMX devices
- DMX feed-through for up to 32 additional DMX devices
- RDM For bi-directional communication on the DMX line
- Switchable RDM to avoid problems when using devices without RDM
- Built with NEUTRIK connector
- (19") 48.3 cm rack installation 1 U
- Made in Germany
- <Power supply: 100-240 V AC, 50/60 Hz
- 12 V DC 1 A
- Power consumption: 6 W
- Power connection: Mains input IEC connector (M) mounting version power supply cord with AC adapter (provided)
- DMX input: 2 x 5-pin XLR (M) mounting version
- DMX output: 2 x 5-pin XLR (F) mounting version Bypass 8 x 5-pin XLR (F) mounting version separated (galvanic) with independent driver and status indicator
- DMX features: DMX feed-through for up to 32 additional DMX devices
- RDM For bi-directional communication on the DMX line
- Switchable RDM to avoid problems when using devices without RDM
- Use of brands: Built with NEUTRIK connector
- Housing design: (19") 48.3 cm rack installation 1 U
DIMENSIONS
- Width: 48.3 cm
- Depth: 10 cm
- Height: 4.43 cm
- Weight: 1.92 kg
