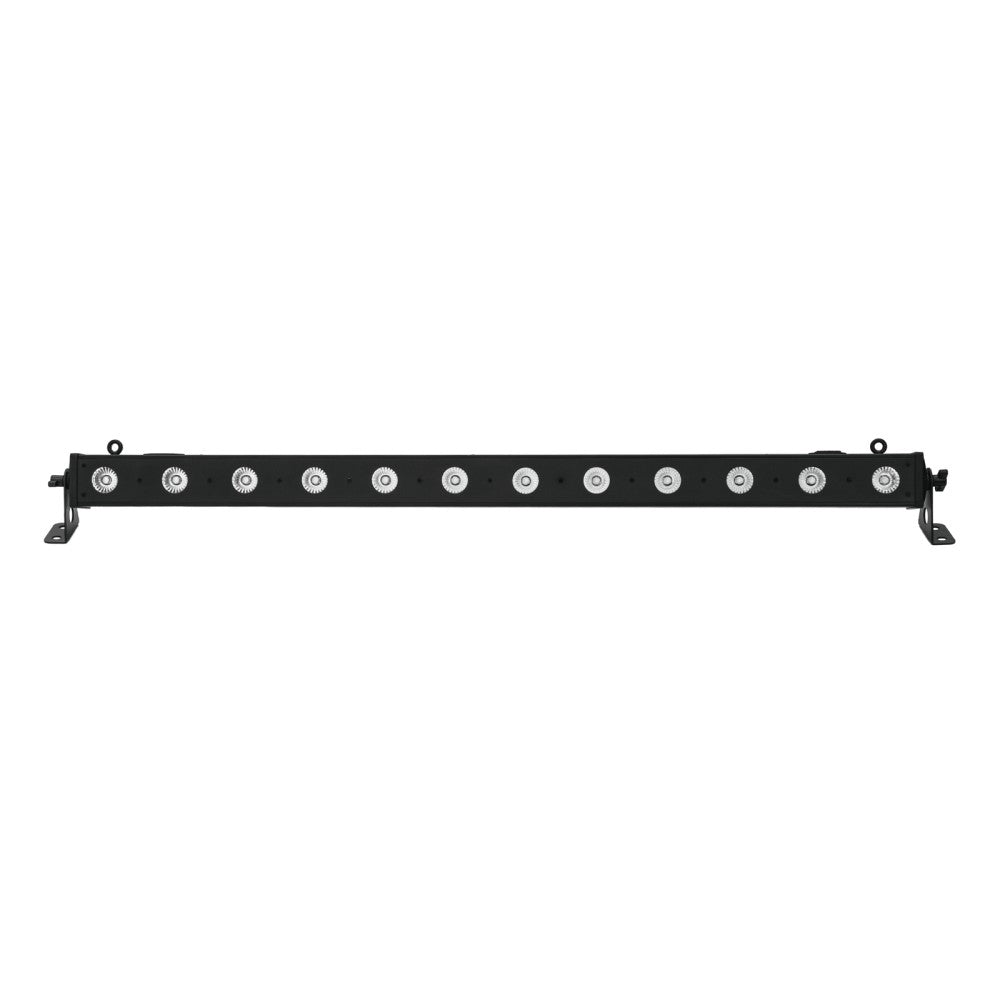

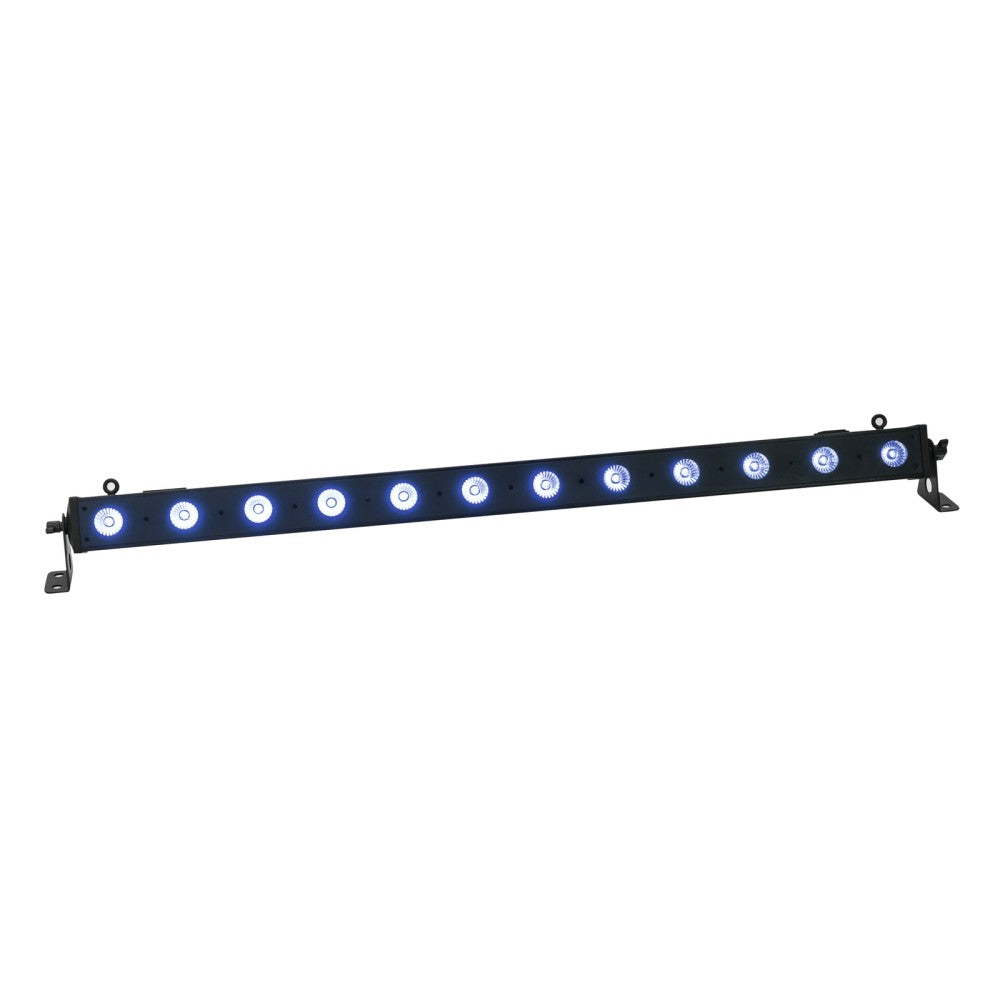

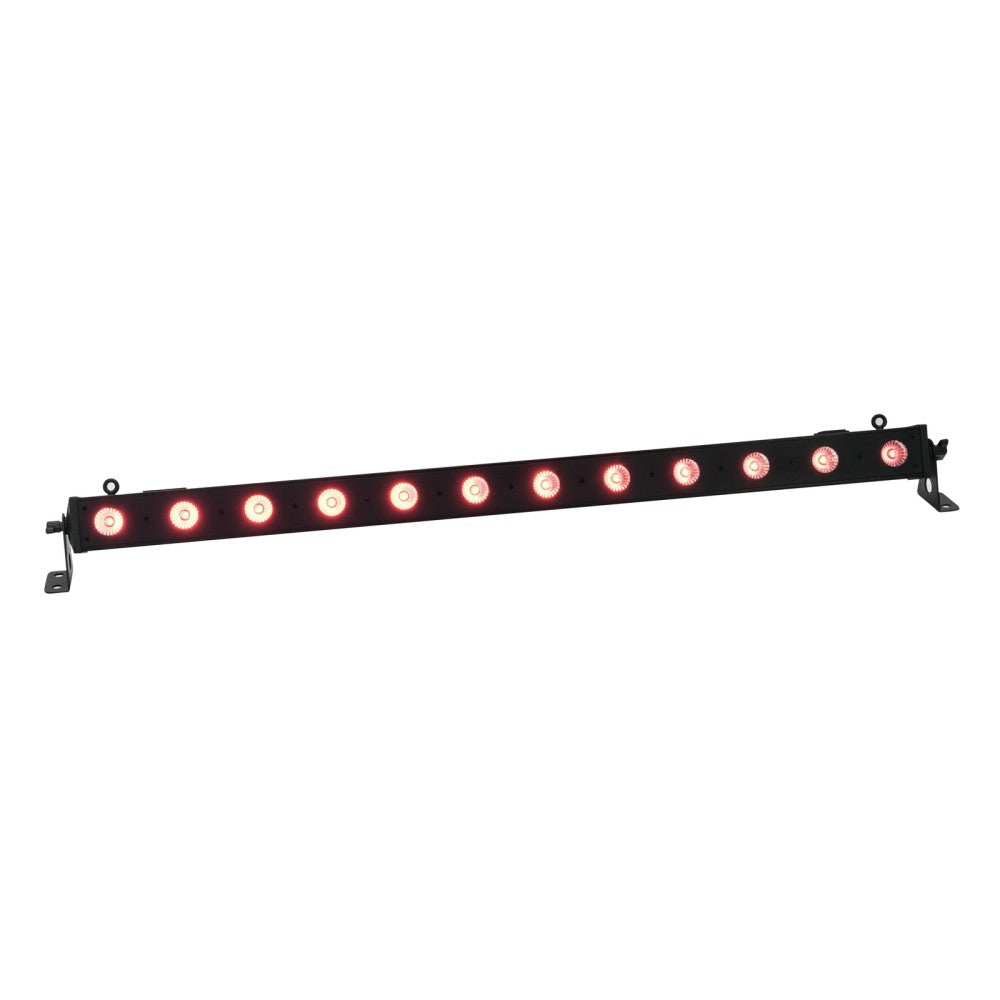

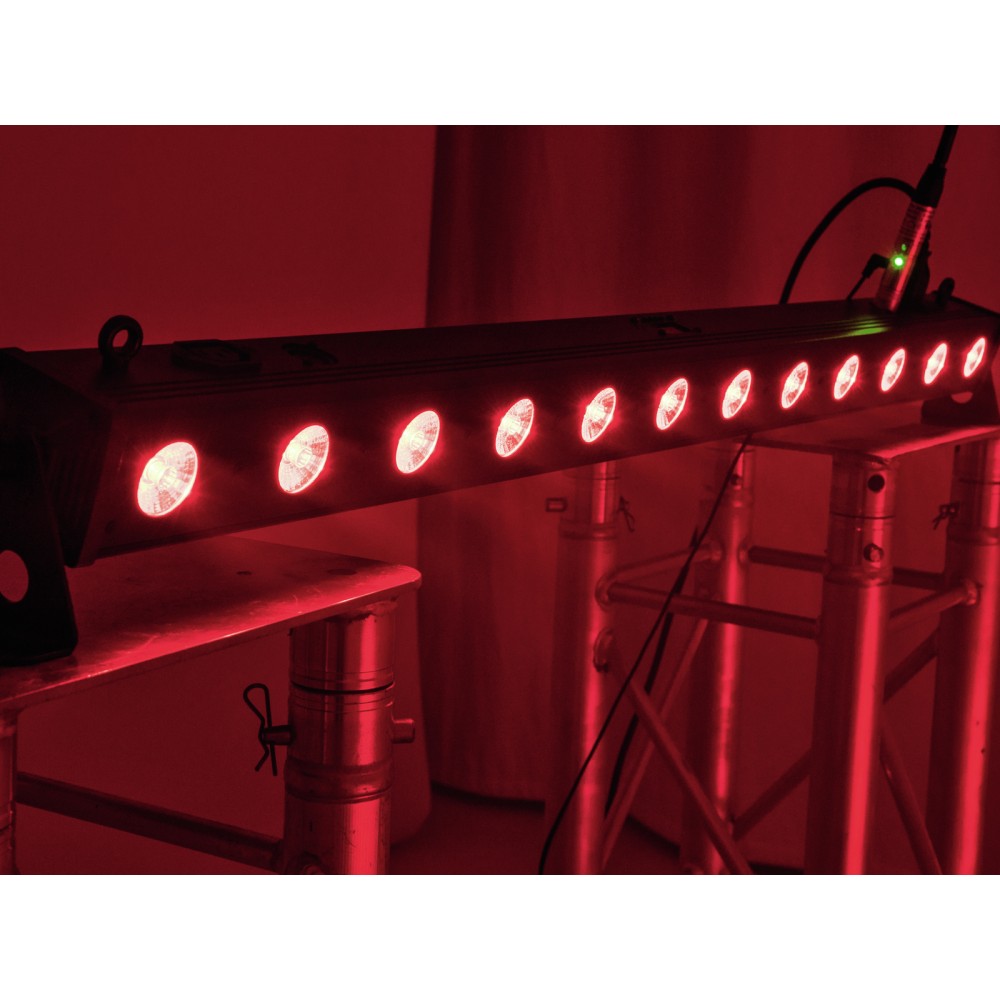

EUROLITE LED BAR-12 QCL RGBA
Estimated delivery in Italy between 16 and 18 June
LED bar (110 cm) with 12 x 4 W 4in1 LEDs (RGBA)
SPECIFICATIONS
- Standalone or DMX mode
- Supports QuickDMX - the wireless DMX system from Eurolite
- Integrated USB port with phantom power for QuickDMX, CRMX and WDMX receivers (optional)
- Control panel with LED display for easy configuration
- Stepless color mixture, color change, dimmer and strobe effect
- Equipped with 12 x 4 W QCL LEDs in colors red, green, blue and amber
- Swivel mounting bracket
- Mains input and output for power linking up to 8 units
- LED: 12 x 4 W 4in1 QCL RGBA (homogeneous color mix)
- Can be operated in 2; 4; 5; 6; 9 CH mode
- The device is cooled by passive convection
- Control: Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional)
- Preprogrammed in LED PC-Control 512; EASY SHOW; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
- Flicker-free projection
- Effect: Strobe effect
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 24 W
- IP classification: IP20
- Power connection: Mains input IEC connector (M) mounting version power supply cord with safety plug (provided)
- Power output: 1 x IEC connector (F) mounting version
- Lamp type: LED lamp
- LED: 12 x 4 W 4in1 QCL RGBA (homogeneous color mix)
- Flash rate: 0 - 20 Hz
- DMX channels: 2; 4; 5; 6; 9
- DMX input: 3-pin XLR (M) mounting version
- DMX output: 3-pin XLR (F) mounting version
- Cooling: Passive convection
- Control: Standalone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); LED PC-Control 512; EASY SHOW; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
- Beam angle: 17°
- Beam angle (1/2 peak): 17°
- Housing color: Black
- Display type: 4-digit 7-segment LED display
DIMENSIONS
- Length: 1.09 m
- Depth: 6.5 cm
- Height: 10 cm
- Weight: 2.90 kg
