Evolite Diamond 1940z IP set
Estimated delivery in Italy between 23 and 30 October
Pay in 3 installments of €1.574,00 interest-free
Pay in 3 installments of €1.574,00 interest-free with PayPal
Split into 3 installments of €1.574,00 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
CARATTERISTICHE

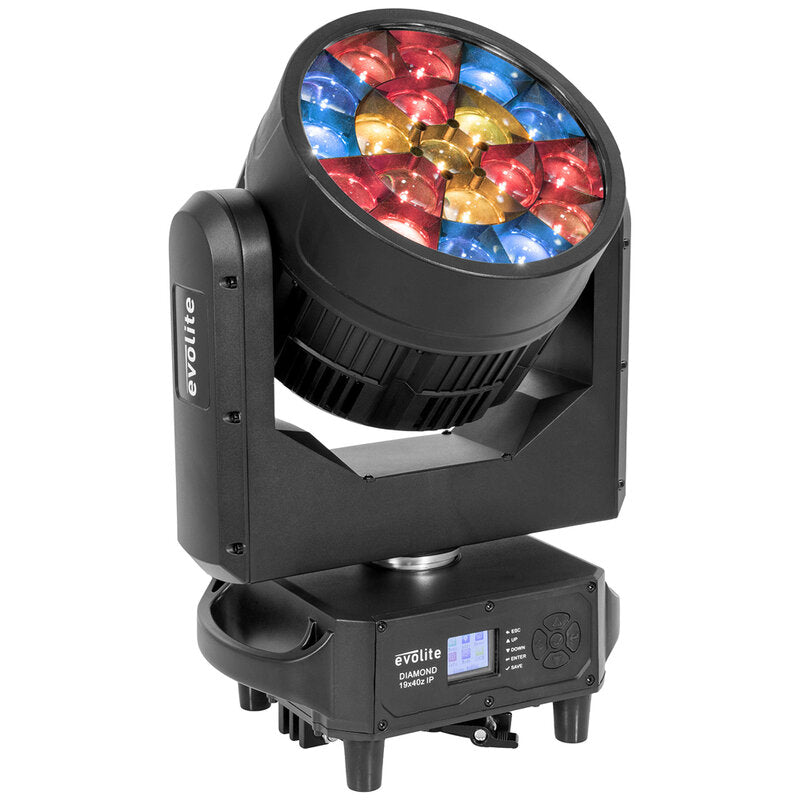

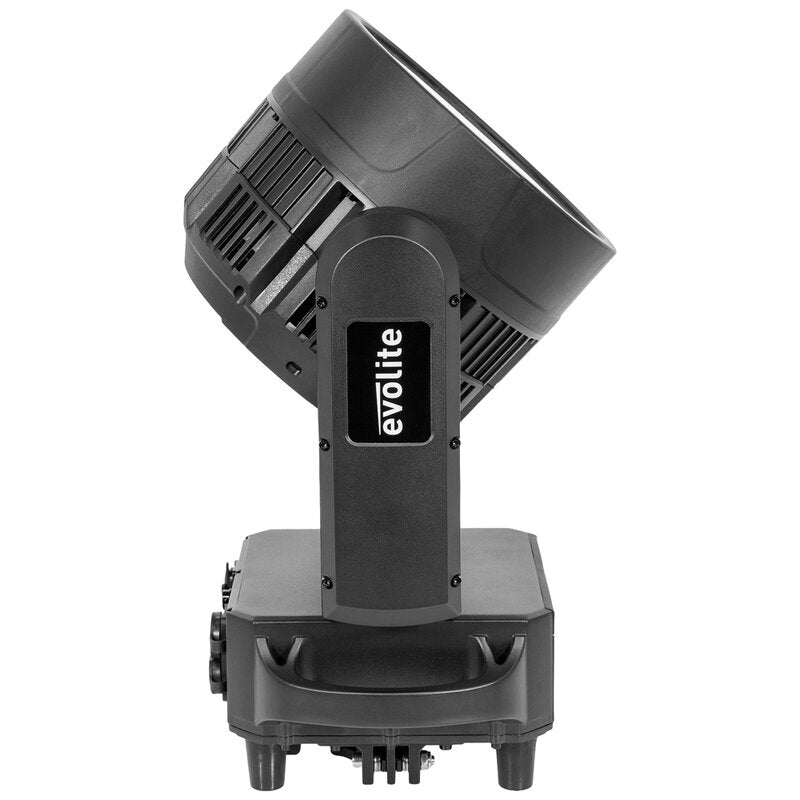

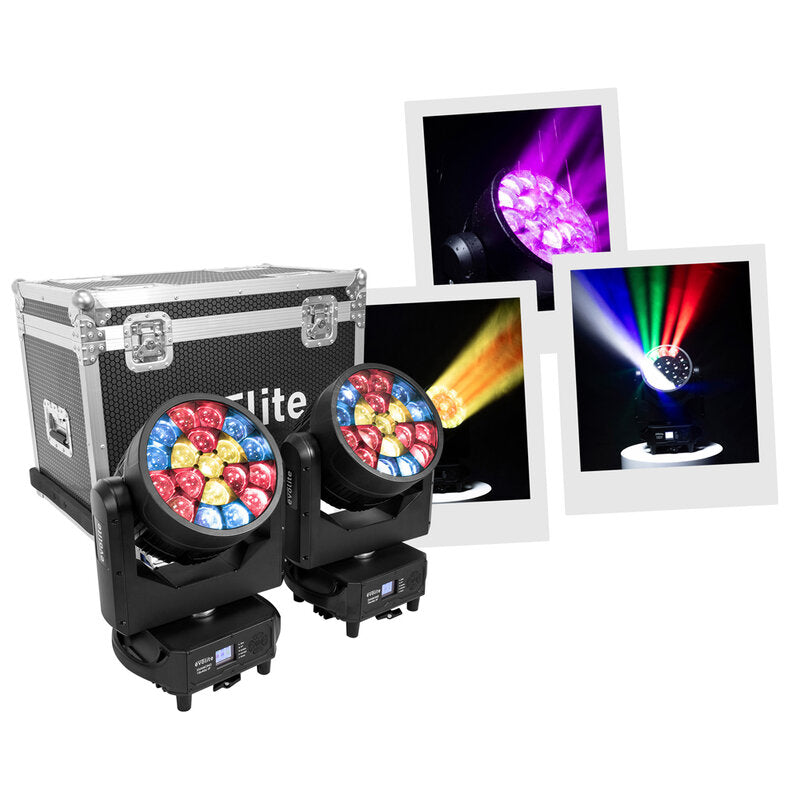

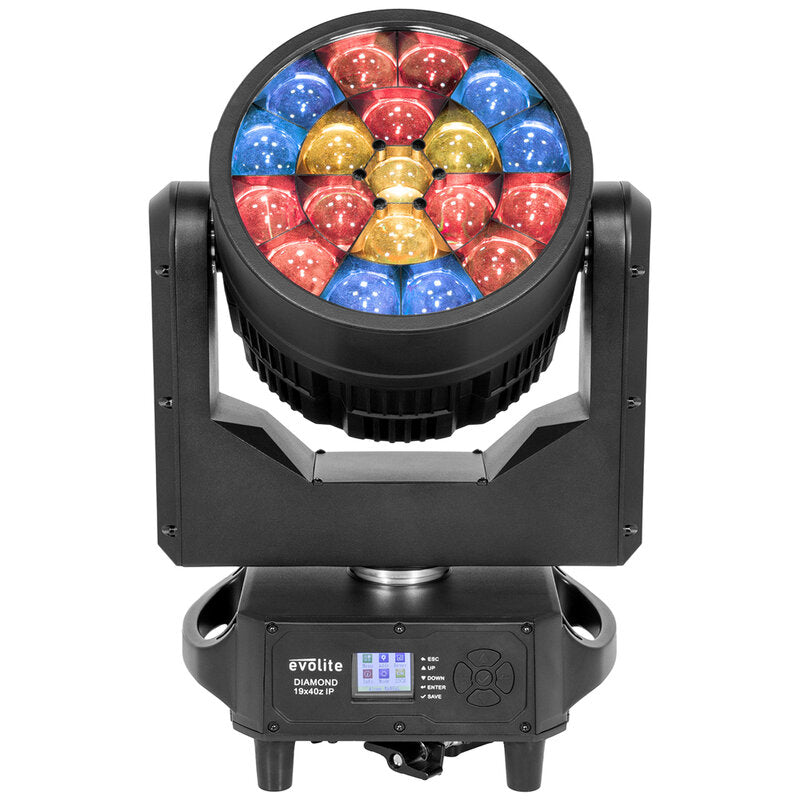

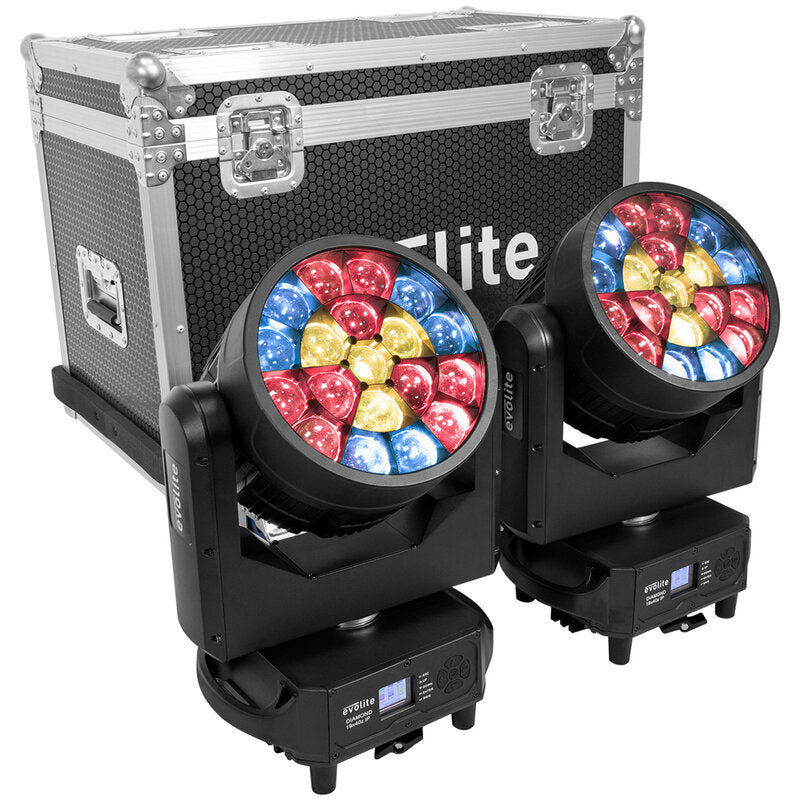

Il set Evolite Diamond 1940z IP è composto da due teste mobili motorizzate ciascuna dotata di 19 LED RGBW Osram da 40 W 4‑in‑1 + flight case dedicato, che facilita il trasporto e protegge le due unità durante gli spostamenti. Questo sistema Wash/Beam/Bee Eye genera una gamma cromatica accattivante ed effetti visivi di grande impatto. Il marchio Osram è sinonimo di durata e affidabilità, qualità che si ritrovano pienamente in questo set.

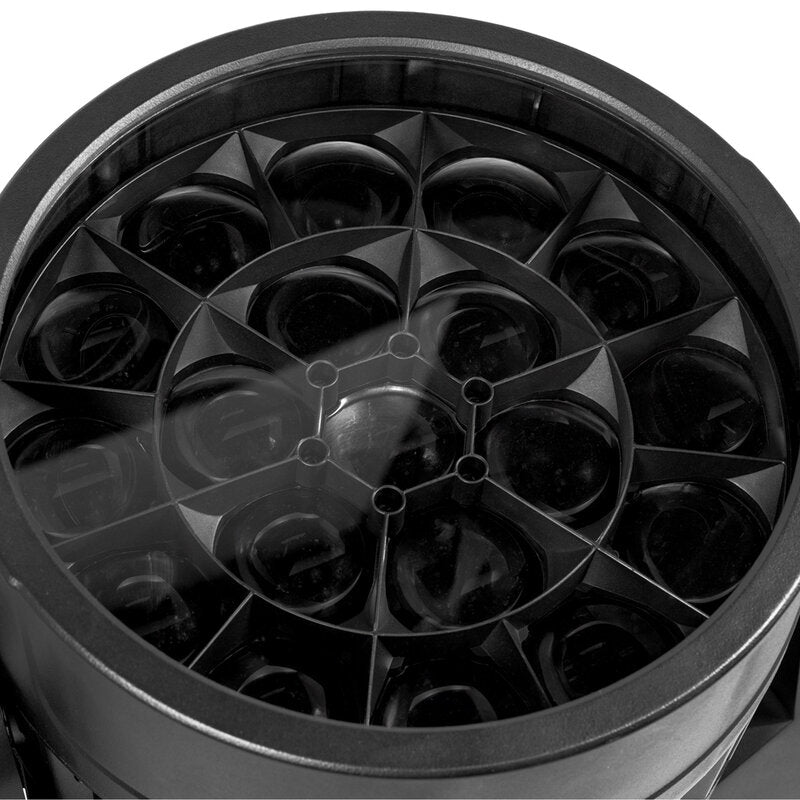

L’ottica ultra‑nitida, abbinata a un zoom motorizzato da 3,5° a 48°, permette di ottenere fasci precisi e Wash ampi con transizioni fluide. La struttura IP65 garantisce un funzionamento sicuro anche in installazioni temporanee all’aperto, mentre il movimento Pan/Tilt offre una precisione elevata, con correzione automatica della posizione per mantenere la coerenza dei movimenti.
In termini di controlli, i fari sono estremamente versatili. Oltre alle modalità automatica, musicale, Master/Slave e manuale, dispone di 7 modalità DMX che vanno da 21 a 99 canali, consentendo un controllo avanzato del Pixel Control e degli effetti grafici. L’effetto Bee Eye, insieme alle macro colore preimpostate, permette di creare animazioni dinamiche e sequenze complesse con grande facilità.
Sul piano delle prestazioni, ogni unità offre una gestione della luminosità con 65.536 livelli di dimmer, uno Strobe da 1 a 25 Hz e un flusso luminoso elevato, ideale per palchi, festival e produzioni audiovisive. Il raffreddamento termoregolato assicura silenziosità e longevità dell’apparecchiatura.

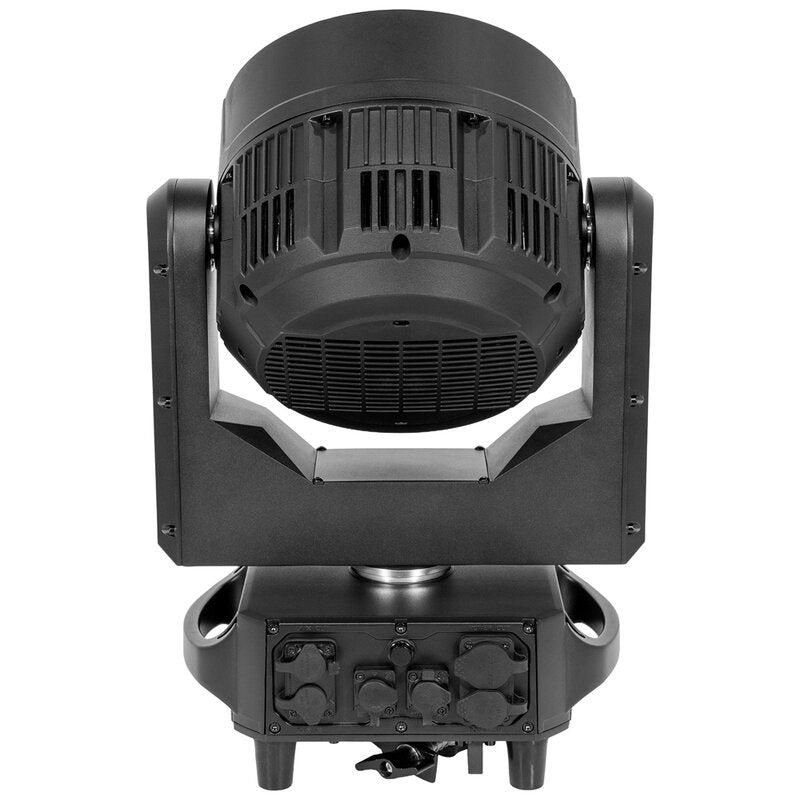

A livello di connettività, il Diamond 1940z IP Set utilizza connettori IP65 TrueOne per l’alimentazione e XLR IP65 a 3 e 5-pin per il DMX, garantendo compatibilità e sicurezza anche in condizioni ambientali difficili.
Vantaggi per gli utenti
- Effetti Wash, Beam e Bee Eye
- Pixel Control per animazioni complesse
- LED Osram, sinonimo di durata e affidabilità
- Ampio zoom: 3,5° – 48°
- Struttura IP65 per utilizzo outdoor
- Grande precisione Pan/Tilt
- Silenziosità operativa
- Flight case incluso per trasporto sicuro
- Fornito in coppia con un altro proiettore identico
Ambiti di utilizzo
- Concerti e tournée
- Festival e grandi eventi
- Spettacoli teatrali
- Produzioni audiovisive e TV
- Installazioni temporanee outdoor
- Club e venue professionali
- DJ set e performance live
SPECIFICHE
- LED Wash/Beam-type moving head with multibeam and Bee Eye effect
- 19 × Osram 40 W RGBW 4-in-1 LEDs
- Pan rotation 540° with 2.11°/step accuracy and 0.008° fine-tuning
- Tilt rotation 270° with 0.86°/step accuracy and 0.0034° fine-tuning
- Adjustable beam angle from 3.5° to 48°
- Full-range dimming with 65,536 levels
- Strobe: 1 – 25 Hz
- Control modes: DMX512, auto, sound, Master-Slave, manual
- 7 DMX modes: 21 / 23 / 35 / 78 / 92 / 97 / 99 channels
- Very fast motorized zoom
- Ultra-clear optics
- Extremely quiet operation
- Highly dynamic and varied auto modes
- Independent pixel control of each LED

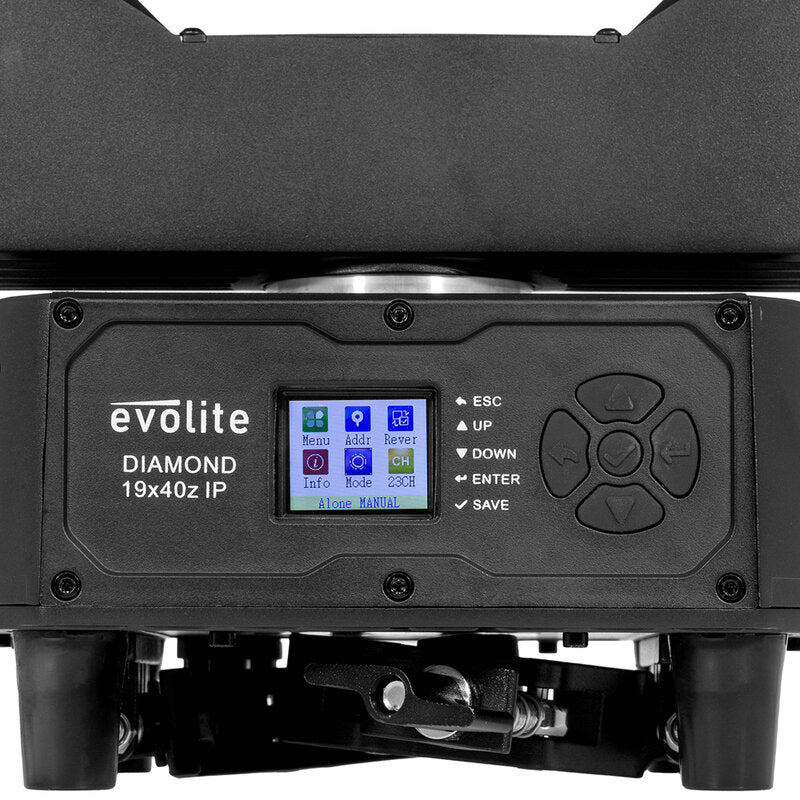

- 1.8" TFT display
- Cooling: temperature-controlled, extremely quiet, forced ventilation
- Ingress protection rating: IP65 (temporary outdoor use)
- Power consumption: 800 W

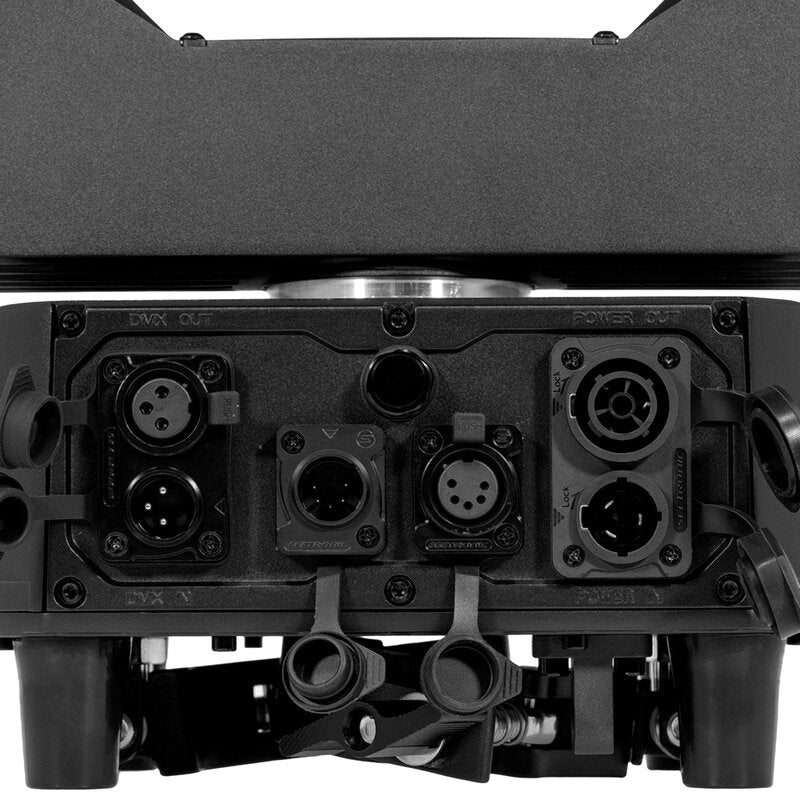

- IP65 TrueOne power input/output connector
- IP65-rated 3-pin and 5-pin XLR DMX connectors
- Maximum daisy-chain: 5 units (240 V / 50 Hz) or 3 units (100 V / 60 Hz)
- Housing material: die-cast aluminium + black fire-retardant carbon fibre
- Supply voltage: 100 – 240 VAC 50/60 Hz
- Dimensions (per unit): 34.1 × 25 × 46.3 mm
- Net weight (per unit): 14 kg
- Supplied as a set of 2 units in a dedicated flight case
Technical characteristics
