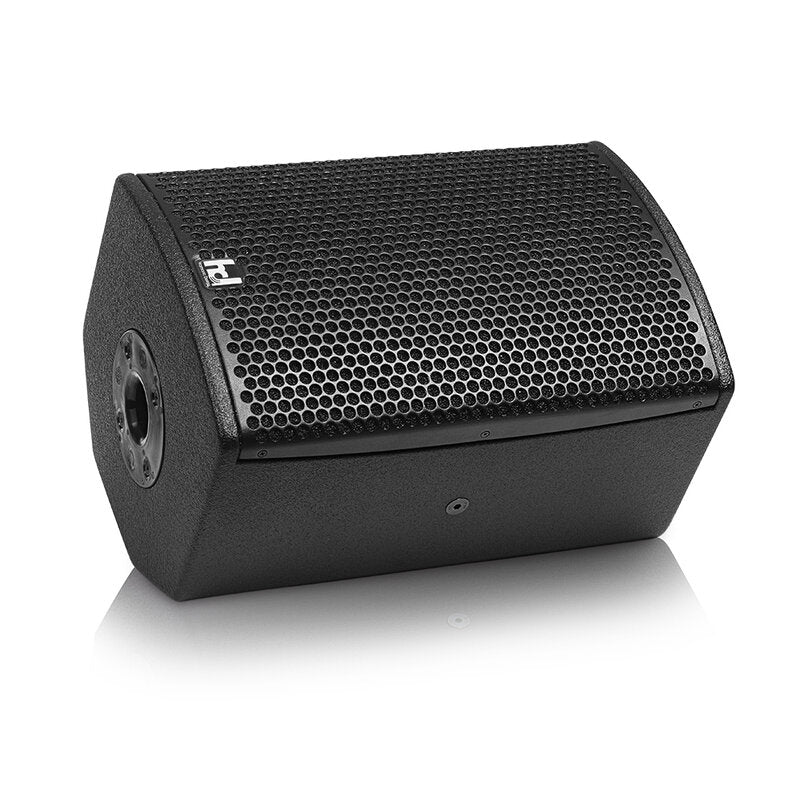

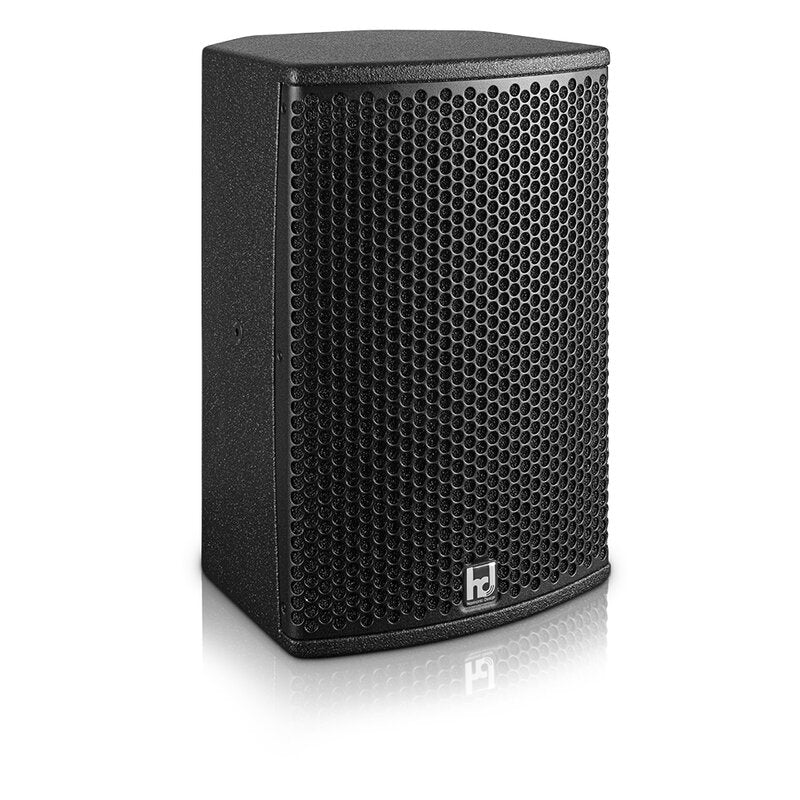

Harmonic Design 10CXN 450 W passive coaxial loudspeaker, 1 x 10" LF / 1 x 1.4" HF, 75° x 75° coverage, 8 ohm
Pay in 3 installments of €443,99 interest-free
Pay in 3 installments of €443,99 interest-free with PayPal
Split into 3 installments of €443,99 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
FEATURES
2-way bass-reflex passive speaker featuring a 10" coaxial driver with a 1.4" tweeter and dual neodymium magnet with a 3" / 2.5" voice coil. A sophisticated, precisely developed crossover ensures coupling between the two drivers at a crossover frequency of 1100 Hz, making the 10CXN's sound clear and distinct.
The 2.5" voice coil compression driver utilizes the same magnet assembly as the woofer and is directly connected to the cone membrane via a BEM-optimized waveguide. This means there are no acoustic shadows or reflections on the woofer membrane caused by an external horn.
The hd 10CXN has a conical emission of 75° without a separate horn. The SuperVented cabinet design, combined with an extremely durable 3" voice coil woofer and the latest generation neodymium magnet geometry assembly, makes the 10CXN a high-performance full-range speaker.
It can be driven by any power amplifier, even without DSP, making the hd 10CXN the optimal solution for sound reinforcement activities in high-quality mobile or permanent installations, such as theaters, sports facilities, or industrial sites.
The hd 10CXN unleashes its full potential in combination with an HD system amplifier. An absolutely flat frequency response with linear phase behavior allows for even more natural reproduction and feedback suppression at all levels.
The cabinet is made of multi-ply wood and has a shock and weather-resistant polyurethane coating, as well as an elegant rounded black steel grille. M6 and M8 input threads are available for permanent installation, allowing the use of standardized wall brackets or a flying bracket.
The integrated 35 mm adapter allows for use on a tripod as a front system, while two monitoring angles of 35° and 45° are allowed. Three speakON ports, two on the rear and one on the bottom, ensure discreet and kink-free wiring. An ergonomic carrying handle is located on the rear.
Main features
- 2-way passive speaker with 1 x 10” woofer and 1 x 1.4” coaxial tweeter
- Operates with any amplifier
- Full-range without DSP
- Precise and uniform sound radiation
- Clear mids and brilliant highs
- Integrated frequency and phase optimization
- Slim and elegant design
SPECIFICATIONS
- Principle: vented / conical horn
- Transducers: 1 x 10"N LF / 1 x 1.4″N HF
- Power handling: 400 WRMS / 1600 W peak
- Frequency response: 70 Hz – 20,000 Hz
- Sensitivity: 96 dB/W/m
- SPL max: 130 dB
- Nominal dispersion angle: 75° x 75° (H x V)
- Nominal impedance: 8 ohm
- Enclosure: multiplex birch wood, polyurea plastic coating black, steel grille coated, acoustic foam, 35 mm flange,
M8 inlet thread for flight & swivel bracket,
35° / 45° monitor angle - Connections: 3 x speakON NL4
- Dimensions: 290 x 450 x 300 mm
- Weight: 13 kg
- Options: transport protection cover, bracket, wall mount, double case, mounting adapter, RAL color, weather protection
Technical characteristics
