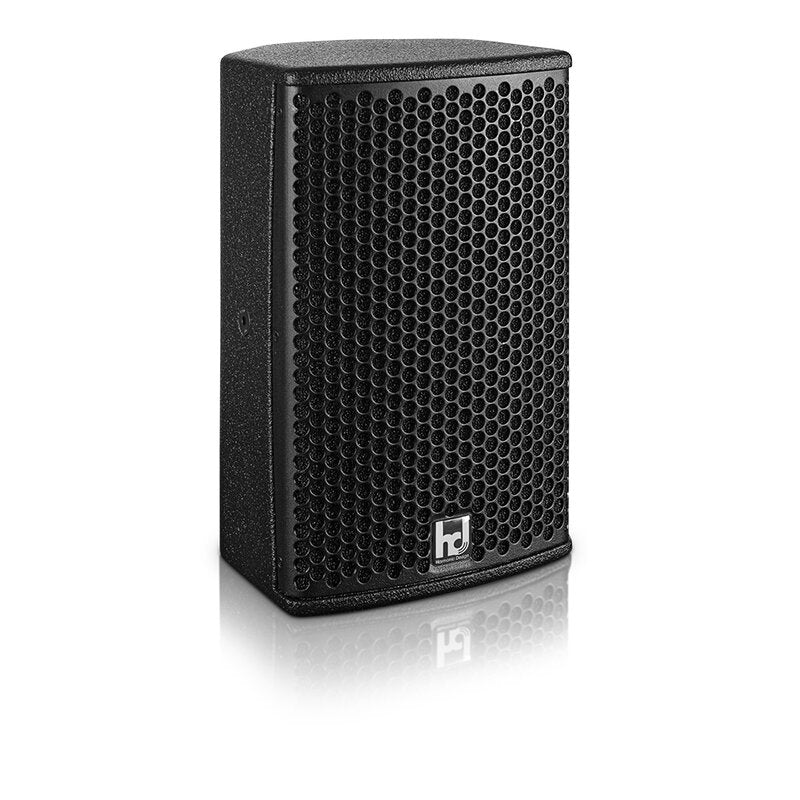

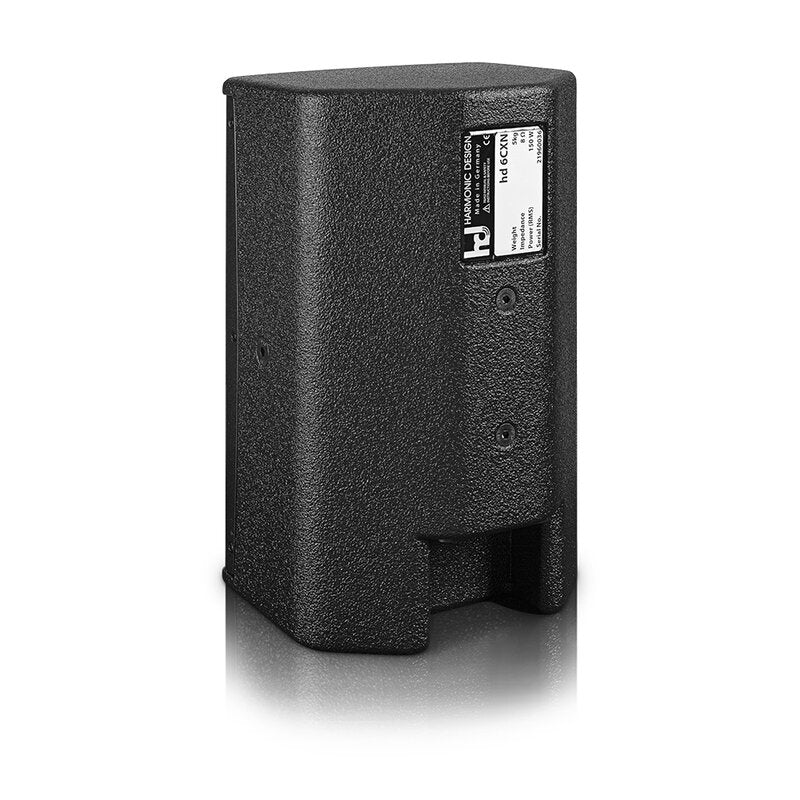

Harmonic Design 6CXN 150 W passive coaxial loudspeaker, 1 x 6" LF / 1 x 1" HF, 90° x 90° coverage, 8 ohm
Pay in 3 installments of €257,65 interest-free
Pay in 3 installments of €257,65 interest-free with PayPal
Split into 3 installments of €257,65 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
FEATURES
2-way coaxial passive speaker equipped with a 6" neodymium magnet mid-woofer and a 1" neodymium magnet tweeter.
It can be connected to any power amplifier, even without DSP, and is the optimal solution for mobile sound reinforcement applications or high-quality permanent installations, such as in theaters or sports facilities.

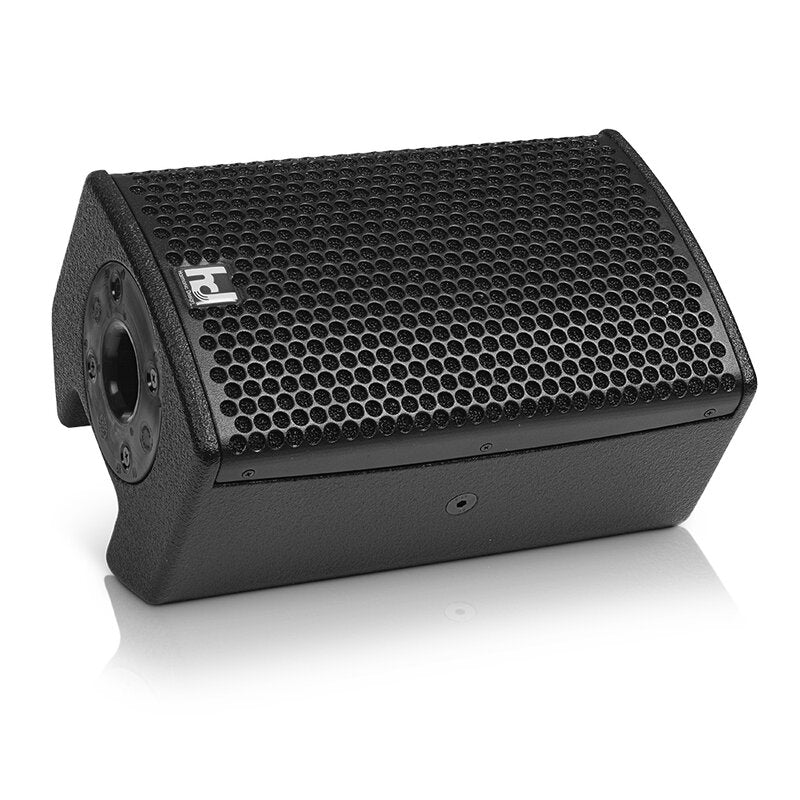

The conical horn provides a natural timbre without the typical horn sound coloration, a long throw, and optimal vocal intelligibility. The frequency and phase optimized crossover ensures the best linearity. The integrated standard 35 mm flange allows the speaker to be used on a tripod or with two monitor angles of 35° and 45° as a stage monitor.

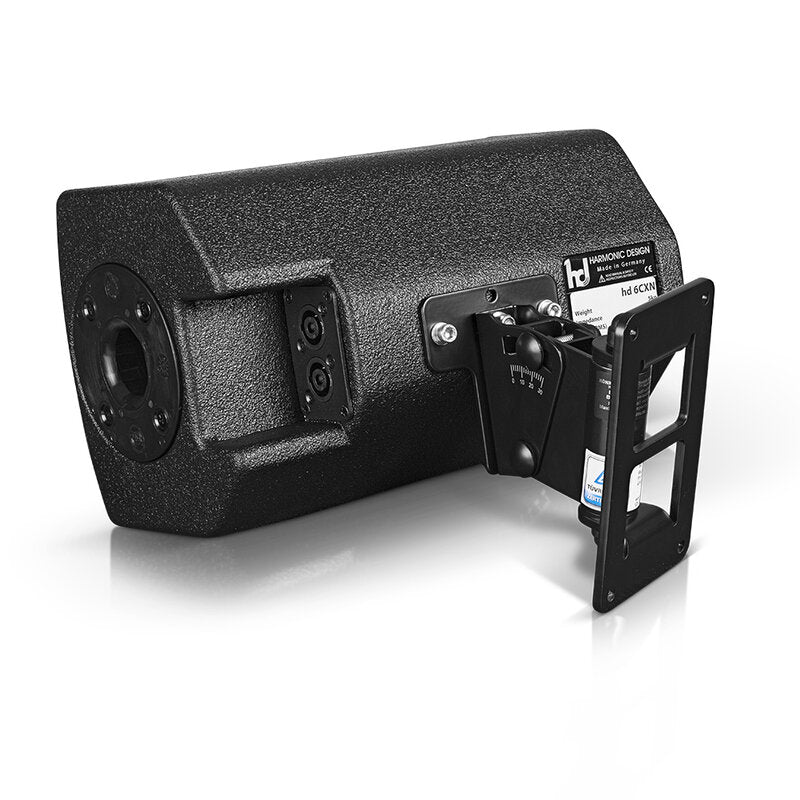

The cabinet is made of multi-layer wood with an impact and weather-resistant polyurethane coating and a rounded, elegant, and shockproof black steel grille. For permanent installation, two M6 and M8 threads are available for mounting wall brackets or standardized supports. The speakON NL4s, mounted on the rear of the connection panel, are used to connect and relaunch the input signal. RAL colors and tropicalization for outdoor environments are available upon request.
Key features
- 2-way passive coaxial speaker with 1 x 6” WF and 1 x 1” TW
- Operation with any amplifier
- Full range without DSP
- Precise and uniform sound emission
- Clear mids and brilliant highs
- Integrated frequency and phase optimization
- Slim and elegant design
SPECIFICATIONS
- Principle: bass-reflex, conical horn
- Transducers: 1 x 6"N LF, 1 x 1″N HF
- Power handling: 150 WRMS / 600 W peak
- Frequency response: 80 Hz – 20 kHz
- Sensitivity: 94 dB/W/m
- SPL max: 119 dB
- Nominal dispersion angle: 90° x 90° (H x V)
- Nominal impedance: 8 ohm
- Enclosure: 15 mm multiplex birch wood, polyurea plastic coating black, steel grille coated, acoustic foam, 35 mm flange, M8 inlet thread for flight & swivel bracket, 35° / 45° monitor angle
- Connections: 2 x speakON NL4

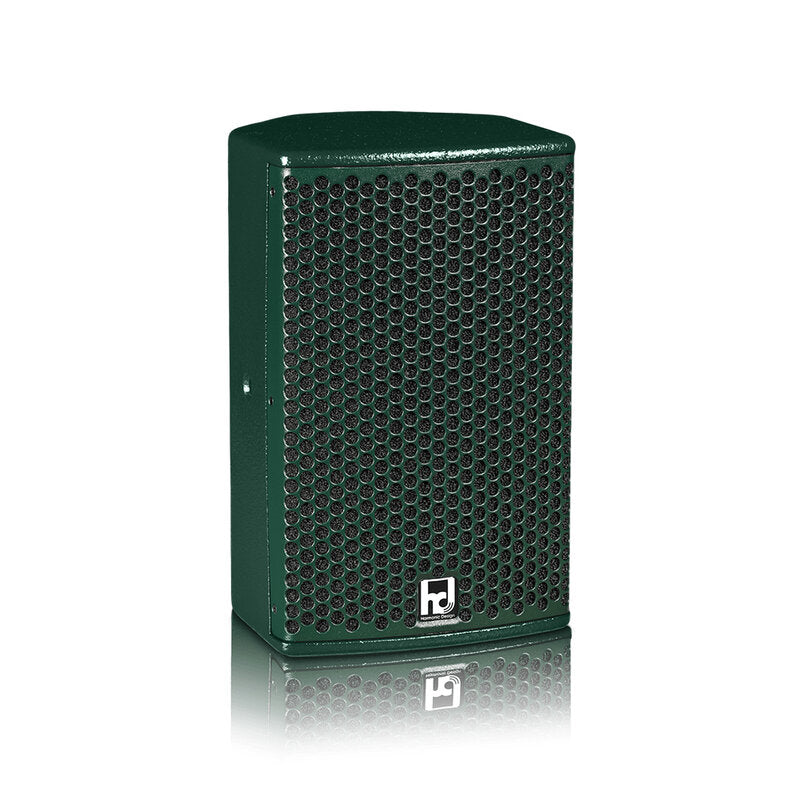

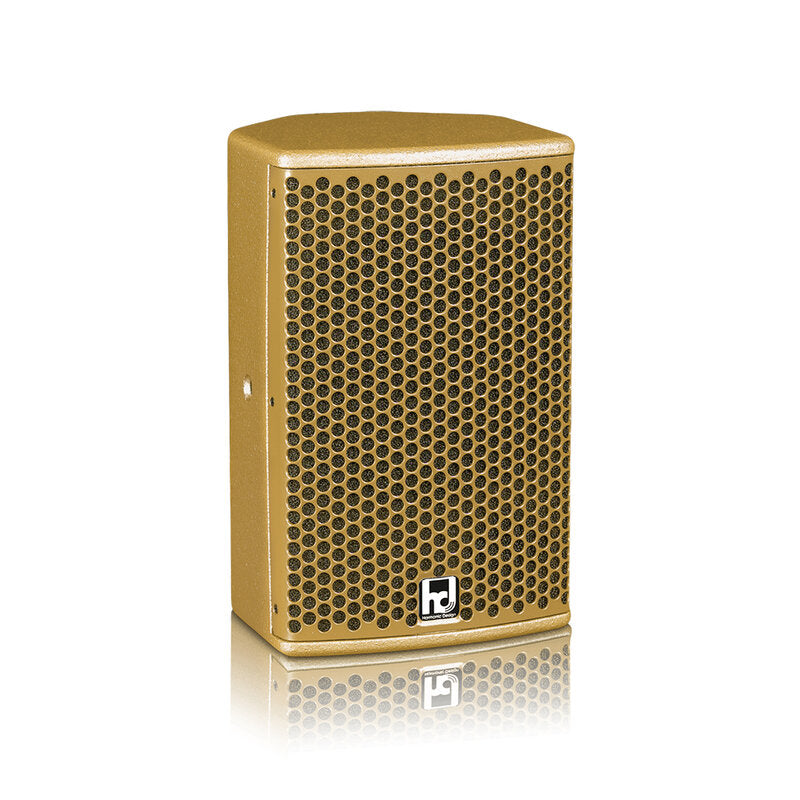

- Options: transport protection cover, bracket, wall mount, double case, mounting adapter, RAL color, weather protection
- Dimensions: 18 x 29 x 17.4 cm
- Weight: 4.5 kg
Technical characteristics
Couldn't load pickup availability
Accessori consigliati
About Harmonic Design
Harmonic Design is a brand specializing in the design and production of high-performance professional sound reinforcement systems. The catalog includes full-range loudspeakers, subwoofers, stage monitors, and solutions for fixed installations and live applications, designed to ensure high intelligibility, sound pressure, and reliability even in the most demanding uses. Thanks to careful acoustic design and the use of quality components, Harmonic Design products are appreciated by audio service providers, installers, and entertainment professionals who seek high performance and precise sound reproduction. Discover the Harmonic Design range and find the sound reinforcement system best suited to your professional needs.
