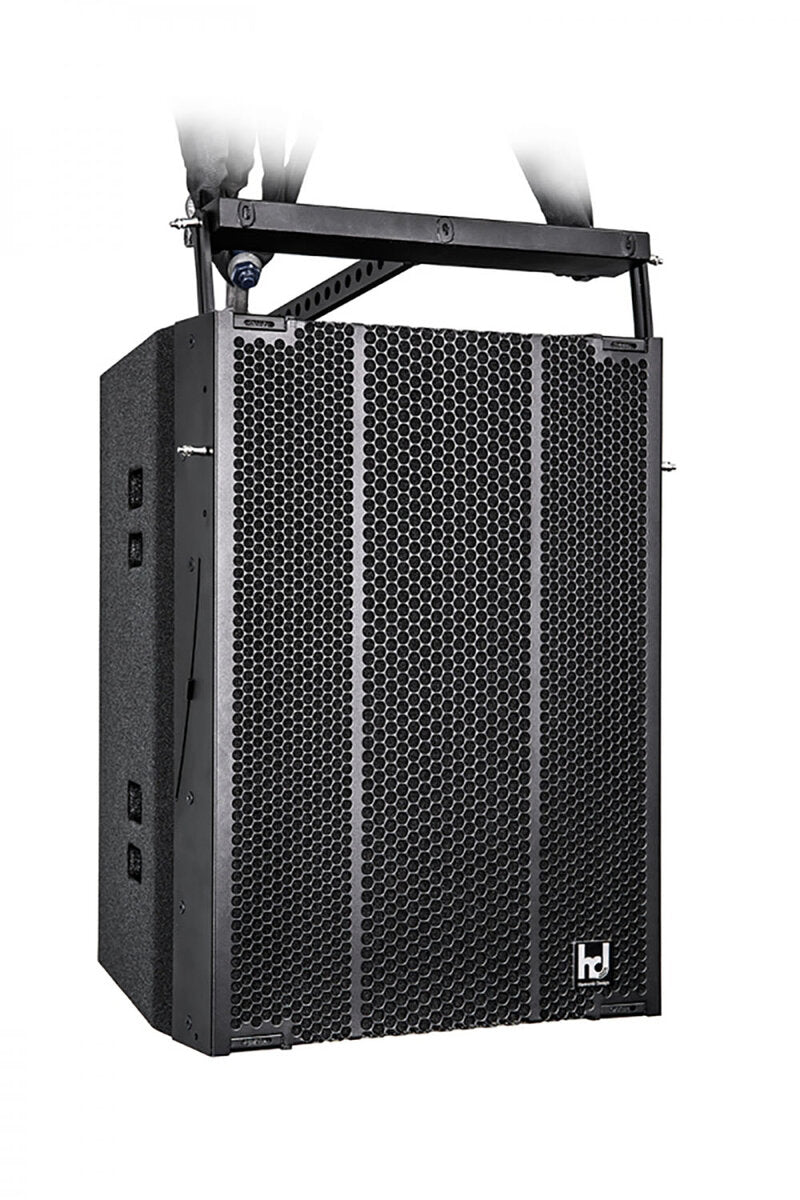

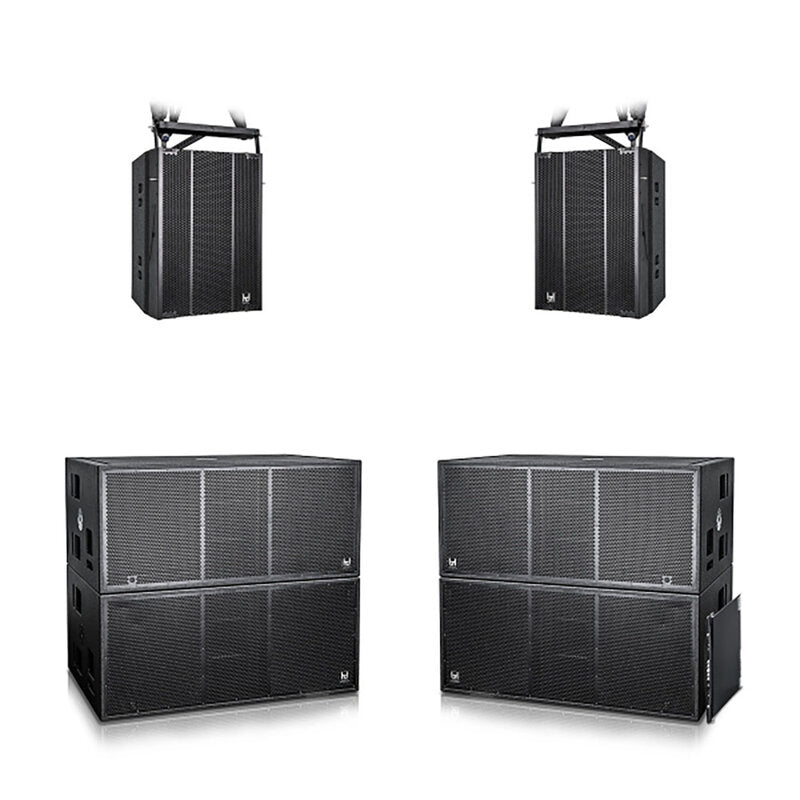

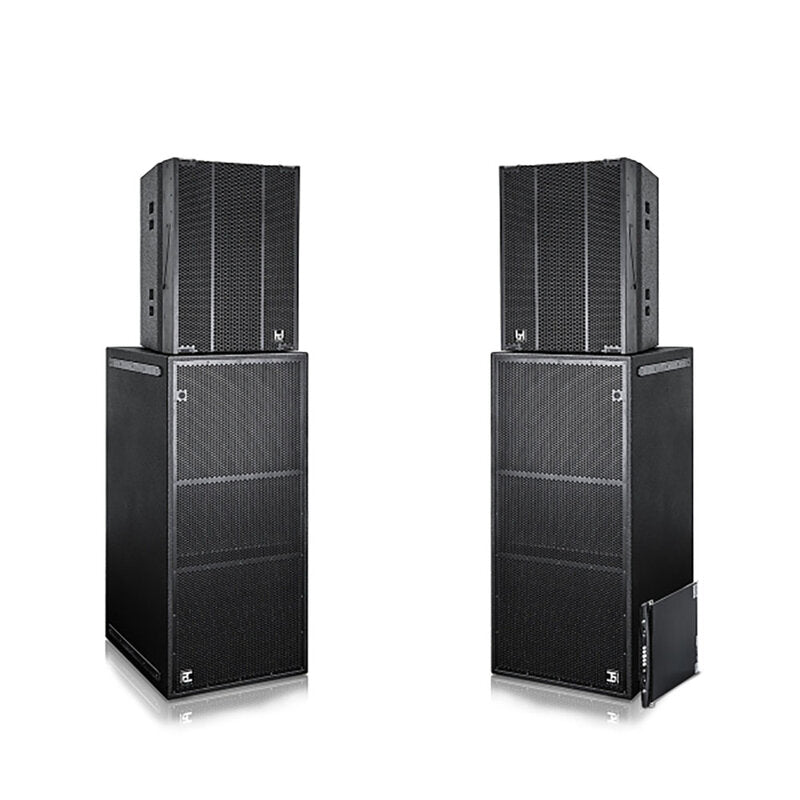

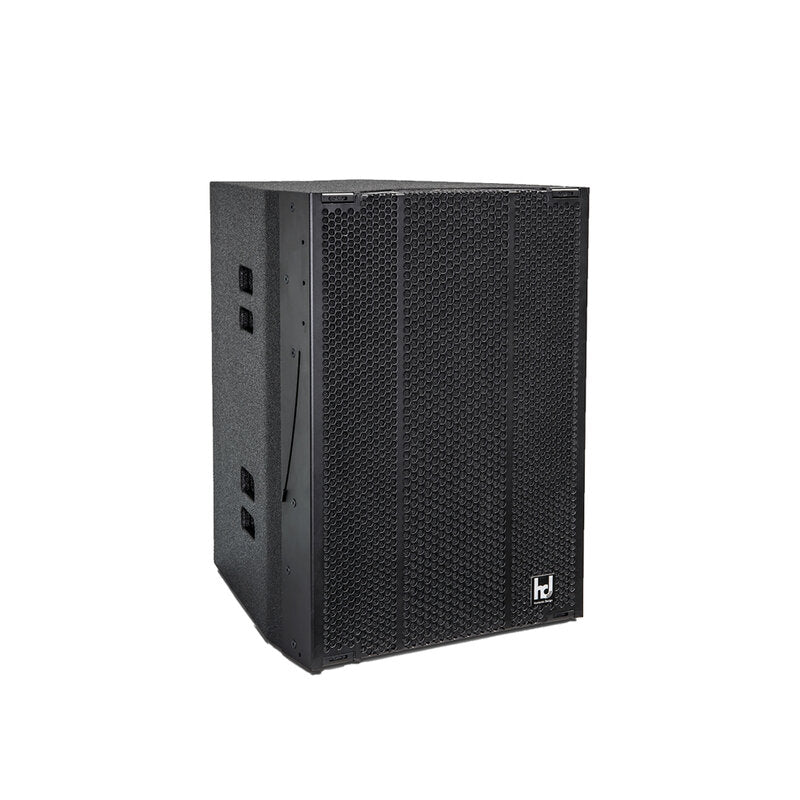

Harmonic Design HLS24P 1200 W HybridLineSource loudspeaker, 2 x 12" LF + 4 x 1.4" HF, 100° x 40° coverage, rigging, incl. passive crossover 4 ohm
Pay in 3 installments of €1.575,41 interest-free
Pay in 3 installments of €1.575,41 interest-free with PayPal
Split into 3 installments of €1.575,41 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
FEATURES
The HybridLineSource series 2-way passive loudspeaker, with an internal passive crossover, is designed to deliver high-quality audio performance in various applications.
It uses two 12" neodymium magnet woofers and four 1.4" compression tweeters, which together ensure uniform sound coverage. The LineSource type HF unit, as a whole, consists of loudspeakers equipped with a special polymer diaphragm which, coupled with waveformers, generates a cylindrical wavefront with a vertical opening angle of 40°. Therefore, the throw of the HybridLineSource system is comparable to that of a Line Array.
With a rated power of 1200 W and a peak power of 4800 W, the loudspeaker is capable of handling high sound pressure levels. It offers a coverage angle of 100° x 40°, ideal for a wide and controlled sound energy distribution.
The world's unique HybridLineSource technology contributes to clear and precise sound reproduction, without distortion. It achieves an efficiency of 108 dB/W/m in the mid/low range. It also drastically reduces the space required for system transport.

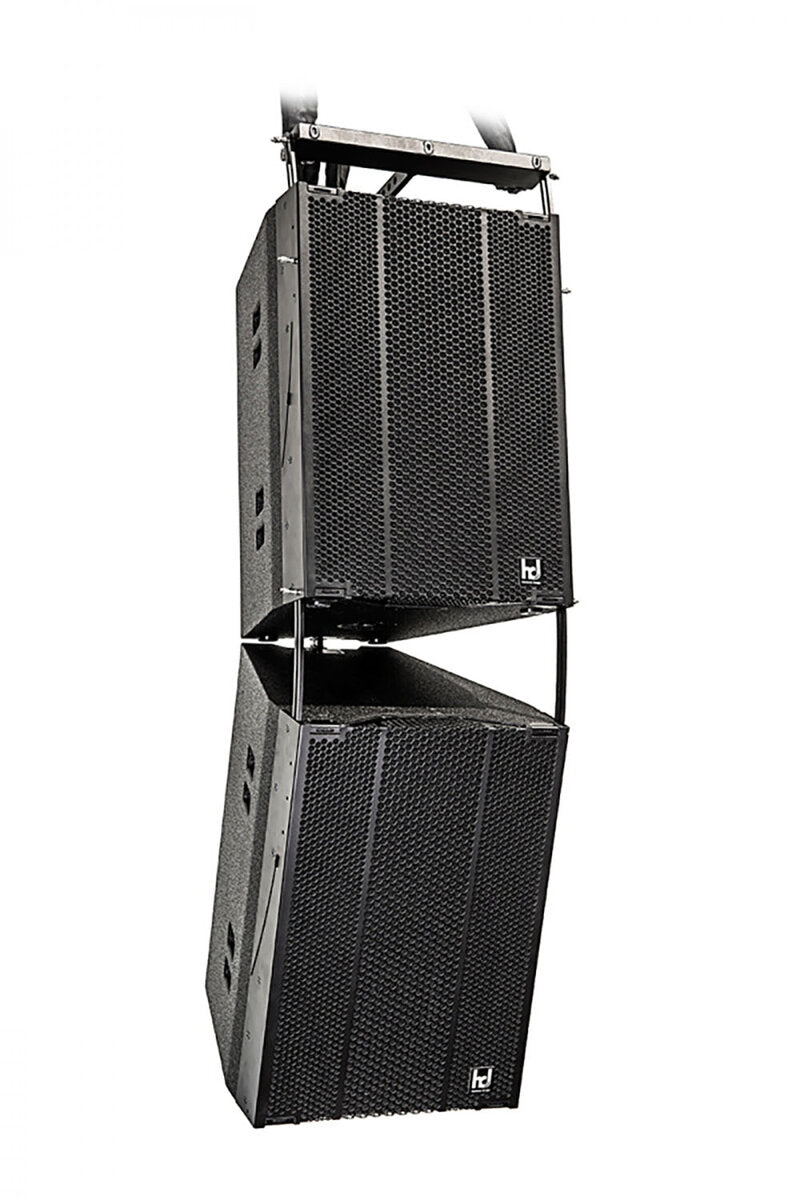

The hd HLS24P is equipped with an integrated 3-point FastRig rigging system, which facilitates the installation and positioning of the loudspeaker. Using the FastRig rigging system, the angle between individual loudspeakers can be precisely adjusted from 0° to 16° in 4° increments. It is designed to deliver undistorted sound up to 144 dBSPL, making it suitable for live events, fixed installations, and other professional applications. The special Super Vented design allows for dynamic and broadband reproduction down to 70 Hz in full-range mode, in applications without additional subwoofers.
Key features
- 2-way passive loudspeaker with 2 x 12″ woofers and 4 x 1.4″ tweeters
- 100° x 40° coverage
- Undistorted sound up to 144 dB
- Innovative hybrid horn, bass-reflex, coaxial, line array design
- Integrated 3-point FastRig
- Passive crossover
- Weight 46 kg
SPECIFICATIONS
- Principle: bass-reflex system / hybrid horn
- Transducers: 2 x 12" N LF / 4 x 1.4″ N HF
- Crossover: passive, 900 Hz
- Power handling: 1200 WRMS / 4800 W peak
- Frequency response: 60 Hz – 20 kHz
- Sensitivity: 108 dB/W/m
- SPL max: 144 dB
- Nominal dispersion angle: 100° x 40° (H x V)
- Nominal impedance: 4 ohm
- Enclosure: 15 mm multiplex birch wood, polyurea plastic coating black, steel grille coated, acoustic foam, ergonomic transport handles, 35 mm flange, integrated 3-point FastRig rigging
- Connections: 2 x speakON NL4
- Options: installation version, hd HLS24-RF3, hd UniFrame16, transport protection cover, hd TourCase, RAL color, weather protection
- Dimensions: 48 x 67.5 x 56 cm
- Weight: 46 kg
Technical characteristics
