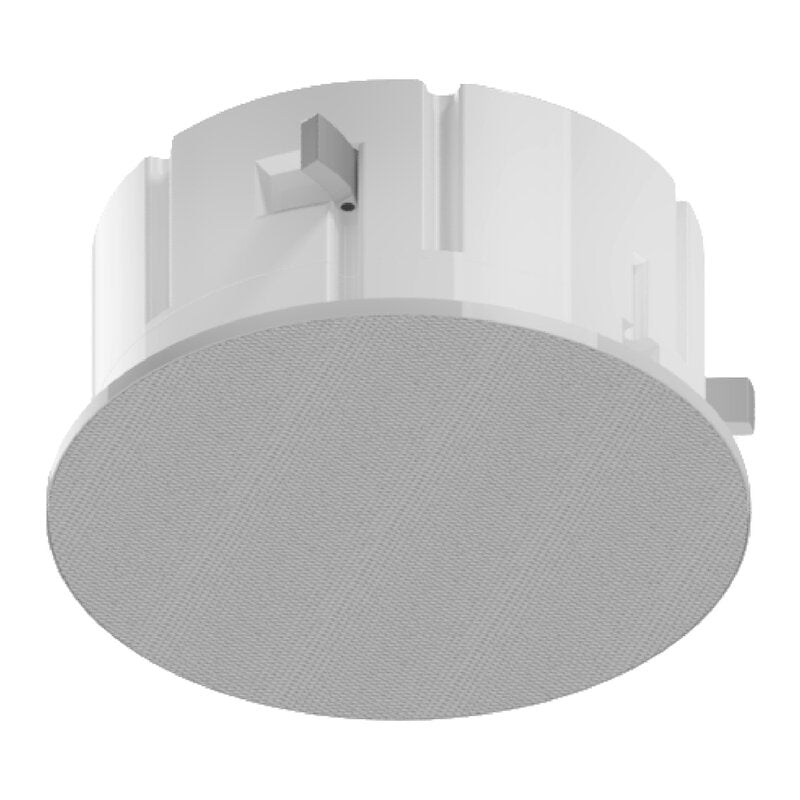

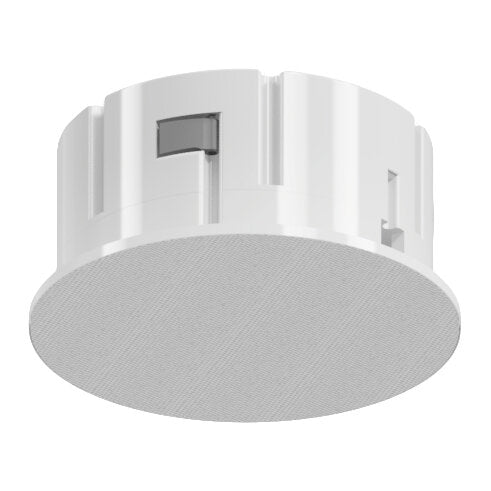

Harmonic Design IC230 40 W ceiling mount speaker, 2-way, vented design, 3.5" coax, 80° x 80°, 8 ohm and 70 / 100 V, 99 mm installation depth
Pay in 3 installments of €91,53 interest-free
Pay in 3 installments of €91,53 interest-free with PayPal
Split into 3 installments of €91,53 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
FEATURES
The hd IC230 is a compact ceiling speaker designed to deliver excellent speech intelligibility and superior sound quality.
Despite its shallow installation depth of just 99 mm, this passive two-way coaxial speaker provides an extended frequency response, making it ideal for background music. Its versatility is ensured by its ability to operate in both 8-ohm low-impedance systems and 70/100 V configurations, thanks to a five-position switch that allows for easy adaptation to any application.

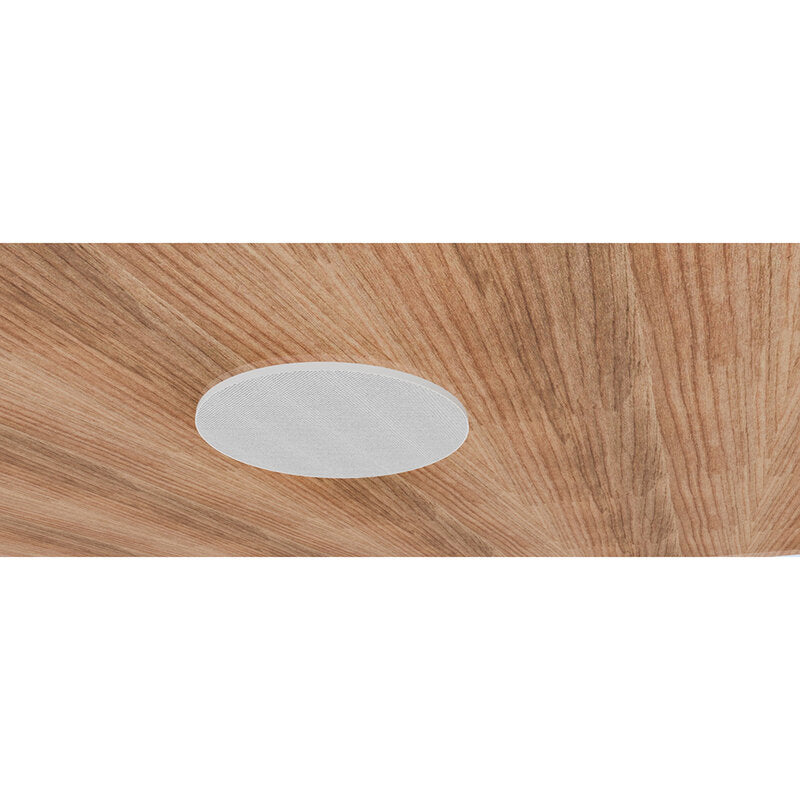

Installation is quick and easy thanks to the quick-release fixing clips and included template, while the paintable front grille allows for seamless integration into any environment.
Equipped with a 3.5" mid-woofer and a 1-inch coaxial tweeter, the hd IC230 offers crystal-clear highs and rich mids, ensuring powerful and balanced sound: an ideal solution for professional installations requiring high performance and elegant aesthetics.
User Benefits
- Sound quality
- Flexibility (both low-impedance and 70 / 100 V operation)
- Easy to install
- Discreet and integrable design
- Fits into spaces with structural constraints thanks to its shallow installation depth of just 99 mm
Areas of Use
- Hotels
- Restaurants
- Conference rooms
- Shops
SPECIFICATIONS
- Acoustic design: coaxial
- Transducers: 3.5″ woofer + 1″ tweeter
- Frequency response: 70 Hz – 22 kHz
- Crossover frequency: 4 kHz
- Power rating: 40 W (RMS), 55 W (peak)
- Impedance (low Z): 8 ohm
- Transformer (High Z):
- 30 / 15 / 7.5 W @ 100 V
- 15 / 7.5 / 3.8 W @ 70 V
- Sensitivity: 88 dB/W/m
- SPL max.: 111 dB
- Nominal beam angle: conical 80°
- Termination: standard installation terminals

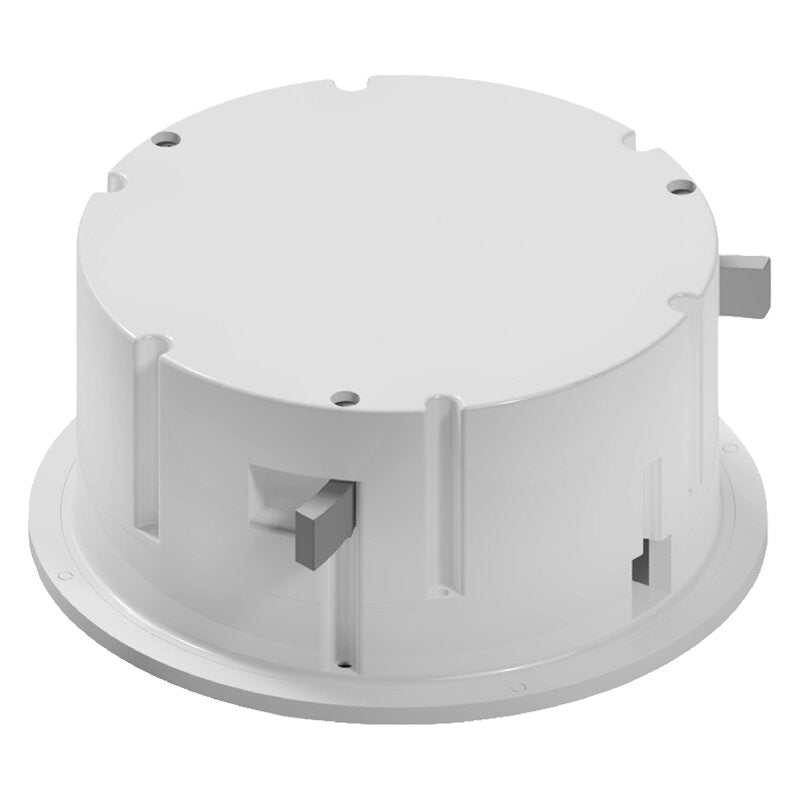

- Enclosure: white powder-coated fire pot with removable steel grille
- Additional features:
- Terminal block
- 5-stage mode switch (Low-Z / OFF / High-Z)
- Includes mounting template / paint cover
- Ceiling cutout: Ø 20.6 cm
- Outer dimension: Ø 23 cm
- Max. installation depth: 9.9 cm
- Dimensions (Ø x H): 23 x 10.6 cm
- Weight: 2 kg
Technical characteristics
