Harmonic Design ML16Beam Hd ML16Beam - 16x2", 16x75W + FIRDSP, SPLmax 123 dB, 2 Beams, beamsteering ±60°, vertical opening angle 0°-90°, AdvancedDirectivityOptimization, 2x redundant analog Inputs, wallmount
Pay in 3 installments of €1.401,09 interest-free
Pay in 3 installments of €1.401,09 interest-free with PayPal
Split into 3 installments of €1.401,09 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
FEATURES
The hd ML16Beam is equipped with the latest beamsteering technology to offer versatile adaptation of the speaker's emission (up to 123 dB) to any type of venue. This ensures optimal sound diffusion even in complex architectures and highly reverberant rooms. The original Harmonic Design Algorithm offers two separate main beams that can be treated individually and even create an independent opening angle for a specific frequency. This results in significantly improved speech intelligibility and creates an excellent musical experience for every listener. Therefore, it is the perfect solution for a multitude of installations, such as restaurants, bars, airports, train stations, home cinemas, conference rooms, hotels, A/V, public buildings, concert halls, broadcasters, conferences, and media technology. Using the intuitive hd LevelZ software, the sound field can be simulated and predicted to achieve the best possible result with the necessary units, without wasting time on testing or money. The ultra-compact width of 80mm makes the hd ML16Beam the narrowest beamforming speaker on the market... visually discreet in most fixed installations. To ensure reliable and durable operation, the electronics (75W amplifier for each 2" speaker, DSP, etc.) are integrated into the speaker cabinet and optimally protected.
SPECIFICATIONS
- Principle cylindrical wave, active beamforming speaker
- Transducers 16x 2″ shielded fullrange drivers
- Crossover active at 140 Hz
- Amplifier 16x 75W, Class-D, digital control
- Frequency range 140 Hz – 20 kHz
- Max. beam count 2
- SPLmax 123 dB
- Coverage nominal horizontal 100°
- Vertical beam tilt angle ± 60°, in 0,1° increments
- Vertical beam opening angle 0° – 90°, in 0,1° increments
- Features AdvancedDirectivityOptimization, AdvancedRoomOptimization, redundant input section with 2x analog inputs and fallback algorithm

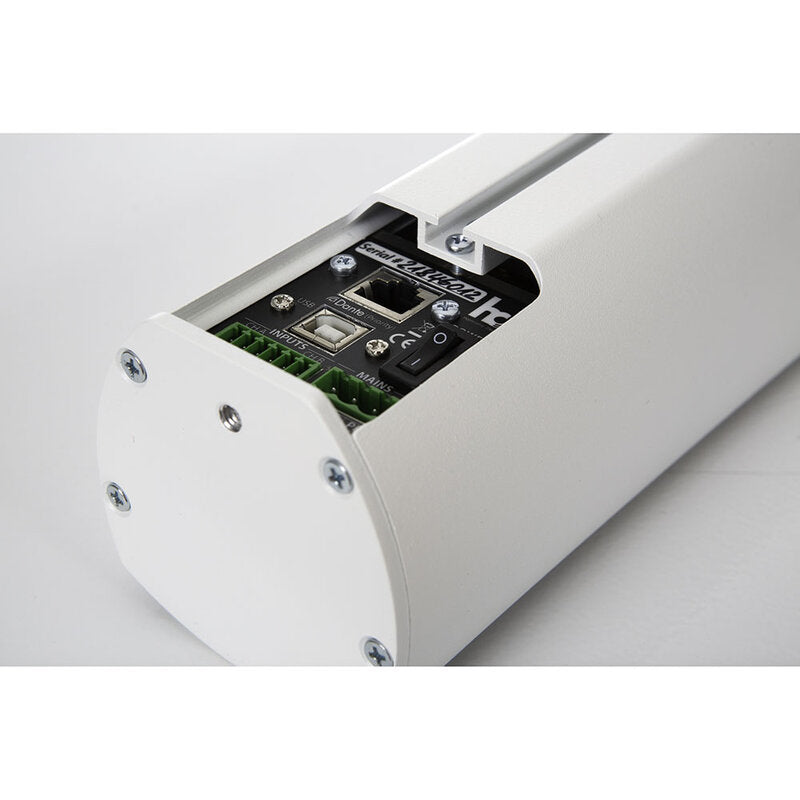

- Connections Phoenix 3-pole mains, Phoenix 6-pole audio input, Dante Ethernet (optional), USB
- Dimensions (W x H x D) 80 x 1780 x 78 mm
- Weight 8 kg

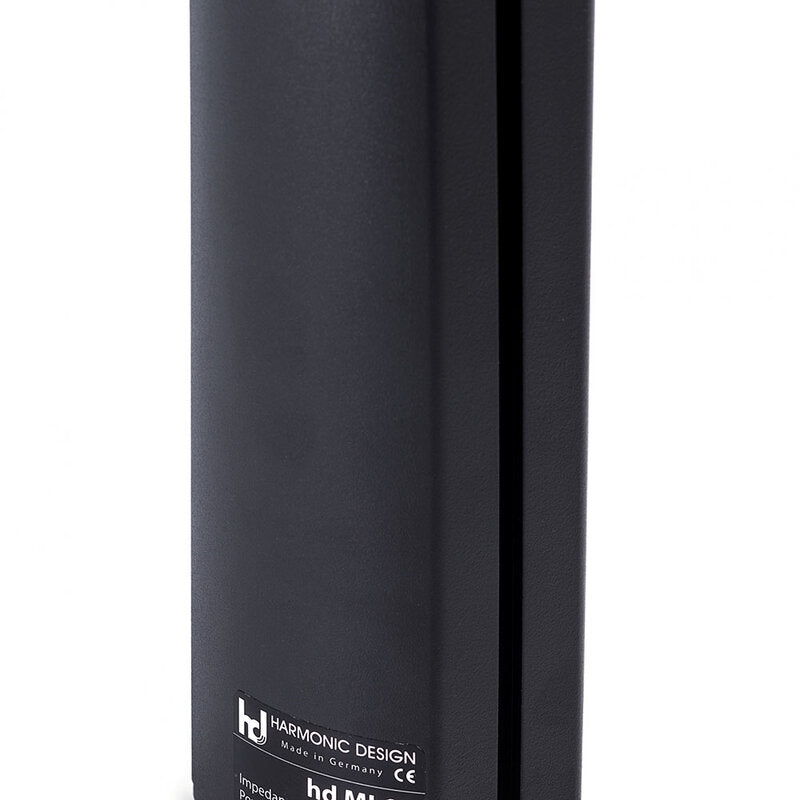

- Enclosure Powder-coated aluminium profile black (RAL 9005) or white (RAL 9010), Steel grille with acoustic foam, 2x M6 threads in top/bottom plate, rear connection panel

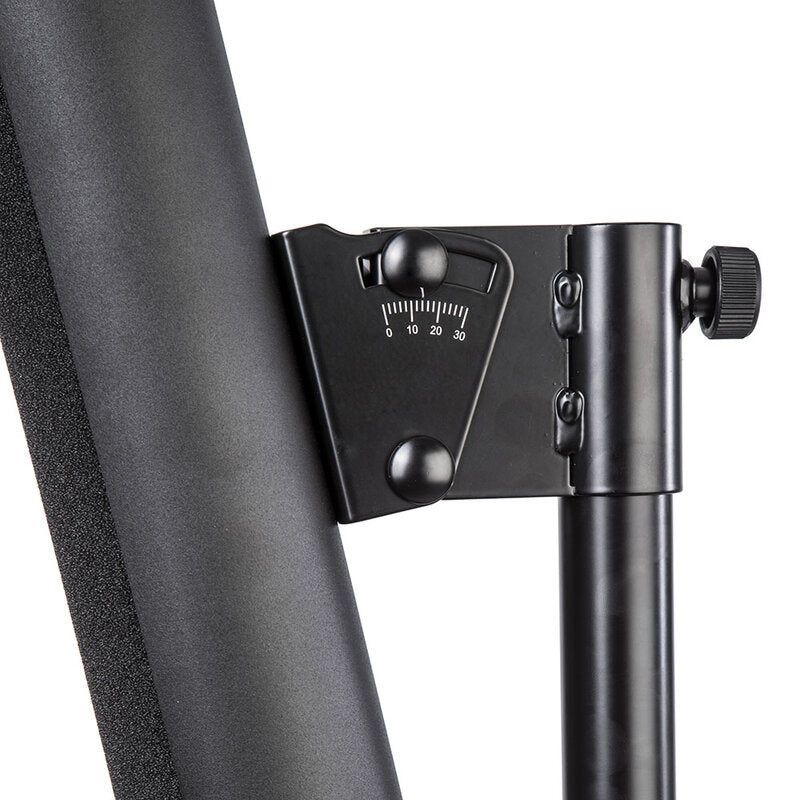

- Options Dante network module, multiple wall mount, tripod adapter, RAL color, special length
Technical characteristics
Couldn't load pickup availability
About Harmonic Design
Harmonic Design is a brand specializing in the design and production of high-performance professional sound reinforcement systems. The catalog includes full-range loudspeakers, subwoofers, stage monitors, and solutions for fixed installations and live applications, designed to ensure high intelligibility, sound pressure, and reliability even in the most demanding uses. Thanks to careful acoustic design and the use of quality components, Harmonic Design products are appreciated by audio service providers, installers, and entertainment professionals who seek high performance and precise sound reproduction. Discover the Harmonic Design range and find the sound reinforcement system best suited to your professional needs.
