Harmonic Design PL24Beam 24 × 3", 32 × 24 W + FIRDSP, SPLmax 127 dB, 3 beams, beamsteering ±60°, vertical opening angle 0 - 90°, Advanced Directivity Optimization, 2 × redundant analog Inputs, wallmount
Pay in 3 installments of €3.237,16 interest-free
Pay in 3 installments of €3.237,16 interest-free with PayPal
Split into 3 installments of €3.237,16 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
CARATTERISTICHE
Hd PL24Beam è un diffucore a colonna dotato delle più recente tecnologia beamsteering per offrire in locali di qualsiasi tipo un adattamento versatile dell’emissione del diffusore (fino a 127 dB). In questo modo si ottiene una diffusione sonora ottimale anche in architetture complesse e stanze fortemente riverberanti. L’originale algoritmo Harmonic Design offre quattro fasci principali separati che possono essere trattati individualmente e persino di creare un angolazione indipendente di apertura per una frequenza specifica. In questo modo l’unità sviluppa una intelligibilità del parlato decisamente migliore e crea un’eccellente esperienza musicale per ogni ascoltatore.
Usando l’intuitivo software hd LevelZ, il campo sonoro può essere simulato e predetto per ottenere il miglior risultato possibile con le unità necessarie, senza perdere tempo per fare test né sprecare denaro. La larghezza ultra compatta di 80 mm rende l’hd PL24Beam il diffusore beamforming più stretto sul mercato, visivamente discreto nella maggior parte delle installazioni fisse.
Per fornire prestazioni affidabili e durevoli, l’elettronica (ampli da 75 W per ogni altoparlante da 3”, DSP, ecc.) è integrata nel cabinet del diffusore e protetta in modo ottimale.
Ambiti di utilizzo
- Ristoranti
- Bar
- Aeroporti
- Stazioni ferroviarie
- Home Cinema
- Sale conferenza
- Hotel
- Edifici pubblici
- Concert hall
- Emittenti
- Conferenze
- Media technology
SPECIFICHE
- Principle cylindrical wave, active beamforming speaker
- Transducers 24 × 3″ shielded fullrange drivers
- Crossover active at 90 Hz
- Amplifiers 24 × 75 W, Class-D, digitally controlled
- Frequency range 70 Hz – 20 kHz
- Max. beam count: 4
- Max. sound pressure: 129 dB (1 m)
- Coverage nominal horizontal: 80°
- Vertical beam tilt angle ± 60°, in 0.1° increments
- Vertical beam opening angle 0° – 90°, in 0.1° increments
- Features: Advanced Directivity Optimization, redundant input section with 2 × analog inputs and fallback algorithm

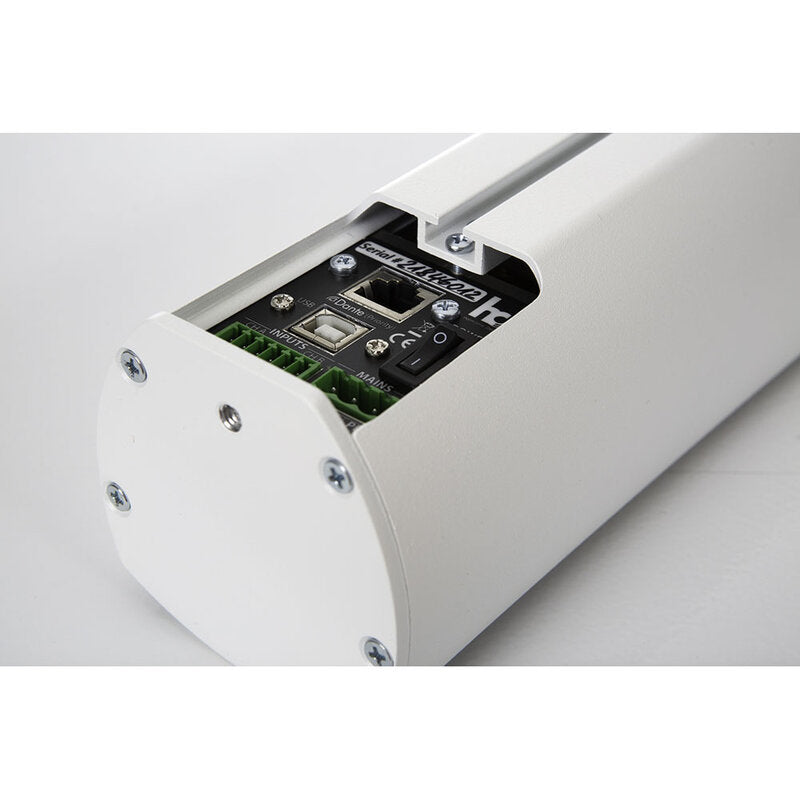

- Connection Phoenix 3-pole mains, Phoenix 6-pole audio input, Dante Ethernet (optional), USB
- Enclosure: powder-coated aluminium profile black (RAL 9005) or white (RAL 9010)
- Steel grille with acoustic foam, 2 × M6 threads in top/bottom plate, rear connection panel

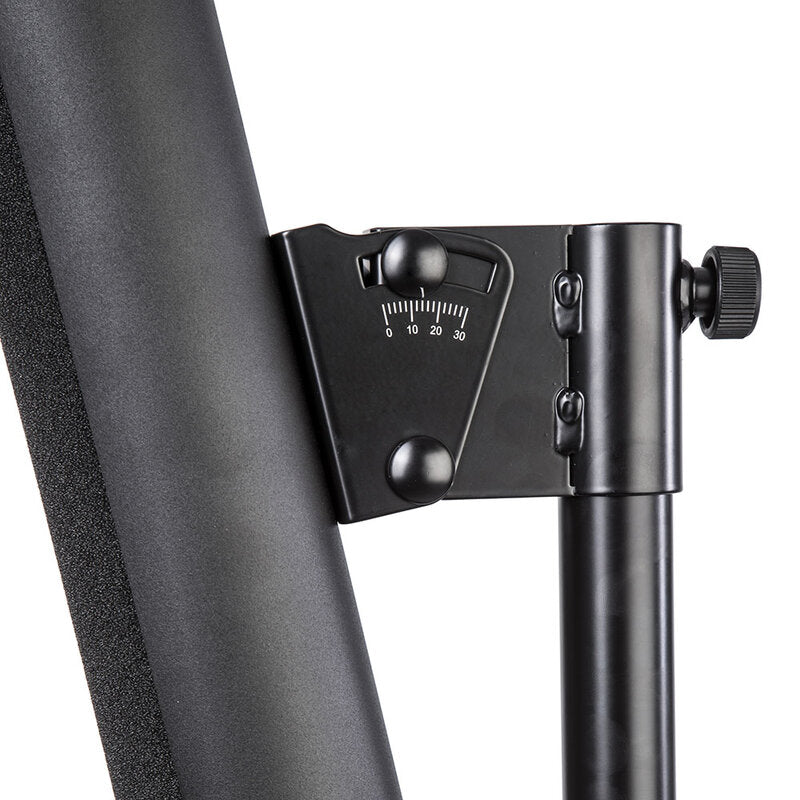

- Options: Dante network module, multiple wall mount, tripod adapter, RAL color, special length
- Dimensions (W × H × D): 10.8 × 254.1 × 10.4 cm
- Weight: 23 kg
Technical characteristics
