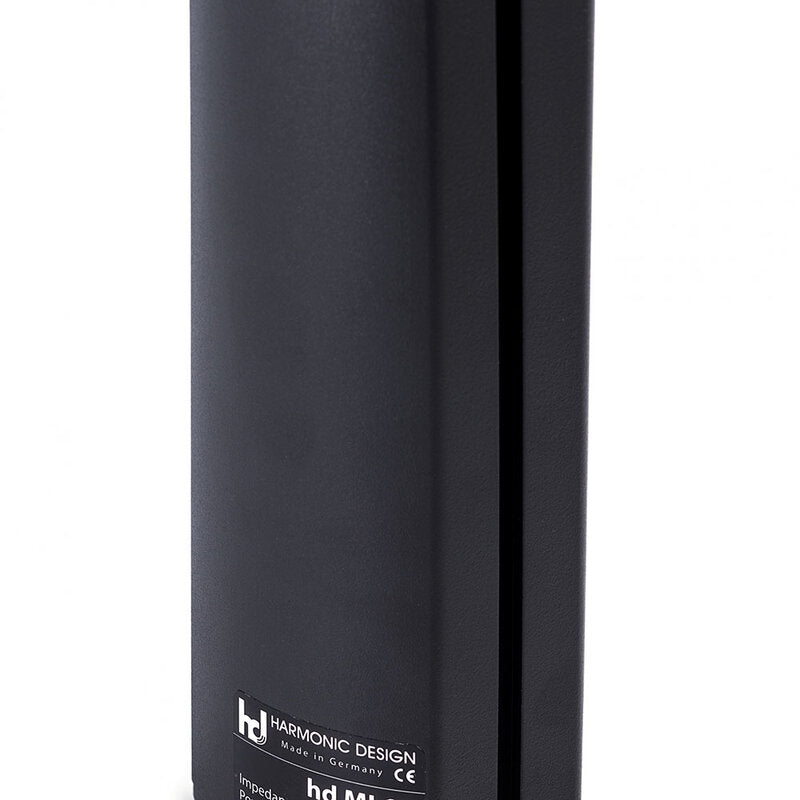

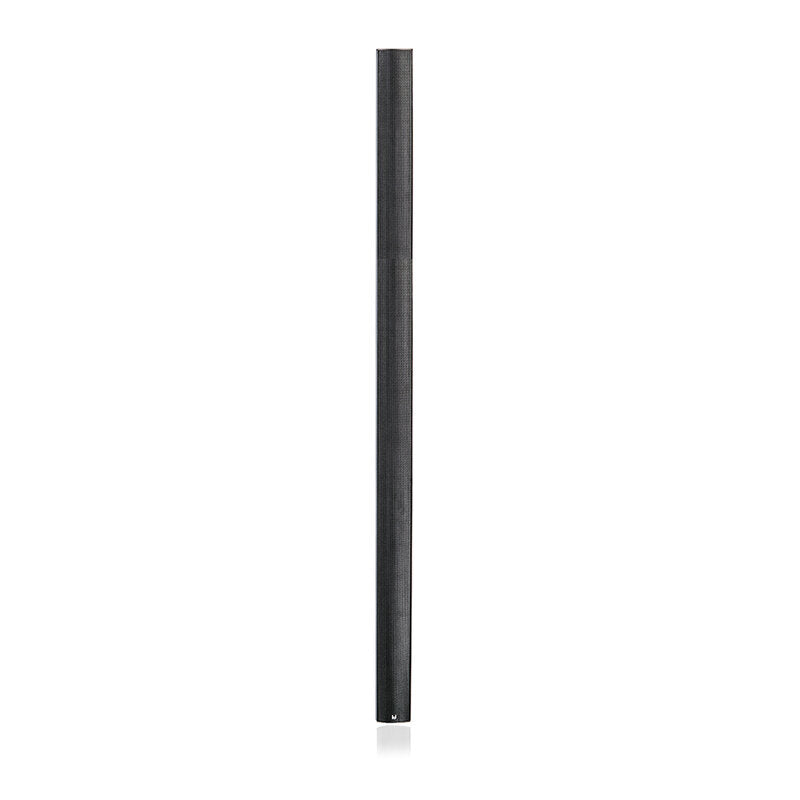

Harmonic Design PL24i 900 W passive PowerLine stick, 24 x 3", 80° x 8° coverage, 6 ohm, wallmount, cable inlet, wall bracket not included

FEATURES

Column speaker with 24 x 3" full-range drivers housed in an elegant, rounded aluminum cabinet. The drivers pair to create a (nearly) cylindrical wavefront with an 8° vertical opening, resulting in a constant sound pressure level and near-uniform sound reproduction from the first to the last row.

Its long throw (up to 30 m) and 80° horizontal coverage allow for great efficiency with few loudspeakers. This translates into more direct sound, higher speech intelligibility, and high feedback rejection in acoustically challenging rooms.

The hd PL i series column speakers are ideal for restaurants, bars, airports, train stations, home theaters, conference rooms, hotels, A/V installations, multimedia applications, meeting rooms, churches, live music, DJs, concert halls, broadcasting. Compared to the hd ML32i, the hd PL24i model stands out for its lower total height with the same weight, meaning it can be used in venues with low ceilings.

Thanks to the increased directivity of the 3" drivers, the 80° horizontal dispersion angle ensures that sound energy is channeled even more, thus allowing for a greater throw. With a larger diaphragm surface area compared to the hd ML24, music and speech reproduction in the hd PL12i in the mid-bass range is even more powerful and higher sound pressure can be achieved.

In fixed installations, the use of a subwoofer for speech reproduction can be avoided thanks to the system's full-range capability.

To reproduce a sound program from the fundamental to the harmonics, conventional loudspeakers use two or three different types of transducers. This results in inconsistency not only near crossover frequencies but also in the important mid-frequency range due to the different decay times and diaphragm masses of the various transducers. Especially in reproduction where the low range is covered by one type of transducer and the high range by another, the sound could be distorted. This is where the 1-way design of the PL i hd series comes in: full-range drivers covering the fundamental to harmonic range, the advantages of Line Array (cylindrical wave) and sound wave coherence, without "phasing" and group delay: a unique listening experience.

Internal clamping terminals ensure quick, tool-free connection of the speaker. A high-quality aluminum powder coating and acoustic foam complete the features of the PL i series. For optimal adaptation to the room's architecture, the speaker can be customized in all RAL colors and with special lengths.

Key features

• Elegant design
• Cylindrical wave propagation
• Precise and uniform sound emission
• Excellent speech intelligibility
• 80° x 8° coverage pattern
• Discreet room integration
• 100 V version available
• Custom length possible

SPECIFICATIONS

Technical characteristics

• Principle: Line Source loudspeaker, cylindrical wave
• Transducers: 24 x 3" full range drivers
• Power handling: 900 W_RMS / 1260 W peak
• Frequency response: 80 – 18,000 Hz
• Sensitivity: 97 dB/W/m
• SPL max: 128 dB
• Nominal dispersion angle: 80° x 8° (H x V)
• Nominal impedance: 6 ohm
• Enclosure: powder-coated aluminium profile black, steel grille with acoustic foam, internal clamping terminal, cable inlet at the rear, incl. 2 x M6 nut
• Connections: internal clamping terminal
• Dimensions: 108 x 2001 x 104 mm
• Weight: 15 kg
• Options: RAL-color, various wall mount, special length, weather resistant, 100 V transformer
