HELVIA ZEUS 1350CA POWER AMPLIFIER 1X350W
Estimated delivery in Italy between 30 October and 3 November
Pay in 3 installments of €328,00 interest-free
Pay in 3 installments of €328,00 interest-free with PayPal
Split into 3 installments of €328,00 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
FEATURES

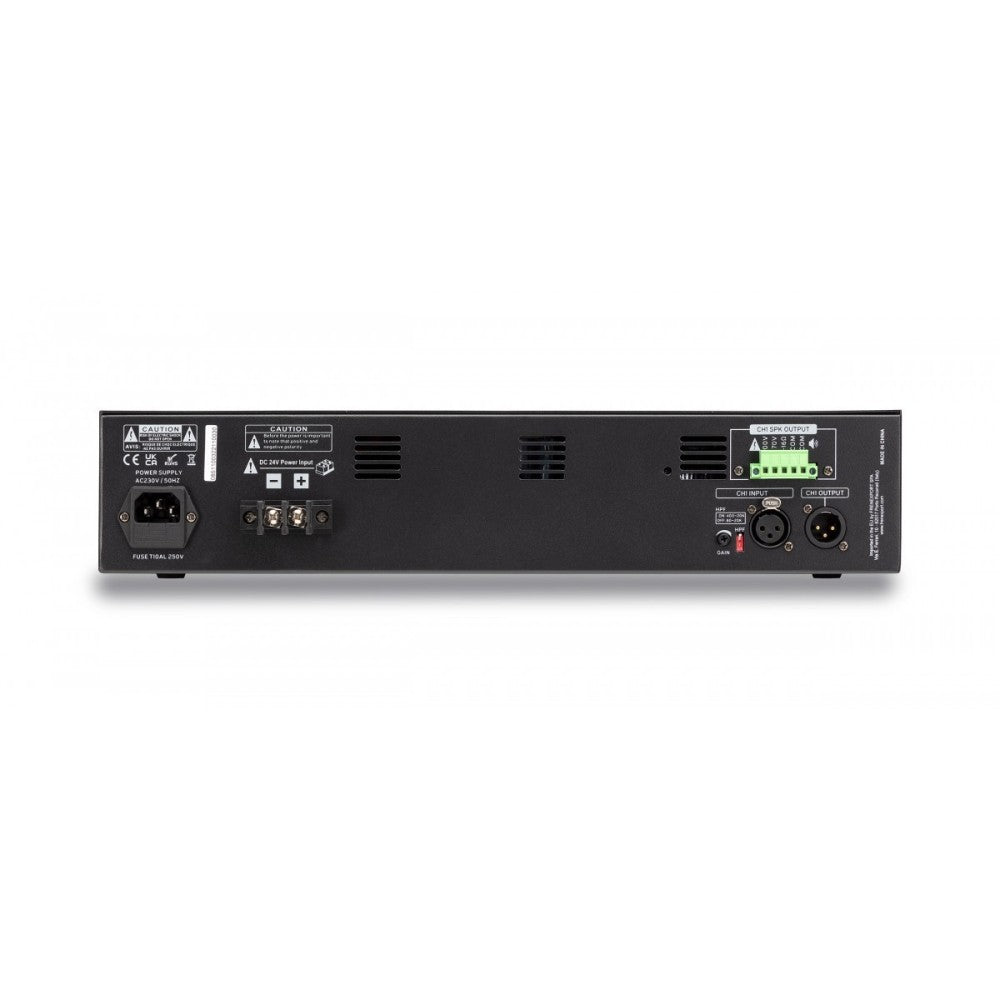

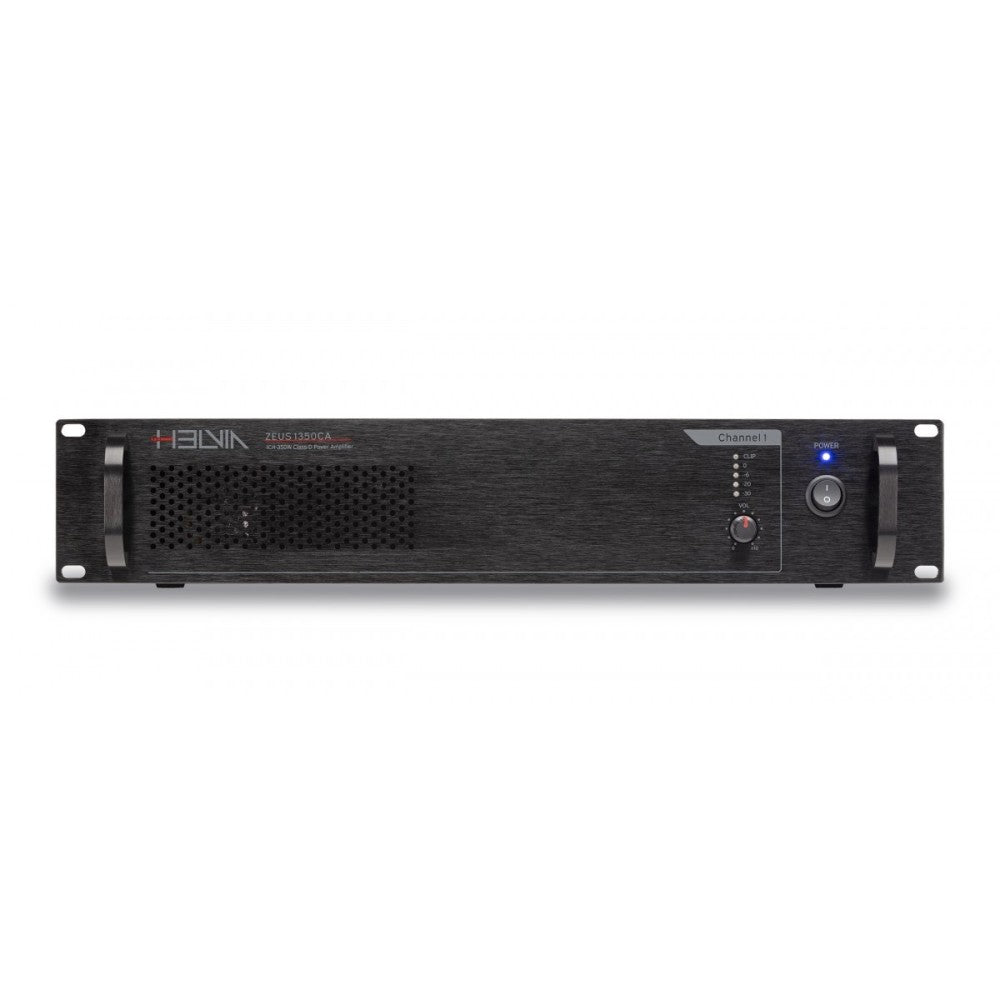

The ZEUS CA series by Helvia is designed for small and medium audio installations on both constant voltage lines at 70V or 100V, and low impedance lines from 4 to 16 ohms. It offers Class-D amplifiers in 1, 2 and 4 channel configurations with RMS powers of 120W, 240W and 350W. Each channel is independent and has its own line transformer, therefore it is possible to choose between 70/100V operation or low impedance between 4-16 ohms for each one, offering maximum versatility depending on the needs of each zone. Each channel is equipped, in addition to volume, with LED VU-meter and clip indicator, as well as gain adjustment via trimmer on the rear panel. There is also a High-Pass filter with cutoff frequency at 400Hz. Input and output connections are all balanced with XLR connectors; power outputs are on Phoenix connection (Europlug). The 1 and 2 channel versions also have auxiliary DC 24V power supply for any emergency auxiliary lines. Helvia has devoted great attention to the safety, reliability and durability over time of these amplifiers. Each channel is equipped with a mute-on-power-up system, signal limiter, thermal protection and current limitation. The cooling system with temperature-controlled speed fan is further enhanced thanks to the standard 2U 19" rack format which promotes heat dissipation. Quality is based not only on the selection of active and passive components, but also on the quality of materials used in line transformers and the use of digital processing to offer stability, reliability and high-level audio performance.
SPECIFICATIONS
- 1 channel, 350W
- 70V/100V and 4-16ohm operation
- 2U 19" Rack for maximum heat dissipation
- High-quality components for maximum reliability
- 24VDC auxiliary power supply for emergency systems
- Complete protection system including signal limiter, thermal protection and current limitation
- Variable speed fans for silent and efficient cooling
- RMS Power at 100V: 350W
- RMS Power at 70V: 350W
- RMS Power 4-16O: 350W @ 4O
- Input Sensitivity: 1V/Gain max @ 0.775V
- Input Impedance: 20KO ±10%
- High-Pass Filter: ON = 400Hz-20kHz; OFF = 80-20kHz
- Frequency Response: 80-20kHz/ 400Hz-20kHz
- THD (1W @ 1KHZ): < 0.05%
- Damping Factor: >300 @ 100 Hz
- Crosstalk: >70dB
- S/N Ratio: >85dB
- Amplifier Class: Class D
- Power Supply: AC 230V/DC24V
- Power Consumption (Average): 440W (Average)
- Input Connectors: XLR 3-Pin Female
- Output Connectors: Phoenix 5-Pin
- Link Connectors on Channels: XLR 3-Pin Male
- Cooling: Temperature Controlled Fan
- Dimensions (W x D x H): 484x400x88 mm (19.0 x 15.7 x 3.5 in)
- Rack Mount: 2x 19" Rack Unit
- Package Dimensions (W x D x H): 550 x 500 x 170 mm (21.6 x 19.7 x 6.7 in)
- Net Weight: 9.4 kg (20.7 lbs.)
- Gross Weight: 11.0 kg (24.2 lbs.)
