Microphone Preamplifier

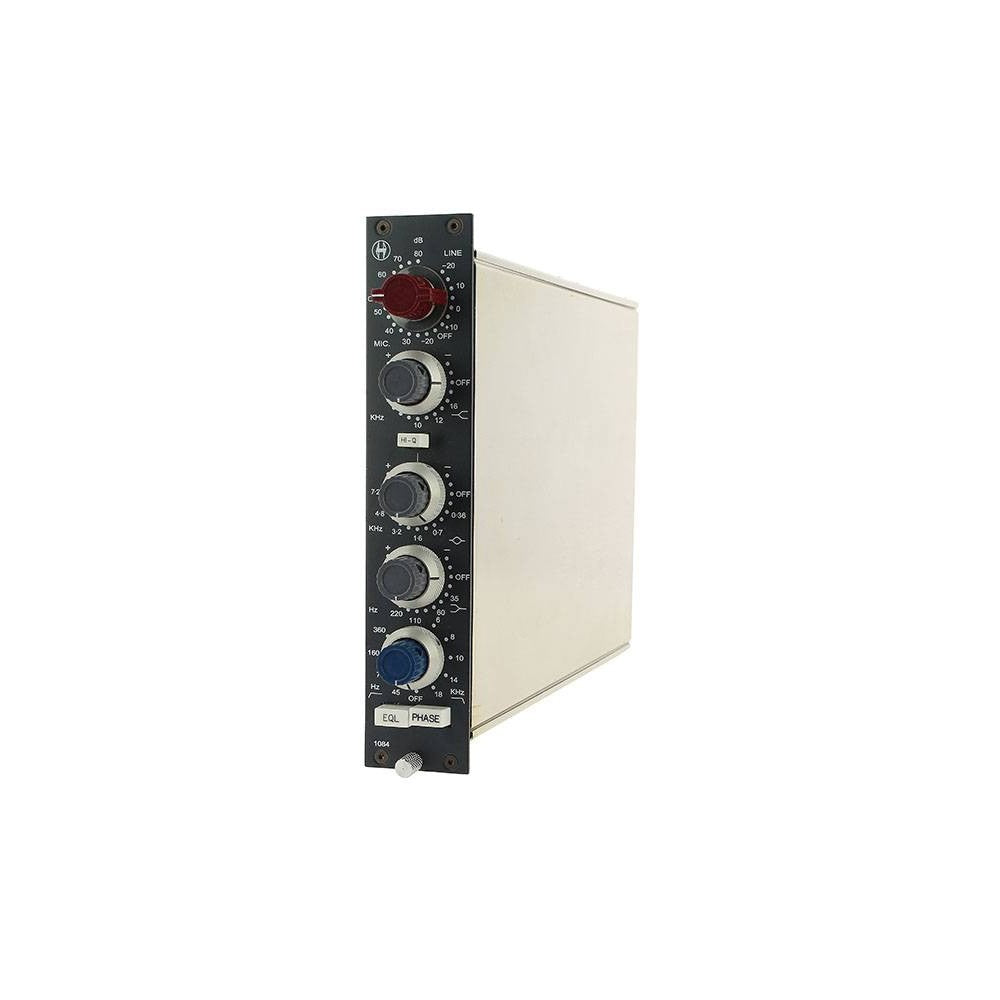

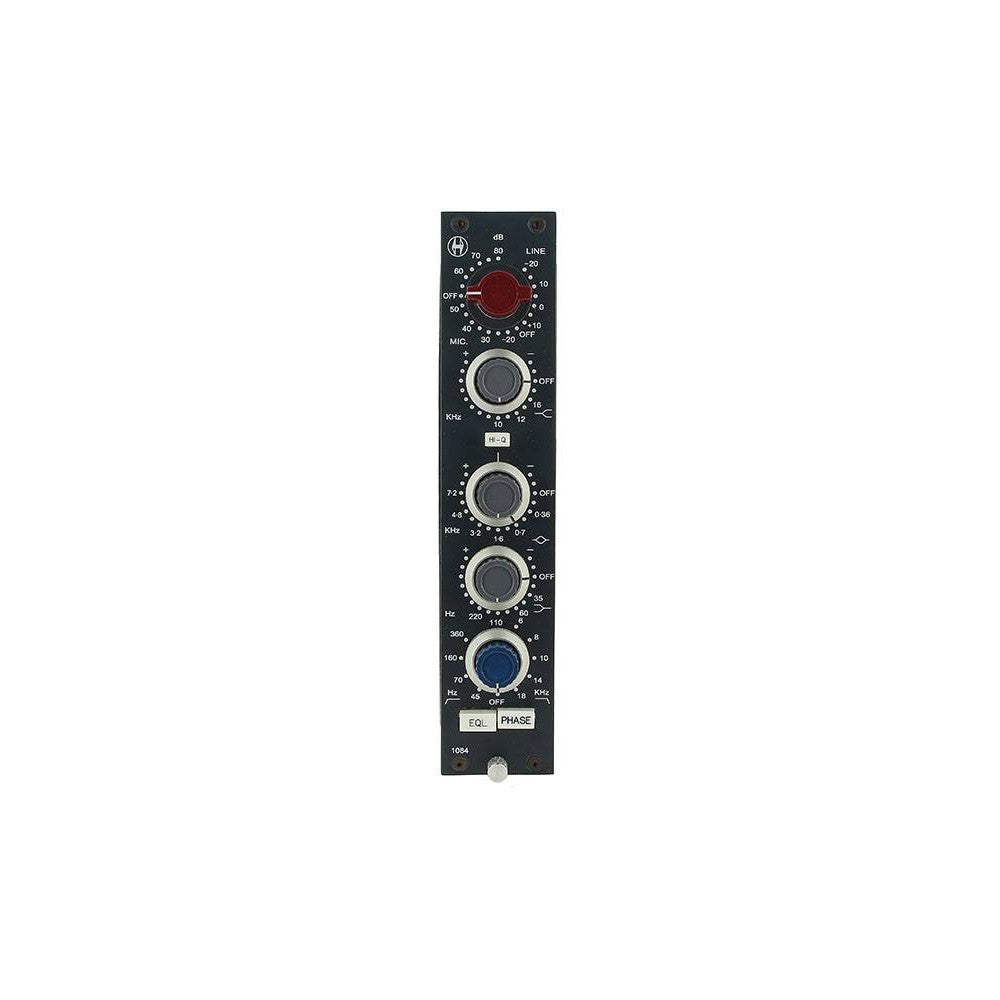

The HERITAGE AUDIO 1084 is a microphone preamplifier designed to fill the input module slots in the restoration process of vintage 80-series audio mixing consoles.
It is also compatible with Power Audio Frame 8 and Rack 2 enclosures.
Particular attention has been paid to sourcing the correct components that ensure the performance is as close as possible to a 1070s unit, as is possible nowadays.
Custom polystyrene and film capacitors have been developed to perfectly match the Siemens Styroflex and Mullard Mustard types from the late 60s and early 70s.
Custom input transformers have also been designed in collaboration with Carnhill Transformers' Oxford factory to meet our special requirements.
The HERITAGE AUDIO 1084 is entirely handcrafted in our facilities in Spain, using the same wiring and soldering techniques from the 70s. Its entire circuit is contained in five plug-in cards.
Specifications
- Microphone input impedance: HI, minimum 1200 Ohm, LO, minimum 300 Ohm. Higher gain settings have progressively greater impedances, optimal for low-gain ribbon microphones. Input is transformer balanced and floating
- Line input impedance: 10KOhm bridging, transformer balanced and floating
- Output impedance: less than 75 ohms, transformer balanced and floating, to drive a 600 ohm load
- Maximum output level: greater than +26 dBu into 600 ohms
- THD: less than 0.025% at 1 kHz, less than 0.05% at 100 Hz
- Frequency response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB)
- Maximum gain: slightly greater than 80 dB
- Noise: less than -100dBu
- Power consumption: less than 110 mA at 24 V DC
