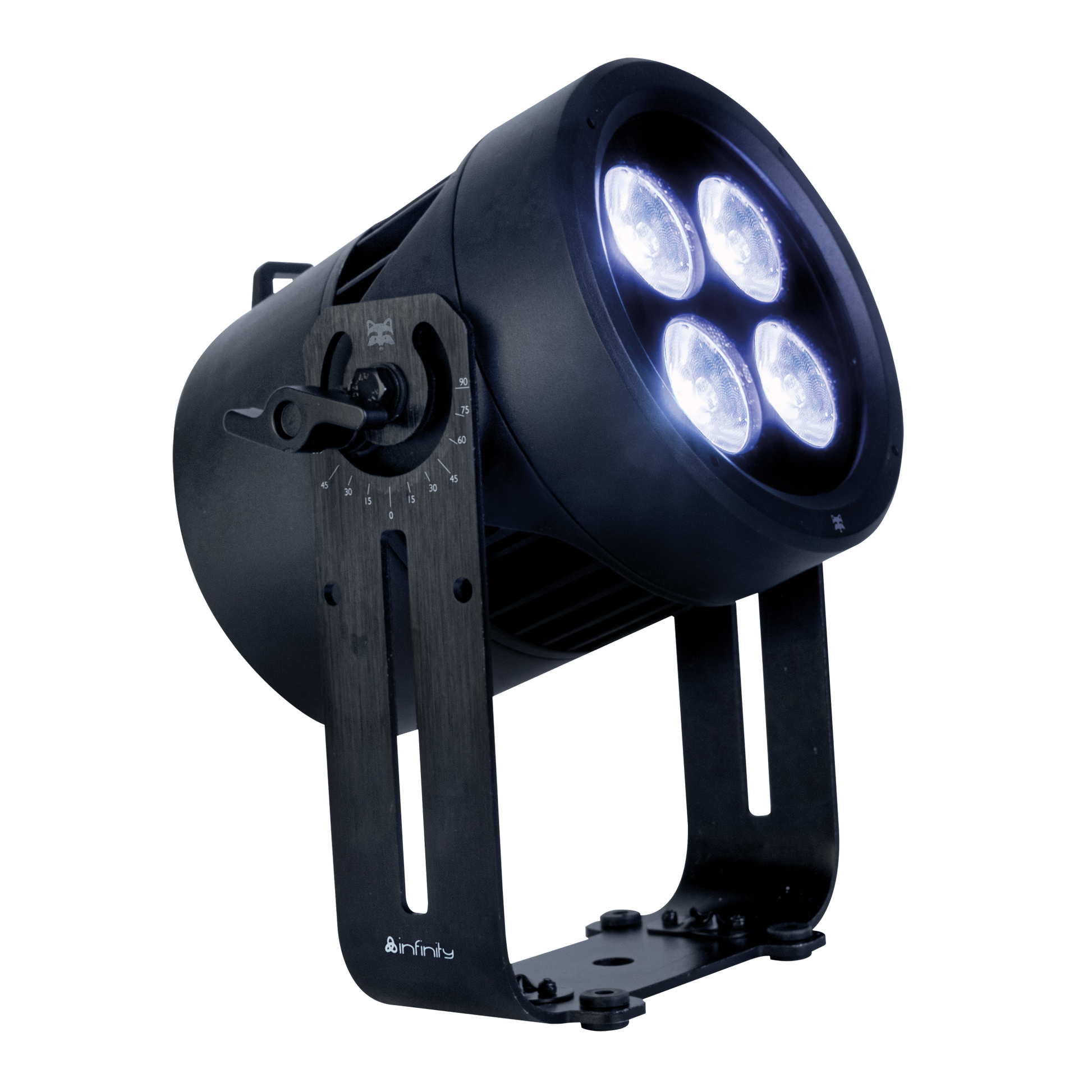

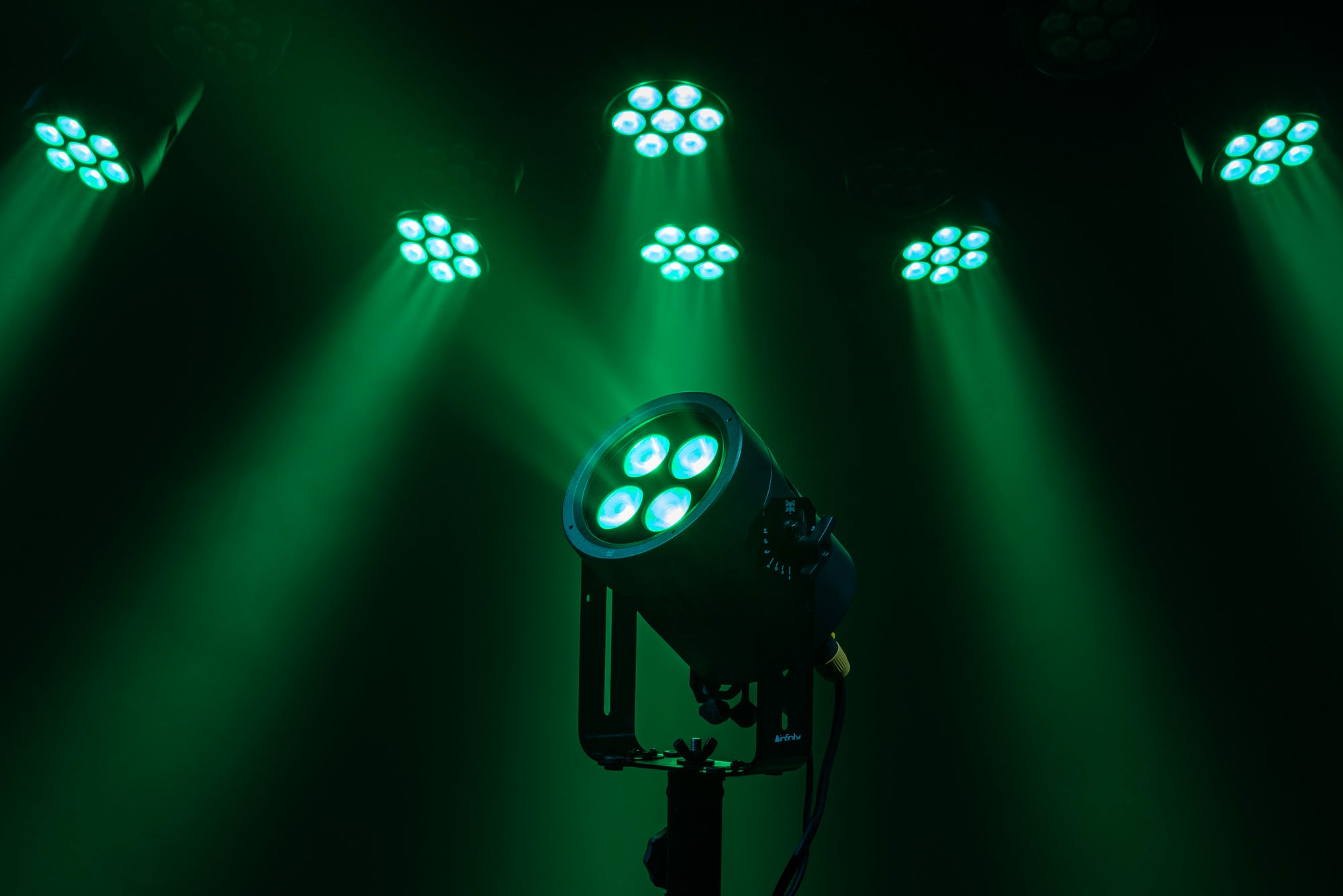

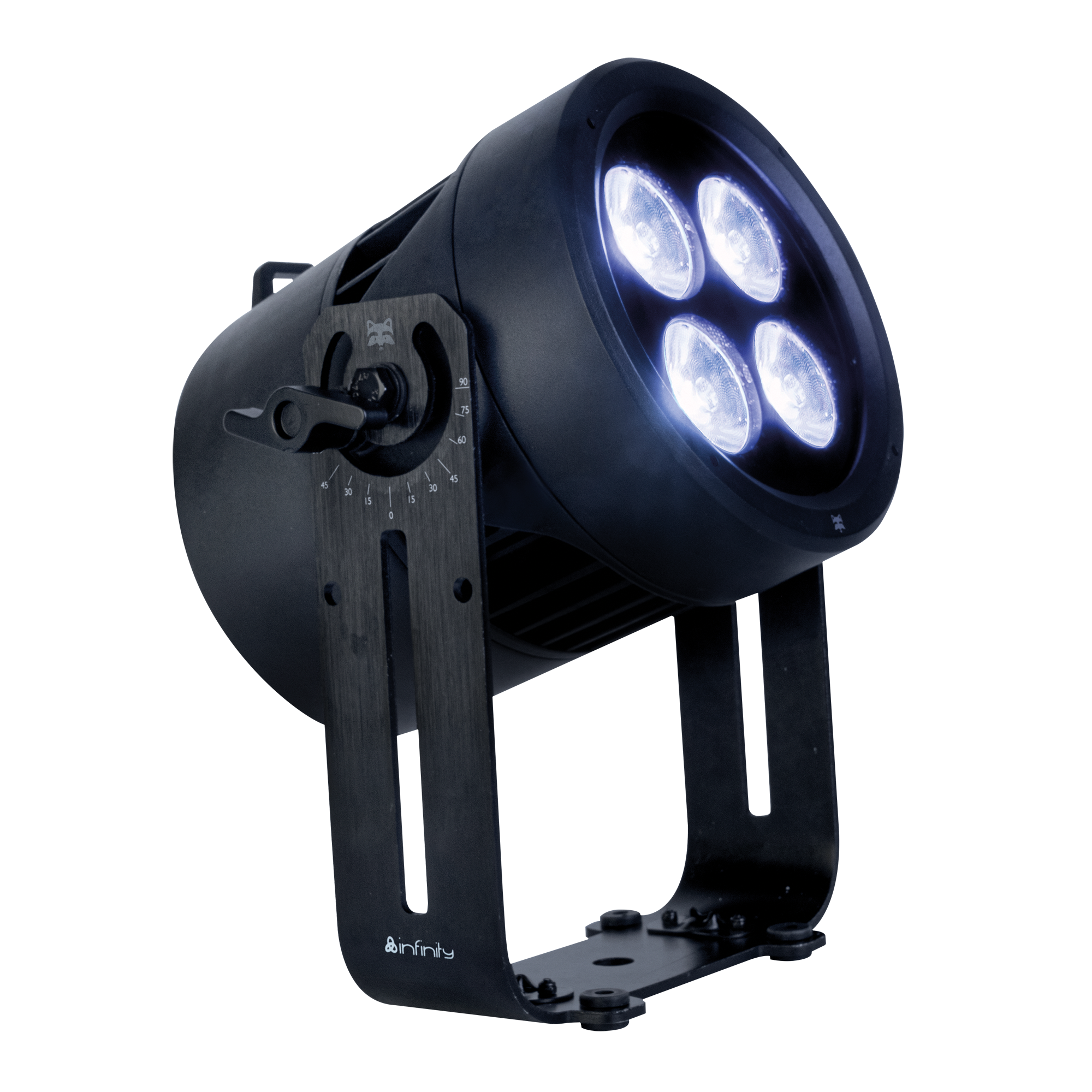

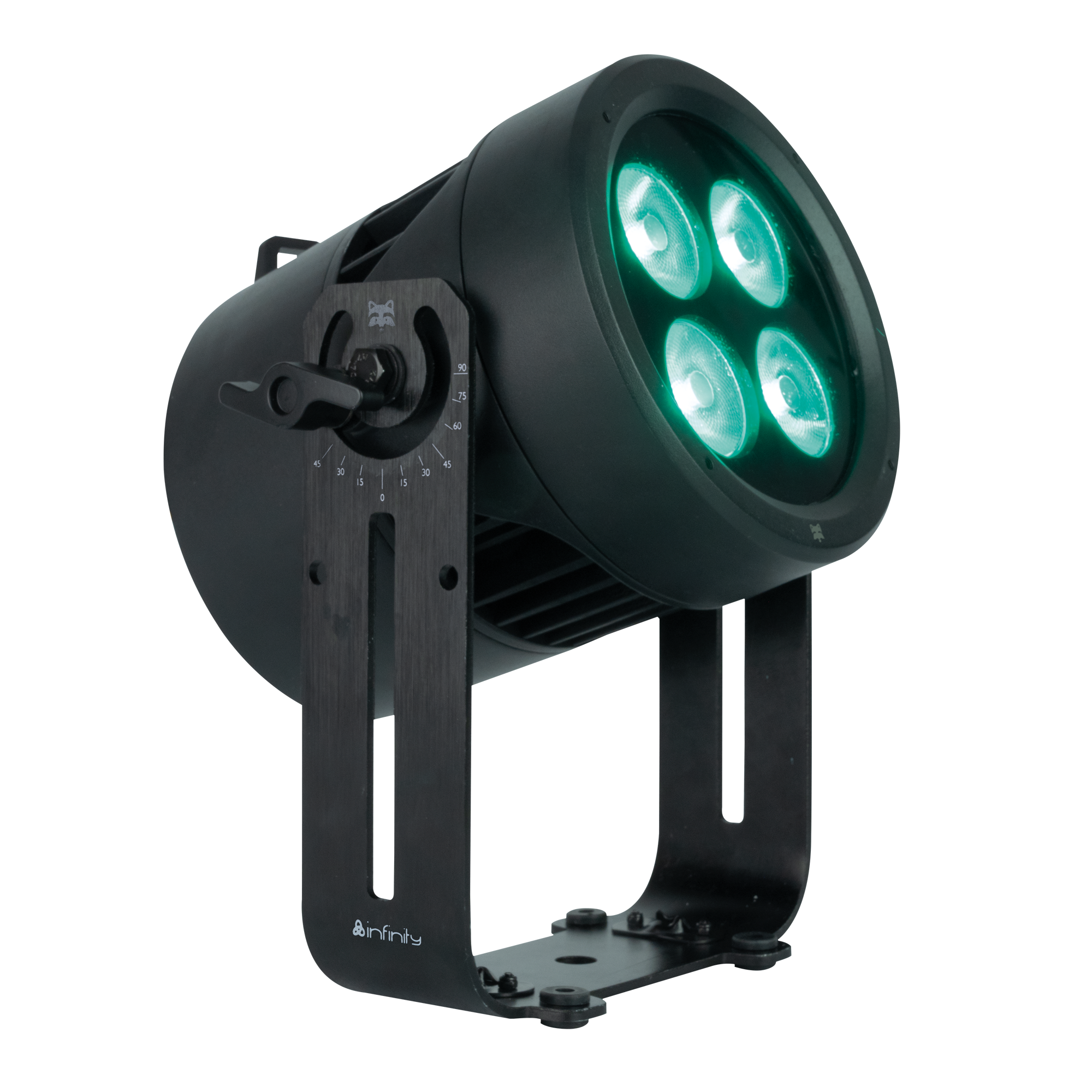

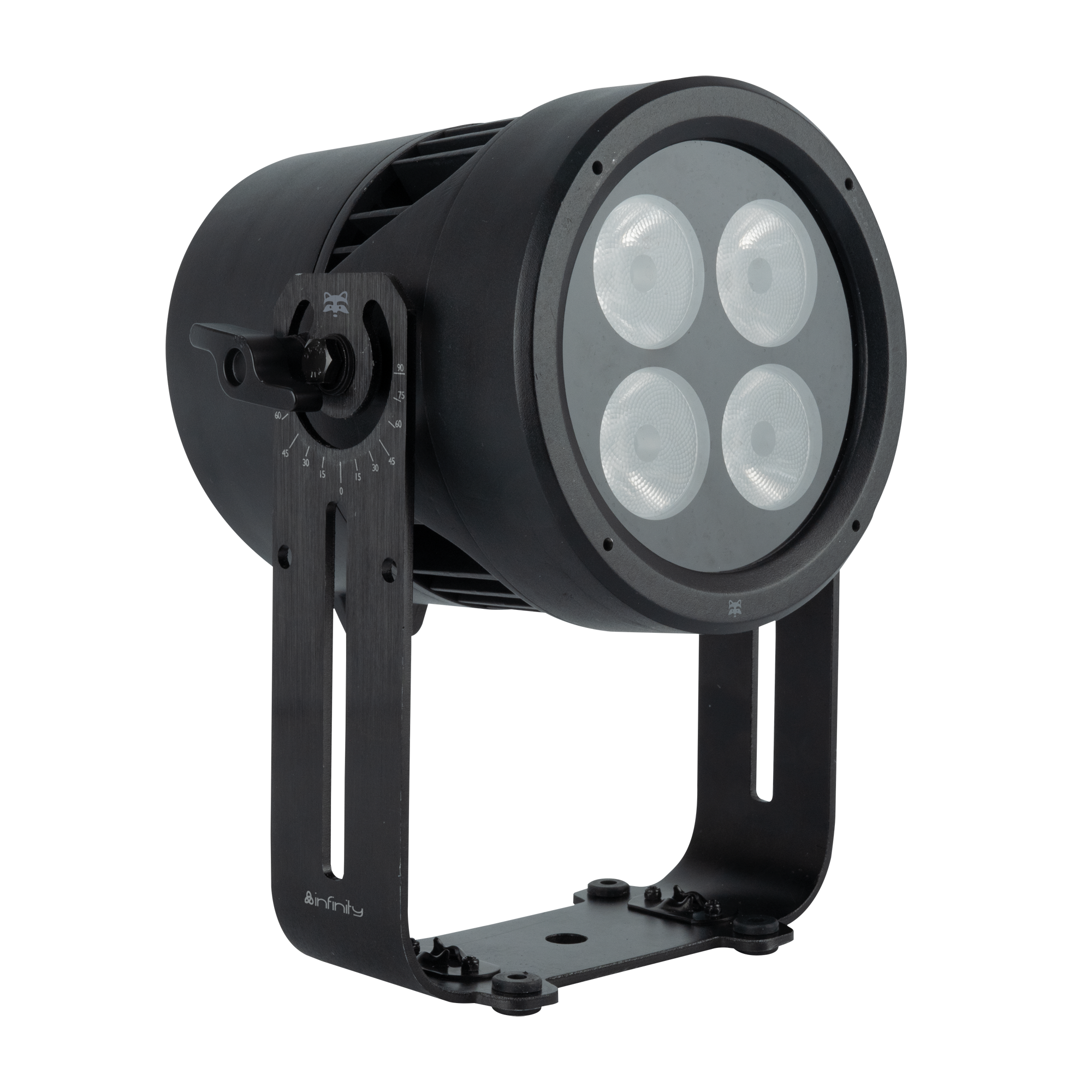

INFINITY Raccoon Junior P4/7 Professional RGBCALDB Parcan
Estimated delivery in Italy between 18 and 20 August
Pay in 3 installments of €96,00 interest-free
Pay in 3 installments of €96,00 interest-free with PayPal
Split into 3 installments of €96,00 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
Professional RGBCALDB Parcan

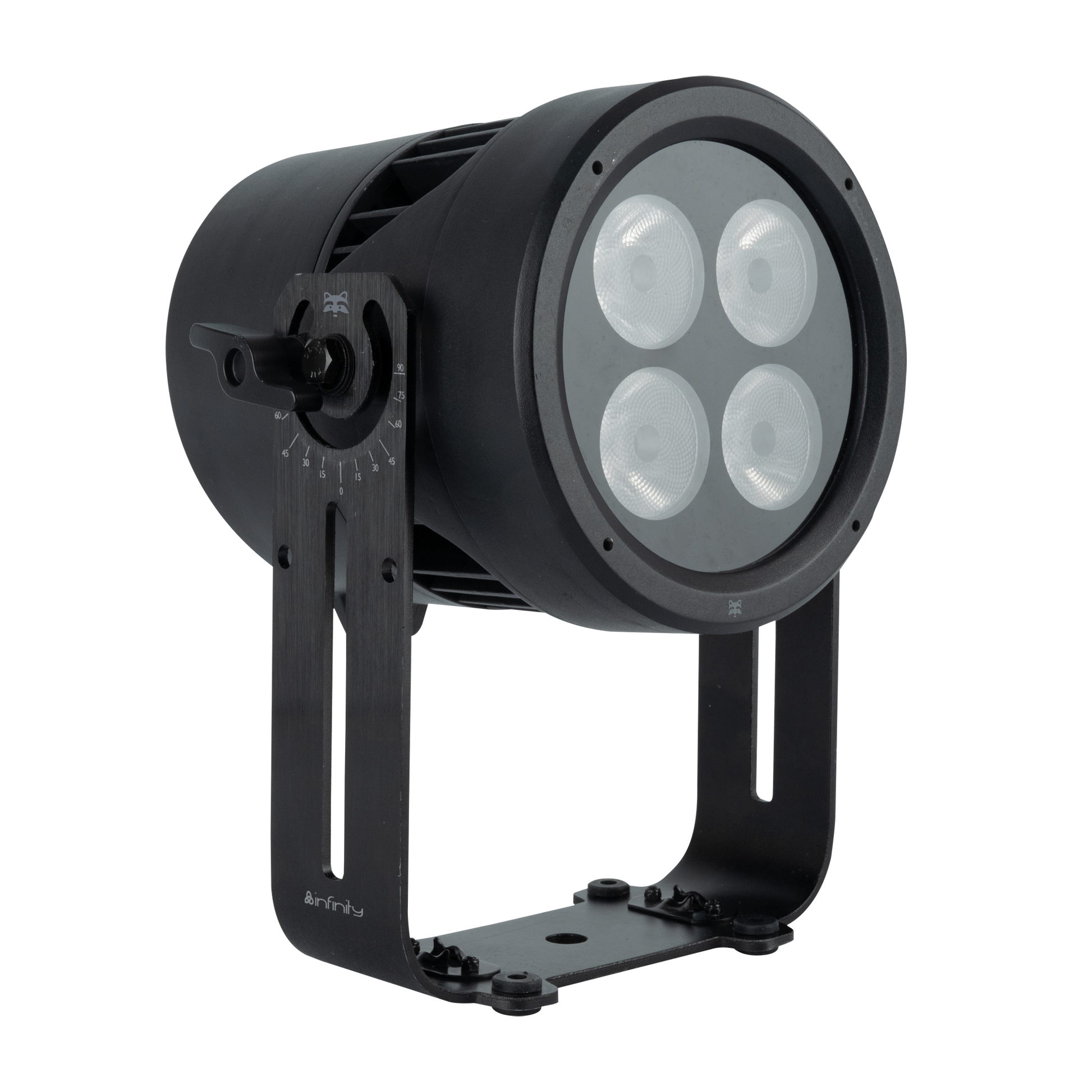

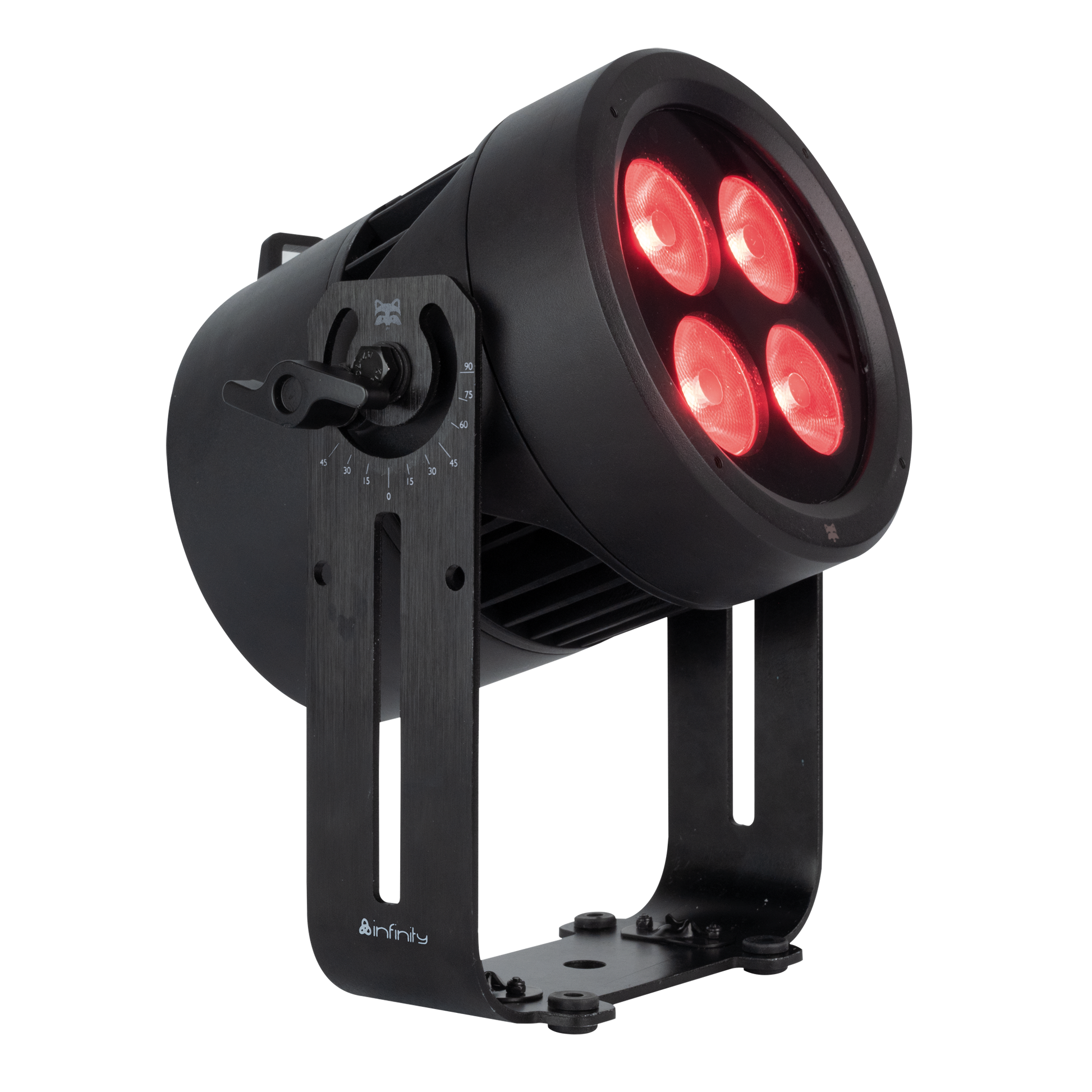

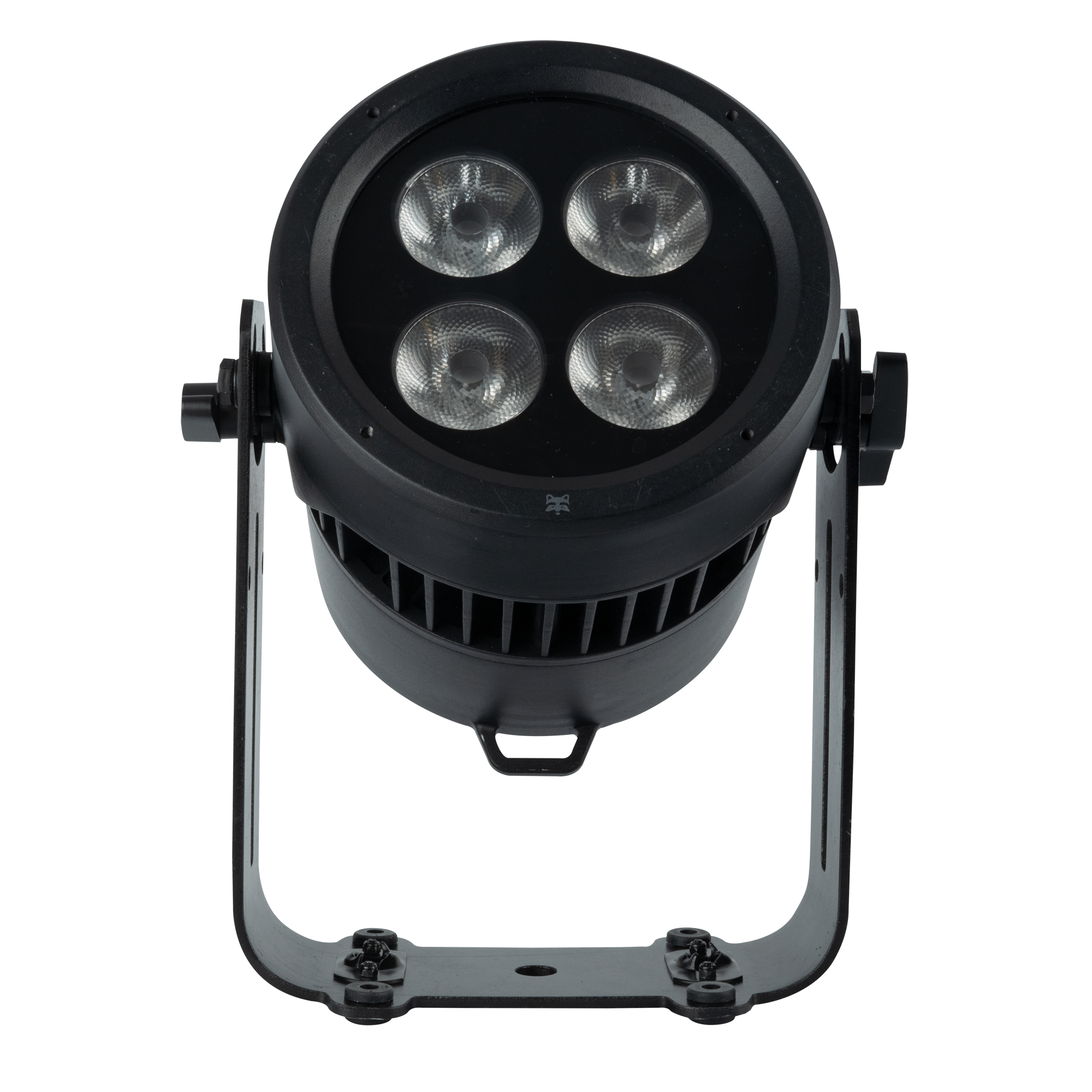

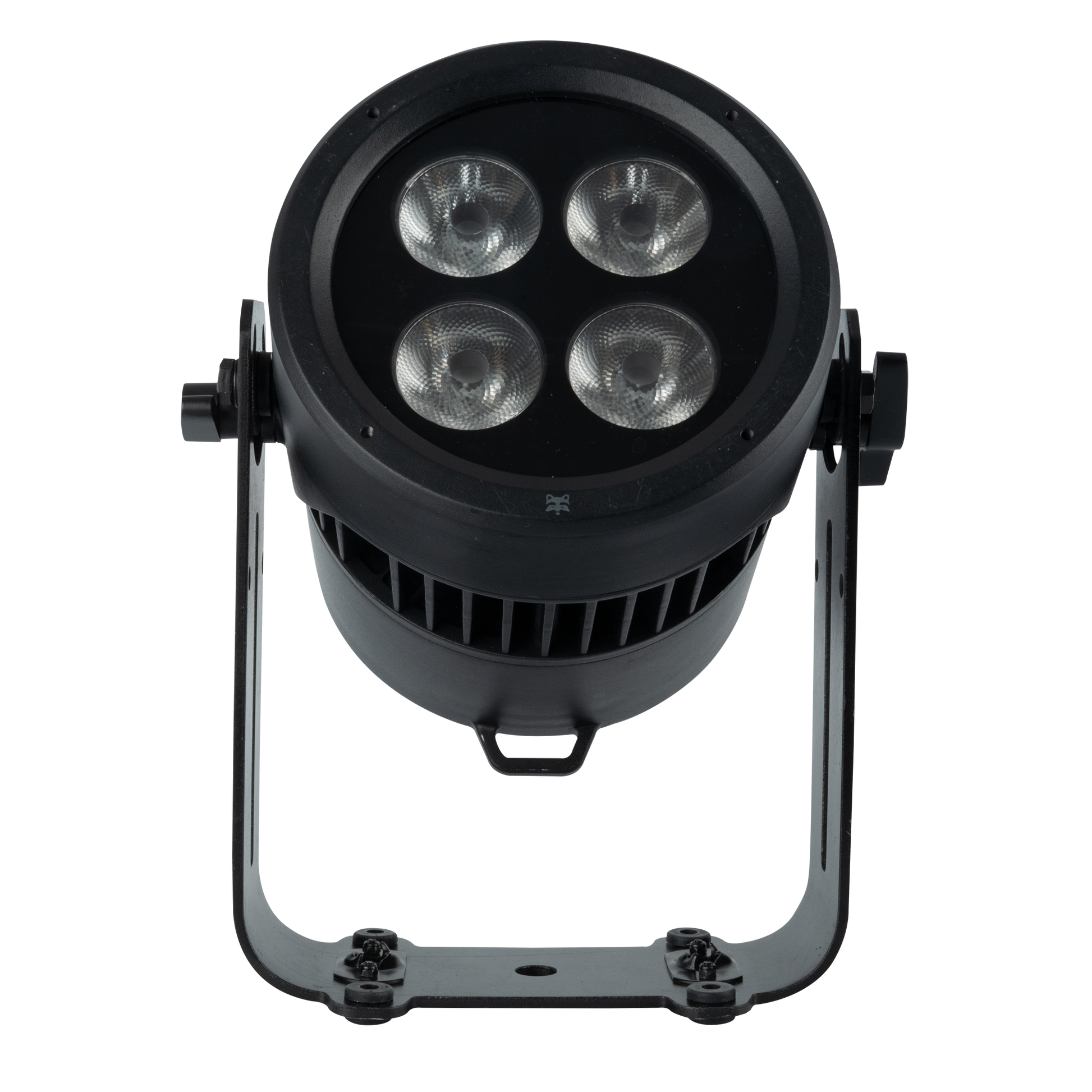

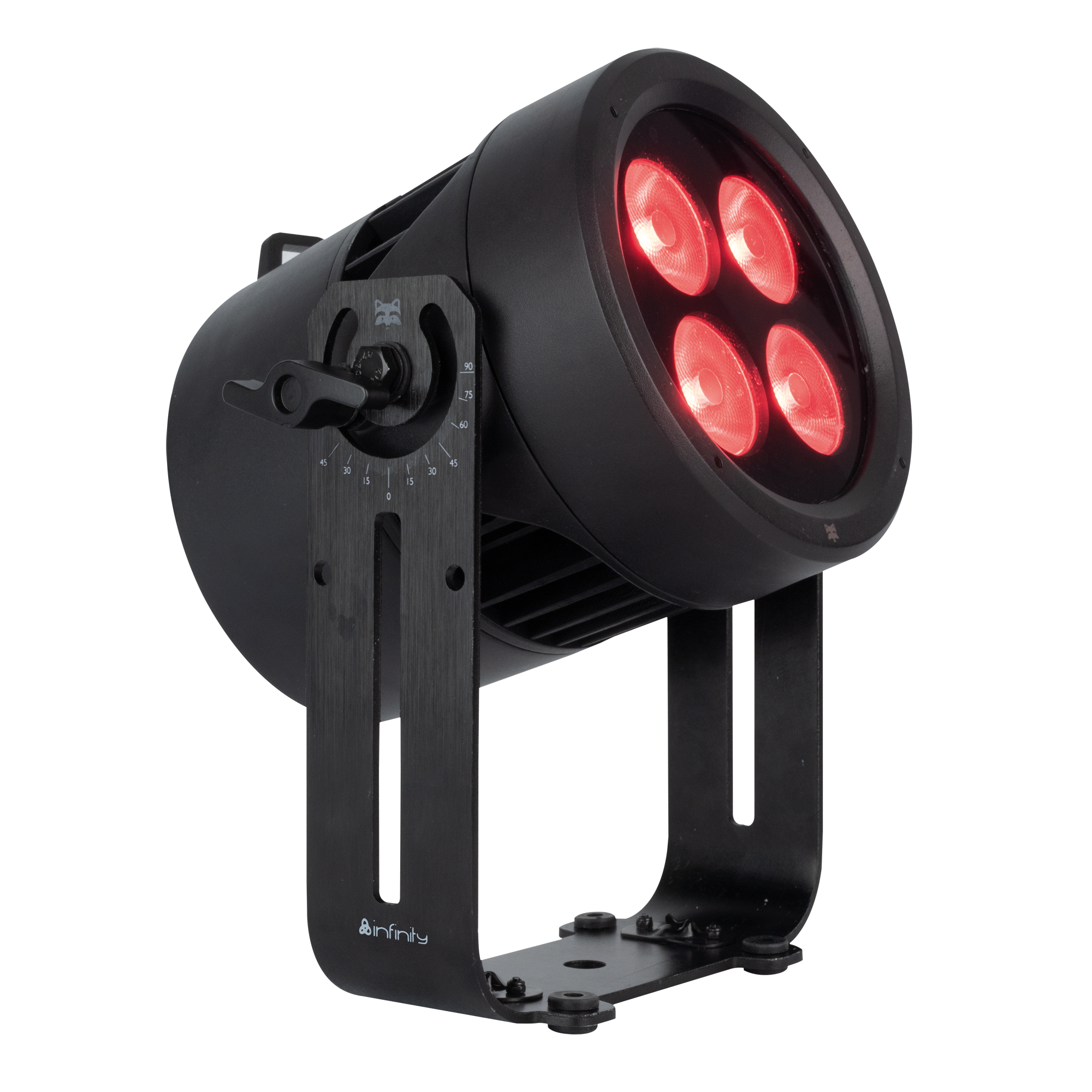

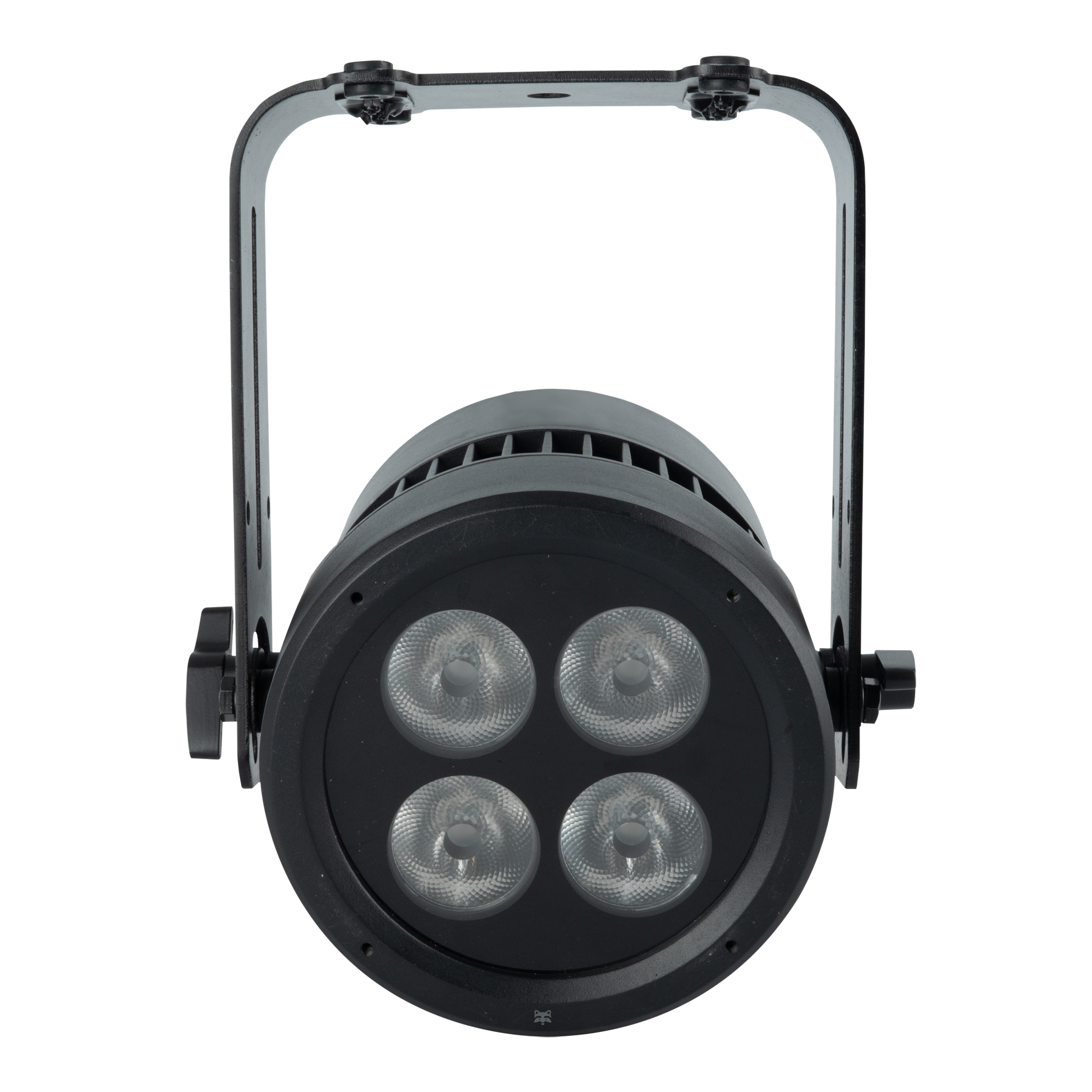

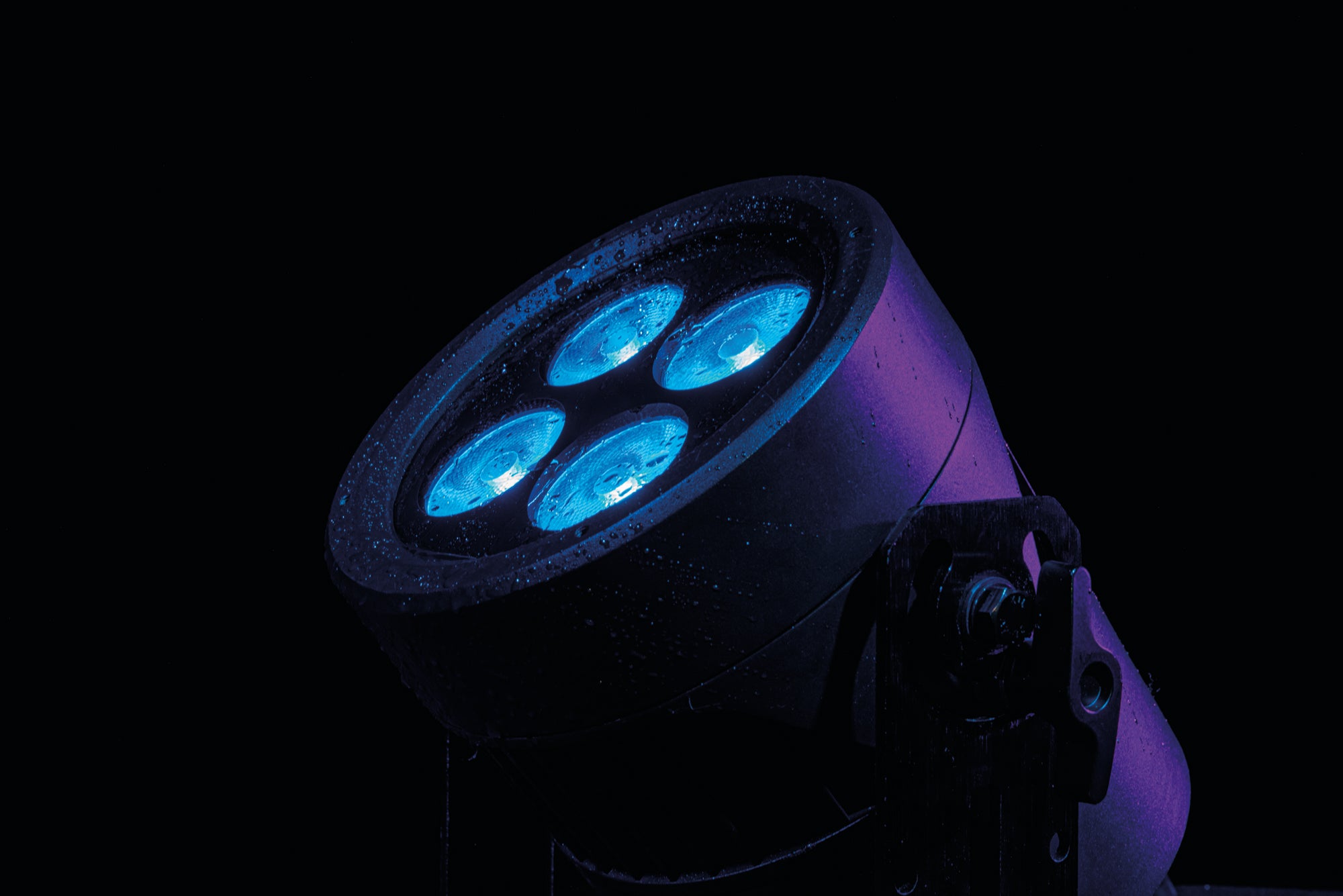

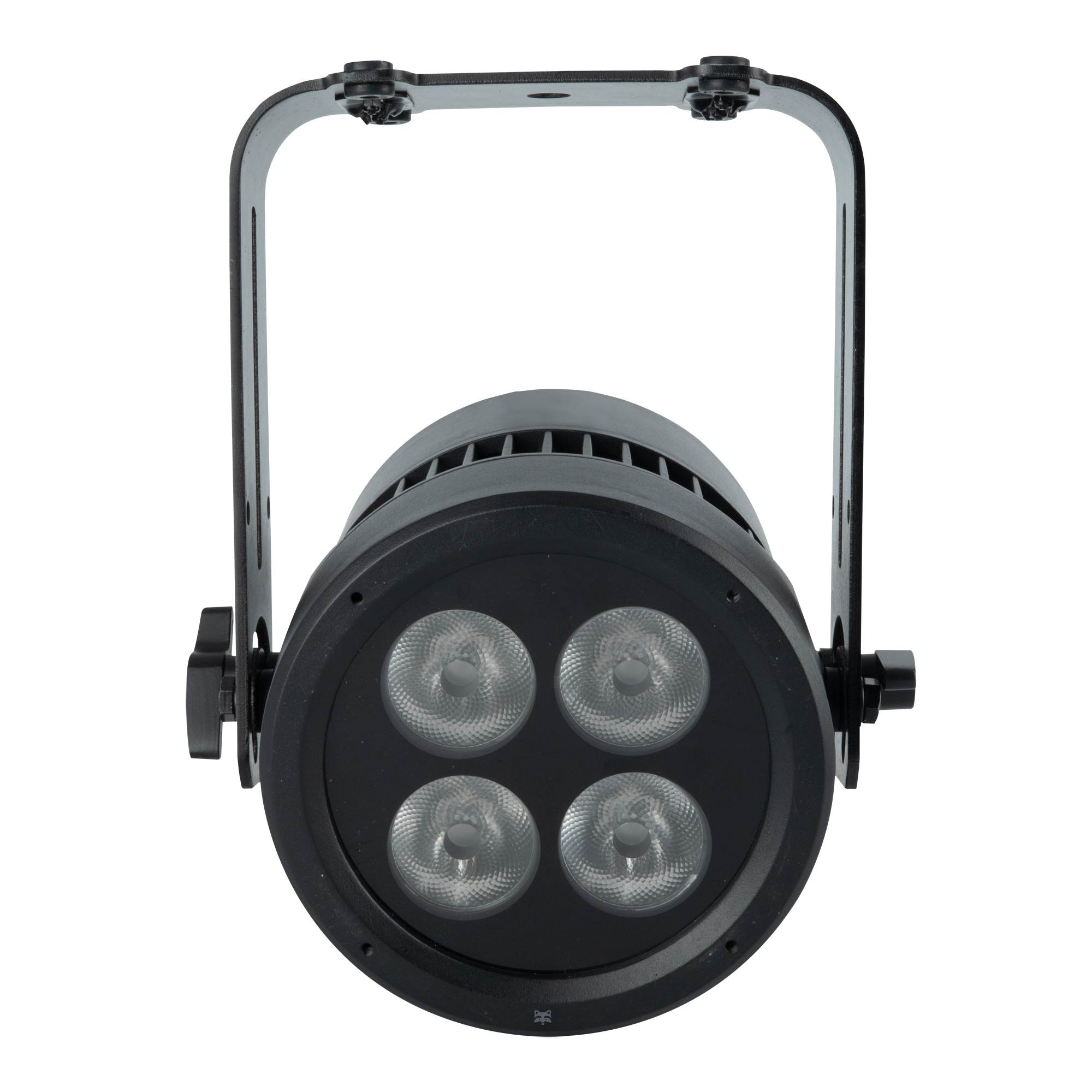

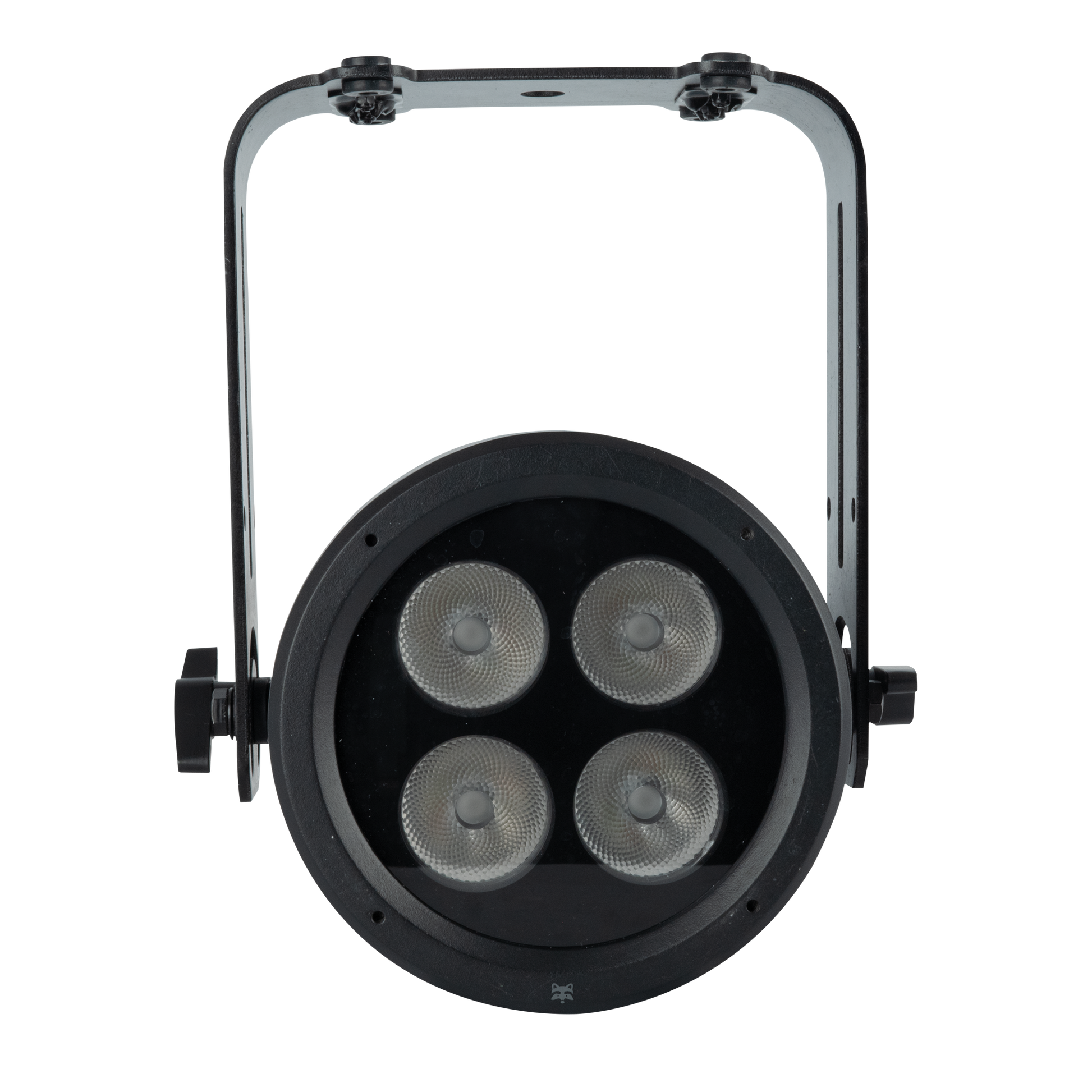

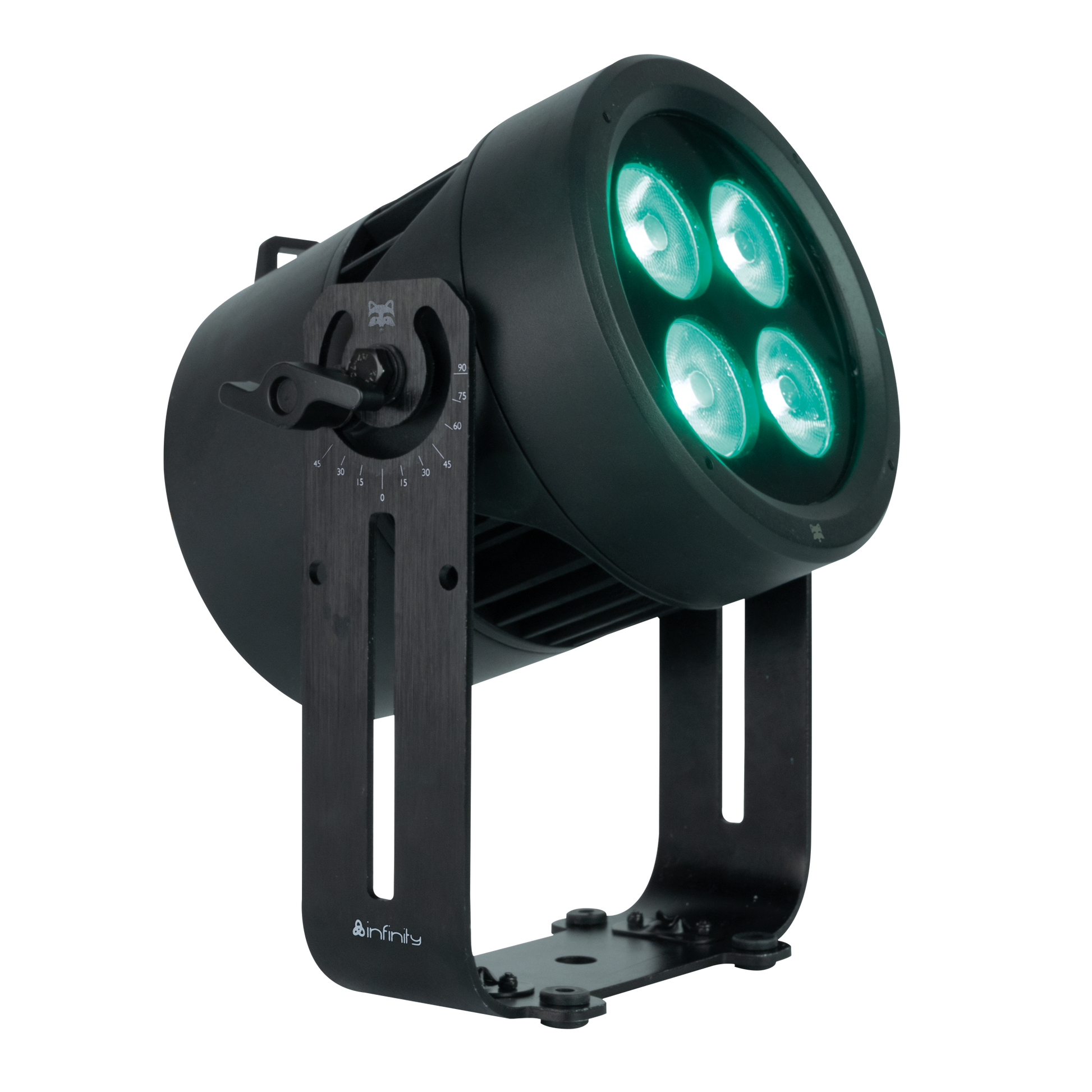

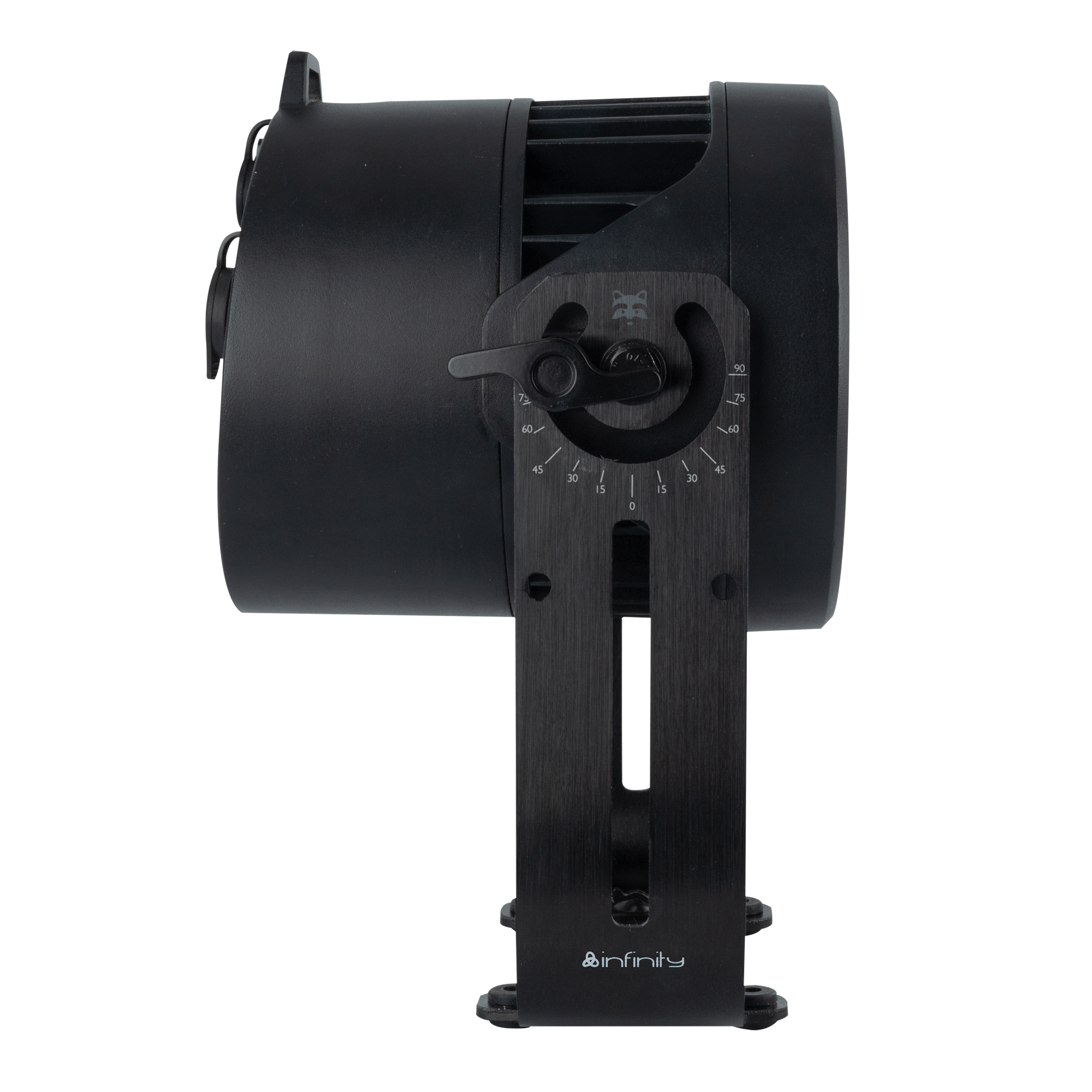

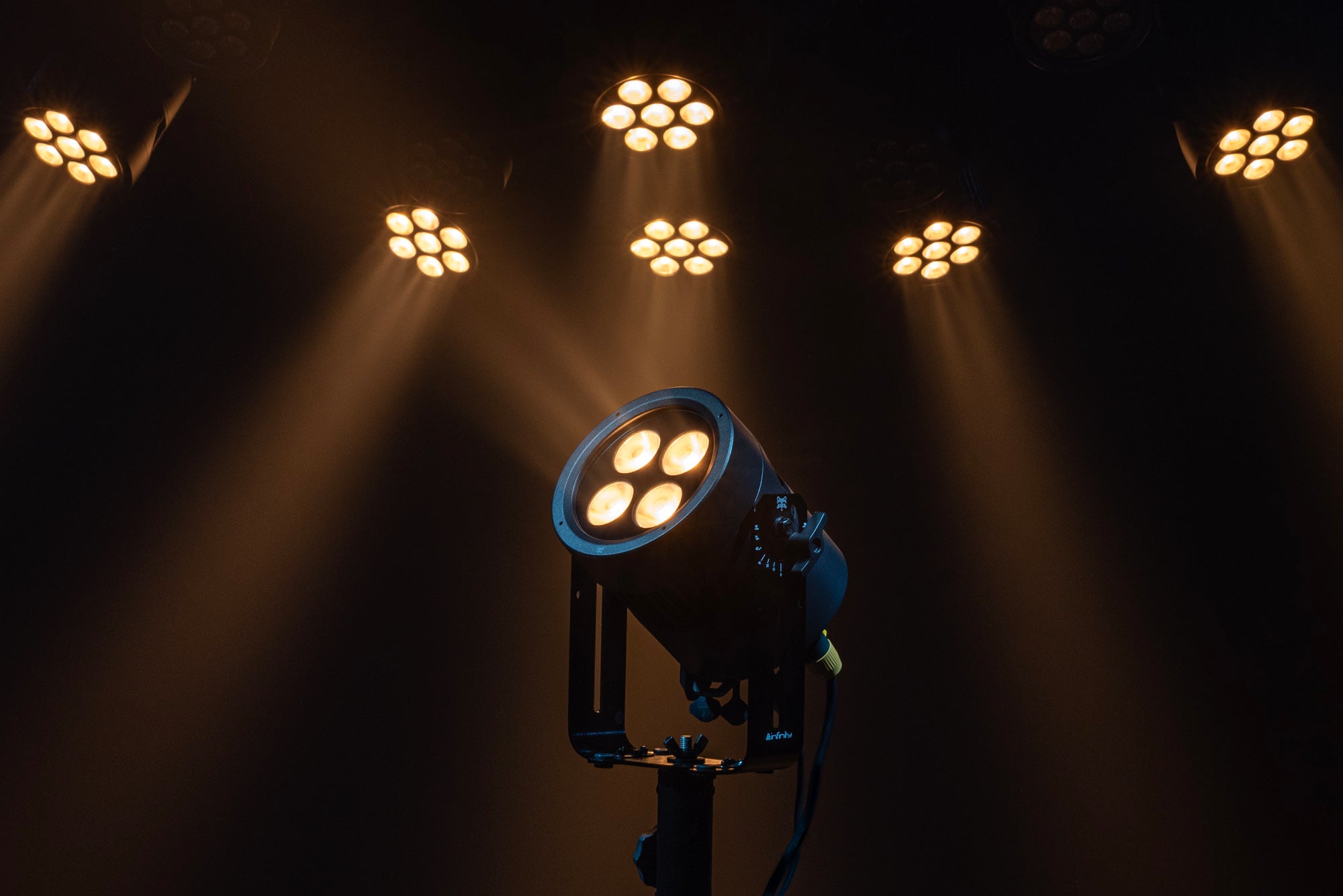

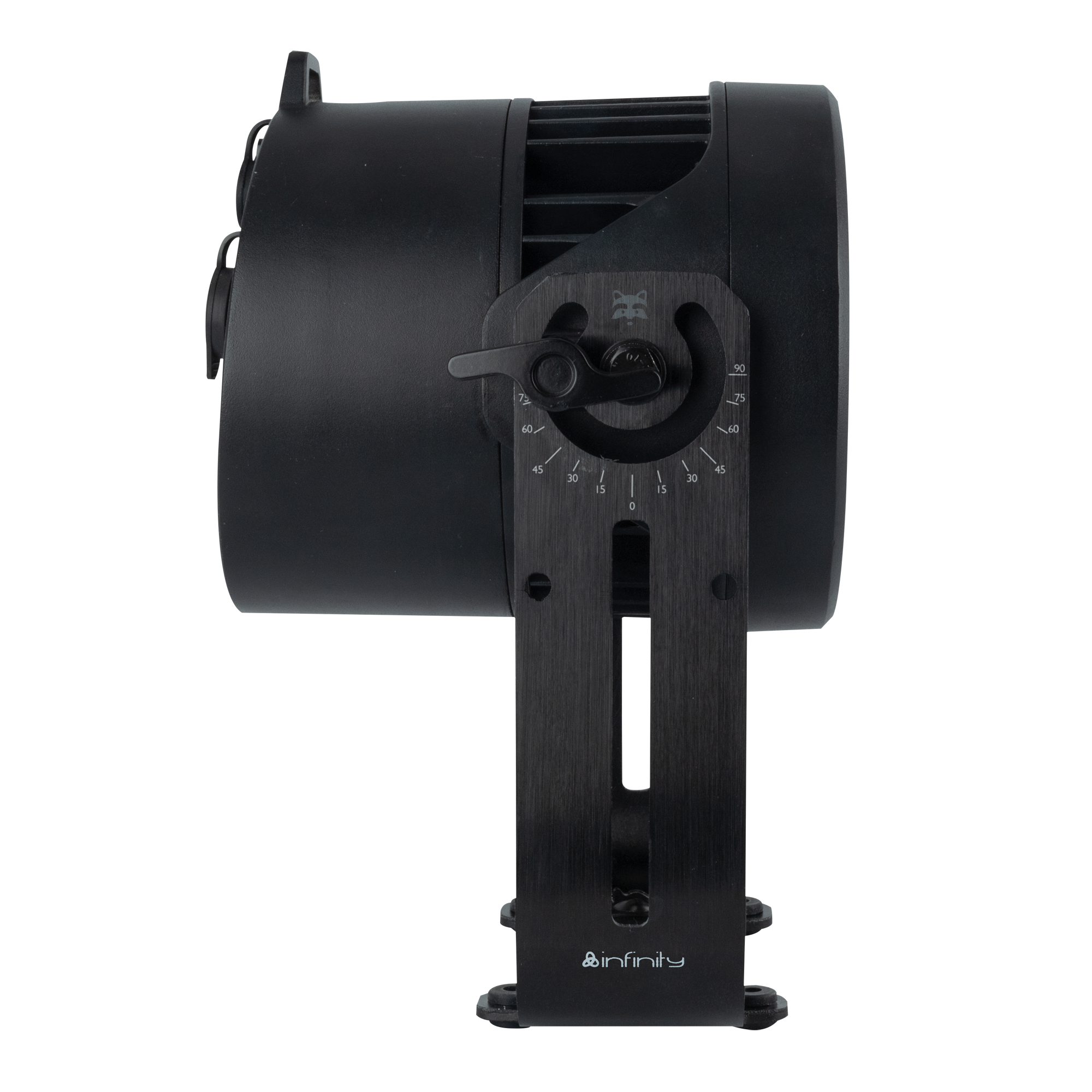

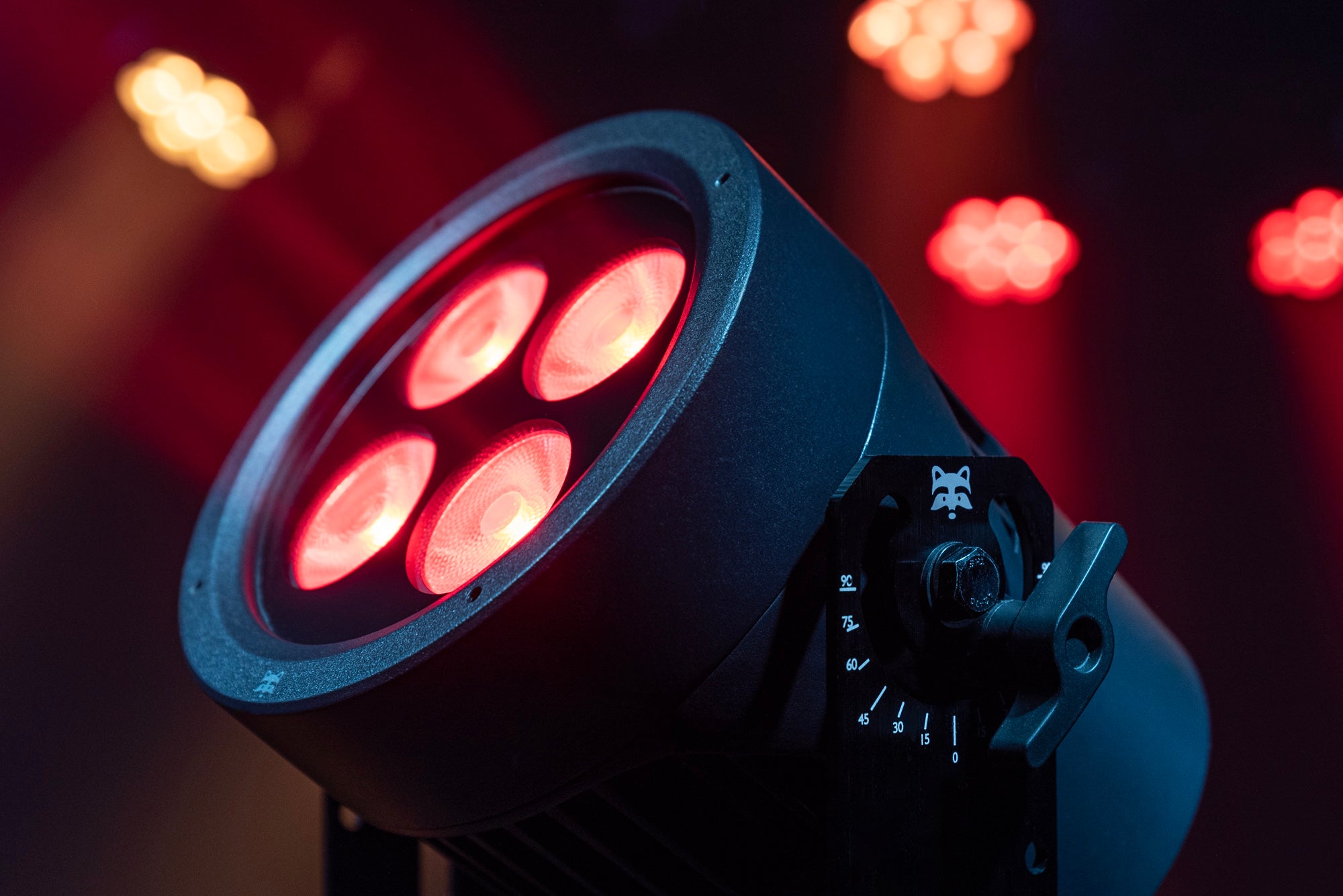

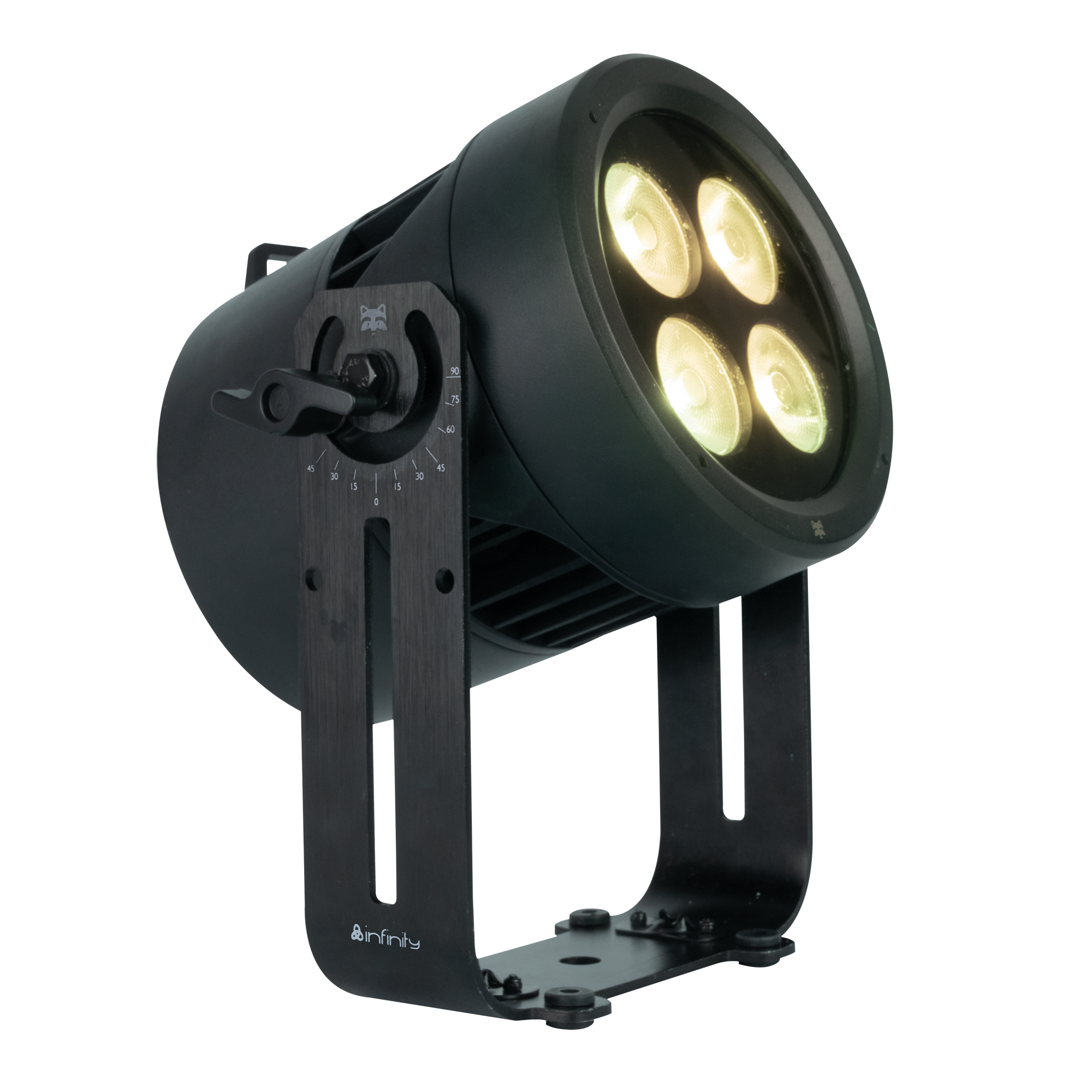

The Raccoon P4/7 is a high-CRI (>95), high-brightness, IP65-rated Par luminaire designed for applications where quality and brightness are paramount, particularly exhibitions, museums, and situations requiring high light quality. It features 4 extremely precise LEDs with seven colors each: red, green, PC green, blue, royal blue, PC amber, and cyan. You can switch between maximum brightness mode and maximum color quality (high CRI) mode.The fixture offers top-tier control options. At the heart of the Raccoon series' technology is the calibrated XY color engine, which ensures exceptional color quality and stability. Thanks to the built-in XY technology, no matter which XY-compatible fixtures you mix, their colors will always match! The calibrated internal controller guarantees exceptionally stable color rendition at every LED temperature and every brightness setting, without any visible color shift during dimming. We use the same calibration standards as the Infinity Signature series, ensuring both fixtures have extremely consistent color. Five different internal dimmer curves are available through an easy-to-use menu system, including a tungsten shift simulation that also works with an applied color filter! It can internally handle CCT, RGB, and Lee filters.

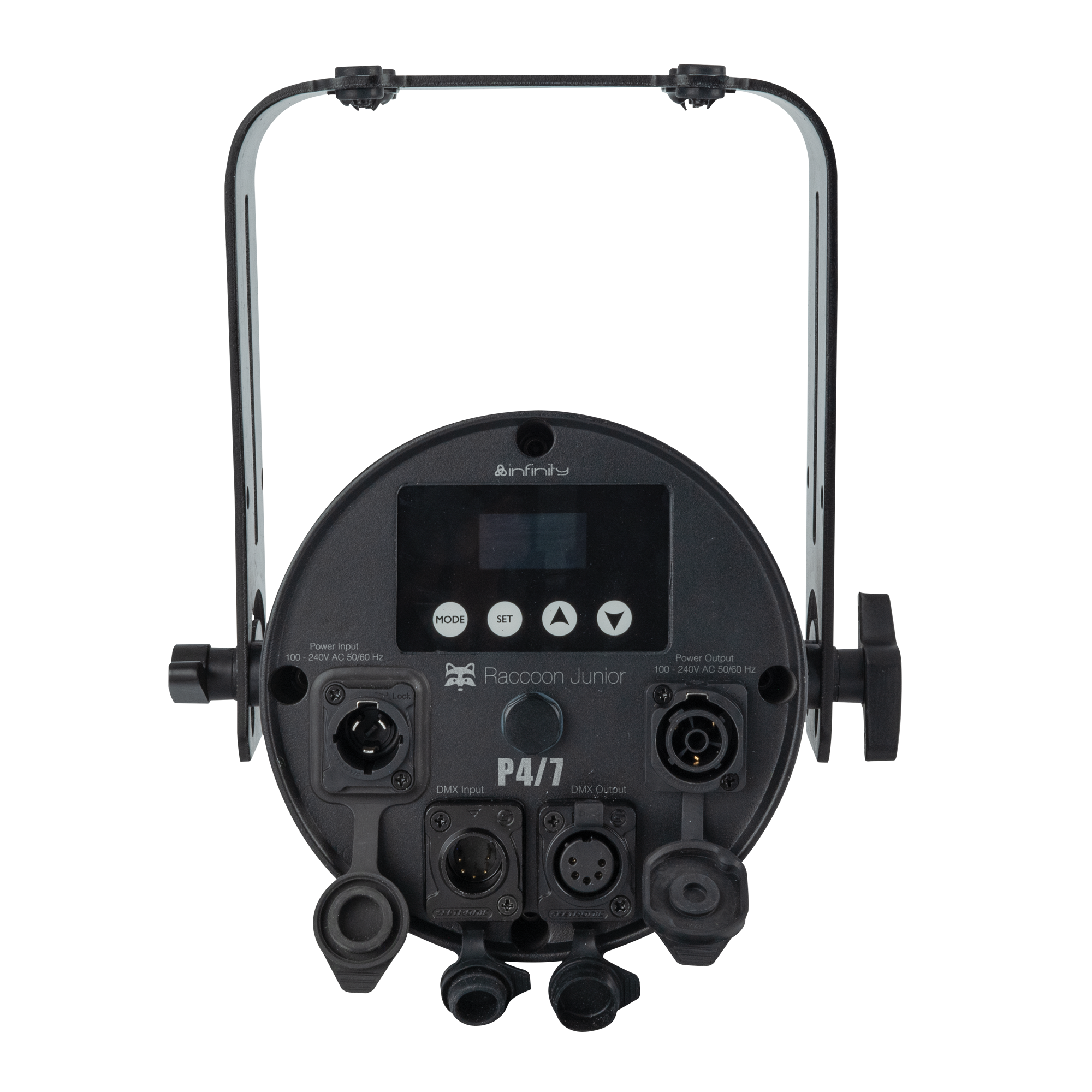

In addition to XY mode, DMX, RDM, manual, and master/slave control are also possible. The PWM frequency is adjustable between 640 Hz and 25 kHz, ensuring flicker-free images. Basic settings, such as PWM and dimmer curve, can be copied between Raccoon luminaires on the same network to ensure identical behavior. Robust 5P XLR DMX and Power Pro True power connectors ensure reliable connections and IP65 compliance. With its elegant housing and accessories such as barndoors, top hat, filter frames, and diffusion filters, the Raccoon series positions itself as an ultra-flexible competitor for high-end Par luminaires.
SPECIFICATIONS
- Light Source Type: LED
- Number of Light Sources: 4
- Light Source Power: 25 W
- LED Color: RGBCALDB
- Lifespan Expectancy: 30000 h
- Refresh Rate (max): 25 kHz
- Brightness at 2 m: 7119 lx
- Brightness at 3 m: 3164 lx
- Brightness at 5 m: 1139 lx
- Luminous Flux (total): 2398 lm
- Luminous Flux (red): 317 lm
- Luminous Flux (green): 645 lm
- Luminous Flux (blue): 264 lm
- Luminous Flux (amber): 560 lm
- Luminous Flux (lime): 900 lm
- Luminous Flux (royal blue): 173 lm
- Luminous Flux (cyan): 502 lm
- CRI: 95
- CCT Min: 2000 K
- CCT Max: 8000 K
- Beam Angle (circular): 15°
- Control Mode: DMX / Manual / Static Dimmer
- DMX Channels: 1 / 3 / 8 / 10 / 12 / 14
- Protocols: DMX / RDM
- Display: OLED
- Dimmer: 0-100 %
- Strobe: 0-25 Hz
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 90 W

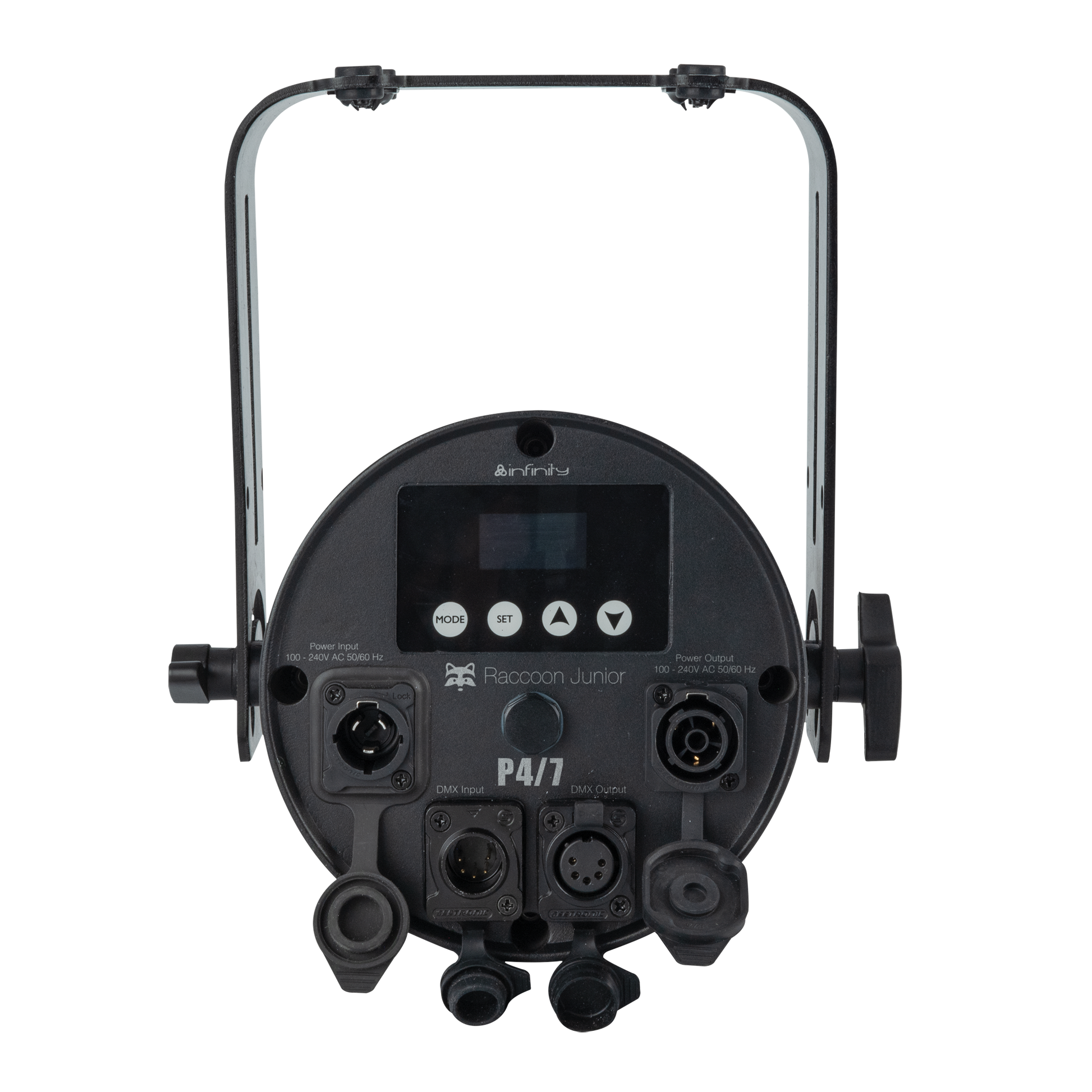

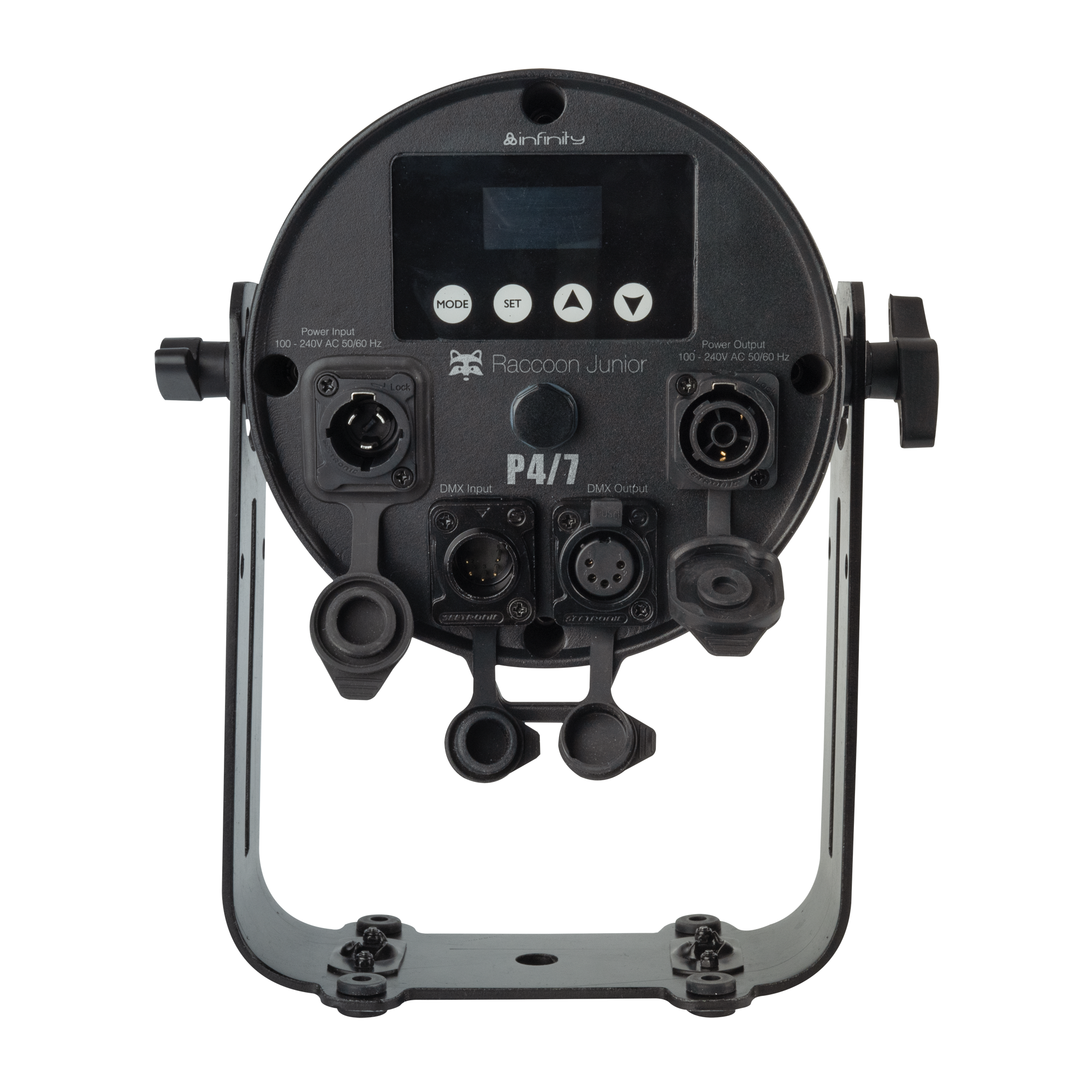

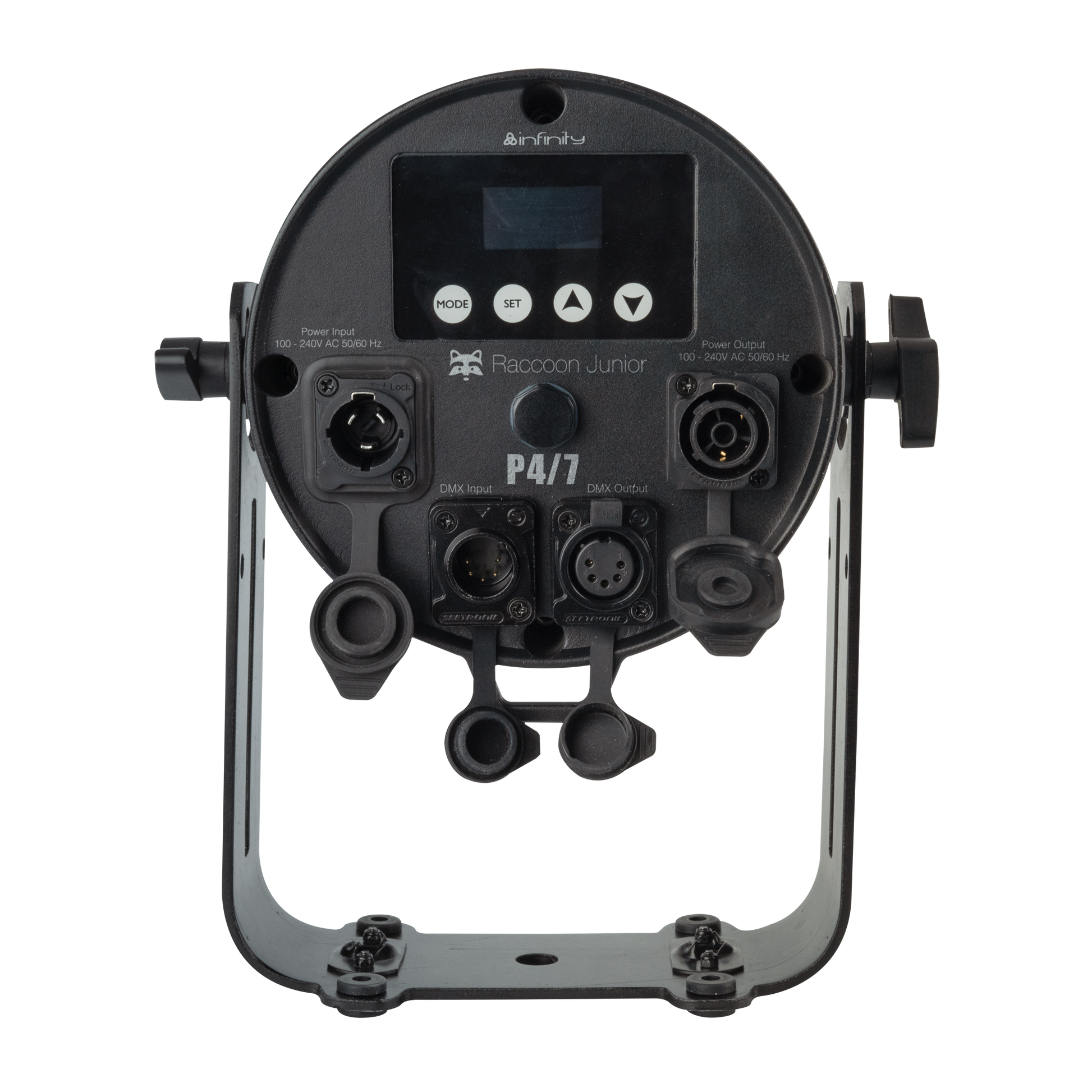

- Power Input Connection: Power Pro True
- Power Output Connector: Power Pro True
- DMX Connection: XLR 5P In/Out
- DMX Input Connection: XLR 5P
- DMX Output Connection: XLR 5P
- Length (mm): 194 mm
- Width (mm): 232 mm
- Height (mm): 285 mm
- Weight: 4.5 kg
- IP Rating: IP65
- Housing: Die-cast Aluminum
- Color: Black
- Maximum Ambient Temperature: 45 °C
- Minimum Operating Temperature: -20 °C

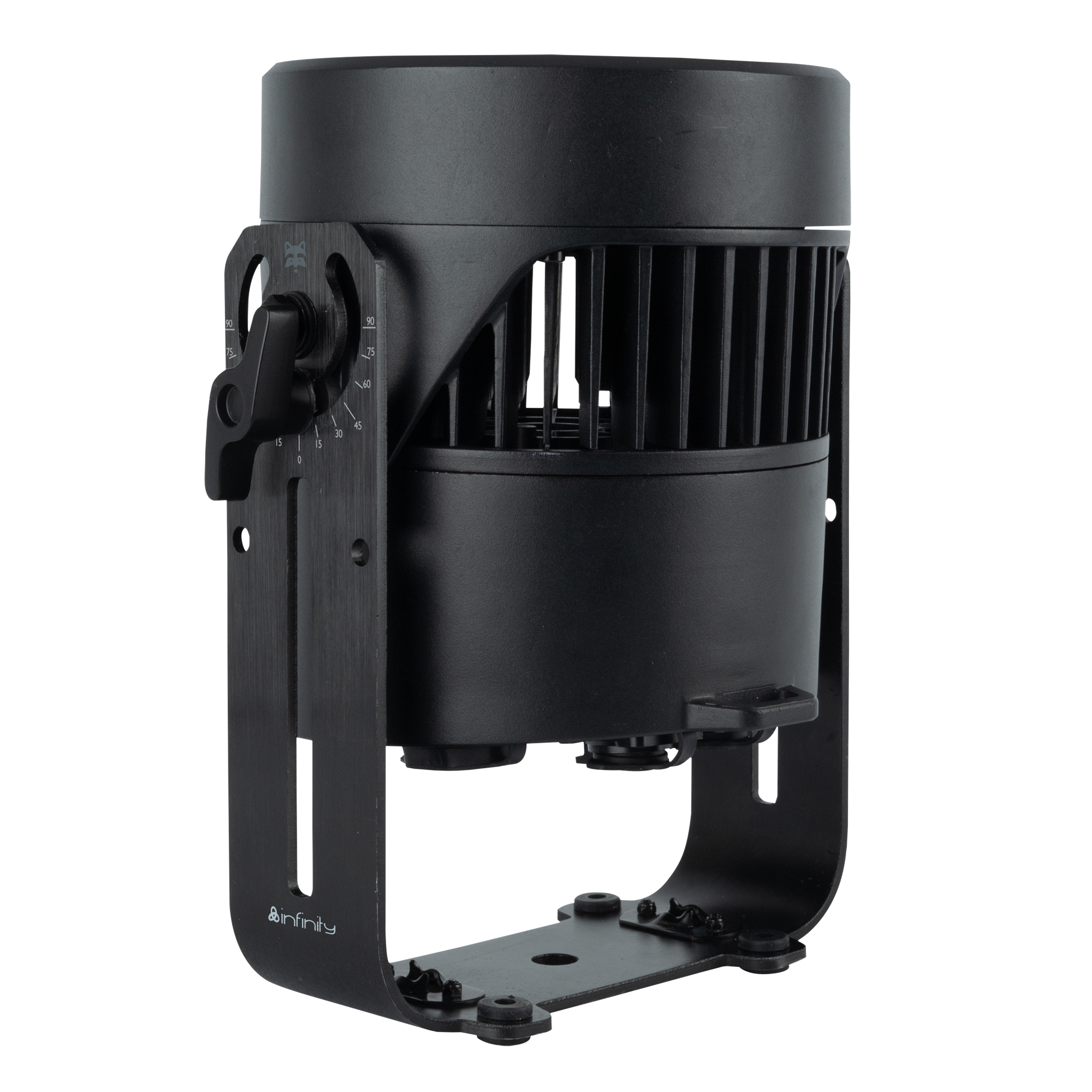

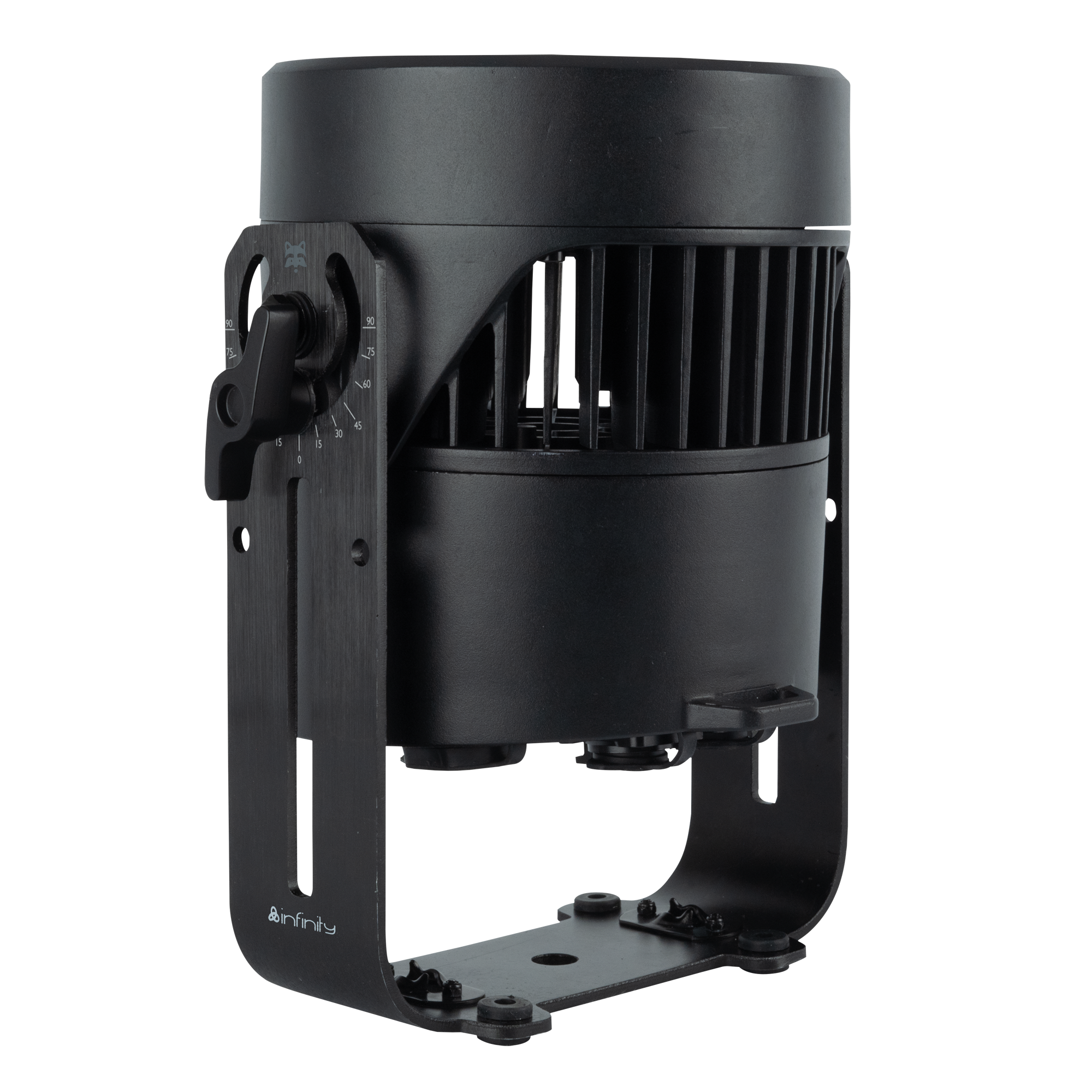

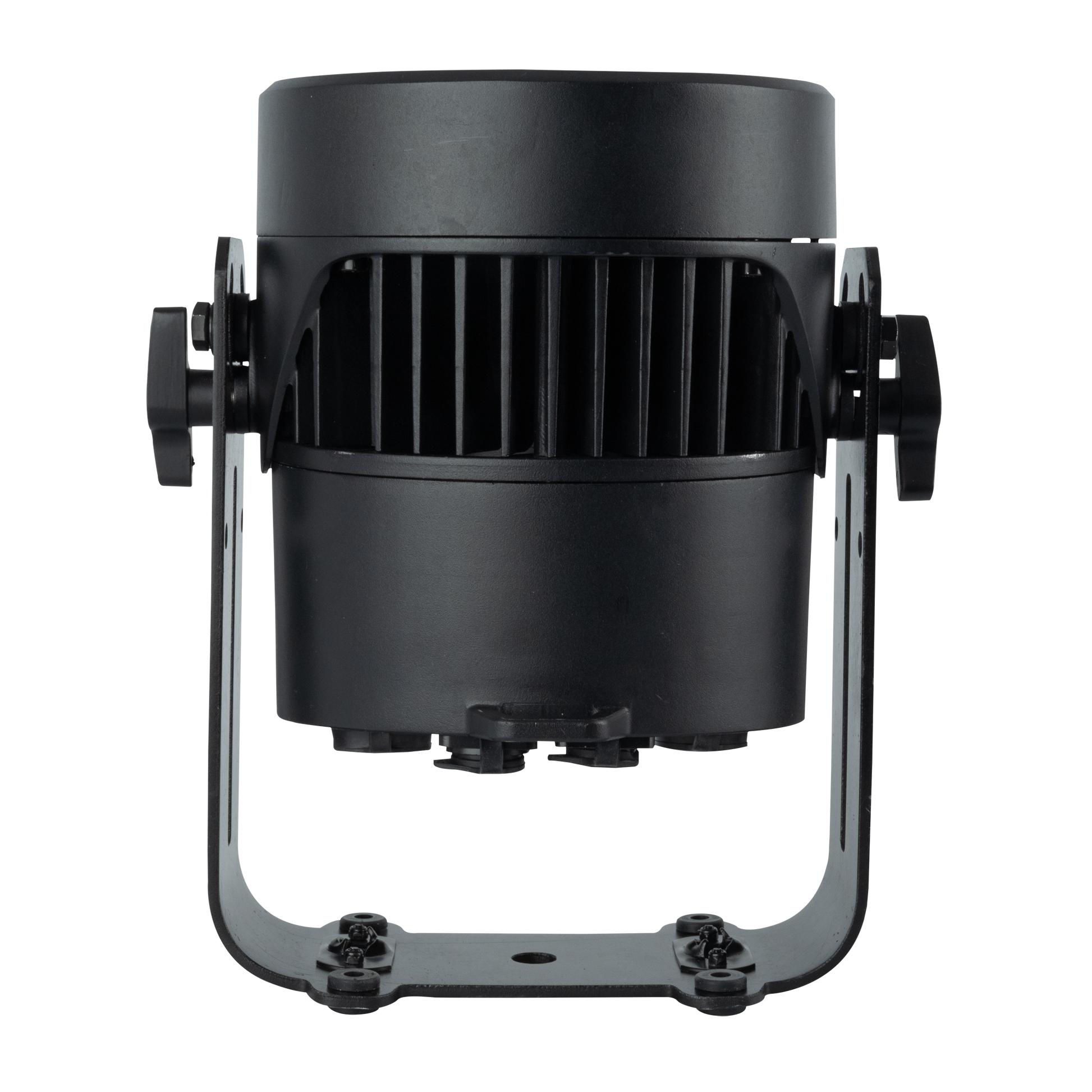

- Cooling: Convection

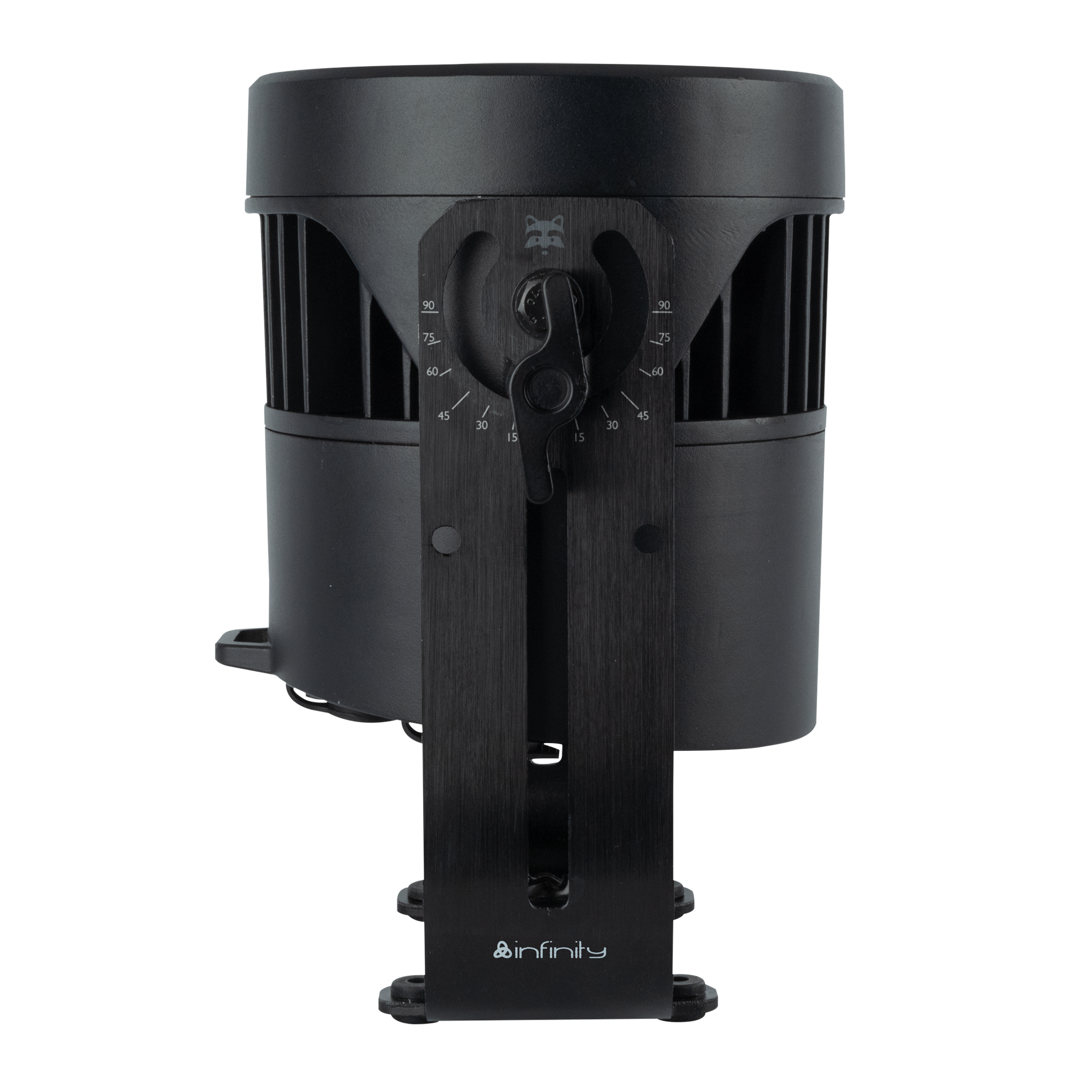

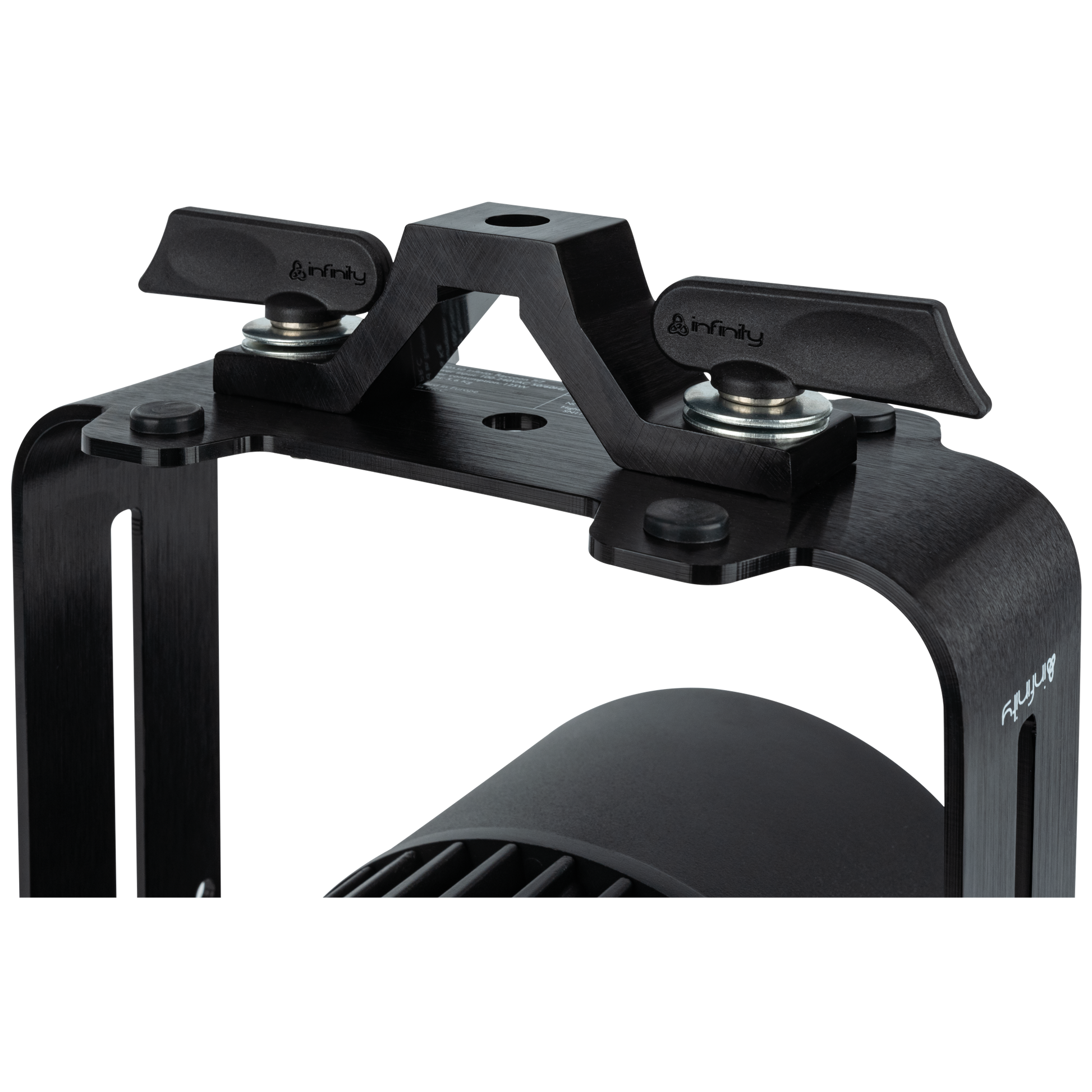

- Mounting Options: Clamp / Quick-Lock
- Cables Included: Power Pro True Cable

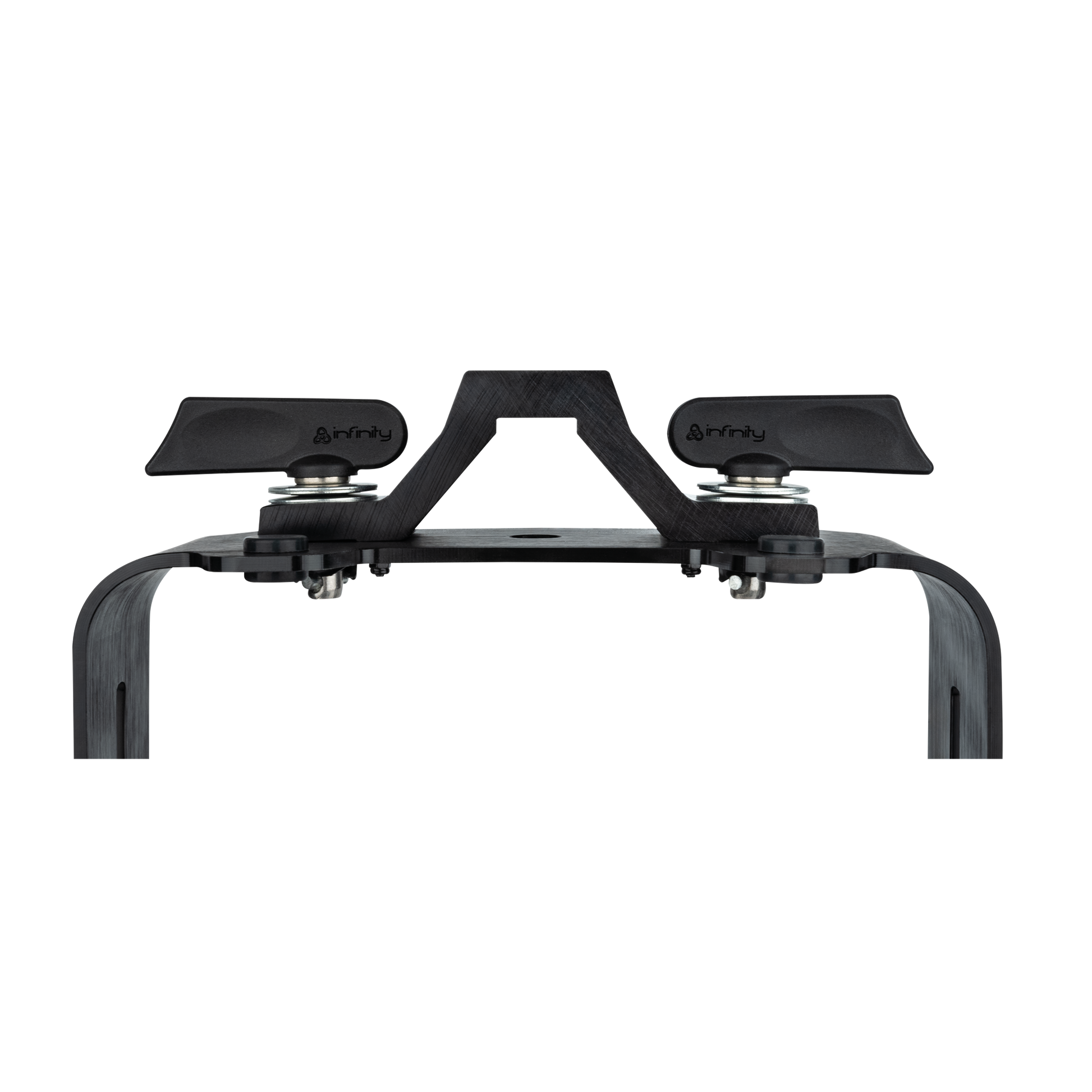

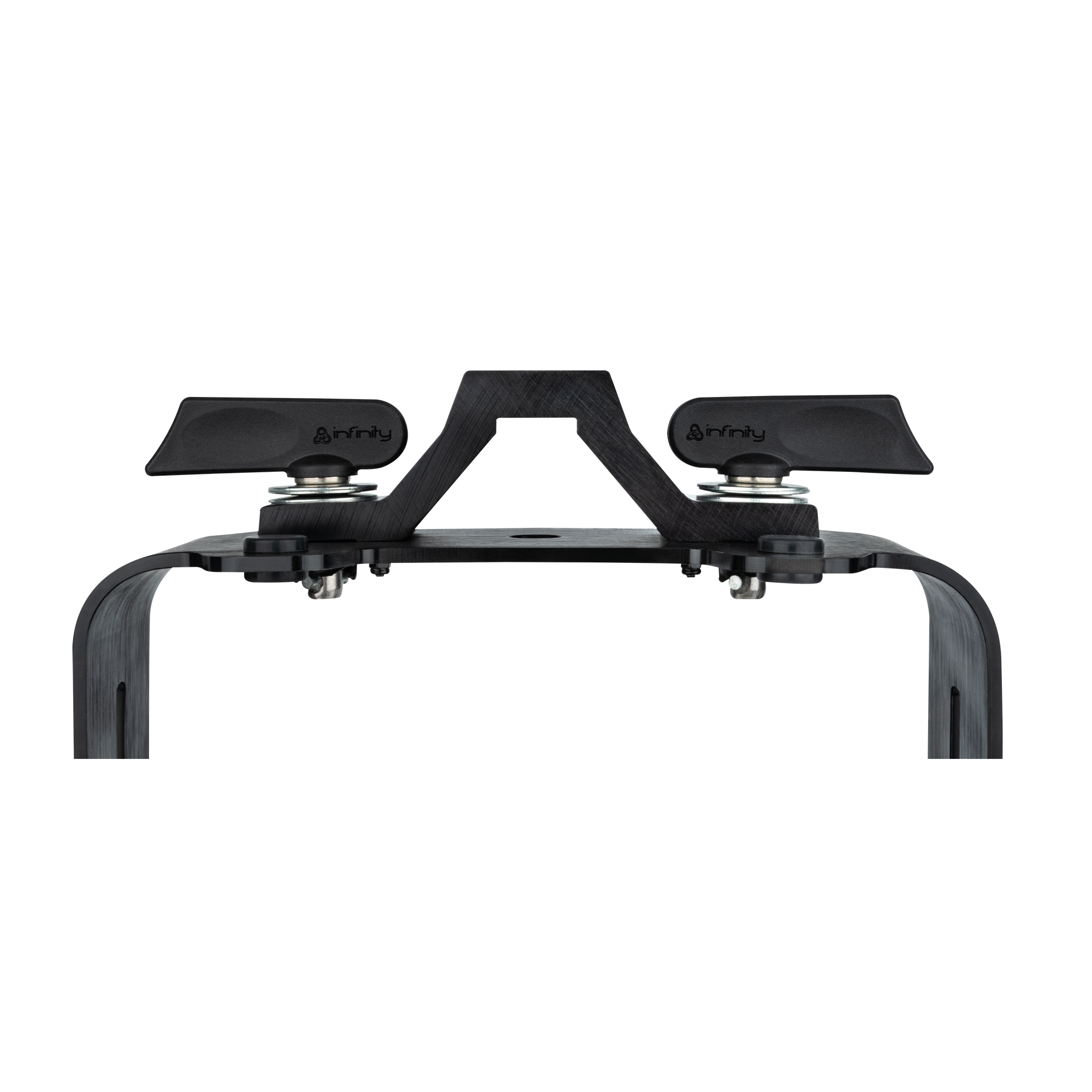

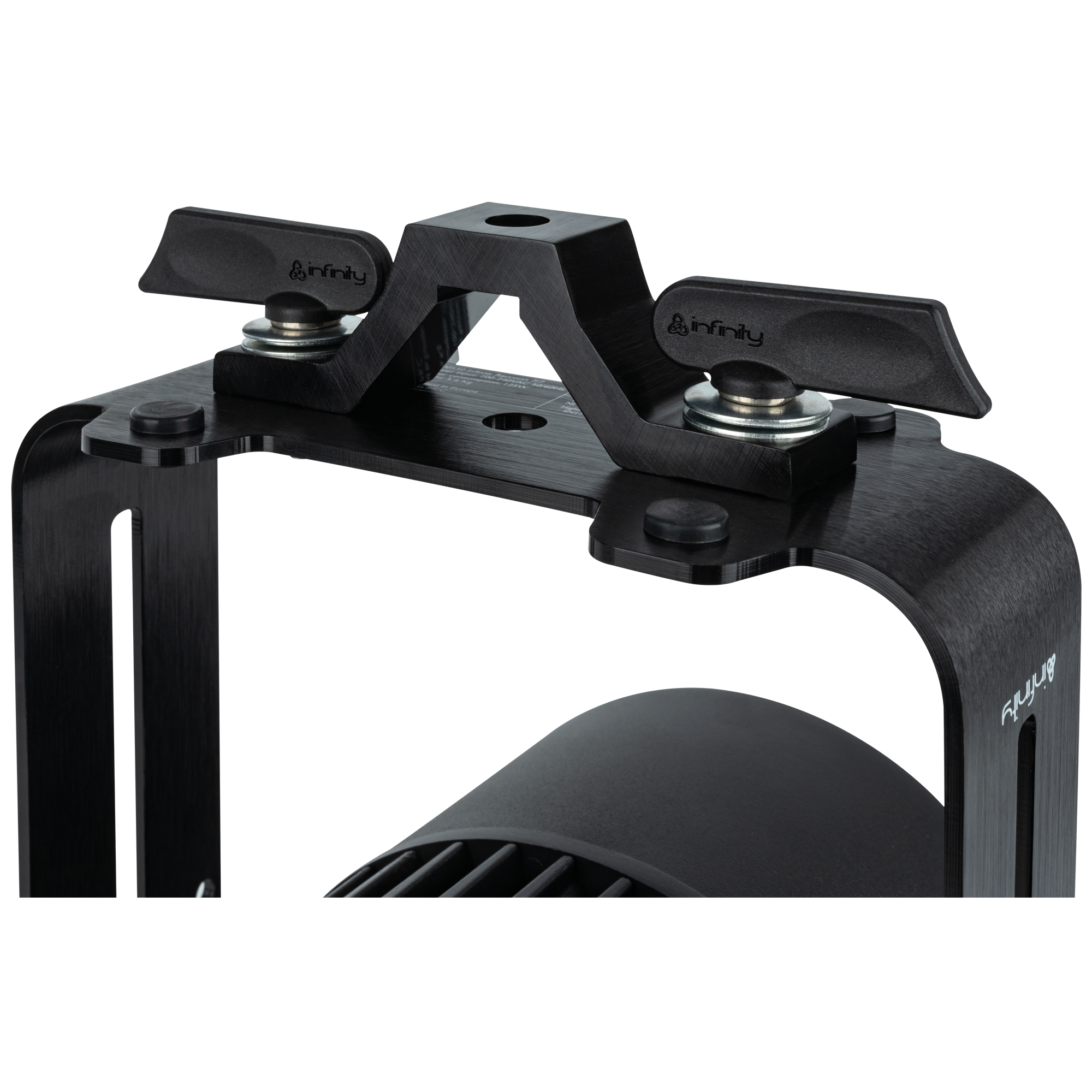

- Fixings Included: Quick-lock bracket
