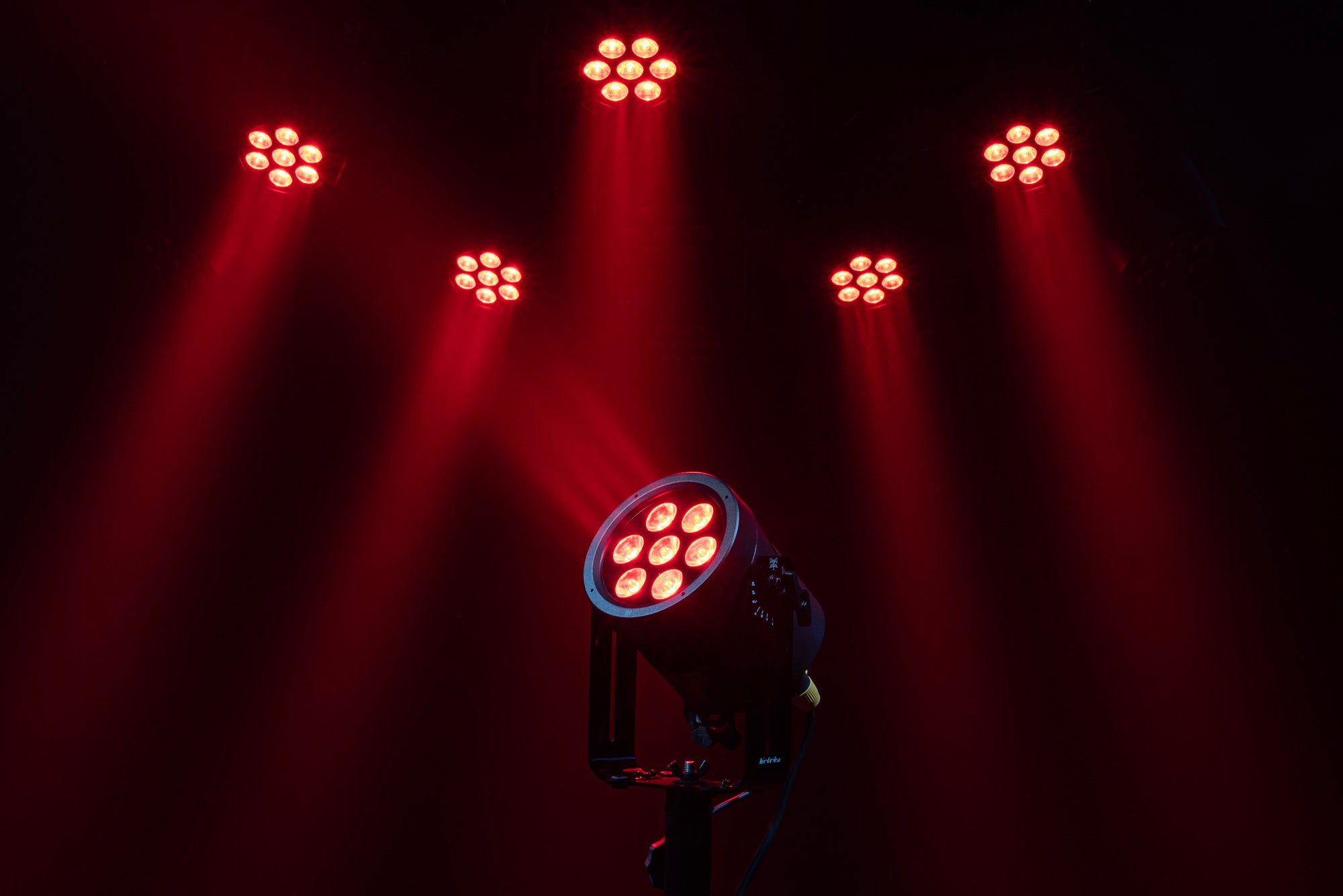

INFINITY Raccoon Junior P7/4 Professional RGBM Parcan
Estimated delivery in Italy between 18 and 20 August
Pay in 3 installments of €116,33 interest-free
Pay in 3 installments of €116,33 interest-free with PayPal
Split into 3 installments of €116,33 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
Professional RGBM Parcan

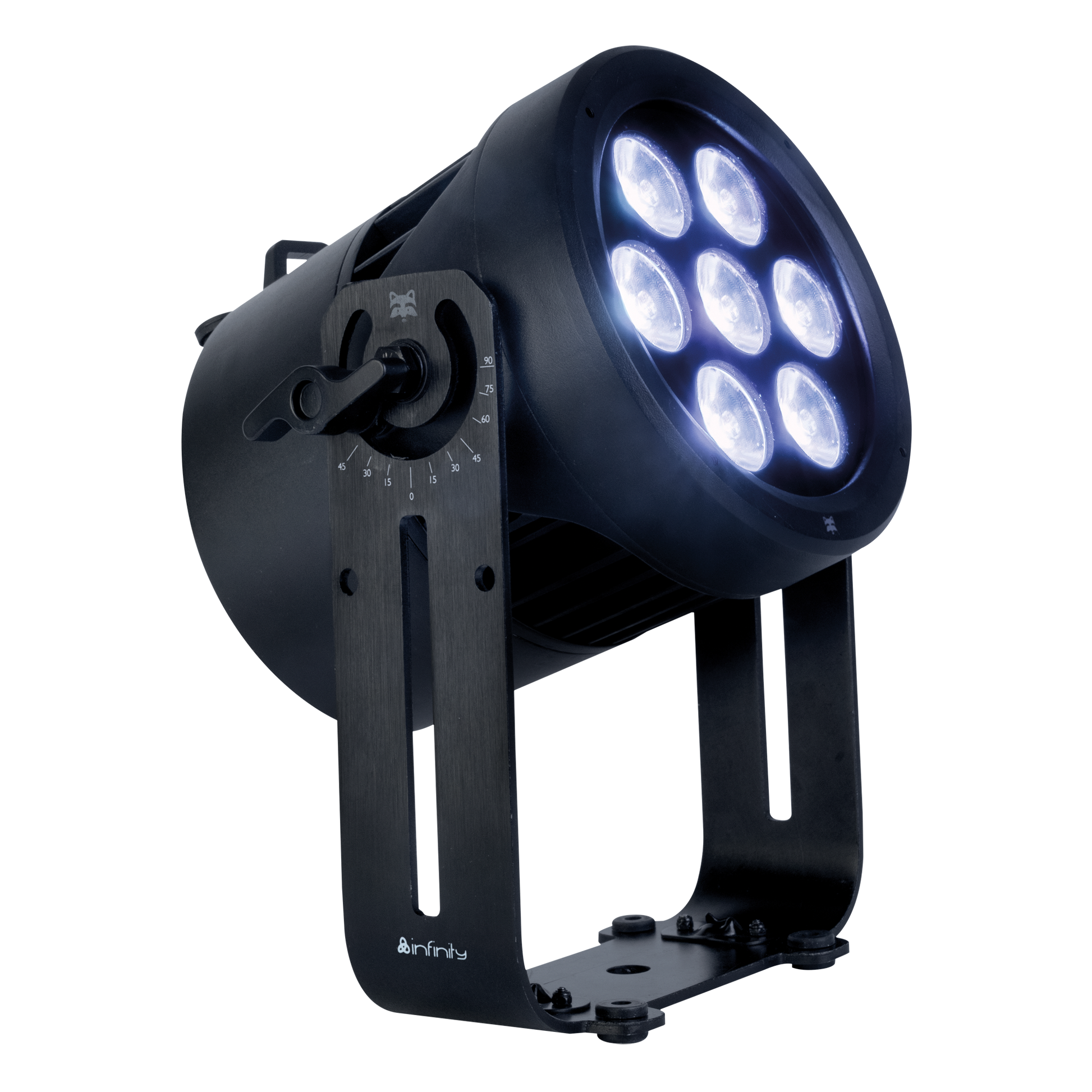

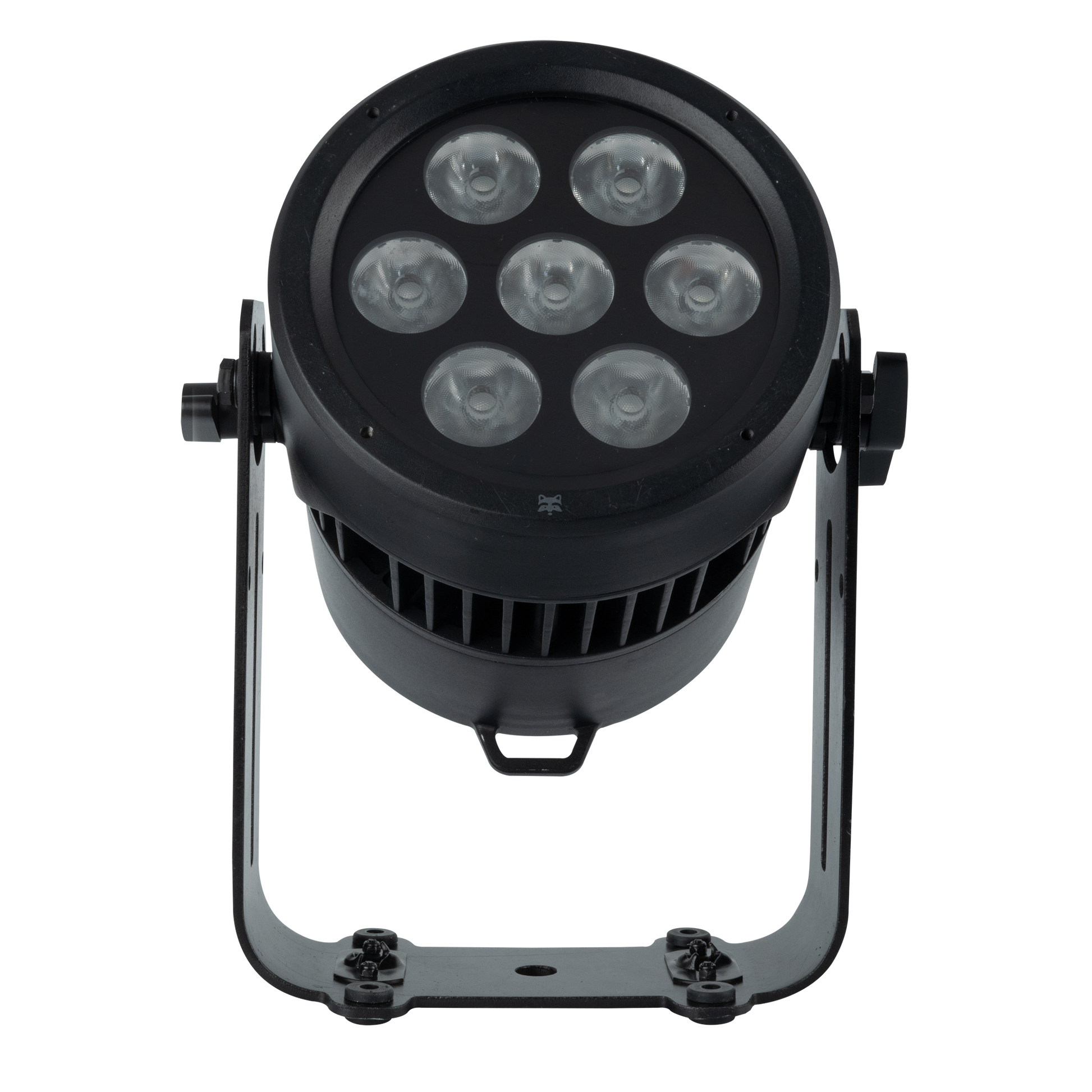

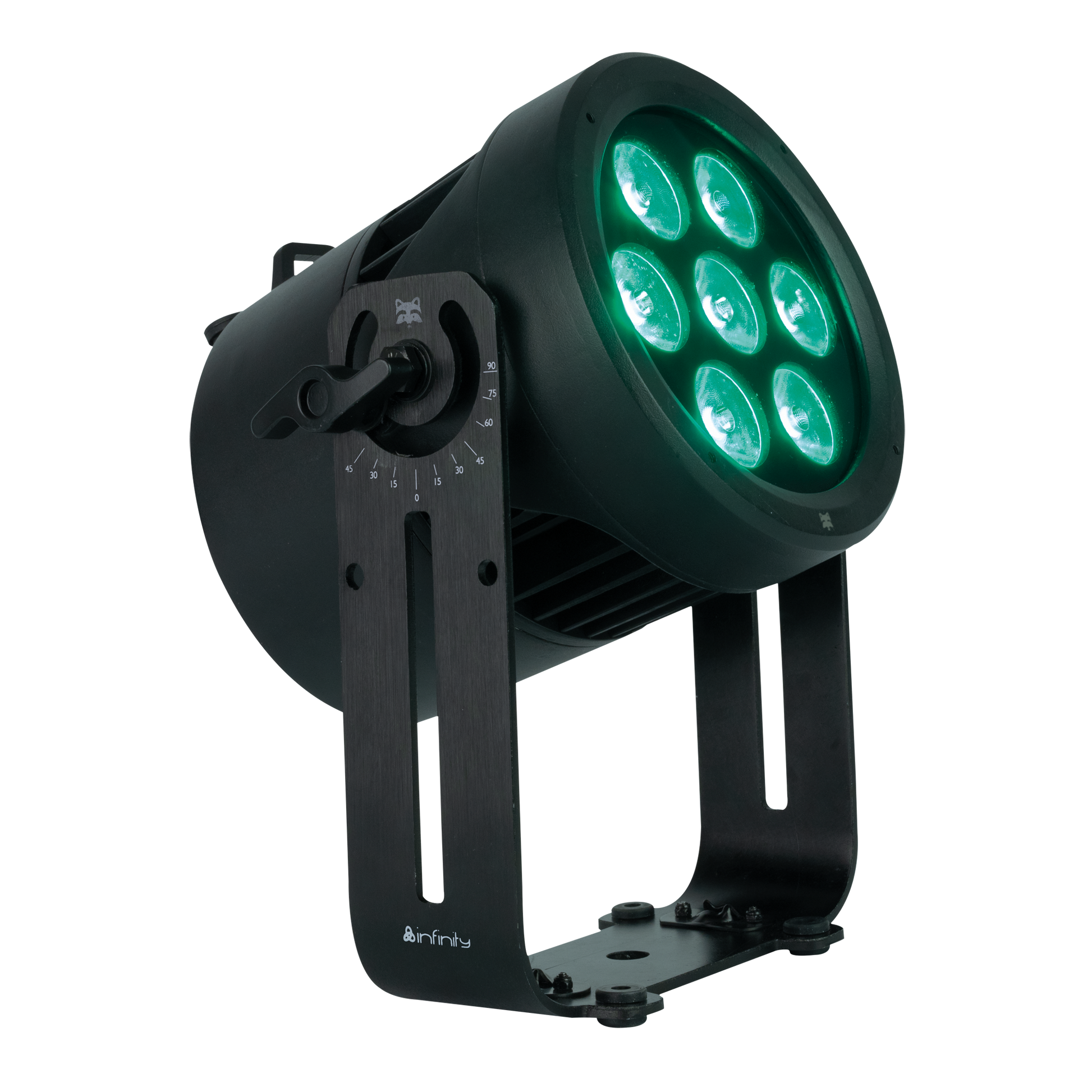

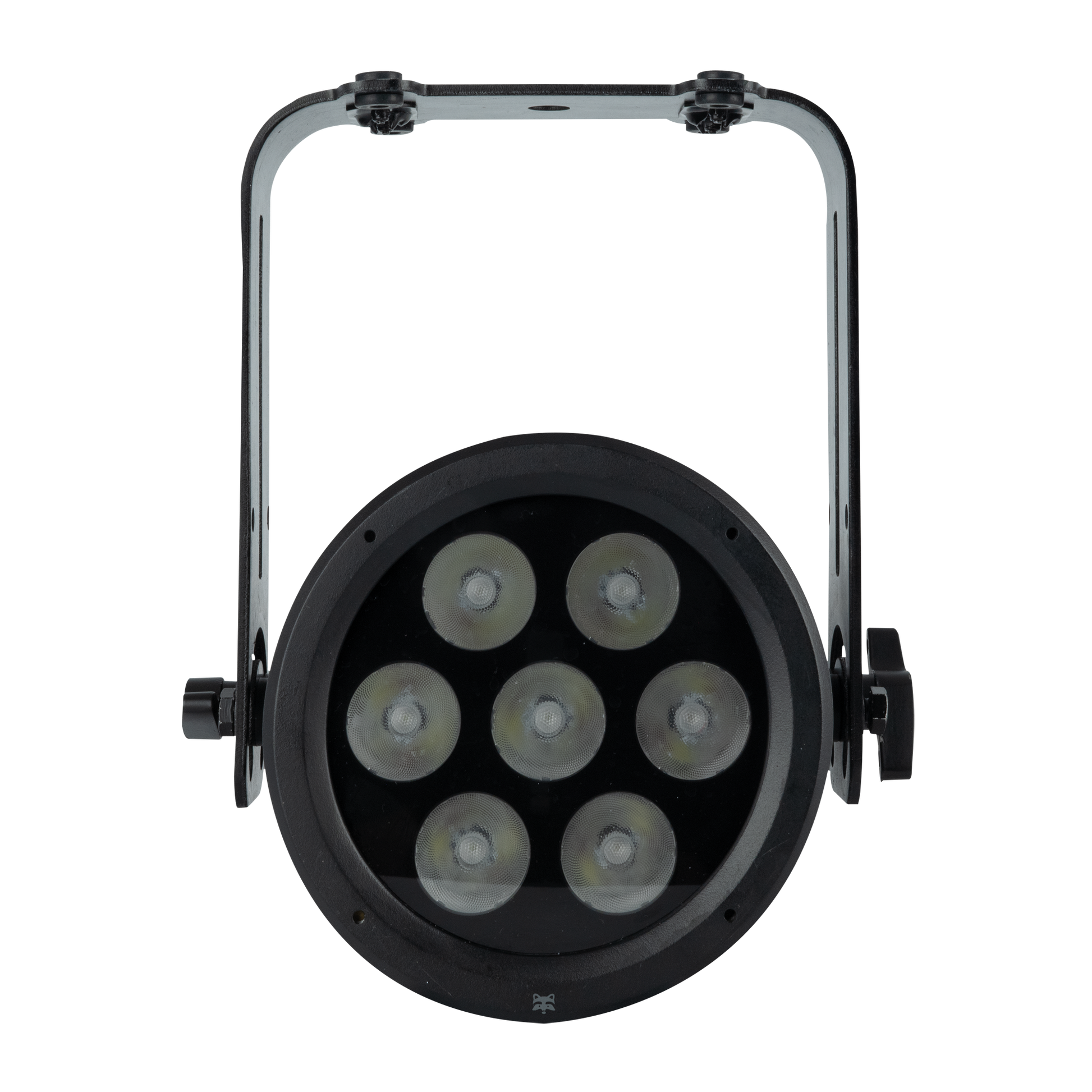

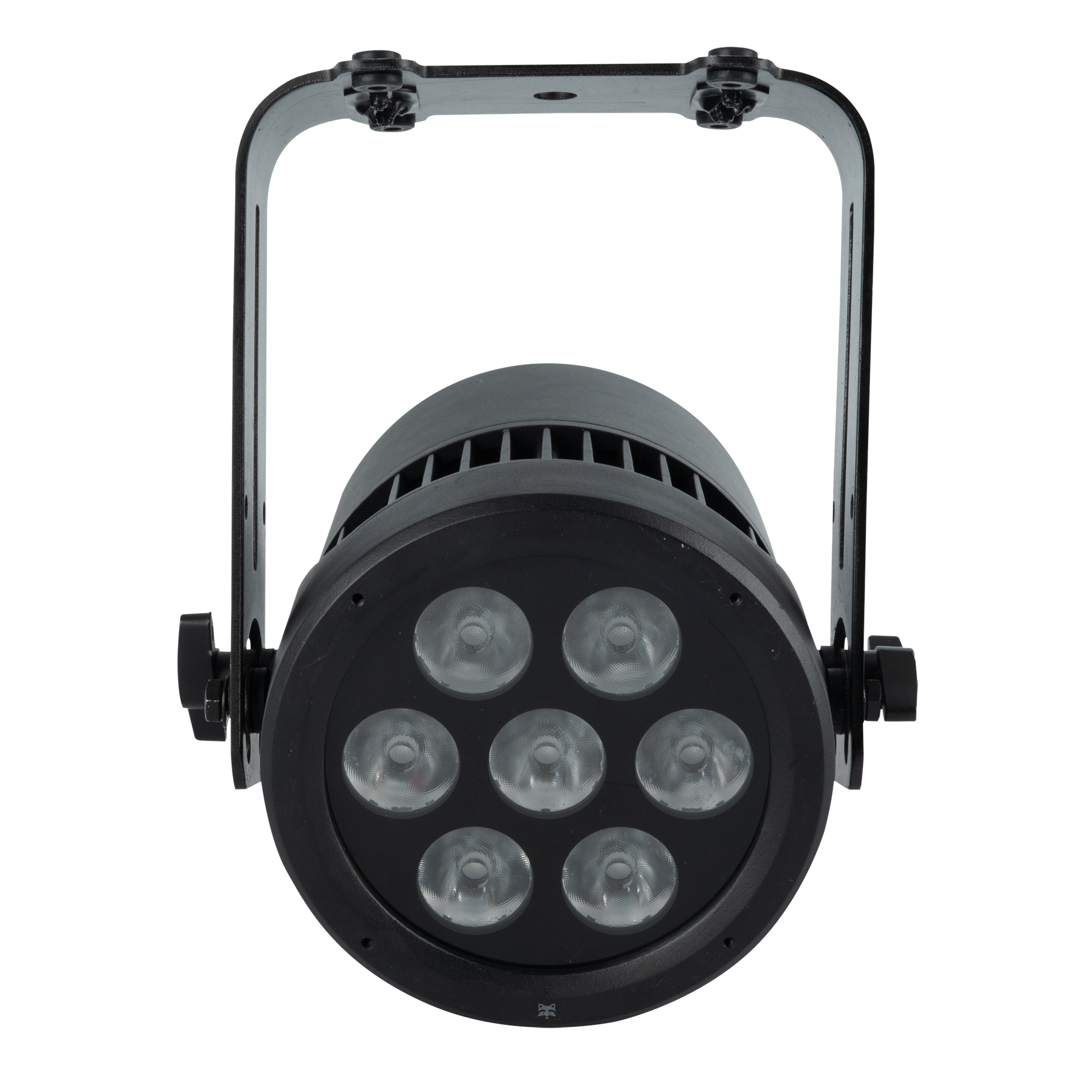

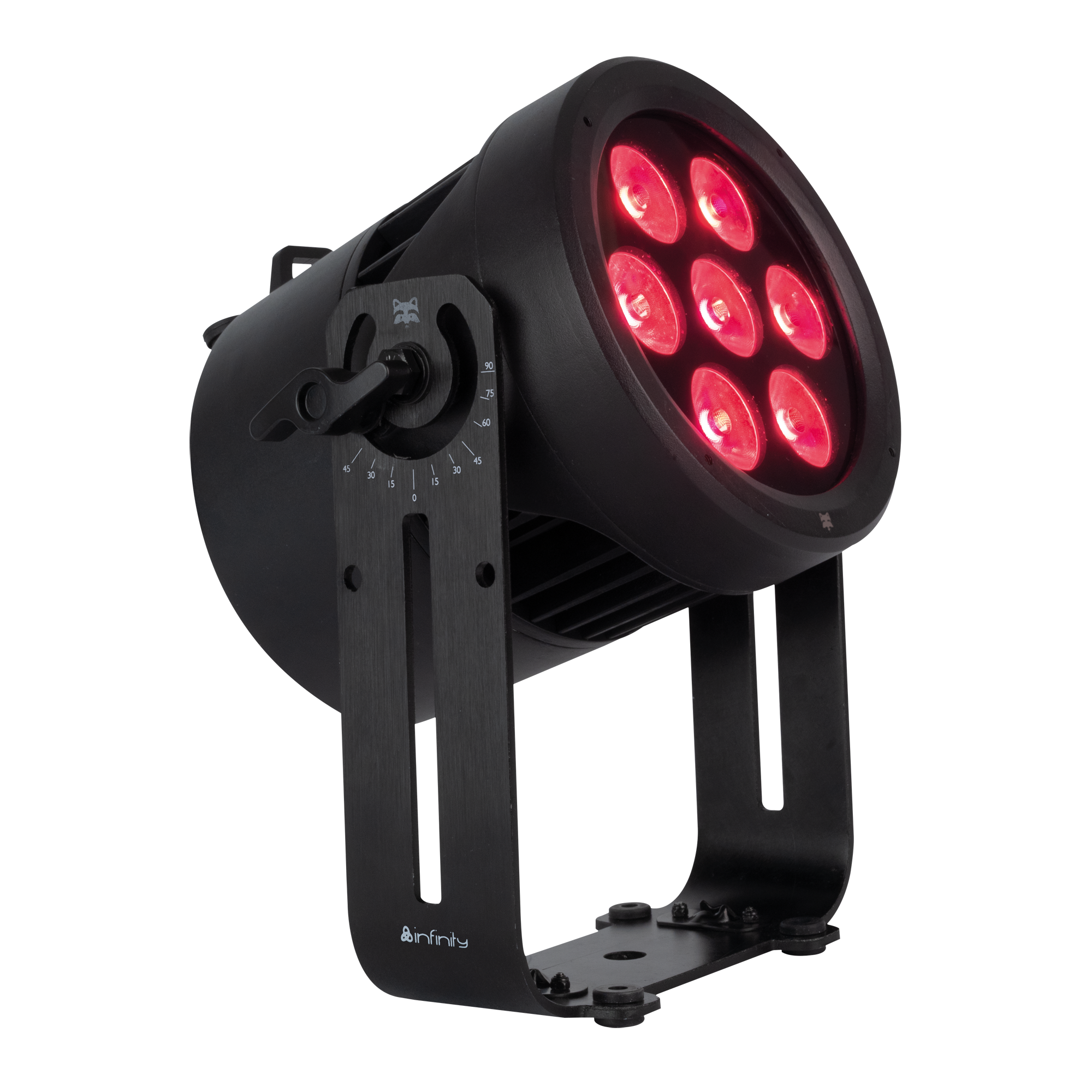

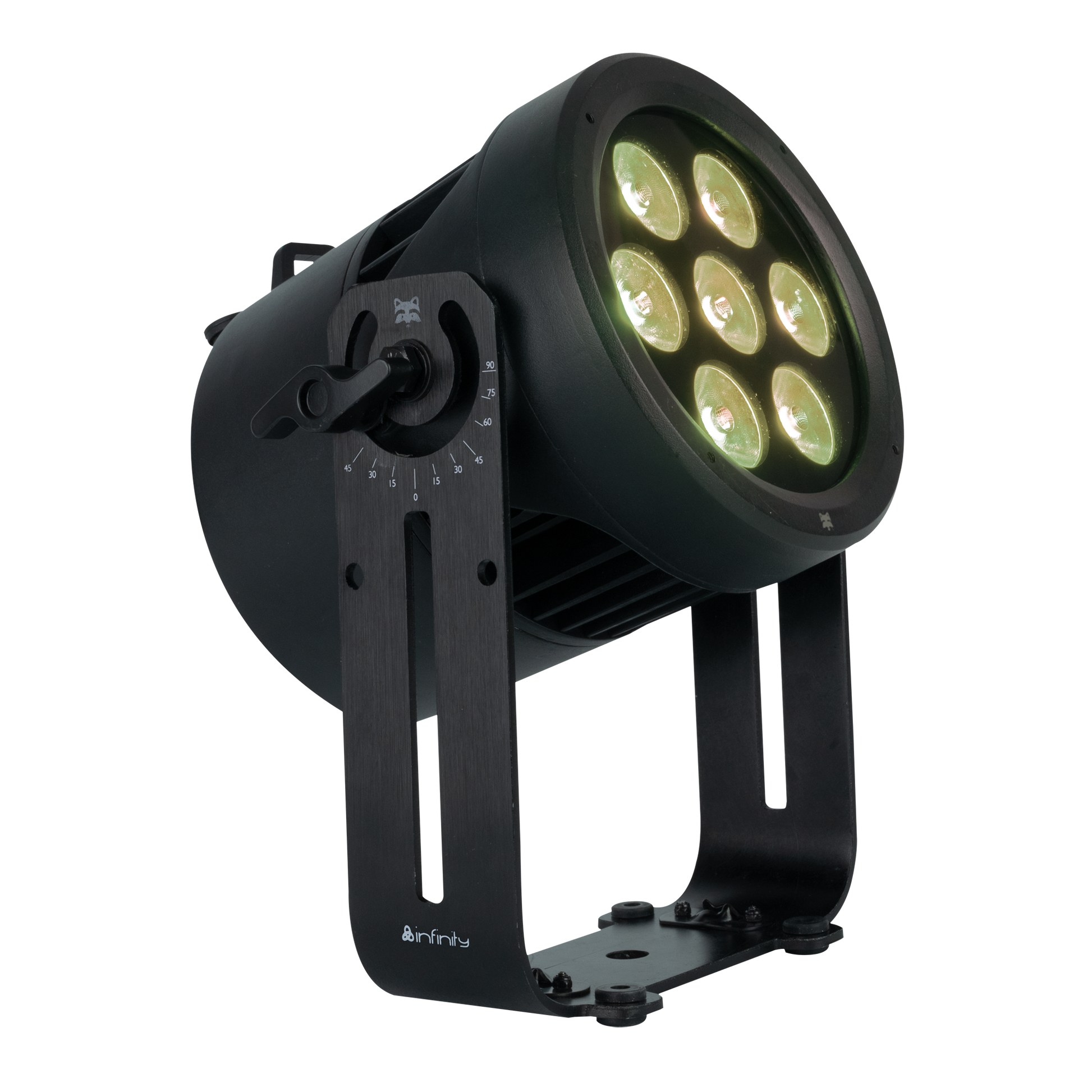

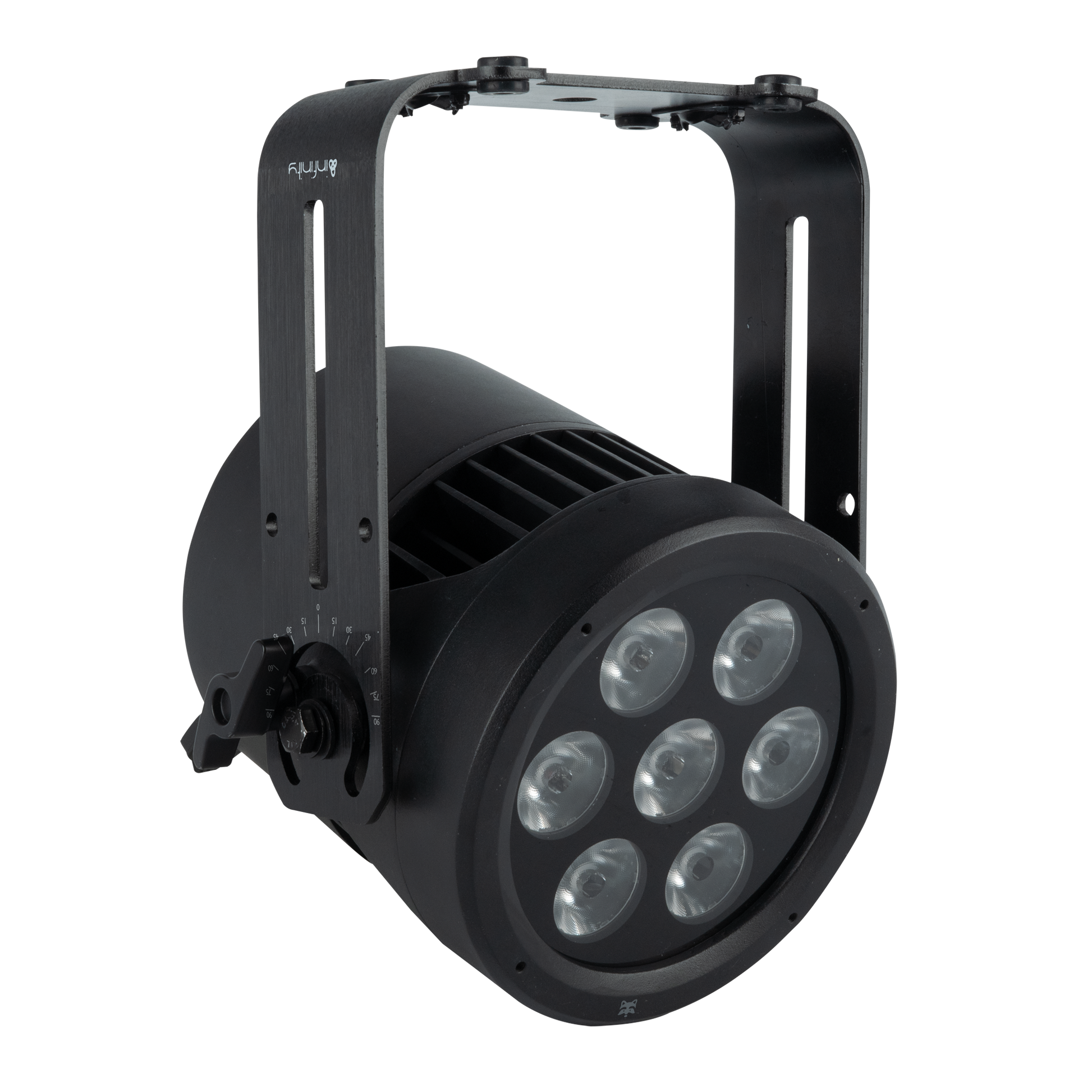

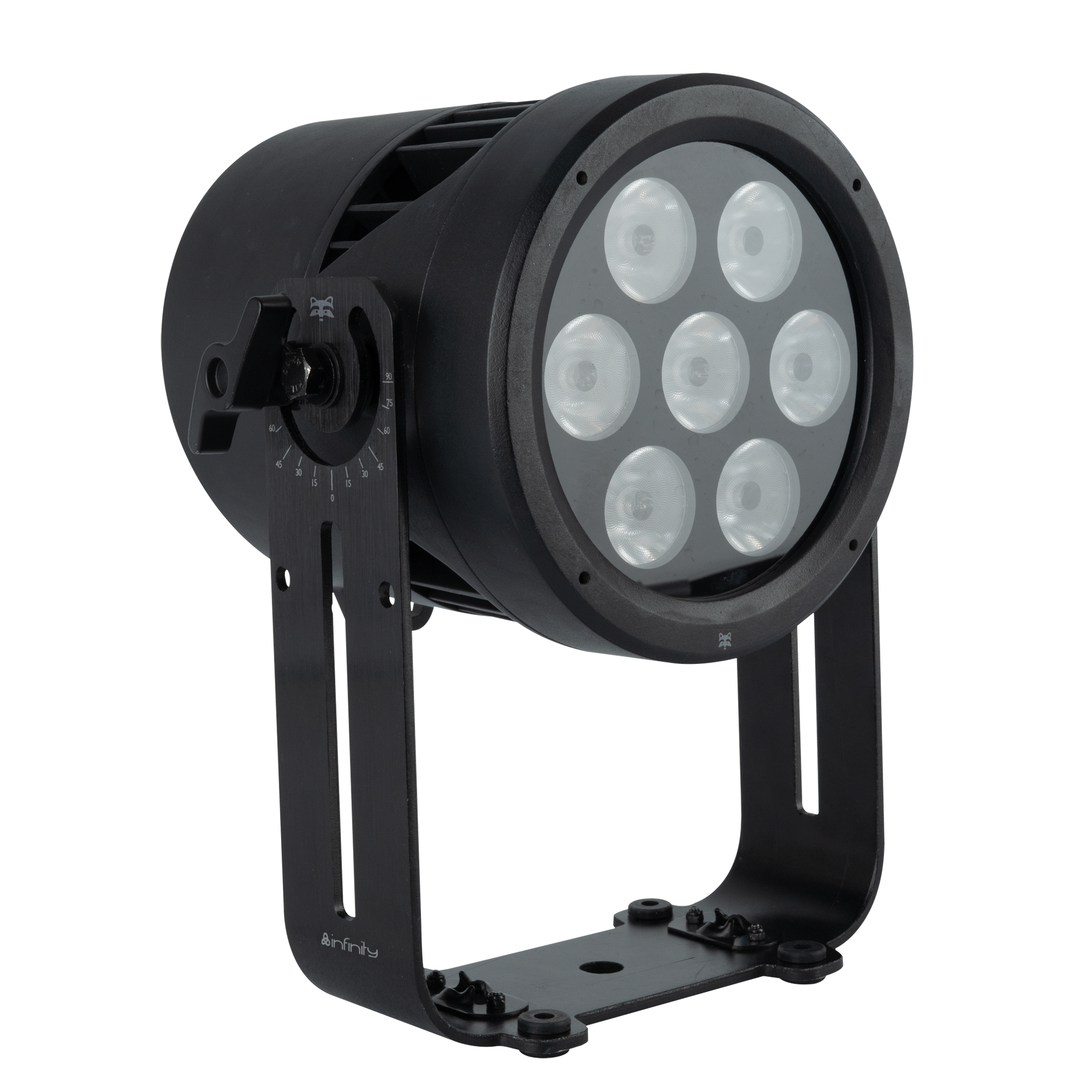

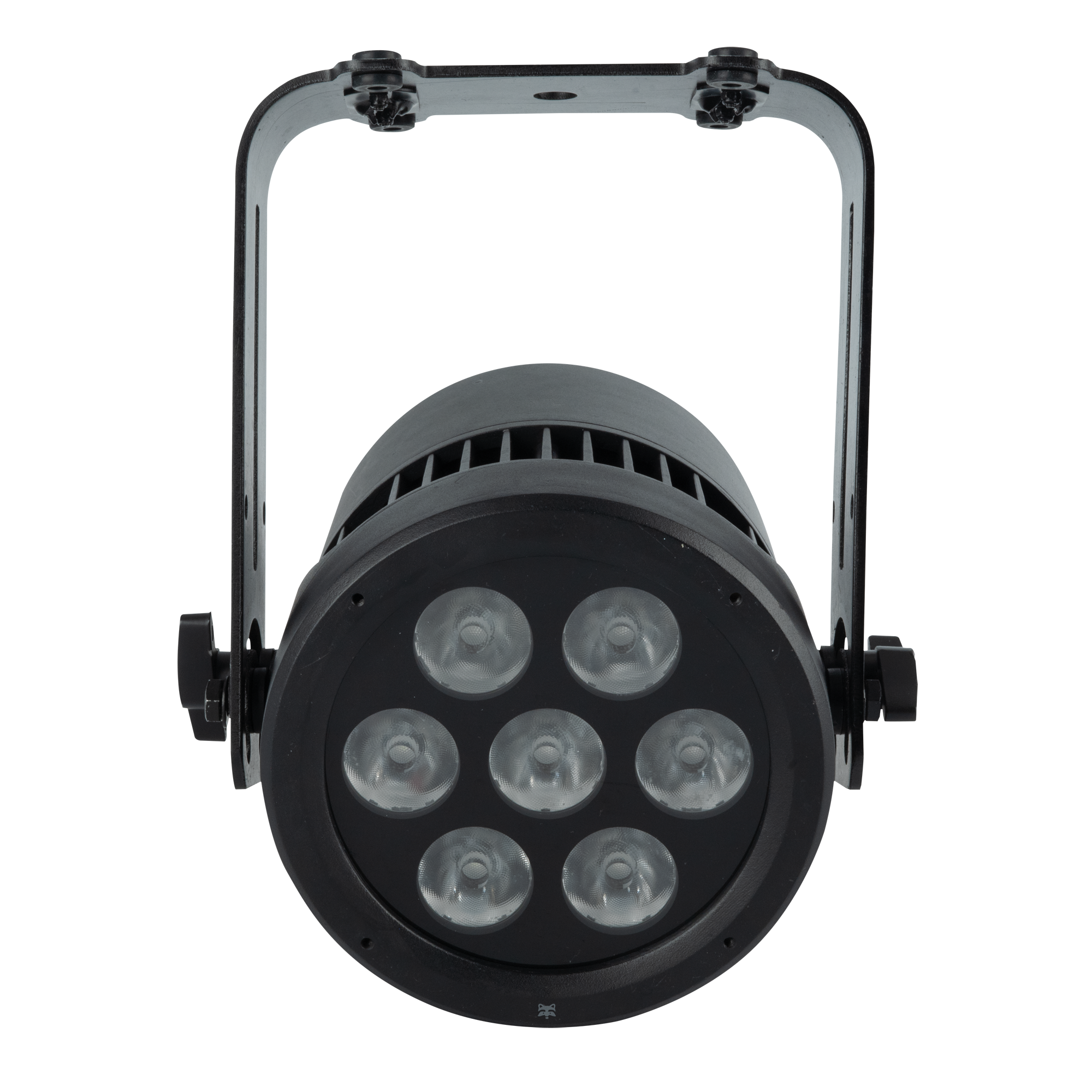

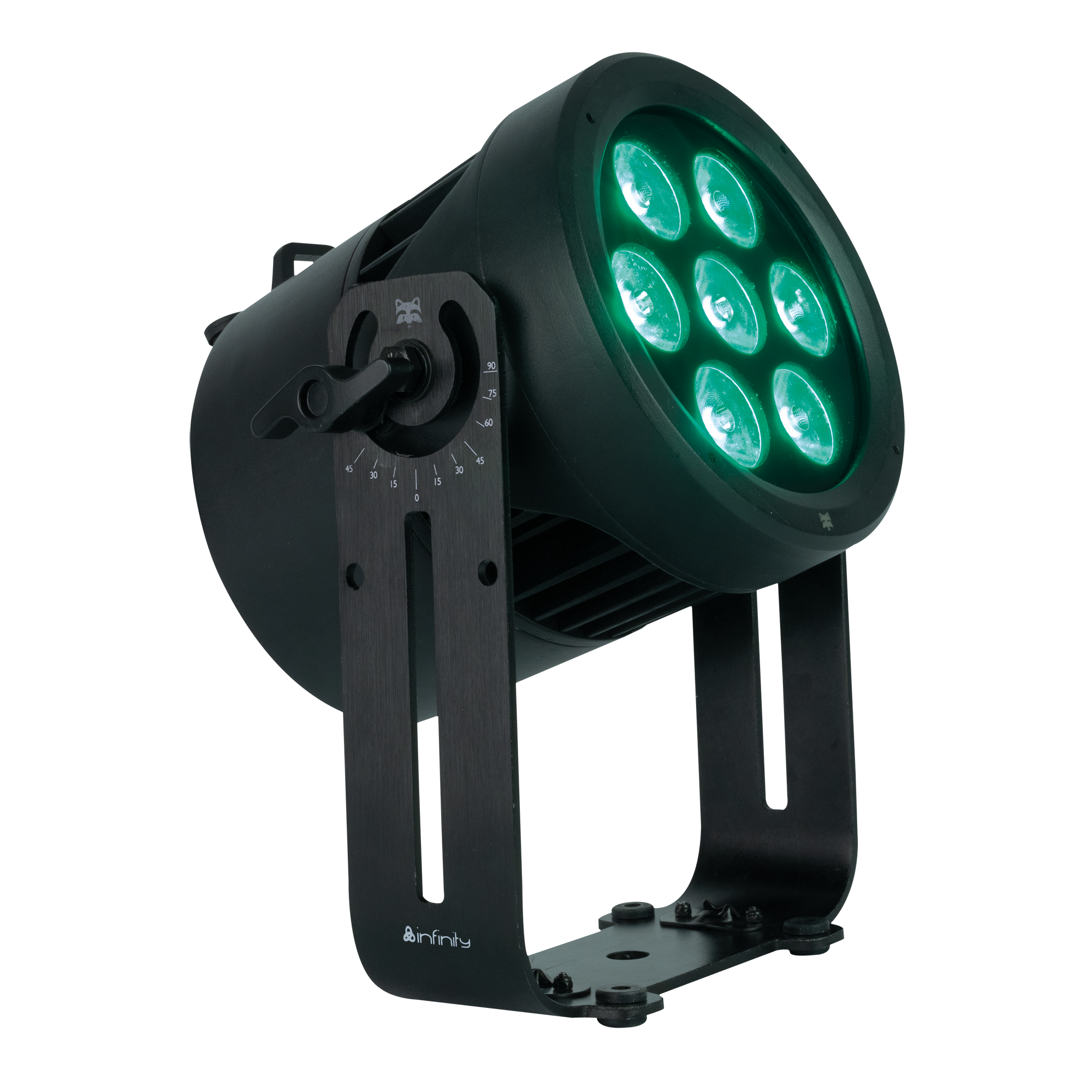

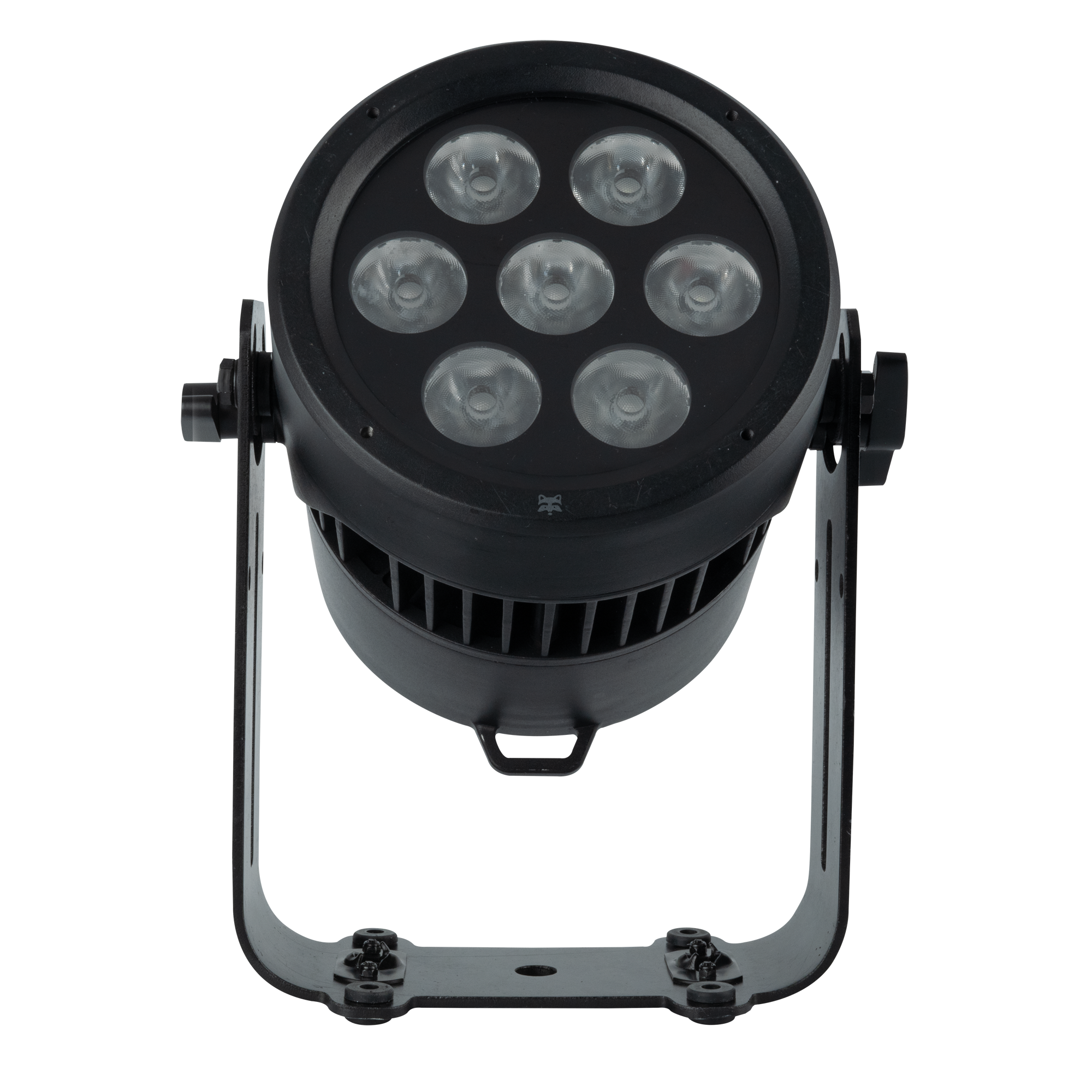

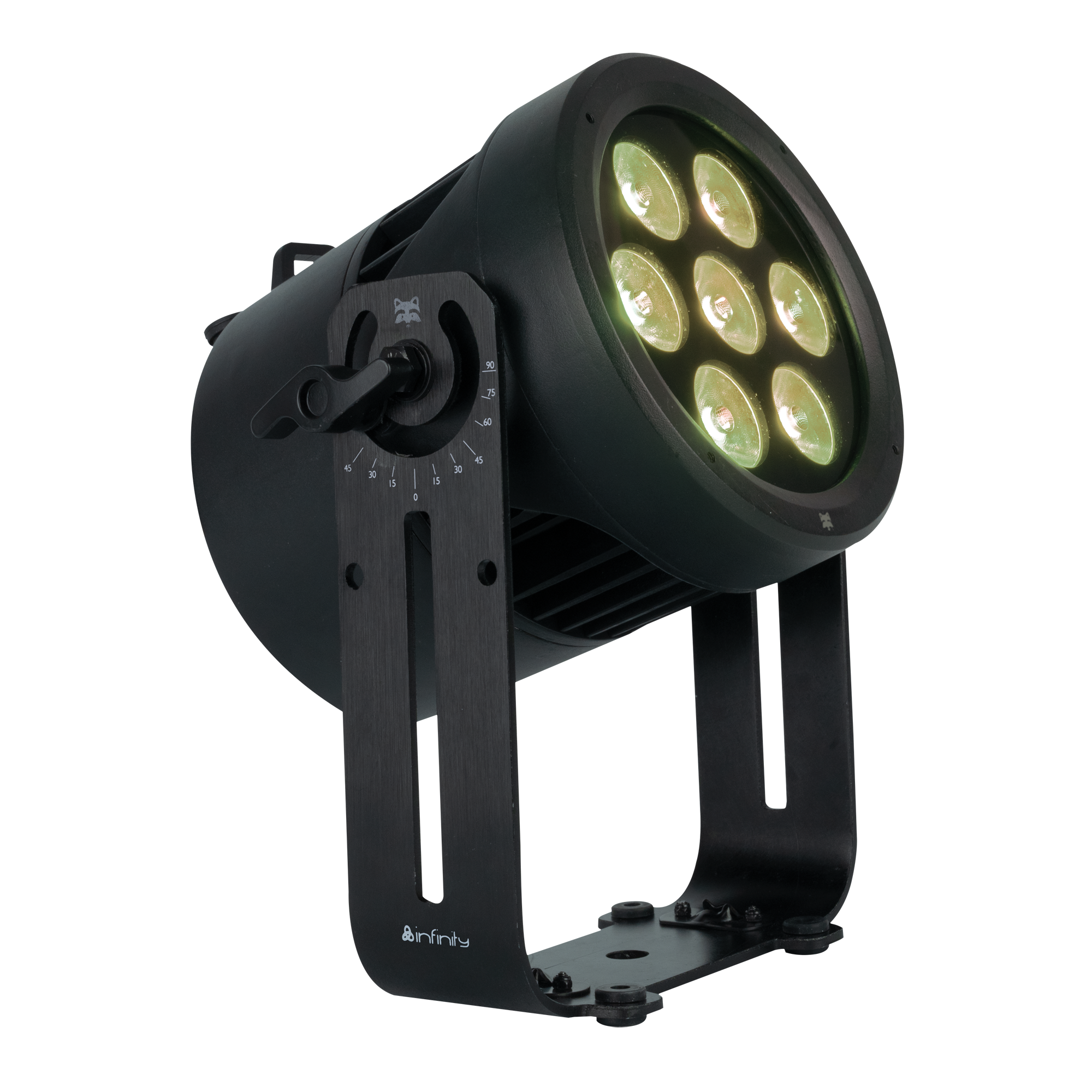

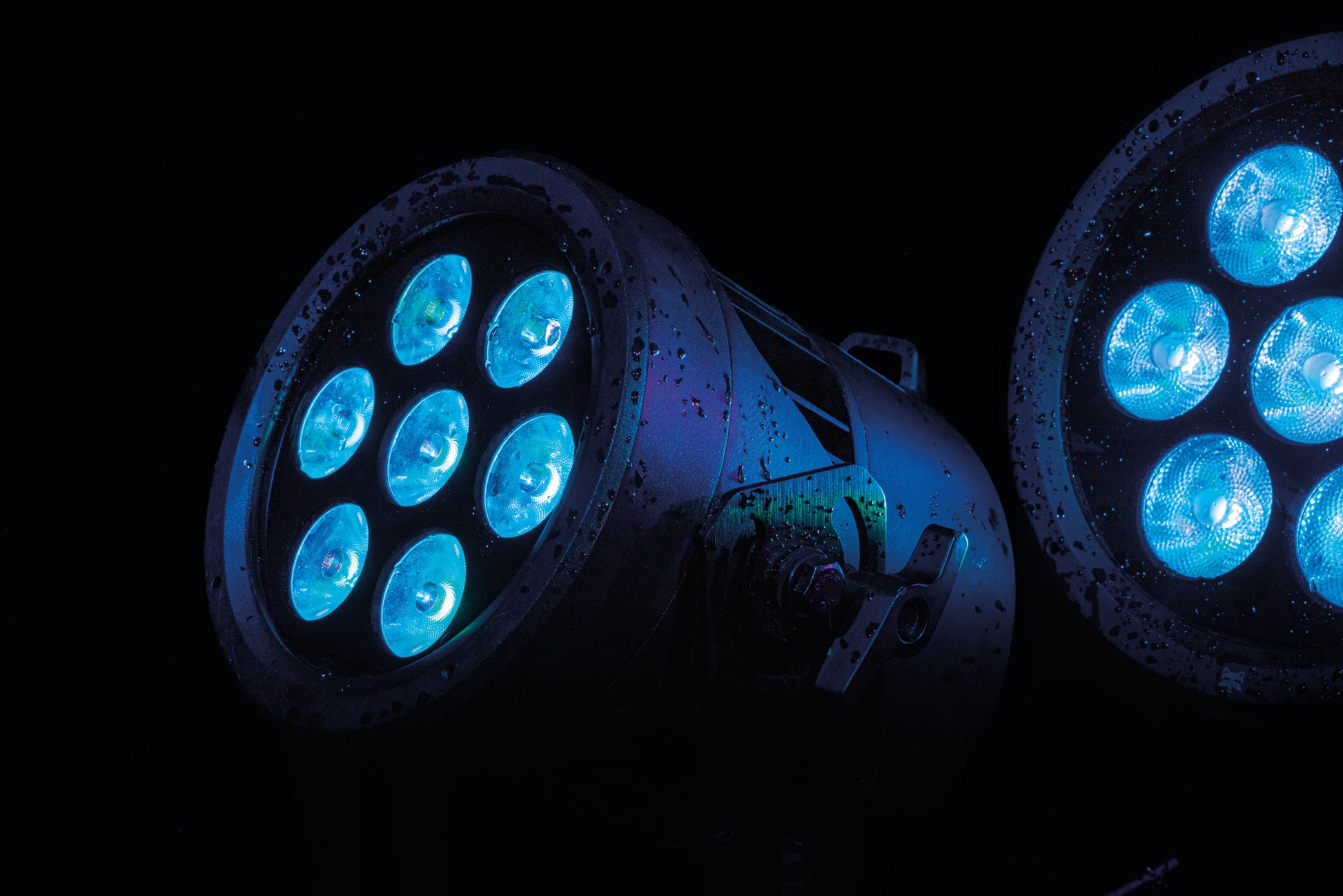

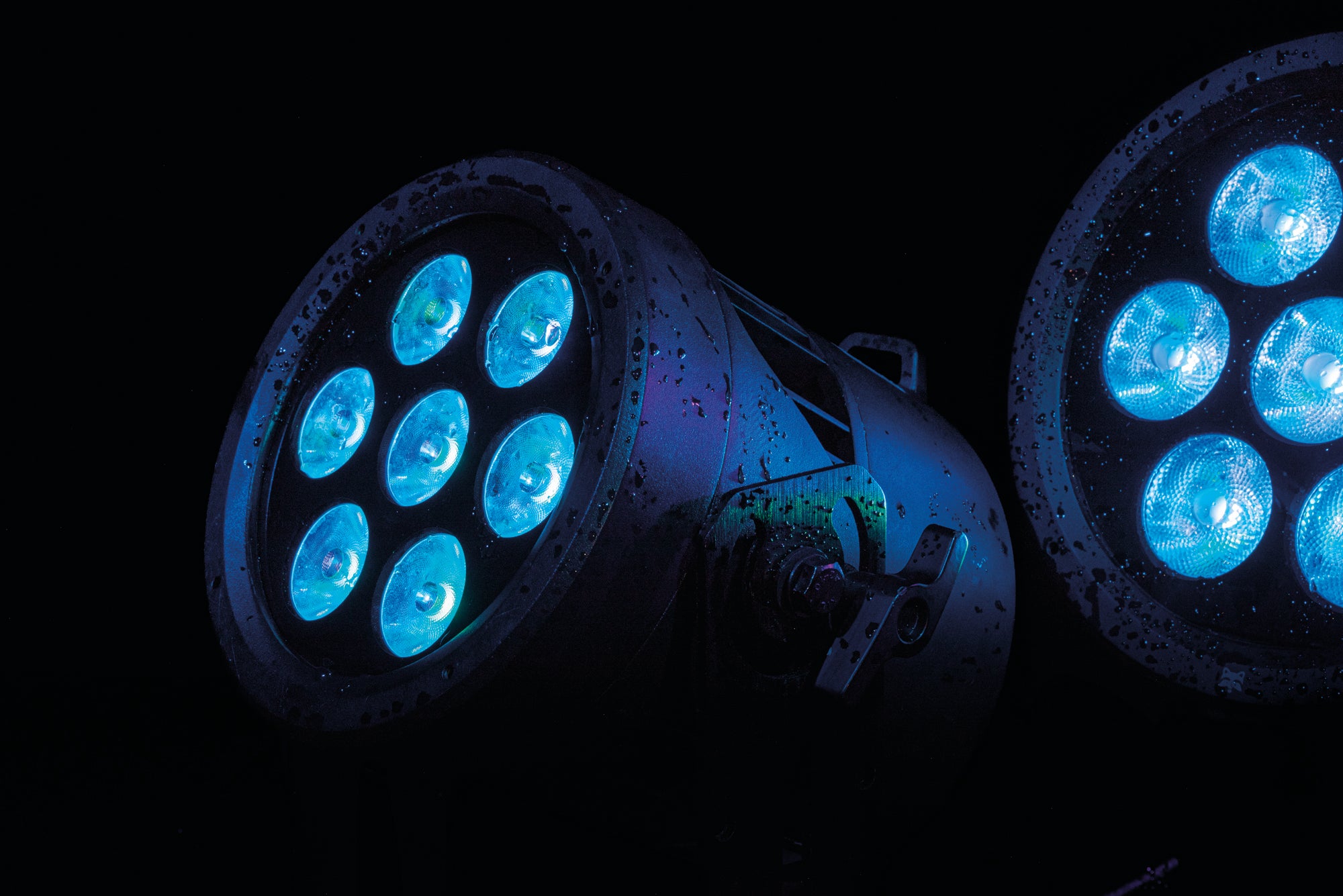

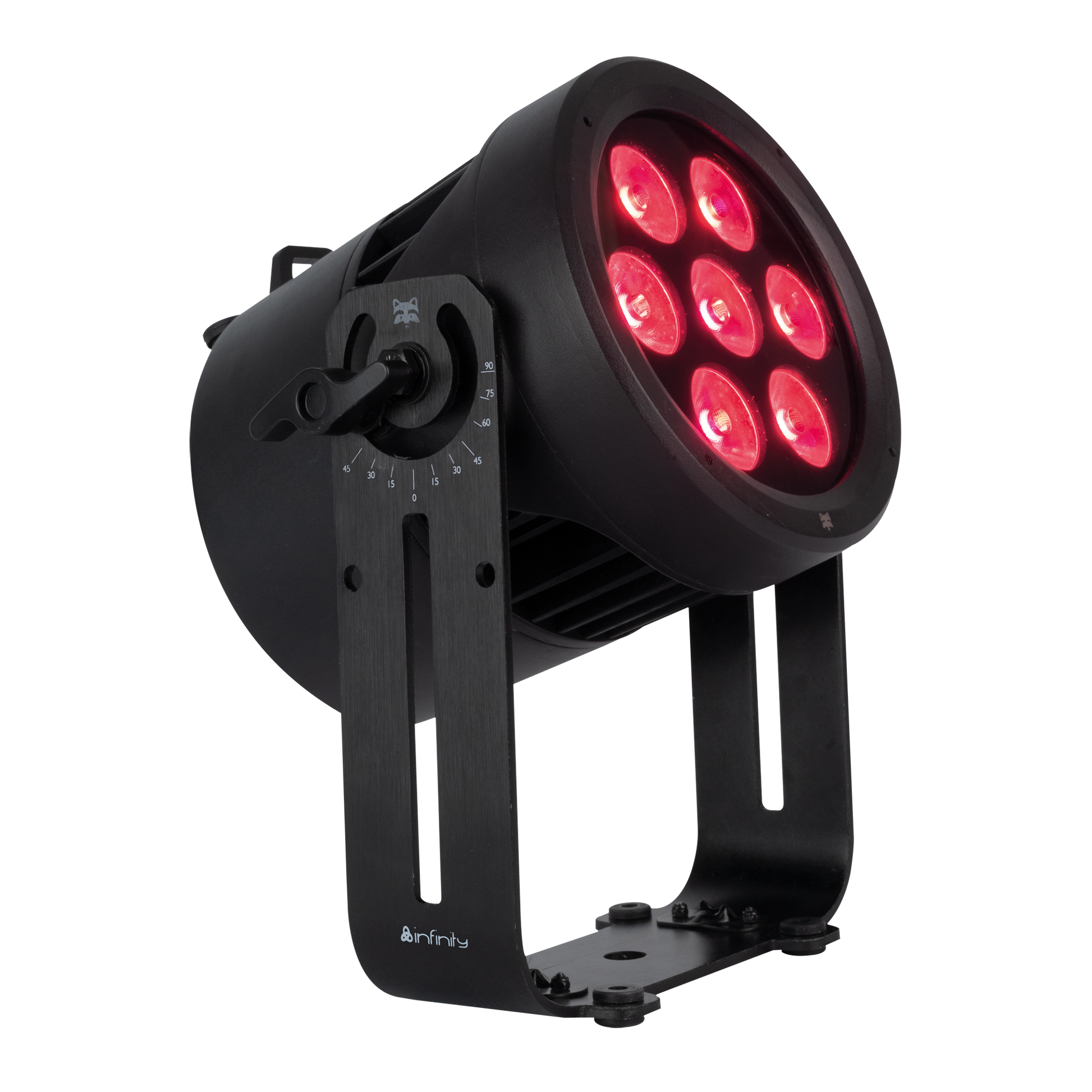

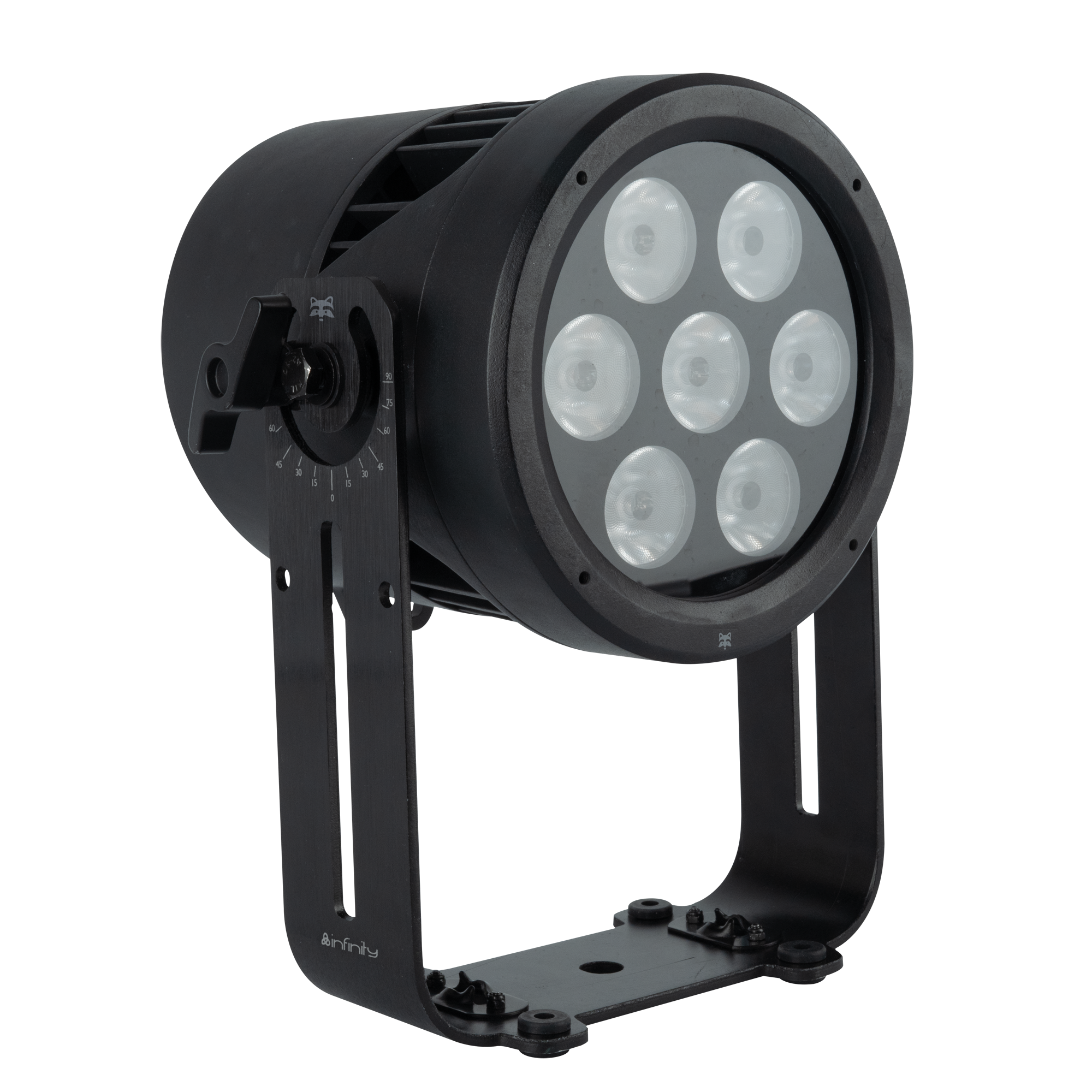

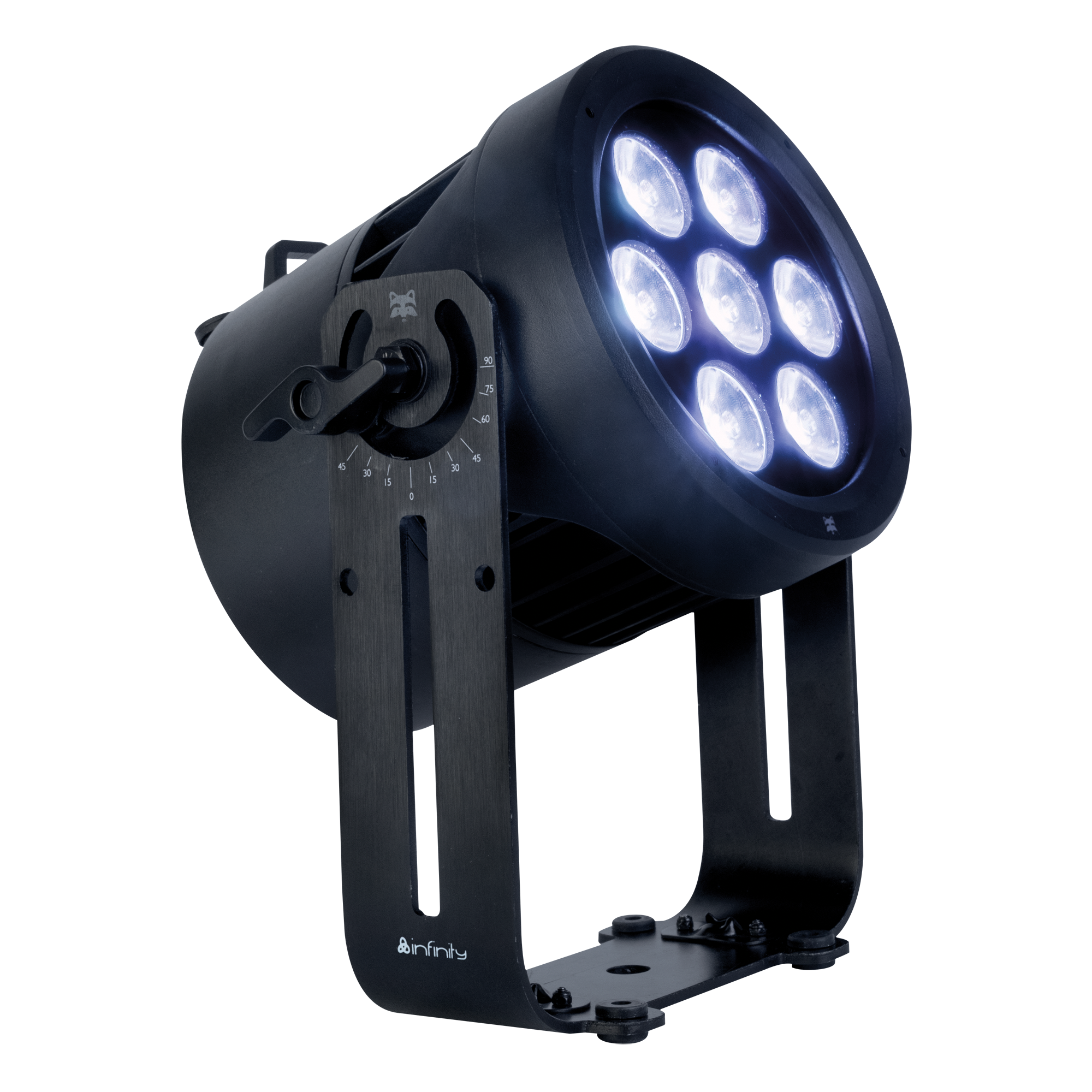

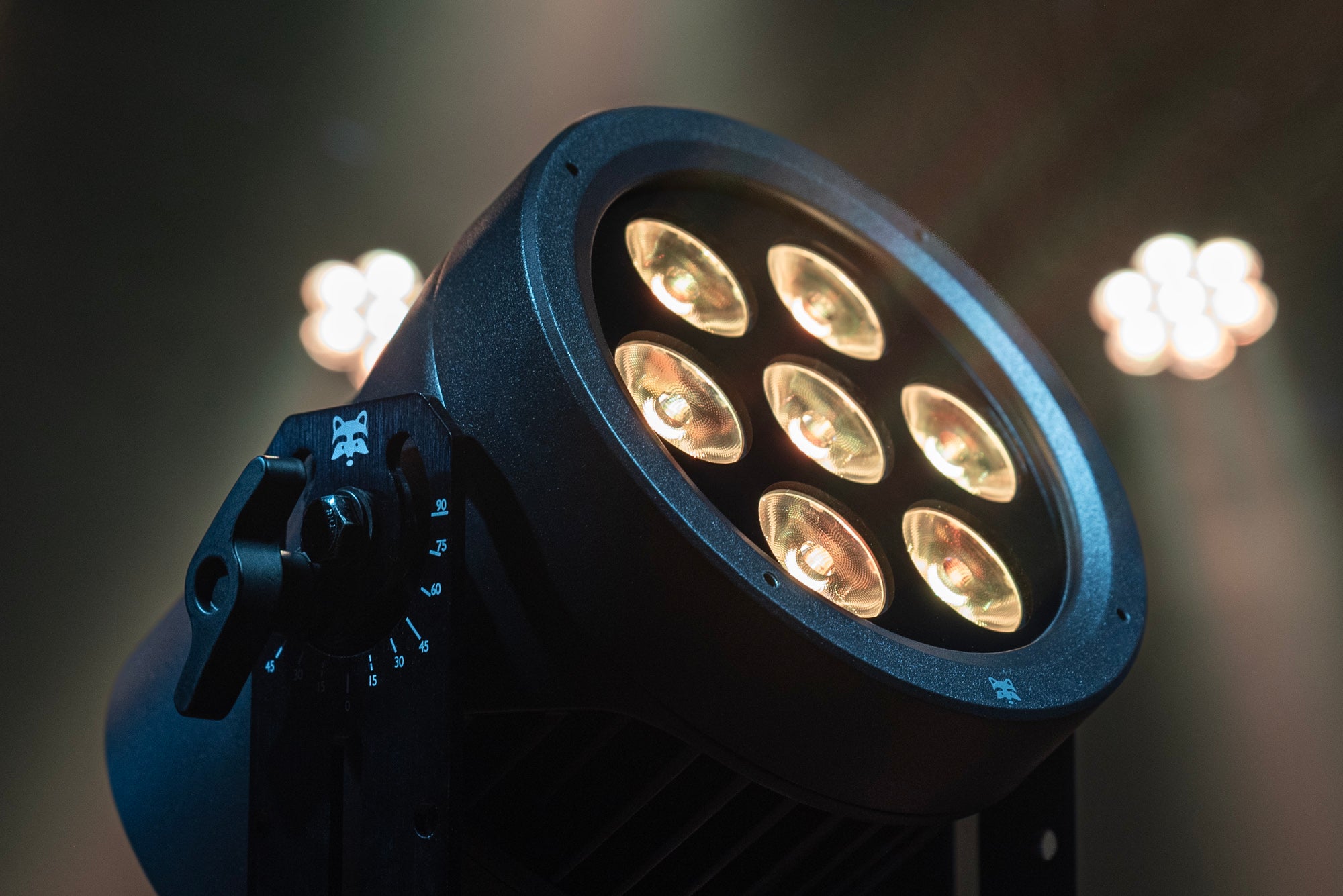

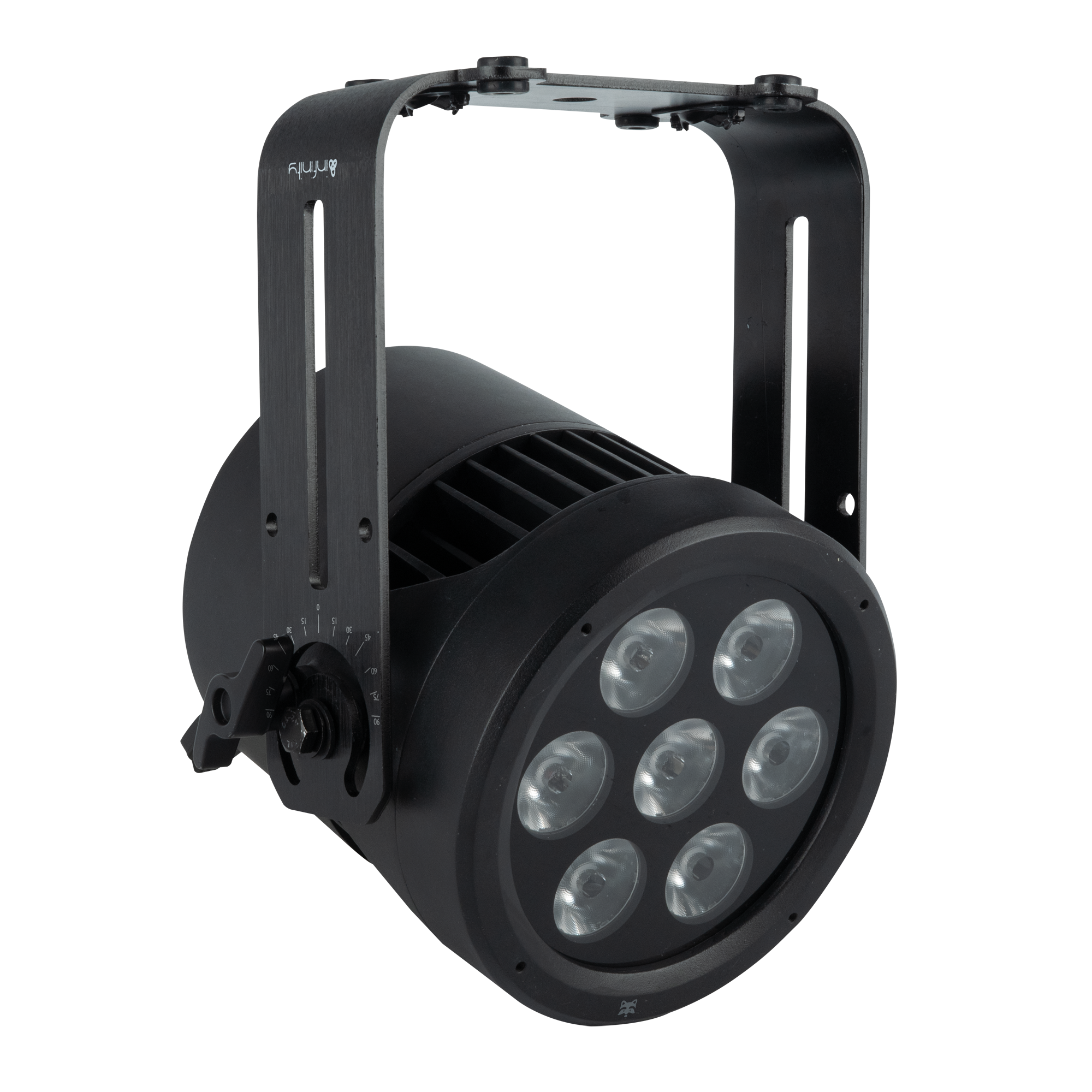

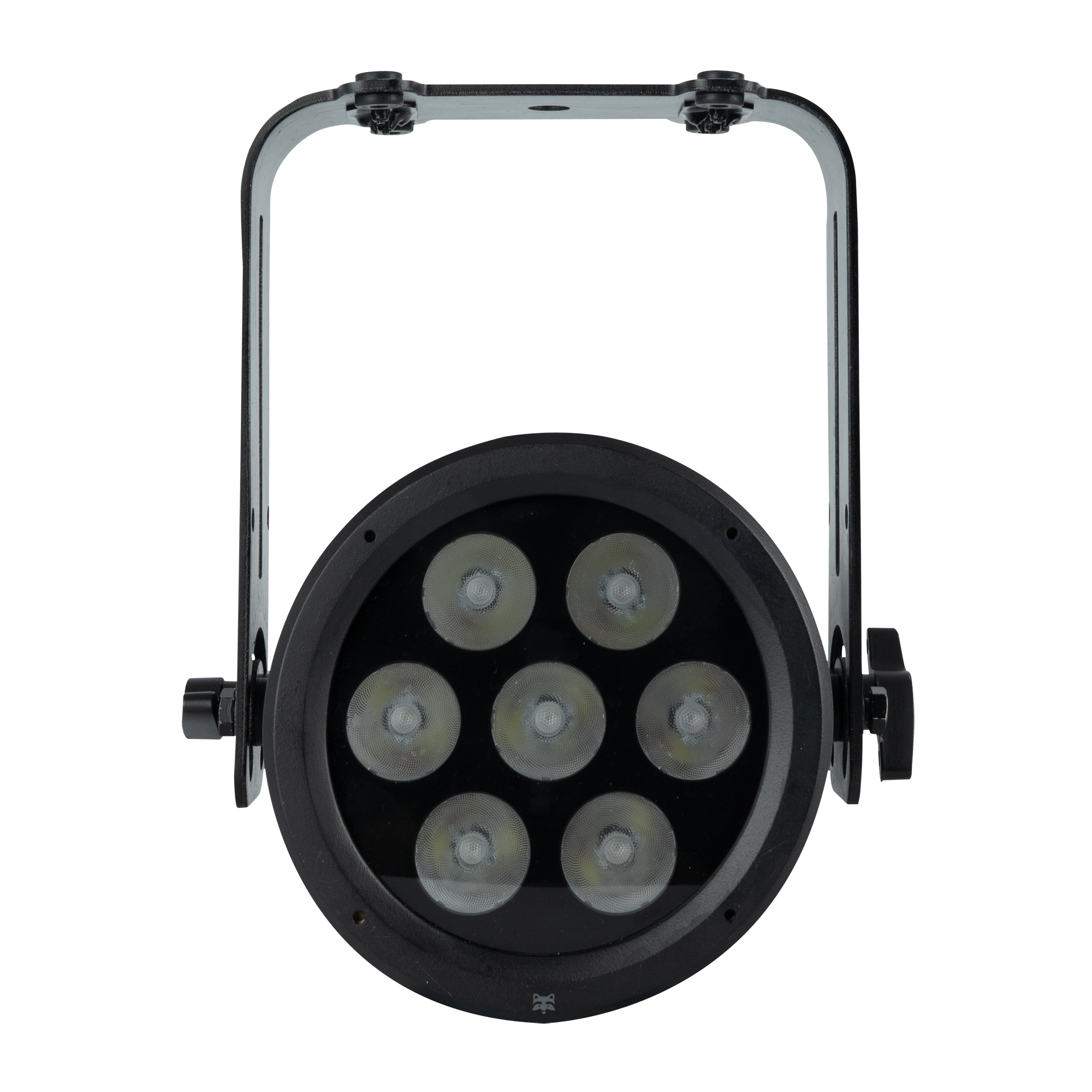

The Raccoon P7/4 is a high-brightness and high-CRI PAR, with IP65 protection, designed for applications where brightness and quality are of great importance, particularly for rental applications and situations requiring high light output. It features 7 extremely bright LEDs, each with four colours: red, green, blue, and mint. It is possible to switch between maximum brightness mode and maximum colour quality (high CRI) mode.The fixture offers top-level control options. The core technology of the Raccoon series is the calibrated colour engine, which ensures exceptional colour quality and stability. Thanks to the integration of technology with xy control modes, the Raccoon series guarantees consistent and precise colours at all times. The sophisticated software engine, developed in Europe, ensures exceptionally stable colour rendition in all circumstances. Thanks to temperature compensation (LED), which is continuously monitored by the software, any visible colour shift during operation is avoided.
We use the same calibration standards as the Infinity Signature series, so the fixtures have extremely uniform colour. Five different internal dimmer curves are available through an easy-to-use menu system, including a tungsten shift simulation that also works with an applied colour filter! It can internally manage CCT, RGB, and Lee filters.
In addition to xy mode, control via DMX, RDM, and manual operation is also possible. The PWM frequency is adjustable between 640 Hz and 25 kHz, ensuring flicker-free images. Basic settings, such as PWM and dimmer curve, can be copied between Raccoon lamps on the same network to ensure identical behaviour. Robust 5P XLR DMX and Power Pro True power connectors ensure reliable connections and IP65 compliance. With its elegant housing and accessories such as barn doors, a top hat, filter frames, and diffusion filters, the Raccoon series represents an ultra-versatile competitor for high-end PARs.
SPECIFICATIONS
- Light Source Type: LED
- Light Source Quantity: 7
- Light Source Power: 15 W
- LED Colour: R / G / B / M
- Expected Lifespan: 30000 h
- Refresh Rate (max): 25 kHz
- Luminosity at 2m: 12250 lx
- Luminosity at 3m: 5445 lx
- Luminosity at 5m: 1960 lx
- Luminous Flux (total): 3459 lm
- Luminous Flux (red): 765 lm
- Luminous Flux (green): 1148 lm
- Luminous Flux (blue): 325 lm
- Luminous Flux (mint): 1744 lm
- CRI: 86
- CCT Min: 2000 K
- CCT Max: 8000 K
- Circular Beam Angle: 10°
- Control Modes: DMX / Manual / Static Dimmer
- DMX Channels: 1 / 3 / 8 / 10 / 12 / 15
- Protocols: DMX / RDM
- Display: OLED
- Dimmer: 0-100 %
- Strobe: 0-25 Hz
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 75 W

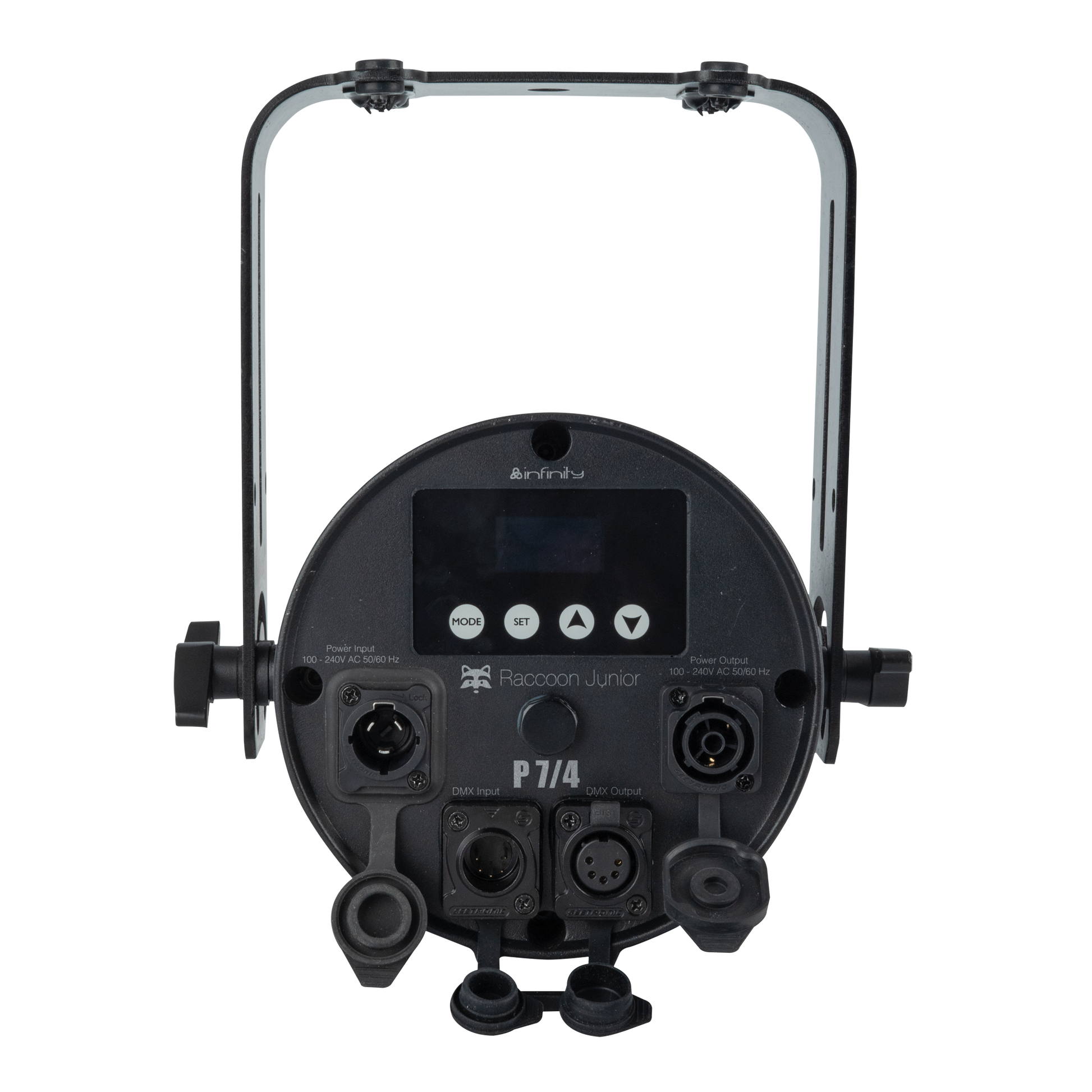

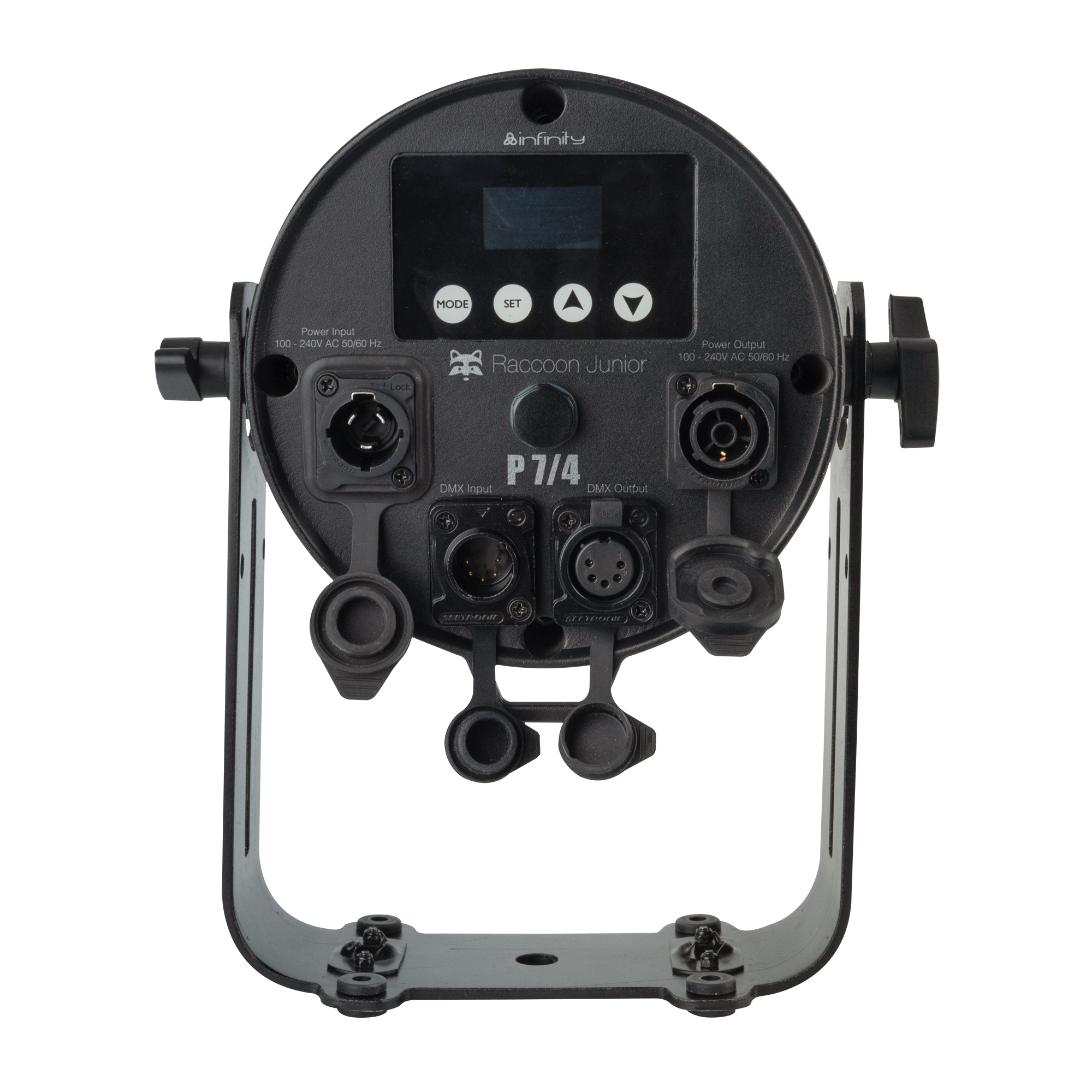

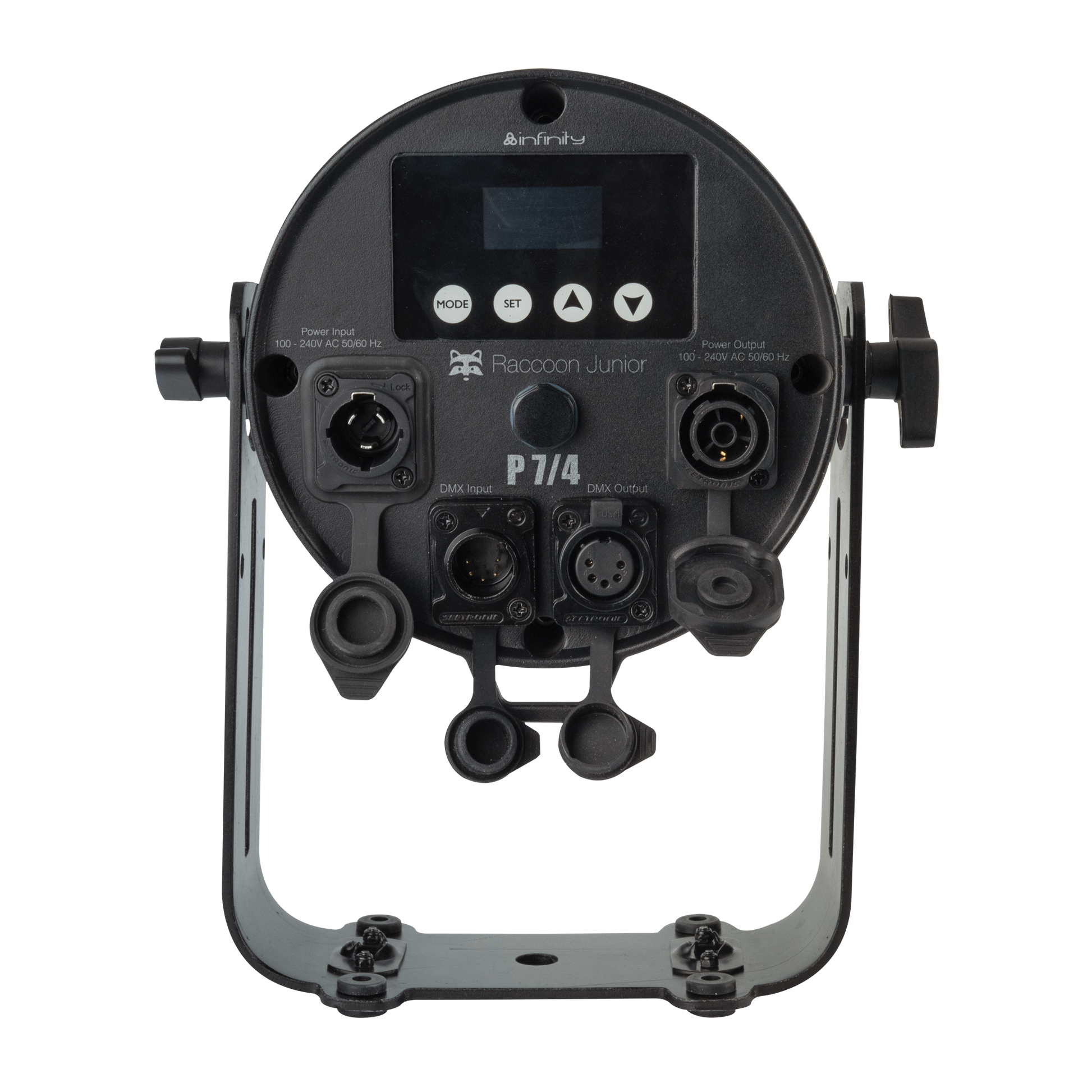

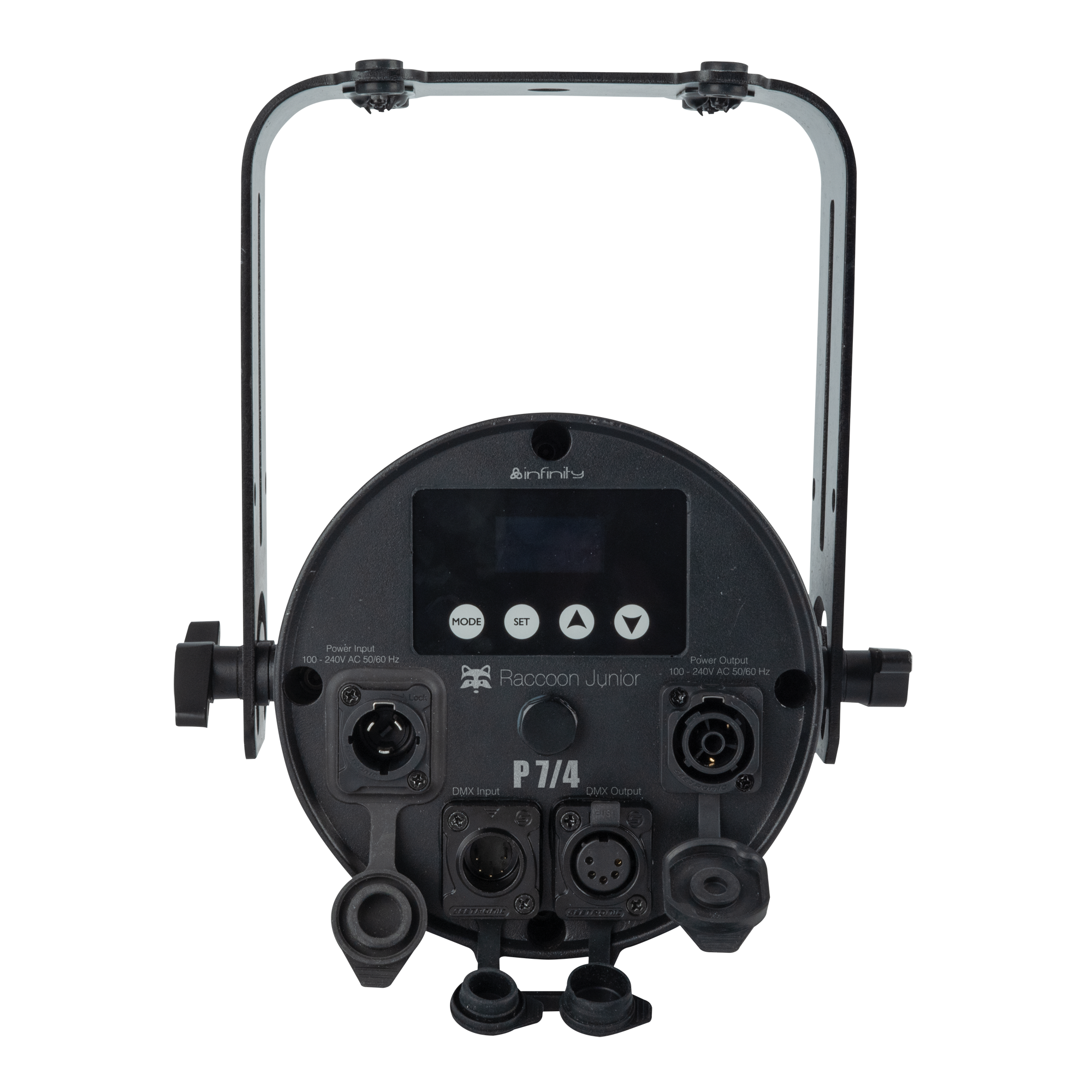

- Power Input Connection: Power Pro True
- Power Output Connector: Power Pro True
- DMX Connection: XLR 5P In/Out
- DMX Input Connection: XLR 5P
- DMX Output Connection: XLR 5P
- Length (mm): 184 mm
- Width (mm): 232 mm
- Height (mm): 285 mm
- Weight: 4 kg
- IP Rating: IP65
- Housing: Die-cast Aluminium
- Colour: Black
- Maximum Ambient Temperature: 45 °C
- Minimum Operating Temperature: -20 °C

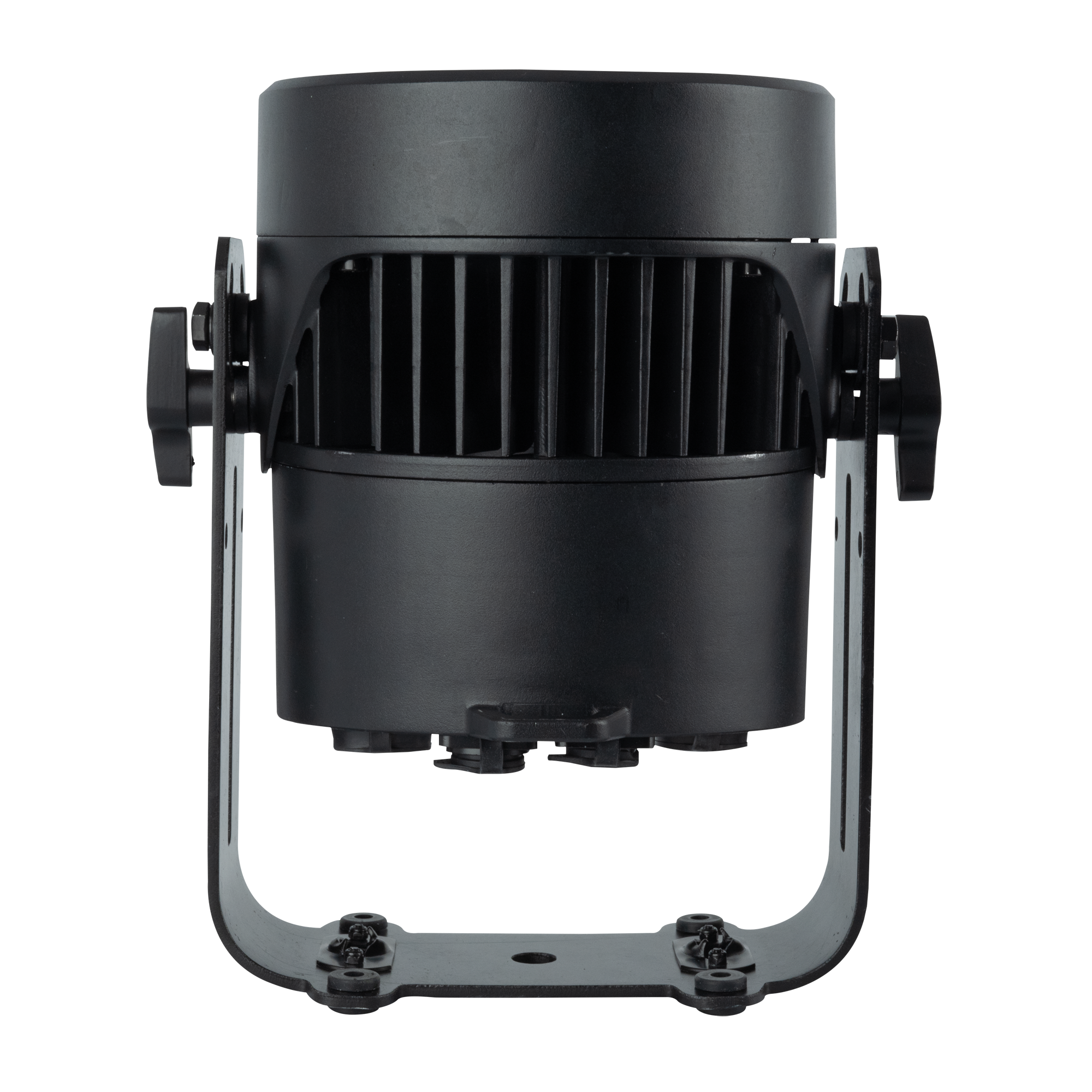

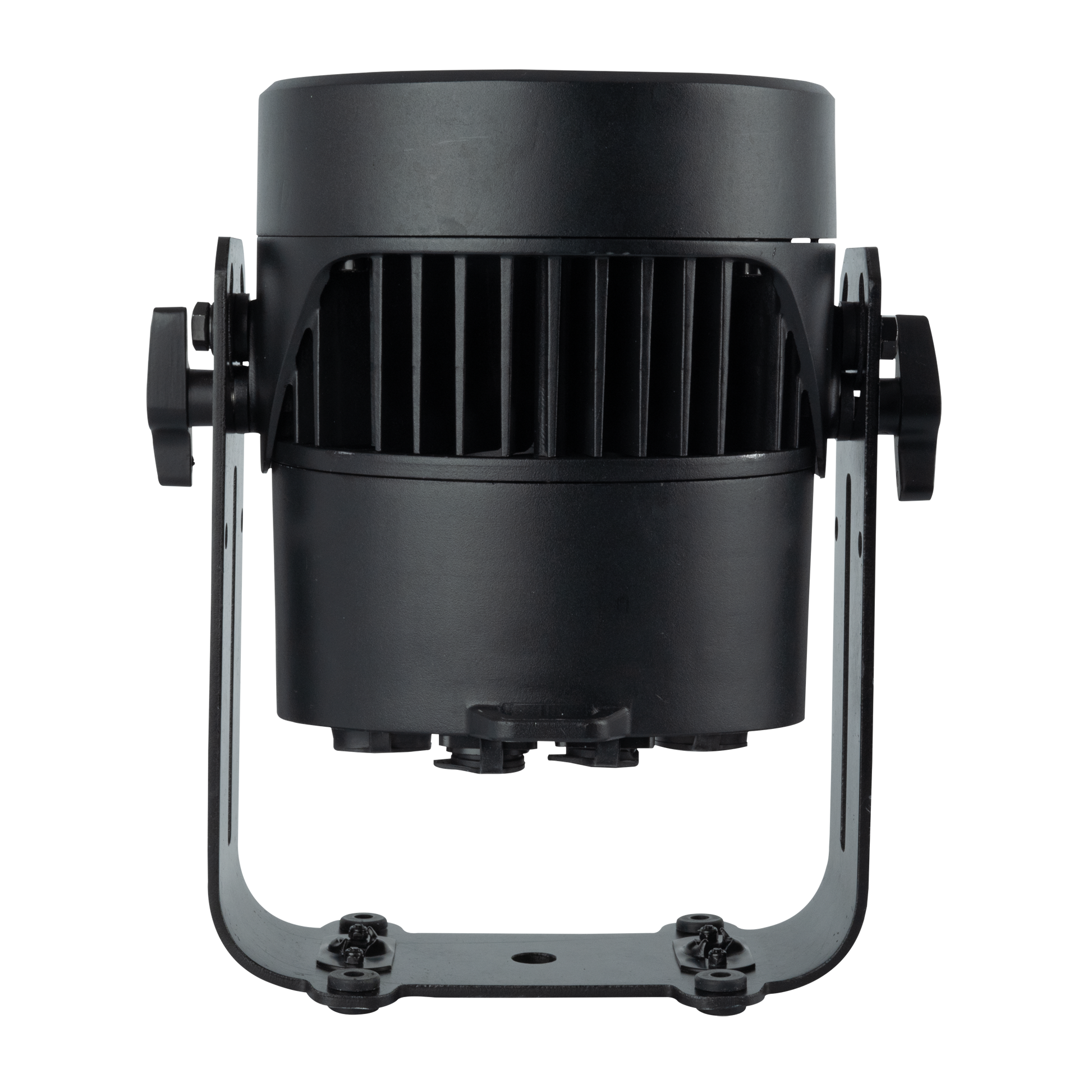

- Cooling: Convection

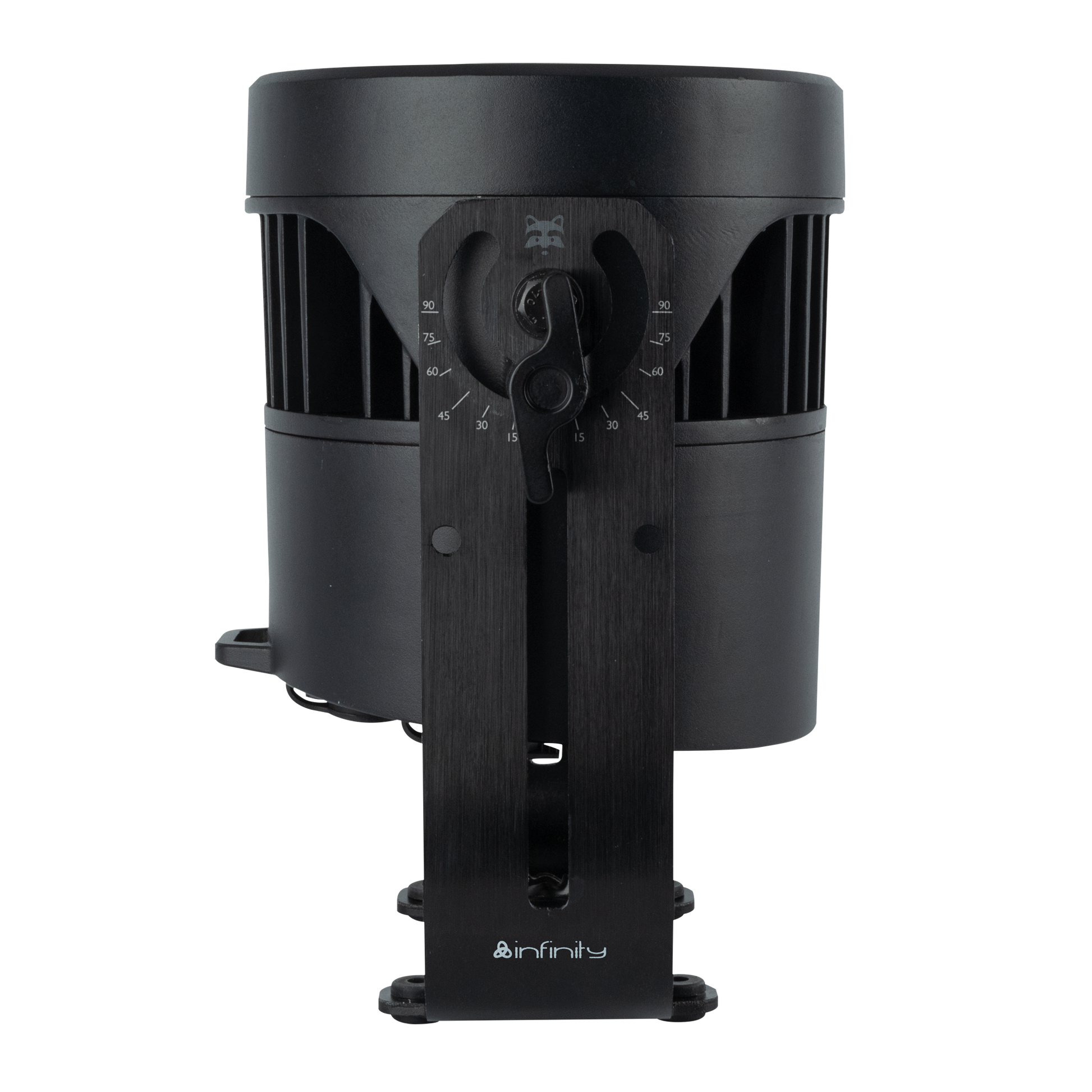

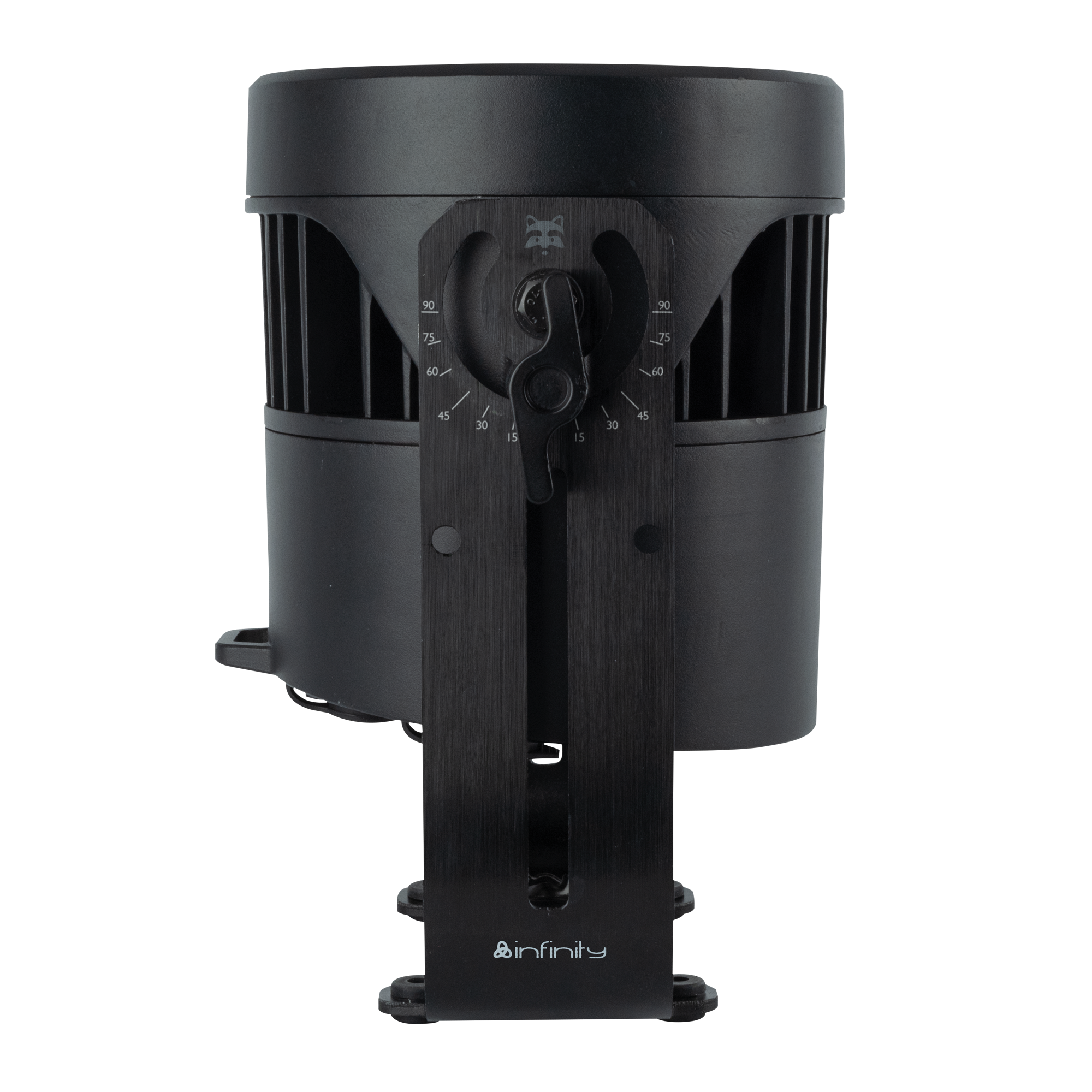

- Mounting Options: Clamp / Quick-Lock
- Cables Included: Power Pro True Cable
