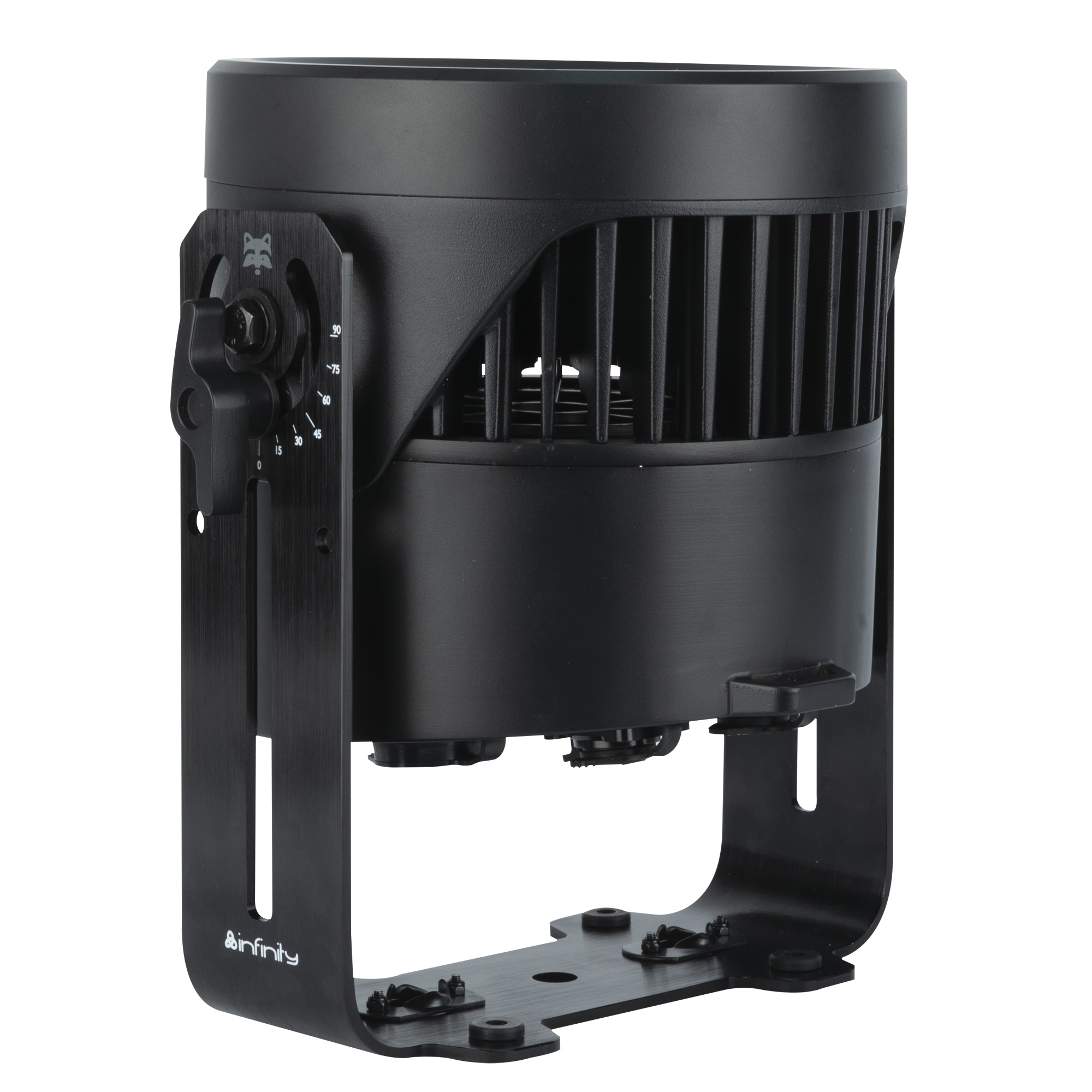

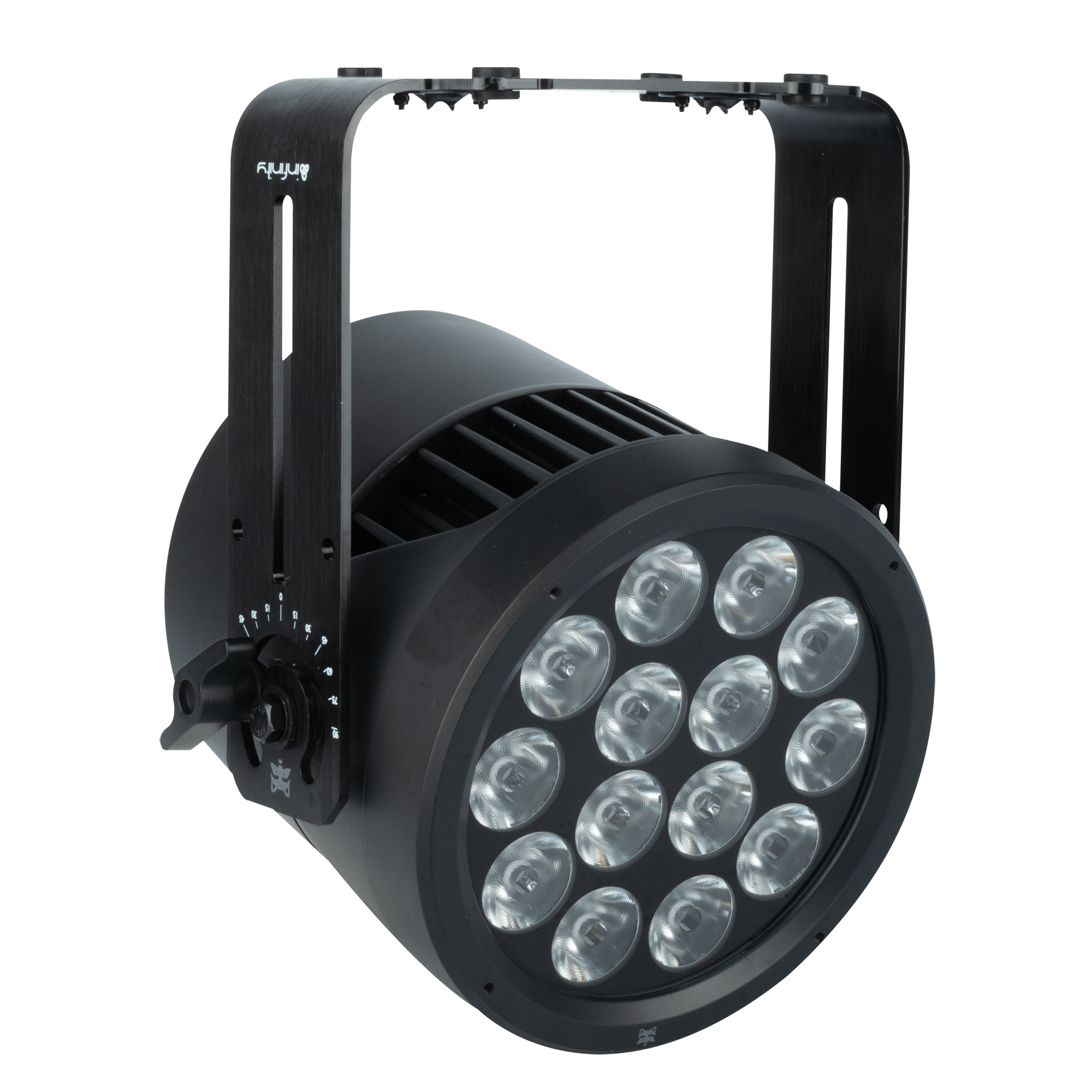

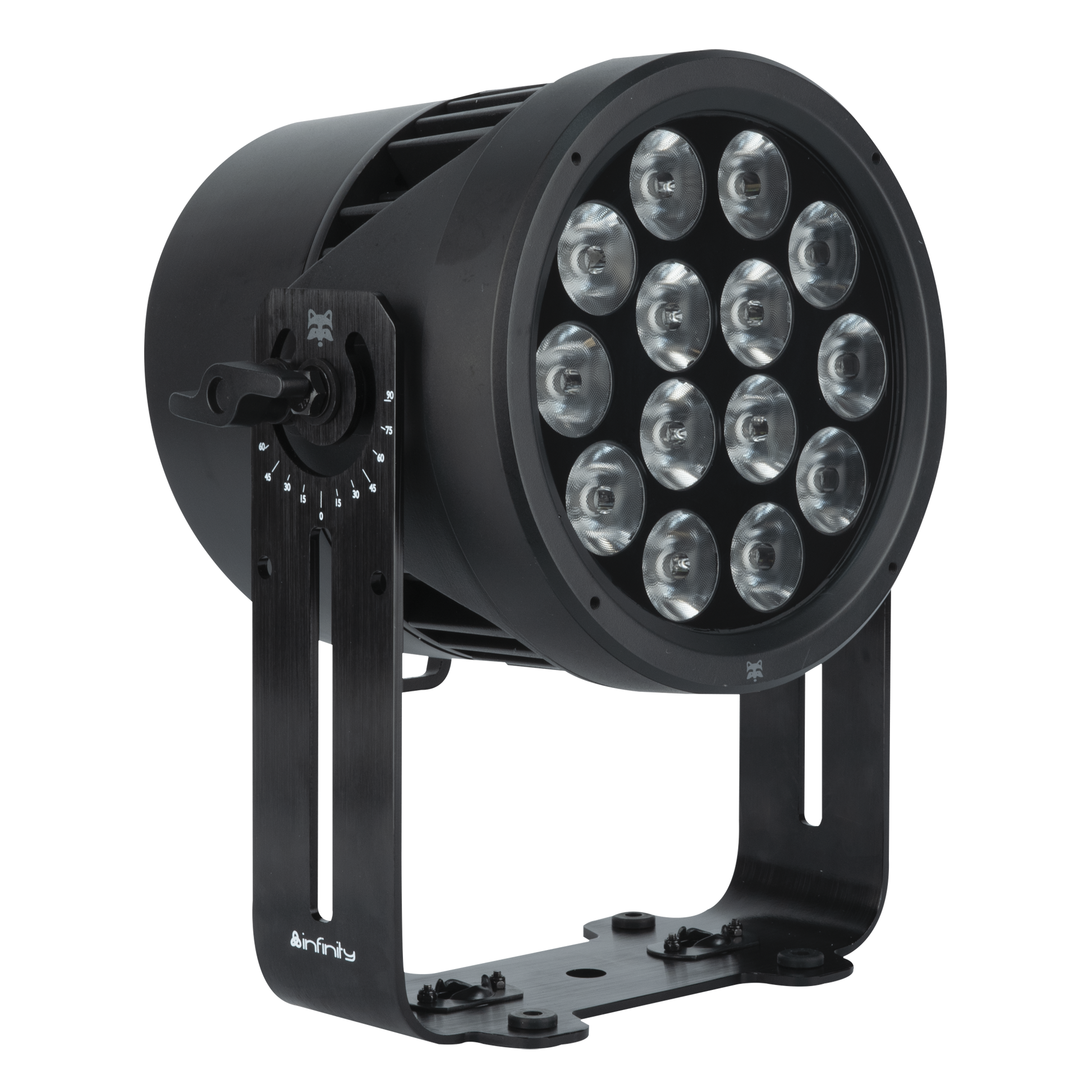

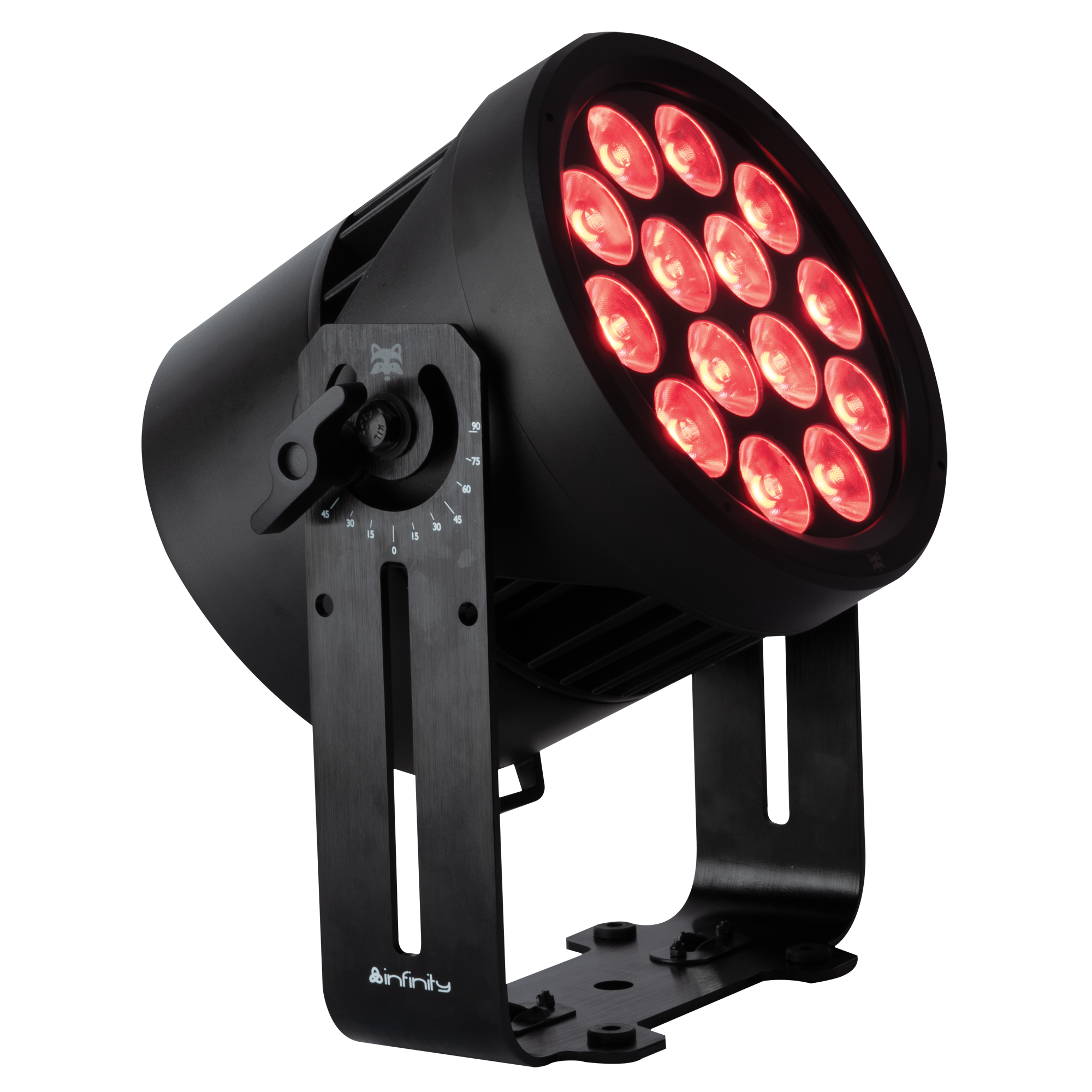

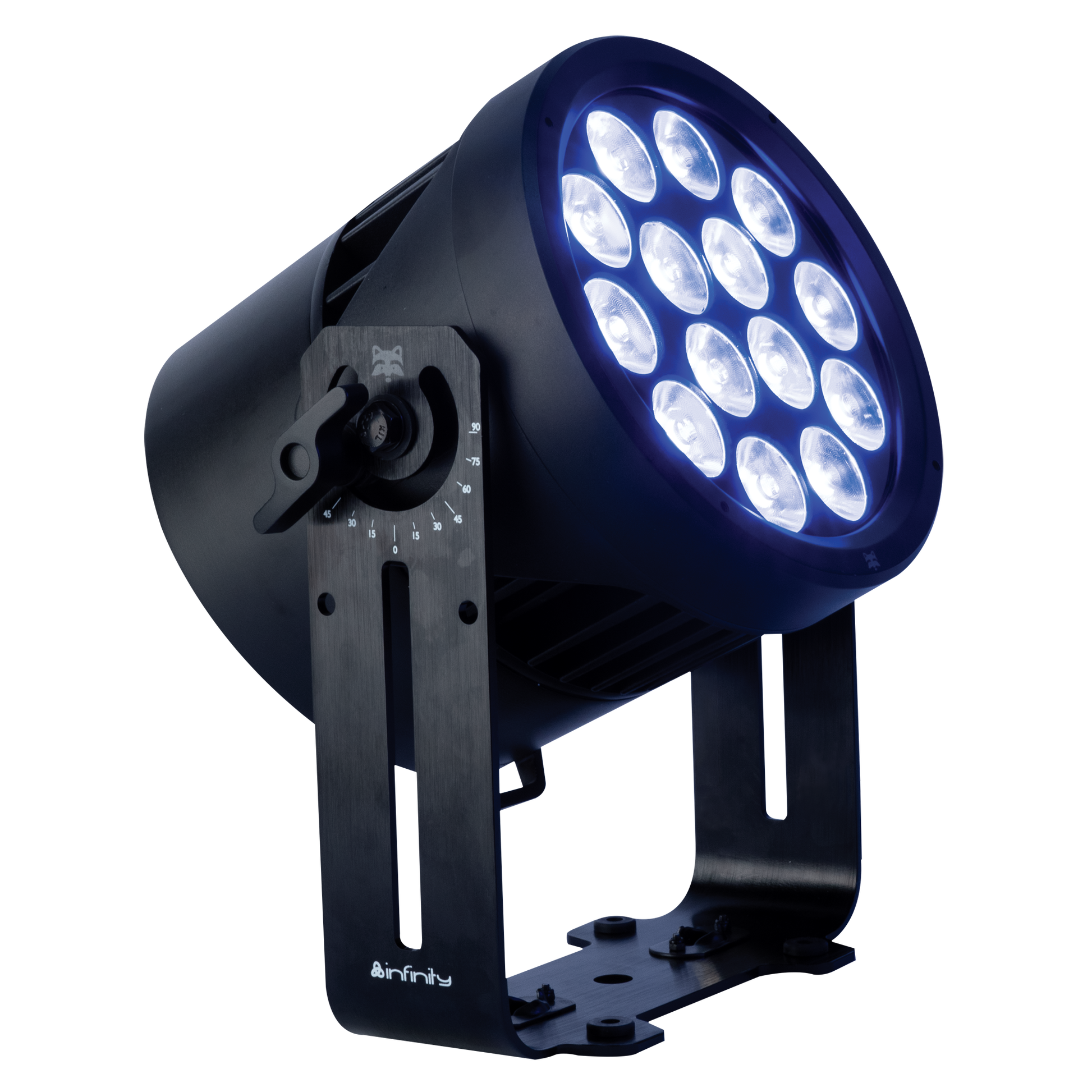

INFINITY Raccoon P14/4 Professional RGBM Parcan
Estimated delivery in Italy between 18 and 20 August
Pay in 3 installments of €202,66 interest-free
Pay in 3 installments of €202,66 interest-free with PayPal
Split into 3 installments of €202,66 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
Professional RGBM Parcan

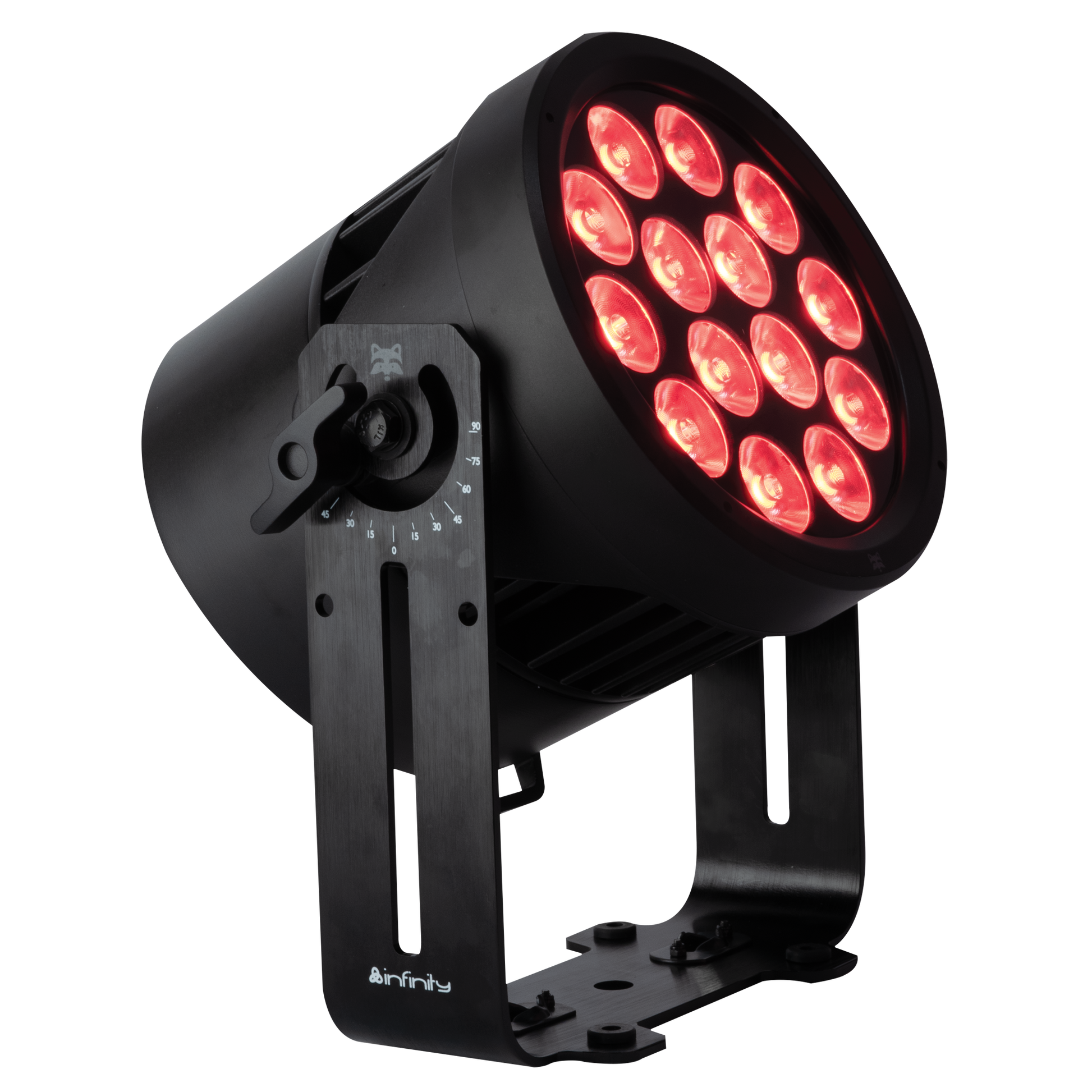

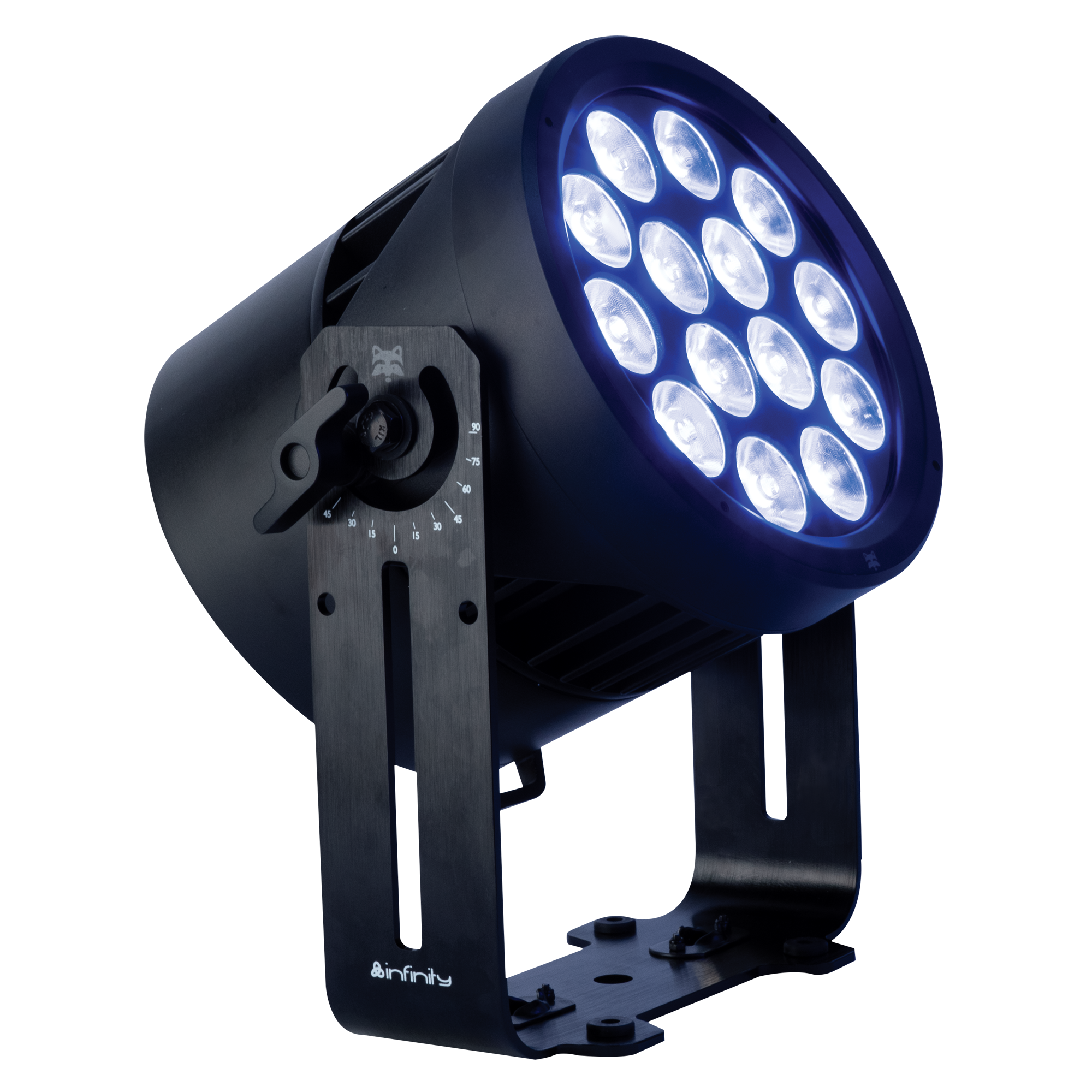

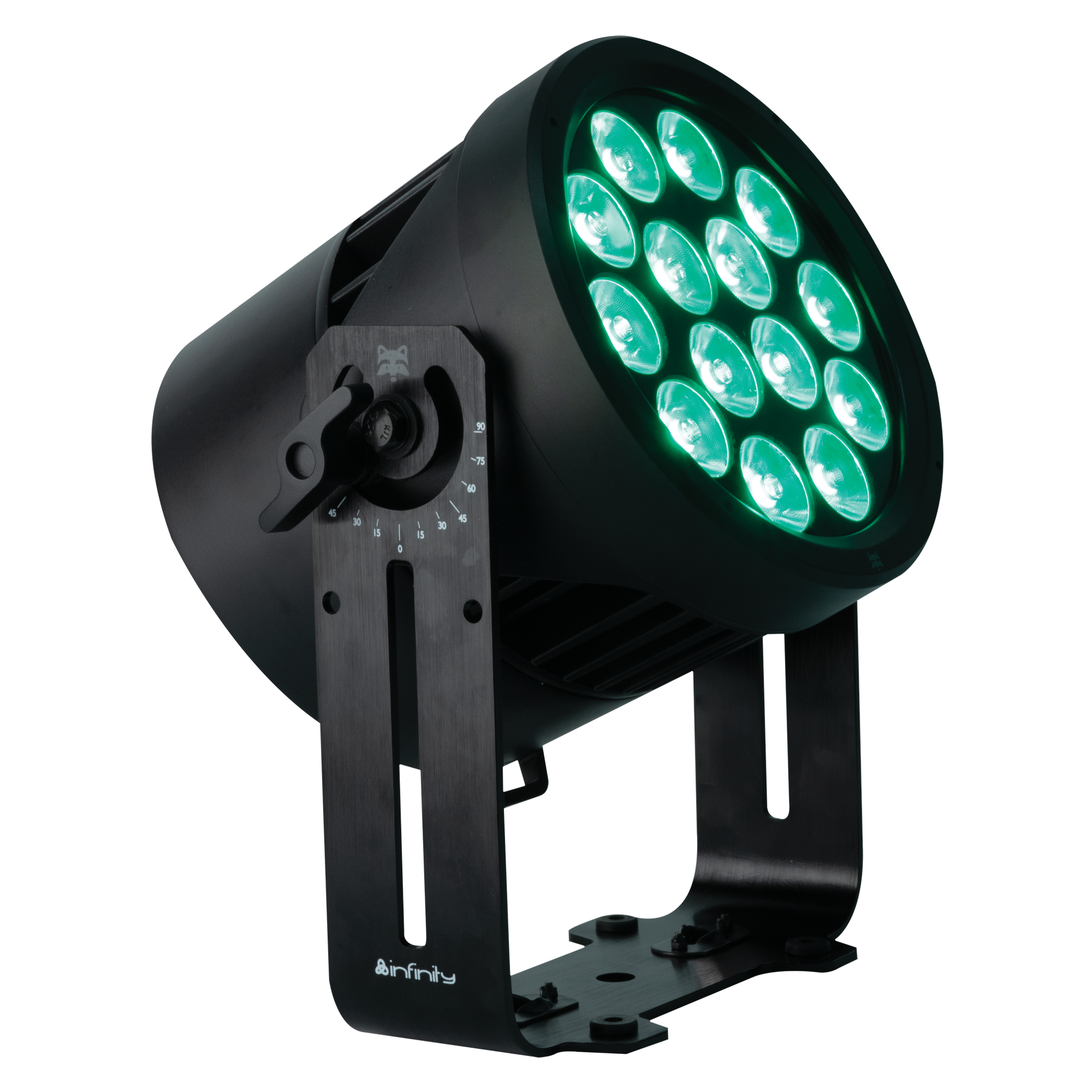

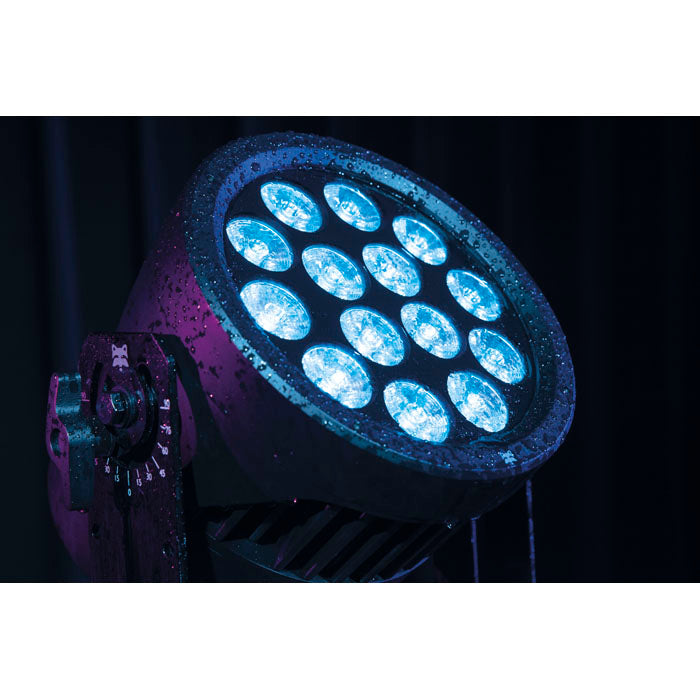

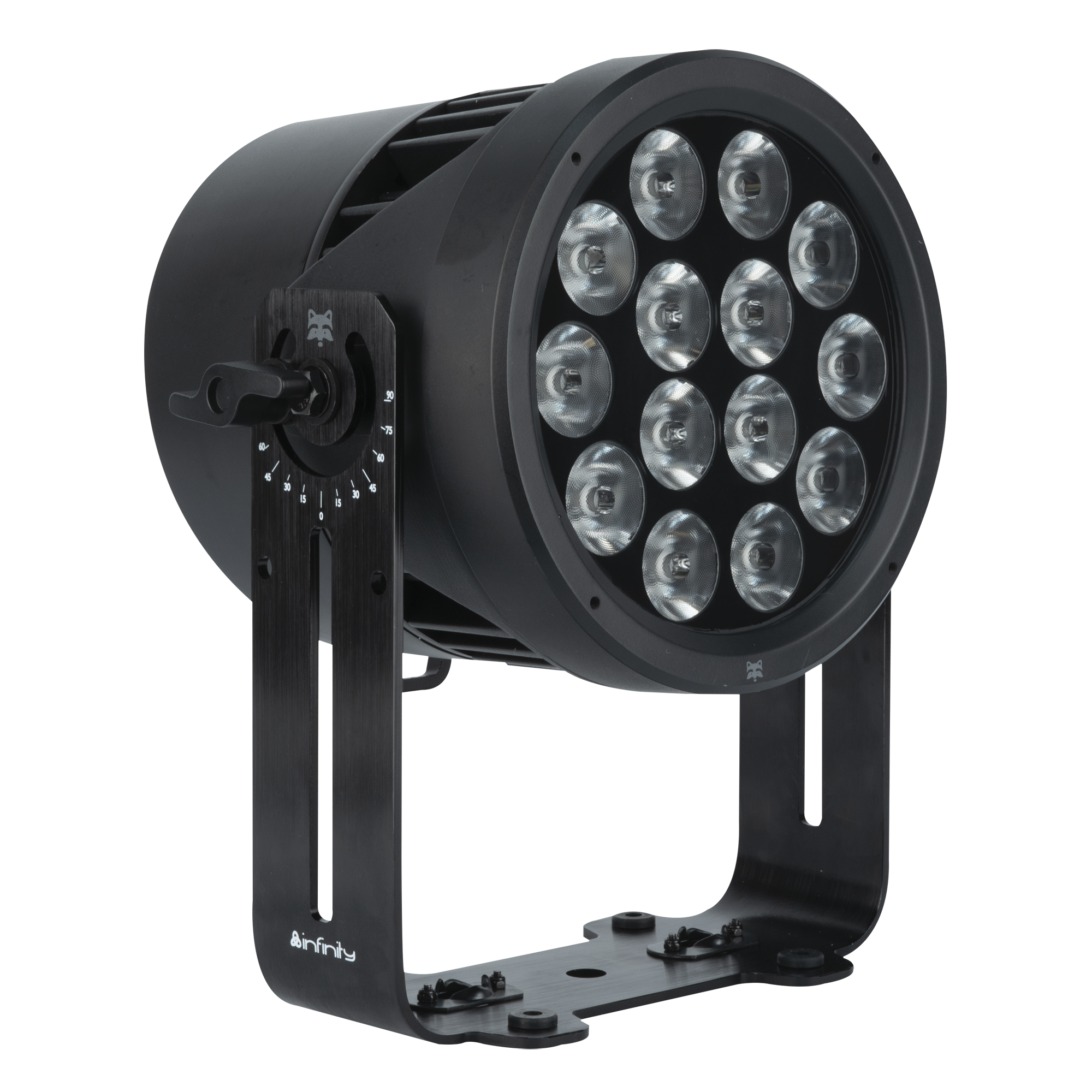

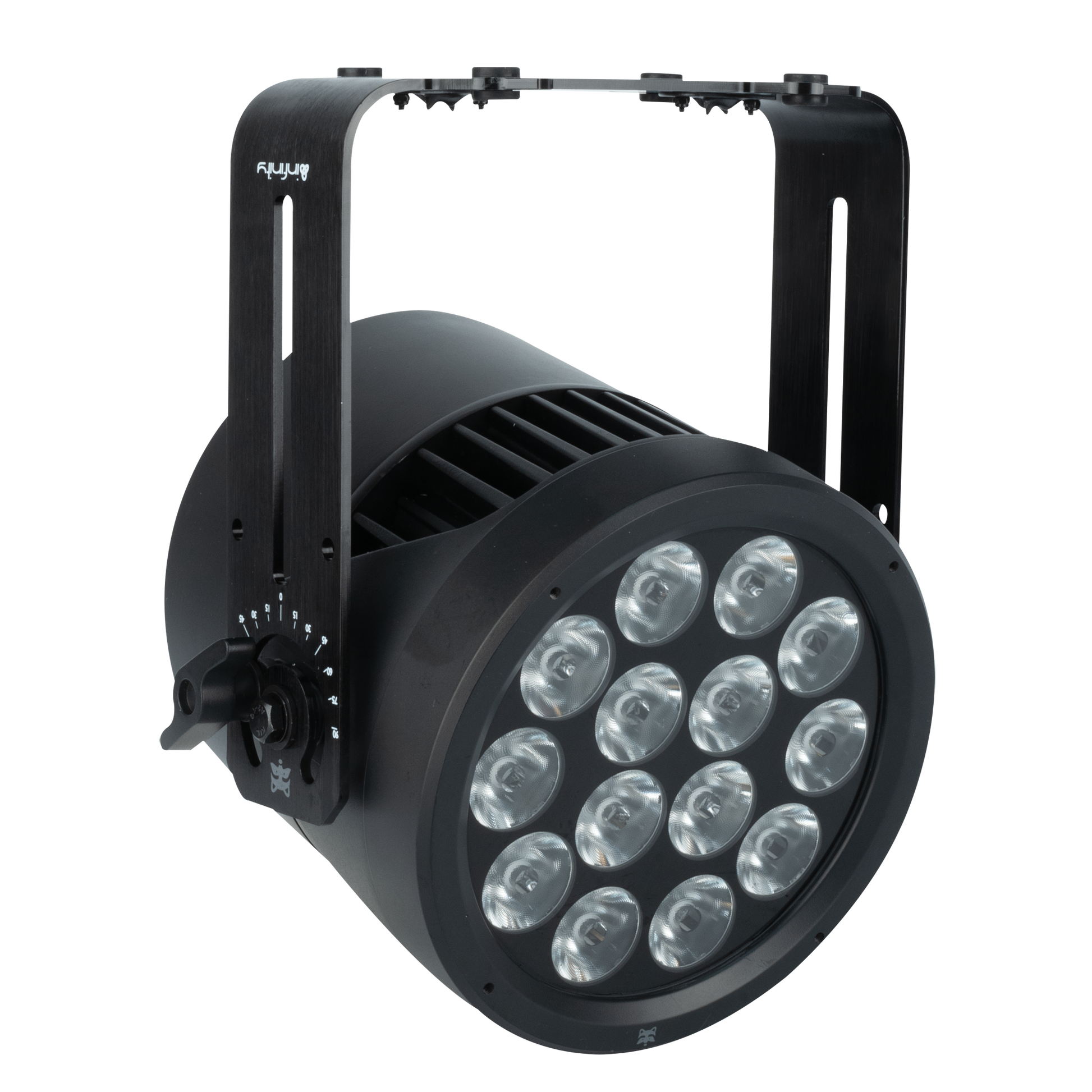

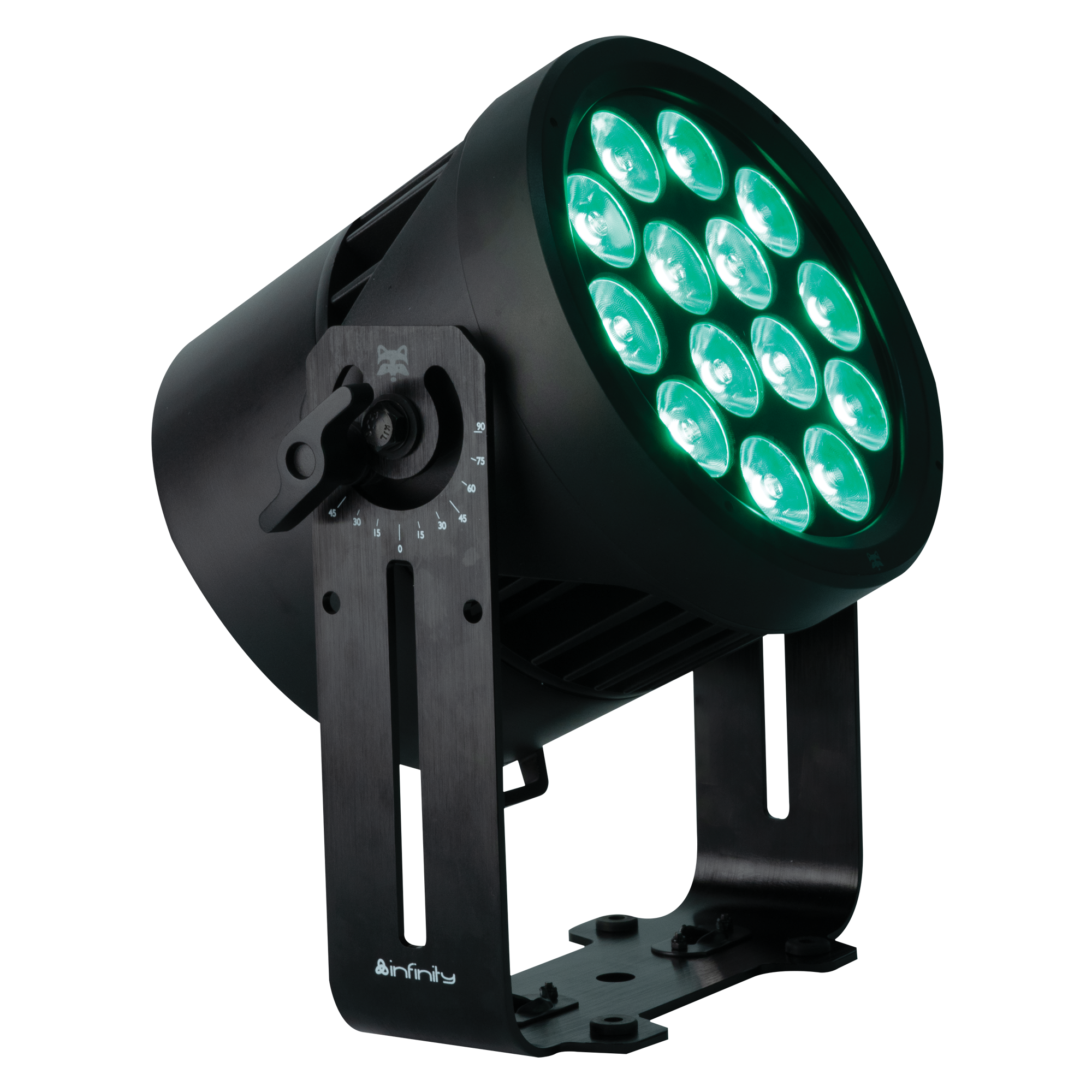

The Raccoon P14/4 is a very high-brightness, high-CRI, IP65-rated Par projector designed for applications where both brightness and quality are of great importance, particularly rental applications and situations requiring high light output. It features 14 extremely bright LEDs, each with four colours: red, green, blue, and mint. It is possible to switch from maximum brightness mode to maximum colour quality (high CRI).The device offers top-of-the-range control options. The main technology of the Raccoon series is the calibrated colour engine, which ensures exceptional colour stability and quality. With the built-in XY technology, no matter which XY-compatible devices you mix, their colours will always match! The calibrated internal controller ensures exceptionally stable colour reproduction at every LED temperature and every brightness setting, without any visible colour change during adjustment.
We use the same calibration standards as the Infinity Signature series, so both devices have extremely consistent colours. Five different internal dimmer curves are available through the easy-to-use menu system, including a tungsten shift simulation that also works with a colour filter applied. It can internally handle CCT, RGB, and Lee filters.
In addition to XY mode, control via DMX, RDM, Manual, and Master/slave is also possible. The PWM frequency is adjustable between 640 Hz and 25 kHz, ensuring flicker-free camera images. Basic settings, such as PWM and dimmer curve, can be copied between Raccoon projectors in the same network to ensure identical behaviour. Robust 5P XLR DMX and Power Pro True connectors ensure reliable connections and IP65 compliance. With its elegant housing and accessories such as barn doors, a cylinder, filter frames, and diffusion filters, the Raccoon series represents an ultra-flexible competitor for high-end Par lamps.
SPECIFICATIONS
- Light source type: LED
- Number of light sources: 14
- Light source power: 15 W
- LED colour: R / G / B / M
- Life expectancy: 30000 h
- Refresh rate (max): 25 kHz
- Brightness at 2 m: 27283 lx
- Brightness at 3 m: 12126 lx
- Brightness at 5 m: 4365 lx
- Luminous flux (total): 5873 lm
- Luminous flux (red): 1313 lm
- Luminous flux (green): 2412 lm
- Luminous flux (blue): 612 lm
- Luminous flux (mint): 3084 lm
- CRI: 87
- CCT Min: 2000 K
- CCT Max: 8000 K
- Circular beam angle: 10°
- Control mode: DMX / Manual / Static Dimmer
- DMX channels: 1 / 3 / 8 / 10 / 12
- Protocols: DMX / RDM
- Display: OLED
- Dimmer: 0-100 %
- Strobe: 0-25 Hz
- Power supply: 100-240 V AC 50/60 Hz
- Power consumption: 165 W

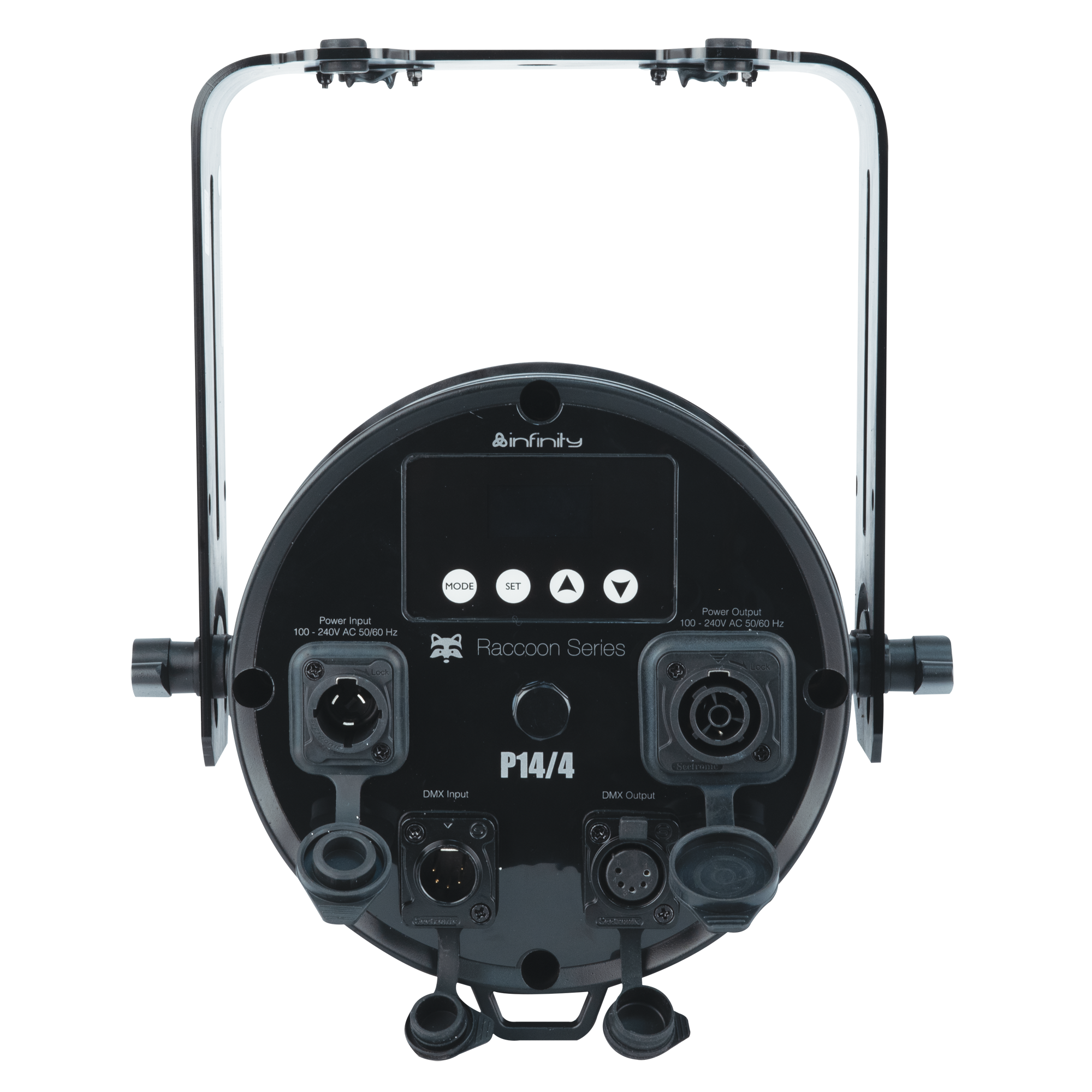

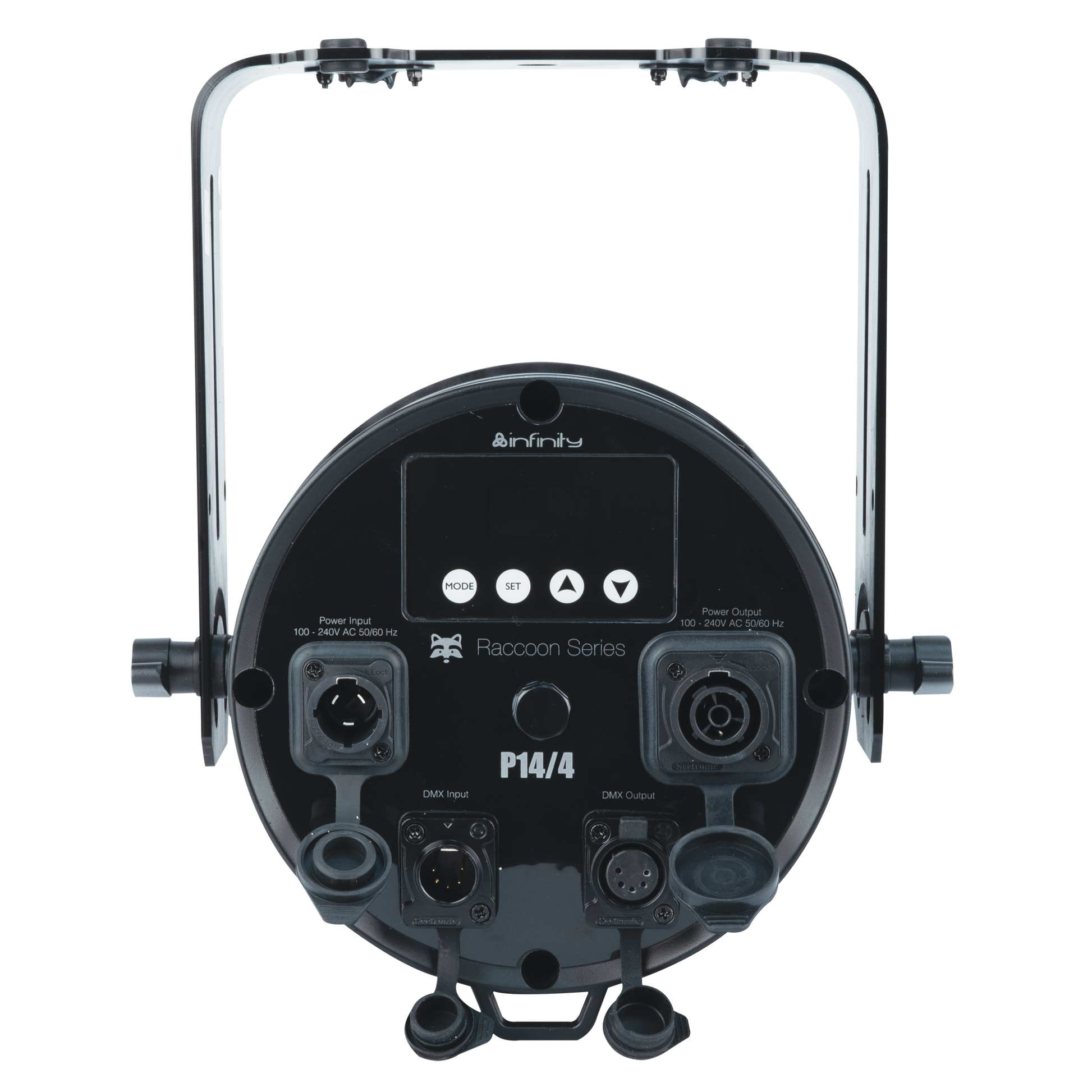

- Power input connection: Power Pro True
- Power output connector: Power Pro True
- DMX connection: XLR 5P In/Out
- DMX input connection: XLR 5P
- DMX output connection: XLR 5P
- Length (mm): 191 mm
- Width (mm): 262 mm
- Height (mm): 304 mm
- Weight: 5.5 kg

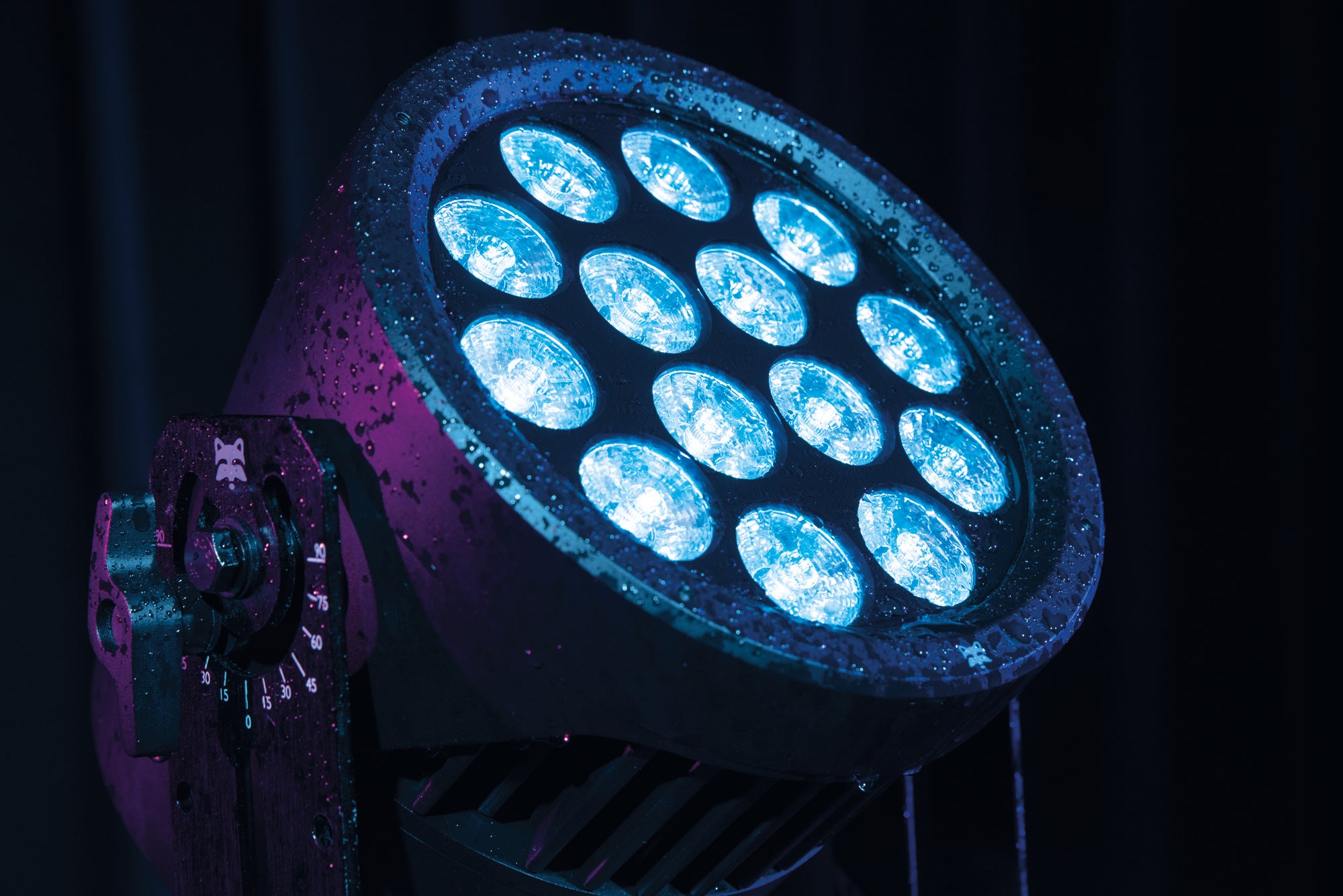

- IP rating: IP65
- Housing: Die-cast aluminium
- Colour: Black
- Maximum ambient temperature: 45 °C
- Minimum operating temperature: -20 °C

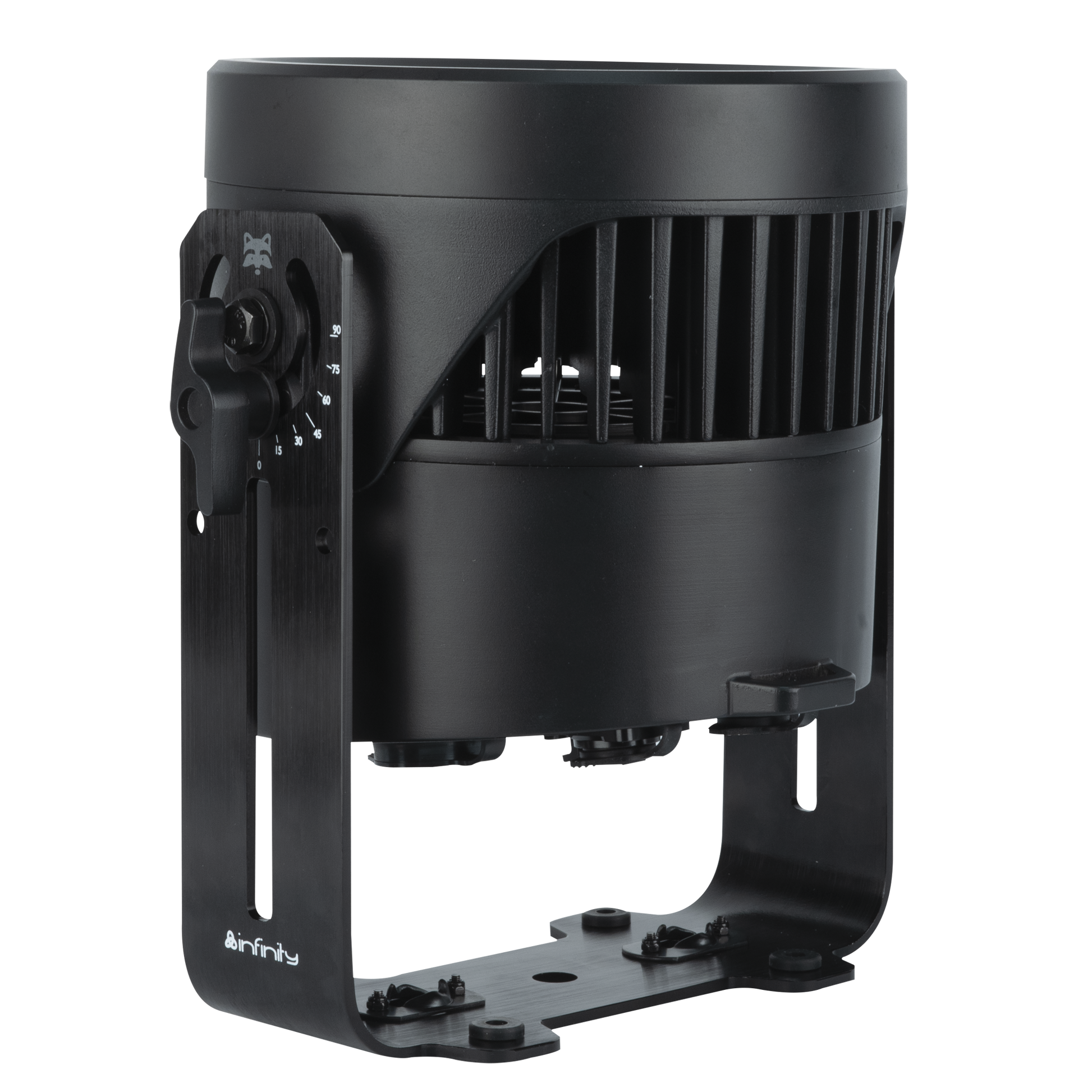

- Cooling: Convection

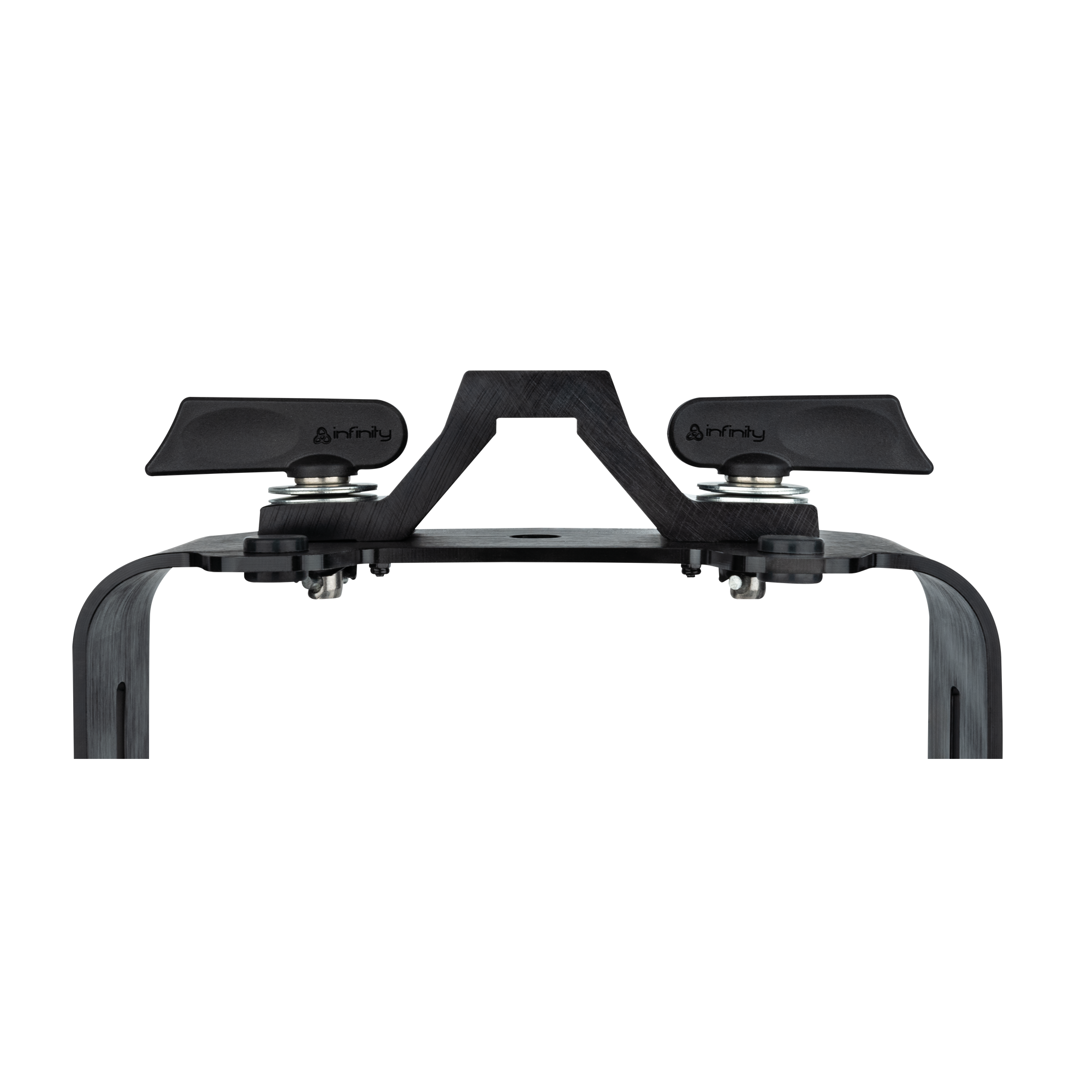

- Mounting options: Clamp / Quick-Lock
- Cables included: Power Pro True Cable

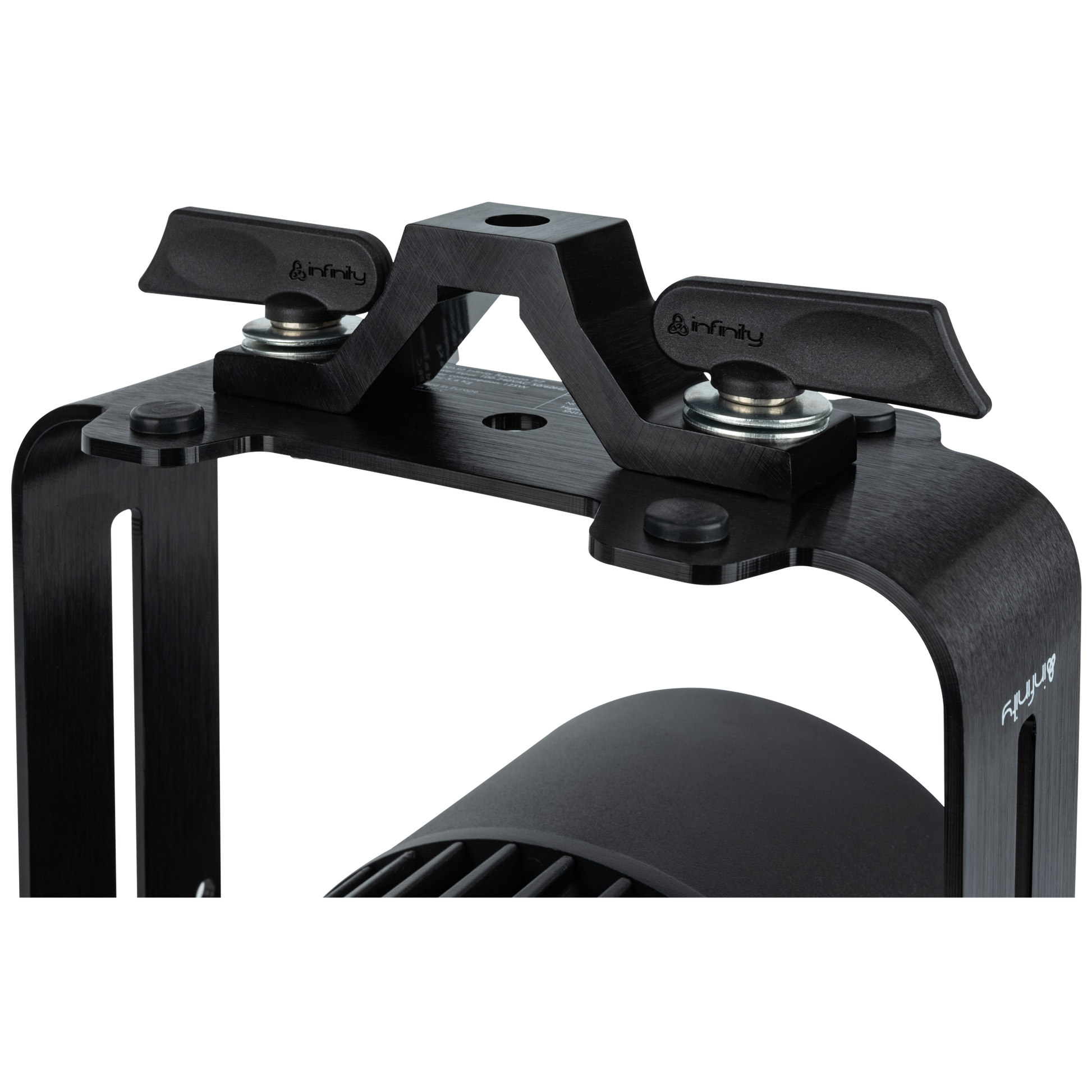

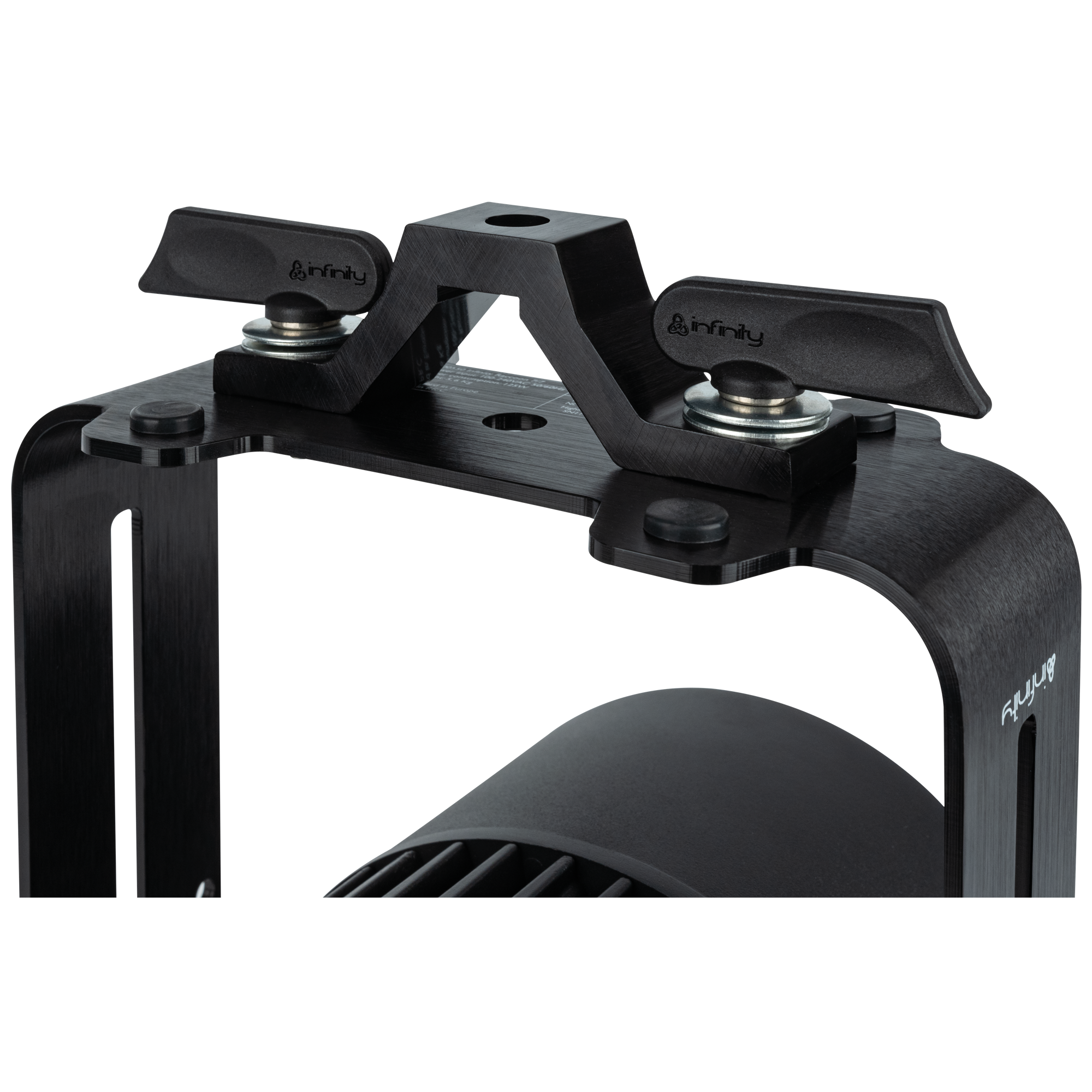

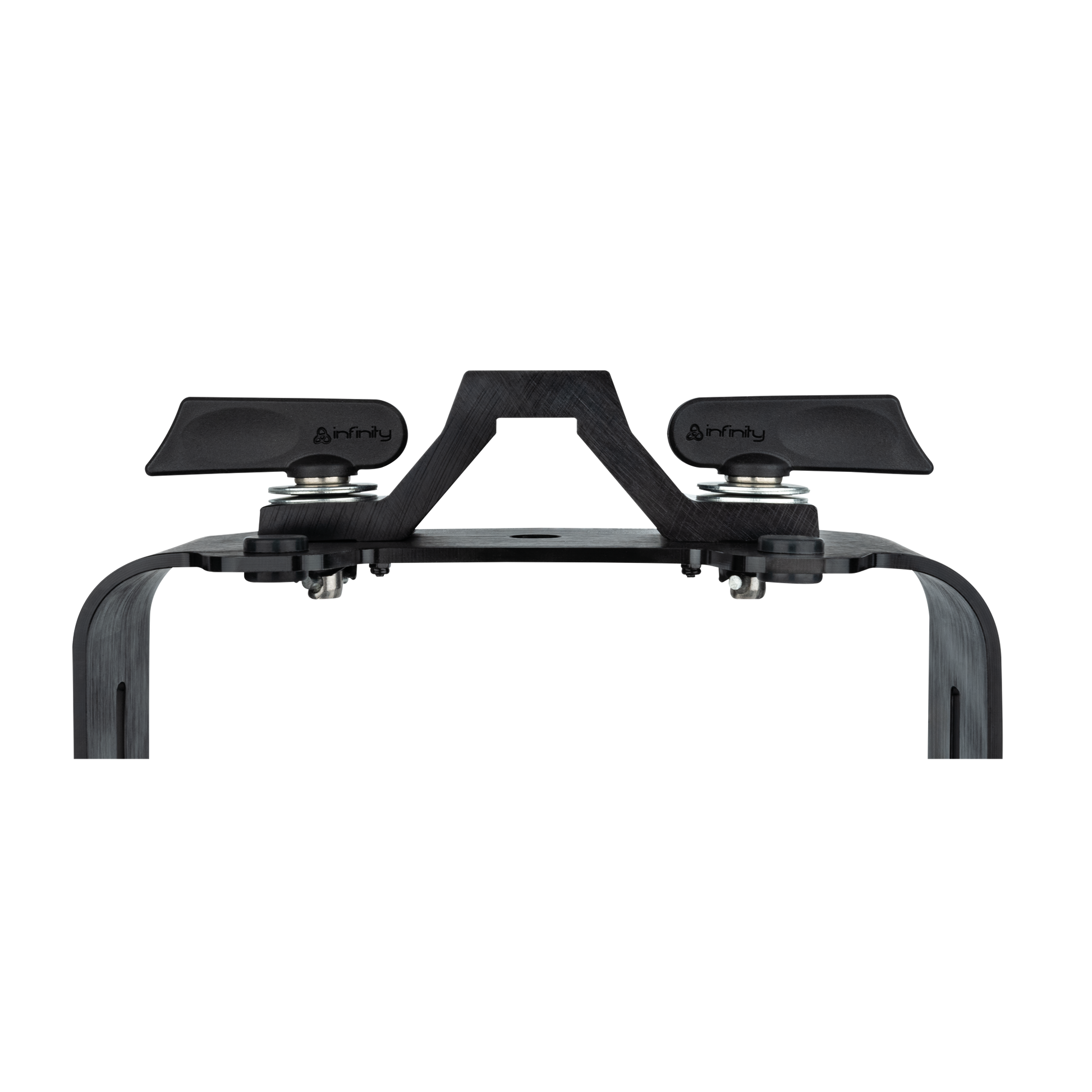

- Fixings included: Quick-release bracket
